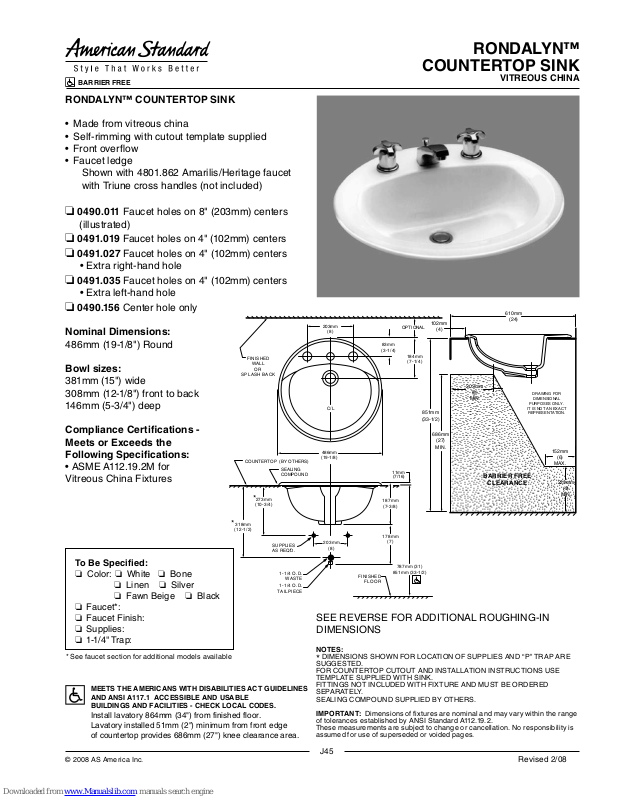

American Standard 0490.011, 0490.027, 0490.035, 0491.019, 0491.027 Specifications
...
J45
BARRIER FREE
© 2008 AS America Inc.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
Install lavatory 864mm (34") from finished floor.
Lavatory installed 51mm (2") minimum from front edge
of countertop provides 686mm (27") knee clearance area.
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P" TR AP ARE
SUGGESTED.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS USE
TEMPLATE SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range
of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
FIN ISHED
WAL L
OR
SPL ASH BA CK
486mm
(19-1/8)
184 mm
(7- 1/4)
83m m
(3- 1/4)
203mm
(8)
OPTIONAL
FIN ISHED
FLO OR
318 mm
(12 -1/2)
1-1 /4 O.D .
TAI LPIECE
1-1 /4 O.D .
WAS TE
203 mm
(8)
*
178 mm
(7)
273 mm
(10 -3/4)
*
COUNTERTOP (BY OTHERS)
187 mm
(7- 3/8)
11mm
(7/16)
SEALING
COMPOUND
SUPPLIES
AS REQ'D.
C/L
787mm (3 1)
851mm (3 3-1/2)
851mm
(33-1/2)
102mm
(4)
610mm
(24)
152mm
(6)
MAX.
BARRIE R FREE
CLEARA NCE
686mm
(27)
MIN.
203mm
(8)
MIN.
229mm
(9)
MIN.
DRAWING FOR
DIMENSIONAL
PURPOSES ONLY.
IT IS NOT AN EXACT
REPRESENTATION.
RONDALYN™
COUNTERTOP SINK
VITREOUS CHINA
RONDALYN™ COUNTERTOP SINK
• Made from vitreous china
• Self-rimming with cutout template supplied
• Front overow
• Faucet ledge
Shown with 4801.862 Amarilis/Heritage faucet
with Triune cross handles (not included)
❏ 0490.011 Faucet holes on 8" (203mm) centers
(illustrated)
❏ 0491.019 Faucet holes on 4" (102mm) centers
❏ 0491.027 Faucet holes on 4" (102mm) centers
• Extra right-hand hole
❏ 0491.035 Faucet holes on 4" (102mm) centers
• Extra left-hand hole
❏ 0490.156 Center hole only
Nominal Dimensions:
486mm (19-1/8") Round
Bowl sizes:
381mm (15") wide
308mm (12-1/8") front to back
146mm (5-3/4") deep
Compliance Certications Meets or Exceeds the
Following Specications:
• ASME A112.19.2M for
Vitreous China Fixtures
Revised 2/08
SEE REVERSE FOR ADDITIONAL ROUGHING-IN
DIMENSIONS
To Be Specied:
❏ Color: ❏ White ❏ Bone
❏ Linen ❏ Silver
❏ Fawn Beige ❏ Black
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
J46
BARRIER FREE
© 2008 AS America Inc.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
Install lavatory 864mm (34") from finished floor.
Lavatory installed 51mm (2") minimum from front edge
of countertop provides 686mm (27") knee clearance area.
FINI SHED
WALL
OR
SPLA SH BA CK
486mm
(19-1/8)
184m m
(7-1 /4)
83mm
(3-1 /4)
102mm
(4)
OPTIONAL
FINI SHED
FLOO R
318m m
(12- 1/2)
1-1/ 4 O.D .
TAIL PIECE
1-1/ 4 O.D .
WAST E
203m m
(8)
*
178m m
(7)
273m m
(10- 3/4)
*
COUNTERTOP (BY OTHERS)
187m m
(7-3 /8)
11mm
(7/16)
SEALING
COMPOUND
SUPPLIES
AS REQ'D.
C/L
787mm (31 )
851mm (33 -1/2)
851mm
(33-1/2)
102mm
(4)
610mm
(24)
152mm
(6)
MAX.
BARRIER FREE
CLEARAN CE
686mm
(27)
MIN.
203mm
(8)
MIN.
229mm
(9)
MIN.
102m m
(4)
114mm
(4-1/2)
DRAWING FOR
DIMENSIONAL
PURPOSES ONLY.
IT IS NOT AN EXACT
REPRESENTATION.
RONDALYN™
COUNTERTOP SINK
VITREOUS CHINA
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P" TR AP
ARE SUGGESTED.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS USE
TEMPLATE SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
0491.027 4" Ctrs Extra Right Hand Hole
0491.035 4" Ctrs Extra Left Hand Hole
FINI SHED
WALL OR
SPLA SH BA CK
486mm
(19-1/8)
184m m
(7-1 /4)
83mm
(3-1 /4)
102mm
(4)
OPTIONAL
FINI SHED
FLOO R
318m m
(12- 1/2)
1-1/ 4 O.D .
TAIL PIECE
1-1/ 4 O.D .
WAST E
203m m
(8)
*
178m m
(7)
273m m
(10- 3/4)
*
COUNTERTOP (BY OTHERS)
187m m
(7-3 /8)
11mm
(7/16)
SEALING
COMPOUND
SUPPLIES
AS REQ'D.
C/L
787mm (31 )
851mm (33 -1/2)
851mm
(33-1/2)
102mm
(4)
610mm
(24)
152mm
(6)
MAX.
BARRIER FREE
CLEARAN CE
686mm
(27)
MIN.
203mm
(8)
MIN.
229mm
(9)
MIN.
102m m
(4)
114mm
(4-1/2)
DRAWING FOR
DIMENSIONAL
PURPOSES ONLY.
IT IS NOT AN EXACT
REPRESENTATION.
Revised 2/08
