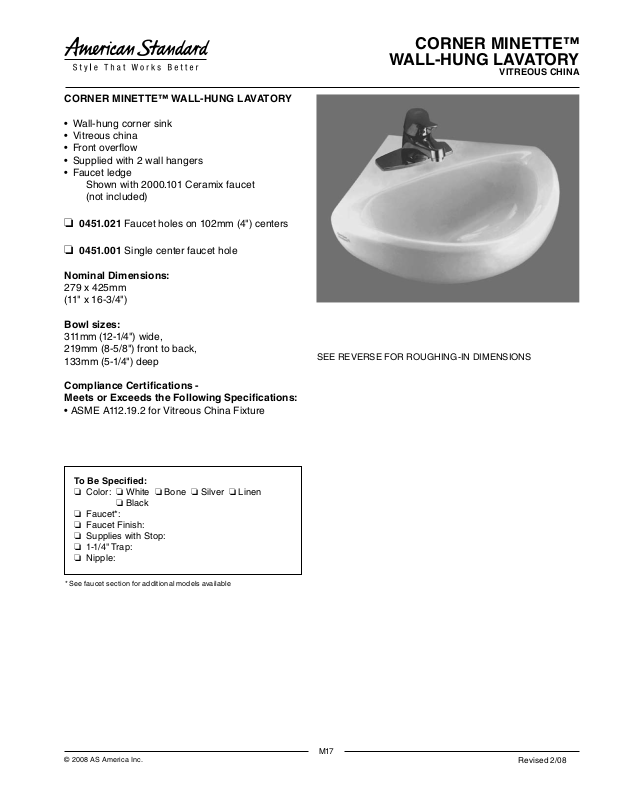

CORNER MINETTE™ WALL-HUNG LAVATORY
• Wall-hung corner sink
• Vitreous china
• Front overow
• Supplied with 2 wall hangers
• Faucet ledge
Shown with 2000.101 Ceramix faucet
(not included)
❏ 0451.021 Faucet holes on 102mm (4") centers
❏ 0451.001 Single center faucet hole
Nominal Dimensions:
279 x 425mm
(11" x 16-3/4")
Bowl sizes:
311mm (12-1/4") wide,
219mm (8-5/8") front to back,
133mm (5-1/4") deep
CORNER MINETTE™
WALL-HUNG LAVATORY
VITREOUS CHINA
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2 for Vitreous China Fixture
To Be Specied:
❏ Color: ❏ White ❏ Bone ❏ Silver ❏ Linen
❏ Black
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies with Stop:
❏ 1-1/4" Trap:
❏ Nipple:
* See faucet section for additional models available
© 2008 AS America Inc.
M17
Revised 2/08
FIN ISHED
FLO OR
SUPPLIES
AS REQ'D.
464 mm
(18 -1/4)
*
178 mm
(7- 1/2)
165 mm
(6- 1/2)
279 mm
(11 )
165 mm
(6- 1/2)
152 mm
(6)
127 mm
(5)
102 mm
(4)
127 mm
(5)
425 mm
(16 -3/4)
C/L OF C. W. SU PPLY
C/L OF WA STE
C/L OF HA NGER
FIN ISHED WALL
(2) 19mm(3 /8) D IA. AN CHOR SCR EW
HOL ES IN BACK DRAPER Y
HAN GER
260 mm
(10 -1/4)
*
178 mm
(7)
178 mm
(7)
787 mm
(31 )
108 mm
(4- 1/4)
1-1 /4 O.D WAST E
1-1 /4 O.D . TAI LPIECE
C/L OF HA NGER
C/L OF H. W. SU PPLY
FIN ISHED
FLO OR
SUPPLIES
AS REQ'D.
464 mm
(18 -1/4)
*
178 mm
(7- 1/2)
165 mm
(6- 1/2)
279 mm
(11 )
165 mm
(6- 1/2)
152 mm
(6)
127 mm
(5)
425 mm
(16 -3/4)
C/L OF C. W. SU PPLY
C/L OF WA STE
C/L OF HA NGER
FIN ISHED WALL
(2) 19mm(3 /8) D IA. AN CHOR SCR EW
HOL ES IN BACK DRAPER Y
HAN GER
260 mm
(10 -1/4)
*
178 mm
(7)
178 mm
(7)
787 mm
(31 )
108 mm
(4- 1/4)
1-1 /4 O.D WAST E
1-1 /4 O.D . TAI LPIECE
C/L OF HA NGER
C/L OF H. W. SU PPLY
0451.021 4" CENTER FAUCET HOLES
CORNER MINETTE™
WALL-HUNG LAVATORY
VITREOUS CHINA
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P” TRAP
*
ARE SUGGESTED.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of xtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibilit y is
assumed for use of superseded or voided pages.
0451.001 CENTER HOLE FAUCET
© 2008 AS America Inc.
M18
Revised 2/08
