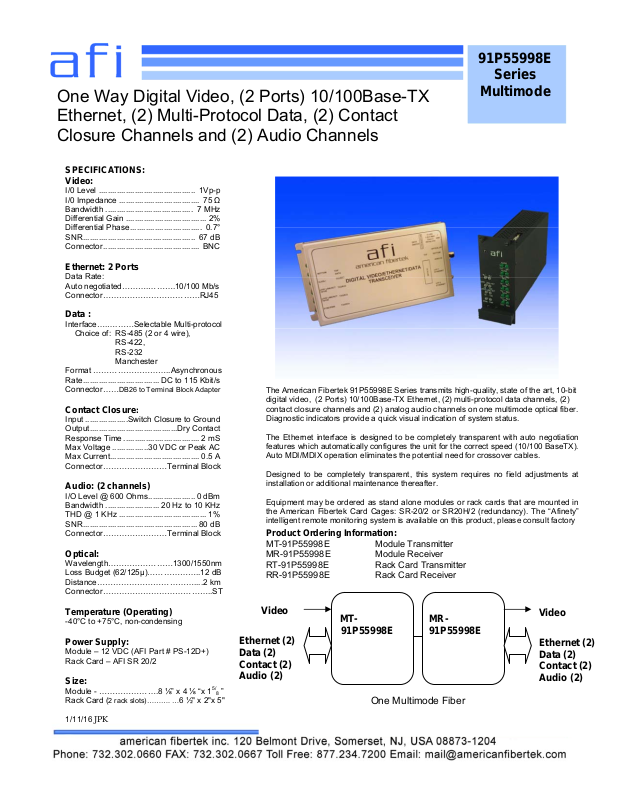

American Fibertek MT-91P55998E, MR-91P55998E, RT-91P55998E, RR-91P55998E Specsheet
One Way Digital Video, (2 Ports) 10/100Base-TX
Ethernet, (2) Multi-Protocol Data, (2) Contact
Closure Channels and (2) Audio Channels
SPECIFICATIONS:
Video:
I/0 Level ........................................... 1Vp-p
I/0 Impedance .................................... 75 Ω
Bandwidth ....................................... 7 MHz
Differential Gain .................................... 2%
Differential Phase................................ 0.7°
SNR.................................................. 67 dB
Connector........................................... BNC
Ethernet: 2 Ports
Data Rate:
Auto negotiated……….……….10/100 Mb/s
Connector………………………………RJ45
Data :
Interface….….……Selectable Multi-protocol
Choice of: RS-485 (2 or 4 wire),
RS-422,
RS-232
Manchester
Format ………………………..Asynchronous
Rate.................................. DC to 115 Kbit/s
Connector……
DB26 to Terminal Block Adapter
Contact Closure
Input ...................Switch Closure to Ground
Output.......................................Dry Contact
Response Time .................................. 2 mS
Max Voltage ................30 VDC or Peak AC
Max Current........................................ 0.5 A
Connector……………………Terminal Block
:
Audio: (2 channels)
I/O Level @ 600 Ohms..................... 0 dBm
Bandwidth ........................ 20 Hz to 10 KHz
THD @ 1 KHz ....................................... 1%
SNR................................................... 80 dB
Connector……………………Terminal Block
Optical:
Wavelength……………………1300/1550nm
Loss Budget (62/125µ)………………..12 dB
Distance………………………………....2 km
Connector…………………………………..ST
Temperature (Operating)
-40°C to +75°C, non-condensing
Power Supply:
Module – 12 VDC (AFI Part # PS-12D+)
Rack Card – AFI SR 20/2
Size:
Module - ………………….8 ⅛” x 4 ⅛ “x 1
Rack Card (
1/11/16 JPK
2 rack slots)………. …6 ½" x 2"x 5"
5/
”
8
The American Fibertek 91P55998E Series transmits high-quality, state of the art, 10-bit
digital video, (2 Ports) 10/100Base-TX Ethernet, (2) multi-protocol data channels, (2)
contact closure channels and (2) analog audio channels on one multimode optical fiber.
Diagnostic indicators provide a quick visual indication of system status.
The Ethernet interface is designed to be completely transparent with auto negotiation
features which automatically configures the unit for the correct speed (10/100 BaseTX).
Auto MDI/MDIX operation eliminates the potential need for crossover cables.
Designed to be completely transparent, this system requires no field adjustments at
installation or additional maintenance thereafter.
Equipment may be ordered as stand alone modules or rack cards that are mounted in
the American Fibertek Card Cages: SR-20/2 or SR20H/2 (redundancy). The “Afinety”
intelligent remote monitoring system is available on this product, please consult factory
Product Ordering Information:
MT-91P55998E Module Transmitter
MR-91P55998E Module Receiver
RT-91P55998E Rack Card Transmitter
RR-91P55998E Rack Card Receiver
Video
Ethernet (2)
MT-
91P55998E
Data (2)
Contact (2)
Audio (2)
One Multimode Fiber
MR 91P55998E
91P55998E
Series
Multimode
Video
Ethernet (2)
Data (2)
Contact (2)
Audio (2)
