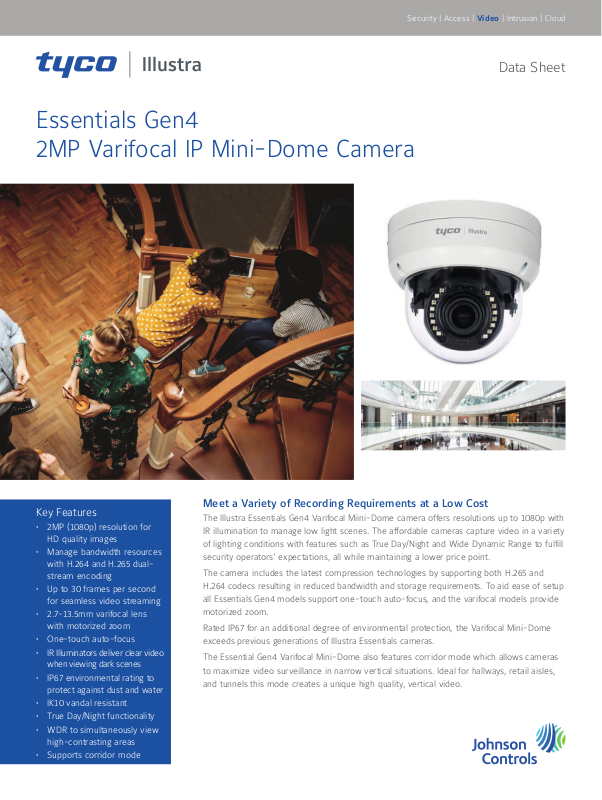

American Dynamics IES02-D12-OI04 Specsheet

Essentials Gen4
2MP Varifocal IP Mini-Dome Camera

Security | Access | Video | Intrusion | Cloud

Data Sheet

Key Features

• 2MP (1080p) resolution for
HD quality images

• Manage bandwidth resources
with H.264 and H.265 dual­stream encoding

• Up to 30 frames per second
for seamless video streaming

• 2.7-13.5mm varifocal lens
with motorized zoom

• One-touch auto-focus

• IR Illuminators deliver clear video
when viewing dark scenes

• IP67 environmental rating to
protect against dust and water

• IK10 vandal resistant

• True Day/Night functionality

• WDR to simultaneously view
high-contrasting areas

• Supports corridor mode

Meet a Variety of Recording Requirements at a Low Cost

The Illustra Essentials Gen4 Varifocal Miini-Dome camera offers resolutions up to 1080p with
IR illumination to manage low light scenes. The affordable cameras capture video in a variety
of lighting conditions with features such as True Day/Night and Wide Dynamic Range to fulfill
security operators’ expectations, all while maintaining a lower price point.

The camera includes the latest compression technologies by supporting both H.265 and
H.264 codecs resulting in reduced bandwidth and storage requirements. To aid ease of setup
all Essentials Gen4 models support one-touch auto-focus, and the varifocal models provide
motorized zoom.

Rated IP67 for an additional degree of environmental protection, the Varifocal Mini-Dome
exceeds previous generations of Illustra Essentials cameras.

The Essential Gen4 Varifocal Mini-Dome also features corridor mode which allows cameras
to maximize video surveillance in narrow vertical situations. Ideal for hallways, retail aisles,
and tunnels this mode creates a unique high quality, vertical video.

Record Video with Low Light Clarity

Poor low-light performance by megapixel cameras hampers some of the most important tasks security professionals need to perform.
Cameras that fail in low light clarity negatively impact both the necessary functions of security and cost of ownership.

The sensitive processor and sensor combination on the Essentials Gen4 2MP Varifocal Mini-Dome switches the camera automatically
between color and black and white mode in a feature known as True Day/Night. Regardless of the ambient illumination level, the
camera is able to maintain crystal clear images in low light scenarios.

Balance Images with Wide Dynamic Range

The difference in extreme lighting within a scene is known as dynamic range. Cameras with the Wide Dynamic Range functionality
have special software that allows them to balance foreground and background lighting for one clear image. This makes them ideal for
recording areas like store entrances where the contrast between the sunshine outside and the dim lighting inside can be extremely
difficult to record.

The Illustra Essentials 2MP Varifocal Mini-Dome camera takes advantage of the latest pixel-by-pixel dynamic range offered today.
Maintain facial details with whole scene clarity by working within the megapixel lens to enhance the precision of the images for a high­resolution HD solution that excels in an array of challenging lighting conditions.

Specifications

Operational

Resolution & Aspect Ratio 1920 x 1080 (1080p) 16:9
Max Frame Rate 30fps
Video Compression H.264, H.265, MJPEG
Video Streams Dual Stream with both streams at a maximum of 1080p @ 30ips
Imager 1/2.8”Sony CMOS
S/N Ratio More than 50dB
Image Orientation Settings Off, flip, mirror, both
Lens Type f2.7mm~13.5mm, Motorised Varifocal
Focus Control Remote On-Push Focus and Remote Manual Adjustment
Aperture F/1.7 (Wide) ~ F/2.8 (Telephoto)
Field of View (H/V)
Wide Angle
Telephoto

Shutter Speed

Minimum Illumination
Color
B/W
With IR
Day/Night True Day/Night with ICR
IR LEDS Yes
IR Distance 30m
Noise Reduction 3D
Wide Dynamic Range True WDR 120dB
ONVIF-Compliant Profile S/G/Q
Motion Detection Zones 3
Blur Detection Zones Yes
Privacy Zones 8
Image Rotation Corridor
Analog Video Output No
Audio No
Simultaneous Users 5

1/2~1/10,000s (Manual:default NTSC=1/30s, PAL=1/25s) /

(Shutter-priority:default NTSC=1/60s, PAL=1/50s)

0.08 Lux (50IRE) | 0.03 Lux (30IRE)

0.05 Lux (50IRE) | 0.02 Lux (30IRE)

100°/53°

34°/20°

0.0 Lux

Network

Ethernet Interface IEEE 802.3, 10/100 Base-T/TX, auto sensing, 1 x RJ45

TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, Unicast,

Supported Protocols

Multicast, NTP, SMTP, WSSecurity, IEEE 802.1x, PEAP, SSH, HTTPS, SSL, SOAP, WSAddressing, CIFS, SNMP, UPnP,

RTSP, LLDP

Configuration Management

Web Browser IE 11 or above, Firefox, Chrome, Safari, Microsoft Edge

IEEE 802.1X

Security

Digest authentication, IP address filtering

Onboard Storage

Card Support SDXC up to 256GB
Pre-Alarm Recording 1-10 sec
Recording Format AVI
Playback Via Web Browser
Recording Trigger Bur Detection, Motion Detection
VideoEdge TrickleStor No

Electrical

Power Input DC12V; PoE IEEE 802.3af Class 3
Maximum Power Draw 9.9W

Physical

Dimensions (WxH)

Weight 0.65kg (1.43 lbs)
Housing Color White RAL 9003
Operating Temperature

Storage Temperature -40°C to 55°C (-40°F to 131°F)
Humidity Desiccant pack provided
Vandal Resistant IK10
Outdoor Rating IP67

Regulatory

Safety UL 62368-1, IEC 62368-1, EN 62338-1, IEC 62471
Emissions FCC CFR 47, Part 15 Class A, EN 55032
Immunity EN 50130-4, EN 61000-3-2, EN 61000-3-3
Environment RoHS, Reach, WEEE
NDAA Compliant Yes

Cold Start Temperature: -200C to6

Operating Temperature: -300C to600C (-220F to 1400F)

HTTPS

Ø124mm x 113mm

(Ø4.88in x 4.45in)

00C (-40F to 1400F)

Ordering Information

Model Description

IES02-D12-OI04

Illustra Essentials Gen4 2MP Dome, 2.7-13.5mm, P67, IK10, Clear Bubble, White, True D/N with IR, True WDR, PoE/12VDC

Accessories

Model Description

IA-ADP-IS-E40 Pendant Cap Adapter Plate
