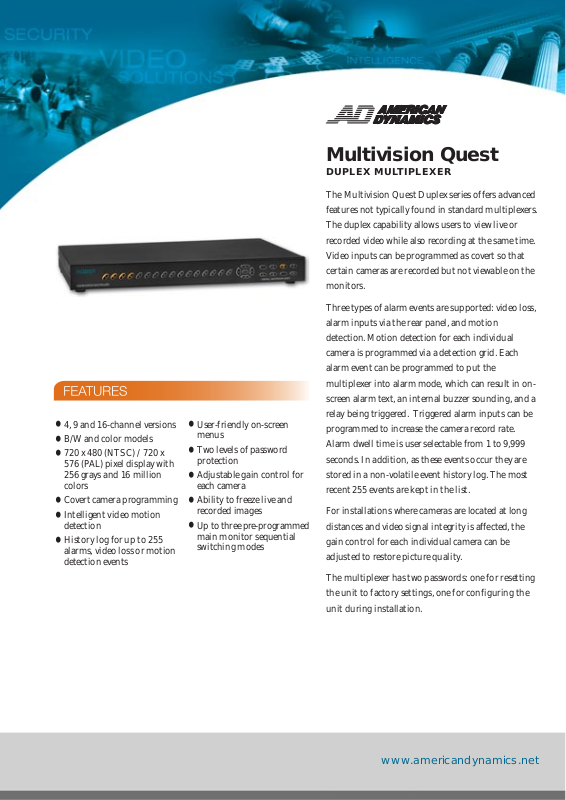

American Dynamics DMV99Q-1 Specsheet
www.americandynamics.net
The Multivision Quest Duplex series offers advanced
features not typically found in standard multiplexers.
The duplex capability allows users to view live or
recorded video while also recording at the same time.
Video inputs can be programmed as covert so that
certain cameras are recorded but not viewable on the
monitors.
Three types of alarm events are supported: video loss,
alarm inputs via the rear panel, and motion
detection. Motion detection for each individual
camera is programmed via a detection grid. Each
alarm event can be programmed to put the
multiplexer into alarm mode, which can result in onscreen alarm text, an internal buzzer sounding, and a
relay being triggered. Triggered alarm inputs can be
programmed to increase the camera record rate.
Alarm dwell time is user selectable from 1 to 9,999
seconds. In addition, as these events occur they are
stored in a non-volatile event history log. The most
recent 255 events are kept in the list.
For installations where cameras are located at long
distances and video signal integrity is affected, the
gain control for each individual camera can be
adjusted to restore picture quality.
The multiplexer has two passwords: one for resetting
the unit to factory settings, one for configuring the
unit during installation.
Multivision Quest
DUPLEX MULTIPLEXER
•
4, 9 and 16-channel versions
•
B/W and color models
•
720 x 480 (NTSC) / 720 x
576 (PAL) pixel display with
256 grays and 16 million
colors
•
Covert camera programming
•
Intelligent video motion
detection
•
History log for up to 255
alarms, video loss or motion
detection events
•
User-friendly on-screen
menus
•
Two levels of password
protection
•
Adjustable gain control for
each camera
•
Ability to freeze live and
recorded images
•
Up to three pre-programmed
main monitor sequential
switching modes
SPECIFICATIONS
Model Numbers
DMV14Q . . . . . . . . . Duplex, 4 channel, B/W multiplexer. 120VAC, NTSC
DMV19Q . . . . . . . . . Duplex, 9 channel, B/W multiplexer. 120VAC, NTSC
DMV16Q . . . . . . . . . Duplex, 16 channel, B/W multiplexer. 120VAC, NTSC
DMV94Q . . . . . . . . . Duplex, 4 channel, color multiplexer. 120VAC, NTSC
DMV99Q . . . . . . . . . Duplex, 9 channel, color multiplexer. 120VAC, NTSC
DMV96Q . . . . . . . . . Duplex, 16 channel, color multiplexer. 120VAC, NTSC
DMV14Q-1. . . . . . . . Duplex, 4 channel, B/W multiplexer. 230VAC, PAL
DMV19Q-1. . . . . . . . Duplex, 9 channel, B/W multiplexer. 230VAC, PAL
DMV16Q-1. . . . . . . . Duplex, 16 channel, B/W multiplexer. 230VAC, PAL
DMV94Q-1. . . . . . . . Duplex, 4 channel, color multiplexer. 230VAC, PAL
DMV99Q-1. . . . . . . . Duplex, 9 channel, color multiplexer. 230VAC, PAL
DMV96Q-1. . . . . . . . Duplex, 16 channel, color multiplexer. 230VAC, PAL
Accessories
MQRPNL . . . . . . . . . . . . . . . . . . Remote Panel, 60/50Hz
Operational
Video Inputs . . . . . . . . . . . . . . .4, 9 or 16 depending upon model
Video Resolution . . . . . . . . . . .720 x 480 display (NTSC)
720 x 576 display (PAL)
Display Formats . . . . . . . . . . . . 1, 4, and 9 windows (9 Channel)
1, 4, 9, and 16 windows (16 Channel)
Gain Control . . . . . . . . . . . . . . . 1 to 16 (70 to 150%)
Motion Detection Grid . . . . . .192 points,16 horizontal x 12 vertical
Motion Detection Settings . .Adjustable sensitivity
Event History Log . . . . . . . . . . 255 alarm contact, video loss or motion
detection events
Alarm Duration . . . . . . . . . . . .Programmable 1 to 9,999 seconds
Video Inputs/Outputs
Video Inputs . . . . . . . . . . . . . . .4, 9 or 16 looping composite,
1Vp-p, selectable 75 Ω or High-Z, BNC
VCR Input . . . . . . . . . . . . . . . . .Composite, 1Vp-p, 75 Ω, BNC
S-Video, 1Vp-p, 75 Ω, 4-pin mini-DIN
VCR Output . . . . . . . . . . . . . . . . Composite, 1Vp-p, 75 Ω, BNC
S-Video, 1Vp-p, 75 Ω, 4-pin mini-DIN
Main Monitor Output . . . . . .Composite, 1Vp-p, 75 Ω, BNC
S-Video, 1Vp-p, 75 Ω, 4-pin mini-DIN
Call Monitor Output . . . . . . . . Composite, 1Vp-p, 75 Ω, BNC
Connectors
Alarm Input . . . . . . . . . . . . . . . . 4, 9 or 16, one per camera, programmable as
normally open or normally closed
Common Alarm Output . . . . . One normally open or closed form C relay,
0.5A/120VAC or 2.0A/24VDC
VCR Trigger . . . . . . . . . . . . . . . .One, TTL input
Set Alarm . . . . . . . . . . . . . . . . . . One, contact closure or TTL/CMOS input
Reset Alarm . . . . . . . . . . . . . . . . One, contact closure or TTL/CMOS input
RS-485 . . . . . . . . . . . . . . . . . . . . . Two, RJ11 ports
Remote Panel . . . . . . . . . . . . . . . One, RJ45 port
Electrical
Input Voltage . . . . . . . . . . . . . . . Regulated, 12VDC ± 10%
Power . . . . . . . . . . . . . . . . . . . . . . 16 Watts
Power Supply . . . . . . . . . . . . . . . 12VDC ± 10%, 2 A, 2.1 mm pin-jack, positive
center conductor
Mechanical
Dimensions (H x W x D) . . . . 44 x 432 x 270 mm
(1.7 x 17.0 x 10.6 in.)
Unit Weight . . . . . . . . . . . . . . . . 3.2 kg (7.0 lbs)
Shipping Weight . . . . . . . . . . . . 5.0 kg (11.0 lbs)
Color . . . . . . . . . . . . . . . . . . . . . . Black
Rack Mounting Kit . . . . . . . . . Two L-shaped brackets 1U rack height
(included)
Environmental
Operating Temperature . . . . . 5° to 40°C (41° to 104°F)
Storage Temperature . . . . . . . . -20° to 70°C (-4° to 158°F)
Humidity . . . . . . . . . . . . . . . . . . 10%-90% RH, non condensing
Regulatory
Emissions . . . . . . . . . . . . . . . . . . FCC Part 15, Subpart B, Class A
EN55022, 1998 Class A
Immunity . . . . . . . . . . . . . . . . . . EN50082-1 1997
CISPR 22: 1997, Class A
Safety . . . . . . . . . . . . . . . . . . . . . .UL and CUL 1950
EN60950
AMERICAN DYNAMICS MULTIVISION QUEST DUPLEX MULTIPLEXER
VS237-02 01/03 A4
©2003 Sensormatic Electronics Corporation
Product specifications and availability subject to
change without notice.
Certain product names mentioned herein may be trade
names and/or registered trademarks of other companies.
