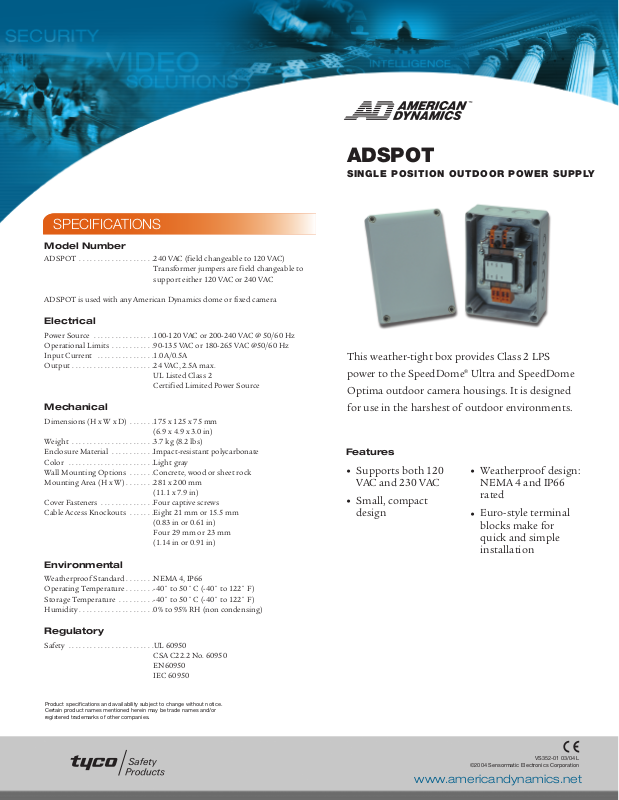

American Dynamics ADSPOT User Manual

SPECIFICATIONS

Model Number

ADSPOT . . . . . . . . . . . . . . . . . . . . .240 VAC (field changeable to 120 VAC)

Transformer jumpers are field changeable to support either 120 VAC or 240 VAC

ADSPOT is used with any American Dynamics dome or fixed camera

Electrical

Power Source . . . . . . . . . . . . . . . . .100-120 VAC or 200-240 VAC @ 50/60 Hz

Operational Limits . . . . . . . . . . . .90-135 VAC or 180-265 VAC @50/60 Hz

Input Current . . . . . . . . . . . . . . . .1.0A/0.5A

Output . . . . . . . . . . . . . . . . . . . . . . .24 VAC, 2.5A max.

UL Listed Class 2 Certified Limited Power Source

Mechanical

Dimensions (H x W x D) . . . . . . .175 x 125 x 75 mm

(6.9 x 4.9 x 3.0 in)

Weight . . . . . . . . . . . . . . . . . . . . . . .3.7 kg (8.2 lbs)

Enclosure Material . . . . . . . . . . . .Impact-resistant polycarbonate

Color . . . . . . . . . . . . . . . . . . . . . . . .Light gray

Wall Mounting Options . . . . . . .Concrete, wood or sheet rock

Mounting Area (H x W) . . . . . . . .281 x 200 mm

(11.1 x 7.9 in)

Cover Fasteners . . . . . . . . . . . . . . .Four captive screws

Cable Access Knockouts . . . . . . .Eight 21 mm or 15.5 mm

(0.83 in or 0.61 in)

Four 29 mm or 23 mm

(1.14 in or 0.91 in)

Environmental

Weatherproof Standard . . . . . . . .NEMA 4, IP66

Operating Temperature . . . . . . . .-40˚ to 50˚ C (-40˚ to 122˚ F)

Storage Temperature . . . . . . . . . .-40˚ to 50˚ C (-40˚ to 122˚ F)

Humidity . . . . . . . . . . . . . . . . . . . . .0% to 95% RH (non condensing)

ADSPOT

SINGLE POSITION OUTDOOR POWER SUPPLY

This weather-tight box provides Class 2 LPS

power to the SpeedDome Optima outdoor camera housings. It is designed for use in the harshest of outdoor environments.

Features

Supports both 120

•

VAC and 230 VAC Small, compact

•

design

Ultra and SpeedDome

Weatherproof design:

•

NEMA 4 and IP66 rated

Euro-style terminal

•

blocks make for quick and simple installation

Regulatory

Safety . . . . . . . . . . . . . . . . . . . . . . . .UL 60950

Product specifications and availability subject to change without notice. Certain product names mentioned herein may be trade names and/or registered trademarks of other companies.

CSA C22.2 No. 60950

EN60950

IEC 60950

VS352-01 03/04 L
