American Dynamics ADCI600F-X002, ADCI800F-X002 Quick User Guide
Illustra Flex Series
1MP & 3MP Box
User Guide
8200-1027-03 B0
Notice
Please read this manual thoroughly and save it for f uture us e before attempting to connect or operate this unit.
The information in this manual was current when published. The manufacturer reserves the right to revise and
improve its products. All specifications are therefore subject to change without notice.
Copyright
Under copyright laws, the contents of this manual may not be copied, photocopied, reproduced, translated or
reduced to any electronic medium or machine-readable form, in whole or in part, without prior written consent of
Tyco Security Products. © 2013 Tyco Security Products. All rights reserved.
American Dynamics
6600 Congress Avenue
Boca Raton, FL 33487 U.S.A.
Illustra Flex 1MP & 3MP Box Camera
Customer Servi ce
Thank you for using American Dynamics products. We support our products through an extensive worldwide
network of dealers. The dealer through whom you originally purchased this product is your point of contact if you
need service or support. Our dealers are empowered to provide the very best in customer service and support.
Dealers should contact American Dynamics at (800) 507-6268 or (561) 912-6259 or on the Web at
www.americandynamics.net.
Trademarks
The trademarks, logos, and service marks displayed on this document are registered in the United States [or
other countries]. Any misuse of the trademarks is strictly prohibited and Tyco Security Products. will
aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal
prosecution wherever necessary. All trademarks not owned by Tyco Security Products. are the property of their
respective owners, and are used with permission or allowed under applicable laws.
Product offerings and specifications are subject to change without notice. Actual products may vary from photos.
Not all products include all features. Availability varies by region; contact your sales representative.
2
Illustra Flex 1MP & 3MP Box Camera
Table of Content
WARNING ....................................................................................................................................................... 4
Preface ............................................................................................................................................................ 5
1. Product Overview ................................................................................................................................... 6
1.1 Physical Characteristic s ...................................................................................................................... 6
2. Installation and Connection ............................................................................................................... 8
2.1 Unpack Everything .............................................................................................................................. 8
2.2 Installation ........................................................................................................................................... 8
2.2.1 Checking Appearance ............................................................................................................. 8
2.2.2 Connecting the Wires .............................................................................................................. 8
2.2.3 Mounting the camera............................................................................................................... 9
2.2.4 Network Topology .................................................................................................................. 10
2.2.5 System Requirements ............................................................................................................ 11
2.3 Connection ........................................................................................................................................ 12
2.3.1 Default IP address ................................................................................................................. 12
2.3.2 Connecting from a computer & Viewing Preparation ............................................................ 12
2.4 Using the illustra Connect Tool to Manage Cameras ........................................................................ 15
3. Administration and Confi g ur ati on .................................................................................................. 16

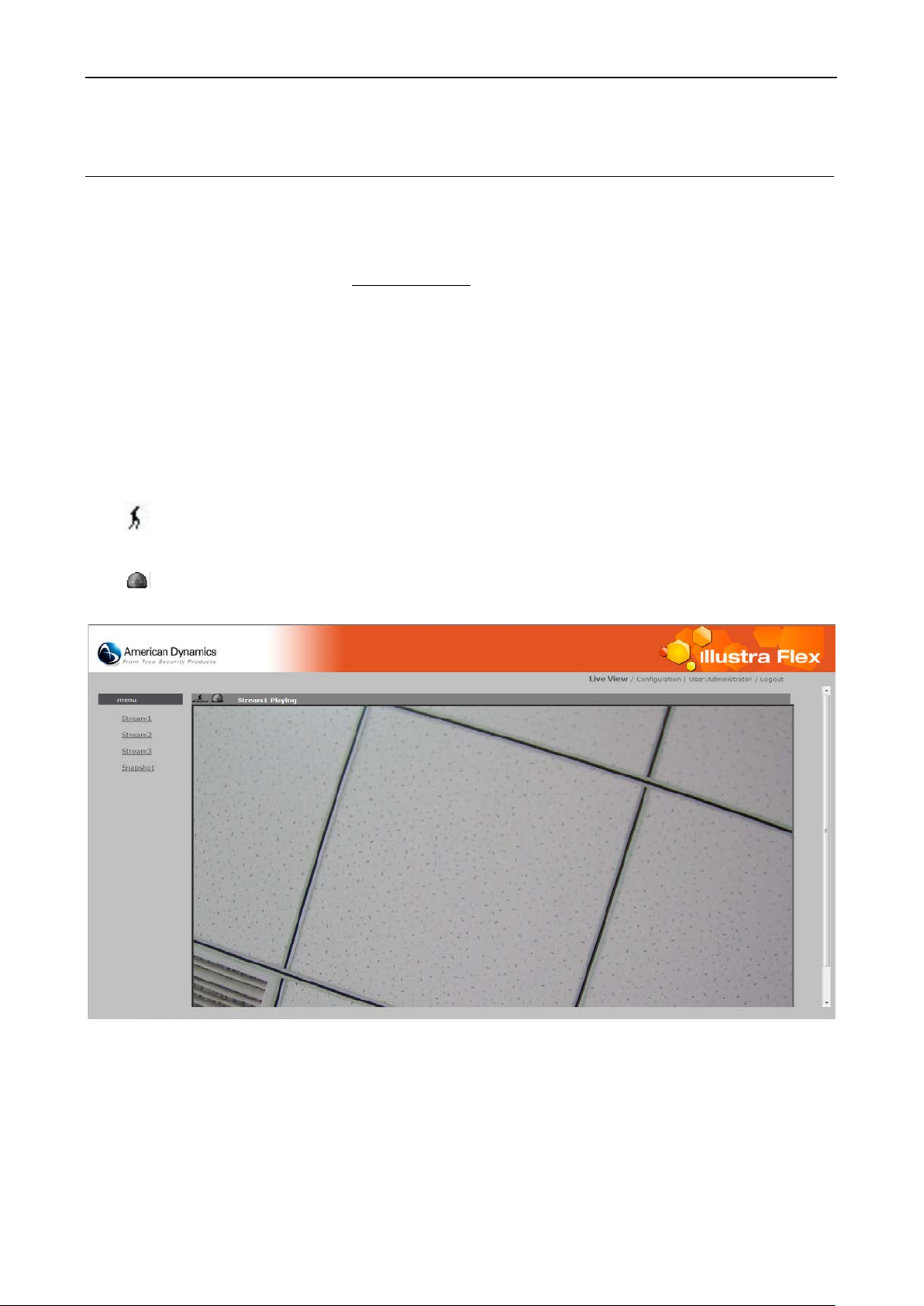

3.1 Live View ........................................................................................................................................... 16
3.2 Configuration ..................................................................................................................................... 17

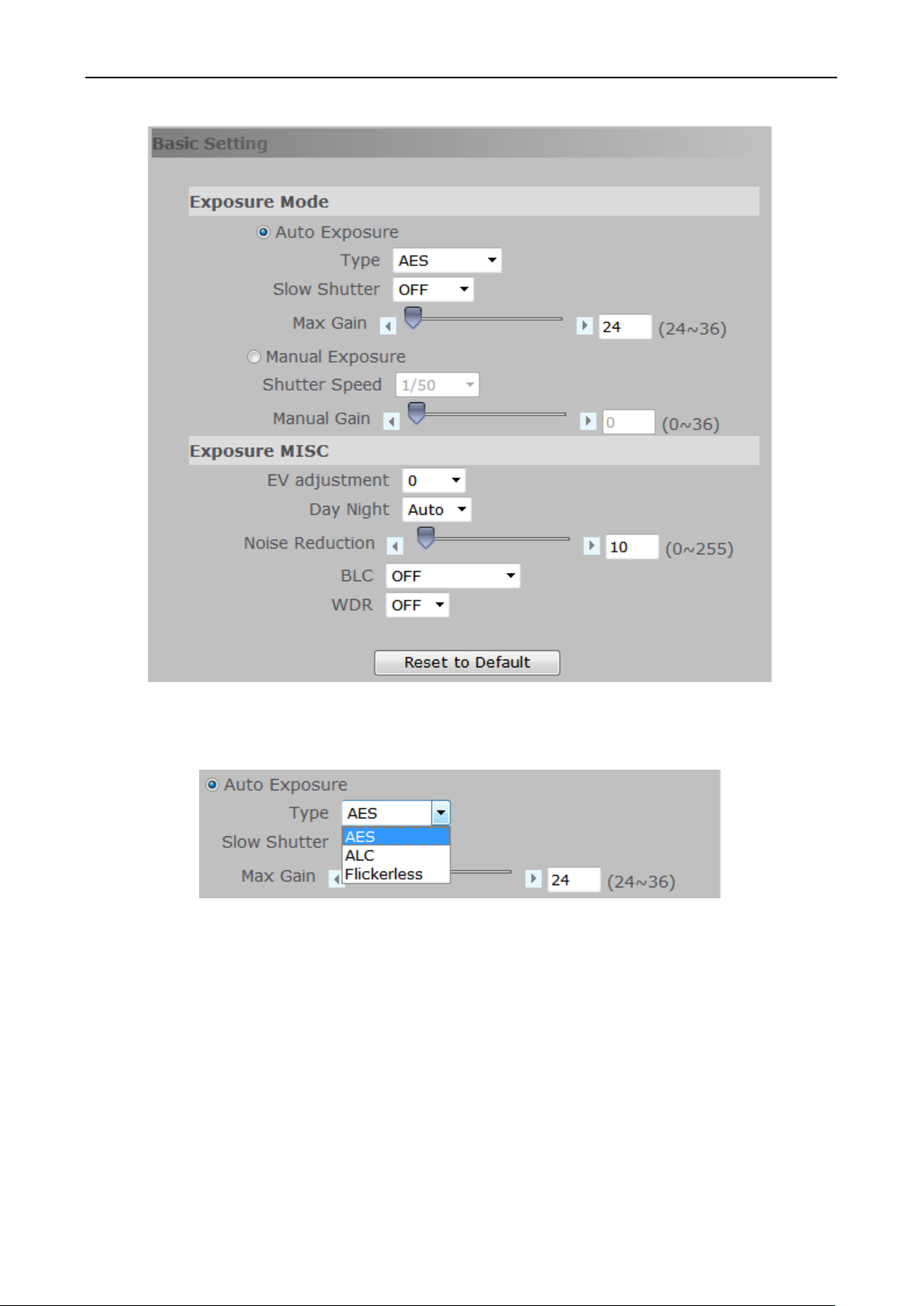

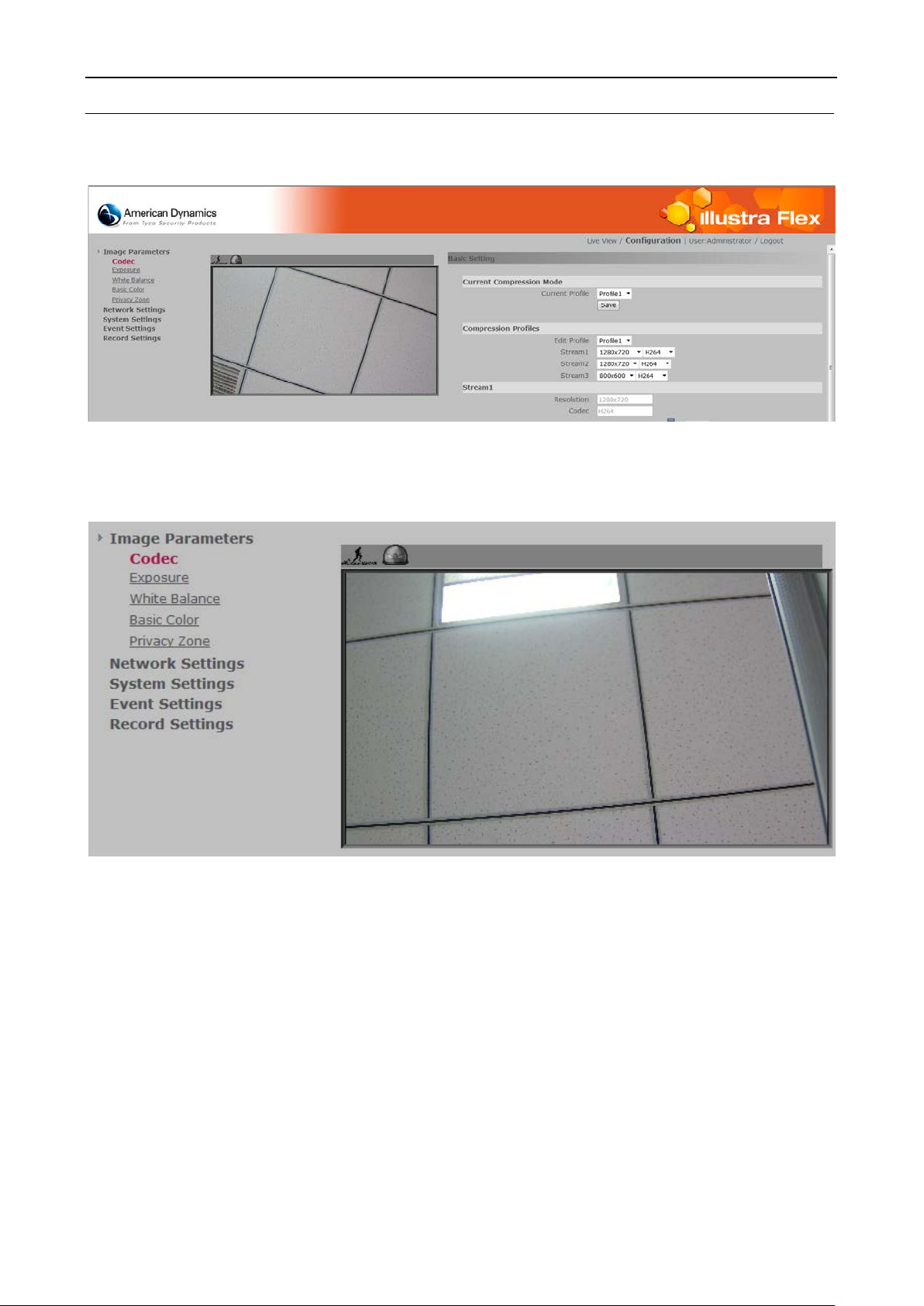

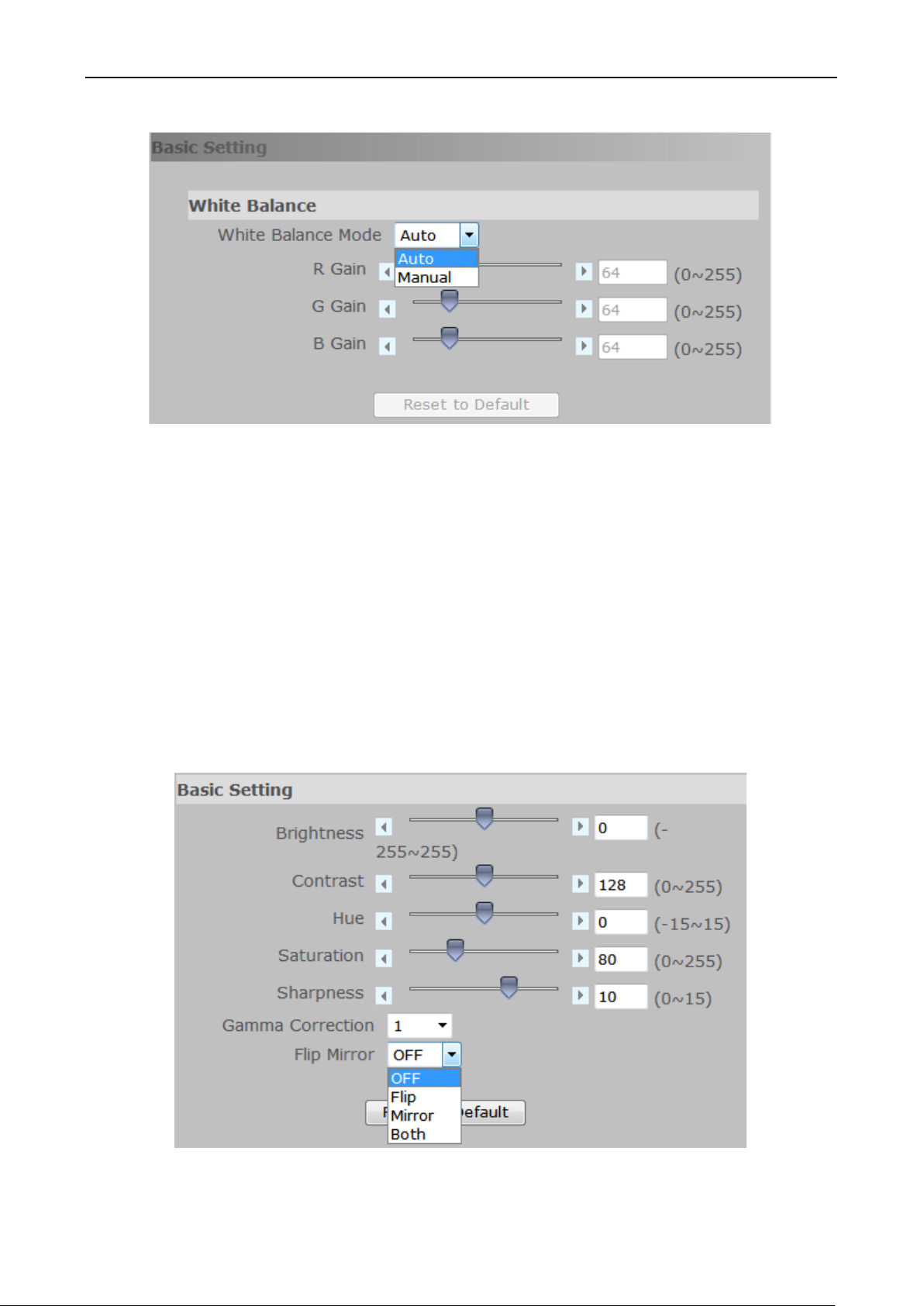

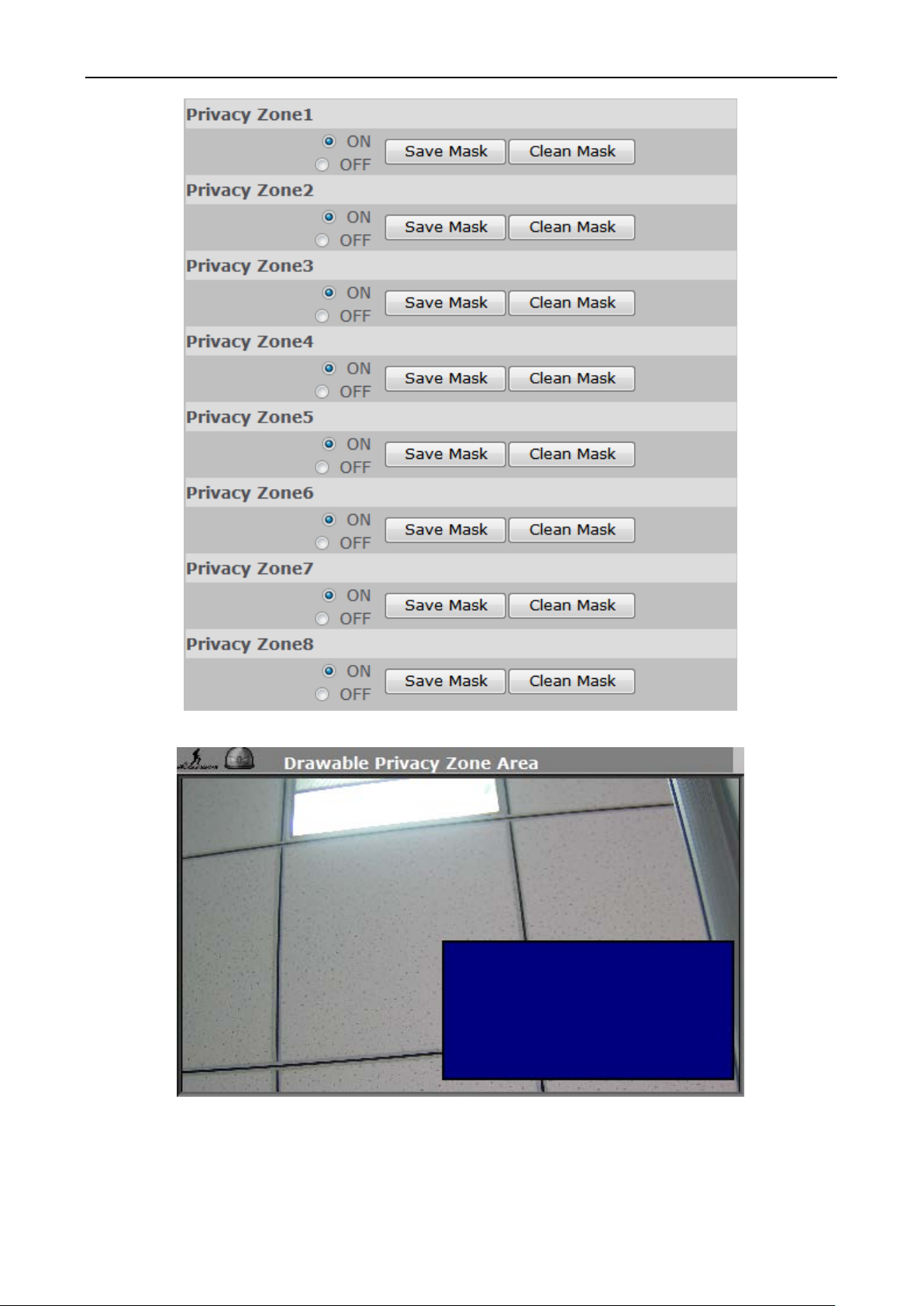

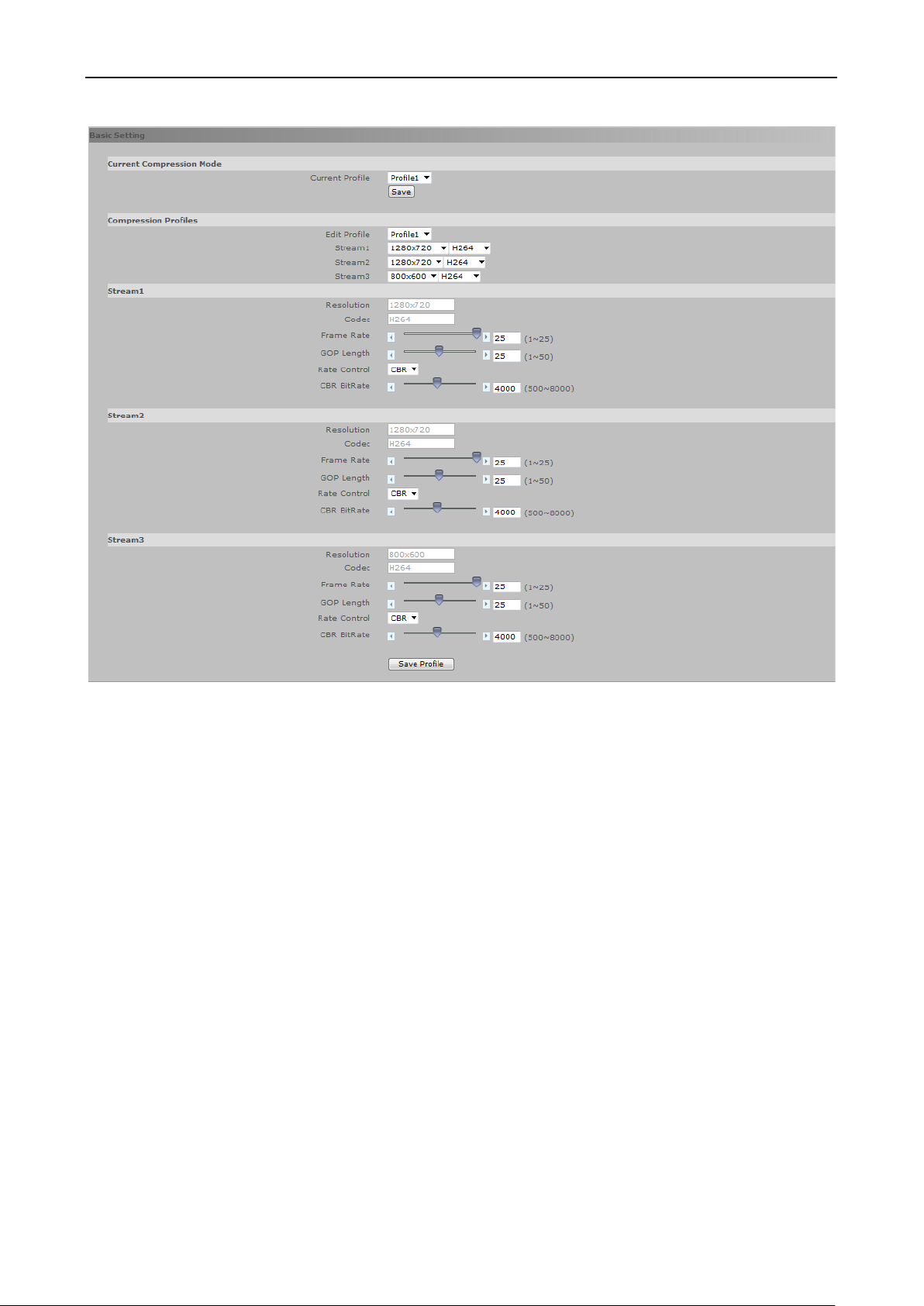

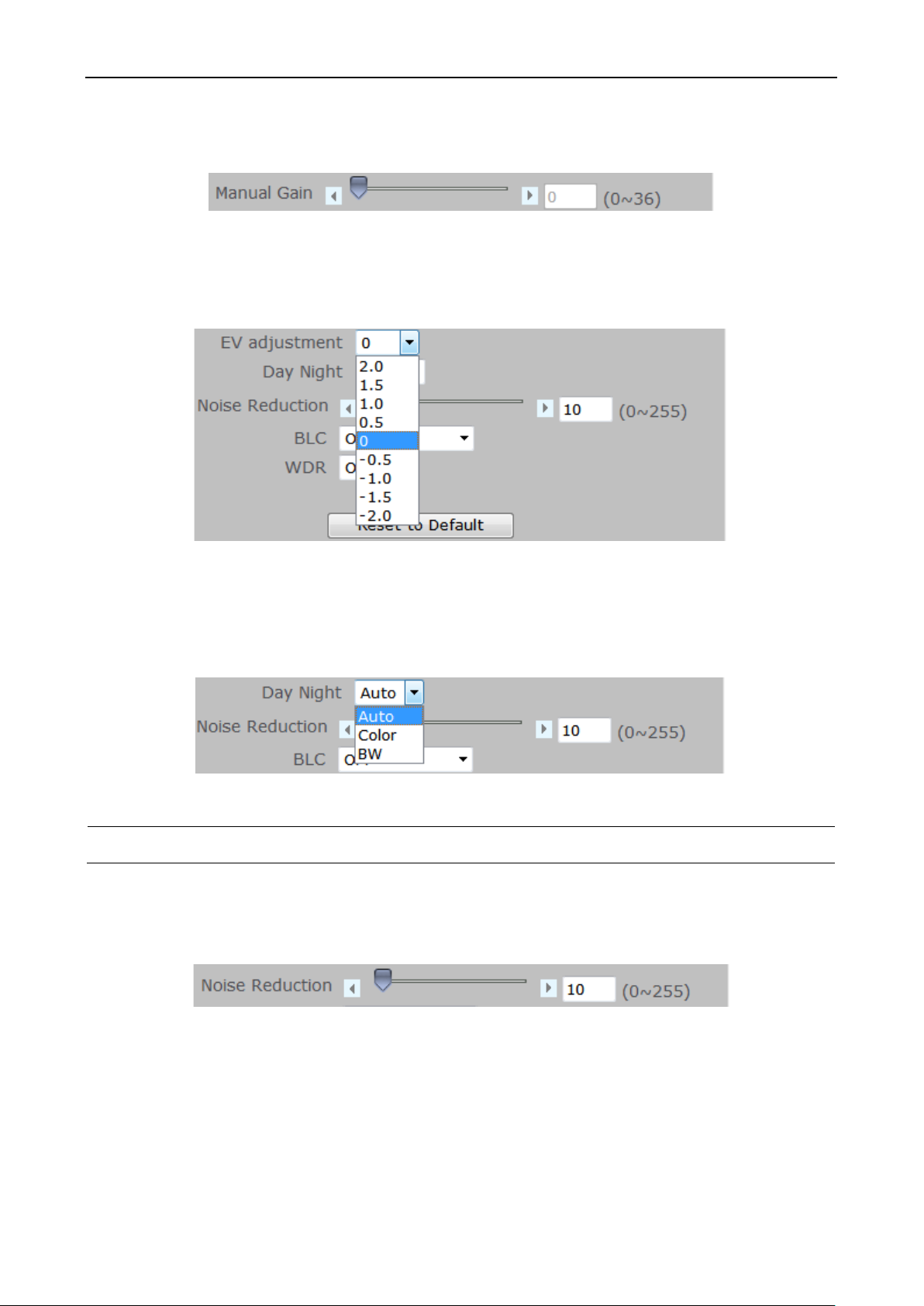

3.2.1 Image Parameters ................................................................................................................. 17

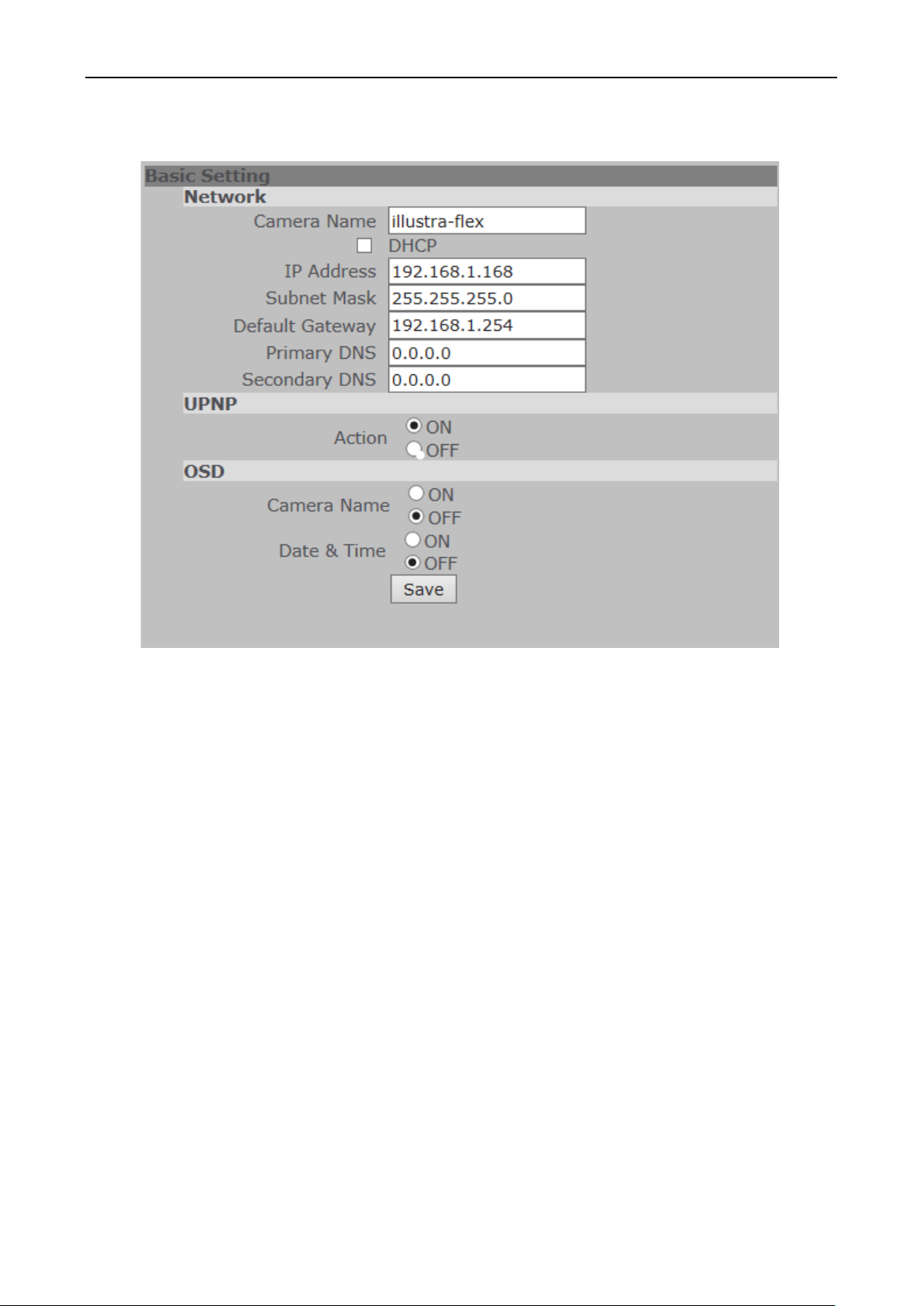

3.2.2 Network Settings ................................................................................................................... 32

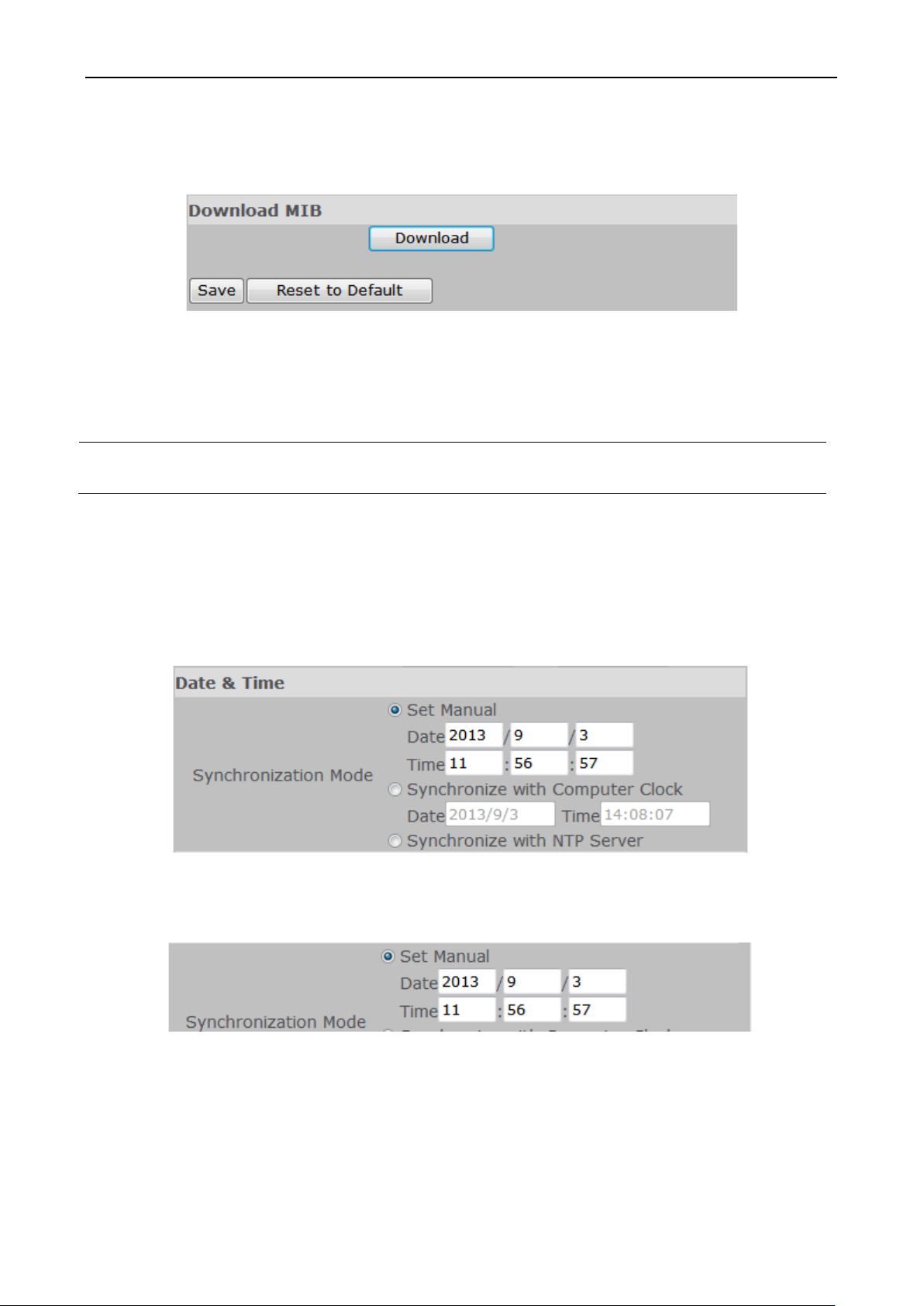

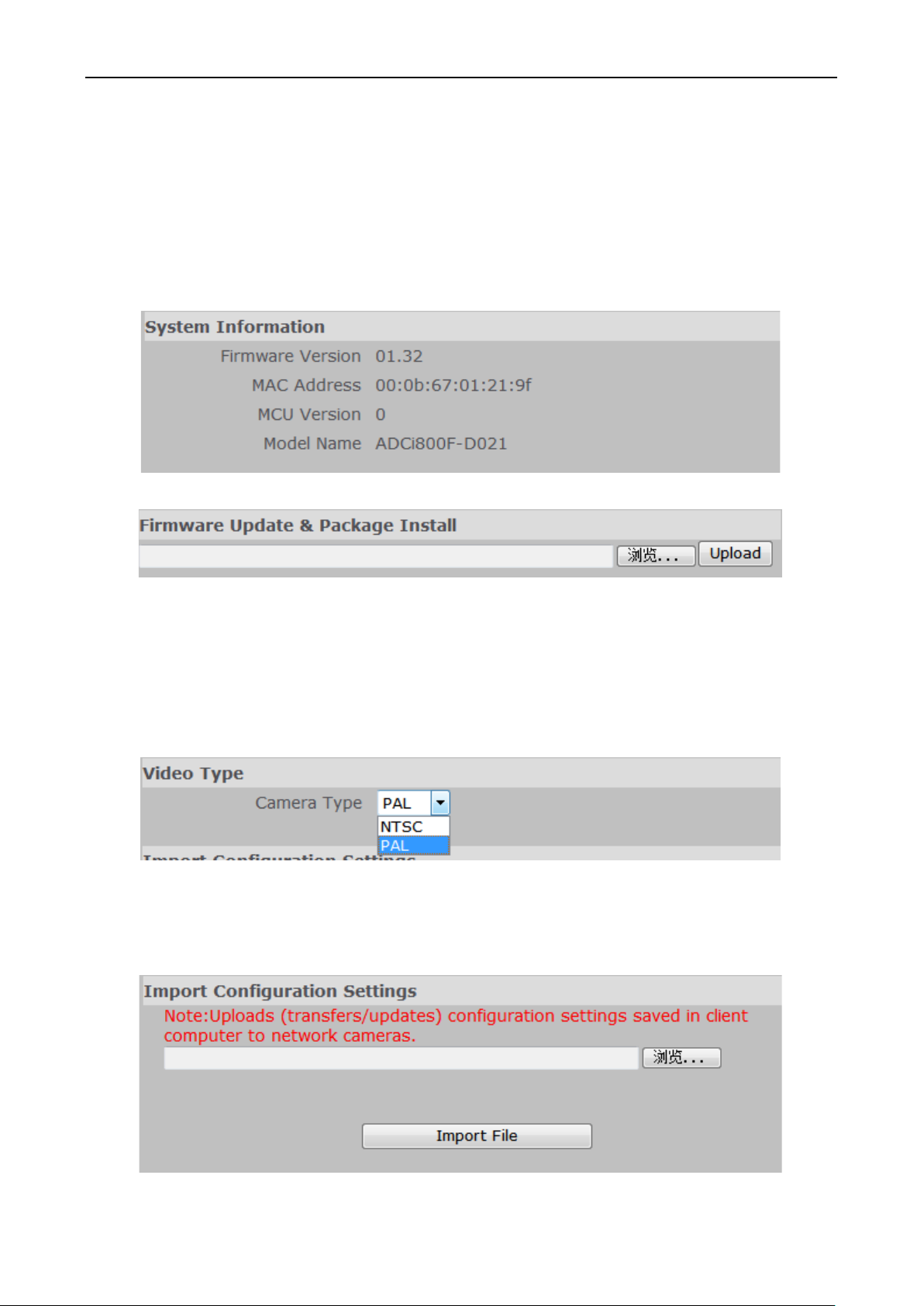

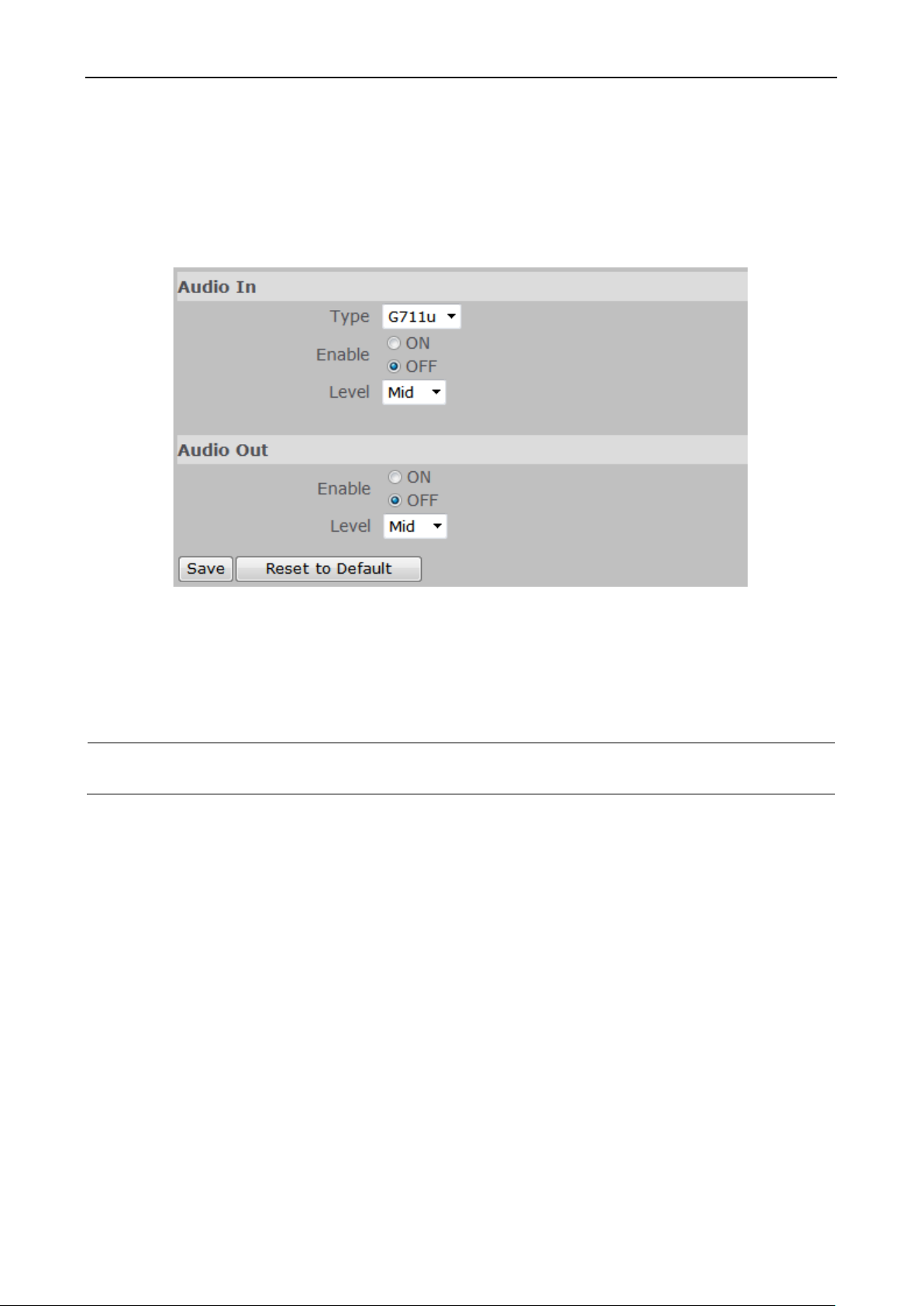

3.2.3 System Settings .................................................................................................................... 36

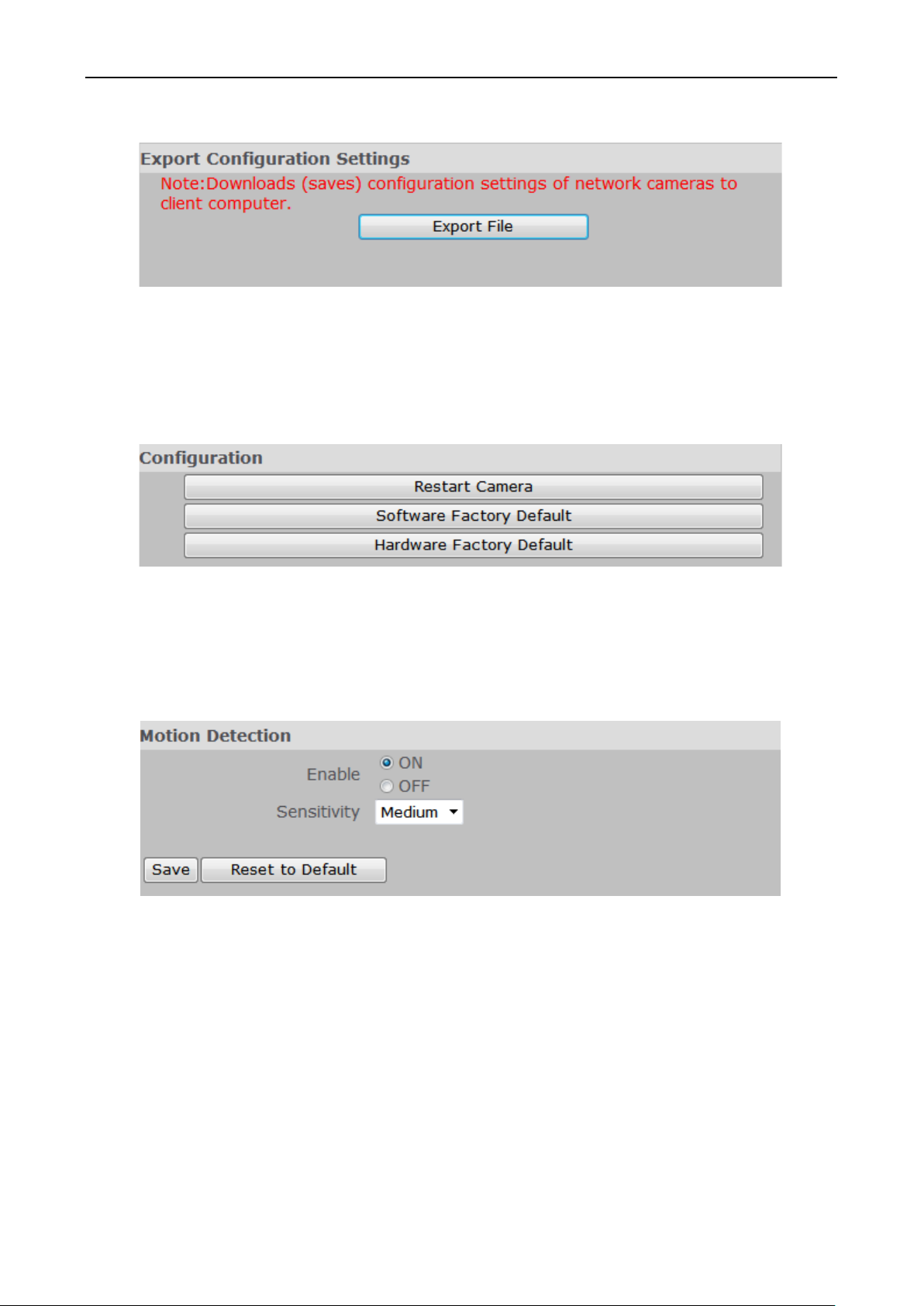

3.2.4 Event Settings ....................................................................................................................... 41

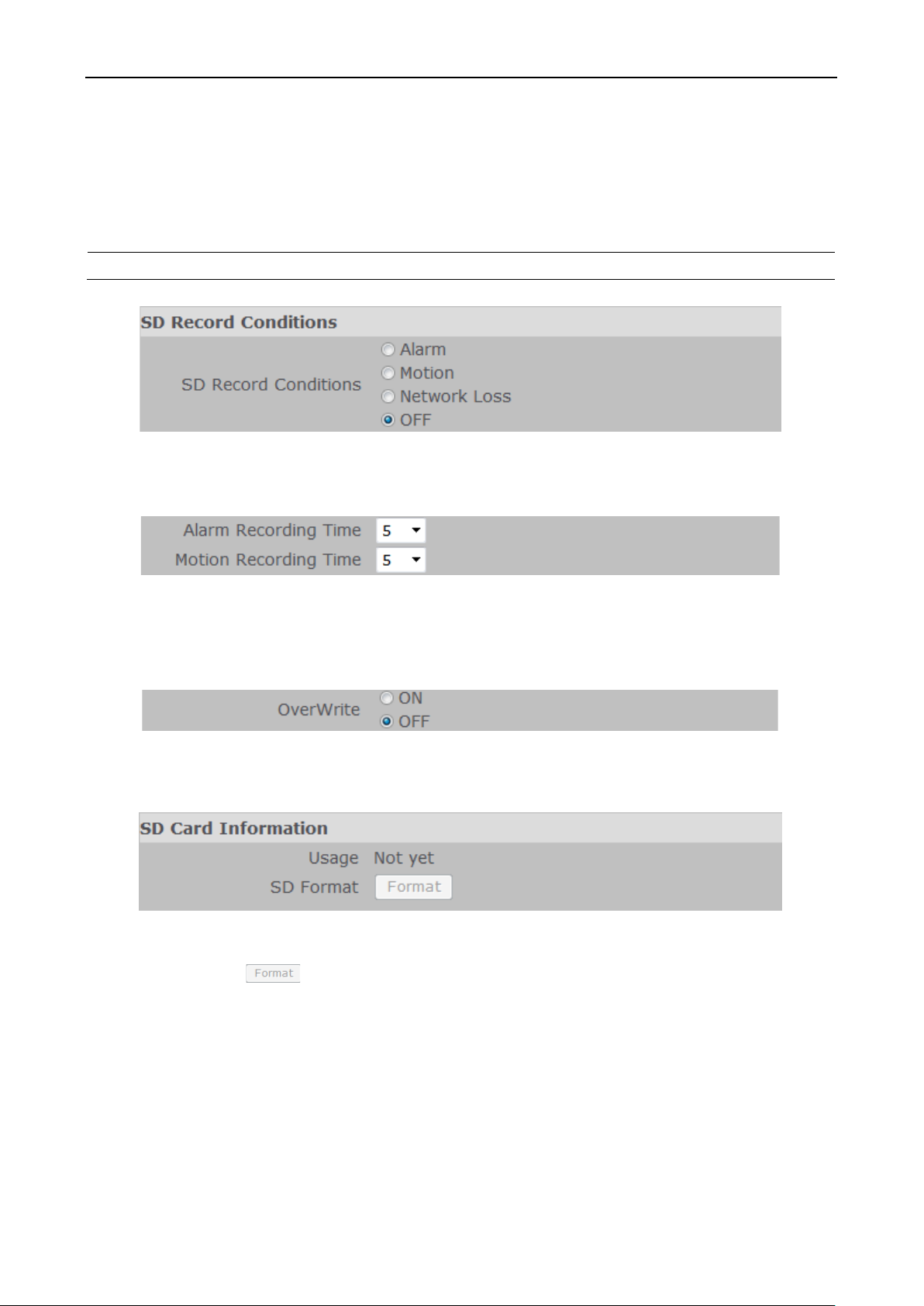

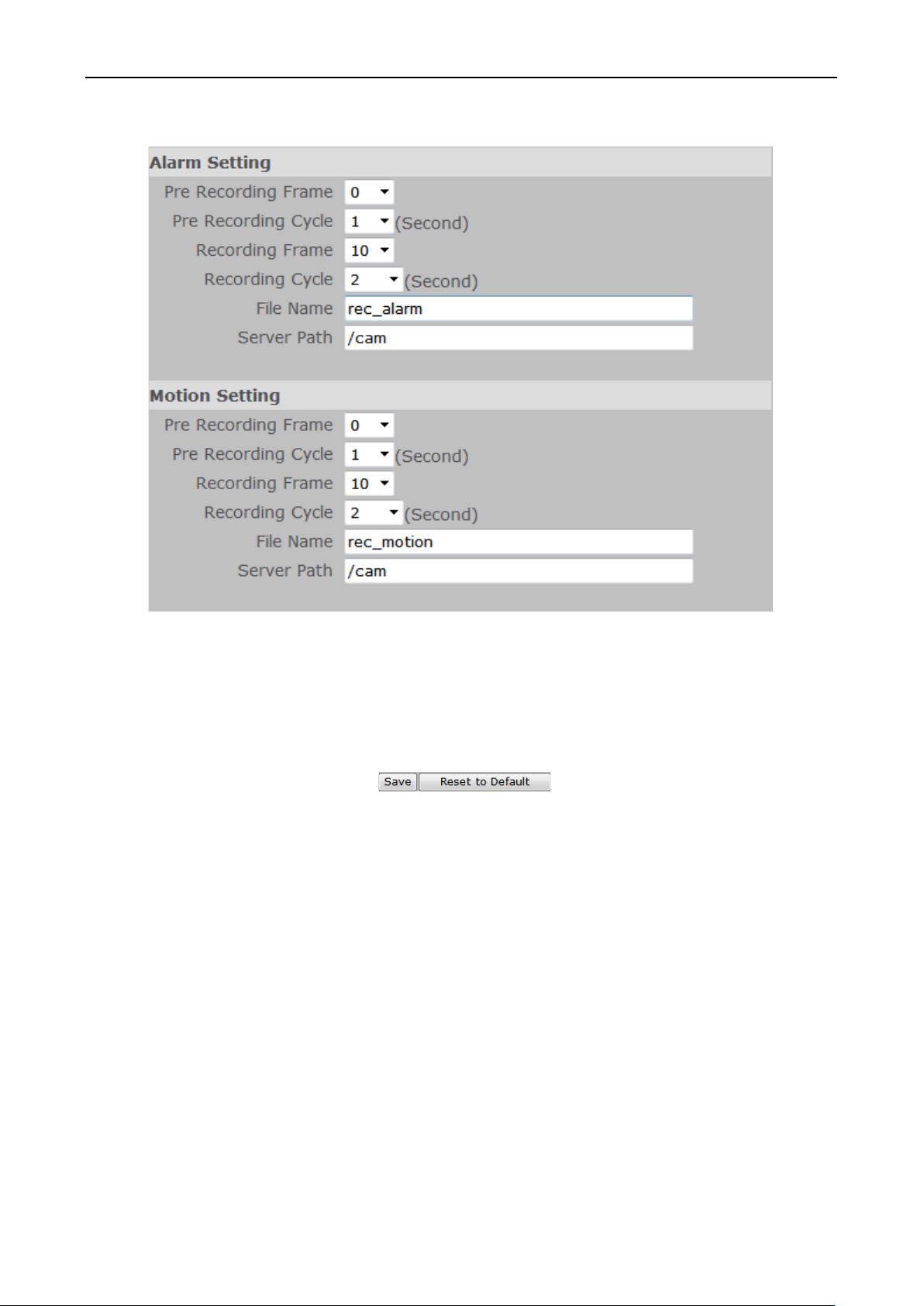

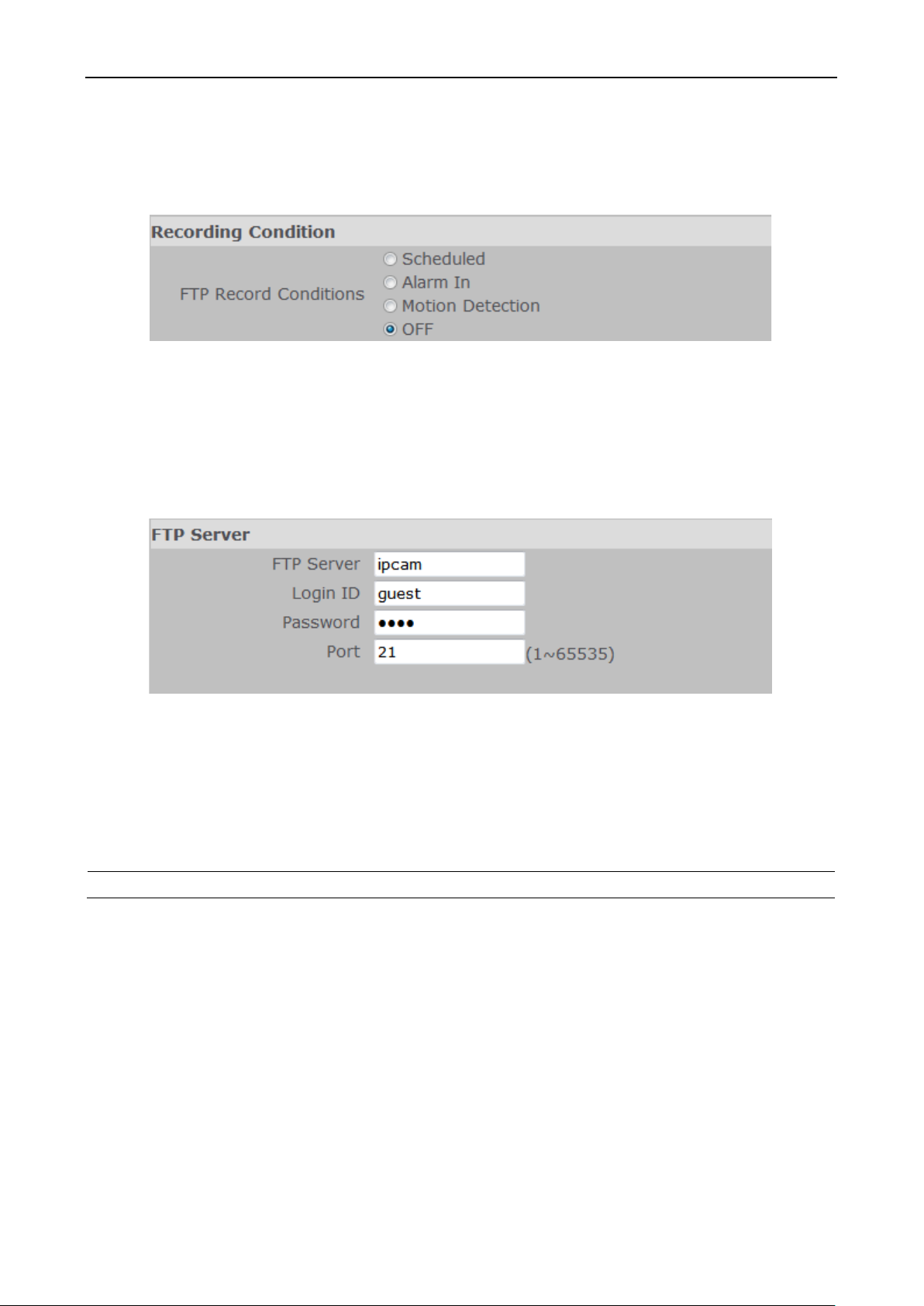

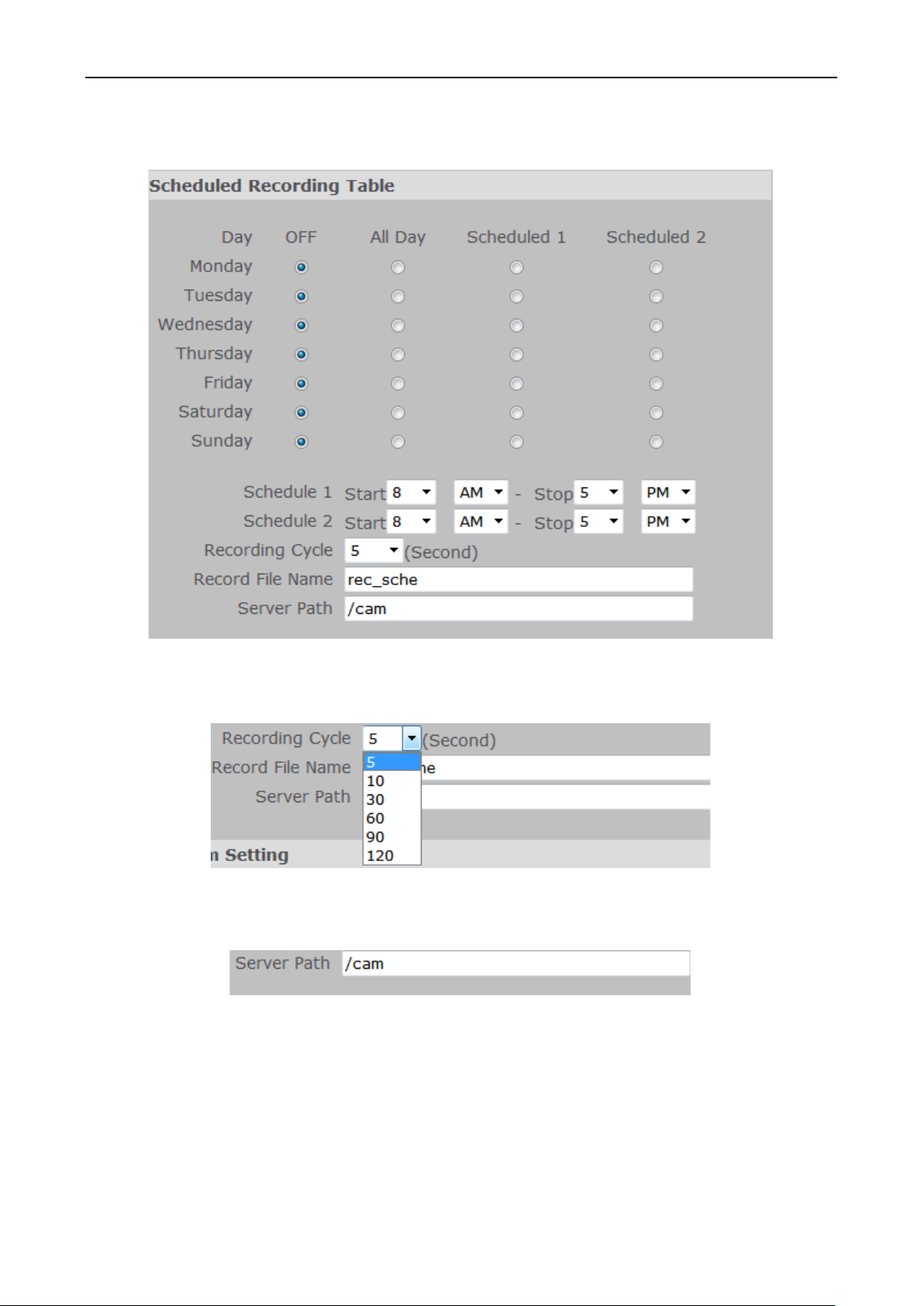

3.2.5 Record Settings ..................................................................................................................... 43
Appendix: Specification of Illustra Flex Box Cameras ................................................................ 47
3
Illustra Flex 1MP & 3MP Box Camera
WARNING
This unit operates at DC 12V/ AC 24V/ PoE.
Installation and service should be perform ed onl y by qualif ied and ex peri enc e d technicians and comply
with all local codes and rules to maintain your warranty.
To reduce the risk of fire or electric shock, do not expose the product to rain or moisture.
Wipe the camera with a dry soft cloth. For tough stains, slightly apply with diluted neutral detergent and
wipe with a dry soft cloth.
Do not apply benzene or thinner to the camera, which may cause the surface of the unit to be melted or
lens to be fogged.
Avoid aligning the lens to very bright objects (example, light fixtures) for long periods of time.
Avoid operating or storing the unit in the following locations:
Extremely humid, dusty, or hot/cold environments (recommended operating temperature: -10°C to
+40°C)
Close to sources of powerful radio or TV transmitters
Close to fluorescent lamps or objects with reflections
Under unstable or flickering light sources
WEEE (Waste Electrical and Electronic Equipment). Correct disposal of this product
(applicable in the European Union and other Eur o pea n countri es with separate collection
systems). This product should be disposed of, at the end of its useful life, as per applicable
local laws, regulations, and procedures.
4
Illustra Flex 1MP & 3MP Box Camera
Preface
This user manual is designed as a reference for the installation and manipulations of the unit including the
camera’s features, functions, and detailed explanation of the menu tree. The reader is supposed to be able to
get following information in the manual.
Product Overview: the main functions and system requirements of the unit.
Installation and Connection: instructions on unit installation and wire connections.
Administration and Configuration: the main menu navigation and controls explanations.
5
1. Product Overview
Unit: mm
1.1 Physical Characteristics
Illustra Flex 1MP & 3MP Box Camera
FIGURE 1-1: PHYSICAL DIMENSION & PICTORIAL INDEX*
*Refer to table 1-1 for definitions
6
Index #
Name
Description
TABLE 1-1: PICTORIAL INDEX DEFINITION
Illustra Flex 1MP & 3MP Box Camera
1
2
3
4
5
6
7 RJ-45 Ethernet Connector/ PoE
8
9
10
11
12
CS Mount To connect the lens with the camera
Screw To lock back focus Adjustment
Back Focus Adjustment To adjust focus
Tripod Receptacle To connect the camera with the tripod
SD Card Slot
Video Outlet To output video signal
Default Button
Reset Button To reboot the unit
Power Indicator To indicate power status with red light
I/O Connector To connect Input/ Output devices
Power T erminal
ABLE 1-2: I/O CONNECTOR DEFINITION
T
To insert a SD card into this slot for recording and
storage
To insert the RJ-45 cable for network connection
as well as PoE (Power over Ethernet)
To Reset all settings of the unit to f ac tor y defau lt
by pressing for 5 seconds
DC12V/AC24V, red port: power +/white port:
power –/ black port: GND. Make sure to connect
the power connector to correct ports (+ and –)
when the power supply is DC12V.
Note
Connectors and field wiring terminals for external Class 2 circuits provided with marking
indicating minimum Class of wiring to be used. Class 2 shall be marked adjacent to the field
wiring terminals.
A/I
GND
A/O
GND
AO
COM
AI
GND
Audio in
Audio out
Alarm out
Alarm in
7
Illustra Flex 1MP & 3MP Box Camera
Caution
2. Installation and Connection
2.1 Unpack Everything
Check everything in the packing box matches to the order form and the packing slip. In addition to this
manual, items below are included in the packing box.
One unit of network Box Camera
One 8-pin terminal block for alarm input/output
One CD containing Illustra Conn ec t, user manual, and quick installation guide
One printed quick installation guide
Please contact your dealer if any item missing.
2.2 Installation
Following tools might help you complete the installation:
a drill
screwdrivers
wire cutters
2.2.1 Checking Appearance
When first unboxing, please check whether if there is any visible dam age to appe ar anc e of the unit and its
accessories. The protective materials used for the packaging should be able to protect the unit from most of
accidents during transportation.
Please remove the protective part of the unit when every item is checked in accordance with the list
in 2.1 Unpacking Ever ythin g.
2.2.2 Connecting the Wires
Connect the power cable to the power plugs with one of the following options.
DC 12V: Connect 12V (－) to terminal =DC 12V－, and Connect 12V (＋) to terminal =DC 12V＋
AC 24V: Connect 24V (～) cables to terminals ～AC 24V
PoE: Connect the RJ-45 jack to a PoE compatible network device that supplied power through the
Ethernet cable
Insert Audio cable and alarm cable to the unit, and connect the network cable to the RJ-45 terminal of a
switch.
If using DC supply, make sure the polarity is correct. Incorrect connection may cause
malfunction and/or damage to the unit.
8
Illustra Flex 1MP & 3MP Box Camera
Warning
Caution
2.2.3 Mounting the camera
Attach the unit to a pending mount, and insert and tighten the screws on the tripod receptacle into either of
the screw holes on the base. Next, mount the unit onto the ceiling/wall and fasten it securely. At last, connect
the Safety Wire (Fall Prevention Wire, not supplied) with one end the wall/ceiling and the other to the
safety-cord screw of the unit.
Safety wire (fall prevention wire, not supplied)
FIGURE 2-1: MOUNTING THE CAMERA
Depending on the material of mounting surface, different screws and anchors than those
supplied may be required. To prevent the unit from falling off, ensure that it is mounted to a
firm place (ceiling slab or channel) using a safety wire strong enough to withstand the total
weight of the unit. (Pay also attention to the finishing at the end of the wire.)
Safety wire must be connected with one end the wall/ c eil ing and the other to the safety-cord
screw of the unit. By cabling so, it is possible to prevent the unit from accidental falling in a
sudden at any time.
9
Illustra Flex 1MP & 3MP Box Camera
Ⅰ
Ⅱ
2.2.4 Network Topology
The camera can deliver video images and audio in real time using the Internet and Intranet. It's equipped with
Ethernet RJ-45 network interface.
FIGURE 2-2: NETWORK TOPOLOGY TYPE
FIGURE 2-3: NETWORK TOPOLOGY TYPE
10
Illustra Flex 1MP & 3MP Box Camera
All the installation and operations should
To avoid damage to the
IEEE802.3 Ethernet Class 0 or
camera is to be connecting only to PoE networks without routing to heterogeneous
2.2.5 System Requirements
Below table lists the minimum requirement to implement and operate an Illustra Flex Box Camera.
ABLE 2-1: SYSTEM REQUIREMENTS
T
System Hardware
CPU Intel Pentium 4 2.4GHz or equivalent
RAM 1 GB or above
Display NVIDIA GeForce 6 Series or ATI Mobility Radeon 9500
System Software
Operating System Microsoft Windows XP, Windows Vista, or Windows 7
Browser Microsoft Internet Explorer 8 or above
Unit
Power Supply DC 12V / AC 24V / PoE
Networking
Wired* 10/100BASE-T Ethernet (RJ-45 connector)
*a switch is required for surveillance on multiple units.
Note
comply with your local electricity safety rules.
Caution
unit, never connect more than one type of power supply (PoE
DC 12V/ AC24V power plug) at the same time. If using PoE, this
devices.
11
Illustra Flex 1MP & 3MP Box Camera
2.3 Connection
2.3.1 Default IP address
Since this is a network-based unit, an IP address must be assigned at the ver y first. The unit’s default IP
address is 192.168.1.168 and sub mask is 255.255.255.0. However, if you have a DHCP server in your
network, the unit would obtain an IP address automatically from the DHCP server so that you don’t need to
change the camera’s IP address. But be sure to enable DHCP in “Network /Basic set tings ”.
2.3.2 Connecting from a computer & Viewing Preparation
2.3.2.1 Connecting from a computer
1. Make sure the unit and your computer are in the same subnet.
2. Check whether if the networking available between the unit and the computer b y exec uting ping the
default IP address. To do this, simply start a command prompt (Windows: from the Start Menu, select
Program. Then select Accessories and choose Command Prom pt.), and type “Ping 192.168.1.168”. If
the message “Reply from…” appears, it means the connection is available.
3. Start Internet Explorer and enter IP address: 192.168.1.168. A login window should pop up. In the
window, enter the default user name: admin and password: admin to log in.
Further information on administration of the unit can be found in “3. Administration and Configuration”.
FIGURE 2-4: LOGIN WINDOW
12
Illustra Flex 1MP & 3MP Box Camera
2.3.2.2 Viewing Preparation
Images of the unit can be viewed through Microsoft Internet Explorer 8 or above. Before viewing, follow these
steps to enable the display.
1. Enable Cookies as instructions below
In Internet Explorer, click Internet Options on the Tools menu.
On the Privacy tab, move the settings slider to Low or Accept All Cookies.
Click OK.
2. When a proxy server is used, click Internet Options on the Tools menus of Internet Explorer, select
Connect tab, click LAN button, and set proxy server.
3. Change Security in Internet options as instructions below
On Tools menu, click Internet Options.
Press the Security tab.
If the camera operates inside of the intranet, click the Intranet icon.
If the camera operates outside of the intranet, click the Internet icon.
Click Custom Level. This will open the Security Settings – Internet Zone screen.
FIGURE 2-5: SECURITY SETTINGS 1/4
13
Illustra Flex 1MP & 3MP Box Camera
【
【
【
【
】
Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows:
Download signed ActiveX controls】 Prompt (recommended)
Download unsigned ActiveX controls】 Prompt
Initialize and script ActiveX not marked as safe for scripting】 Prompt
IGURE 2-6: SECURITY SETTINGS 2/4
F
Automatic prompting for ActiveX controls
Enable
F
IGURE 2-7: SECURITY SETTINGS 3/4
14
【
【
Run ActiveX controls and plug-ins】 Enable
Script ActiveX controls marked safe for scripting*】 Enable
Illustra Flex 1MP & 3MP Box Camera
F
IGURE 2-8: SECURITY SETTINGS 4/4
Press OK to save the settings.
Close al l Microsoft Internet Explorer Windows and restart a new window. This will allow the new
settings taking effect.
Type your setting IP address into the browser.
Then you should be able to see the camera image screen.
2.4 Using the illustra Connect Tool to M ana ge Came ras
In addition to using the IE browser to access your camera, you can alternatively use the provided tool, illustra
Connect.
illustra Connect is a management tool designed to manage your network cameras on the LAN. It can:
help you find multiple network cameras
set the IP addresses
show connection status
manage firmware upgrades
For further information on Illustra Connect, refer to the Illustra Connect User Guide, located on the CD
supplied.
15
Loading...
