American Dynamics ADCi400-D033, ADCi400-D012, ADCi400-D034, ADCi400-D013, ADCi400-D051 Specifications

IP Cameras

IP cameras are ideal for wide-

spread areas, such as parking

lots, university campuses, or

shopping plazas. For custom-

ers who need clear images of

events happening far away,

Illustra’s unique megapixel

wide angle feature fixes optical

distortions found at the image

edges in many other compa-

rable IP cameras.

American Dynamics 2

merican Dynamics’ powerful IP cameras and domes offer a unique blend of high performance

A

and excellent value. High resolution and true day/night capabilities ensure that the quality you

expect from American Dynamics carries right into the IP era. At D1 resolution, image clarity is superior.

MJPEG and MPEG-4 compression technologies provide flexible bandwidth management, allowing you to

tailor the image to meet your needs.

IP PTZ Dome Cameras

American Dynamics IP PTZ Domes leverage the best of the

analog SpeedDome and add the power of IP. Extensive zooming

capabilities (up to 420x total zoom 35x optical), superior images

(540 TVL, Electronic Image Stabilization, True Day/Night, and

Wide Dynamic Range), provide a superior camera solution that

leverages your existing infrastructure for a low total cost of

ownership.

American Dynamics IP cameras are ONVIF compliant, meeting the

open standards criteria for IP-based physical security products.

This compliance provides customers with greater flexibility in their

choice of recording platforms.

Unlike many other IP PTZ domes in the industry, our domes support

PoE technology which allows you to use standard categor y 5 cable

in a typical network environment. Other domes either require you to

run power cables to the dome or use PoE+, which is a drain on

power and money. With PoE, a camera can still operate in the event

of a power failure if the network is connected to a centralized power

backup.

American Dynamics IP Domes offer full 360° PTZ capabilities, as

opposed to most domes in the industry that pan, tilt, and zoom

“almost” all the way around (355°), but leave just enough

unmonitored area (5° worth) to cause a lot of problems. They

support H.264, MJPEG, MPEG-4, and Active Content Compression

(ACC) technology and are compatible with VideoEdge Network

Video Recorder v3.0 and higher, as well as Intellex IP.

can be positioned at exactly the angle you need. Choose from the

Illustra line of IP Mini-Domes for maximum resolution or our ADCIP

line for compatibility with Intellex IP. Our economical, high quality

line of ACDIP mini-domes for indoor and outdoor applications work

with Intellex IP and feature 540 T VL.

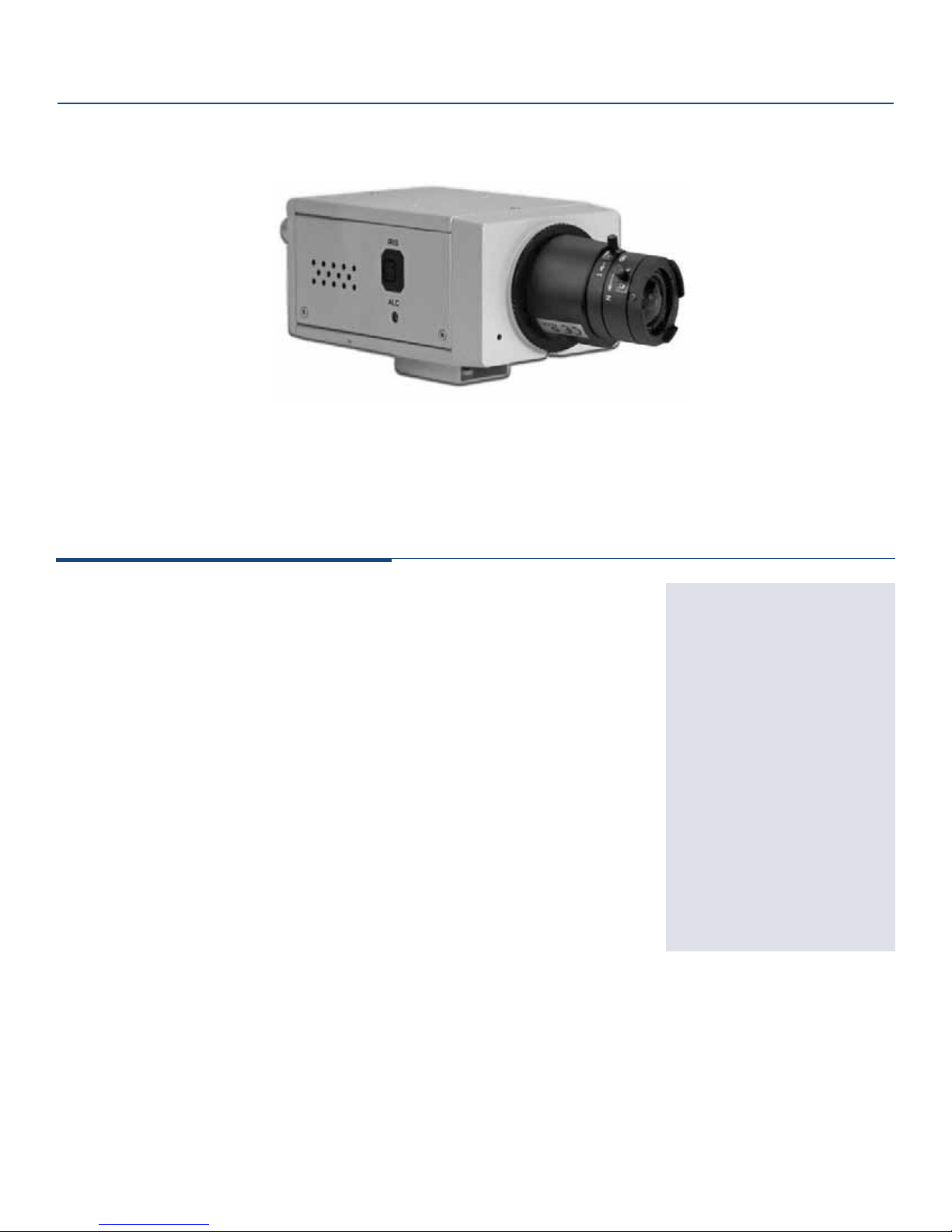

IP Box Cameras

American Dynamics IP Box cameras are of superior quality and

provide the best image each and every time. Choose from a variety

of models including the Illustra line with H.264 compression and

maximum resolution of 2/3 megapixel or the economical ADCIP

featuring high D1 resolution and built in local SD card storage.

Access and control your IP box camera from a web browser or the

latest version of NVR, HDVR, or Intellex IP, depending on model.

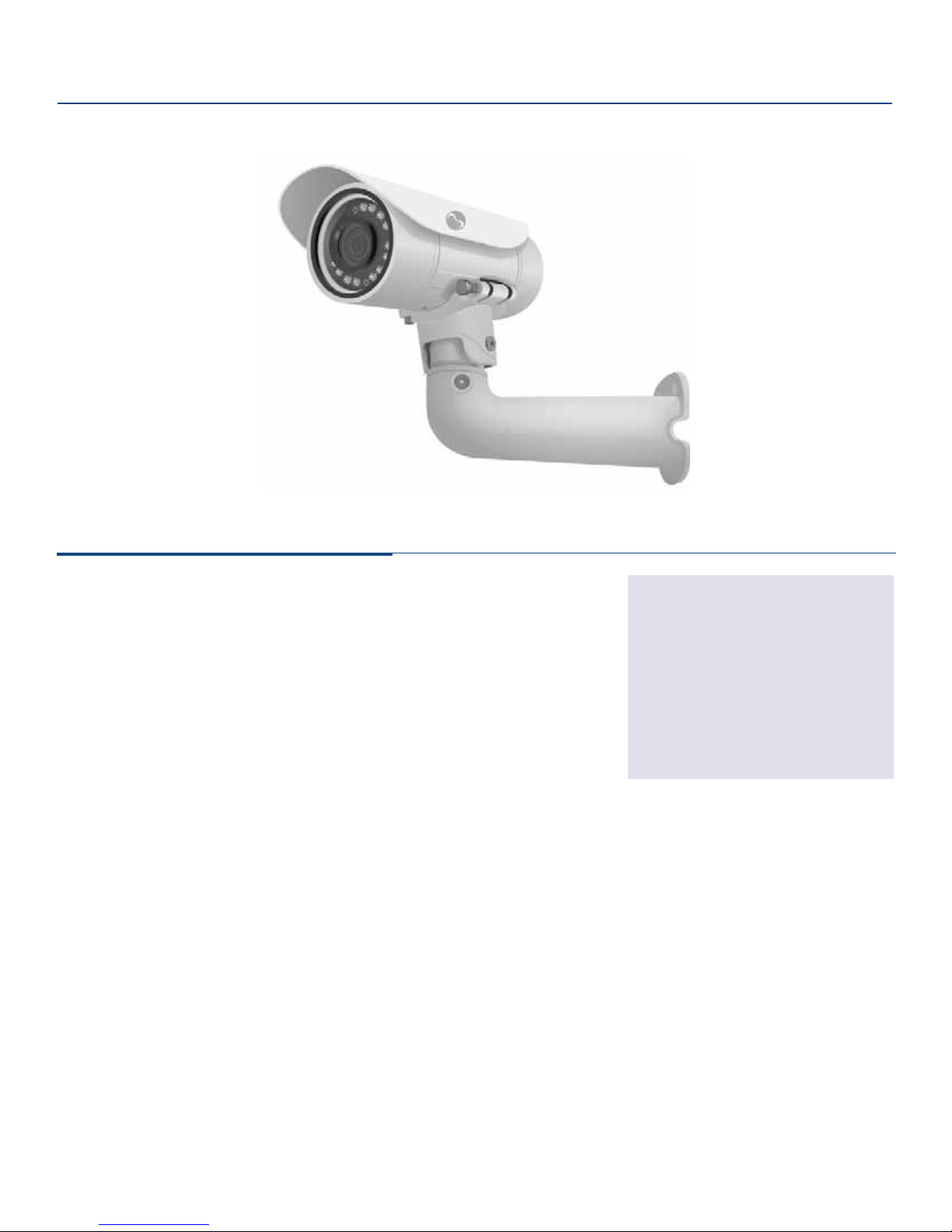

IP Bullet Cameras

The Illustra 400 Series Bullet Camera has one of the most powerful

sensor-processor combinations available on the market with a

weatherproof IP66 sleek enclosure. Its 896 x 720 resolution sets it

apart as a versatile device, bridging “standard resolution” with 650k

pixels for incredibly high resolution. This powerful resolution and

H.264 compression creates a blend of image quality and

bandwidth-friendly performance.

IP Mini-Domes

Our IP Mini-Domes deliver real value with a wide range of features

at bid-winning prices. High-resolution, vandal-resistant housings, IR

illuminators, and true day-night capabilities ensure that the quality

you expect from American Dynamics carries right into the IP era. IP

Mini-Domes feature an advanced pivoting three-axis gimbal that

American Dynamics 3

IP PTZ Dome Cameras

Most competitors’ domes will

pan, tilt, and zoom “almost”

all the way around (355°), but

leave just enough unmonitored

area (5° worth) to cause a lot

of problems. IP SpeedDome

offers full 360° PTZ capabilities,

letting you see more.

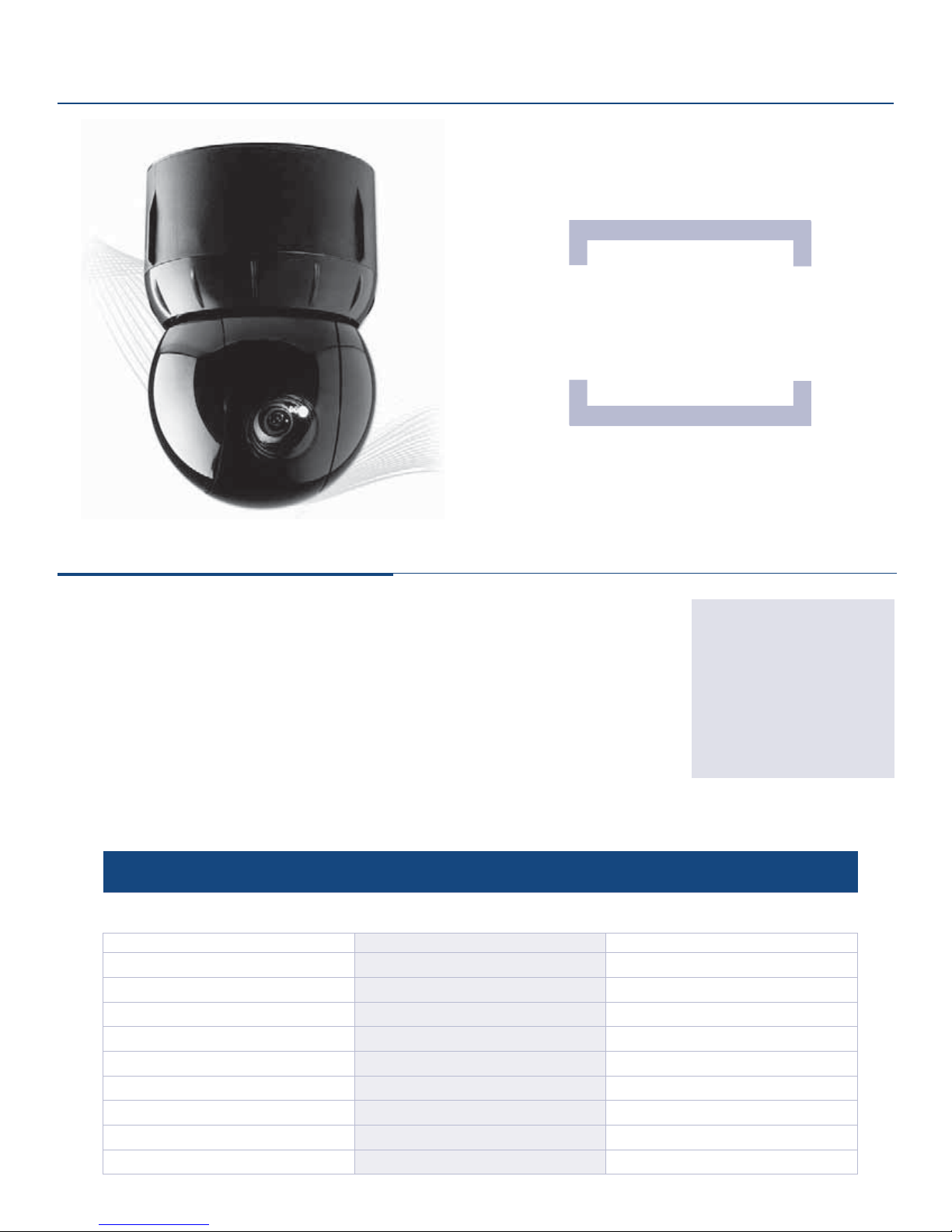

IP SpeedDome:

t PoE leverages existing network infrastructure

t 22x and 35x optical zoom

t Supports H.264, MJPEG, MPEG-4, and Active

Content Compression (ACC) technology

t 360° PTZ flexibility

t Built-in web server

t Alarm management via the network

t Bi-directional audio and synchronized video

IP SPEEDDOME COMPARISON TABLE

Total zoom 242x 420 x

Optical zoom 22x 35x

Digital zoom 12x 12x

Day/Night No Yes

Wide Dynamic Range No Yes

Electronic Image Stabilization No Yes

Programmable presets (controller dependent) Up to 96 Up to 96

Programmable patterns 16 16

Programmable sequences 16 16

Preset, area, pattern naming Up to 19 characters (user-defined) Up to 19 characters (user-defined)

t Dynamic privacy zones

t Unique bandwidth throttling

t Compatible with VideoEdge NVR v3.0 and

Intellex IP

t ONVIF compliant

IP SpeedDome 22x IP SpeedDome 35x

MODEL NUMBERS

ADV EIP SD22N..... 22x, NTSC

ADV EIP SD22P.....22x, PAL

ADV EIP SD35N....35x, NTSC

ADV EIP SD35P.....35x , PAL

American Dynamics 4

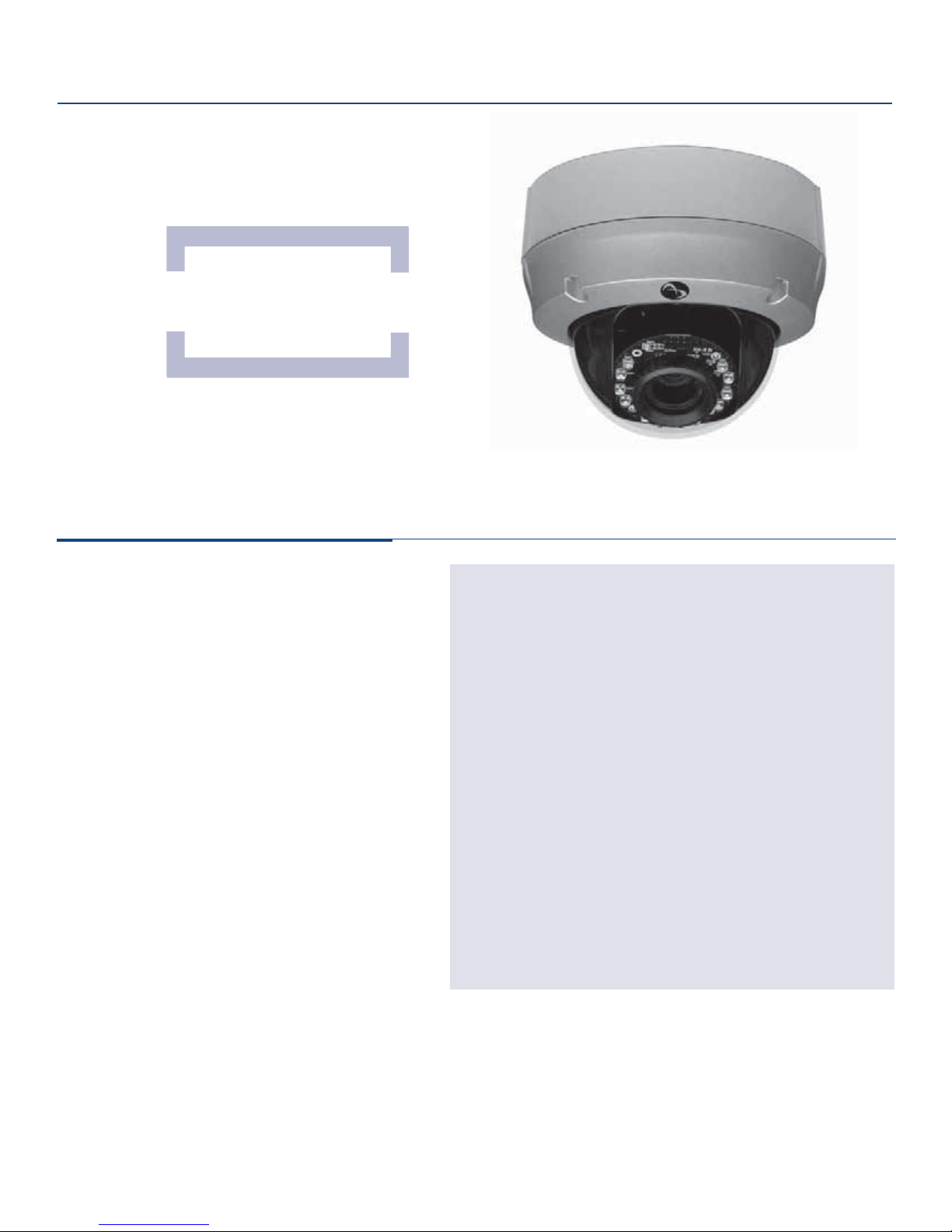

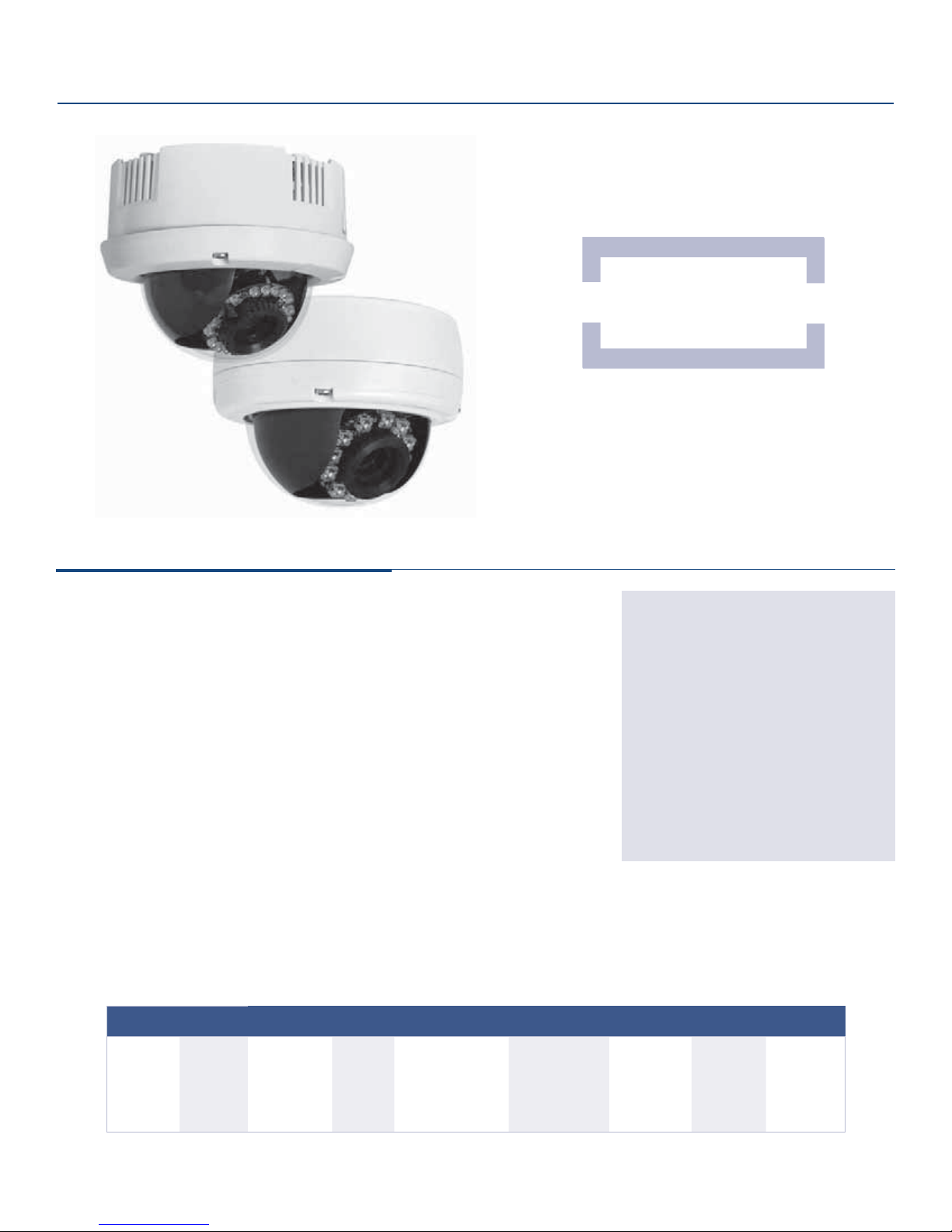

Illustra 400 IP Indoor Mini-Dome:

IP Mini-Domes

Illustra Connect is an innovative

tool that intuitively finds all

of your connected cameras,

making Illustra IP some of the

easiest cameras to install and

configure in the industry.

t Leading low light clarity with true day/night functionality

t H.264 compression up to 30 ips

t Maximum resolution of 2/3 megapixel

t Dual streaming video

t Remote access to onboard storage managed by schedule,

motion detection, alarm or network loss

t Lightweight for best recessed mounting performance

t 3.5 mm in/out audio jacks for external microphone

MODEL NUMBERS

ADCi400-D11

White clear IR Illuminator NTSC

ADCi400-D012

White clear IR Illuminator PAL

ADCi400-D013

White smoke IR Illuminator NTSC

ADCi400-D014

White smoke IR Illuminator PAL

ADCi400-D031

Black clear IR Illuminator NTSC

ADCi400-D032

Black clear IR Illuminator PAL

ADCi400-D033

Black smoke IR Illuminator NTSC

ADCi400-D034

Black smoke IR Illuminator PAL

ADCi400-D051

Silver clear IR Illuminator NTSC

ADCi400-D052

Silver clear IR Illuminator PAL

ADCi400-D053

Silver smoke IR Illuminator NTSC

ADCi400-D054

Silver smoke IR Illuminator PAL

American Dynamics 5

IP Mini-Domes

896 x 720 resolution sets

Illustra 400 Series apart as

a versatile device bridging

“standard resolution” with 650k

pixels for very high resolution.

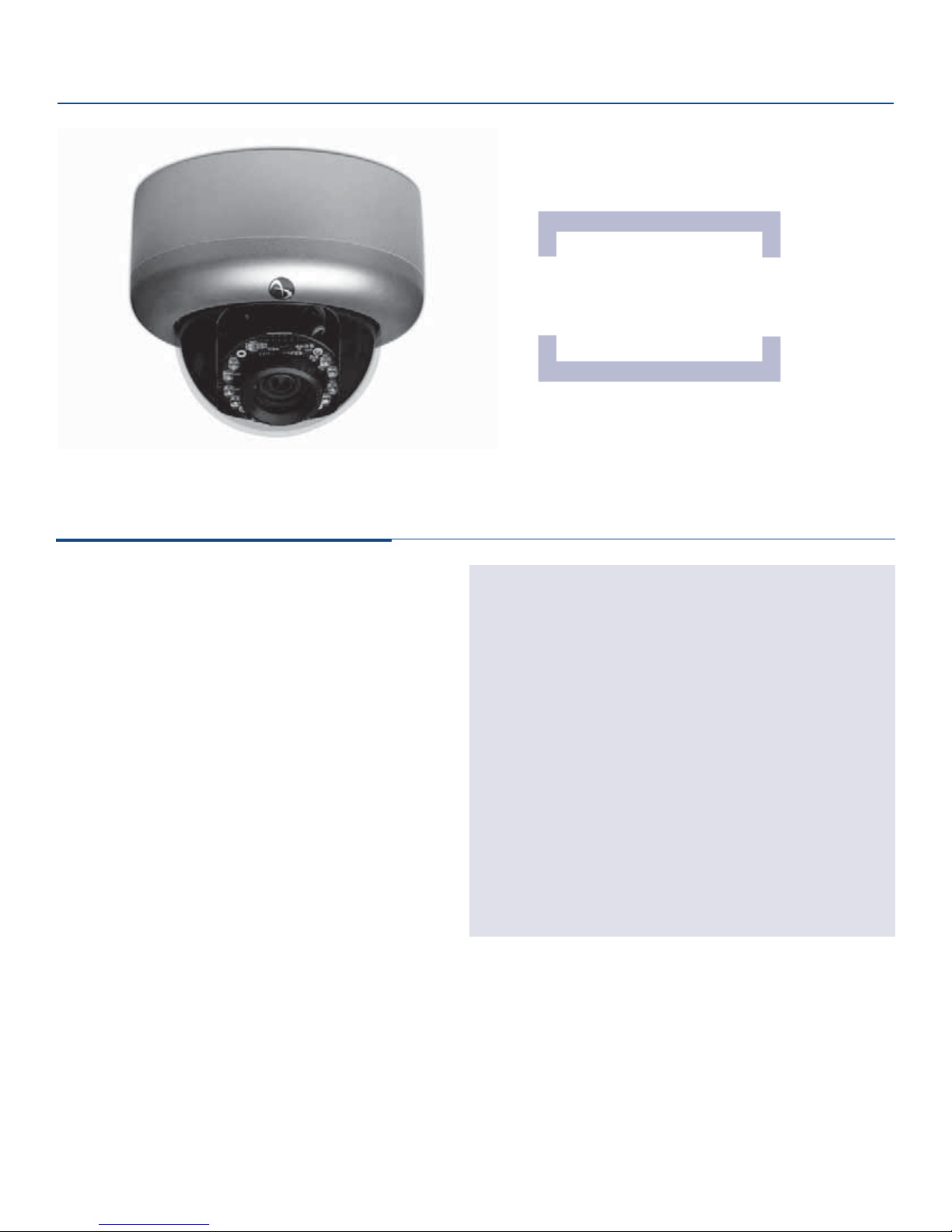

Illustra 400 IP Outdoor Mini-Dome:

t Wide dynamic range for clarity in backlit environments

t IP66, vandal resistant housing

t Striking clarity in low light

t Highly efficient H.264 compression up to 30 ips dual streaming

t Range of resolution options up to 2/3 megapixel

t Versatile remote onboard storage management

t 3.5 mm in/out audio jacks for external microphone

MODEL NUMBERS

ADCi400-D021

White clear IR illuminator NTSC

ADCi400-D022

Outdoor white clear IR illuminator PAL

ADCi400-D023

Outdoor white smoke IR illuminator NTSC

ADCi400-D024

Outdoor white smoke IR illuminator PAL

ADCi400-D041

Outdoor black clear IR illuminator NTSC

ADCi400-D042

Outdoor black clear IR illuminator PAL

ADCi400-D043

Outdoor black smoke IR illuminator NTSC

ADCi400-D044

Outdoor black smoke IR illuminator PAL

ADCi400-D061

Silverclear IR illuminator NTSC

ADCi400-D062

Silverclear IR illuminator PAL

ADCi400-D063

Silversmoke IR illuminator NTSC

ADCi400-D064

Silversmoke IR illuminator PAL

American Dynamics 6

IP Mini-Domes

The IP Mini-Domes feature an

advanced pivoting three-axis

gimbal that can be positioned

at exactly the angle you need.

IP Mini-Domes:

t ADCIP IP Mini-Domes (Indoor and Outdoor) for use with Intellex IP

t D1 resolution

t Offers true day/night functionality for low light conditions

t Built-in IR illuminator for no light conditions

t Supports MJPEG and MPEG-4 compression technologies

t Outdoor model features vandal resistant housing

t Access and control the mini-domes from a web browser or the latest

version of VideoEdge NVR or Intellex IP

t Multiple level password-protected user access

t USB interface for browser-based IP configuration

t Supports Power over Ethernet (PoE) for cost-savings and ease of

installation

Model Number Guide

BRAND CAMERA PROTOCOL SERIES LENS ENVIRONMENT BUBBLE FORMAT

AD =
American
Dynamics

C IP E 3312 = Vari-focal

3.3-12 mm

3712 = Vari-focal

3.7-12 mm

I = Indoor
O = Outdoor

MODEL NUMBERS

INDOOR

ADCIPE3312ICN

ADCIPE3312ISN

ADCIPE3312ICPE

ADCIPE3312ISPE

ADCIPE3312ICPU

ADCIPE3312ISPU

C = Clear
S = Smoked

N = NTSC
P = PAL

OUTDOOR

ADCIPE3712OCN

ADCIPE3712OSN

ADCIPE3712OCPE

ADCIPE3712OSPE

ADCIPE3712OCPU

ADCIPE3712OSPU

OUTLET

STYLE

E = Europe
U =UK

American Dynamics 7

IP Mini-Domes

IP MINI-DOMES COMPARISON TABLE

ADCIPE3312Ixx

(Indoor)

ADCIPE37120xx

(Outdoor)

Illustra 400

(Indoor)

Illustra 400

(Outdoor)

Housing Non Vandal resistant Vandal resistant Non vandal resistant Vandal resistant

Compression

Imager 1/3 in CCD 1/3 in CCD 1/3” Sony CMOS progressive scan

Video Output 1.0 Vp-p/75-ohm, BNC 1.0 Vp-p/75-ohm, BNC

NTSC: 720x48 0, 720x240,

Resolution

Active Pixel Count (H x V)

Minimum Illumination

S/N Ratio 50 dB 50 dB 50 dB 50 dB

White Balance AWB AWB AWB AWB

352x240, 176x112

PAL: 720x576, 720x288,

352x288, 176x112

NTSC: 768 x 494

(PAL: 752 x 582)

Typ2: 0.65 lux @ F1.2
Min3: 0.19 lux @ F1.2

NTSC: 720x48 0, 720x240,

352x240, 176x112

PAL: 720x576, 720x288, 352x288,

176 x112

NTSC: 768 x 494 (PAL: 752 x 582) 896 x 720 896 x 720

Day: 0.65 lux @ F1.2

Night: 0.07 lux @ F1.2

1.0 Vp-p +/- 10%, 75 ohm,
composite,

negative, RCA x 1

CIF, D1, 896 x 720p CIF, D1, 896 x 720p

0.2 lux at F1.2 color

0.01 lux b/w

0.00 w/IR illuminator

1/3” Sony CMOS
progressive scan

1.0 Vp-p +/- 10%,

75 ohm, composite,

negative,

RCA x 1

0.2 lux at F1.2 color

0.01 lux b/w

0.00 w/IR illuminator

Flickerless Mode Selectable on/off Selectable on/off NA NA

Digital Zoom N/A N/A Yes Yes

Bubble F-stop F1.0 (tinted); F0 (clear) F1.0 (tinted); F0 (clear) F1.0 (tinted); F0 (clear) F1.0 (tinted); F0 (clear)

Lens Options 3.3 – 12 mm auto iris lens 3.7 – 12 mm auto iris lens

Housing Color White White White, black, or silver White, black, or silver

Environmental Rating Indoor Indoor/Outdoor None IP66

3.3-12mm vari-focal auto iris DC
drive lens

3.3-12mm vari-focal

auto iris DC drive lens

American Dynamics 8

IP Box Camera

The Illustra 400 Series Box

Camera features up to 32 GB of

available onboard storage for

alarm-based recording.

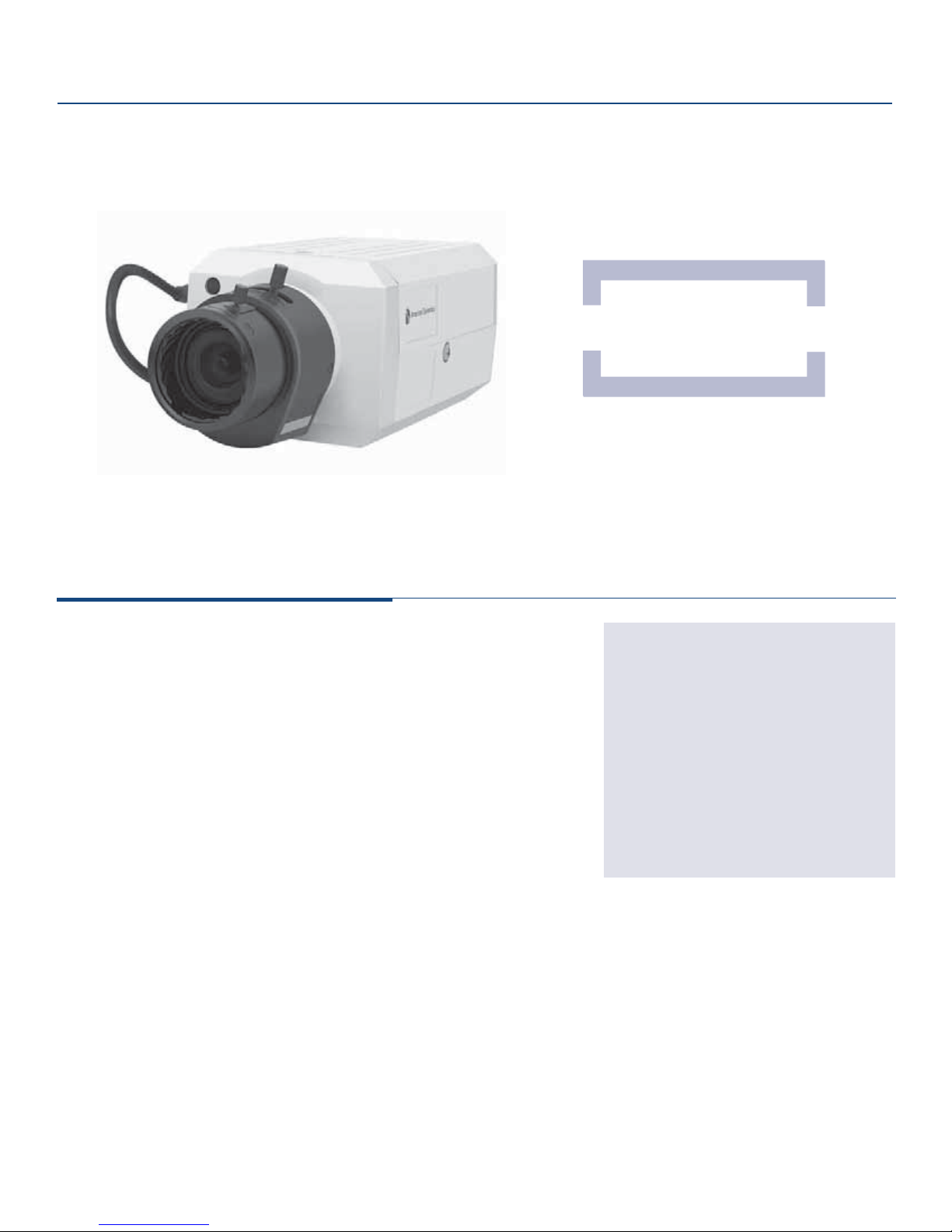

Illustra 400 IP Box Camera:

t H.264 compression with 30 ips

t Wide dynamic range for clarity in backlit environments

t Low light clarity in color and black & white

t Dual streaming video

t Access and control the cameras from a web browser or the NVR

t PoE compliant

t Easy installation with existing American Dynamics mounts

t 3.5 mm in/out audio jacks for external microphone

MODEL NUMBERS

ADCi400-X001

W/Out lens TDN WDR POE NTSC

ADCi400-X002

W/Out lens TDN WDR POE PAL

ADCi400-X201

1.7mm wide angle auto iris lens TDN WDR POE NTSC

ADCi400-X202

1.7mm wide angle auto iris lens TDN WDR POE PAL

American Dynamics 9

IP Standard Resolution Box Camera

IP Standard Resolution Box Camera:

t Economical, high quality box camera

t D1 resolution

t Built-in local SD card storage

t Offers true day/night functionality for low light conditions

t Architecture leverages MJPEG and MPEG-4 compression

technologies

t Access and control the cameras from a web browser or the latest
version of VideoEdge NVR or Intellex IP

t Multiple level password protected user access

t 10/100 Base-T network support

MODEL NUMBERS

ADCIPEBPN

POE/12VDC, NTSC, W/PS

ADCIPEBPPE

POE/12VDC, PAL, EU PLUG, W/PS

ADCIPEBPPU

POE/12VDC, PAL, UK PLUG, W/PS

ADCIPEBN

24VAC/12VDC, NTSC, W/PS

ADCIPEBPE

24VAC/12VDC, PAL, EU PLUG, W/PS

ADCIPEBPU

24VAC/12VDC, PAL, UK PLUG, W/PS

American Dynamics 10

IP Bullet Camera

Illustra 400 IP Bullet Camera:

t Maximum resolution of 2/3 megapixel

t H.264 compression with 30 ips

t Sleek IP66-rated weatherproof construction

t Adjustable sunshield with security screws

t Wide dynamic range for clarity in high contrast environments

t Industry-leading low light clarity in color and black & white

t Dual streaming, progressive scan video

t PoE compliant (802.11af)

t Camera supplied with arm mount

t 3.5 mm in/out audio jacks for external microphone

t IR Illuminators

MODEL NUMBERS

ADCi400-B021

White NTSC

ADCi400-B022

White PAL

ADCi400-B042

Black PAL

ADCi400-B041

Black NTSC

ADCi400-B061

Silver NTSC

ADCi400-B062

Silver PAL

American Dynamics 11
