American Dryer Corp AD-100 User Manual
Specifications and Main Features
- Model No: AD-100
- Electrical Requirements:
- Breaker of 15 amps will be fed by 208V, 3 Phase Current, Guided 11 Amps.
- A maximum of 10 Amps would be allowed at 230V 3 phase with a amp breaker up to 15.
- Gas Requirement:
- Supply of Natural Gas between 6 to 12 inches of water column will be required, while gas valves must not exceed a 4 inch water column pressure.
- For L.P Gas, a steady pressure of not less than 11 inches water column will be used at valve levels.
- Exhaust Requirements: For Standard Dryers, the amount of inches required while the standard is 12 while the super steam dryers is 16.
- Make-Up Air Requirement: For standard dryers CFM equal to 1750 would be required, while super steam dryers exceed to 2500 CFM .Moreover, there would be a requirement of 3 square feet of AIE.

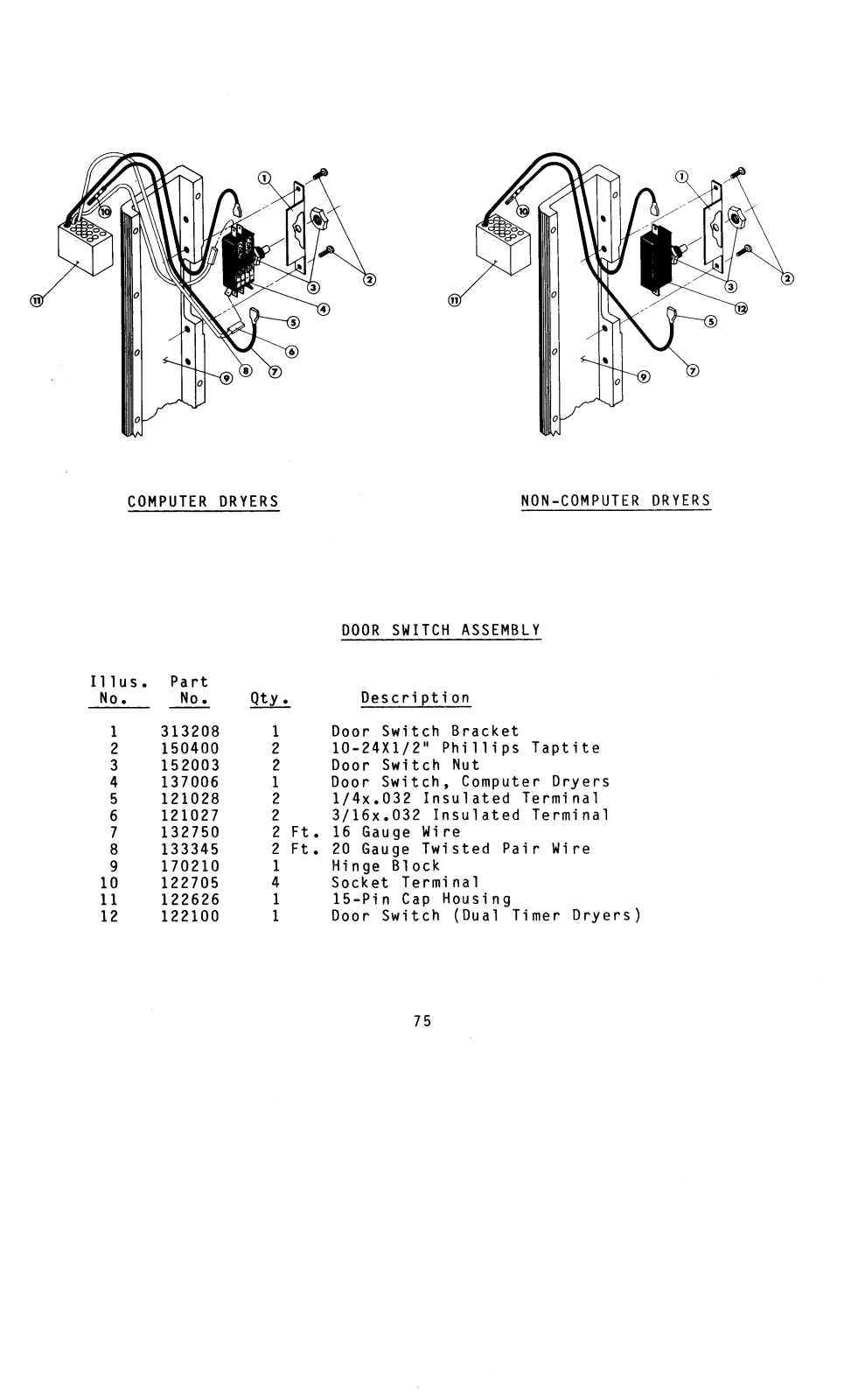

- Safety Features: There will be precautionary measures taken for security devices such as, door switches, circuits and the alarm indicators.

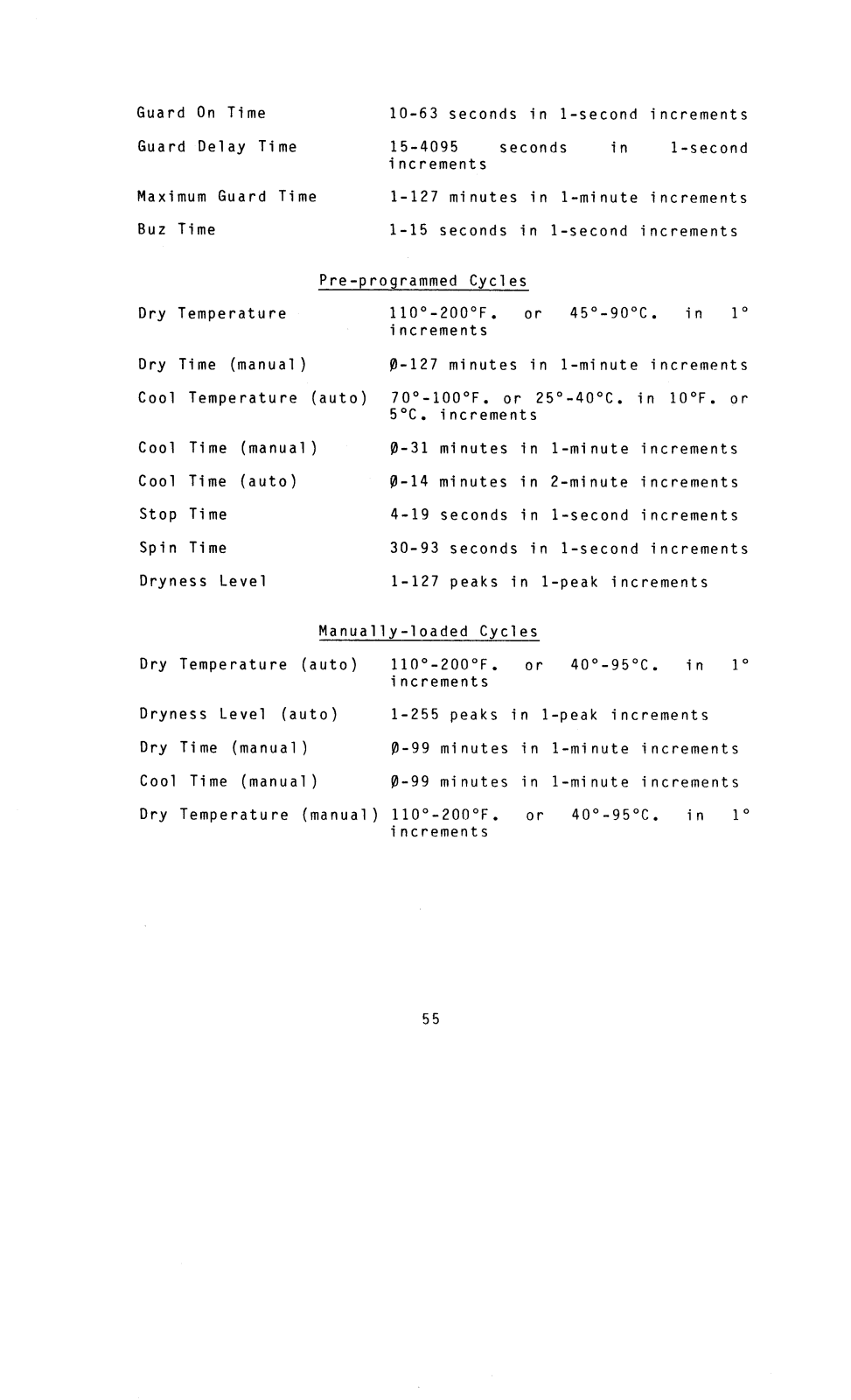

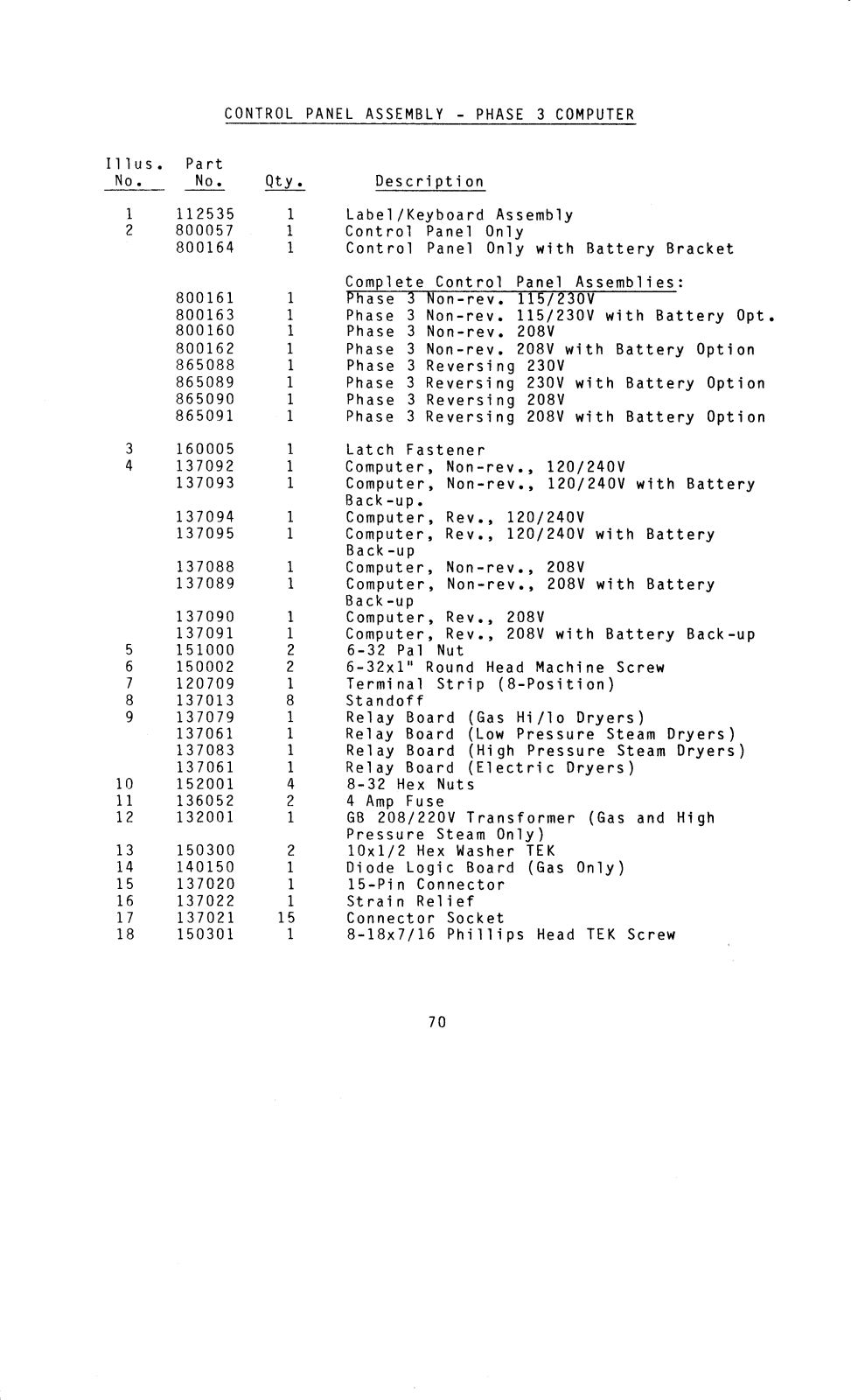

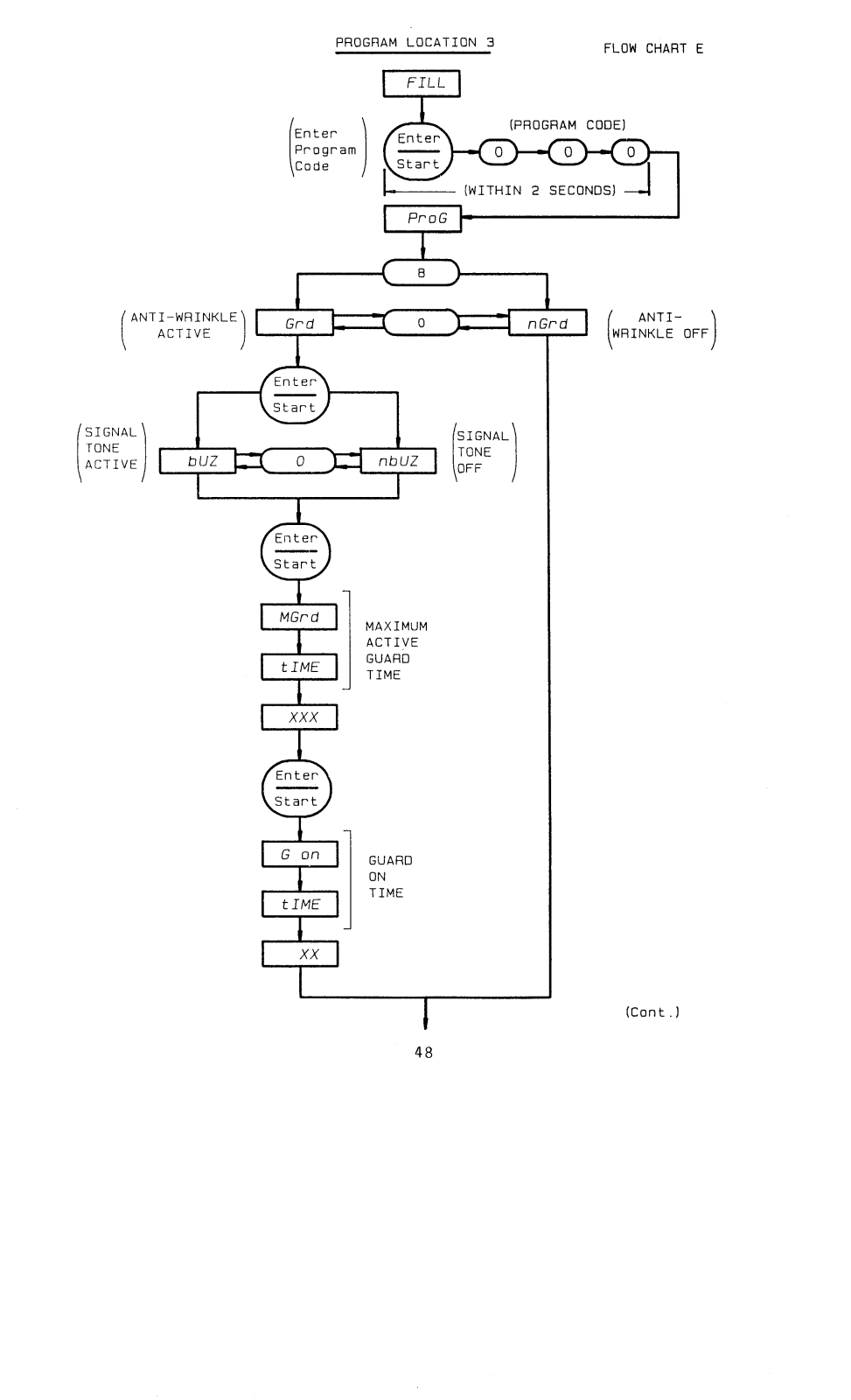

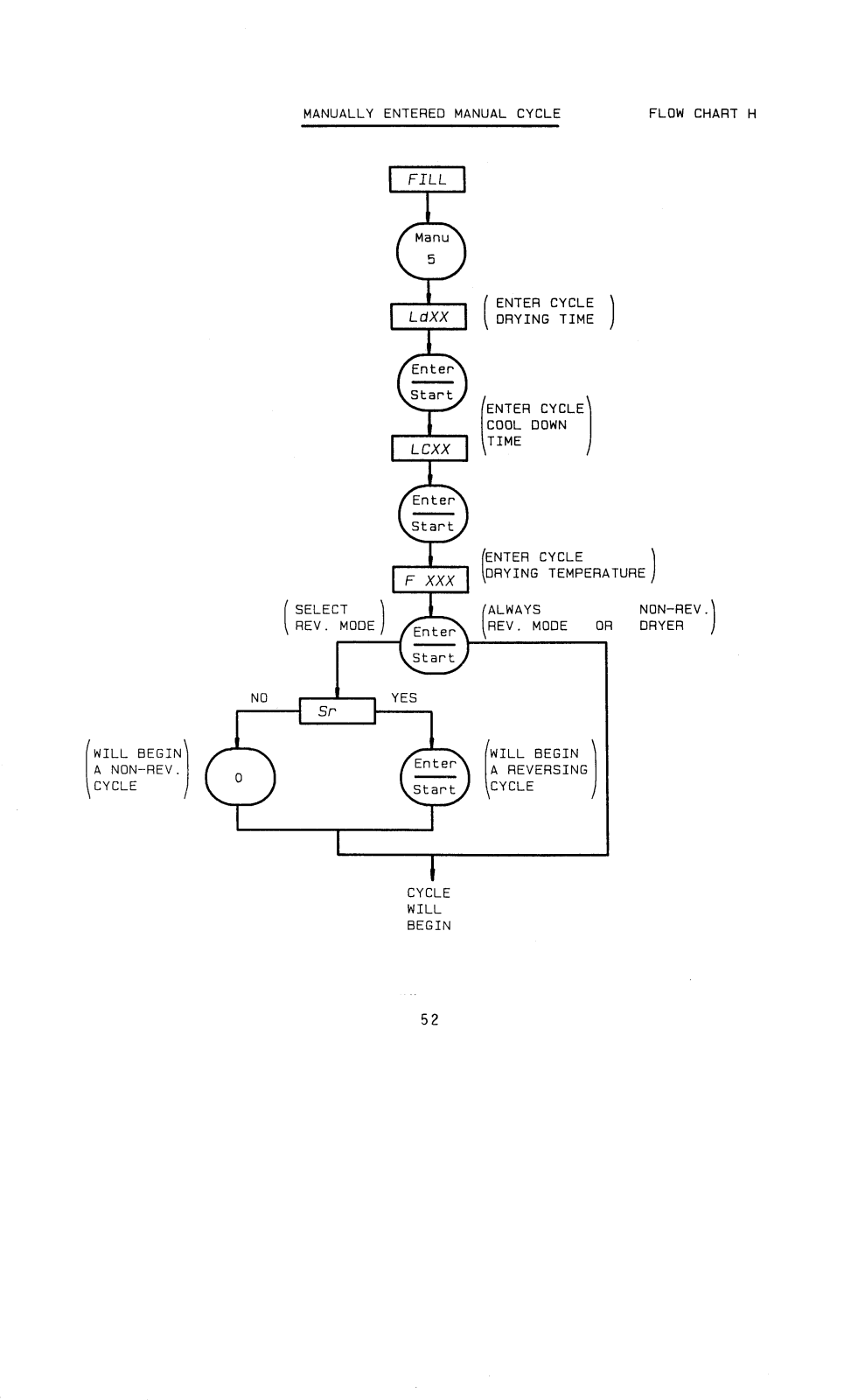

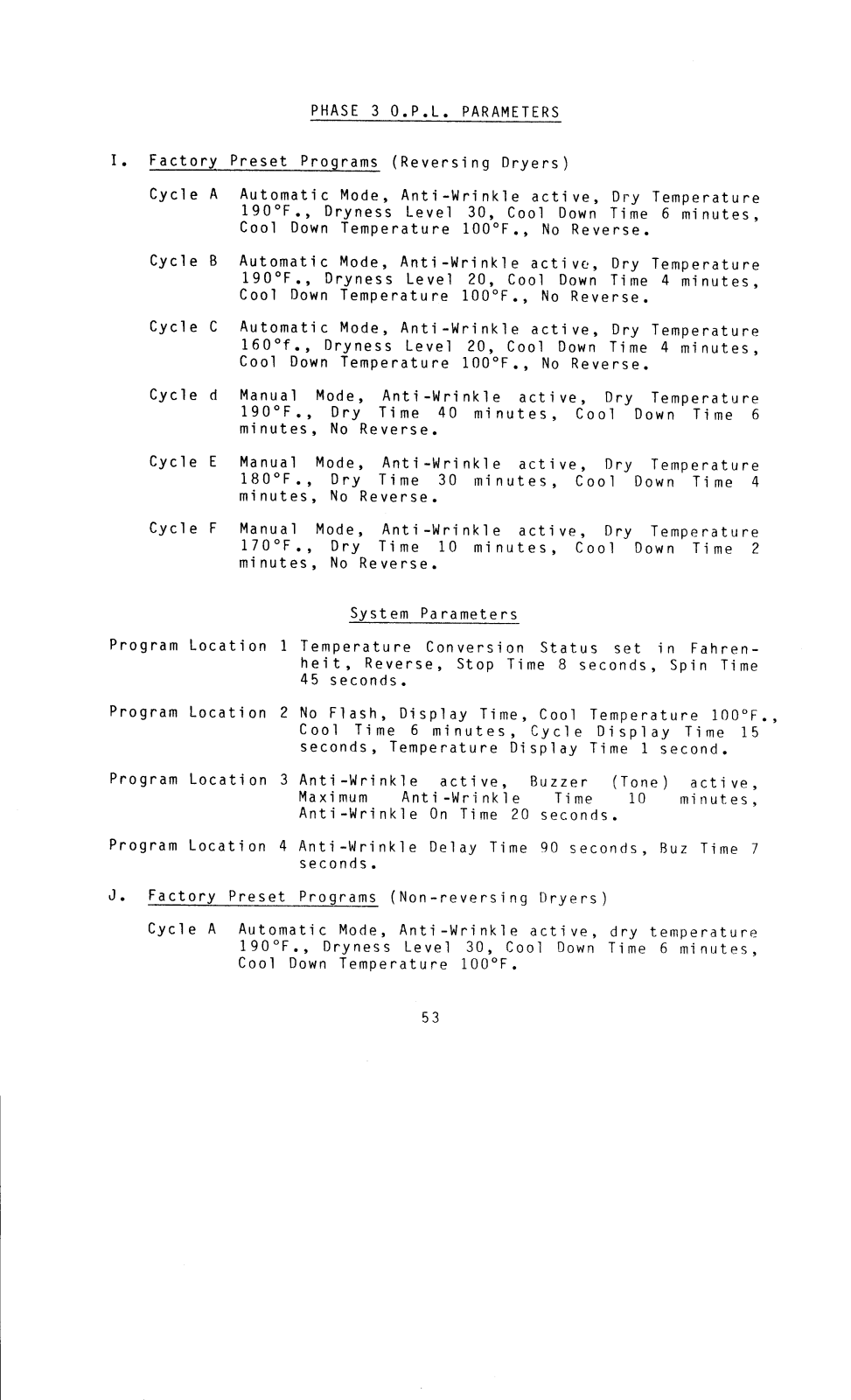

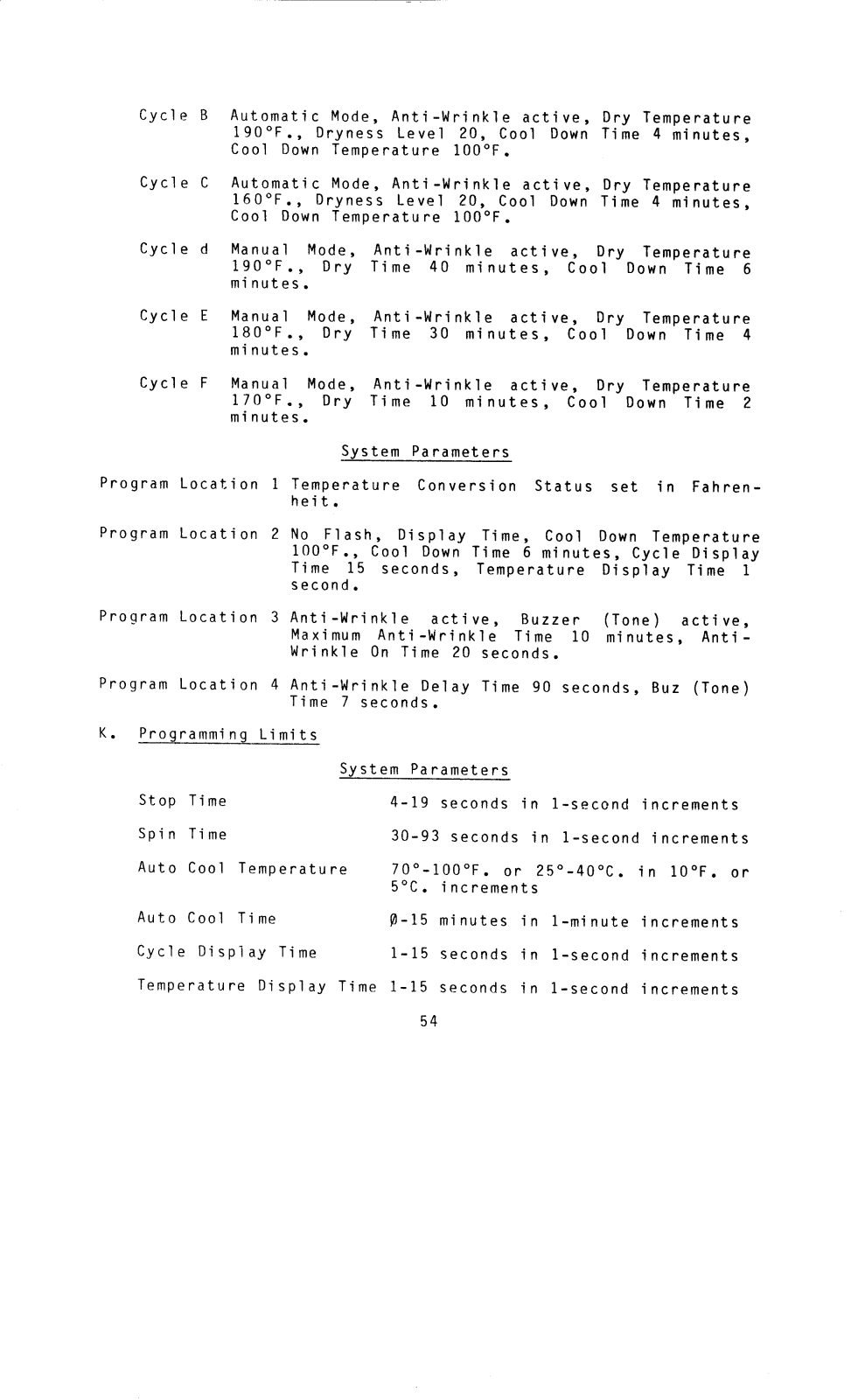

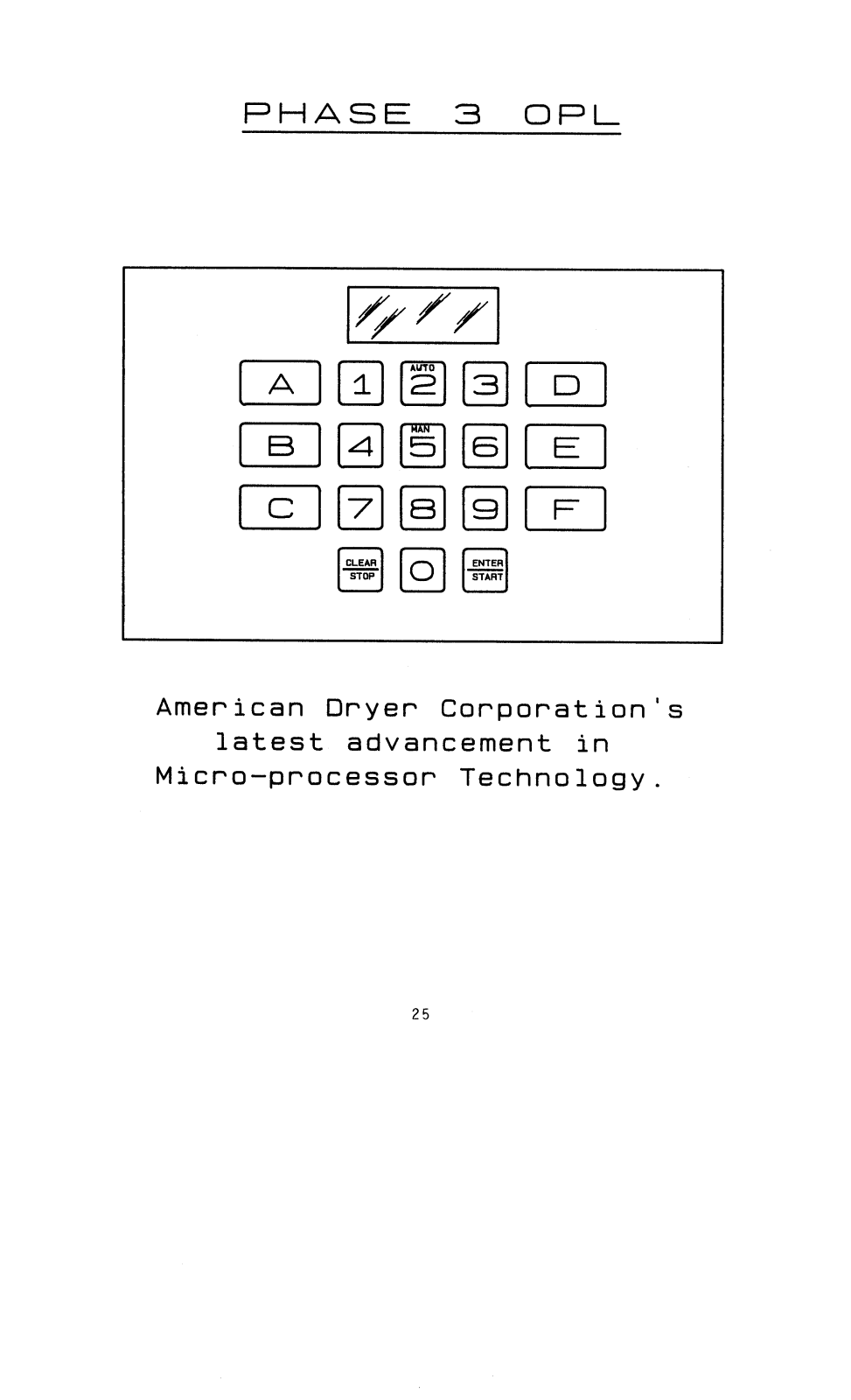

- Control: A phase three computer control will be full fledged consisting both automatically and manually guided modes and as well programmable cycle functions.
- Maintenance Features: The entire routine will include dimmed L.E.D. display codes while giving the required diagnostics, adjusting the needed components, and guiding to the routine servic.
- Dimensions and Weight: There is a weight and measurement variance but there is a label on the dryer containing all the necessary data.
Frequently Asked Questions
Q: In regard to AD-100 dryer, what kind of electrical requirement does it have?
A: The AD-100 can only operate on a 3-phase power line that has a voltage capacity between 208-230 VAC.
Q: With regards to the AD-100 Dryer, what type of gas can it operate on?
A: Depending on the specifications and requirements outlined for the model, the AD-100 dryer can function using Natural gas as well as Liquid Petroleum Gas.
Q: In order to properly operate the dryer, how do I ensure that there’s enough ventilation available?
A: Dryers are built in a way which allows them to be placed outdoors however if a spec wants to keep it indoors then proper air circulation and make-up airflow should be supplied: CFM 1750 for standard specs and for super steam models its CFM 2500.
Q: Is there a safety precaution available in the dryer?
A: Indeed, to ensure that the equipment is safe to use, the dryer has been embedded with alarm notifications, heat circuits and door switches.

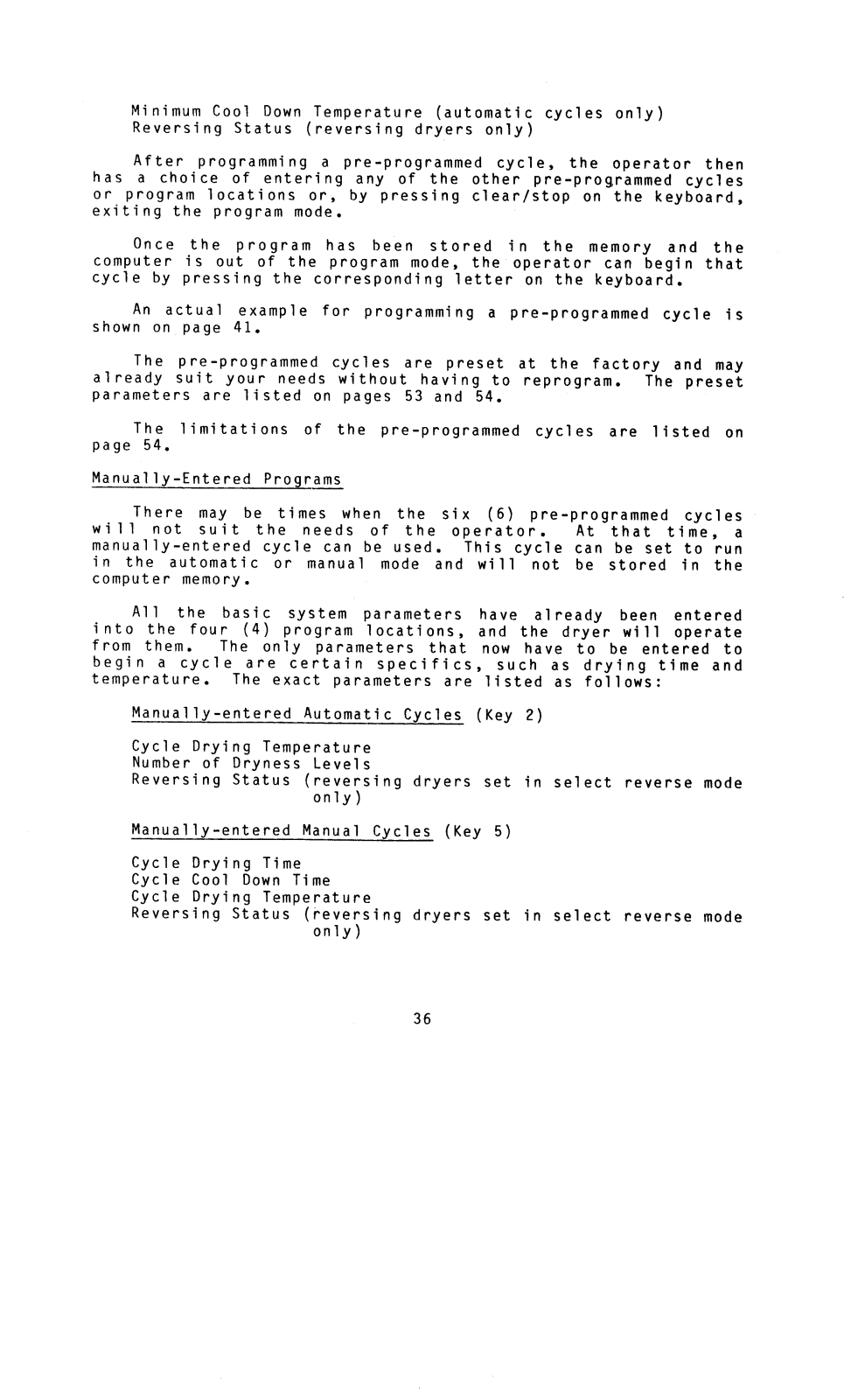

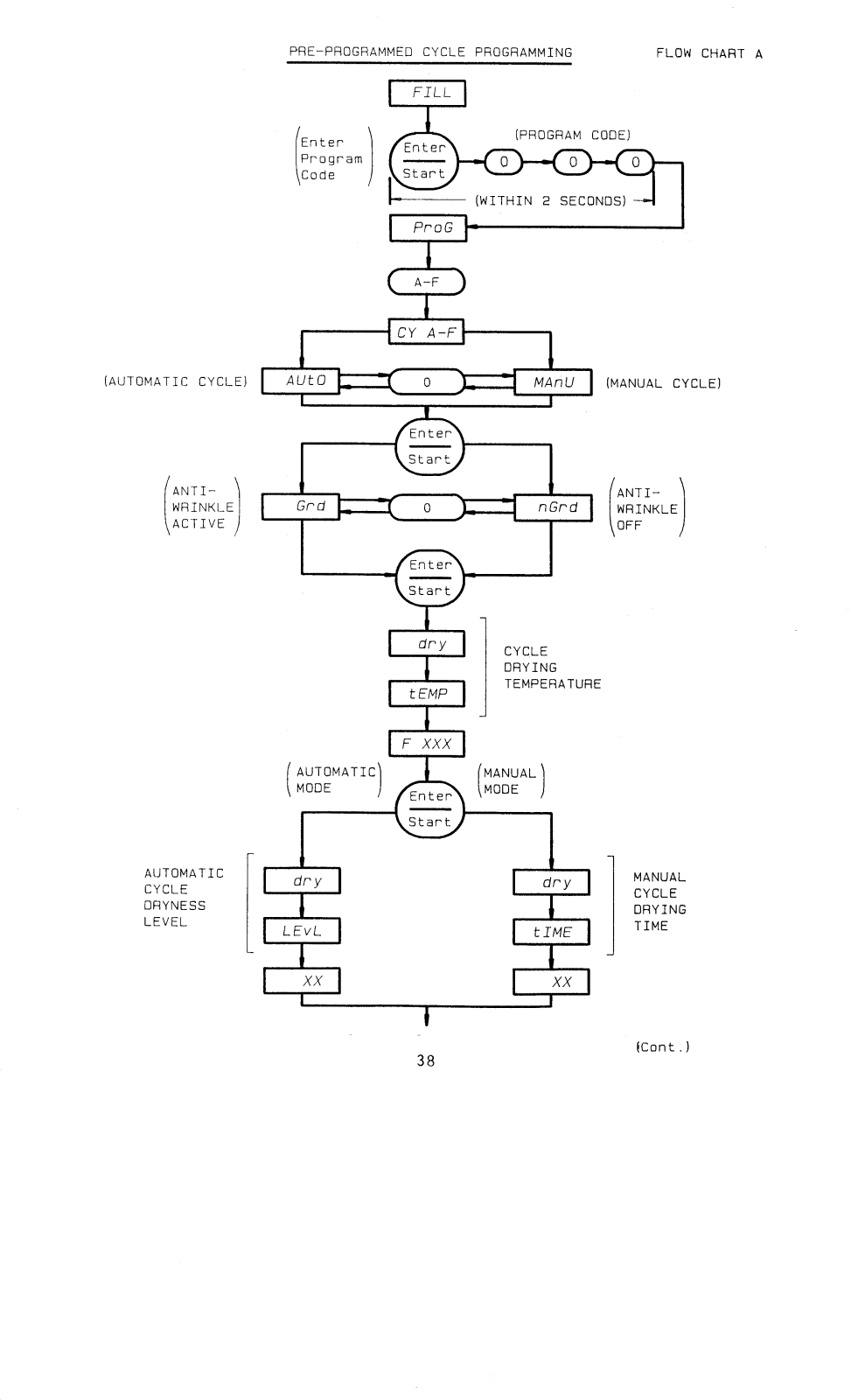

Q: Is it possible for me to set specific drying cycles through the AD-100 dryer?
A: Certainly, this dryer includes a Phase 3 computer control which allows multifunctional programmability for both automatic and manual modes.
