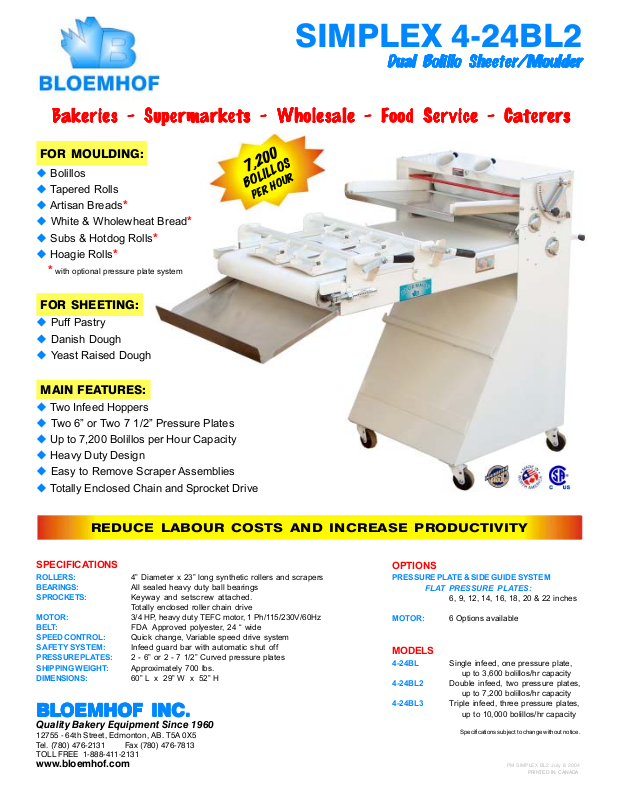

SIMPLEX 4-24BL2
Dual Bolillo Sheeter/MoulderDual Bolillo Sheeter/Moulder
Dual Bolillo Sheeter/Moulder
Dual Bolillo Sheeter/MoulderDual Bolillo Sheeter/Moulder
Bakeries - Supermarkets - Wholesale - Food Service - CaterersBakeries - Supermarkets - Wholesale - Food Service - Caterers
Bakeries - Supermarkets - Wholesale - Food Service - Caterers
Bakeries - Supermarkets - Wholesale - Food Service - CaterersBakeries - Supermarkets - Wholesale - Food Service - Caterers
FOR MOULDING:
! Bolillos
! Tapered Rolls
! Artisan Breads
! White & Wholewheat Bread*
! Subs & Hotdog Rolls*
! Hoagie Rolls*
* with optional pressure plate system
*
FOR SHEETING:
! Puff Pastry
! Danish Dough
! Yeast Raised Dough
7,200
BOLILLOS
PER HOUR
MAIN FEATURES:
! Two Infeed Hoppers
! Two 6” or Two 7 1/2” Pressure Plates
! Up to 7,200 Bolillos per Hour Capacity
! Heavy Duty Design
! Easy to Remove Scraper Assemblies
! Totally Enclosed Chain and Sprocket Drive
REDUCE LABOUR COSTS AND INCREASE PRODUCTIVITY
SPECIFICATIONS
ROLLERS: 4” Diameter x 23” long synthetic rollers and scrapers
BEARINGS: All sealed heavy duty ball bearings
SPROCKETS: Keyway and setscrew attached.
MOTOR: 3/4 HP, heavy duty TEFC motor, 1 Ph/115/230V/60Hz
BELT: FDA Approved polyester, 24 “ wide
SPEED CONTROL: Quick change, Variable speed drive system
SAFETY SYSTEM: Infeed guard bar with automatic shut off
PRESSURE PLATES: 2 - 6” or 2 - 7 1/2” Curved pressure plates
SHIPPING WEIGHT: Approximately 700 lbs.
DIMENSIONS: 60” L x 29” W x 52” H
BLBL
OEMHOF INC.OEMHOF INC.
BL
OEMHOF INC.
BLBL
OEMHOF INC.OEMHOF INC.
Quality Bakery Equipment Since 1960
12755 - 64th Street, Edmonton, AB. T5A 0X5
Tel. (780) 476-2131 Fax (780) 476-7813
TOLL FREE 1-888-411-2131
www.bloemhof.com
Totally enclosed roller chain drive
OPTIONS
PRESSURE PLATE & SIDE GUIDE SYSTEM
FLAT PRESSURE PLATES:
6, 9, 12, 14, 16, 18, 20 & 22 inches
MOTOR: 6 Options available
MODELS
4-24BL Single infeed, one pressure plate,
4-24BL2 Double infeed, two pressure plates,
4-24BL3 Triple infeed, three pressure plates,
up to 3,600 bolillos/hr capacity
up to 7,200 bolillos/hr capacity
up to 10,000 bolillos/hr capacity
Specifications subject to change without notice.
PM SIMPLEX BL2 July 8 2004
PRINTED IN CANADA
