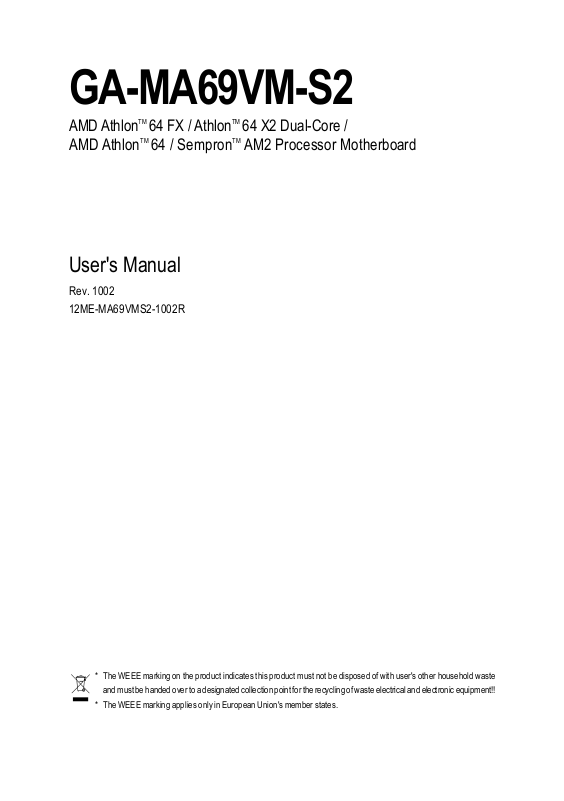

AMD GA-MA69VM-S2 User Manual
GA-MA69VM-S2
TM
AMD Athlon
AMD Athlon
64 FX / Athlon
TM
64 / Sempron
User's Manual
Rev. 1002
12ME-MA69VMS2-1002R
TM
64 X2 Dual-Core /
TM
AM2 Processor Motherboard
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.
Mar. 12, 2007
GA-MA69VM-S2
Motherboard
Mar. 12, 2007
Motherboard
GA-MA69VM-S2
Copyright
© 2007 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in the manual are legally registered to their respective companies.
Notice
The written content provided with this product is the property of Gigabyte.
No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any
means without Gigabyte's prior written permission. Specifications and features are subject to change
without prior notice.
Product Manual Classification
In order to assist in the use of this product, Gigabyte has categorized the user manual in the
following:
For detailed product information and specifications, please carefully read the
"Product User Manual".
For detailed information related to Gigabyte's unique features, please go to "Technology
Guide" section on Gigabyte's website to read or download the information you need.
For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw
Table of Contents
Item Checklist ................................................................................................................. 6
Optional Accessories ...................................................................................................... 6
GA-MA69VM-S2 Motherboard Layout ........................................................................... 7
Block Diagram ................................................................................................................ 8
Chapter 1 Hardware Installation .................................................................................... 9
1-1 Considerations Prior to Installation .................................................................... 9
1-2 Feature Summary .......................................................................................... 10
1-3 Installation of the CPU and CPU Cooler ....................................................... 12
1-3-1 Installation of the CPU ......................................................................................... 12
1-3-2 Installation of the CPU cooler ............................................................................. 13
1-4 Installation of Memory .................................................................................... 14
1-5 Installation of Expansion Cards ...................................................................... 16
1-6 I/O Back Panel Introduction ........................................................................... 17
1-7 Connectors Introduction .................................................................................. 18
Chapter 2 BIOS Setup ................................................................................................ 29
The Main Menu (For example: BIOS Ver. : D11) ...................................................... 30
2-1 Standard CMOS Features ............................................................................. 32
2-2 Advanced BIOS Features.............................................................................. 34
2-3 Integrated Peripherals ..................................................................................... 36
2-4 Power Management Setup ............................................................................. 39
2-5 PnP/PCI Configurations................................................................................. 41
2-6 PC Health Status ........................................................................................... 42
2-7 Load Fail-Safe Defaults ................................................................................... 44
2-8 Load Optimized Defaults ................................................................................. 44
2-9 Set Supervisor/User Password ..................................................................... 45
2-10 Save & Exit Setup ......................................................................................... 46
2-11 Exit Without Saving ....................................................................................... 46
- 4 -
Chapter 3 Drivers Installation ...................................................................................... 47
3-1 Install Chipset Drivers .................................................................................... 47
3-2 Software Application ....................................................................................... 48
3-3 Software Information ....................................................................................... 48
3-4 Hardware Information ..................................................................................... 49
3-5 Contact Us ..................................................................................................... 49
Chapter 4 Appendix ................................................................................................... 51
4-1 Unique Software Utilities ................................................................................ 51
4-1-1 EasyTune 5 Introduction ..................................................................................... 51
4-1-2 Xpress Recovery2 Introduction ......................................................................... 52
4-1-3 Flash BIOS Method Introduction ........................................................................ 54
4-1-4 Configuring SATA Hard Drive(s) ........................................................................ 58
4-1-5 Installation of TV Output Cable (Optional Device) ........................................... 69
4-1-6 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 73
4-2 Troubleshooting ............................................................................................... 78
- 5 -
Item Checklist
IDE Cable x 1 & FDD Cable x 1
Serial ATAII Cable x 2
I/O Shield
* The items listed above are for reference only, and are subject to change without notice.
Optional Accessories
2 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-51/ 51R)
4 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-21/ 21R)
COM Port Cable (Part Number: 12CF1-1CM001-31/31R)
S/PDIF In and Out Cable (Part Number: 12CR1-1SPINO-11/11R)
TV Out Cable (Part Number: 12CR1-10S001-01R)(Please refer to the instructions on Page 69)
- 6 -
GA-MA69VM-S2 Motherboard Layout
MS / KB
COMA
VGA
USB
AUDIO
CODEC
LPT
USB
RTL8110SC
LAN
ATX_12V
BIOS
F_AUDIO
PCI1
PCI2
CD_IN
CPU_FAN
IT8716
PCIE_4
PCIE_16
TV
CI
SPDIF_IO
Socket AM2
GA-MA69VM-S2
AMD 690V
COMB
F_USB1
DDRII1
BATTERY
F_USB2
DDRII2
DDRII3
AMD SB600
F_USB3
IDE
DDRII4
SYS_FAN
CLR_CMOS
PWR_LED
ATX
FDD
SATAII2
SATAII0
SATAII3
SATAII1
F_PANEL
- 7 -
Block Diagram
LAN
PCIe CLK
(100 MHz)
PCI Express x16
PCIe CLK
(100 MHz)
1 PCI Express x4
RJ45
PCI Bus
RTL
8110SC
x4
AMD
Socket AM2
CPU
Hyper Transport Bus
AMD 690V
AMD SB600
CPU CLK+/-(200 MHz)
DDRII 800/667/533 MHz DIMM
Dual Channel Memory
GFX CLK (100 MHz)
TV
VGA
ATA-33/66/100/133
IDE Channels
4 SATA 3Gb/s
LPC BUS
IT8716
Floppy
LPT Port
COM Ports
BIOS
2PCI
PCI CLK
(33 MHz)
CODEC
MIC
Line-Out
Side Speaker Out
Surround Speaker Out
Center/Subwoofer Speaker Out
Line-In
SPDIF In
- 8 -
10 USB
Ports
SPDIF Out
PS/2 KB/Mouse
Chapter 1Hardware Installation
1-1 Considerations Prior to Installation
Preparing Your Computer
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please
follow the instructions below:
1. Please turn off the computer and unplug its power cord.
2. When handling the motherboard, avoid touching any metal leads or connectors.
3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components
(CPU, RAM).
4. Prior to installing the electronic components, please have these items on top of an antistatic
pad or within a electrostatic shielding container.
5. Please verify that the power supply is switched off before unplugging the power supply
connector from the motherboard.
Installation Notices
1. Prior to installation, please do not remove the stickers on the motherboard. These stickers
are required for warranty validation.
2. Prior to the installation of the motherboard or any hardware, please first carefully read the
information in the provided manual.
3. Before using the product, please verify that all cables and power connectors are connected.
4. To prevent damage to the motherboard, please do not allow screws to come in contact with
the motherboard circuit or its components.
5. Please make sure there are no leftover screws or metal components placed on the motherboard
or within the computer casing.
6. Please do not place the computer system on an uneven surface.
7. Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
8. If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certified computer technician.
English
Instances of Non-Warranty
1. Damage due to natural disaster, accident or human cause.
2. Damage as a result of violating the conditions recommended in the user manual.
3. Damage due to improper installation.
4. Damage due to use of uncertified components.
5. Damage due to use exceeding the permitted parameters.
6. Product determined to be an unofficial Gigabyte product.
Hardware Installation- 9 -
English
1-2 Feature Summary
CPU Socket AM2 for AMD AthlonTM 64 FX / AthlonTM 64 X2 Dual-Core /
AthlonTM 64 / SempronTM processor
Front Side Bus 2000 MHz
Chipset Northbridge: AMD 690V
Southbridge: AMD SB600
LAN Onboard Realtek 8110SC chip(10/100/1000 Mbit)
Audio ALC888 CODEC
Supports 2 / 4 / 6 / 8 channel audio
Supports High Definition Audio
Supports Line In ; Line Out (Front Speaker Out) ; MIC ; Surround Speaker
Out (Rear Speaker Out) ; Center/Subwoofer Speaker Out ; Side Speaker
Out connection
S/PDIF In/Out connection
CD In connection
Storage AMD SB600
- 1 FDD connector, allowing connection of 1 FDD device
- 1 IDE connector with ATA-33/66/100/133 support, allowing connection
of 2 IDE devices
- 4 SATA 3Gb/s connectors, allowing connection of 4 SATA 3Gb/s devices
- Supports RAID 0, RAID 1,and RAID 0+1for Serial ATA
O.S Support Microsoft Windows 2000/XP/Vista
Memory 4 DDRII DIMM memory slots (supports up to 16 GB memory)
Supports dual channel DDRII 800/667/533 DIMMs
Supports 1.8V DDRII DIMMs
Expanstion Slots 1 PCI Express x16 slot
1 PCI Express x4 slot
2 PCI slots
Internal Connectors 1 24-pin ATX power connector
1 4-pin ATX 12V power connector
1 floppy connector
1 IDE connector
4 SATA 3Gb/s connectors
1 CPU fan connector
1 system fan connector
1 front panel connector
1 front audio connector
1 CD In connector
1 S/PDIF In/Out connector
3 USB 2.0/1.1 connectors for additional 6 USB 2.0/1.1 ports by cables
1 Power LED connector
1 COMB connector
1 Chassis Intrusion connector
1 TV out connector
(Note 1)
GA-MA69VM-S2 Motherboard - 10 -
Rear Panel I/O 1 PS/2 keyboard port
1 PS/2 mouse port
1 parallel port
1 COMA port
1 VGA port
4 USB 2.0/1.1 ports
1 RJ-45 port
6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear
Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
I/O Control IT8716 chip
Hardware Monitor System voltage detection
CPU / System temperature detection
CPU / System fan speed detection
CPU / System warning temperature
CPU / System fan failure warning
Supports CPU Smart Fan function
(Note 2)
BIOS 1 4 Mbit flash ROM
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Additional Features Supports @BIOS
Supports Download Center
Supports Q-Flash
Supports EasyTune (only supports Hardware Monitor function)
Supports Xpress Install
Supports Xpress Recovery2
Supports Xpress BIOS Rescue
Bundle Software Norton Internet Security (OEM version)
Form Factor Micro ATX form factor; 24.4cm x 24.4cm
English
(Note 3)
(Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4 GB of physical
memory is installed, the actual memory available for the operating system will be less than
4 GB; Windows 64-bit operating system doesn't have such limitation.
(Note 2) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.
(Note 3) EasyTune functions may vary depending on different motherboards.
Hardware Installation- 11 -
1-3 Installation of the CPU and CPU Cooler
English
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the motherboard supports the CPU.
2. Please take note of the pin 1 marking (the small triangle) on the CPU. If you install the
CPU in the wrong direction, the CPU will not insert properly. If this occurs, please
change the insert direction of the CPU.
3. Please add an even layer of heat paste between the CPU and CPU cooler.
4. Please make sure the CPU cooler is installed on the CPU prior to system use,
otherwise overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specifications. It
is not recommended that the system bus frequency be set beyond hardware specifica
tions since it does not meet the required standards for the peripherals. If you wish to set
the frequency beyond the proper specifications, please do so according to your
hardware specifications including the CPU, graphics card, memory, hard drive, etc.
1-3-1 Installation of the CPU
Check the CPU pins to see that none are bent. Move the socket lever to the unlocked position as shown
in Fig. 1 (90o to the plane of the motherboard) prior to inserting the CPU. The pin 1 location is designated
on the CPU by a small triangle that corresponds to a triangle marking on the socket as shown in
Fig. 2. Align the CPU to the socket and gently lower it into place. Do not force the CPU into the socket.
Socket Lever
Fig.1
Position lever at a 90 degree angle.
Fig.2
Pin 1 location on the socket and processor.
Gently place the CPU into position making sure that the CPU pins
fitperfectly into their holes. Once the CPU is positioned into its socket,
place one finger down on the middle of the CPU and gently press
themetal lever back into its original position.
Pin One
Please use extra care when installing the CPU. The CPU will not fit if positioned incorrectly.
Rather than applying force, please change the positioning of the CPU.
GA-MA69VM-S2 Motherboard - 12 -
1-3-2 Installation of the CPU cooler
Fig.1
Before installing the CPU cooler, please first add an even layer of heat
paste on the surface of the CPU. Install all the CPU cooler components
(Please refer to the heat sink manual for detailed installation instructions).
Fig.2
Please connect the CPU cooler power connector to the CPU_FAN connector located on the motherboard so that the CPU cooler can properly
function to prevent CPU overheating.
Use extreme care when removing the CPU cooler because the thermal grease/tape between
the CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler
may damage the CPU.
English
Hardware Installation- 13 -
English
1-4 Installation of Memory
Before installing the memory modules, please comply with the following conditions:
1. Please make sure that the memory used is supported by the motherboard. It is
recommended that memory of similar capacity, specifications and brand be used.
2. Before installing or removing memory modules, please make sure that the computer
power is switched off to prevent hardware damage.
3. Memory modules have a foolproof insertion design. A memory module can be
installed in only one direction. If you are unable to insert the module, please switch the
direction.
The motherboard supports DDRII memory modules, whereby BIOS will automatically detect memory
capacity and specifications. Memory modules are designed so that they can be inserted only in one
direction. The memory capacity used can differ with each slot.
Notch
DDR II
Fig.1
The DIMM socket has a notch, so the DIMM memory
module can only fit in one direction. Insert the DIMM memory
module vertically into the DIMM socket. Then push it down.
Fig.2
Close the plastic clip at both edges of the DIMM sockets to
lock the DIMM module.
Reverse the installation steps when you wish to remove
the DIMM module.
GA-MA69VM-S2 Motherboard - 14 -
Dual Channel Memory Configuration
The GA-MA69VM-S2 supports the Dual Channel Technology. After operating
the Dual Channel Technology, the bandwidth of Memory Bus will add double.
Due to CPU limitation, if you wish to operate the Dual Channel Technology,
follow the guidelines below:
1. Dual Channel mode cannot be enabled if only one DDR2 memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that
memory of the same capacity, brand, speed, and chips be used and installed in the same
colored DDR2 sockets for optimum performance.
The following is a Dual Channel Memory configuration table:
(DS: Double Side, SS: Single Side, "--": Empty)
DDRII 1 DDRII 2 DDRII 3 DDRII 4
2 memory modules
4 memory modules
If two memory modules are to be used to achieve Dual Channel mode, we recommend
installing them in DDRII 1 and DDRII 2 DIMM sockets.
DS/SS DS/SS - - - -
- - - - DS/SS DS/SS
DS/SS DS/SS DS/SS DS/SS
English
Hardware Installation- 15 -
English
1-5 Installation of Expansion Cards
You can install your expansion card by following the steps outlined below:
1. Read the related expansion card's instruction document before install the expansion card into the
computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
Installing a PCI Express x16 expansion card:
Please carefully pull out the small whitedrawable bar at the end of the PCI Express x16 slot when you try to install/
uninstall the VGA card. Please align the
VGA card to the onboard PCI Express
x16 slot and press firmly down on the
slot. Make sure your VGA card is locked
by the small white-drawable bar.
GA-MA69VM-S2 Motherboard - 16 -
1-6 I/O Back Panel Introduction
PS/2 Keyboard and PS/2 Mouse Connector
To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the
keyboard to the lower port (purple).
Parallel Port
The parallel port allows connection of a printer, scanner and other peripheral devices.
COMA (Serial Port)
Connects to serial-based mouse or data processing devices.
VGA Port
Monitor can be connected to VGA port.
USB port
Before you connect your device(s) into USB connector(s), please make sure your device(s) such
as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface.
Also make sure your OS supports USB controller. If your OS does not support USB controller,
please contact OS vendor for possible patch or driver upgrade. For more information please
contact your OS or device(s) vendors.
LAN Port
The provided Internet connection is Gigabit Ethernet, providing data transfer speeds of
10/100/1000 Mbps.
Center/Subwoofer Speaker Out
The default Center/Subwoofer Speaker Out jack. Center/Subwoofer speakers can be connected to
Center/Subwoofer Speaker Out jack.
Surround Speaker Out (Rear Speaker Out)
The default Surround Speaker Out (Rear Speaker Out) jack. Rear surround speakers can be
connected to Surround Speaker Out (Rear Speaker Out) jack.
Side Speaker Out
The default Side Speaker Out jack. Surround side speakers can be connected to Side Speaker Out
jack.
Line In
The default Line In jack. Devices like CD-ROM, walkman etc. can be connected to Line In jack.
Line Out (Front Speaker Out)
The default Line Out (Front Speaker Out) jack. Stereo speakers, earphone or front surround
speakers can be connected to Line Out (Front Speaker Out) jack.
English
Hardware Installation- 17 -
MIC In
The default MIC In jack. Microphone must be connected to MIC In jack.
English
In addition to the default speakers settings, the ~ audio jacks can be reconfigured to
perform different functions via the audio software. Only microphones still MUST be connected
to the default Mic In jack ( ). Please refer to the 2-/4-/6-/8- channel audio setup steps for
detailed software configuration information.
1-7 Connectors Introduction
12
3
16
13
10
6
5
7
4
14
17
18
1) ATX_12V
2) ATX (Power Connector)
3) CPU_FAN
4) SYS_FAN
5) FDD
6) IDE
7) SATAII0 /1 /2 /3
8) F_PANEL
9) CD_IN
GA-MA69VM-S2 Motherboard - 18 -
15 12
89 11
10) F_AUDIO
11) F_USB1 / F_USB2/ F_USB3
12) POWER_LED
13) CI
14) CLR_CMOS
15) BATTERY
16) TV
17) SPDIF_IO
18) COMB
1/2) ATX_12V/ATX (Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all
the components on the motherboard. Before connecting the power connector, please make sure
that all components and devices are properly installed. Align the power connector with its
proper location on the motherboard and connect tightly.
The ATX_12V power connector mainly supplies power to the CPU. If the ATX_12V power
connector is not connected, the system will not start.
Caution!
Please use a power supply that is able to handle the system voltage requirements. It is
recommended that a power supply that can withstand high power consumption be used (300W
or greater). If a power supply is used that does not provide the required power, the result can
lead to an unstable system or a system that is unable to start.
If you use a 24-pin ATX power supply, please remove the small cover on the power connector
on the motherboard before plugging in the power cord; otherwise, please do not remove it.
English
2
4
ATX_12V
13
24
ATX
1
12
Pin No. Definition
1 3.3V
2 3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 Power Good
9 5V SB(stand by +5V)
10 +12V
11 +12V(Only for 24-pin ATX)
12 3.3V(Only for 24-pin ATX)
Pin No. Definition
Pin No. Definition
1
3
13 3.3V
14 -12V
15 GND
16 PS_ON(soft On/Off)
17 GND
18 GND
19 GND
20 -5V
21 +5V
22 +5V
23 +5V (Only for 24-pin ATX)
24 GND(Only for 24-pin ATX)
1 GND
2 GND
3 +12V
4 +12V
Hardware Installation- 19 -
English
3/4) CPU_FAN / SYS_FAN (Cooler Fan Power Connector)
The cooler fan power connector supplies a +12V power voltage via a 3-pin/4-pin (only for
CPU_FAN) power connector and possesses a foolproof connection design.
Most coolers are designed with color-coded power connector wires. A red power connector
wire indicates a positive connection and requires a +12V power voltage. The black connector
wire is the ground wire (GND).
Remember to connect the CPU/system fan cable to the CPU_FAN/SYS_FAN connector to prevent
CPU damage or system hanging caused by overheating.
CPU_FAN :
Pin No. Definition
1
CPU_FAN
1
SYS_FAN
1 GND
2 +12V / Speed Control
3 Sense
4 Speed Control
SYS_FAN :
Pin No. Definition
1 GND
2 +12V
3 Sense
5) FDD (FDD Connector)
The FDD connector is used to connect the FDD cable while the other end of the cable connects to
the FDD drive. The types of FDD drives supported are: 360 KB, 720 KB, 1.2 MB, 1.44 MB and
2.88 MB. Before attaching the FDD cable, please take note of the foolproof groove in the FDD
connector.
GA-MA69VM-S2 Motherboard - 20 -
34
2
33
1
6) IDE (IDE Connector)
An IDE device connects to the computer via an IDE connector. One IDE connector can connect to
one IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or optical
drive). If you wish to connect two IDE devices, please set the jumper on one IDE device as Master
and the other as Slave (for information on settings, please refer to the instructions located on the IDE
device). Before attaching the IDE cable, please take note of the foolproof groove in the IDE connector.
English
40
2
39
1
7) SATAII0 /1 /2 /3 (SATA 3Gb/s Connectors, Controlled by AMD SB600)
SATA 3Gb/s can provide up to 300 MB/s transfer rate. Please refer to the BIOS setting for the Serial
ATA and install the proper driver in order to work properly.
1
7
1
7
SATAII 2
SATAII 0
SATAII 3
SATAII 1
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
7
1
7
1
Hardware Installation- 21 -
English
8) F_PANEL (Front Panel Jumper)
Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis front
panel to the F_PANEL connector according to the pin assignment below.
Message LED/
Power/
Sleep LED
2
1
HD+
IDE Hard Disk Active LED
HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)
Pin 2: LED cathode(-)
SPEAK (Speaker Connector) Pin 1: Power
Pin 2- Pin 3: NC
Pin 4: Data(-)
RES (Reset Switch) Open: Normal
Close: Reset Hardware System
PW (Power Switch) Open: Normal
Close: Power On/Off
MSG(Message LED/Power/Sleep LED) Pin 1: LED anode(+)
Pin 2: LED cathode(-)
NC NC
MSG+
MSG-
HD-
Reset Switch
Power
Switch
PW+
RES-
PW-
RES+
NC
Speaker Connector
SPEAK+
SPEAK-
20
19
9) CD_IN (CD In Connector)
Connect CD-ROM or DVD-ROM audio out to the connector.
GA-MA69VM-S2 Motherboard - 22 -
1
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
10) F_AUDIO (Front Audio Panel Connector)
This connector supports either HD (High Definition) or AC97 front panel audio module. If you wish
to use the front audio function, connect the front panel audio module to this connector. Check the pin
assignments carefully while you connect the front panel audio module. Incorrect connection
between the module and connector will make the audio device unable to work or even damage it.
For optional front panel audio module, please contact your chassis manufacturer.
HD Audio:
910
Pin No. Definition
1 MIC2_L
2 GND
12
3 MIC2_R
4 -ACZ_DET
5 LINE2_R
6 FSENSE1
7 FAUDIO_JD
8 No Pin
9 LINE2_L
10 FSENSE2
AC'97 Audio:
Pin No. Definition
1 MIC
2 GND
3 MIC Power
4NC
5 Line Out (R)
6NC
7NC
8 No Pin
9 Line Out (L)
10 NC
By default, the audio driver is configured to support HD Audio. To connect an AC97 front panel
audio module to this connector, please refer to the instructions on Page 77 about the software
settings.
11) F_ USB1 / F_USB2 / F_USB3 (Front USB Connector)
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while you
connect the front USB cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional front USB cable, please contact your local dealer.
English
Pin No. Definition
1 Power (5V)
2
10
1
9
2 Power (5V)
3 USB DX-
4 USB Dy-
5 USB DX+
6 USB Dy+
7 GND
8 GND
9 No Pin
10 NC
Hardware Installation- 23 -
English
12) POWER_LED
The PWR_LED connector is connected with the system power indicator to indicate whether the
system is on/off. It will blink when the system enters suspend mode(S1).
Pin No. Definition
1 MPD+
2 MPD-
1
3 MPD-
13) CI (Chassis Intrusion, Case Open)
This 2-pin connector allows your system to detect if the chassis cover is removed. You can check
the "Case Opened" status in BIOS Setup.
GA-MA69VM-S2 Motherboard - 24 -
Pin No. Definition
1 Signal
1
2 GND
14) CLR_CMOS (Clear CMOS)
You may clear the CMOS data to its default values by this header. To clear CMOS, temporarily
short the two pins. Default doesn't include the jumper to avoid improper use of this header.
Open: Normal
Short: Clear CMOS
15) BATTERY
English
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended
by the manufacturer.
Dispose of used batteries according to the manufacturer's
instructions.
If you want to erase CMOS...
1. Turn off the computer and unplug the power cord.
2. Gently take out the battery and put it aside for about one
minute. (Or you can use a metal object to connect the positive
and negative pins in the battery holder to makethem short for
five seconds.)
3. Re-install the battery.
4. Plug the power cord in and turn on the computer.
Hardware Installation- 25 -
English

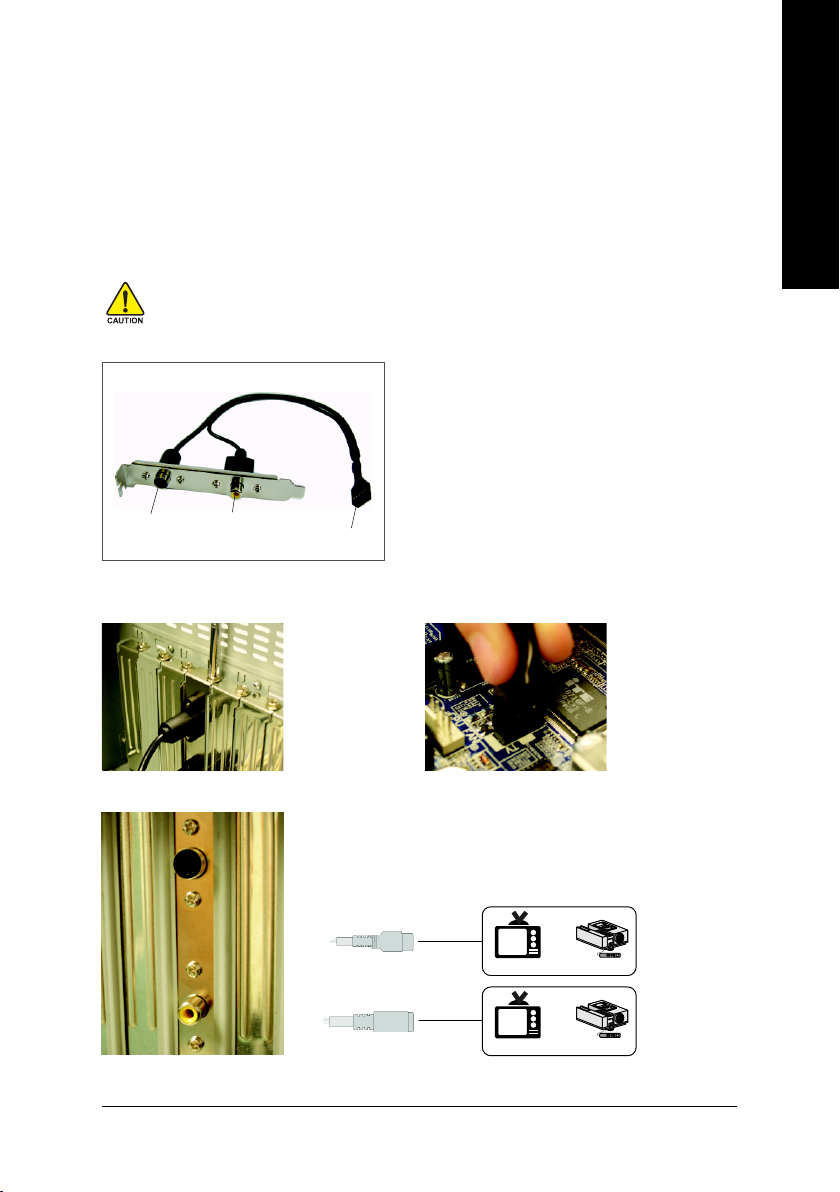

16) TV (TV Output Connector)
Use this connector to connect an optional TV Out cable to your computer for output of analog video
signals. To connect the TV Out cable, check the pin assignments carefully and install it correctly.
Incorrect connection between the cable and connector will make the device unable to work or even
damage it. For the optional TV Out cable, please contact your local dealer. Refer to page 69 for
instructions on installing the TV Out cable.
Pin No. Definition
1Y
2 GND
1
9210
3C
4 GND
5 COMP
6 GND
7 GND
8 GND
9 No Pin
10 GND
17) SPDIF_IO (S/PDIF In/Out Connector)
The S/PDIF output is capable of providing digital audio to external speakers or compressed AC3
data to an external Dolby Digital Decoder. Use this feature only when your stereo system has
digital input function. Use S/PDIF IN feature only when your device has digital output function.
Be careful with the polarity of the SPDIF_IO connector. Check the pin assignment carefully while
you connect the S/PDIF cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional S/PDIF cable, please contact your local
dealer.
GA-MA69VM-S2 Motherboard - 26 -
5
6
Pin No. Definition
1
2
1 Power
2 No Pin
3 SPDIF
4 SPDIFI
5 GND
6 GND
18) COMB (COMB Connector)
Be careful with the polarity of the COMB connector. Check the pin assignment carefully while you
connect the COMB cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional COMB cable, please contact your local
dealer.
Pin No. Definition
1 NDCDB-
2 NSINB
9
10
1
2
3 NSOUTB
4 NDTRB-
5 GND
6 NDSRB-
7 NRTSB-
8 NCTSB-
9 NRIB-
10 No Pin
English
Hardware Installation- 27 -
Loading...
