GA-K8NSC-939

AMD Socket 939 Processor Motherboard

User's Manual

Rev. 1003

12ME-K8NSC939-1003

Feb. 23, 2005

GA-K8NSC-939

Motherboard

Feb. 23, 2005

GA-K8NSC-939

Motherboard

The trademarks mentioned in the manual are legally registered to their respective companies.

Notice

The written content provided with this product is the property of Gigabyte.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without Gigabyte's prior written permission. Specifications and features are subject to

change without prior notice.

Product Manual Classification

In order to assist in the use of this product, Gigabyte has categorized the user manual in the

following:

 For quick installation, please refer to the "Hardware Installation Guide" included with the

product.

 For detailed product information and specifications, please carefully read the

"Product User Manual".

 For detailed information related to Gigabyte's unique features, please go to the

"Technology Guide" section on Gigabyte's website to read or download the information

you need.

For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

Table of Contents

GA-K8NSC-939 Motherboard Layout ............................................................................ 6

Block Diagram ................................................................................................................ 7

Chapter 1 Hardware Installation .................................................................................... 9

1-1 Considerations Prior to Installation .................................................................... 9

1-2 Feature Summary .......................................................................................... 10

1-3 Installation of the CPU and Heatsink .............................................................. 12

1-3-1 Installation of the CPU ......................................................................................... 12

1-3-2 Installation of the Heatsink .................................................................................. 13

1-4 Installation of Memory .................................................................................... 14

1-5 Installation of Expansion Cards ...................................................................... 16

1-6 I/O Back Panel Introduction ........................................................................... 17

1-7 Connectors Introduction .................................................................................. 18

Chapter 2 BIOS Setup................................................................................................ 29

The Main Menu (Example BIOS Version:E1)........................................................... 30

2-1 Standard CMOS Features ............................................................................. 32

2-2 Advanced BIOS Features.............................................................................. 34

2-3 Integrated Peripherals ..................................................................................... 36

2-4 Power Management Setup ............................................................................. 40

2-5 PnP/PCI Configurations................................................................................. 41

2-6 PC Health Status ........................................................................................... 42

2-7 MB Intelligent Tweaker(M.I.T.) ....................................................................... 43

2-8 Top Performance ............................................................................................. 44

2-9 Load Optimized Defaults ................................................................................. 44

2-10 Set Supervisor/User Password ..................................................................... 45

2-11 Save & Exit Setup ......................................................................................... 46

2-12 Exit Without Saving ....................................................................................... 46

- 4 -

Chapter 3 Drivers Installation ...................................................................................... 47

3-1 Install Chipset Drivers .................................................................................... 47

3-2 Software Application ....................................................................................... 48

3-3 Software Information ....................................................................................... 48

3-4 Hardware Information ..................................................................................... 49

3-5 Contact Us..................................................................................................... 49

Chapter 4 Appendix ................................................................................................... 51

4-1 Unique Software Utilities ................................................................................ 51

4-1-1 Xpress Recovery Introduction ........................................................................... 51

4-1-2 Flash BIOS Method Introduction ........................................................................ 54

4-1-3 Serial ATA BIOS Setting Utility Introduction ...................................................... 63

4-1-4 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 69

4-2 Troubleshooting ............................................................................................... 77

- 5 -

GA-K8NSC-939 Motherboard Layout

KB_MS

ATX_12V

DDR1

DDR2

DDR3

DDR4

COMA

COMB

USB

AUDIO

F_AUDIO

CD_IN

CODEC

Marvell

8001

LPT

LAN

SUR_CEN

IT8712

CPU_FAN

AGP

IR_CIR

Socket 939

PCI1

PCI2

PCI3

PCI4

PCI5

ATX

IDE2

IDE1

GA-K8NSC-939

SATA1_SBSATA0_SB

nVIDIA

nForceTM 3 250Gb/

250 Ultra

BATTERY

CLR_CMOS

SYS_FAN

FDD

NB_FAN

BIOS

F_PANEL

PWR_LED

SPDIF_IO

F_USB2F_USB1

- 6 -

Block Diagram

AGPCLK

(66MHz)

5 PCI

AGP Slot

4X/8X

PCI Bus

Marvell

8001

RJ45

LAN

Socket 939

nForceTM 3

CODEC

AMD K8

CPU

Hyper Transport Bus

nVIDIA

250Gb/

250 Ultra

CPUCLK+/-(800MHz)

DDR 400/333/266/200MHz DIMM

BIOS

2 Serial ATA

LPC BUS

IT8712

33MHz

Dual Channel Memory

ATA33/66/100/133 IDE Channels

IR_CIR

Floppy

LPT Port

COM Port

PS/2 KB/Mouse

24MHz

PCICLK (33MHz)

MIC

Line-Out

Line-In

- 7 -

8 USB

Ports

- 8 -

Chapter 1Hardware Installation

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please follow the instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components (CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic pad or within a electrostatic shielding container.

5. Please verify that the power supply is switched off before unplugging the power supply connector from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers are required for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read the information in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with the motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.

English

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Hardware Installation- 9 -

English

1-2 Feature Summary

CPU  Socket 939 for AMD AthlonTM 64 / 64 FX processor (K8)

 1600MT/s system bus  Supports core frequencies in excess of 3000+ and faster

Chipset  nVIDIA® nForce3TM 250Gb/250 Ultra Chipset Memory  4 DDR DIMM memory slots (supports up to 4GB memory)

 Supports dual channel DDR 400/333/266/200 DIMM

Slots  1 AGP slot supports 8X/4X (1.5V) mode

 5 PCI slots

IDE Connections  2 IDE connection (UDMA 33/ATA 66/ATA 100/ATA 133), allows connection

of 4 IDE devices

FDD Connections  1 FDD connection, allows connection of 2 FDD devices Onboard SATA  2 Serial ATA ports from nVIDIA® nForce3TM 250Gb/250 Ultra (SATA0_SB,

SATA1_SB)

Peripherals  1 parallel port supporting Normal/EPP/ECP mode

 2 serial ports (COMA, COMB)  8 USB 2.0/1.1 ports (rear x 4, front x 4 via cable)  1 front audio connector  1 IR/CIR connector  1 PS/2 keyboard port  1 PS/2 mouse port

Onboard LAN  Onboard Marvell 8001 chip (10/100/1000 Mbit)

 1 RJ45 port

Onboard Audio  ALC850 CODEC (UAJ)

 Supports Jack Sensing function  Supports 2 / 4 / 6 / 8 channel audio  Supports Line In ; Line Out ;MIC  Surround Back Speaker (by optional Audio Combo Kit)  SPDIF In/Out connection  CD In connection

I/O Control  IT8712

(Note 2)

(Note 1)

(Note 1) Due to standard PC architecture, a certain amount of memory is reserved for system usage and

therefore the actual memory size is less than the stated amount. For example, 4GB of memory size will instead be shown as 3.xxGB memory during system startup.

(Note 2) To set up an 8 channel audio configuration, you must use Audio Combo Kit (optional device).

GA-K8NSC-939 Motherboard - 10 -

Hardware Monitor  System voltage detection

 CPU temperature detection  CPU / System fan speed detection  CPU warning temperature  CPU / System fan failure warning  Thermal shutdown function

Onboard SATA RAID  Onboard nVIDIA® nForce3TM 250Gb/250 Ultra chipset (SATA0_SB, SATA1_SB)

 Supports data striping (RAID 0), mirroring (RAID 1), or striping + mirroring

(RAID 0+1) function

 Supports data transfer rate of up to 150 MB/s  Supports a maximum of 2 SATA connections

BIOS  Use of licensed AWARD BIOS

 Supports Q-Flash

Additional Features  Supports @BIOS

 Supports EasyTune

Overclocking  Over Voltage via BIOS (CPU/ DDR/ AGP/ HT-Link)

 Over Clock via BIOS (CPU/ AGP)

Form Factor  ATX form factor; 30.5cm x 24.4cm

(Note 3)

English

(Note 3) EasyTune functions may vary depending on different motherboards.

Hardware Installation- 11 -

1-3 Installation of the CPU and Heatsink

English

Before installing the CPU, please comply with the following conditions:

1. Please make sure that the motherboard supports the CPU.

2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong direction, the CPU will not insert properly. If this occurs, please change the insert direction of the CPU.

3. Please add an even layer of heat sink paste between the CPU and heatsink.

4. Please make sure the heatsink is installed on the CPU prior to system use, otherwise overheating and permanent damage of the CPU may occur.

5. Please set the CPU host frequency in accordance with the processor specifications. It is not recommended that the system bus frequency be set beyond hardware specifications since it does not meet the required standards for the peripherals. If you wish to set the frequency beyond the proper specifications, please do so according to your hardware specifications including the CPU, graphics card, memory, hard drive, etc.

1-3-1 Installation of the CPU

Check the processor pins to see that none are bent. Move the socket lever to the unlocked position as shown in Fig. 1 (90o to the plane of the motherboard) prior to inserting the processor. The pin 1 location is designated on the processor by a copper triangle that corresponds to a triangle marking on the socket as shown in Fig. 2. Align the processor to the socket and gently lower it into place. Do not force the processor into the socket.

Socket Lever

Fig.1 Position lever at a 90-degree angle.

Fig.2 Pin 1 location on the socket and processor. Gently place the CPU into position making sure that the CPU pins fit perfectly into their holes. Once the CPU is positioned into its socket, place one finger down on the middle of the CPU and gently press the metal lever back into its original position.

Please use extra care when installing the CPU. The CPU will not fit if positioned incorrectly. Rather than applying force, please change the positioning of the CPU.

GA-K8NSC-939 Motherboard - 12 -

1-3-2 Installation of the Heatsink

Fig.1 Before installing the heat sink, please first add an even layer of heat sink paste on the surface of the CPU. Install all the heat sink components (Please refer to the heat sink manual for detailed installation instructions).

Fig.2 Please connect the heat sink power connector to the CPU_FAN connector located on the motherboard so that the heat sink can properly function to prevent CPU overheating.

The heat sink may adhere to the CPU as a result of hardening of the heat sink paste. To prevent such an occurrence, it is suggested that either thermal tape rather than heat sink paste be used for heat dissipation or using extreme care when removing the heat sink.

English

Hardware Installation- 13 -

English

1-4 Installation of Memory

Before installing the memory modules, please comply with the following conditions:

1. Please make sure that the memory used is supported by the motherboard. It is recommended that memory of similar capacity, specifications and brand be used.

2. Before installing or removing memory modules, please make sure that the computer power is switched off to prevent hardware damage.

3. Memory modules have a foolproof insertion design. A memory module can be installed in only one direction. If you are unable to insert the module, please switch the direction.

The motherboard supports DDR memory modules, whereby BIOS will automatically detect memory capacity and specifications. Memory modules are designed so that they can be inserted only in one direction. The memory capacity used can differ with each slot.

Notch

DDR

Fig.1 The DIMM socket has a notch, so the DIMM memory module can only fit in one direction. Insert the DIMM memory module vertically into the DIMM socket. Then push it down.

Fig.2 Close the plastic clip at both edges of the DIMM sockets to lock the DIMM module. Reverse the installation steps when you wish to remove the DIMM module.

GA-K8NSC-939 Motherboard - 14 -

Dual Channel Memory Configuration

The GA-K8NSC-939 supports the Dual Channel Technology. When the Dual Channel Technology is activated, the bandwidth of memory bus will be double the original one.

Due to CPU limitation, if you want to operate the Dual Channel Technology, please follow the guidelines below for Dual Channel memory configuration.

1. Dual Channel mode will not be enabled if only one DDR memory module is installed.

2. To enable Dual Channel mode with 2 memory modules (it is recommended to use memory modules of identical brand, size, chips, and speed), you must install them into DIMM sockets of the same color.

3. To enable Dual Channel mode with 4 memory modules, it is recommended to use memory modules of identical brand, size, chips, and speed.

The following is a Dual Channel Memory configuration table: (DS: Double Side, SS: Single Side)

DDR 1 DDR 2 DDR 3 DDR 4

2 memory modules

4 memory modules

If two memory modules are to be used to achieve Dual Channel mode, we recommend installing them in DDR1 and DDR2 DIMM sockets.

All of the memory configurations below will cause system unable to boot. (DS: Double Side, SS: Single Side)

1 memory module

2 memory modules

3 memory modules

DS/SS DS/SS X X

X X DS/SS DS/SS

DS/SS DS/SS DS/SS DS/SS

DDR 1 DDR 2 DDR 3 DDR 4

X DS/SS X X

X X X DS/SS

X DS/SS DS/SS X

DS/SS X X DS/SS

X DS/SS X DS/SS

DS/SS DS/SS DS/SS X

X DS/SS DS/SS DS/SS

DS/SS X DS/SS DS/SS

DS/SS DS/SS X DS/SS

English

Hardware Installation- 15 -

English

1-5 Installation of Expansion Cards

You can install your expansion card by following the steps outlined below:

1. Read the related expansion card's instruction document before install the expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the computer.

3. Press the expansion card firmly into expansion slot in motherboard.

4. Be sure the metal contacts on the card are indeed seated in the slot.

5. Replace the screw to secure the slot bracket of the expansion card.

6. Replace your computer's chassis cover.

7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.

8. Install related driver from the operating system.

Installing an AGP VGA card:

Please carefully pull out the small whitedrawable bar at the end of the AGP slot when you try to install/uninstall the VGA card. Please align the VGA card to the onboard AGP slot and press firmly down on the slot. Make sure your VGA card is locked by the small white-drawable bar.

GA-K8NSC-939 Motherboard - 16 -

1-6 I/O Back Panel Introduction

PS/2 Keyboard and PS/2 Mouse Connector

To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the keyboard to the lower port (purple).

Parallel Port

The parallel port allows connection of a printer, scanner and other peripheral devices.

COMA, COMB (Serial Port)

Connects to serial-based mouse or data processing devices.

USB port

Before you connect your device(s) into USB connector(s), please make sure your device(s) such as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also make sure your OS supports USB controller. If your OS does not support USB controller, please contact OS vendor for possible patch or driver upgrade. For more information please contact your OS or device(s) vendors.

LAN Port

The provided Internet connection is Gigabit Ethernet, providing data transfer speeds of 10/100/1000Mbps.

Line In

Devices like CD-ROM, walkman etc. can be connected to Line In jack.

Line Out

Connect the stereo speakers, earphone or front surround speakers to this connector.

MIC In

Microphone can be connected to MIC In jack.

English

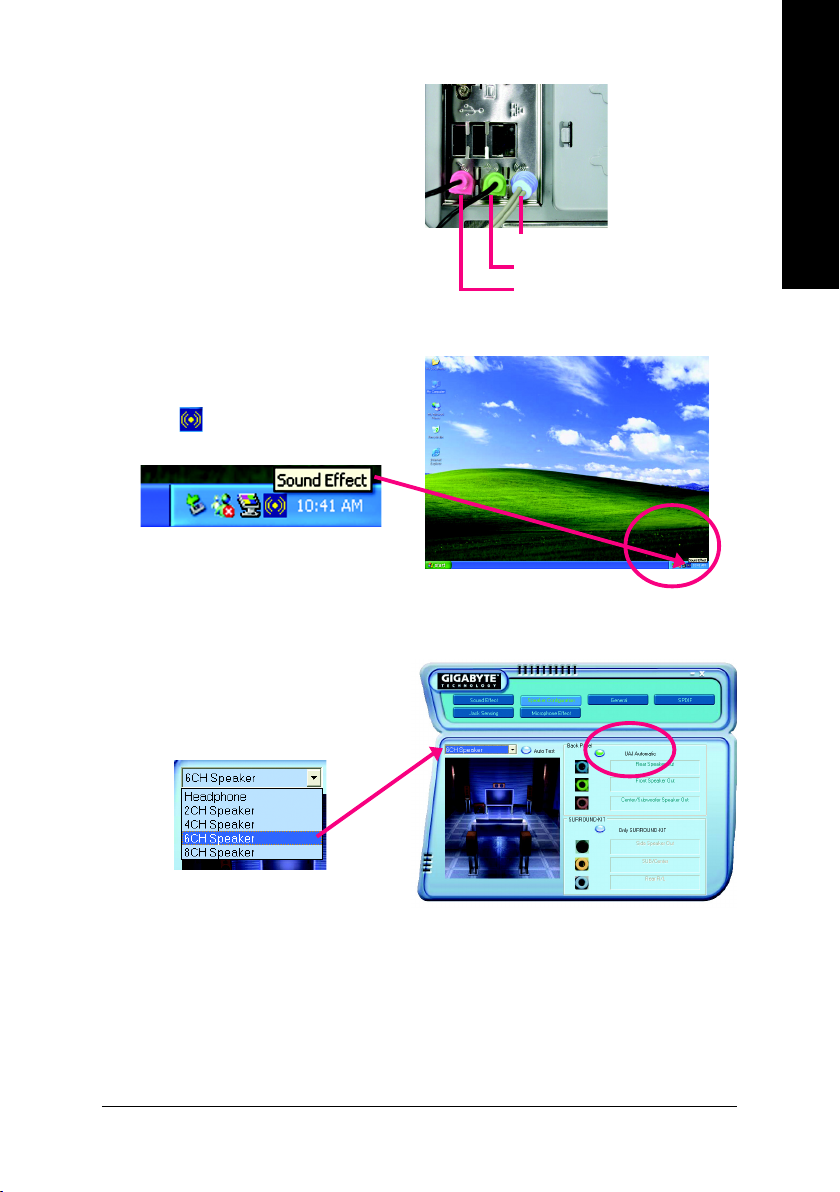

You can use audio software to configure 2-/4-/6-/8-channel audio functioning.

Hardware Installation- 17 -

1-7 Connectors Introduction

English

1) ATX_12V

2) ATX (Power Connector)

3) CPU_FAN

4) SYS_FAN

5) NB_FAN

6) FDD

7) IDE1 / IDE2

8) SATA0_SB / SATA1_SB

9) PWR_LED

10) F_PANEL

11) F_AUDIO

12) CD_IN

13) SUR_CEN

14) SPDIF_IO

15) F_USB1 / F_USB2

16) IR_CIR

17) CLR_CMOS

18) BATTERY

GA-K8NSC-939 Motherboard - 18 -

1/2) ATX_12V / ATX (Power Connector)

With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, please make sure that all components and devices are properly installed. Align the power connector with its proper location on the motherboard and connect tightly. The ATX_12V power connector mainly supplies power to the CPU. If the ATX_12V power connector is not connected, the system will not start. Caution! Please use a power supply that is able to handle the system voltage requirements. It is recommended that a power supply that can withstand high power consumption be used (300W or greater). If a power supply is used that does not provide the required power, the result can lead to an unstable system or a system that is unable to start.

English

Pin No. Definition

1 GND

2 GND

3 +12V

4 +12V

Pin No. Definition

1 3.3V

2 3.3V

3 GND

4 +5V

5 GND

6 +5V

7 GND

8 Power Good

9 5V SB (stand by +5V)

10 +12V

11 3.3V

12 -12V

13 GND

14 PS_ON(soft on/off)

15 GND

16 GND

17 GND

18 -5V

19 +5V

20 +5V

Hardware Installation- 19 -

English

3/4) CPU_FAN / SYS_FAN (Cooler Fan Power Connector)

The cooler fan power connector supplies a +12V power voltage via a 3-pin power connector and possesses a foolproof connection design. Most coolers are designed with color-coded power connector wires. A red power connector wire indicates a positive connection and requires a +12V power voltage. The black connector wire is the ground wire (GND). Please remember to connect the power to the cooler to prevent system overheating and failure. Caution! Please remember to connect the power to the CPU fan to prevent CPU overheating and failure.

Pin No. Definition

CPU_FAN

SYS_FAN

1 GND

2 +12V

3 Sense

5) NB_FAN (Chip Fan Power Connector)

If you install in wrong direction, the chip fan will not work and sometimes the chip fan will even be damaged. (Usually black cable is GND.)

GA-K8NSC-939 Motherboard - 20 -

Pin No. Definition

1 +12V

2 GND

6) FDD (FDD Connector)

The FDD connector is used to connect the FDD cable while the other end of the cable connects to the FDD drive. The types of FDD drives supported are: 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB. Please connect the red power connector wire to the pin1 position.

English

7) IDE1 / IDE2 (IDE Connector)

An IDE device connects to the computer via an IDE connector. One IDE connector can connect to one IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or optical drive). If you wish to connect two IDE devices, please set the jumper on one IDE device as Master and the other as Slave (for information on settings, please refer to the instructions located on the IDE device).

IDE1IDE2

Hardware Installation- 21 -

English

8) SATA0_SB / SATA1_SB (Serial ATA Connector)

Serial ATA can provide up to 150MB/s transfer rate. Please refer to the BIOS setting for the Serial ATA and install the proper driver in order to work properly.

Pin No. Definition

1 GND

2 TXP

3 TXN

4 GND

5RXN

6 RXP

7 GND

9) PWR_LED

PWR_LED is connected with the system power indicator to indicate whether the system is on/off. It will blink when the system enters suspend mode.

GA-K8NSC-939 Motherboard - 22 -

Pin No. Definition

1 MPD+

2 MPD-

3 MPD-

10) F_PANEL (Front Panel Jumper)

Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis front panel to the F_PANEL connector according to the pin assignment below.

PW-

MSG-

RES+

RES-

HD-

HD+

Speaker Connector

Power Switch

Message LED/

Power/

Sleep LED

SPEAK-

SPEAK+

PW+

MSG+

HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)

(Blue) Pin 2: LED cathode(-)

SPEAK (Speaker Connector) Pin 1: Power

(Amber) Pin 2- Pin 3: NC

Pin 4: Data(-)

RES (Reset Switch) Open: Normal

(Green) Close: Reset Hardware System

PW (Power Switch) Open: Normal

(Red) Close: Power On/Off

MSG(Message LED/Power/Sleep LED) Pin 1: LED anode(+)

(Yellow) Pin 2: LED cathode(-)

NC (Purple) NC

Reset Switch

IDE Hard Disk

Active LED

English

Hardware Installation- 23 -

English

11) F_AUDIO (Front Audio Panel Connector)

If you want to use Front Audio connector, you must remove 5-6, 9-10 Jumper. In order to utilize the front audio header, your chassis must have front audio connector. Also please make sure the pin assignments for the cable are the same as the pin assignments for the front audio header. To find out if the chassis you are buying support front audio connector, please contact your dealer. Please note, you can have the alternative of using front audio connector or of using rear audio connector to play sound.

Pin No. Definition

1 MIC

910

2GND

3 MIC_BIAS

4 Power

5 Front Audio (R)

6 Rear Audio (R)/ Return R

7NC

8 No Pin

9 Front Audio (L)

10 Rear Audio (L)/ Return L

12) CD_IN (CD In Connector)

Connect CD-ROM or DVD-ROM audio out to the connector.

GA-K8NSC-939 Motherboard - 24 -

Pin No. Definition

1 CD-L

2 GND

3 GND

4 CD-R

13) SUR_CEN (Surround Center Connector)

Please contact your nearest dealer for optional SUR_CEN cable.

Pin No. Definition

1 SUR OUTL

2 SUR OUTR

3 GND

4 No Pin

5 CENTER_OUT

6 BASS_OUT

7 AUX_L

8 AUX_R

14) SPDIF_IO (SPDIF In / Out Connector)

The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby Digital Decoder. Use this feature only when your stereo system has digital input and output function. Use SPDIF in feature only when your device has digital output function. Be careful with the polarity of the SPDIF_IO connector. Check the pin assignment carefully while you connect the SPDIF cable, incorrect connection between the cable and connector will make the device unable to work or even damage it. For optional SPDIF cable, please contact your local dealer.

English

Pin No. Definition

1 Power

2 No Pin

3 SPDIF

4 SPDIFI

5 GND

6 GND

Hardware Installation- 25 -

English

15) F_ USB1 / F_USB2 (Front USB Connector)

Be careful with the polarity of the front USB connector. Check the pin assignment carefully while you connect the front USB cable, incorrect connection between the cable and connector will make the device unable to work or even damage it. For optional front USB cable, please contact your local dealer.

Pin No. Definition

2910

1 Power

2 Power

3 USB DX-

4 USB Dy-

5 USB DX+

6 USB Dy+

7 GND

8 GND

9 No Pin

10 NC

16) IR_CIR

Make sure the pin 1 on the IR device is align with pin one the connector. To enable the IR/CIR function, you are required to purchase an optional IR/CIR module. To use IR function only, please connect IR module to Pin1 to Pin5. Be careful with the polarity of the IR/CIR connector. Check the pin assignment carefully while you connect the IR/CIR cable, incorrect connection between the cable and connector will make the device unable to work or even damage it. For optional IR/CIR cable, please contact your local dealer.

GA-K8NSC-939 Motherboard - 26 -

6 10

Pin No. Definition

1 Power

2NC

3 IRRX

4 GND

5 IRTX

6NC

7 CIRRX

8 +5VSB

(stand by +5V)

9 CIRTX

10 NC

17) CLR_CMOS (Clear CMOS)

You may clear the CMOS data to its default values by this jumper. To clear CMOS, temporarily short 1-2 pin. Default doesn't include the "Shunter" to prevent from improper use this jumper.

Open: Normal

Short: Clear CMOS

18) BATTERY

English

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended

by the manufacturer.

Dispose of used batteries according to the manufacturer's

instructions.

If you want to erase CMOS...

1. Turn OFF the computer and unplug the power cord.

2. Remove the battery, wait for 30 seconds.

3. Re-install the battery.

4. Plug the power cord and turn ON the computer.

Hardware Installation- 27 -

English

GA-K8NSC-939 Motherboard - 28 -

Chapter 2 BIOS Setup

BIOS (Basic Input and Output System) includes a CMOS SETUP utility which allows user to configure required settings or to activate certain system features. The CMOS SETUP saves the configuration in the CMOS SRAM of the motherboard. When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS SRAM. When the power is turned on, pushing the <Del> button during the BIOS POST (Power-On Self Test) will take you to the CMOS SETUP screen. You can enter the BIOS setup screen by pressing "Ctrl + F1". When setting up BIOS for the first time, it is recommended that you save the current BIOS to a disk in the event that BIOS needs to be reset to its original settings. If you wish to upgrade to a new BIOS, either GIGABYTE's Q-Flash or @BIOS utility can be used. Q-Flash allows the user to quickly and easily update or backup BIOS without entering the operating system. @BIOS is a Windows-based utility that does not require users to boot to DOS before upgrading BIOS but directly download and update BIOS from the Internet.

CONTROL KEYS

< > < > < > < > Move to select item <Enter> Select Item <Esc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu

and Option Page Setup Menu - Exit current page and return to Main Menu <Page Up> Increase the numeric value or make changes <Page Down> Decrease the numeric value or make changes <F1> General help, only for Status Page Setup Menu and Option Page Setup Menu <F2> Item Help <F5> Restore the previous CMOS value from CMOS, only for Option Page Setup Menu <F7> Load the Optimized Defaults <F8> Q-Flash utility <F9> System Information <F10> Save all the CMOS changes, only for Main Menu

English

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu / Option Page Setup Menu

Press <F1> to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc>.

BIOS Setup- 29 -

English

The Main Menu (Example BIOS Version:E1)

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (as figure below) will appear on the screen. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

If you can't find the setting you want, please press "Ctrl+F1" to search the advanced option hidden.



 Standard CMOS Features



This setup page includes all the items in standard compatible BIOS.



 Advanced BIOS Features



This setup page includes all the items of Award special enhanced features.



 Integrated Peripherals



This setup page includes all onboard peripherals.



 Power Management Setup



This setup page includes all the items of Green function features.



 PnP/PCI Configuration



This setup page includes all the configurations of PCI & PnP ISA resources.



 PC Health Status



This setup page is the System auto detect Temperature, voltage, fan, speed.



 MB Intelligent Tweaker(M.I.T.)



This setup page is control CPU clock and frequency ratio.



 Top Performance



If you wish to maximize the performance of your system, set "Top Performance" to "Enabled".



 Load Optimized Defaults



Optimized Defaults indicates the value of the system parameters with which the system would be in best performance configuration.

Top Performance

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

GA-K8NSC-939 Motherboard - 30 -



 Set Supervisor Password



Change, set, or disable password. It allows you to limit access to the system and Setup, or just to Setup.



 Set User Password



Change, set, or disable password. It allows you to limit access to the system.



 Save & Exit Setup



Save CMOS value settings to CMOS and exit setup.



 Exit Without Saving



Abandon all CMOS value changes and exit setup.

English

BIOS Setup- 31 -

English

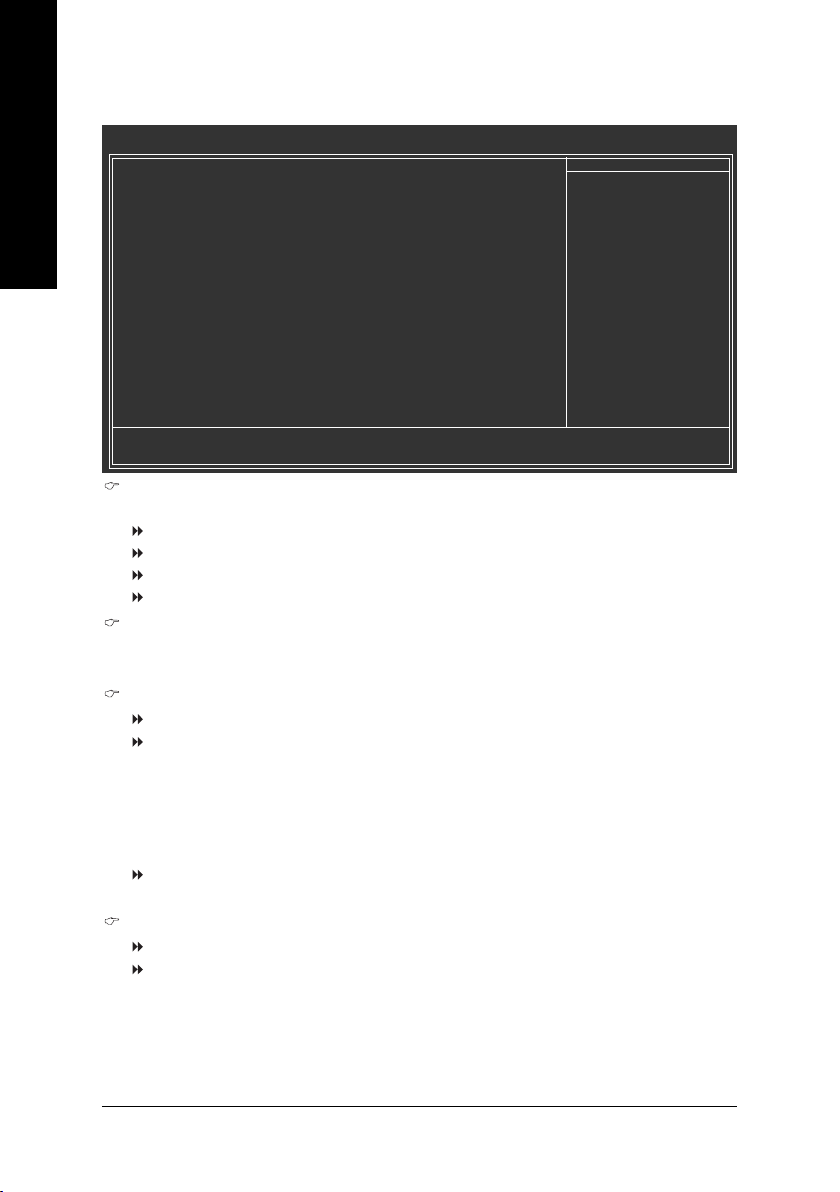

2-1 Standard CMOS Features

Date (mm:dd:yy) Thu, Dec 30 2004 Time (hh:mm:ss) 22:31:24

` IDE Channel 0 Master [None] ` IDE Channel 0 Slave [None] ` IDE Channel 1 Master [None] ` IDE Channel 1 Slave [None] ` IDE Channel 2 Master [None] ` IDE Channel 3 Master [None]

Drive A [1.44M, 3.5"] Floppy 3 Mode Suport [Disabled]

Halt On [All, But Keyboard]

Standard CMOS Features

Item Help Menu Level`

Change the day, month, year

<Week> Sun. to Sat.

<Month> Jan. to Dec.

<Day> 1 to 31 (or maximum allowed in the month)

<Year> 1999 to 2098

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Date

The date format is <week>, <month>, <day>, <year>.

Week The week, from Sun to Sat, determined by the BIOS and is display only Month The month, Jan. Through Dec. Day The day, from 1 to 31 (or the maximum allowed in the month) Year The year, from 1999 through 2098

Time

The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour militarytime clock. For example, 1 p.m. is 13:00:00.

IDE Channel 0 Master/Slave; IDE Channel 1 Master/Slave

IDE HDD Auto-Detection Press "Enter" to select this option for automatic device detection. IDE Channel 0 Master/Slave; IDE Channel 1 Master/Slave

IDE devices setup. You can use one of three methods:

• Auto Allows BIOS to automatically detect IDE devices during POST. (Default value)

• None Select this if no IDE devices are used and the system will skip the automatic detection step and allow for faster system start up.

• Manual User can manually input the correct settings.

Access Mode Use this to set the access mode for the hard drive. The four options are:

CHS/LBA/Large/Auto(default:Auto)

IDE Channel 2/3 Master

IDE HDD Auto-Detection Press "Enter" to select this option for automatic device detection. Extended IDE Drive

SATA IDE devices setup. You can use one of two methods:

• Auto Allows BIOS to automatically detect SATA IDE devices during POST(default)

• None Select this if no SATA IDE devices are used and the system will skip the automatic detection step and allow for faster system start up.

GA-K8NSC-939 Motherboard - 32 -

Access Mode Use this to set the access mode for the hard drive. The two options are:

Large/Auto(default:Auto)

Capacity Capacity of currectly installed hard drive. Hard drive information should be labeled on the outside drive casing. Enter the appropriate option based on this information.

Cylinder Number of cylinders

Head Number of heads

Precomp Write precomp

Landing Zone Landing zone

Sector Number of sectors

Drive A

The category identifies the types of floppy disk drive A that has been installed in the computer.

None No floppy drive installed

360K, 5.25" 5.25 inch PC-type standard drive; 360K byte capacity.

1.2M, 5.25" 5.25 inch AT-type high-density drive; 1.2M byte capacity (3.5 inch when 3 Mode is Enabled).

720K, 3.5" 3.5 inch double-sided drive; 720K byte capacity

1.44M, 3.5" 3.5 inch double-sided drive; 1.44M byte capacity.

2.88M, 3.5" 3.5 inch double-sided drive; 2.88M byte capacity.

Floppy 3 Mode Support (for Japan Area)

Disabled Normal Floppy Drive. (Default value) Drive A Drive A is 3 mode Floppy Drive.

Halt on

The category determines whether the computer will stop if an error is detected during power up.

No Errors The system boot will not stop for any error that may be detected and you

will be prompted.

All Errors Whenever the BIOS detects a non-fatal error the system will be stopped. All, But Keyboard The system boot will not stop for a keyboard error; it will stop for all other

errors. (Default value)

All, But Diskette The system boot will not stop for a disk error; it will stop for all other errors. All, But Disk/Key The system boot will not stop for a keyboard or disk error; it will stop for all

other errors.

English

BIOS Setup- 33 -

English

2-2 Advanced BIOS Features

` Hard Disk Boot Priority [Press Enter]

First Boot Device [Floppy] Second Boot Device [Hard Disk] Third Boot Device [CDROM] Boot Up Floopy Seek [Disabled] Password Check [Setup] Flexible AGP 8X [Auto] Init Display First [AGP]

Advanced BIOS Features

Item Help Menu Level`

Select Hard Disk Boot Device Priority

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Hard Disk Boot Priority

Select boot sequence for onboard(or add-on cards) SCSI, RAID, etc. Use < > or < > to select a device, then press<+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

First / Second / Third Boot Device

Floppy Select your boot device priority by Floppy. LS120 Select your boot device priority by LS120. Hard Disk Select your boot device priority by Hard Disk. CDROM Select your boot device priority by CDROM. ZIP Select your boot device priority by ZIP. USB-FDD Select your boot device priority by USB-FDD. USB-ZIP Select your boot device priority by USB-ZIP. USB-CDROM Select your boot device priority by USB-CDROM. USB-HDD Select your boot device priority by USB-HDD. LAN Select your boot device priority by LAN. Disabled Disable this function.

Boot Up Floppy Seek

During POST, BIOS will determine the floppy disk drive installed is 40 or 80 tracks. 360K type is 40 tracks 720K, 1.2M and 1.44M are all 80 tracks.

Enabled BIOS searches for floppy disk drive to determine it is 40 or 80 tracks. Note that BIOS

can not tell from 720K, 1.2M or 1.44M drive type as they are all 80 tracks.

Disabled BIOS will not search for the type of floppy disk drive by track number. Note that

there will not be any warning message if the drive installed is 360K. (Default value)

GA-K8NSC-939 Motherboard - 34 -

Password Check

System The system can not boot and can not access to Setup page will be denied if the

correct password is not entered at the prompt.

Setup The system will boot, but access to Setup will be denied if the correct password is

not entered at the prompt. (Default value)

Flexible AGP 8X

Auto Automatically set AGP transfer rate according to AGP compatibility and stability.

(Default value)

8X Always set AGP transfer rate to 8X mode if the 8X mode is supported by the AGP

card.

4X Set AGP transfer rate to 4X mode no matter what the AGP transfer rate the card

has.

Init Display First

This feature allows you to select the first initiation of the monitor display from which card when you install an AGP card and a PCI VGA card on the motherboard.

AGP Set Init display first to AGP. (Default value) PCI slot Set Init display first to PCI.

English

BIOS Setup- 35 -

English

2-3 Integrated Peripherals

` IDE Function Setup [Press Enter]

On-Chip Primary PCI IDE [Enabled] On-Chip Secondary PCI IDE [Enabled] USB Host Controller [V1.1+V2.0] USB Keyboard Support [Disabled] USB Mouse Support [Disabled] Serial-ATA 2(Internal PHY) [Enabled] AC97 Audio [Auto] OnBoard LAN Control [Enabled] OnBoard LAN Boot ROM [Disabled] Onboard Serial Port 1 [3F8/IRQ4] Onboard Serial Port 2 [2F8/IRQ3] Onboard Parallel Port [378/IRQ7] Parallel Port Mode [SPP]

x ECP Mode Use DMA 3

CIR Port Address [Disabled]

x CIR Port IRQ 11

IDE DMA transfer [Enabled]

Integrated Peripherals

Item Help Menu Level`

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

IDE Function Setup

IDE RAID [Enabled] IDE Channel0 Master RAID [Disabled] IDE Channel0 Slave RAID [Disabled] IDE Channel1 Master RAID [Disabled] IDE Channel1 Slave RAID [Disabled] SATA Primary Master RAID [Disabled] SATA Secndry Master RAID [Disabled]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

IDE Function Setup

Item Help Menu Level`

GA-K8NSC-939 Motherboard - 36 -

IDE RAID

Enabled Enable IDE RAID function. Disabled Disable this function. (Default value)

IDE Channel 0 Master RAID

Enabled Enable 1st master channel IDE RAID function. Disabled Disable this function. (Default value)

IDE Channel 0 Slave RAID

Enabled Enable 1st slave channel IDE RAID function. Disabled Disable this function. (Default value)

IDE Channel 1 Master RAID

Enabled Enable 2nd master channel IDE RAID function. Disabled Disable this function. (Default value)

IDE Channel 1 Slave RAID

Enabled Enable 2nd slave channel IDE RAID function. Disabled Disable this function. (Default value)

SATA Primary Master RAID

Enabled Enable 1st SATA RAID function. Disabled Disable this function. (Default value)

SATA Secndry Master RAID

Enabled Enable 2nd SATA RAID function. Disabled Disable this function. (Default value)

On-Chip Primary PCI IDE

Enabled Enable onboard 1st channel IDE port. (Default value) Disabled Disable onboard 1st channel IDE port.

On-Chip Secondary PCI IDE

Enabled Enable onboard 2nd channel IDE port. (Default value) Disabled Disable onboard 2nd channel IDE port.

USB Host Controller

Disabled Disable this function if you are not using onboard USB function. V1.1+V2.0 Enable USB 1.1 and USB 2.0 controller. (Default value) V1.1 Only enable USB 1.1 controller.

USB Keyboard Support

Enabled Enable USB keyboard support. Disabled Disable USB keyboard support. (Default value)

USB Mouse Support

Enabled Enable USB mouse support. Disabled Disable USB mouse support. (Default value)

Serial-ATA 2 (Internal PHY)

Enabled Enable Serial ATA function. (Default value) Disabled Disable Serial ATA function.

English

BIOS Setup- 37 -

English

AC97 Audio

Auto Autodetect onboard AC'97 audio function. (Default value) Disabled Disable this function.

Onboard LAN Control

Enabled Enable onboard LAN chip function. (Default value) Disabled Disable onboard LAN chip function.

Onboard LAN Boot ROM

This function decide whether to invoke the boot ROM of the onboard LAN chip.

Enabled Enable this function. Disabled Disable this function. (Default value)

Onboard Serial Port 1

Auto BIOS will automatically setup the port 1 address. 3F8/IRQ4 Enable onboard Serial port 1 and address is 3F8/IRQ4. (Default value) 2F8/IRQ3 Enable onboard Serial port 1 and address is 2F8/IRQ3. 3E8/IRQ4 Enable onboard Serial port 1 and address is 3E8/IRQ4. 2E8/IRQ3 Enable onboard Serial port 1 and address is 2E8/IRQ3. Disabled Disable onboard Serial port 1.

Onboard Serial Port 2

Auto BIOS will automatically setup the port 2 address. 3F8/IRQ4 Enable onboard Serial port 2 and address is 3F8/IRQ4. 2F8/IRQ3 Enable onboard Serial port 2 and address is 2F8/IRQ3. (Default value) 3E8/IRQ4 Enable onboard Serial port 2 and address is 3E8/IRQ4. 2E8/IRQ3 Enable onboard Serial port 2 and address is 2E8/IRQ3. Disabled Disable onboard Serial port 2.

Onboard Parallel Port

Disabled Disable onboard LPT port. 378/IRQ7 Enable onboard LPT port and address is 378/IRQ7. (Default value) 278/IRQ5 Enable onboard LPT port and address is 278/IRQ5. 3BC/IRQ7 Enable onboard LPT port and address is 3BC/IRQ7.

Parallel Port Mode

SPP Using Parallel port as Standard Parallel Port. (Default value) EPP Using Parallel port as Enhanced Parallel Port. ECP Using Parallel port as Extended Capabilities Port. ECP+EPP Using Parallel port as ECP and EPP mode.

ECP Mode Use DMA

3 Set ECP Mode Use DMA to 3. (Default value) 1 Set ECP Mode Use DMA to 1.

CIR Port Address

310 Set CIR Port Address to 310. 320 Set CIR Port Address to 320. Disabled Disable this function. (Default value)

GA-K8NSC-939 Motherboard - 38 -

CIR Port IRQ

5 Set CIR Port IRQ to 5. 11 Set CIR Port IRQ to 11. (Default value)

IDE DMA transfer

Enabled Detect the IDE UDMA automatically. (Default value) Disabled Disable this function.

English

BIOS Setup- 39 -

English

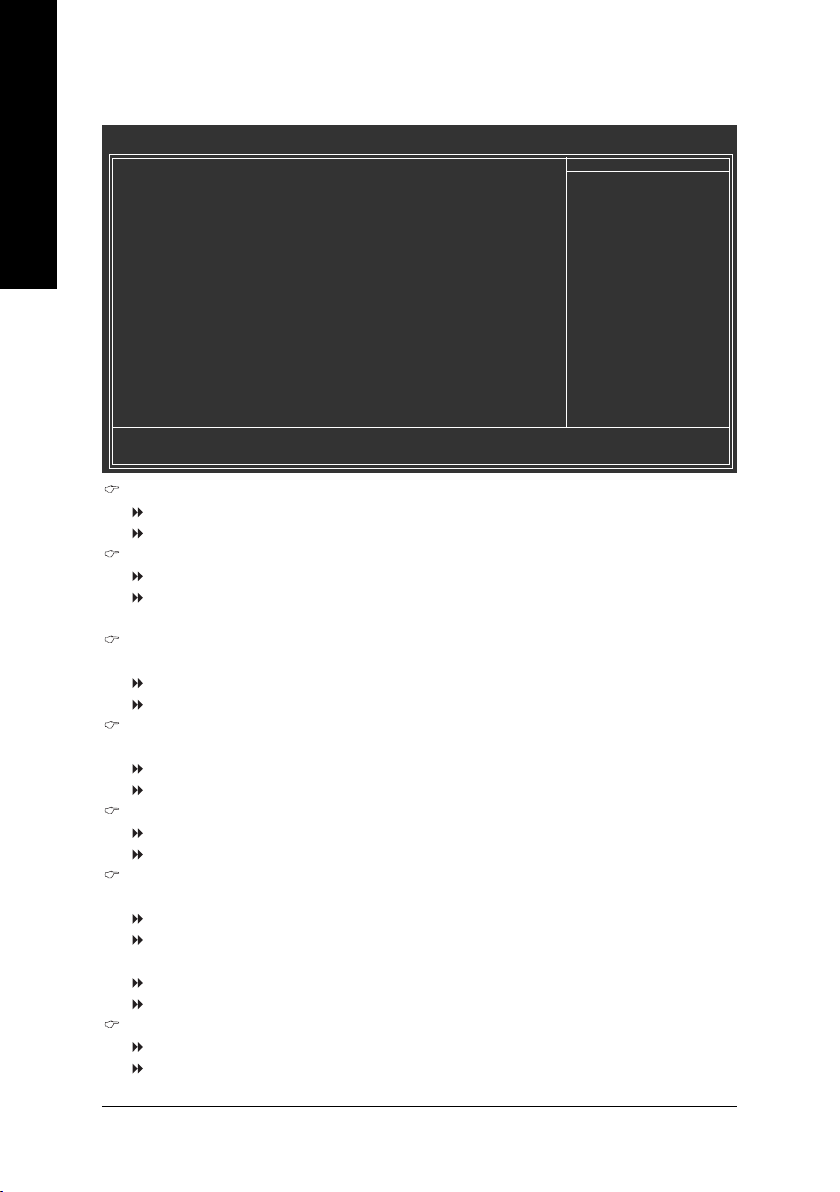

2-4 Power Management Setup

ACPI Suspend Type [S1(POS)] Soft-Off by PWR-BTTN [Instant-off] PME Event Wake Up [Disabled] Modem Ring On [Disabled] S3 Resume by USB device [Disabled]

Resume by Alarm [Disabled]

x Day of Month Alarm Everyday x Time (hh:mm:ss) Alarm 0 : 0 : 0

Power On by Mouse [Disabled]

Power On by Keyboard [Disabled]

x KB Power ON Password Enter

AC BACK Function [Soft-Off]

Power Management Setup

Item Help Menu Level`

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

ACPI Suspend Type

S1(POS) Set ACPI suspend type to S1/POS(Power On Suspend). (Default value) S3(STR) Set ACPI suspend type to S3/STR(Suspend To RAM).

Soft-off by PWR-BTTN

Instant-off Press power button then Power off instantly. (Default value) Delay 4 Sec. Press power button 4 sec. to Power off. Enter suspend if button is pressed

less than 4 sec.

PME Event Wake Up

This feature requires an ATX power supply that provides at least 1A on the 5VSB lead.

Disabled Disable this function. (Default value) Enabled Enable PME as wake up event.

Modem Ring On

An incoming call via modem can awake the system from any suspend state.

Disabled Disable Modem Ring on function. (Default value) Enabled Enable Modem Ring on function.

S3 Resume by USB device

Disabled Disable this function. (Default value) Enable Enable USB device wake up system from S3 suspend type.

Resume by Alarm

You can set "Resume by Alarm" item to enabled and key in Date/Time to power on system.

Disabled Disable this function. (Default value) Enabled Enable alarm function to POWER ON system.

If Resume by Alarm is Enabled.

Day of Month Alarm : Everyday, 1~31 Time (hh: mm: ss) Alarm : (0~23) : (0~59) : (0~59)

Power On by Mouse

Disabled Disable this function. (Default value) Double Click Double click on PS/2 mouse left button to power on the system.

GA-K8NSC-939 Motherboard - 40 -

Power On by Keyboard

Disabled Disable this function. (Default value) Password Enter from 1 to 5 characters to set the Keyboard Power On Password. Any KEY Press any key to turn on the system. Keyboard 98 If your keyboard have "POWER Key" button, you can press the key to turn

on the system.

KB Power ON Password

When "Power On by Keyboard" is set to Password, you can set the password here.

Enter Input password (from 1 to 5 characters) and press Enter to set the Keyboard Power

On password.

AC BACK Function

Soft-Off When AC-power back to the system, the system will be in "Off" state. (Default value) Full-On When AC-power back to the system, the system always in "On" state.

2-5 PnP/PCI Configurations

PCI 3 IRQ Assignment [Auto]

PCI 4 IRQ Assignment [Auto]

PCI 1/5 IRQ Assignment [Auto]

PCI 2 IRQ Assignment [Auto]

PnP/PCI Configurations

Menu Level`

Item Help

English

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

PCI 3 IRQ Assignment

Auto Auto assign IRQ to PCI 3. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 3.

PCI 4 IRQ Assignment

Auto Auto assign IRQ to PCI 4. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 4.

PCI 1/5 IRQ Assignment

Auto Auto assign IRQ to PCI 1/PCI 5. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 1/PCI 5.

PCI 2 IRQ Assignment

Auto Auto assign IRQ to PCI 2. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 2.

BIOS Setup- 41 -

English

2-6 PC Health Status

Vcore OK

DDR25V OK

+3.3V OK

+12V OK

Current CPU Temperature 65oC

Current CPU FAN Speed 3245 RPM

Current SYSTEM FAN Speed 0 RPM

CPU Warning Temperature [Disabled]

CPU FAN Fail Warning [Disabled]

SYSTEM FAN Fail Warning [Disabled]

PC Health Status

Item Help

Menu Level`

[Disabled] Don't monitor current temperature

[60oC-90oC] Alarm when current temperature over than the selected temperature

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Current Voltage(V) Vcore / DDR25V / +3.3V / +12V

Detect system's voltage status automatically.

Current CPU Temperature

Detect CPU temperature automatically.

Current CPU/SYSTEM FAN Speed (RPM)

Detect CPU/SYSTEM Fan speed status automatically.

CPU Warning Temperature

60oC / 140oF Monitor CPU temperature at 60oC / 140oF. 70oC / 158oF Monitor CPU temperature at 70oC / 158oF. 80oC / 176oF Monitor CPU temperature at 80oC / 176oF. 90oC / 194oF Monitor CPU temperature at 90oC / 194oF. Disabled Disable this function. (Default value)

CPU/SYSTEM FAN Fail Warning

Disabled Disable CPU/SYSTEM fan fail warning function. (Default value) Enabled Enable CPU/SYSTEM fan fail warning function.

GA-K8NSC-939 Motherboard - 42 -

2-7 MB Intelligent Tweaker(M.I.T.)

CPU OverClock in MHz [200]

AGP OverClock in MHz [66]

CPU Voltage Control [Normal]

Normal CPU Vcore 1.500V

AGP voltage control [Normal]

HT-Link voltage control [Normal]

DDR voltage control [Normal]

Hammer Fid control [StartUp]

MB Intelligent Tweaker(M.I.T.)

Menu Level`

English

Item Help

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Incorrect using these features may cause your system broken. For power end-user use only.

CPU OverClock in MHz

200MHz ~ 455MHz Increase CPU frequency as user selected.

AGP OverClock in MHz

66MHz ~ 100MHz Increase AGP frequency as user selected.

CPU voltage control

Supports adjustable CPU Vcore from 0.800V to 1.700V by 0.025V step. (Default value: Normal)

Normal CPU Vcore

Display your CPU normal Vcore voltage.

AGP voltage control

Normal Set AGP voltage as AGP required. (Default value) +0.1v Increase AGP voltage +0.1V. +0.2v Increase AGP voltage +0.2V. +0.3v Increase AGP voltage +0.3V.

HT-Link voltage control

Normal Supply HT-Link voltage as HT-Link required. (Default value) +0.1v Increase HT-Link voltage +0.1V. +0.2v Increase HT-Link voltage +0.2V. +0.3v Increase HT-Link voltage +0.2V.

DDR voltage control

Normal Supply DDR voltage as DDR required. (Default value) +0.1v Increase DDR voltage +0.1V.

+0.2v Increase DDR voltage +0.2V.

Hammer Fid control

This setup option will automatically assign by CPU detection. The option will display "Locked" and read only or will not show up if the CPU ratio is not changeable. The default is StartUp (set CPU clock ratio to default value).

BIOS Setup- 43 -

English

2-8 Top Performance

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Top Performance

Disabled.........................[]

Enabled..........................[ ]

KL: Move ENTER: Accept

ESC: Abort

Load Optimized Defaults

Top Performance

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

If you wish to maximize the performance of your system, set "Top Performance" as "Enabled".

Disabled Disable this function. (Default Value) Enabled Enable Top Performance function.

"Top Performance" will increase hardware working speed. Different system configuration (both hardware component and OS) will effect the result. For example, the same hardware configuration might not run properly with Windows XP, but works smoothly with Windows NT. Therefore, if your system is not perform enough, the reliability or stability problem will appear sometimes, and we will recommend you disabling the option to avoid the problem as mentioned above.

2-9 Load Optimized Defaults

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Load Optimized Defaults (Y/N)? N

Load Optimized Defaults

Top Performance

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Selecting this field loads the factory defaults for BIOS and Chipset Features which the system automatically detects.

GA-K8NSC-939 Motherboard - 44 -

2-10 Set Supervisor/User Password

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Enter Password:

Change/Set/Disable Password

When you select this function, the following message will appear at the center of the screen to assist you in creating a password. Type the password, up to eight characters, and press <Enter>. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password. To disable password, just press <Enter> when you are prompted to enter password. A message "PASSWORD DISABLED" will appear to confirm the password being disabled. Once the password is disabled, the system will boot and you can enter Setup freely. The BIOS Setup program allows you to specify two separate passwords: SUPERVISOR PASSWORD and a USER PASSWORD. When disabled, anyone may access all BIOS Setup program function. When enabled, the Supervisor password is required for entering the BIOS Setup program and having full configuration fields, the User password is required to access only basic items. If you select "System" at "Password Check" in Advance BIOS Features Menu, you will be prompted for the password every time the system is rebooted or any time you try to enter Setup Menu. If you select "Setup" at "Password Check" in Advance BIOS Features Menu, you will be prompted only when you try to enter Setup.

Top Performance

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

English

BIOS Setup- 45 -

English

2-11 Save & Exit Setup

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Save to CMOS and EXIT (Y/N)? Y

Save Data to CMOS

Top Performance

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Type "Y" will quit the Setup Utility and save the user setup value to RTC CMOS. Type "N" will return to Setup Utility.

2-12 Exit Without Saving

` Standard CMOS Features

` Advanced BIOS Features

` Integrated Peripherals

` Power Management Setup

` PnP/PCI Configurations

` PC Health Status

` MB Intelligent Tweaker(M.I.T.)

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Quit Without Saving (Y/N)? N

Abandon all Data

Top Performance

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Type "Y" will quit the Setup Utility without saving to RTC CMOS. Type "N" will return to Setup Utility.

GA-K8NSC-939 Motherboard - 46 -

Chapter 3Drivers Installation

Pictures below are shown in Windows XP. Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the Setup.exe.

3-1 Install Chipset Drivers

After insert the driver CD, "Xpress Install" will scan automatically the system and then list all the drivers that recommended to install. The "Xpress Install" uses the"Click and Go" technology to install the drivers automatically. Just select the drivers you want then click the "GO" button. The "Xpress Install" will execute the installation for you automatically.

English

Some device drivers will restart your system automatically. After restarting your system the "Xpress Install" will continue to install other drivers. System will reboot automatically after install the drivers, afterward you can install others application.

For USB2.0 driver support under Windows XP operating system, please use Windows Service Pack. After install Windows Service Pack, it will show a question mark "?" in "Universal Serial Bus controller" under "Device Manager". Please remove the question mark and restart the system (System will auto-detect the right USB2.0 driver).

Drivers Installation- 47 -

English

3-2 Software Application

This page displays all the tools that Gigabyte developed and some free software, you can choose anyone you want and press "install" to install them.

3-3 Software Information

This page lists the contents of software and drivers in this CD-title.

GA-K8NSC-939 Motherboard - 48 -

3-4 Hardware Information

This page lists all device you have for this motherboard.

3-5 Contact Us

Please see the last page for details.

English

Drivers Installation- 49 -

English

GA-K8NSC-939 Motherboard - 50 -

Chapter 4 Appendix

4-1 Unique Software Utilities

4-1-1 Xpress Recovery Introduction

What is Xpress Recovery ?

Xpress Recovery is a utility used to back up and restore an OS partition. If the hard drive is not working properly, the user can restore the drive to its original state.

1. Supports FAT16, FAT32, and NTFS formats

2. Must be connected to the IDE1 Master

3. Allows installation of only one OS

4. Must be used with an IDE hard disk supporting HPA

5. The first partition must be set as the boot partition. When the boot partition is backed up, please do not alter its size.

6. Xpress Recovery is recommended when using Ghost to return boot manager to NTFS format.

How to use the Xpress Recovery

1. Boot from CD-ROM (BMP Mode) Enter the BIOS menu, select "Advanced BIOS Feature" and set to boot from CD-ROM. Insert the provided driver CD into your CD drive, then save and exit the BIOS menu. Once the computer has restarted, the phrase "Boot from CD:" will appear at the bottom left-hand corner of the screen. When "Boot from CD:" appears, press any key to enter Xpress Recovery. Once you have completed this step, subsequent access to Xpress Recovery can also function by pressing the F9 key during computer power on.

. . Verifying DMI Pool Data Boot from CD:

Boot from CD:

English

Xpress Recovery V1.0 (C) Copy Right 2003. GIGABYTE Technology CO. , Ltd.

1. Execute Backup Utility

2. Execute Restore Utility

3. Remove Backup Image

4. Set Password

5. Exit and Restart

Build 2011

Appendix- 51 -

2. Press F9 during powering on the computer. (Text Mode)

English

Intel 865PE AGPSet BIOS for 8IPE1000MT F1 Check System Health OK . . .

Press DEL to enter SETUP / Q-Flash, F9 For Xpress Recovery 08/16/2002-I845GE-6A69YG01C-00

Xpress Recovery V1.0 (C) Copy Right 2003. GIGABYTE Technology CO. , Ltd.

1. Execute Backup Utility

2. Execute Restore Utility

3. Remove Backup Image

4. Set Password

5. Exit and Restart

F9 For Xpress Recovery

1. If you have already entered Xpress Recovery by booting from the CD-ROM, you can enter Xpress Recovery in the future by pressing the F9 key.

2. System storage capacity as well as drive reading/writing speed will affect backup speed.

3. It is recommended that Xpress Recovery be immediately installed after OS and all required driver and software installations are complete.

GA-K8NSC-939 Motherboard - 52 -

1. Execute Backup Utility:



 Press B to Backup your System or Esc to Exit



The backup utility will automatically scan your system and back up data as a backup image in your hard drive.

Not all systems support access to Xpress Recovery by pressing the F9 key during computer power on. If this is the case, please use the boot from CD-ROM method to enter Xpress Recovery.

2. Execute Restore Utility:



 This program will recover your system to factory default.



Press R to restore your system back to factory default or press Esc to exit

Restores backup image to original state.

3. Remove Backup Image:



 Remove backup image. Are you sure? (Y/N)



Remove the backup image.

4. Set Password:



 Please input a 4-16 character long password (a-z or 0-9) or press Esc to exit



You can set a password to enter Xpress Recovery to protect your hard disk data. Once this is done, password input will be required to enter Xpress Recovery during the next as well as subsequent system restarts. If you wish to remove the need for password entry, please select "Set Password" and under "New Password/Confirm Password", make sure there is no entry and then press "Enter" to remove password requirement.

English

5. Exit and Restart:

Exit and restart your computer.

Appendix- 53 -

English

4-1-2 Flash BIOS Method Introduction

Method 1 : Q-FlashTM Utility

Q-FlashTM is a BIOS flash utility embedded in Flash ROM. With this utility, users only have to stay in the BIOS menu when they want to update

BIOS. Q-FlashTM allows users to flash BIOS without any utility in DOS or Windows. Using Q-FlashTM indicating no more fooling around with any complicated instructions and operating system since it is in the BIOS menu.

Please note that because updating BIOS has potential risk, please do it with caution!! We are sorry that Gigabyte Technology Co., Ltd is not responsible for damages of system because of incorrect manipulation of updating BIOS to avoid any claims from end-users.

Before You Begin:

Before you start updating BIOS with the Q-FlashTM utility, please follow the steps below first.

1. Download the latest BIOS for your motherboard from Gigabyte's website.

2. Extract the BIOS file downloaded and save the BIOS file (the one with model name.Fxx. For example,

8KNXPU.Fba) to a floppy disk.

3. Reboot your PC and press Del to enter BIOS menu.

The BIOS upgrading guides below are separated into two parts. If your motherboard has dual-BIOS, please refer to Part One. If your motherboard has single-BIOS, please refer to Part Two.

Part One:

Updating BIOS with Q-Flash

Some of Gigabyte motherboards are equipped with dual BIOS. In the BIOS menu of the motherboards supporting Q-Flash and Dual BIOS, the Q-Flash utility and Dual BIOS utility are combined in the same screen. This section only deals with how to use Q-Flash utility.

In the following sections, we take GA-8KNXP Ultra as the example to guide you how to flash BIOS from an older version to the latest version. For example, from Fa3 to Fba.

Utility on Dual BIOS Motherboards.

Award Modular BIOS v6.00PG, An Energy Star Ally

The BIOS file is Fa3

before updating

Intel i875P AGPset BIOS for 8KNXP Ultra Fa3 Check System Health OK , VCore = 1.5250 Main Processor : Intel Pentium(R) 4 1.6GHz (133x12) <CPUID : 0F27 Patch ID : 0027> Memory Testing : 131072K OK

Memory Frequency 266 MHz in Single Channel Primary Master : FUJITSU MPE3170AT ED-03-08 Primary Slave : None Secondary Master : CREATIVEDVD-RM DVD1242E BC101 Secondary Slave : None

Press DEL to enter SETUP / Dual BIOS / Q-Flash / F9 For Xpress Recovery 08/07/2003-i875P-6A79BG03C-00

GA-K8NSC-939 Motherboard - 54 -

Entering the Q-FlashTM utility:

Step1: To use Q-Flash utility, you must press Del in the boot screen to enter BIOS menu.

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Configurations

 PC Health Status

 MB Intelligent Tweaker(M.I.T.)

ESC: Quit F3: Change Language

F8: Dual BIOS/Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

Select Language

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Step 2: Press F8 button on your keyboard and then Y button to enter the Dual BIOS/Q-Flash utility.

Exploring the Q-FlashTM / Dual BIOS utility screen

The Q-Flash / Dual BIOS utility screen consists of the following key components.

English

Task menu for

Dual BIOS

utility

Task menu for

utility

Q-Flash

Boot From...................................... Main Bios

Main ROM Type/Size...................... SST 49LF004A 512K

Backup ROM Type/Size.................. SST 49LF004A 512K

Wide Range Protection Disable

Copy Main ROM Data to Backup

Enter : Run :Move ESC:Reset F10:Power Off

Dual BIOS Utility

Boot From Main Bios

Auto Recovery Enable

Halt On Error Disable

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

Dual BIOS utility bar

Q-FlashTM utility title

bar

Action bar

Task menu for Dual BIOS utility:

Contains the names of eight tasks and two item showing information about the BIOS ROM type. Blocking a task and pressing Enter key on your keyboard to enable execution of the task.

Task menu for Q-Flash utility:

Contains the names of four tasks. Blocking a task and pressing Enter key on your keyboard to enable execution of the task.

Action bar:

Contains the names of four actions needed to operate the Q-Flash/Dual BIOS utility. Pressing the buttons mentioned on your keyboards to perform these actions.

Appendix- 55 -

English

Using the Q-FlashTM utility:

This section tells you how to update BIOS using the Q-Flash utility. As described in the "Before you begin" section above, you must prepare a floppy disk having the BIOS file for your motherboard and insert it to your computer. If you have already put the floppy disk into your system and have entered the Q-Flash utility, please follow the steps below to flash BIOS.

Steps:

1. Press arrow buttons on your keyboard to move the light bar to "Load Main BIOS from Floppy" item in

the Q-Flash menu and press Enter button. Later, you will see a box pop up showing the BIOS files you previously downloaded to the floppy disk.

If you want to save the current BIOS for backup purpose, you can begin Step 1 with "Save Main BIOS to Floppy" item.

2. Move to the BIOS file you want to flash and press Enter.

In this example, we only download one BIOS file to the floppy disk so only one BIOS file,

8KNXPU.Fba, is listed.

Please confirm again you have the correct BIOS file for your motherboard.

Boot From...................................... Main Bios

Main ROM Type/Size...................... SST 49LF004A 512K

Backup ROM Type/Size.................. SST 49LF004A 512K

Wide Range Protection Disable

8KNXPU.Fba 512K

Total size : 1.39M Free size : 911.50K

Copy Main ROM Data to Backup

F5 : Refresh DEL : Delete

Enter : Run :Move ESC:Reset F10:Power Off

After pressing Enter, you'll then see the progress of reading the BIOS file from the floppy disk.

Boot From...................................... Main Bios

Main ROM Type/Size...................... SST 49LF004A 512K

Backup ROM Type/Size.................. SST 49LF004A 512K

Wide Range Protection Disable

Reading BIOS file from floppy ...

>>>>>>>>>>>>>>.....................

Copy Main ROM Data to Backup

Don't Turn Off Power or Reset System

Enter : Run :Move ESC:Reset F10:Power Off

After BIOS file is read, you'll see a confirmation dialog box asking you "Are you sure to update BIOS?"

GA-K8NSC-939 Motherboard - 56 -

Dual BIOS Utility

1 file(s) found

Boot From Main Bios

Auto Recovery Enable

Halt On Error Disable

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

Dual BIOS Utility

Boot From Main Bios

Auto Recovery Enable

Halt On Error Disable

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

BIOS file in the floppy

disk.

Do not trun off power or

reset your system at this

stage!!

3. Press Y button on your keyboard after you are sure to update BIOS. Then it will begin to update BIOS. The progress of updating BIOS will be displayed.

Please do not take out the floppy disk when it begins flashing BIOS.

4. Press any keys to return to the Q-Flash menu when the BIOS updating procedure is completed.

Boot From...................................... Main Bios

Main ROM Type/Size...................... SST 49LF004A 512K

Backup ROM Type/Size.................. SST 49LF004A 512K

Wide Range Protection Disable

Copy Main ROM Data to Backup

Enter : Run :Move ESC:Reset F10:Power Off

Dual BIOS Utility

Boot From Main Bios

Auto Recovery Enable

!! Copy BIOS completed - Pass !!

Halt On Error Disable

Please press any key to continue

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

You can repeat Step 1 to

4 to flash the backup

BIOS, too.

5. Press Esc and then Y button to exit the Q-Flash utility. The computer will restart automatically after

you exit Q-Flash.

Boot From...................................... Main Bios

Main ROM Type/Size...................... SST 49LF004A 512K

Backup ROM Type/Size.................. SST 49LF004A 512K

Wide Range Protection Disable

Copy Main ROM Data to Backup

Enter : Run :Move ESC:Reset F10:Power Off

Dual BIOS Utility

Boot From Main Bios

Auto Recovery Enable

Are you sure to RESET ?

Halt On Error Disable

[Enter] to continure or [Esc] to abort...

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

English

After system reboots, you may find the BIOS version on your boot screen becomes the one you flashed.

Award Modular BIOS v6.00PG, An Energy Star Ally

The BIOS file

becomes Fba after

updating.

Intel i875P AGPset BIOS for 8KNXP Ultra Fba Check System Health OK , VCore = 1.5250 Main Processor : Intel Pentium(R) 4 1.6GHz (133x12) <CPUID : 0F27 Patch ID : 0027> Memory Testing : 131072K OK

Memory Frequency 266 MHz in Single Channel Primary Master : FUJITSU MPE3170AT ED-03-08 Primary Slave : None Secondary Master : CREATIVEDVD-RM DVD1242E BC101 Secondary Slave : None

Press DEL to enter SETUP / Dual BIOS / Q-Flash / F9 For Xpress Recovery 09/23/2003-i875P-6A79BG03C-00

Appendix- 57 -

English

6. Press Del to enter BIOS menu after system reboots. When you are in BIOS menu, move to

Load Fail-Safe Defaults item and press Enter to load BIOS Fail-Safe Defaults. Normally the system

redetects all devices after BIOS has been upgraded. Therefore, we highly recommend reloading the BIOS defaults after BIOS has been upgraded.

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Configurations

 PC Health Status

 MB Intelligent Tweaker(M.I.T.)

ESC: Quit F3: Change Language

F8: Dual BIOS/Q-Flash F10: Save & Exit Setup

Load Fail-Safe Defaults (Y/N)? Y

Time, Date, Hard Disk Type...

Select Language

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Press Y on your keyboard to load defaults.

7. Select Save & Exit Setup item to save the settings to CMOS and exit the BIOS menu.

System will reboot after you exit the BIOS menu. The procedure is completed.

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Configurations

 PC Health Status

 MB Intelligent Tweaker(M.I.T.)

ESC: Quit F3: Change Language

F8: Dual BIOS/Q-Flash F10: Save & Exit Setup

Save to CMOS and EXIT (Y/N)? Y

Time, Date, Hard Disk Type...

Select Language

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Press Y on your keyboard to save and exit.

Part Two:

Updating BIOS with Q-Flash

This part guides users of single-BIOS motherboards how to update BIOS using the Q-Flash

 Standard CMOS Features

 Advanced BIOS Features

 Integrated Peripherals

 Power Management Setup

 PnP/PCI Configurations

 PC Health Status

 MB Intelligent Tweaker(M.I.T.)

ESC: Quit F3: Change Language

F8: Q-Flash F10: Save & Exit Setup

GA-K8NSC-939 Motherboard - 58 -

Utility on Single-BIOS Motherboards.

Top Performance

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Time, Date, Hard Disk Type...

utility.

Exploring the Q-FlashTM utility screen

The Q-FlashBIOS utility screen consists of the following key components.

Q-FlashTM utility bar

Action bar

Task menu for

utility

Q-Flash

Flash Type/Size.................................SST 49LF003A 256K

Enter : Run :Move ESC:Reset F10:Power Off

Q-Flash Utility V1.30

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

Task menu for Q-Flash utility:

Contains the names of three tasks. Blocking a task and pressing Enter key on your keyboard to enable execution of the task.

Action bar:

Contains the names of four actions needed to operate the Q-Flash utility. Pressing the buttons mentioned on your keyboards to perform these actions.

Using the Q-FlashTM utility:

Steps:

1. Press arrow buttons on your keyboard to move the light bar to "Update BIOS from Floppy" item in the

Q-Flash menu and press Enter button. Later, you will see a box pop up showing the BIOS files you previously downloaded to the floppy disk.

If you want to save the current BIOS for backup purpose, you can begin Step 1 with "Save BIOS to Floppy" item.

2. Move to the BIOS file you want to flash and press Enter.

In this example, we only download one BIOS file to the floppy disk so only one BIOS file, 8GE800.F4, is listed.

Please confirm again you have the correct BIOS file for your motherboard.

Flash Type/Size.................................SST 49LF003A 256K

8GE800.F4 256K

Total size : 1.39M Free size : 1.14M

Enter : Run :Move ESC:Reset F10:Power Off

F5 : Refresh DEL : Delete

Q-Flash Utility V1.30

1 file(s) found

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

BIOS file in the floppy

disk.

English

Flash Type/Size.................................SST 49LF003A 256K

Reading BIOS file from floppy ...

>>>>>>>>>>>>>>.....................

Enter : Run :Move ESC:Reset F10:Power Off

Don't Turn Off Power or Reset System

Q-Flash Utility V1.30

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

Do not trun off power or

reset your system at

this stage!!

After BIOS file is read, you'll see a confirmation dialog box asking you "Are you sure to update BIOS?"

Please do not take out the floppy disk when it begins flashing BIOS.

Appendix- 59 -

English

3. Press Y button on your keyboard after you are sure to update BIOS.

Then it will begin to update BIOS. The progress of updating BIOS will be shown at the same time.

Flash Type/Size.................................SST 49LF003A 256K

Enter : Run :Move ESC:Reset F10:Power Off

Don't Turn Off Power or Reset System

Q-Flash Utility V1.30

Keep DMI Data Enable

Updating BIOS Now

Update BIOS from Floppy

>>>>>>>>>>>>>>>>>>>.........................

Save BIOS to Floppy

Do not trun off power or

reset your system

at this stage!!

4. Press any keys to return to the Q-Flash menu when the BIOS updating procedure is completed.

Flash Type/Size.................................SST 49LF003A 256K

Enter : Run :Move ESC:Reset F10:Power Off

Q-Flash Utility V1.30

Keep DMI Data Enable

!! Copy BIOS completed - Pass !!

Update BIOS from Floppy

Save BIOS to Floppy

Please press any key to continue

5. Press Esc and then Y button to exit the Q-Flash utility. The computer will restart automatically after

you exit Q-Flash.

Flash Type/Size.................................SST 49LF003A 256K

Enter : Run :Move ESC:Reset F10:Power Off

Q-Flash Utility V1.30

Keep DMI Data Enable

Are you sure to RESET ?

Update BIOS from Floppy

Save BIOS to Floppy

[Enter] to continure or [Esc] to abort...

After system reboots, you may find the BIOS version on your boot screen becomes the one you flashed.

Award Modular BIOS v6.00PG, An Energy Star Ally

The BIOS file becomes F4 after updating

Intel 845GE AGPSet BIOS for 8GE800 F4 Check System Health OK Main Processor : Intel Pentium(R) 4 1.7GHz (100x17.0) <CPUID : 0F0A Patch ID : 0009> Memory Testing : 122880K OK + 8192K Shared Memory

Primary Master : FUJITSU MPE3170AT ED-03-08 Primary Slave : None Secondary Master : CREATIVEDVD-RM DVD1242E BC101 Secondary Slave : None

Press DEL to enter SETUP / Q-Flash 03/18/2003-I845GE-6A69YG01C-00

6. Press Del to enter BIOS menu after system reboots and "Load BIOS Fail-Safe Defaults". See how

to Load BIOS Fail-Safe Defaults, please kindly refer to Step 6 to 7 in Part One.

Congratulation!! You have updated BIOS successfully!!

GA-K8NSC-939 Motherboard - 60 -

Method 2 : @BIOSTM Utility

If you do not have a DOS startup disk, we recommend that you use the

new @BIOS utility. @BIOS allows users to update their BIOS under

Windows. Just select the desired @BIOS server to download the latest

version of BIOS.

Fig 1. Installing the @BIOS utility Fig 2. Installation complete and run @BIOS

Click Start/ Programs/ GIGABYTE/@BIOS

Select @BIOS item.

Fig 3. The @BIOS utility Fig 4. Select the desired @BIOS server

Click "" Click "Update New BIOS"

English

1. Methods and steps:

I. Update BIOS through Internet:

a. Click "Internet Update" icon. b. Click "Update New BIOS" icon. c. Select @BIOSTM sever. d. Select the exact model name on your motherboard. e. System will automatically download and update the BIOS.

II. Update BIOS NOT through Internet:

a. Do not click "Internet Update" icon. b. Click "Update New BIOS". c. Please select "All Files" in dialog box while opening the old file. d. Please search for BIOS unzip file, downloading from internet or any other methods (such as:

K8NSP939.D1).

e. Complete update process following the instruction.

Appendix- 61 -

English

III. Save BIOS: In the very beginning, there is "Save Current BIOS" icon shown in dialog box. It means to save the current BIOS version.

IV. Check out supported motherboard and Flash ROM: In the very beginning, there is "About this program" icon shown in dialog box. It can help you check out which kind of motherboard and which brand of Flash ROM are supported.

2. Note:

I. In method I, if it shows two or more motherboard's model names to be selected, please make sure

your motherboard's model name again. Selecting wrong model name will cause the system unbooted.

II. In method II, be sure that motherboard's model name in BIOS unzip file are the same as your

motherboard's. Otherwise, your system won't boot.

III. In method I, if the BIOS file you need cannot be found in @BIOSTM server, please go onto Gigabyte's

website for downloading and updating it according to method II.

IV. Please note that any interruption during updating will cause system unbooted.

GA-K8NSC-939 Motherboard - 62 -

4-1-3 Serial ATA BIOS Setting Utility Introduction

RAID Levels

RAID (Redundant Array of Independent Disks) is a method of combining two hard disk drives into one logical unit. The advantage of an Array is to provide better performance or data fault tolerance. Fault tolerance is achieved through data redundant operation, where if one drives fails, a mirrored copy of the data can be found on another drive. This can prevent data loss if the operating system fails or hangs. The individual disk drives in an array are called members. The configuration information of each member is recorded in the reserved sector that identifies the drive as a member. All disk members in a formed disk array are recognized as a single physical drive to the operating system. Hard disk drives can be combined together through a few different methods. The different methods are referred to as different RAID levels. Different RAID levels represent different performance levels, security levels and implementation costs. The RAID levels which the nVIDIA® nForce3 250Gb/250 Ultra chipset supports are RAID 0, RAID 1, RAID 0+RAID 1 and JBOD.

RAID 0 (Striping) RAID 0 reads and writes sectors of data interleaved between multiple drives. If any disk member fails, it affects the entire array. The disk array data capacity is equal to the number of drive members times the capacity of the smallest member. The striping block size can be set from 4KB to 128KB. RAID 0 does not support fault tolerance.

RAID 1 (Mirroring) RAID 1 writes duplicate data onto a pair of drives and reads both sets of data in parallel. If one of the mirrored drives suffers a mechanical failure or does not respond, the remaining drive will continue to function. Due to redundancy, the drive capacity of the array is the capacity of the smallest drive. Under a RAID 1 setup, an extra drive called the spare drive can be attached. Such a drive will be activated to replace a failed drive that is part of a mirrored array. Due to the fault tolerance, if any RAID 1 drive fails, data access will not be affected as long as there are other working drives in the array.

English

RAID 0+1 (Striping + Mirroring) RAID 0+1 combines the performance of data striping (RAID 0) and the fault tolerance of disk mirroring (RAID

1). Data is striped across multiple drives and duplicated on another set of drives.

JBOD (Spanning) A spanning disk array is equal to the sum of the all drives when the drives used are having different capacities. Spanning stores data onto a drive until it is full, then proceeds to store files onto the next drive in the array. When any disk member fails, the failure affects the entire array. JBOD is not really a RAID and does not support fault tolerance.

Appendix- 63 -

English

Please follow the steps below to construct a complete RAID array:

1) Have ready your hard drives for RAID construction.

Note: To achieve best performance, it is recommended that the hard drives used are of similar make and storage capacity.

2) Please attach the hard drive connectors to their appropriate location on the motherboard ie. IDE, SCSI,

or SATA.

3) Enter the motherboard BIOS and locate RAID setup (Please refer to the section on Integrated Peripherals).

4) Enter RAID setup in the BIOS and select the RAID type (For instance, enter F10 to select NVIDIA RAID;

Ctrl + S to select Silicon Image).

5) Complete driver installation.

6) Complete RAID utility installation. More information on steps 4 and 5 is provided. (For more detailed setup information, please visit "Support\ Motherboard\ Technology Guide section" on our website at http:\\www.gigabyte.com.tw to read or download the information you need.)

Configuring the NVIDIA RAID BIOS

The NVIDIA RAID BIOS setup lets you choose the RAID array type and which hard drives you want to make part of the array.

Entering the RAID BIOS Setup

1. After rebooting your computer, wait until you see the RAID software prompting you to press F10. The RAID prompt appears as part of the system POST and boot process prior to loading the OS. You have a few seconds to press F10 before the window disappears.

Detecting array ...

Press F10 to enter RAID setup utility ...

Press F10. The NVIDIA RAID Utility - Define a New Array window appears (as Figure below).

NVIDIA RAID Utility May 10 2004

- Define a New Array -

RAID Mode: Mirroring Striping Block: Optimal

Free Disks Loc Disk Model Name

1.0.M ST3120026AS

1.1.M ST3120026AS

[F6] Back [F7] Finish [TAB] Navigate [



[

] Add





[

] Del



Array Disks Loc Disk Model Name



] Select [ENTER] Popup



GA-K8NSC-939 Motherboard - 64 -

Using the "Define a New Array" Window

If necessary, press the tab key to move from field to field until the appropriate field is highlighted.

Selecting the RAID Mode

By default, this is set to Mirroring. To change to a different RAID mode, press the down arrow key until the mode that you want appears in the RAID Mode box - either Mirroring, Striping, Spanning, or Stripe Mirroring.

Selecting the Striping Block Size

Striping block size is given in kilobytes, and affects how data is arranged on the disk. It is recommended to leave this value at the default Optimal, which is 64KB, but the values can be between 4 KB and 128 KB.

Assigning the Disks

The disks that you enabled from the RAID Config BIOS setup page appear in the Free Disks block. These are the drives that are available for use as RAID array disks. To designate a free disk to be used as a RAID array disk,

1. Tab to the Free Disks section. The first disk in the list is selected.

2. Move it from the Free Disks block to the Array Disks block by pressing the rightarrow key (). The first disk in the list is moved, and the next disk in the list is selected and ready to be moved.

3. Continue pressing the right-arrow key () until all the disks that you want to use as RAID array disks appear in the Array Disks block.

NVIDIA RAID Utility May 10 2004

- Define a New Array -

RAID Mode: Mirroring Striping Block: Optimal

English

Free Disks Loc Disk Model Name

[F6] Back [F7] Finish [TAB] Navigate [



[

] Add





[

] Del



Array Disks Loc Disk Model Name

1.0.M ST3120026AS

1.1.M ST3120026AS



] Select [ENTER] Popup



Appendix- 65 -

Completing the RAID BIOS Setup

After assigning your RAID array disks, press F7. The Clear disk data prompt appears.

English

NVIDIA RAID Utility May 10 2004

- Define a New Array -

RAID Mode: Mirroring Striping Block: Optimal

Free Disks Loc Disk Model Name

[F6] Back [F7] Finish [TAB] Navigate [

Clear disk data ?

[Y] YES [N] NO



[

] Add





[

] Del



Array Disks Loc Disk Model Name

1.0.M ST3120026AS

1.1.M ST3120026AS



] Select [ENTER] Popup



Press Y if you want to wipe out all the data from the RAID array, otherwise press N. You must choose Yes if the drives were previously used as RAID drives. The Array List window appears, where you can review the RAID arrays that you have set up. You can select a disk array as boot device if you want to boot operating system from an array. Use the arrow keys to select the array, then press B to specify the array as bootable.

NVIDIA RAID Utility May 10 2004

Boot Id Status Vendor Array Model Name

BBS 2 Healthy NVIDIA MIRROR 111.79G

- Array List -

[Ctrl-X] Exit [



] Select [B] Set Boot [N] New Array [ENTER] Detail



GA-K8NSC-939 Motherboard - 66 -

Press Enter to view and verify details. The Array Detail screen appears. The Array Detail screen shows various information about the array that you selected, such as Striping Block used, RAID Mode, Striping Width, Disk Model Name, and disk capacity.

Array 2 : NVIDIA MIRROR 111.79G

- Array Detail -

RAID Mode: Mirroring Striping Width : 1 Striping Block:

Adapt Channel M /S Index Disk Model Name Capacity

1 0 Master 0 ST3120026AS 111.79GB 1 1 Master 1 ST3120026AS 111.79GB

[R] Rebuild [D] Delete [C] Clear Disk [ENTER] Return

If you want to mark this disk as empty and wipe out all its contents, press C. At the prompt, press Y to wipe out all the data, otherwise press N. Press Enter again to go back to the previous screen and then press Ctrl + X to exit the RAID setup.

Now that the RAID setup has been configured from the RAID BIOS, the next step is to configure and load drivers under Windows.

English

Appendix- 67 -

English

Installing the RAID drivers

To install Windows 2000/XP onto a Serial ATA hard disk sucessfully, you need to install required driver for the SATA controller on your motherboard during OS installation. Without the driver, the hard disk may not be recognized during the Windows setup process. First of all, you have to copy the driver for the SATA controller on your motherboard from the motherboard driver CD to a floppy disk. See the instructions below about how to copy the driver.

Step 1: Find an available Operation System and insert the motherboard driver CD into the CD-ROM drive. The installation utility will appear automatically soon after you insert the driver CD. Quit the installation utility first. Insert a blank formatted floppy disk into the floppy disk drive.

Step 2: Go to My Computer and right-click the CD-ROM icon (This procedure assumes Drive D) and select Open. Then you will see folders and files contained in the driver CD. Double-click the BootDrv folder icon and select MENU.exe (refer to Fig.1).

(Note)

Fig.1

Fig.2

Step 3: A MS-DOS prompt screen will appear. Information on all chipsets should be listed on the screen (Refer to Fig.2), please select the proper chipset model.

Your system will then automatically zip and transfer this driver file to the floppy disk.

After you complete the steps, boot from the Windows CD to install the RAID drivers. When install Windows 2000 or Windows XP from HDDs in serial ATA controller, press F6 as Win2000 or XP boots up, then supply serial ATA controller driver by this floppy disk. Follow on-screen instructions to complete installation. (Each time you add a new hard drive to a RAID array, the RAID driver will have to be installed under Windows once for that hard drive. After that, the driver will not have to be installed.)

(Note) In the menu list, IAA_RAID is Intel ICH5R chipset.

GA-K8NSC-939 Motherboard - 68 -

4-1-4 2- / 4- / 6- / 8- Channel Audio Function

Introduction

The installation of audio software for Windows 98/ 2000/ ME/ XP is very simple. Follow the steps to install the function. (Following pictures are in Windows XP). Please note that if you want to set up an 8 channel audio configuration, you must use Audio Combo Kit (optional device).

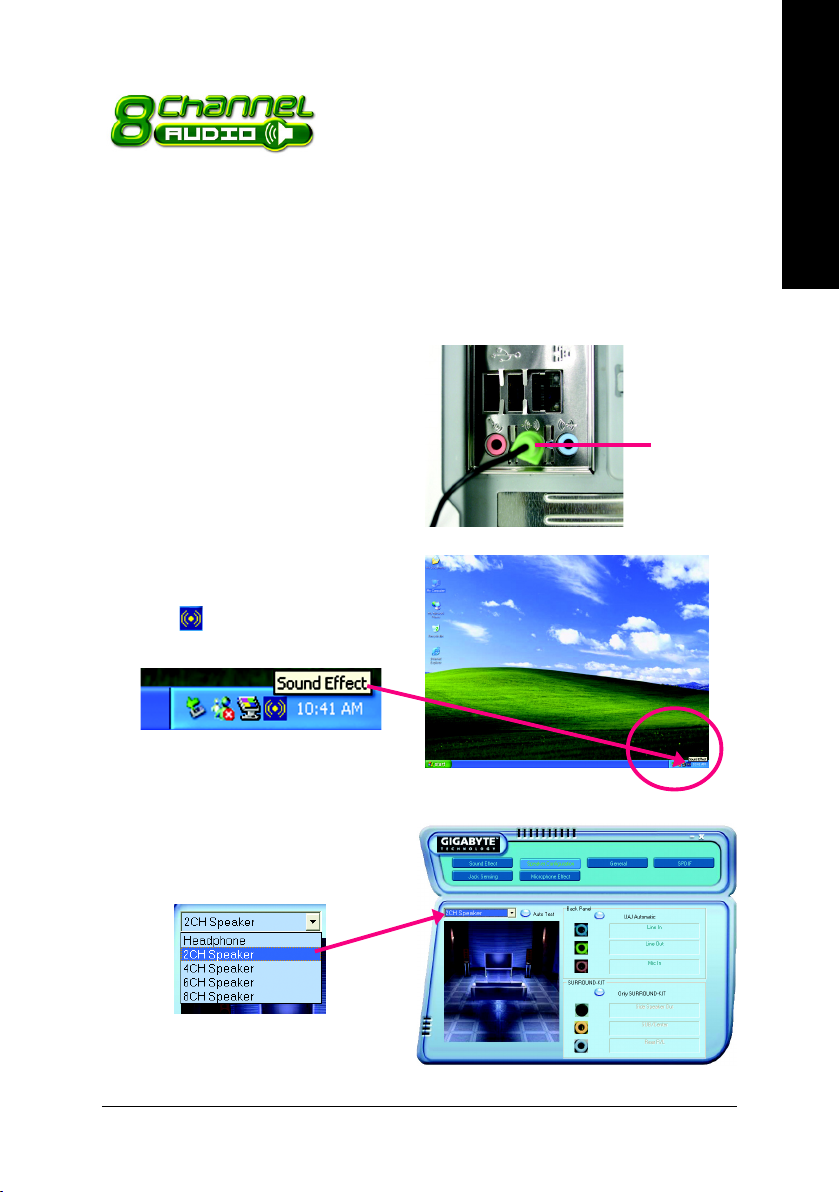

Stereo Speakers Connection and Settings:

We recommend that you use the speaker with amplifier to acquire the best sound effect if the stereo output is applied.

STEP 1: Connect the stereo speakers or earphone to "Line Out".

Line Out

STEP 2: Following installation of the audio driver, you'll find a

Sound Effect icon on the lower right hand taskbar.

Click the icon to select the function.

English

STEP 3: Click "Speaker Configuration" then click on the left selection bar and select "2CH Speaker" to complete 2 channel audio configuration.

Appendix- 69 -

English

4 Channel Audio Setup

STEP 1: Connect the Front Speakers to "Line Out", the Rear Speakers to "Line In".

Line In (Rear Speaker Out) Line Out (Front Speaker Out)

STEP 2: Following installation of the audio driver, you'll find a

Sound Effect icon on the lower right hand taskbar.

Click the icon to select the function.

STEP 3: Click "Speaker Configuration" and select the "UAJ Function". Then click on the left selection bar and select "4CH Speaker" to complete 4 channel audio configuration.

GA-K8NSC-939 Motherboard - 70 -

6 Channel Audio Setup

STEP 1: Connect the Front Speakers to "Line Out", the Rear Speakers to "Line In", and the Center/Subwoofer Speakers to "MIC In".

STEP 2: Following installation of the audio driver, you'll find a

Sound Effect icon on the lower right hand taskbar.

Click the icon to select the function.

STEP 3: Click "Speaker Configuration" and select the "UAJ Function". Then click on the left selection bar and select "6CH Speaker" to complete 6 channel audio configuration.

English

Line In (Rear Speaker Out) Line Out (Front Speaker Out) Mic In (Center/Subwoofer Speaker Out)

Appendix- 71 -

English

8 Channel Audio Setup (requires Audio Combo Kit, optional device) :

Audio Combo Kit includes a Surround-Kit and a SPDIF output cable (an optical and coaxial cable). If you want to set up an 8 channel configuration, you need to use the Surround-Kit. The Surround-Kit offers R/L surround, center/subwoofer output and rear surround.

Surround-Kit connector

SPDIF output cable connector

STEP 1: Secure the Audio Combo Kit at the panel on the back of the case.

STEP 2: Connect the Surround-Kit to the SUR_CEN connector located on the motherboard.

STEP 3: There are two methods of 8 channel audio configuration: Method 1: Connect the front channels to the "Line Out" port located on the audio panel and the rear channels to the Surround-Kit "REAR R/L" port. Connect the center/subwoofer channels to the Surround-Kit "SUB CENTER" and the R/L channels to the Surround-Kit "SUR BACK" port.

GA-K8NSC-939 Motherboard - 72 -

Method 2: Connect the front channels to the "Line Out" port located on the audio panel and the rear channels to the "Line In" port. Connect the center/subwoofer channels to the "MIC In" port located on the audio panel and the R/L channels to the Surround-Kit "SUR BACK" port. (This method requires UAJ function)

STEP 4: Following installation of the audio driver, you'll find a

Sound Effect icon on the lower right hand taskbar.

Click the icon to select the function.

STEP 5: Click "Speaker Configuration" and select both the "UAJ Function" and "Only Surround-Kit". Then click on the left selection bar and select "8CH Speaker" to complete 8 channel audio configuration.

English

Sound Effect Configuration: At the sound effect menu, users can adjust sound option settings as desired.

Appendix- 73 -

English

SPDIF Output Device (Optional Device)

A "SPDIF_IO" connector is available on the motherboard. The SPDIF output cable with rear bracket could link to the "SPDIF_IO" connector (as picture). For the further linkage to decoder, the rear bracket provides coaxial cable and Fiber connecting port

1. Connect the SPDIF output device to the rear

2. Connect SPDIF output device to the

(Note1)

bracket of PC, and fix it with screw.

motherboard.

3. Connect SPDIF to the SPDIF decoder.

(Note) If you want to use both of the 8 channel audio function and SPDIF out function, you may buy the

Audio Combo Kit (refer to the 8 channel Audio Setup section).

GA-K8NSC-939 Motherboard - 74 -

Jack-Sensing and UAJ Introduction

Jack-Sensing provides audio connectors error-detection function.

Install Microsoft DirectX8.1 or later version before to enable Jack-Sensing support for Windows 98/ 98SE/ 2000/ ME.

Jack-Sensing includes 2 parts: AUTO and MANUAL. (Following pictures are in Windows XP):

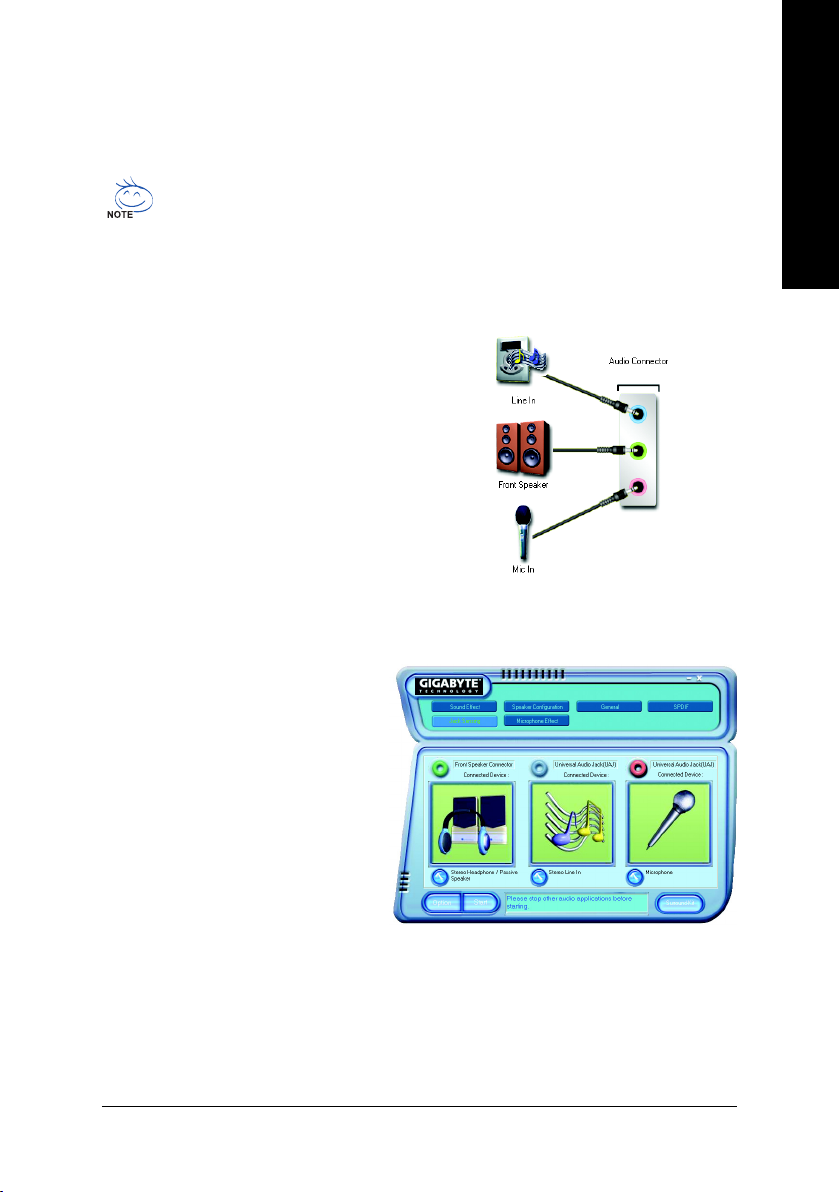

Introduction of audio connectors

You may connect CDROM, Walkman or others audio input devices to Line In jack, speakers, earphone or others output devices to Line Out jack, and microphone to MIC In jack.

Auto-detecting:

Please connect the devices to the right jacks as above. A window will appear as right picture if you setup the devices properly. Please note that 3D audio function will only appear when 3D audio inputs.

English

Appendix- 75 -

English

If you set wrong with the connectors, the warning message will come out as right picture.

Manual setting:

If the device picture shows different from what you set, please press "Manual Selection" to set.

UAJ Introduction

UAJ (Universal Audio Jack) has a very smart feature: It will switch signal automatically when user plugs his audio device to the wrong jack (Line-in/ Line-out). That means users do not need to worry the audio device should be plug in Line-in or Line-out jack, the device will work perfectly after UAJ is activated.

Enable UAJ function:

You can click "UAJ Automatic" button to enable UAJ function.

GA-K8NSC-939 Motherboard - 76 -

4-2 Troubleshooting

Below is a collection of general asked questions. To check general asked questions based on a specific motherboard model, please log on to www.gigabyte.com.tw

Question 1: I cannot see some options that were included in previous BIOS after updating BIOS. Why? Answer: Some advanced options are hidden in new BIOS version. Please press Ctrl and F1 keys after entering BIOS menu and you will be able to see these options.

Questions 2: Why is the light of my keyboard/optical mouse still on after computer shuts down? Answer: In some boards, a small amount of electricity is kept on standby after computer shuts down and that's why the light is still on.

Question 3: How do I clear CMOS? Answer: If your board has a Clear CMOS jumper, please refer to the Clear CMOS steps in the manual. If your board doesn't have such jumper, you can take off the on-board battery to leak voltage to clear CMOS. Please refer to the steps below:

Steps:

1. Turn off power.

2. Disconnect the power cord from MB.

3. Take out the battery gently and put it aside for about 10 minutes (Or you can use a metal object to connect the positive and negative pins in the battery holder to makethem short for one minute).

4. Re-insert the battery to the battery holder.

5. Connect power cord to MB again and turn on power.

6. Press Del to enter BIOS and load Fail-Safe Defaults(or load Optimized Defaults).

7. Save changes and reboot the system.

Question 4: Why do I still get a weak sound after turning up the speaker to the maximum volume? Answer: Please make sure the speaker you are using is equipped with an internal amplifier. If not, please change another speaker with power/amplifier and try again later.

English

Question 5: Sometimes I hear different continuous beeps from computer after system boots up. What do these beeps usually stand for? Answer: The beep codes below may help you identify the possible computer problems. However, they are only for reference purposes. The situations might differ from case to case.

 AMI BIOS Beep Codes *

Computer gives 1 short beep when system boots successfully.

*Except for beep code 8, these codes are always fatal.

1 beep Refresh failure 2 beeps Parity error 3 beeps Base 64K memory failure 4 beeps Timer not operational 5 beeps Processor error 6 beeps 8042 - gate A20 failure 7 beeps Processor exception interrupt error 8 beeps Display memory read/write failure 9 beeps ROM checksum error 10 beeps CMOS shutdown register read/write error 11 beeps Cache memory bad

 AWARD BIOS Beep Codes

1 short: System boots successfully 2 short: CMOS setting error 1 long 1 short: DRAM or M/B error 1 long 2 short: Monitor or display card error 1 long 3 short: Keyboard error 1 long 9 short: BIOS ROM error Continuous long beeps: DRAM error Continuous short beeps: Power error

Appendix- 77 -

English

GA-K8NSC-939 Motherboard - 78 -

English

 

 Taiwan (Headquarters)

 

GIGA-BYTE TECHNOLOGY CO., LTD.

Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei 231,

Taiwan

TEL: +886-2-8912-4888

FAX: +886-2-8912-4003

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address (English): http://www.gigabyte.com.tw

WEB address (Chinese): http://chinese.giga-byte.com

 

 U.S.A.

 

G.B.T. INC.

TEL: +1-626-854-9338

FAX: +1-626-854-9339

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.giga-byte.com

 

 Germany

 

G.B.T. TECHNOLOGY TRADING GMBH

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.de

 

 Japan

 

NIPPON GIGA-BYTE CORPORATION

WEB address : http://www.gigabyte.co.jp

 

 Singapore

 

GIGA-BYTE SINGAPORE PTE. LTD.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address: http://www.gigabyte.com.sg

 

 U.K.

 

G.B.T. TECH. CO., LTD.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://uk.giga-byte.com

 

 The Netherlands

 

GIGA-BYTE TECHNOLOGY B.V.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.giga-byte.nl

Appendix- 79 -

English

 

 China

 

NINGBO G.B.T. TECH. TRADING CO., LTD.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.com.cn

Shanghai

TEL: +86-021-63410999

FAX: +86-021-63410100

Beijing

TEL: +86-10-62102838

FAX: +86-10-62102848

Wuhan

TEL: +86-27-87851061

FAX: +86-27-87851330

GuangZhou

TEL: +86-20-87586074

FAX: +86-20-85517843

Chengdu

TEL: +86-28-85236930

FAX: +86-28-85256822

Xian

TEL: +86-29-85531943

FAX: +86-29-85539821

Shenyang

TEL: +86-24-23960918

FAX: +86-24-23960918-809

 

 Australia

 

GIGABYTE TECHNOLOGY PTY. LTD.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.giga-byte.com.au

 

 France

 

GIGABYTE TECHNOLOGY FRANCE S.A.R.L.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.fr

 

 Russia

 

Moscow Representative Office Of GIGA-BYTE Technology Co.,

Ltd.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.ru

 

 Poland

 

Office of GIGA-BYTE TECHNOLOGY Co., Ltd. in POLAND

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.pl

 

 Serbia & Montenegro

 

Representative Office Of GIGA-BYTE Technology Co., Ltd. in

SERBIA & MONTENEGRO

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address: http://www.gigabyte.co.yu

 

 Czech Republic

 

Representative Office Of GIGA-BYTE Technology Co., Ltd. in

CZECH REPUBLIC

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address: http://www.gigabyte.cz

 

 Romania

 

Representative Office Of GIGA-BYTE Technology Co., Ltd. in

Romania

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address: http://www.gigabyte.com.ro

GA-K8NSC-939 Motherboard - 80 -

AMD GA-K8NSC-939 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
