USER'S MANUAL
Of
AMD 790GX & AMD SB750
Based
M/B For Socket AM2+ Quad Core
NO. G03-M379GDGEXTLF
2.0
Rev
Release date: April, 2010
Trademark:
* Specifications and information contained in this documentation are furnished for information use only, and ar e
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.
ii
TABLE OF CONTENT
SAFETY ENVIROMENTAL INSTRUCTION ....................................................................iii
USER’S NOTICE.....................................................................................................................iv
MANUAL REVISION INFORMATION ..............................................................................iv
COOLING SOLUTIONS........................................................................................................iv
CHAPTER 1 INTRODUCTION OF AMD 790GX MOTHERBOARDS
1-1 FEATURES OF MOTHERBOARD.................................................................................... 1
1-1.1 SPECIAL FEATURES OF MOTHERBOARD.................................................... 2
1-2 SPECIFICATION.................................................................................................................. 3
1-3 PERFORMANCE LIST........................................................................................................ 4
1-4 LAYOUT DIAGRAM ........................................................................................................... 6
CHAPTER 2 HARDWARE INSTALLATION
2-1 HARDWARE INSTALLATION STEPS............................................................................. 9
2-2 CHECKING MOTHERBOARD'S JUMPER SETTING.................................................. 9
2-3 INSTALL CPU....................................................................................................................... 10
2-3-1 GLOSSARY............................................................................................................. 10
2-3-2
2-4 INSTALL MEMORY............................................................................................................ 11
2-5 EXPANSION CARDS........................................................................................................... 13
2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION............................ 13
2-5-2 ASSIGNING IRQS FOR EXPANSION CARD.................................................... 13
2-5-3 PCI-EXPRESS SLOT............................................................................................. 13

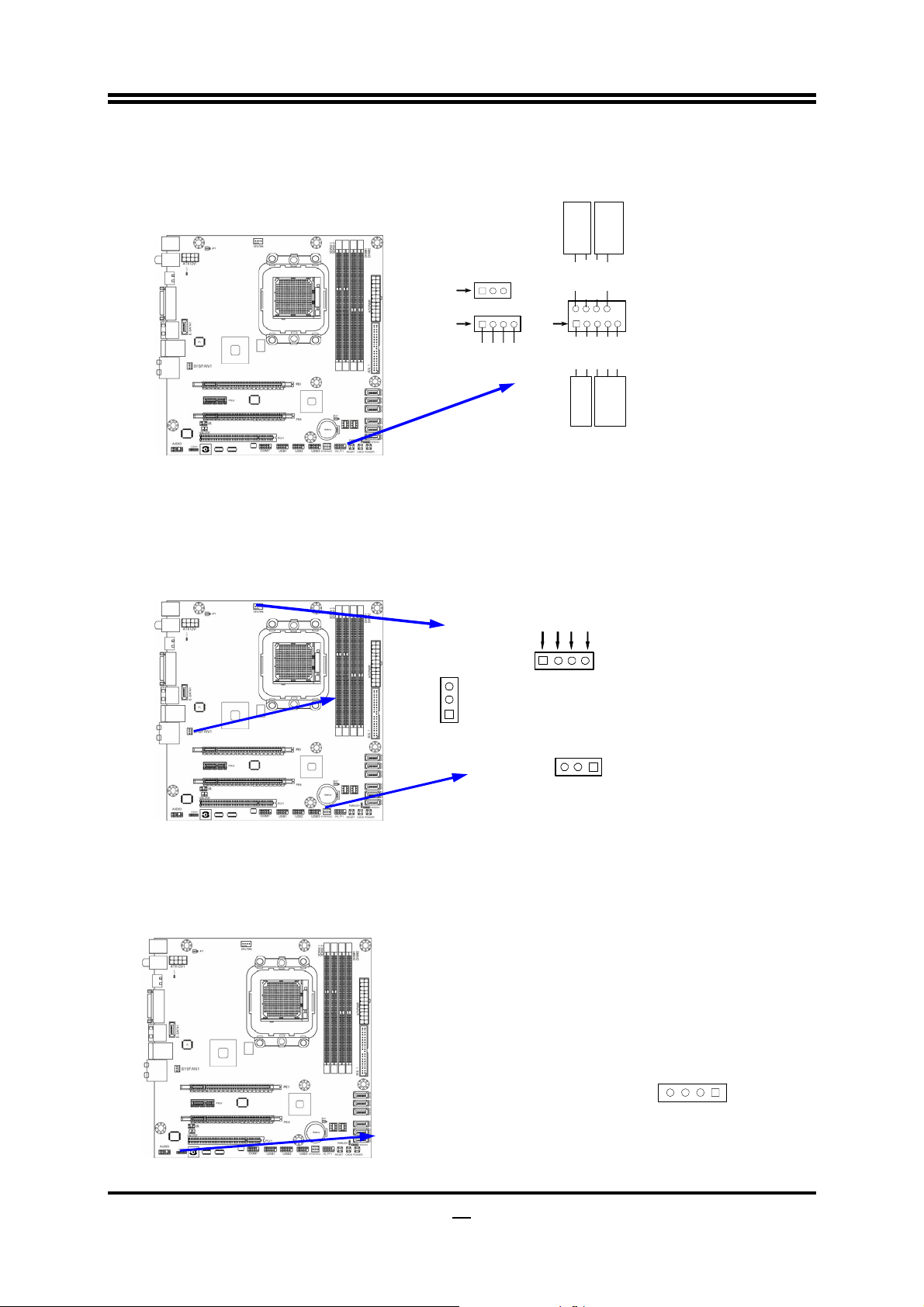

2-6 CONNECTORS, HEADERS............................................................................................... 15
2-6-1 CONNECTORS....................................................................................................... 15
2-6-2 HEADERS ............................................................................................................... 18
2-7 STARTING UP YOUR COMPUTER................................................................................. 21
ABOUT AMD ATHLON64 Socket AM2 CPU SOCKET
............................... 11
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP.............................................................................................................. 22
3-2 GETTING HELP................................................................................................................... 22
3-3 THE MAIN MENU................................................................................................................ 23
3-4 STANDARD BIOS FEATURES........................................................................................... 24
3-5 ADVANCED BIOS FEATURES.......................................................................................... 25
3-6 ADVANCED CHIPSET FEATURES.................................................................................. 26
3-6-1 MEMORY CONFIGURATION ......................................................................... 27
3-6-2 INTERNAL GRAPHICS CONFIGURATION ................................................. 28
3-6-3 PCI EXPRESS CONFIGURATION .................................................................. 29
3-7 INTEGRATED PERIPHERALS.........................................................................................29
3-7-1 ONBOARD SATA DEVICE .................................................................................30
3-7-2 ONCHIP DEVICE CONTROL............................................................................ 30
3-7-3 SUPER IO DEVICE ..............................................................................................31
3-8 POWER MANAGEMENT SETUP ..................................................................................... 31
3-9 MISCELLANEOUS CONTROL........................................................................................ 32
3-10 PC HEALTH STATUS........................................................................................................ 33
3-10-1 SMART FAN CONFIGURATION........................................................................ 33
3-11 THERMAL THROTTLING OPTIONS............................................................................. 34
3-12 POWER USER OVERCLOCK SETTING........................................................................ 34
3-13 PASSWORD SETTINGS .................................................................................................. 35
3-14 LOAD OPTIMISED/ FAIL-SAFE DEFAULTS............................................................... 36
3-15 SAVE CHANGES ANS EXIT/DISCARD CHANGES AND EXIT................................. 36
CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION
4-1 ATI INSTALL ATI DRIVER PACK......................................................................... 38
4-2 SOUND INSTALL HD AUDIO CODEC DRIVER....................................................... 39

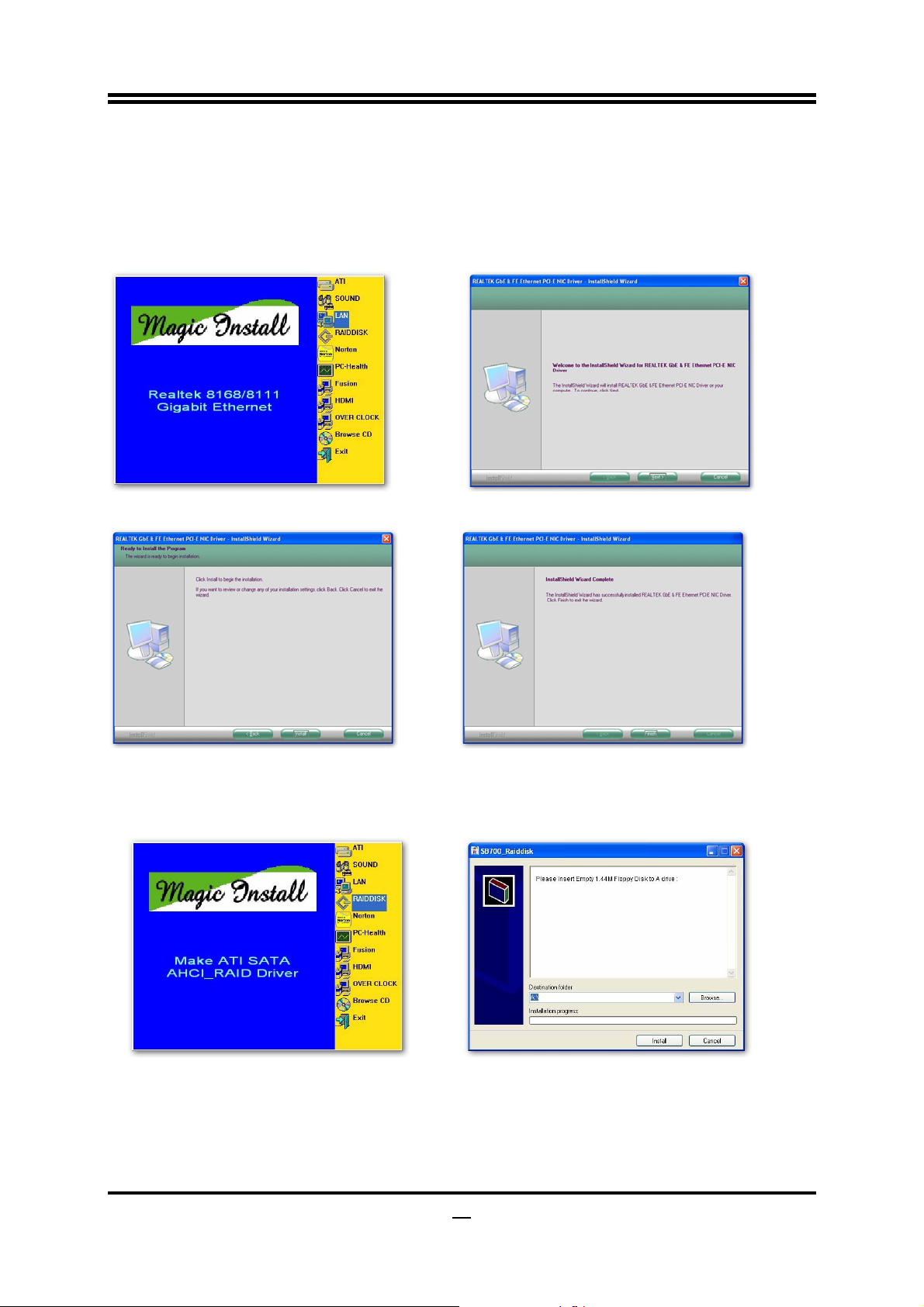

4-3 LAN INSTALL LAN......................................................................................................... 40
4-4 RAID INSTALL ATI SATA DRIVER AND UTILITY ............................................... 40
4-5 NORTON INSTALL NORTON 2009 ANTI-VIRUS PROGRAM.......................... 41
4-6 PC-HEALTH INSTALL MYGUARD HARDWARE MONITOR UTILITY .............. 41
4-7 HDMI INSTALL HDMI UTILITY................................................................................... 42
4-8 OVERCLOCK INSTALL OVERVLOK DRIVE UTILITY............................................. 42
4-9 HOW TO UPDATE BIOS..................................................................................................... 43

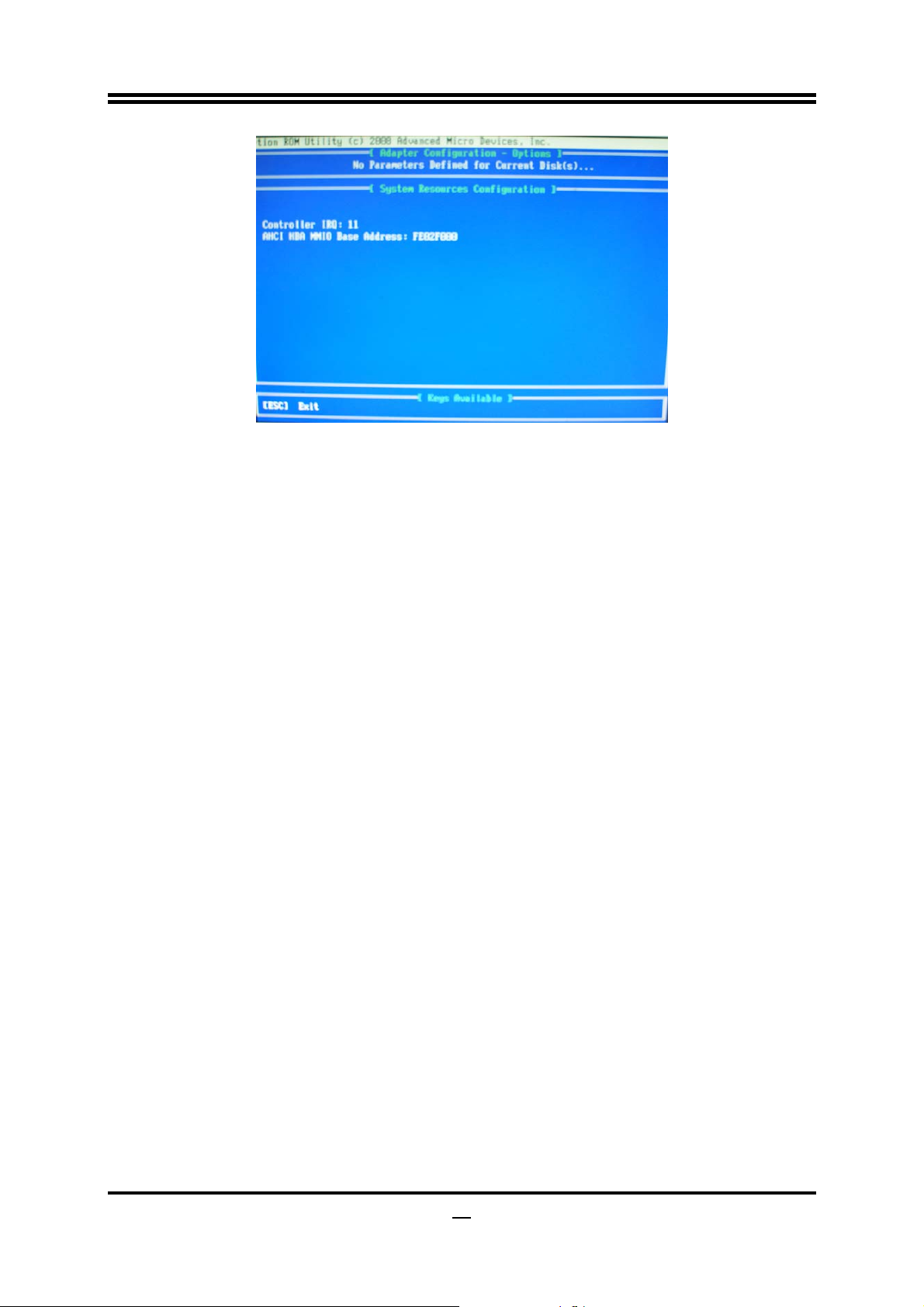

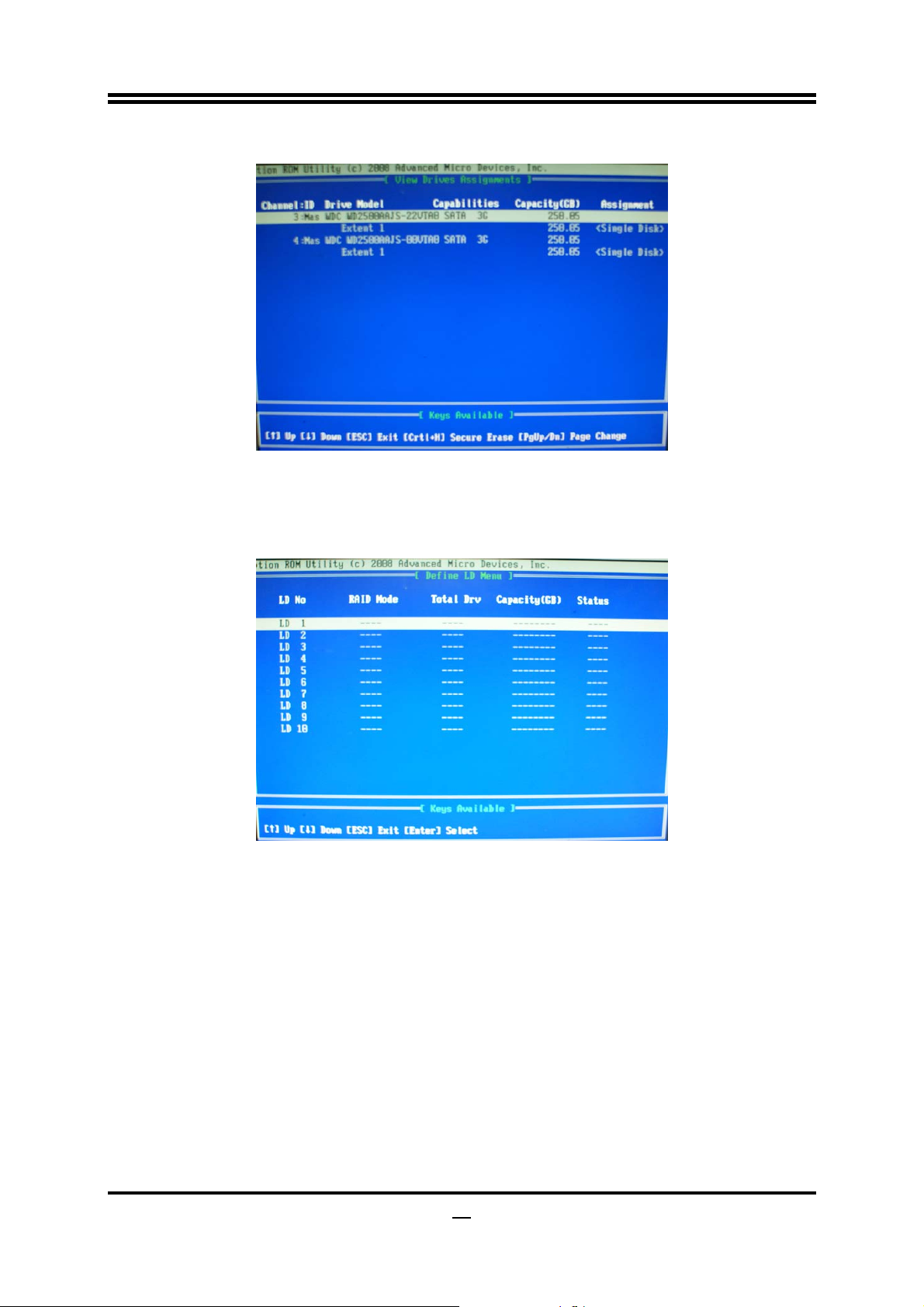

4-10 AMD PLATFORM RAID FUNCTION INSTALLATION............................................... 44
ii
4-11 G.P.I. FUNCTION LED DISPLAY..................................................................................... 48
APPENDIX ...................................................................................................................................... 49
Safety Environmental Instruction
z Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
z 0 to 40 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
z Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from the welding spots’ that connect components and PCB. Computer should go through an adaptive phase before it boots when it is moved from a cold environment to a warmer one to avoid condensation phenomenon. These water drops attached on PCB or the surface of the components can bring about phenomena as minor as computer instability resulted from corrosion and oxidation from components and PCB or as major as short circuit that can burn the components. Suggest starting the computer until the temperature goes up.
z The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher temperature in the inner of the case.
z Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iii
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE AMD 790GX MOTHERBOARD AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
2.0 Second Edition April, 2010
Item Checklist
5
AMD790GX Platform Processor Chipset based motherboard
5
CD for Motherboard Utilities
5
User’s Manual
5
Switch Card
5
4 in 1 Cable Package (optional)
5
SATA Cable (optional)
5
I/O Back Panel Shield
AMD K10 Processor Family
Cooling Solutions
As processor technology pushes to faster speeds and higher performance with increasing operation clock, thermal management becomes increasingly crucial while building computer systems. Maintaining the proper computing environment without thermal increasing is the key to reliable, stable, and 24 hours system operation. The overall goal is keeping the processor below its specified maximum case temperature. Heatsinks induce improved processor heat dissipation through increasing surface area and concentrated airflow from attached active cooling fans. In addition, interface materials allow effective transfers of heat from the processor to the heatsink. For optimum heat transfer, AMD recommends the use of thermal grease and mounting clips to attach the heatsink to the processor.
Please refer to the website for collection of heatsinks evaluated and recommended for Socket AM2+ processors by AMD. In addition, this collection is not intended to be a comprehensive listing of all heatsinks that support Socket-AM2+ processors.
iv
Chapter 1
Introduction of AMD790GX Motherboards 1-1 Features of motherboard
The AMD790GX chipset motherboard series are based on the latest AMD790GX Chipset and the SB750 chipset which supports the innovative 64-bit AMD Socket AM3/AM2+AM2 dual core and quad core AMD Phenom™ processors and 64-bit AMD Socket AM3/AM2+/AM2 multi-tasking Socket AM2 Athlon64 X2 processors and Sempron Processors. With an integrated low-latency high-bandwidth DDRII and DDRIII memory controller and a highly-scalable Hyper Transport technology-based system bus up to HT 3.0. AMD790GX Platform Processor Chipset mo therb oard s eries deliver the outstanding system performance and professional desktop platform solution with the advantages of new generation 64-bit AMD Socket AM3/AM2+ / AM2 AMD Phenom™ FX, AMD Phenom™ Athlon64 FX , Athlon64 X2Athlon64 & Sempron processors.
The AMD790GX Series motherboards come with two DDRII memory slots and two DDRIII memory slots to support two DDRII533 /667 /800 (AM2 Sempron processors only support up to DDRII667 memory) memory modules up to 4GB or two DDRIII 1066/ 1333 memory modules up to 8GB. The board also supports dual-channel function. The AMD790GX Series motherboards are embedded with SB750 chipset of providing 1 ULTRA ATA 133 connector and Serial ATA2 with RAID 0, 1, 10, 5 functions which support up to two IDE hard disk drive devices and six Serial ATA2 devices to accelerate hard disk drives and guarantee the data security without failure in advanced com pu ting p e r f o r m ance.
The AMD790GX motherboards provide 10/100/1000 LAN function with Gigabit LAN which supports 10/100/1000Mbps data transfer rate. And the embedded HD Audio CODEC is fully compatible with Sound Blaster Pro standards that offer you with the home cinema quality and satisfying software compatibility.
The AMD790GX Series motherboards deliver outstanding value and performance for gamers, with a true bandwidth design for Multi-GPU configurations. This high bandwidth architecture in the AMD 790GX chipset is with the flexibility for single or dual card or three cards configurations. The AMD 790GX chipset provide 2 x16 by 8 lane PCI Express 2.0 slots to support simultaneous operation of graphics cards for astonishing performance with brilliant and intense 3D graphics.
AMD790GX Series motherboard series offer two PCI-Express2.0x16 graphics slots that deliver up to 4Gbyte/sec data transfer rate at each relative direction. When PE4 installed switch card, the PE1 will doubled its bandwidth. One PCI Express x1 I/O slot offers 512 Mbyte/sec concurrently, over 3.5 times more bandwidth than PCI at 133Mbye/sec, tackling the most demanding multimedia tasks nowadays .The AMD790GX motherboards also carry one 32-bit PCI slot guarantee the rich connectivity for the I/O peripheral devices. This motherboard support Hybrid CrossFireX function, the VGA Card on PE1 or PE4 will activate a Hybrid CrossFire with the onboard VGA Card when select sideport function in BIOS, the performance will be increased 15% to 75%.
1
Embedded USB controllers as well as capability of expanding to 10 of USB2.0 functional ports delivering 480Mb/s bandwidth of rich connectivity, these motherboards meet the future USB demands which are also equipped with hardware monitor function on system to monitor and protect your system and maintain your non-stop business computing.
Some special features---
OC-CON / G.P.I. Function
CPU Thermal Throttling/ CPU Vcore 7-shift / CPU Smart Fan /
etc. in this motherboard are designed for power user to use the over-clocking function in more flexible ways. But please be caution that the over-clocking maybe causes the fails in system reliabilities. This motherboard provides the guaranteed performance and meets the demands of the next generation computing. But if you insist to gain more system performance with variety possibilities of the components you choose, please be careful and make sure to read the detailed descriptions of these value added product features, please get them in the coming section.
1-1.1 Special Features of Motherboard
CPU Thermal Throttling Technology—The CPU Overheat Protection Technology To prevent the increasing heat from damage of CPU or accidental shutdown while at high workload, the CPU Thermal Throttling Technology will force CPU to enter partially idle mode from 87.5% to 12.5% according to preset CPU operating temperature in BIOS (from 40 to 90). When the system senses the
CPU operating temperature reaching the preset value, the CPU operating bandwidth will be decreased to the preset idle percentage to cool down the processor. When at throttling mode the beeper sound can be optionally selected to indicate it is in working. (For detail operating please read Section 3-11 Bi-turbo Configuration) CPU Smart Fan—The Noise Management System It’s never been a good idea to gain the performance of your system by sacrificing its acoustics. CPU Smart Fan Noise Management System is the answer to control the noise level needed for now-a-day’s high performance computing system. The system will automatically increase the fan speed when CPU operating loading is high, after the CPU is in normal operating condition, the system will low down the fan speed for the silent operating environment. The system can provide the much longer life cycle for both CPU and the system fans for game use and business requirements. CPU Vcore 7-Shift—Shift to Higher Performance The CPU voltage can be adjusted up by 31 steps for the precisely over-clocking of extra demanding computing performance. OC-CON(optional)—High-polymer Solid Electrolysis Aluminum Capacitors The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC-CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.
G.P.I Function(optional)—Green power indicator function)
G.P.I is a technology with remarkable power saving function: when you are using a computer with G.P.I mode turned on, you save averagely 10.5w in power consumption in the whole process than normal computer without G.P.I technology.
DIY Clear(optional) The CMOS button is to facilitate the clear CMOS process for power user overclocking function. The user can easily clear or restore CMOS setting by pressing the button without tacking trouble to remove the case and locate the jumper for clear CMOS .
Power On Button(optional)
You can easily start the computer by pressing down this button for a few seconds, without troubling yourself to locate the front panel jumpers to find the Power on jumper.
Reset Button(optional)
You can easily restart the computer by pressing down this button for a few seconds, without troubling yourself to locate the front panel jumpers to find the reset jumper.
2
3D Audio((optional)
OP with two-stage Butterworth filter and quadruple noninverting amplifier enhances bass effect under the 100MHz range to perfect audio effect, brings you stunning shock experience in video game, true-to-life simulated feeling when watching films and the greatest touch as that in the concert.
1-2 Specification
Spec Description
ATX form factor ; PCB size:24.5cm x24.5cm
Design Chipset
CPU Socket
Memory Socket
GPU Memory
Expansion Slot
Integrate IDE and Serial ATA2 RAID
Gigabit LAN
HD-Audio
BIOS
Multi I/O
z
AMD790GX North Bridge Chipset
z
AMD SB750 South Bridge Chipset
z
Support 64bit AMD Athlon64 940-Pin package utilizes Flip-Chip Pin
z
Grid Array package processor Support for future AMD Athlon64 940-pin Dual –Core Athlon 64x2
z
processor, Athlon 64 & Sempron Processors with HTT Frequency 1GHz and the latest AMD Phenom™ FX, quad core AMD Phenom™ processors with HTT 3.0. Ready for AM3 CPU
z
240-pin DDRII Module socket x 2
z
240-pin DDRIII Module socket x 2
z
Support 2pcs DDRII533/667/800 Modules Expandable to 4GB or 2pcs
z
DDRIII 1066/ 1333 Modules Expandable to 8GB Dual channel supported
z
DDRIII 128Mb GPU Memory (optional)
z
2pcs PCI-Express x16 by 8 lane
z
1pcs PCI-Express x1 slot
z
32-bit PCI slot x 1pcs
z
One IDE controllers support PCI Bus Mastering, ATA PIO/DMA and the
z
ULTRA DMA 33/66/100/133 functions that deliver the data transfer rate up to 133 MB/s for 2 IDE Devices and for 6 Serial ATA2 ports providing 300 MB/sec data transfer rate with RAID 0, 1, 10, 5 functions Integrated PCI-E 10 / 100 / 1000 LAN.
z
Support Fast Ethernet LAN function of providing 10Mb/100Mb/1000
z
Mb/s data transfer rate Realtek HD Audio Codec integrated
z
Support 3D surround & Positioning Audio
z
Audio driver and utility included
z
AMI 8MB SPI Flash ROM BIOS
z
PS/2 keyboard and PS/2 mouse connectors
z
Coaxial and optical SPDIF_OUT connector(optional)
z
HDMI Connector / DVI Connector / VGA Connector(HDMI Connector
z
and DVI Connector can not be used at the same time) USB2.0 port x 4 and headers x 3
z
ESATA Connector x1
z
SATA Connector x6
z
RJ-45 Connector x1
z
Audio connector x1 (8CH Audio)
z
Hard Disk Drive Connector x1
z
Serial port header x1
z
HDMI-SPDIF header x1
z
IR header x1
z
3
1-3 Performance List
The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.)
Performance Test Report
CPU: AMD Phenom 940 DRAM:
VGA Card: Hard Disk Driver:
BIOS: T02 OS:
3D Mark 2003 3D Mark 2005 3D Mark 2006 AQUAMRK3
PCMark2005
System / CPU / Memory Graph / HDD Content Creation Winstone 2004 Business Winstone 2004 Winbench 99 V2.0: Business /Hi-end Disk Winmark99
SYSMark 2004: SISMark Rating(Internet Content Creation / Office Productivity )
SYSMark 2004
3D Creation/2D Creation
Web publication
Office productivily Communication/Document Creation DATA Analysis SISOFT Sandra 2009 : 1.CPU Arithmetic Benchmark 2.CPU Multi-Media Benchmark 3.Memory bandwidth
Benchmark
DHRYSTON ALU GIPS WHETSTONE ISSE3 GFLOPS
Multi-Media int x8 asse2 Mpixel/s
Multi-Media float x4 isse2 Mpixel/s Multi-Media doubled x2 isse2 Mpixel/s Integer GB/S Floating GB/S
UT2003 Benchmark (flyby/botmatch) Quake3 DEMO1 /DEMO2 FPS
DOOM 3 FPS Super Pi (1M) Second CPUZ System / CPU Clock 3000.3MHZ
DDR II 1066 1GB*2
onboard(HD3300)
ST sata 1000GB
winxp+sp3 (en)
AMD 790GX
5648 4647 2151
48805
6860/9052/5126
2955/6255
52.4
34.1
6220/29400
409
215/633
501 301
252/364
296
39.96
39.12
116.06
51.07
27.95
9.75
9.81
19.496958/134.963776/251.091202/135.045868
619.4/62.07
95.0
22.96s
4
CPU: AMD AM3 925 DRAM: VGA Card: Hard Disk Driver:
BIOS: T02 OS:
3D Mark 2003 3D Mark 2005 3D Mark 2006 AQUAMRK3
PCMark2005
System / CPU / Memory Graph / HDD Content Creation Winstone 2004 Business Winstone 2004 Winbench 99 V2.0: Business /Hi-end Disk Winmark99
SYSMark 2004: SISMark Rating(Internet Content Creation / Office Productivity )
SYSMark 2004
3D Creation/2D Creation
Web publication
Office productivily Communication/Document Creation DATA Analysis SISOFT Sandra 2009 : 1.CPU Arithmetic Benchmark 2.CPU Multi-Media Benchmark 3.Memory bandwidth
Benchmark
DHRYSTON ALU GIPS WHETSTONE ISSE3 GFLOPS
Multi-Media int x8 asse2 Mpixel/s
Multi-Media float x4 isse2 Mpixel/s Multi-Media doubled x2 isse2 Mpixel/s Integer GB/S Floating GB/S
UT2003 Benchmark (flyby/botmatch) Quake3 DEMO1 /DEMO2 FPS
DOOM 3 FPS Super Pi (1M) Second CPUZ System / CPU Clock 2800.4MHZ
DDR III 1333 1GB*2
onboard(HD3300)
ST sata 1000GB
winxp+sp3 (en)
AMD 790GX
5919 4835 2224
50568
6493/8520/4987
3043/6242
49.5
32.5
7900/27100
400
217/609
485 294
246/351
295
36.81
36.62
108.06
47.56
26.05
11.24
11.24
28.933/131.817/244.0370/131.8953
616.6/608.0
98.6
24.360
5
(J1)
r
r
r
r
1-4 Layout Diagram
For MA3-79GDG Extreme-L Motherboard series:
RJ-45 Connector
ESATA
USB Connectors
DDRIII Socket x 2
Line-IN
RS-OUT
Line-OUT
CS-OUT
SS-OUT
MIC-IN
PS/2 Mouse
PS/2 Keyboard
Coaxial SPDIF_OUT
Optical SPDIF_OUT
ATX 12V Power Connector
VGA Connector
HDMI
DVI Connector
CPUFAN
PS2 KB/Mouse Port
SPDIF_Out Connectors
HDMI Connector
VGA Connector over
DVI Connecto
E-SATA Ove
USB Connector
(CN5)
RJ45 Over
USB Connector
(UL1)
Audio Connector
PCI Express 2.0 x16
by 8-lane
PCI Express 2.0 x16
Realtek ALC883
Audio Decode
PCI Slot
Audio Header
SYSFAN1
PCI Express x1
by 8-lane
CDIN Header
G.P.I. LED
CPU Socket AM2+/AM3
AMD 790GX Chipset
E-SATA1
Gigabit LAN
IR Heade
3D Audio button
DDRIII 128Mb Sideport Memory
AMD SB750
COM Header
USB Headers
(USB1, 2, 3 )
Front Panel Header
SYSFAN2
Chipset
DDRII Socket x 2
ATX Power Conn.
ATA 133 IDE Conn.
(IDE1)
Serial-ATAII Connectors
SATA4, 5, 6
Serial-ATAII Connecto
SATA1, 2, 3
Power LED Header Speaker Header
s
6
7
(J1)
p
r
r
r
For MA3-79GEXTLC-LF Motherboard series:
PS/2 Mouse
PS/2 Keyboard
PS2 KB/Mouse Port
HDMI Connector
VGA Connector over
DVI Connecto
ATX 12V Power Connector
RJ-45 Connector
VGA Connector
HDMI Connector
DVI Connector
USB Connectors
CPUFAN
SSP. LED
CPU Socket AM2+/AM3
DDRIII Socket x 2
Line-IN
Line-OUT
MIC-IN
DDRII Socket x 2
ATX Power Conn.
USB Connecto
RJ45 Over
USB Connector
(UL1)
Audio Connector
PCI Express 2.0 x16
PCI Express x1
PCI Express 2.0 x16
Realtek ALC 662
Audio Decode
s
by 8-lane
by 8-lane
PCI Slot
Audio Header
CDIN Header
AMD 790GX Chipset
Gigabit
LAN Chi
SYSFAN1
IR Heade
COM Header
USB Headers
(USB1, 2, 3)
AMD SB750
Chipset
Front Panel Header
SYSFAN2
ATA 133 IDE Conn.
(IDE1)
Serial-ATAII Connectors
SATA4, 5, 6
Serial-ATAII Connectors
SATA1, 2, 3 Power LED Header Speaker Header
Jumpers
JP1 Keyboard/USB Power On Enabled/Disabled 3-pin Block JBAT Clear CMOS Header 3-pin Block
Jumper Name Description
Connectors
Connector Name Description
ATXPWR1 ATX Power Connector 24-pin Block ATX12V1 ATX 12V Power Connector 8-pin Block KB PS/2 Mouse & PS/2 Keyboard Connector 6-pin Female UL1/CN5 for USB USB2.0 Port Connector 4-pin Connector UL1 for RJ-45LAN Gigabit LAN Port Connector RJ-45 Connector J1 8-CH HD Audio Connector 6- phone jack Conn. FDD Floppy Driver Connector 34-pin Block IDE1 Primary IDE Connector 40-pin Block
SATA1~SATA6 E-SATA1 (optional) CN5 for ESATA
VGA D-Sub Connector 15-pin Connector DVI1 Digital Visual Interface 29-pin Connector HDMI High-Definition Multimedia 19-pin Connector SPDIF_OUT1/
SPDIF_ Out 2 (optional)
Serial ATAII Hard Disk Driver Connectors 7 -pin Connector
External Serial ATAII Connector 7-pin Connector
Coaxial/ Optical SPDIF Out Connector 1-phone connector
Headers
Header Name Description
AUDIO1 Front Panel SPEAKER, MIC header 9-pin Block USB1, USB2, USB3 USB Port Headers 9-pin Block SPEAK PC Speaker connector 4-pin Block PWR LED Power LED 3-pin Block
JW_FP1 (Reset/IDE LED/Power Button)
SYSFAN1/2 System FAN Headers 3-pin Block CPUFAN CPU FAN Header 4-pin Block CDIN1 CD Audio-In Header 4-pin Block IR IR infrared module Headers 5-pin Block COM1 Serial Port COM1 Header 9-pin Block HDMI-SPDIF SPDIF Out header 2-pin Block
Front Panel Header (including IDE activity LED/Reset switch /
Power On Button lead)
9-pin Block
Expansion Sockets
Socket/Slot Name Description
ZIF Socket AM2 CPU Socket 940-pin PGAB Athlon64 CPU Socket DDRIII1/DDRIII2 DDRIII Module Socket 240-pin DDRIII Module Socket DIMM1/ DIMM2 DDRII Module Socket 240-pin DDRII Module Socket PCI1 PCI Slot 32-bit PCI Local Bus Expansion slot PE2 PCI-Express x1Slot PCI-Express x1 Expansion Slot
PE1,PE4 PCI-Express 2.0x16 Slot PCI-Express2.0 x16 Expansion Slot
8
Chapter 2
Hardware Installation
WARNING!
Turn off your power when adding or removing expansion cards or other system components. Failure to do so may cause severe damage to both your motherboard and expansion cards.
2-1 Hardware installation Steps
Before using your computer, you had better complete the following steps:
1. Check motherboard jumper setting
2. Install CPU and Fan
3. Install System Memory (DIMM)
4. Install Expansion cards
5. Connect IDE and Front Panel /Back Panel cable
6. Connect ATX Power cable
7. Power-On and Load Standard Default
8. Reboot
9. Install Operating System
10. Install Driver and Utility
2-2 Checking Motherboard’s Jumper Setting
(1) Keyboard/USB function Enabled/Disabled: JP1
JP1
1-2 Closed KB/USB Power ON Disable (Default)
Keyb oard/M ouse & USB Power On Setting
JP1
2-3 Closed KB/USB Power ON Enabled
(2) CMOS RAM Clear (3-pin): JBAT
A battery must be used to retain the motherboard configuration in CMOS RAM short 1-2 pins of JBAT to store the CMOS data.
To clear the CMOS, follow the procedure below:
1. Turn off the system and unplug the AC power
2. Remove ATX power cable from ATX power connector
3. Locate JBAT and short pins 2-3 for a few seconds
4. Return JBAT to its normal setting by shorting pins 1-2
5. Connect ATX power cable back to ATX power connector
Note: When should clear CMOS
1. Troubleshooting
9
2. Forget password
3. After over clocking system boot fail
JBATJBAT
1-2 Closed Normal
CMOS RAM Clear Setting
2-3 Closed Clear CMOS
2-3 Install CPU
2-3-1 Glossary
Chipset (or core logic) - two or more integrated circuits which control the interfaces between the system processor, RAM, I/O devises, and adapter cards.
Processor socket - the socket used to mount the system processor on the motherboard. Slot (PCI-E, PCI, RAM) - the slots used to mount adapter cards and system RAM. PCI - Peripheral Component Interconnect - a high speed interface for video cards, sound
cards, network interface cards, and modems; runs at 33MHz. PCI Express2.0- Peripheral Component Interconnect Express2.0, developed in 2003, the speed of each line doubled from the previous PCI-E of 2.5 Gbps to 5 Gbps.
Serial Port - a low speed interface typically used for mouse and external modems. Parallel Port - a low speed interface typically used for printers. PS/2 - a low speed interface used for mouse and keyboards. USB - Universal Serial Bus - a medium speed interface typically used for mouse, keyboards,
scanners, and some digital cameras. Sound (interface) - the interface between the sound card or integrated sound connectors and speakers, MIC, game controllers, and MIDI sound devices.
LAN (interface) - Local Area Network - the interface to your local area network. BIOS (Basic Input/Output System) - the program logic used to boot up a computer and
establish the relationship between the various components. Driver - software, which defines the characteristics of a device for use by another device or other software. Processor - the "central processing unit" (CPU); the principal integrated circuit used for doing the "computing" in "personal computer"
Front Side Bus Frequency -
by the clock generator for CPU, DRAM and PCI BUS.
CPU L2 Cache -
the flash memory inside the CPU, normal it depend on CPU type.
the working frequency of the motherboard, which is generated
10
2-3-2 About AMD Athlon64 Socket AM2+/AM3 CPU Socket
This motherboard provides a socket AM2+/AM3 surface mount, Zero Insertion Force (ZIF) socket, referred to as the mPGA941 socket supports AM3/ AM2+ AMD processor utilizes Flip-Chip Pin Grid Array package technology.
The CPU that comes with the motherboard should have a cooling FAN attached to prevent overheating. If this is not the case, then purchase a correct cooling FAN before you turn on your system.
WARNING!
Be sure that there is sufficient air circulation across the processor’s heatsink and CPU cooling FAN is working correctly, otherwise it may cause the processor and motherboard overheat and damage, you may install an auxiliary cooling FAN, if necessary.
To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket and open it by first pulling the level sideways away from the socket then upward to a 90-degree angle. Insert the CPU with the correct orientation as shown below. The notched corner should point toward the end of the level. Because the CPU has a corner pin for two of the four corners, the CPU will only fit in the orientation as shown.
Colden Arrow
Socket AM2+
CPU ZIF mPGAB Socket
When you put the CPU into the ZIF socket, No force required to insert of the CPU, and then press the level to locate position slightly without any extra force.
2-4 Install Memory
This motherboard provides two 240-pin DDR II DUAL INLINE MEMORY MODULES (DIMM) socket for DDR II memory SDRAM expansion available from minimum memory volume of 128MB to maximum memory volume of 4 GB and two 240-pin DDR III SDRAM DUAL INLINE MEMORY MODULES (DIMM) socket for DDR III memory expansion available from minimum memory volume of 128MB to maximum memory volume of 8 GB.
Valid Memory Configurations for DDR II
Bank 240-Pin DIMM PCS Maximum Capacity
DIMM1 DDR II 667/DDR II 800 X1 2GB DIMM2 DDR II 667/DDR II 800 X1 2GB
Total System Memory (Max 4GB) 2 4GB
11
1
Valid Memory Configuration for DDR III
Bank 240-Pin DIMM PCS Maximum Capacity
DDR III 1 DDRIII1066/DDRIII 1333 X1 4 GB DDR III 2 DDRIII1066/DDRIII 1333 X1 4 GB
Total System Memory (Max. 8 GB) 2 8 GB
NOTICE!
1. If there is only one DDRII memory module, please install in DIMM1 slot; if tthere is only one
DDRIII memory module, please install in DDRIII1 slot.
2. Dual channel function only supports when 2 DDRIII memory modules plug in DIMM1
&DIMM2; or 2 DDRIII memory modules plug in DDR III 1 & DDR III .
3. Memory modules must be of the same type, same size, and same frequency for dual channel
function.
4. DIMM1and DIMM2 is for installing DDR II memory modules only while DDRIII1 and
DDRIII2 is for installing DDRIII memory modules only.
5. User can only install DDRII memory module(s) in DDR II memory module slot(s) when an
AM2 or AM2+ CPU is installed;
6. User can choose either installing DDRII memory module(s) in DDR II memory module slot(s)
or DDRIII memory module(s) in DDR III memory module slot(s), but NEVER both DDRII and DDRIII memory module(s) at the same time under any circumstances.
Install DDR SDRAM modules to your motherboard is not difficult, you can refer to figure
below to see how to install a 240-Pin DDR II 667/DDR II 800 or a DDR III 1066 and DDR III 1333SDRAM module.
DDRIII1 & DDRIII2: Dua l Channel
DIMM1 & DIMM2: Dual Chan ne l2
Graph 2-4
NOTICE!
WARNING!
When you install DIMM module fully into the DIMM socket the eject tab should be locked into the DIMM module very firmly and fit into its indention on both sides.
This motherboard only supports DDR II 667/800 or higher frequency- compliant DDR II Modules in DDRII memory slots and DDR III 1066 or higher frequency-compliant DDR III Modules in DDRIII memory slots.
12
2-5 Expansion Cards
2-5-1 Procedure For Expansion Card Installation
1. Read the documentation for your expansion card and make any necessary hardware or
software setting for your expansion card such as jumpers.
2. Remove your computer’s cover and the bracket plate on the slot you intend to use.
3. Align the card’s connectors and press firmly.
4. Secure the card on the slot with the screen you remove above.
5. Replace the computer system’s cover.
6. Set up the BIOS if necessary.
7. Install the necessary software driver for your expansion card.
2-5-2 Assigning IRQs For Expansion Card
Some expansion cards need an IRQ to operate. Generally, an IRQ must exclusively assign to one use. In a standard design, there are 16 IRQs available but most of them are already in use.
Standard Interrupt Assignments
IRQ Priority Standard function
0 N/A System Timer 1 N/A Keyboard Controller 2 N/A Programmable Interrupt 3 * 8 Communications Port (COM2) 4 * 9 Communications Port (COM1) 5 * 6 Sound Card (sometimes LPT2) 6 * 11 Floppy Disk Controller 7 * 7 Printer Port (LPT1) 8 N/A System CMOS/Real Time Clock
9 * 10 ACPI Mode when enabled 10 * 3 IRQ Holder for PCI Steering 11 * 2 IRQ Holder for PCI Steering 12 * 4 PS/2 Compatible Mouse Port 13 N/A Numeric Data Processor 14 * 5 Primary IDE Channel 15 * 1 Secondary IDE Channel
* These IRQs are usually available for ISA or PCI devices.
2-5-3 PCI Express Slot
Two PCI-Express2.0 x16@8 lane graphic slot offer 4Gbyte/sec data transfer rate at each relative direction and up to 8Gbyte/sec concurrent bandwidth at full speed, fully compliant to PCI Express Base Specification revision2.0, support PCI Express VGA card, and other PCI Express device. This motherboard support Hybrid CrossFireX function. One x1 PCI Express
1.0 a Slot offer 512 Mbyte/sec concurrently over 3.5 times more bandwidth than PCI at 133Mbye/sec, tackling the most demanding multimedia tasks nowadays.
13
PCI-E x1 Slot
-
PCI-E 2.0 x16 Slot@8-lane
PCI-E 2.0 x16 Slot@8-lane
14
2-6 Connectors, Headers
2-6-1 Connectors
(1) Power Connector (24-pin block): ATXPWR1
ATX Power Supply connector: This is a new defined 24-pins connector that usually
comes with ATX case. The ATX Power Supply allows using soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard. When the power switch on the back of the ATX power supply turned on, the full power will not come into the system board until the front panel switch is momentarily pressed. Press this switch again will turn off the power to the system board.
** We recommend that you use an ATX 12V Specification 2.0-compliant power supply
unit (PSU) with a minimum of 350W power rating. This type has 24-pin and 4-pin power plugs.
** If you intend to use a PSU with 20-pin and 4-pin power plugs, make sure that the 20-pin
power plug can provide at least 15A on +12V and the power supply unit has a minimum power rating of 350W. The system may become unstable or may not boot up if the power is inadequate.
ROW1 ROW2
Pin 1
20-Pin
ROW1 ROW2
Pin 1
24-Pin
PIN ROW1 ROW2
1 3.3V 3.3 V 2 3.3V -12V 3 GND GND 4 5V Soft Power On 5 GND GND 6 5V GND 7 GND GND 8 Power OK -5V 9 +5V (for Soft Logic) +5 V 10 +12V +5V 11 +12V +5V 12 +3V GND
(2) ATX 12V Power Connector (8-pin block) : ATX12V1
This is a new defined 8-pins connector that usually comes with ATX Power Supply. The ATX Power Supply which fully supports Socket AM2+ processor must including this connector for support extra 12V voltage to maintain system power consumption. Without this connector might cause system unstable because the power supply can not provide sufficient current for system.
Pin 1
15
6
(3) PS/2 Mouse & PS/2 Keyboard Connector: KB
The connectors are for PS/2 keyboard and PS/2 Mouse.
(4) USB Port connector: CN5/ UL1 for USB
The connectors are 4-pin connector that connects USB devices to the system board.
(5) LAN Port connector: UL1 for RJ45 LAN
The connector is a standard RJ45 connector for Network. It supports 10M/100Mb/1000Mb s data transfer rate.
(6) Audio Line-In,
Lin
-Out, MIC, RS-Out, CS-Out,SS-Out connector :
J1(Optional)
Depending on different models of motherboards, the audio connector can be either of 3-phone connector or 6-phone connector. Please refer to the product you purchased for audio connector definitions:
Line-in(BLUE) : Line-out (GREEN) : MIC(PINK): RS-OUT(BLACK): CS-OUT(ORANGE): SS-OUT(GRAY):
Audio input to sound chip
Audio output to speaker
Microphone Connector
Rear-Surround audio output (optional)
Center/ Subwoofer audio output (optional)
Side-Surround audio output (optional)
For MA3-79GDG Extreme-L Motherboard series:
RJ-45 Connector
ESATA
USB Connectors
Line-IN
RS-OUT
Line-OUT
CS-OUT
SS-OUT
MIC-IN
PS/2 Mouse
PS/2 Keyboard
Coaxial SPDIF_OUT
Optical SPDIF_OUT
HDMI
VGA Connector
DVI Connector
For MA3-79GEXTLC-L Motherboard series:
PS/2 Mouse
VGA Connector
HDMI Connector
RJ-45 Connector
Line-IN
Line-OUT
PS/2 Keyboard
MIC-IN
DVI Connector
USB Connectors
(7) Primary IDE Connector (40-pin block): IDE1
This connector supports the provided IDE hard disk ribbon cable. After connecting the
single plug end to motherboard, connect the two plugs at other end to your hard disk(s). If you install two hard disks, you must configure the second drive to Slave mode by setting its jumpers accordingly. Please refer to the documentation of your hard disk for the jumper settings.
1
7
Primary IDE Connector
IDE1
Pin 1
• Two hard disks can be connected to each connector. The first HDD is referred to as the
“Master” and the second HDD is referred to as the “Slave”.
• For performance issues, we strongly suggest you don’t install a CD-ROM or DVD-ROM
drive on the same IDE channel as a hard disk. Otherwise, the system performance on this channel may drop.
(8) Serial-ATAII Port connector:
SATA1~SATA6; E-SATA1
(optioanl)
This connector supports the provided Serial ATA2 IDE hard disk cable to connecting the motherboard with serial ATAII hard disk. E-SATA1 is not for SATA hard drive, it is only for connecting to SATAII 1, SATA II 2, SATA3, SATA4, SATA5, and SATA6 to let the ESATA port work.
E-SATA1
SATA6 SATA5
SATA4
SATA3 SATA2
SATA1
Serial-ATA Connectors
(9) ESATA Port:
CN5 for ESATA
(optional)
This connector supports the External Serial ATA2 (ESATA) enable the full SATA interface speed outside the chassis, up to 3Gb/s. The ESATA port can be enabled only when the E-SATA 1 is connected to one of SATA 1~SATA6.
(10)
D-Sub 15-pin Connector: VGA
VGA is the 15-pin D-Subminiature female connector; it is for the display devices, such as the CRT monitor, LCD monitor and so on.
(11) Digital Visual Interface: DVI 1
This interface standard designed to maximize the visual quality of digital display devices such as flat panel LCD computer displays and digital projectors.
(12) High-Definition Multimedia Interface: HDMI
This point-to-point interface is for audio and video signals designed as a single-cable
solution for home theater and consumer electronics equipment.
1
NOTE! DVI and HDMI Connector can not be used at the same time.
(13)Coaxial SPDIF_OUT and optical SPDIF_OUT connectors:
SPDIF_OUT1/ SPDIF_OUT2(optional)
The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby digital decoder. Use this feature only when your stereo system has digital input function. The board has coaxial and optical SPDIF_OUT connectors.
2-6-2 Headers
(1) Line-Out/MIC Header for Front Panel (9-pin): AUDIO1
These headers connect to Front Panel Line-out, MIC connector with cable.
Audio-GND
KEY
MIC2-JD
Audio-JD
LINE2-JD
AUDIO
Pin 1
2
MIC2-L
MIC2-R
Lineout2-R
Sense-FB
10
9
Lineout2-L
(2) USB Port Headers (9-pin): USB1/USB2/USB3
Line-Ou t, MIC Headers
These headers are used for connecting the additional USB port plug. By attaching an option USB cable, your can be provided with two additional USB plugs affixed to the back panel.
USB
Pin 1
USB Po rt He ad ers
OC
VCC
GND
-DATA
+DATA
VCC
GND
-DATA
+DATA
(3)Speaker connector: SPEAK
This 4-pin connector connects to the case-mounted speaker. See the figure below.
(4) Power LED: PWR LED
The Power LED is light on while the system power is on. Connect the Power LED from the system case to this pin.
(5) IDE Activity LED: HD LED
This connector connects to the hard disk activity indicator light on the case.
(6) Reset switch lead: RESET
This 2-pin connector connects to the case-mounted reset switch for rebooting your computer without having to turn off your power switch. This is a preferred method of rebooting in order to prolong the lift of the system’s power supply. See the figure below.
18
V
N
U
(7) Power switch: PWR BTN
This 2-pin connector connects to the case-mounted power switch to power ON/OFF the system.
PWRBTN
PWR LED
PWRLED
Pin 1
Pin 1
SPEAK
SPKR
System Case Connections
JW FP
Pin 1
NC
GND
VCC5
(8) FAN Power Headers: SYSFAN1, SYSFAN2 (3-pin), CPUFAN (4-pin)
VCC5
VCC5
HDLED
PWRLED
PWRBTN
GND
HDDLE
GND
RSTSW
NC
RESET
These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the fan manufacturer, the wire and plug may be different. The red wire should be positive, while the black should be ground. Connect the fan’s plug to the board taking into consideration the polarity of connector.
CPUFAN
3
1
SYSFAN1
CPUFAN I
CPUFAN O
+12
4
1
SYSFAN2
3
1
FAN Power Headers
(9) CD Audio-In Headers (4-pin): CDIN1
CDIN are the connectors for CD-Audio Input signal. Please connect it to CD-ROM CD-Audio output connector.
CDIN1
4 1
CD Audio-In Headers
19
5 6
(10) IR infrared module Headers (5-pin): IR1
This connector supports the optional wireless transmitting and receiving infrared module. You must configure the setting through the BIOS setup to use the IR function.
IR
Pin 1
IRRX
GND
2
NC
IRTX
VCC5
IR infrared module Headers
(11)
Serial COM Port header:
COM1
COM 1 is t he 9- pin block pin -hea der. The O n-bo ard s eria l por t can be disabled through BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SET U P” se ctio n for more detail inform ation.
Pin1
Serial COM Port 9-pin Block
(12) HDMI-SPDIF Out header: SPDIF Out header
The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby digital decoder. Use this feature only when your stereo system has digital input function. Some of the VGA Card need connect SPDIF-IN Connectorso its HDMI Port can make sounds .
GND
2
HDMI_SPDIF_OUT
1
HDMI_SPDIF Header
20
2-7 Starting Up Your Computer
1. After all connection are made, close your computer case cover.
2. Be sure all the switch are off, and check that the power supply input voltage is set to
proper position, usually in-put voltage is 220V∼240V or 110V∼120V depending on your country’s voltage used.
3. Connect the power supply cord into the power supply located on the back of your system
case according to your system user’s manual.
4. Turn on your peripheral as following order: a. Your monitor. b. Other external peripheral (Printer, Scanner, External Modem etc…) c. Your system power. For ATX power supplies, you need to turn on the power supply
and press the ATX power switch on the front side of the case.
5. The power LED on the front panel of the system case will light. The LED on the monitor may light up or switch between orange and green after the system is on. If it complies with green standards or if it is has a power standby feature. The system will then run power-on test. While the test is running, the BIOS will alarm beeps or additional message will appear on the screen.
If you do not see any thing within 30 seconds from the time you turn on the power. The system may have failed on power-on test. Recheck your jumper settings and connections or call your retailer for assistance.
6. During power-on, press <Delete> key to enter BIOS setup. Follow the instructions in BIOS SETUP.
7.
Power off your computer:
You must first exit or shut down your operating system before switch off the power switch. For ATX power supply, you can press ATX power switching after exiting or shutting down your operating system. If you use Windows 9X, click
“Start”
button, click
“Shut down”
and then click
“Shut down the computer?”
The power supply should turn off after windows shut down.
21
Chapter 3
Introducing BIOS
The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-d i a gnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.
In the BIOS Setup main menu of Figure 3-1, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:
• Press <Esc> to quit the BIOS Setup.
• Press ↑↓←→ (up, down, left, right) to choose, in the main menu, the option you want to
confirm or to modify.
• Press <F10> when you have completed the setup of BIOS parameters to save these
parameters and to exit the BIOS Setup menu.
• Press <+>/<–> keys when you want to modify the BIOS parameters for the active option.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to
Press <Del> to enter Setup
3-2 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of the screen.
Status Page Setup Menu/Option Page Setup M enu
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.
22
3-3 The Main Menu
Once you enter AMI BIOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from 12 setup functions and 2 exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Standard BIOS Features Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Features Miscellaneous Control PC Health Status
↑↓→←
: Move Enter: Select +/-/: Value F10: Save ESC: Exit F1:General Help
F5: Previous Values F6: Standard Defaults F7: Optimized Defaults
Thermal Throttling Function Power User Overclock Settings
Password Settings
Load Optimal Defaults
Load Stand Defaults Save changes and Exit Discard changes and Exit
Figure 3-1
Standard CMOS Features
Use this Menu for basic system configurations.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system’s performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Features
Use this menu to specify your settings for power management.
Miscellaneous Control
Use this menu to specify your settings for
Miscellaneous Control
.
PC Health Status
This entry shows your PC health status.
Power User Overclock Settings
Use this menu to specify your settings (frequency, Voltage) for overclocking demand.
Thermal Throttling Function
The selection is set for activating the active CPU Thermal Protection by flexible CPU loading adjustment in the range of temperature you define.
23
S
Load Stand Defaults
This menu uses a minimal performance setting, but the system would run in a stable way.
Load Optimal Defaults
Use this menu to load the BIOS default values these are setting for opt i m a l p e r f o r m a n c e s s y s t em operations for performance use.
Password Settings
This entry for setting Supervisor password and User password
Save Charges and Exit
Save CMOS value changes to CMOS and exit setup.
Discard Charges and Exit
Abandon all CMOS value changes and exit setup.
3-4 Standard BIOS Features
The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item.
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Standard BIOS Features
Language English
System Date Fri 05/15/2009 System Time 22 : 46 : 33 Primary IDE Master Not Detected Primary IDE Slave Not Detected Primary SATA Channel 5 Not Detected Primary SATA Channel 6 Not Detected Primary SATA Channel 1 Not Detected Primary SATA Channel 3 Not Detected Primary SATA Channel 2 Not Detected Primary SATA Channel 4 Not Detected
FLOPPY A 1.44MB, 3
System Memory Size: 448 MB 768MB(DDR3 Memory)
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
1
2
Help Item
elect the Current default
language used by the BIOS
Language
Use this item to select the current default language used in BIOS. The Optional settings are: Chinese (GB): English.
System Date
The date format is <day><month><date><year>.
Day of the week, from Sun to Sat, determined by BIOS. Read-only.
Day Month
The month from Jan. through Dec.
24
Date
The year depends on the year of the BIOS.
Year
The date from 1 to 31 can be keyed by numeric function keys.
System Time
The time format is <hour><minute><second>.
Primary IDE Master / Slave SATA Channel 1, 2, 3, 4, 5, 6
While entering setup, BIOS auto detest the pres ence of IDE devices. This displays the status of auto detection of IDE devices.
Type: LBA/Large Mode: Block (Multi-Sector Transfer): PIO Mode: the optional settings are: DMA MODE: S.M.A.R.T.:
The optional settings are: Not Installed; Auto; CD/DVD and ARMD
The optional settings are Auto; Disabled.
The optional settings are: Disabled and Auto.
Auto, 0, 1, 2, 3 and 4.
the optional settings are Auto, SWDMAn, MWDMAn , UDMAn.
This option allows you to enable the HDD S.M.A.R.T Capability (Self-Monitoring, Analysis and Reporting Technology). The optional settings are Auto; Disabled; and ENABLED.
32 Bit Data Transfer:
the optional settings are: Disabled and Enabled.
Floppy A
This item is for specific floppy disk drive settings. Select according to the specification of the floppy disk you use.
System Memory
This item will show information about the memory modules(s) installed.
3-5 Advanced BIOS Feature
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Advanced BIOS Features Advanced Settings WARNING: Setting wrong values in below sections
May cause system to malfunction
CPU Configuration Press Enter Quick Boot Enabled Boot up Num-Lock On ACPI APIC Support Enabled MPS Revision 1.1 1.4(DDR3 Memory) Quiet Boot Disabled
Configure CPU
Help Item
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Quick Boot
Allow BIOS to skip certain tests while booting. This will decrease the needed to boot the system.
st
Boot Device
1
Specify the boot sequence from the available devices. A device enclosed in parenthesis has been disabled in corresponding type menu.
25
Boot Up NumLock Status
The default value is On.
(default)
On Off
Keypad is numeric keys.
Keypad is arrow keys.
ACPI APIC Support
Include ACPI APIC table pointer to RSDT pointer list.
MPS Revision
This option is only valid for multiprocessor motherboards as it specifies the version of the Multiprocessor Specification (MPS) that the motherboard will use.
Quiet Boot
The optional settings are Enabled and Disable. Disabled: Display normal POST message. Enabled: Displays OME logo instead of POST message.
3-6 Advanced Chipset Features
The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer.
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Advanced Chipset Features
Memory Configuration Press Enter Internal Graphics Configurations Press Enter
PCI Express Configuration Press Enter
HDMI Audio Enabled NB Power Management Feature Auto Primary Video Controller PCI-GFX0-GPP-IGFX
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Help Item
Dynamic clock
Gating ok
IOC/NT/MCU/CFG
NB Power Management Features
Dynamic clock rating for IOC/NT/MCU/CFG items.
HDMI Audio
Use this item to select HDMI audio, the optional setting are: Enabled, Disabled.
Primary Video Controller
This item is for user to choose primary video controller.
26
7
3-6-1 Memory Configuration DDRII Memory configuration
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Memory Configuration
DRAM Timing Mode Auto Memory CLK: 400MHz CAS Latency (Tcl): 5.0 RAS/CAS Delay(Trcd): 5CLK Row Precharge Time(Trp): 5 clk Min Active RAS(Tras): 18CLK Row Cycle(Trc) 23 CLK Write Recover Time(Twr) 6 CLK
Bank Interleaving Auto Enabled clock to AL1 DIMMs Disabled Mem CLK Tristate C3/ATL VID Disabled Memory Hole Remapping Enabled DCI Unganged Mode Always Power Down Enabled Enabled Power Down Mode Channel
Help Item
Options
Auto DCT0
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
DDRIII Memory configuration
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Memory Configuration
DRAM Timing Mode Auto Memory CLK N/A 400MHz CAS Latency (Tcl) N/A 6CLK RAS/CAS Delay (Trcd) N/A 6CLK Row Precharge Time (Trp) N/A 6CLK Min Active RAS (Tras) N/A 15CLK RAS/RAS Delay (Trrd) M/A 4CLK Row Cycle (Trc) N/A 21 CLK Write Recovery Time (Twr) M/A 6CLK
Bank Interleaving Auto Enabled clock to AL1 DIMMs Disabled Mem CLK Tristate C3/ATL VID Disabled Memory Hole Remapping Enabled DCI Unganged Mode Always Power Down Enabled Enabled Power Down Mode Channel
Help Item
Options
Auto DCT0
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
2
Bank Interleaving
Use this item to enable bank memory interleaving.
Enable Clock to ALL DIMMs
Enable unused clocks to DIMMS when memory slots are not populated.
Mem CLK Tristate during C3 and Alt VID.
Enable and disable Mem CLK Tri-stating during C3 and Alt VID
Memory Hole Remapping
Enable Memory Remapping around Memory Hole.
DCT Unganged Mode
This allows selection of unganged DRAM MODE (64- bit width). Auto=Ganged Mode; Always= Unganged Mode.
Power Down Enable
Enable or Disable power down mode.
Power Down Mode
Set the DDR power down mode. The optional settings are Channel; Chipset.
3-6-2 Internal Graphics Configurations
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Internal Graphics Configurations
Internal Graphics Mode UMA+SIDEPORT UMA Frame Buffer Size Auto Sideport clock speed 667 MHz GFX Engine Clock Override Enabled
GFX Engine clock 700 UMA-SP Interleave Mode Auto SP Power Management Auto SP Memory Termination Enabled SP cmd Hold Enabled SP DATA Hold Enabled Surround View Disabled FB Location Above 4G
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
UMA Frame Buffer Size
Help Item
Options
Disabled
SIDEPORT
UMA+SIDEPORT
UMA
The optional settings are: Auto; 32MB; 64 MB; 128 MB; 256 MB and 512 MB.
Surround View
The item is for Hyprid CrossFire function. The optional settings are: Enabled; Disabled.
28
3-6-3 PCI Express Configuration
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
PCIExpress Configuration
PCI Express Configuration
Help Item
GFX Dual slot configuration Auto GPP Slots Power Limit. W 25
Port # 02 Features Press Enter Port # 03 Features Press Enter Port #04 Features Press Enter Port #05 Features Press Enter Port #07 Features Press Enter Port #09 Features Press Enter Port #10 Features Press Enter NB-SB Port Features Press Enter
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Options
Auto
Enabled
Disabled
Port #02 Features ~ Port #03 Features
Press Enter and set values in the sub-items as Ge2 High Speed Mode, Link ASPM, Link width and Slot Power Limit,w.
Port #04 Features~ Port #10 Features
Press Enter and set values in the sub-items as Ge2 High Speed Mode, and Link ASPM.
NB-SB Port Features
Press Enter and set values in the sub-items as NB-SB Link ASPM,;NP NB-SB VC1 Traffic Support and Link Width.
3-7 Integrated Peripherals
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Integrated Peripherals
Onboard SATA Device Press Enter
Onboard Device Control Press Enter Super IO Configuration Press Enter
Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Help Item
29
3-7-1 Onboard SATA Device
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Onboard SATA Device
Onchip SATA Channel Enter Onchip SATA Type Native IDE Option ROM POST Delay Disabled SATA IDECombined Mode Enabled PATA Channel Config SATA as Secondary
Onboard PCI IDE Controller Both Hard Disk Write Protest Disabled IDE Detect Time Out(Sec) 35 ATA (PI) 80 pin Cable Detect Host & Device
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Help Item
Select the time out value for
detecting ATA/ATAPI device(s)
OnChip SATA Channel
Press Enter to enable or disable OnChip SATA Channel.
0n Chip SATA Type
Press Enter to select the SATA type. The optional settings are: Native IDE; RAID; AHCI; Legacy IDE.
Onboard PCI IDE Controller
The optional settings are Disabled; Primary; Secondary and Both.
3-7-2 OnChip Device Control
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
OnChip Device Control
Onboard
Onboard Lan BootRom Disabled
HD Audio Azalia Device
Azalia Front Panel Auto USB configuration Press Enter
PCIE LAN Enabled
Enable
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Onboard PCI E Lan
Use this item to enable or disable Onboard PCI E Lan
HD Audio Azalia Device
This item allows you to decide to enable/disable the chipset family to support HD Audio.The optional settings ar: Auto; Enabled and Disabled.
USB Configuration
Press Enter to set values for sub-items as: Legacy USB Support, USB 2.0 Controller Mode BIOS EHCI Hand-OFF.
Help Item
Options
Disabled
Enabled
30
3-7-3 Super IO Configuration
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Super IO Configuration
Configure F71863 Super IO Chipset
Serial port 1 Address 3F8/IRQ4 Serial Port 2 Address 2F8/IRQ3 IRDA Mode Select IRDA (1.6bus) IR Duplex Mode Half Duplex IR TX Pin Select Normal IR RX Pin Select Normal IR TX to RX Delay Select No Delay IR RX to TX Delay Select No Delay
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Allows BIOS to Enable or
Disable Floppy Controller
IR Duplex Mode
Allows BIOS to select full or half duplex for serial port 2.
IR TX Pin Select
Allows BIOS to select Transmit pin is in normal condition or inverse the IRTX.
IR TX to RX Delay Select
Allows BIOS to select IR FROM tx to RX 4 CHARACTERS Time Delay for serial port.
Help Item
3-8 Power Management Setup
The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use.
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Power Management Setup
Power Management Feature
Power management/APM Enabled Suspend Time Out Disabled Power Button Mode On/Off Video Power Down Mode Suspend Hard Disk Power Down MODE Suspend Hard Disk Time Out (Minute) Disabled Power on by PCI Card Disabled Wake-up by PCIE Disabled Power on by Keyboard Disabled Power on by Mouse Disabled Restore on AC Power Loss Disabled RTC Resume Disabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Power Management/APM
Use this item to enable or disable SMI based power management and APM support.
Suspend Time Out
If it is set Enabled and no activity during this time period, the BIOS will place the system into suspend low power state. The optional settings are: Enable; 1~64 minutes.
Power Button Mode
The optional settings are: On/Off; Suspend.
Video Power Down Mode
The optional settings are: Disabled; Standby and Suspend.
Help Item
Disable/Enable RTC to generate a wake event
31
Restore on AC Power Loss
The optional settings are: Disabled; Power on; Power Off and last state.
3-9 Miscellaneous Control
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Miscellaneous Control
Advanced PCI/PnP Setting
WARNING: Setting wrong values in below sections may cause system to malfunction
Clear NVRAM No Plug &Play O/S No PCI LATENCY Timer 64 Allocate IRQ to PCI VGA Yes Palette Snooping Disabled PCI IDE Bus Master Disabled Off Board PCI/ISA IDE Card Auto IRQ Resources Press Enter
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Help Item
Options
Clear NVRAM during System Boot
Plug &Play O/S
The optional settings are: No; Yes No: Let the BIOS configure all the devices in the system. Yes: Let the operating system configure Plug and Play devices, not required for boot if your system has a Plug and Play system.
Allocate IRQ for PCI VGA
The optional settings are: No; Yes. Yes: Assigns IRQ to PCI VGA card if card requests IRQ. No: Does not assign IRQ to PCI VGA card even card requests an IRQ.
Palette Snooping
The optional settings are: Enabled; Disabled. Enable: inform the PCI device that an ISA graphics devices is installed in the system so the card will function correctly.
PCI IDE Bus Master
The optional settings are: Enabled; Disabled. Enable: BIOS uses PCI bus mastering for reading/writing to IDE devices.
Off board PCI/ISA IDE Card
Some PCI IDE cards may require this to be set to the PCI slot number that is holding the card.
32
3-10 PC Health Status
This section shows the Status of you CPU, Fan, and Warning for overall system status. This is only available if there is Hardware Monitor onboard.
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
PC Health Status
PC Health Status Smart FAN Configuration Press Enter
H/W Health Function Enabled
CPU Temperature: 49°C/120°F System Temperature: 34°C/93°F CPUFAN Speed: 2057RPM SYSFAN1 Speed: N/A SYSFAN Speed: N/A NB1.2V : 1.152V, 1.152V(DDR3 Memory) VDIMM : 1.956V, 1.620V(DDR3 Memory) VCORE: 1.320V, 1.320V(DDR3 Memory) NBPCIE: 1.136V, 1.136v(DDR3 Memory)
Help Item
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
H/W Health Function,
it displays information list below when set as below. The choice is either Enabled or Disabled.
CPU Temperature/ System Temperature/CPUFAN/SYSFAN1 Speed/SYSFAN2 Speed /NB1.2V/VDIMM/VCORE/NBPCIE
This will show the CPU/ /System voltage chart and FAN Speed, etc.
3-10-1 Smart FAN Configuration
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Smart FAN Configuration
FAN1 Mode Setting Auto Fan by RPM Temperature Limit of High 050
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Smart FAN Configurations FAN1 Mode Setting
The optional settings are: Auto Fan by RPM
Fan Configuration Mode
Help Item
Setting
33
3-11 Thermal Throttling Options
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Thermal Throttling Op
CPU Thermal-Throttling Enabled CPU Throttling Temp 70°C
CPU Throttling Duty 50%
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
CPU Thermal Throttling
Use this item to enable or disable CPU thermal Throttling. The optional settings are: Enable; Disabled. When set as Enabled, the two following items will show.
CPU Thermal Throttling Temp
Use this item to set CPU thermal Throttling temperature. The selectable arrange is from 40 to 100 °C.
CPU Thermal Throttling Duty
Use this item to set CPU Thermal Throttling Duty. The selectable range is from: 12.5% to
87.5%.
tions
Help Item
Options
Disabled
Enabled
3-12 Power User Overclock Setting
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Power User Overclock Setting
AMD Overclocking Configuration
CPU/HT Reference Clock(MHz) 200 PCI E Reference Clock (MHz) 100 SB Reference Clock(MHz) 100 Spread Spectrum Disabled Processor Frequency Multipli Auto Processor Voltage Auto Over Voltage Configuration AOD Compatibility Disabled CPU Vcore 7-Shift Default Set Memory Voltage 1.90 V 1.60V(DDR3 Memory NB-Core Voltage Setting 1.30V NB –PCIE Voltage Setting 1.15V NODEQ PCI-X2 HT Link Link Speed Auto Link Width Auto DRAM Command Rate 2T Memory Clock Mode Auto
Help Item
Menu Level >
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
CPU/HT Reference Clock
Use this item to set CPU/HT Reference Clock. The optional setting range is: 190~400 MHz.
34
PCI E Reference Clock
The optional setting range is: 90~250 MHz.
SB Reference Clock
The optional setting range is: 90~150 MHz.
Spread Spectrum
The optional settings are: Disabled; SRC CLK; CPUHT CLK and All CLK.
Processor Voltage
The optional settings are: Auto; 0.800V~1.350V.
AOD Compatibility
Choose Enabled means only AMD over drive can adjust voltage Choose Disabled means only BIOS can adjust voltage
CPU Vcore 7-Shift
Use this item to set value in CPU Vcore 7-Shift function. The optional settings are: Defaults and a range from 5% to 35%.
Set Memory Voltage
Use this item to set memory voltage. The optional setting rang is from 1.85V to 2.20V.
NB-Core Voltage Setting
The optional settings are from 1.20v to 1.30v.
NB-PCIE Voltage Setting
The optional settings are from 1.10v to 1.25v.
Memory Clock Mode
The optional settings are: Auto; Limit and Manual.
3-13 Password Settings
CMOS Setup Utility-Copyright(C)1985-2005 American Megatrends. Inc.
Password Setting
Security Settings
Supervisor Password: Not Installed User Password: Not Installed Change Supervisor Password Press Enter Change User Password Press Enter Boot Sector Virus Protection Disabled
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
↑↓→←
F5:Previous Values F6:Fail-safe Defaults F7:Optimized Defaults
Install or change the
password
You can set either supervisor or user password, or both of them. The differences are:
Supervisor password: Can enter and change the options of the setup menus.
User password: Can only enter but do not have the right to change the options of the
setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password. ENTER PASSWORD: Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password. To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm that the password will be disabled. Once the password is
Help Item
35
6
disabled, the system will boot and you can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration. Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer. You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.
3-14 Load Optimized Defaults/ Load Fail-Safe Defaults
Load Optimal Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Load Optimal Defaults?
OK Cancel Pressing <OK> loads the default values that are factory settings for optimal performance system operations.
Load stand Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Load Stand Defaults?
OK Cancel
Pressing <OK> loads the default values that are factory settings for stable performance system operations.
3-15 Save Changes and Exit / Discard and Exit
Save Changes and Exit
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Save Configuration Changes and Exit Setup?
OK Cancel Pressing <OK> save the values you made previously and exit BIOS setup.
Load Fail-Safe Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Discard Changes and Exit Setup?
OK Cancel Pressing <OK> to leave BIOS setting without saving previously set values.
Notice! The BIOS options in this manual are for reference only. Different configurations
may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.
3
7
Chapter 4
Driver & Free Program Installation
Check your package and there is A MAGIC INSTALL CD included. This CD consists of all DRIVERS you need and some free application programs and utility programs. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which DRIVERS needed so that your system can function properly. We call this auto detect software MAGIC INSTALL.
Magic Install supports Windows XP(SP3)/Vista/7
Insert CD into your CD-ROM drive and the MAGIC INSTALL Menu should appear as below. If the menu does not appear, double-click MY COMPUTER / double-click CD-ROM drive or
click START / click RUN / type X:\SETUP.EXE (assuming X is your CD-ROM drive).
From MAGIC INSTALL MENU you may take 11 selections:
1. ATI install ATI integrated driver
2. SOUND install ALC 883HD Audio driver
3. LAN install LAN
4. RAIDDISK install RAID SATA Driver and Utility
5. NORTON install NORTON anti-virus program
6. PC-HEALTH install My Guard PC-Health utility
7. FUSION install FUSION
8. HDMI install HDMI
9. OVER CLOCK install over clock
10. BROWSE CD to browse the contents of the CD
11. EXIT to exit from MAGIC INSTALL menu
3
4-1 ATI Install ATI Driver Pack
1. Click ATI when the MAGIC INSTALL
MENU appears.
2. Click NEXT when ATI software driver pack
appears.
3. Click “Yes” to accept the license agreement
and start installation..
4. Click Express, recommended.
5. Click Continue Anyway.
6. Finish the installing.
38
4-2 SOUND Install ALC883 HD Audio Codec Driver
1. Click SOUND when MA GIC INSTALL
MENU appears
2. Click NEXT When Realtek High Definition
Audio driver windows appear
3. Click FINISH and restart your computer 4. Manual Sound Effect Setting
5. Devices and mixer setting 6. Audio input and output setting.
7. Microphone effect setting. 8. 3D demo setting.
39
NOTE: Please upgrade your Windows XP to Service Pack 3 before you install the HD Audio CODEC driver.
4-3 LAN Install LAN
1 Click LAN when MAGIC INSTALL MENU
appears
2. Click Next .
3 Click Install 2. Finish.
4-4 RAID Install ATI SATA Driver and Utility
1 Click RAIDDisk when MAGIC INSTALL
MENU appears
2. Install RAID Disk.
40
4-5 Norton Install Norton 2009 Anti-virus program
1 Click NORTON when MAGIC INSTALL
MENU appears
2. Please select Agree&install.
4-6 PC-Health Install MyGuard Hardware Monitor Utility
1. Click PC-HEALTH when MAGIC INSTALL
MENU appears
3. Click Install to begin the installation. 4. Click Finish to complete the installation.
2. Click Next on Install shield wizard Window
appears
41
4-7 HDMI Install HDMI Utility
1. Click HDMI when MAGIC INSTALL
MENU appears
2. Click Next
1. Choose no, then click finish.
4-8 OVER CLOCK Install OVERCLOCK Drive Utility
1. Click OVER CLOCK when MAGIC
INSTALL MENU appears
2. Click Next
42
3. Choose “I accept the terms in the license
agreement”.
4. The information describe the installation,
Click Next
5. Choose “Anyone who use this computer”
Click Next.
6. Choose Yes and Next.
7. Ready to install the program, click Install. 8. Finish the installation.
4-9 How to Update BIOS
Step 1 Prepare a bootable floppy disk. (You may make one by click START click RUN
type SYS A: click OK)
Step 2 Download upgrade tools and the latest BIOS files of the motherboard from official
website and then make a copy of it to your bootable floppy disk after decompressing these files
Step 3 Insert the disk into A: ,start your computer and then type in
“A:\xxxxxx.BAT”(xxxxxxx being the file name of the latest BIOS )
Step 4 Type Enter to update and flash the BIOS. The system will restart automatically
43
when BIOS is upgraded.
4-10 AMD Platform RAID Function Installation
Please set these choice in the BIOS as RAIDBIOS setup \Integrated Peripherals \Onchip SATA Device \ Onchip SATA Type. When the below figures appeared, please press [Ctrl-F]
into figure 2
[figure1]
Function: press[1] key, showing the RAID; press [2] keybuilding RAID; press [3] key, delete the RAID; press[4] key, showing the information of controller.
[figure2]
44
press[1] keyshowing the RAIDas the below figure
[figure3]
Press [2] key, the interface of RAID, as figure 4. RAID function:
1.RAID 1 2. RAID 0 3. RAID 10 4. RAID 5 5. JBOD
[figure4]
Choose LD 1 then press Enter. Take Raid0 for example, use [] [] to shift the cursor, press space key to change the choice,
press [Ctrl-Y] to keep.
Set Assignment mode as [Y], press [Ctrl-Y] to keep , then figure 5 appeared, erase the MBR.
choose [Ctrl-Y],figure 6 appeared. Press any key, finished the RAID.
45
6
[figure5]
[figure6]
Press [3], delete the RAID mode, as figure 7.press [Delete] will delete the array. As figure 7 .
[figure7]
Press [4], showing the information of controller, as figure 8.
4
7
[figure8]
Making RAID driver diskette before Install WindowsXP/2000
Before you install the Windows XP or Windows 2000, you will need to make a RAID driver diskette before you start to install the Operating System.
How to make a RAID driver diskette?
1: Insert the diskette which is being formatted in floppy drive on a system which can start OS. 2: After booting OS insert the bundle CD in your CD-ROM 3: Copy all the files from \NF-orce4\RAIDDisk to floppy diskette Once you have the SATA driver diskette ready, you may start to install Windows XP or Windows 2000 on your System.
Installation of Windows XP/ VISTA/7
For installation of Windows OS, please insert OS CD into the CD-ROM drive. Then remove the floppy diskette, and boot the system. At the very beginning, you will see the message at the bottom of screen, “Press F6 if you need to install a third party SCSI or RAID driver….” At this moment, please press <F6> key and follow the instructions of Windows OS for the proper installation.
4
4-11 G.P.I. Function LED Display:
PP_LED 4
Lights off. It means the motherboard in the G.P.I. mode. CPU works with the low power consumption.
PP_LED 4
Lights on. It means that the CPU works with high power consumption.
48
APPENDIX Subject 1: Regarding the Application of 3-Phase or 3+1 Phase Power Supply Mold
As a result of the increasing power consumption demand from many AMD CPUs in current market, we suggest not to use a CPU that demands more than 65W power consumption at work for an AMD CPU compliant board that comes with power supply design as 3 phase or 3+1 phase mold and MOSFET design as working in High SideX1 and Low SideX1 mold so as to avoid MOSFET getting burned or other phenomena like a halted system or system instability. So please take notice of the CPU you are using and make sure that it is one that demand not more than 65 W to ensure long-term working order.
Note
1. The relation between CPU Power Consumption Amount and Power Phase: depending on
difference in voltage rating, one-phase of power can provide 25~30W to the motherboard.
2. 3- Phase Power Supply Mold: motherboard with 3 inductances for CPU power supply,
and each inductance carries with it 2 MOSFET (6 MOSFETs in total) (Figure1) 3+1–Phase Power Supply Mold: motherboard with 4 inductances for CPU power supply, and each inductance carries with it 2 MOSFET (8 MOSFETs in total) (Figure2)
Figure 1
Figure 2
Solution
We recommend users choose motherboards with power design of 4-phase, 4+1 phase or more for CPUs that demand 89W or 95W power consumption. We recommend users choose motherboards with power design of 5-phase, 5+1 phase or more for CPUs that demand 125W or 140W power consumption.
49
Subject 2: Suggestion on choosing electric fan
Both the amount of electric current to MOSFET and the heat produced from the motherboard go up as AMD’s CPU power consumption increases. In this case we recommend users select a CPU fan with air outlet towards MOSFET so that CPU fan can carry away heat produced by MOSFET, for better heat dissipation effects. At the same time we suggest using well-ventilated cases to maintain temperature as 38
approximately inside.( 38 is recommended by CPU manufactures)
Cool air flowing in
Hot air flowing out
Figure 1---- CPU Fan can not blow off the heat produced by MOSFET. We suggest not to using fans of this kind
Cool air flowing in
Hot air flowing out
Figure 2---- CPU Fan can blow off the heat produced by MOSFET. We suggest using fans of this kind
50
Loading...
