Page 1

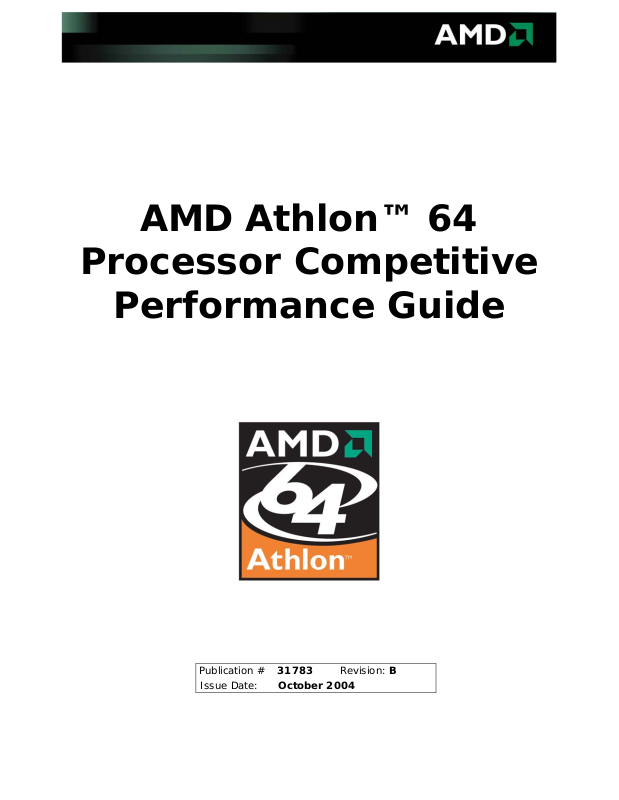

AMD Athlon™ 64

Processor Competitive

Performance Guide

31783Publication #

October 2004Issue Date:

BRevision:

Page 2

About This Document

This document is intended for use by those who are interested in AMD64 technology performance as demonstrated by the AMD the processor is shown as an average of all of the tests and as averages of compiled data from benchmarks in the following categories:

“Computer Gaming Overall” on page 5 “Digital Media Overall” on page 14 “Office Productivity Overall” on page 20

The result of each individual benchmark is shown in a graphical format. The system configurations are also listed in this document. For a detailed benchmarking methodology, including step-by-step procedures on how to duplicate these results, refer to AMD Processor Performance Eval uation Guide, order# 30579.

Athlon™ 64 processor. The performance of

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 2

October 2004

Page 3

Overall Performance

Performance Overall

The AMD Athlon™ 64 processor is the most advanced PC processor available for highperformance desktop PCs. This processor provides leading-edge performance for today’s demanding software like digital video, audio, imaging editing, 3D gaming, as well as office applications.

The AMD Athlon 64 processor features AMD64 technology for the coming wave of 64-bit applications.

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma rk system conf igurations.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 3

October 2004

Page 4

Overall Performance

While there is no simple way to measure performance that covers every user experience, AMD has compiled an average of all the benchmarks listed, on page

4. This document shows how various AMD Athlon 64 processors perform overall relative to the Intel Pentium® 4 550 processor operating at 3.4 GHz1.

Overall pro cessor performance i s an aver age of the compiled data from the list of overall benchmark scores from the following tests:

Computer Gaming (all tests performed at 1024x768x32 resolution)

3DMark® 2001SE PRO (D3D Hardware T&L) by Futuremark® Corporation

3DMark® 2001SE PRO (D3D Software T&L) by Futuremark® Corporation

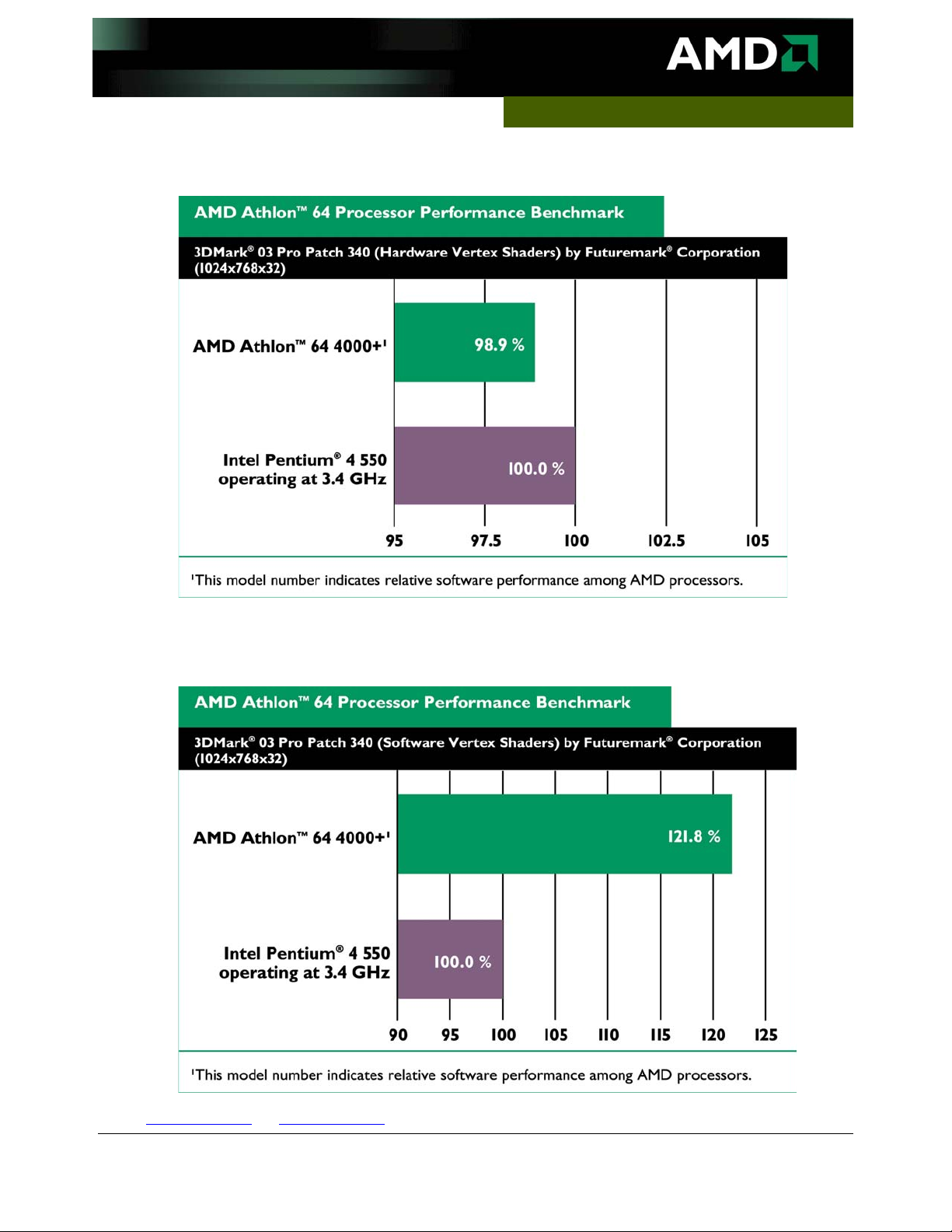

3DMark® 03 Pro (Hardware Vertex Shaders) by Futuremark® Corporation

3DMark® 03 Pro (Software V ertex Shad ers) by Futuremark® Corporation

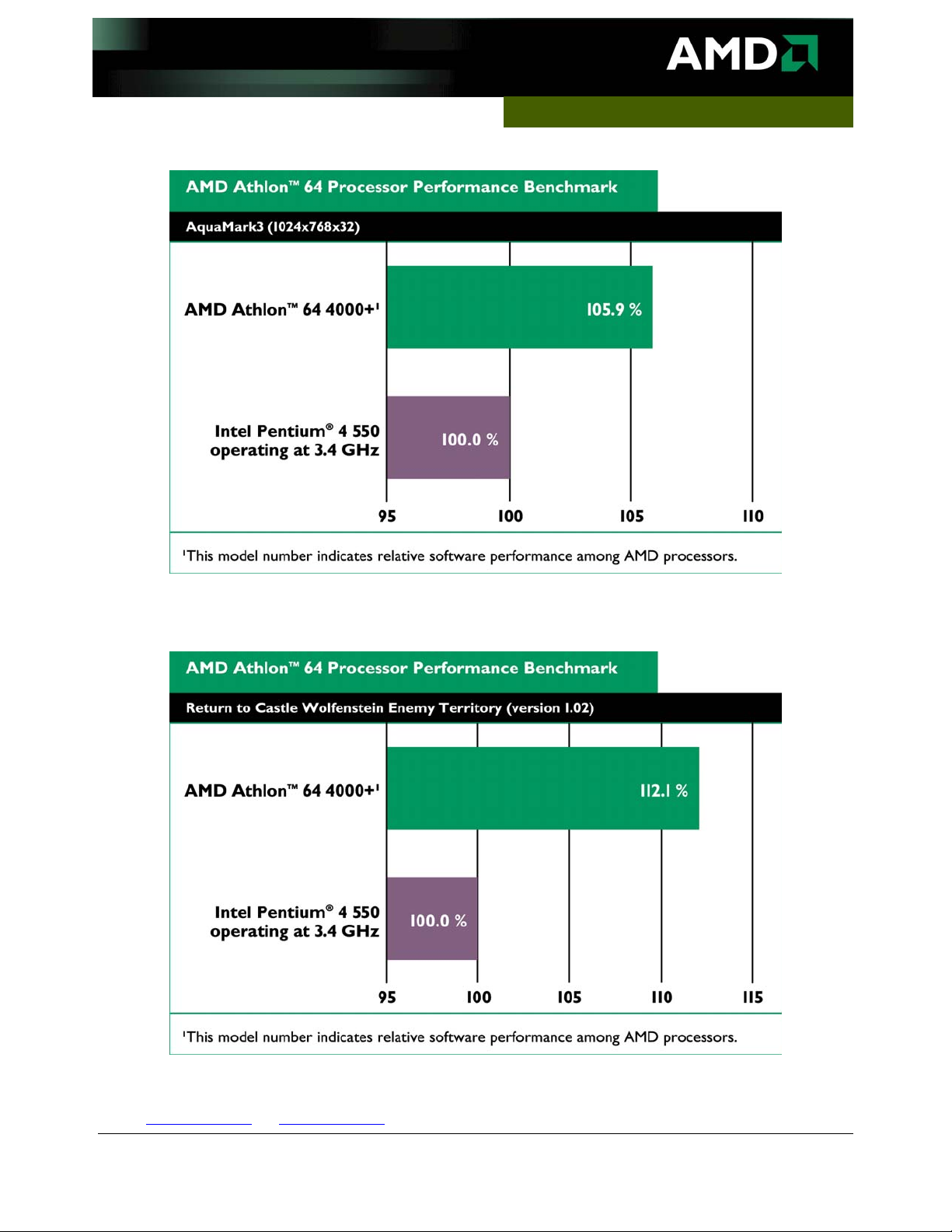

AquaMark3 Return to Castle Wolfenstein Enemy

Territory

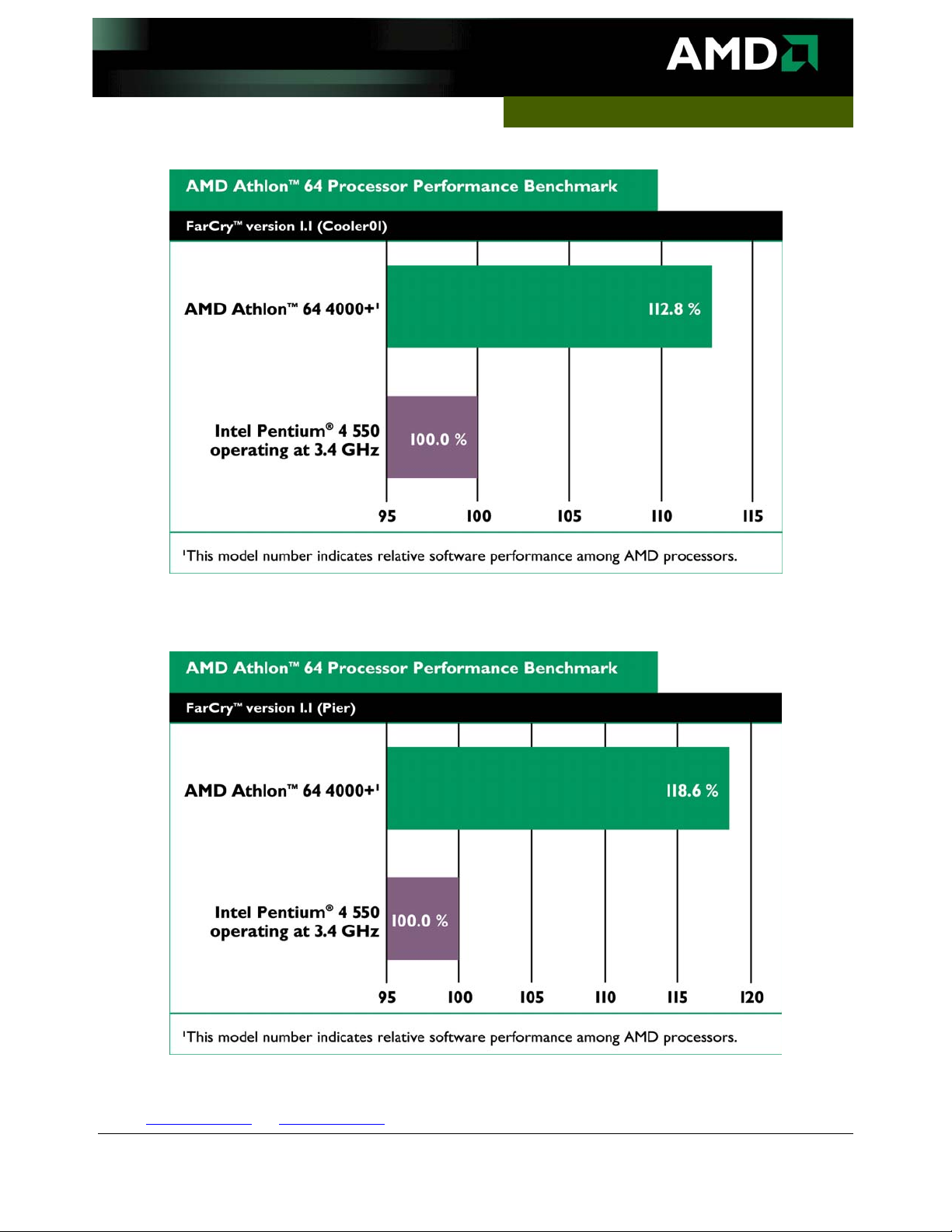

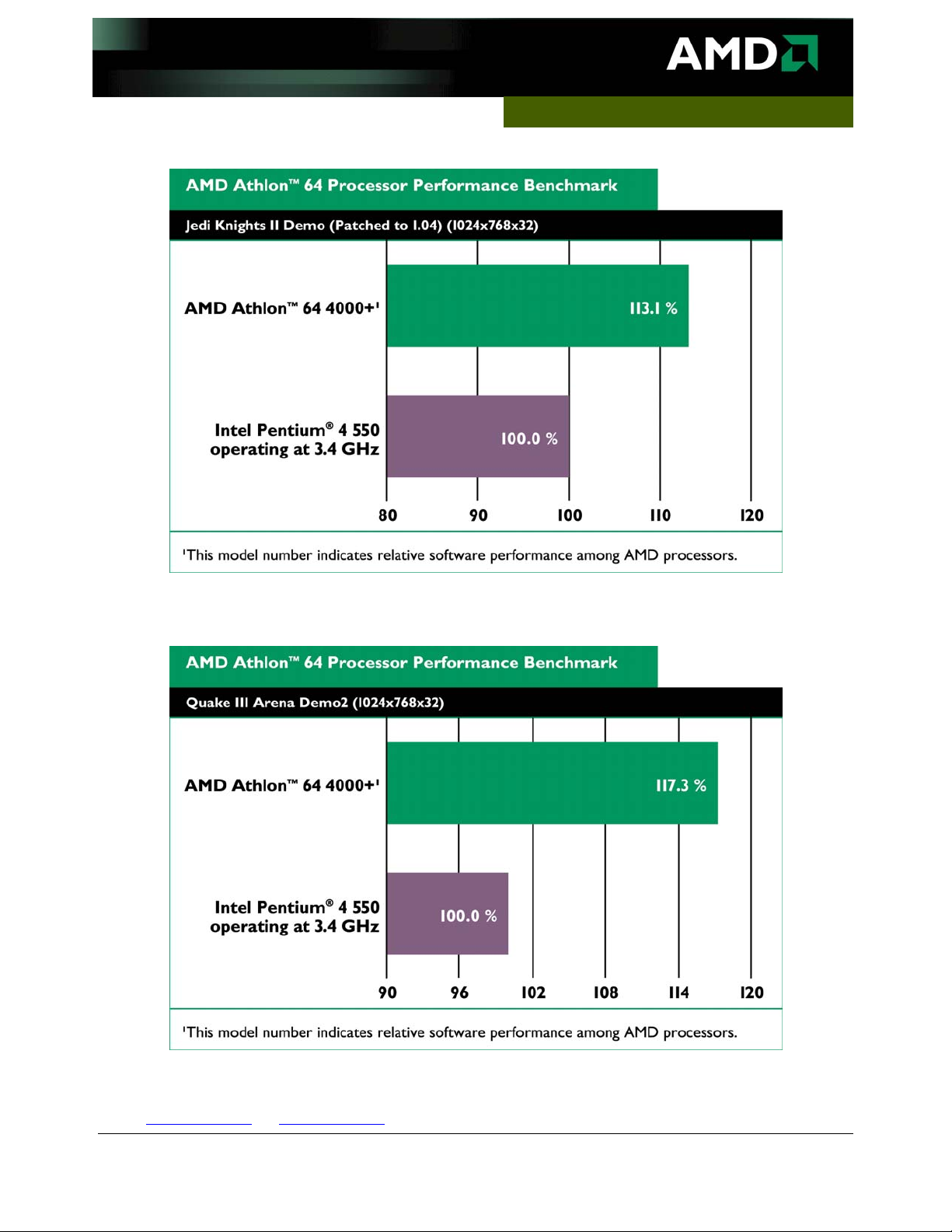

Jedi Knights II Demo Quake III Arena Demo2 Far Cry Cooler01 Far Cry Pi er Painkiller Doom3 Crafty Splinter Cell (1_1_1) Splinter Cell (1_1_2) Unreal Tournament 2003 Demo BotMatch Unreal Tournament 2003 Demo Flyby

Digital Media

Ziff Davis Media Inc. Multimedia Content Creation Winstone® 2004 Version 1.0 BAPCO® SYSmark® 2004 Internet Content Creation

Dr. DivX POV-Ray RazorLAME 1.1.5 MP3 Encoder Panorama Factory

Office Productivity

Ziff Davis Media, Inc. Busi ness Winstone® 2004

Ziff Davis Media, Inc. Busi ness Winstone BAPCO® SYSmark® 2004 Office Productivity

PC Worldbench™ Overall WinRAR

1.The Intel Pentium® 4 550 processor was the highest-pe rforming competitive processor widely available in the market during testing.

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma rk system conf igurations.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 4

October 2004

2004 Version 1.0 Multitasking Tests

Page 5

Computer Gaming

Computer Gaming Overall

The AMD Athlon™ 64 processor's innovative technolo gy enables the ultimate gaming experience. The AMD gaming experience with smooth 3D graphics, rich textures, quick response times, and realistic sound.

Athlon 64 processor allows users to escape into a movie-like

3D gaming may reveal limitations in the graphics solution and may not truly represent relative processor performance.

This benchmark is an average of compiled data from the list of benchmark scores from the following list of tests. All benchmarks normalize the score to the Intel Pentium

550 processor for the following tests (all at 1024x768x32):

3DMark® 2001SE PRO (D3D Hardware T&L) by Futuremark® Corporation

3DMark® 2001SE PRO (D3D Software T&L) by Futuremark® Corporation

3DMark® 03 Pro (Hardware Ve rtex Shaders) by Futuremark® Corporation

3DMark® 03 Pro (Software Vertex Shaders) by Futuremark® Corporation

AquaMark3 Return to Castle Wolfenstein Enemy Territory Jedi Knights II Demo

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 5

October 2004

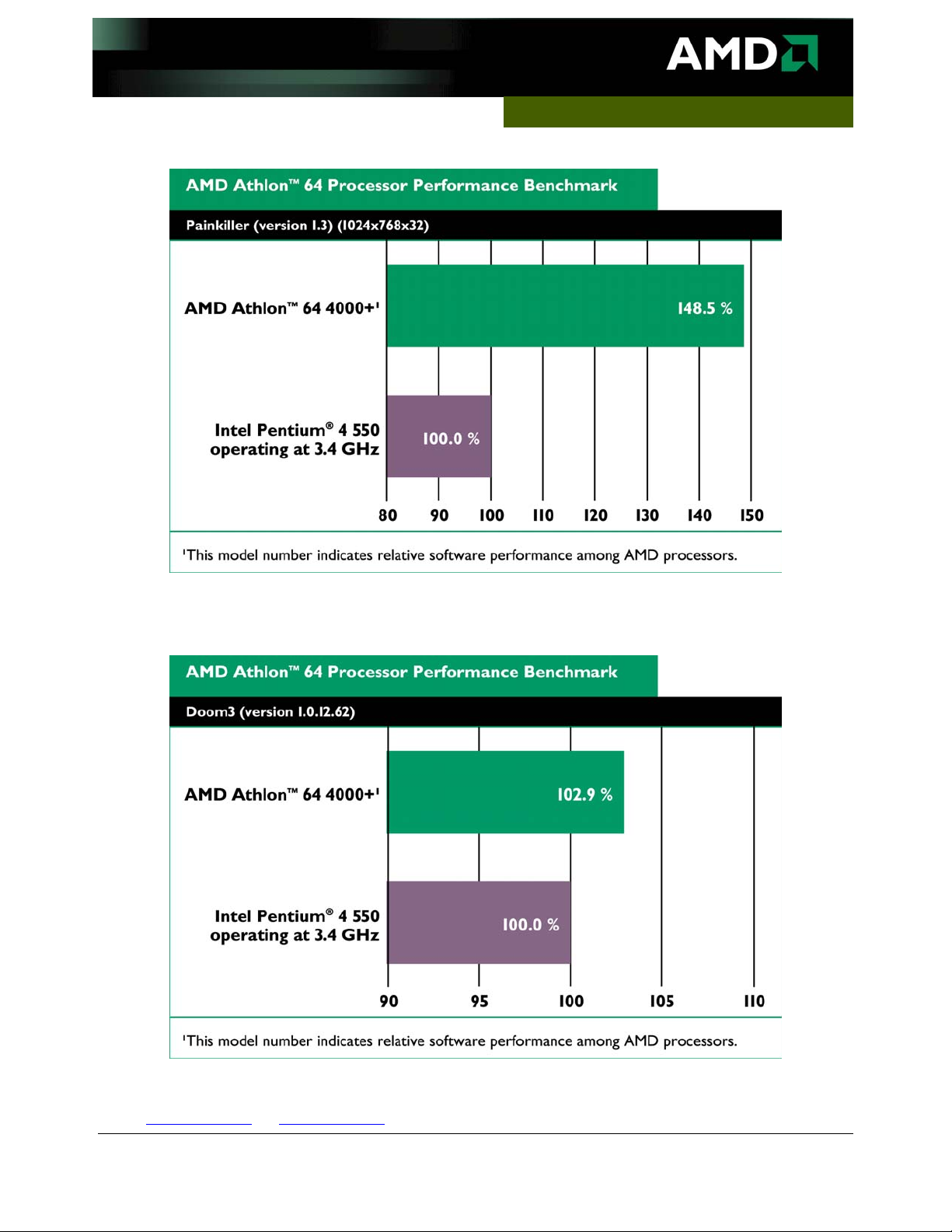

Quake III Arena Demo2 Far Cry Cooler01 Far Cry Pi er Painkiller Doom3 Crafty Splinter Cell (1_1_1) Splinter Cell (1_1_2) Unreal Tournament 2003 Demo BotMatch Unreal Tournament 2003 Demo Flyby

Page 6

Computer Gaming

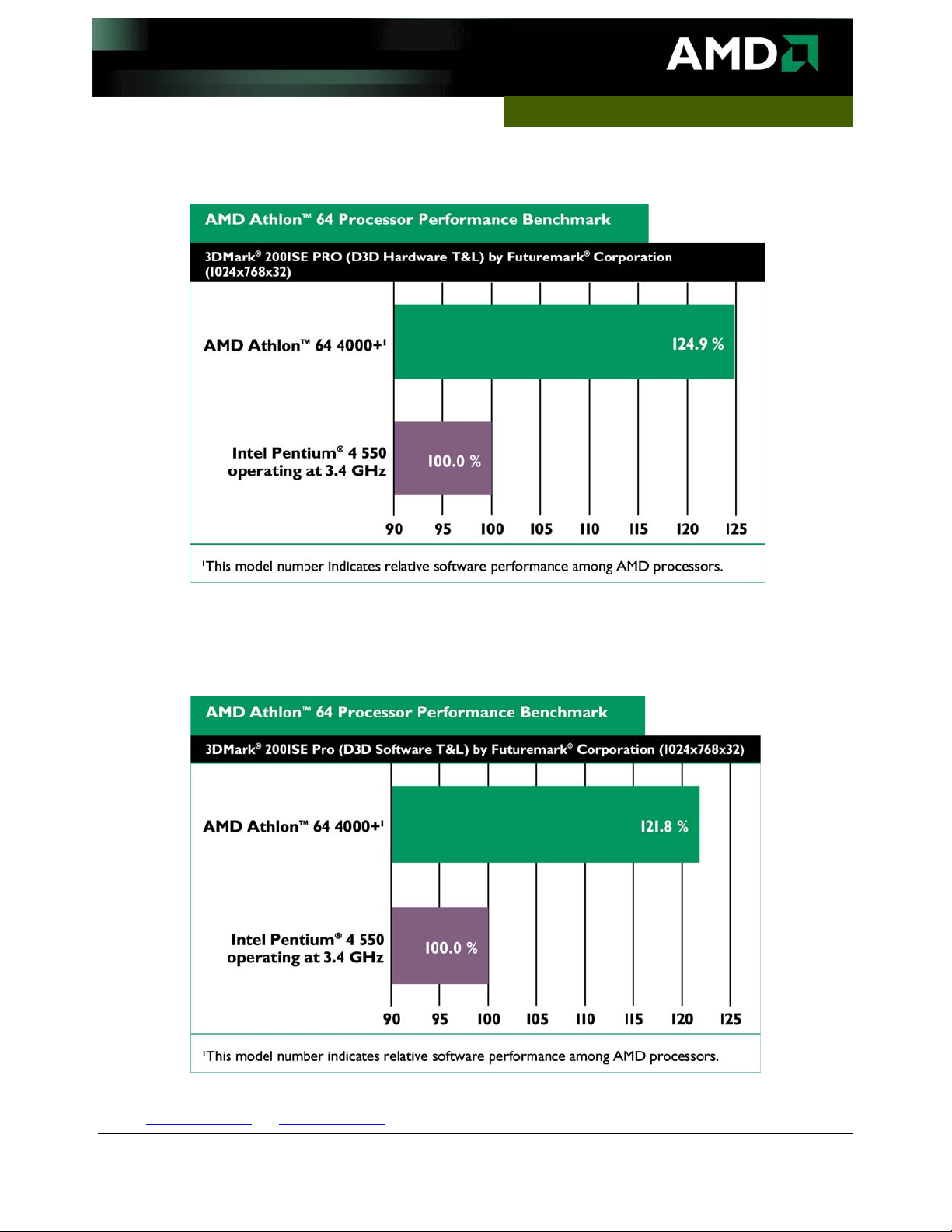

3DMark® 2001SE PRO (D3D Hardware T&L) by Futuremark® Corporation

3D gaming may reveal limitations in the graphics solution and may not truly represent relative processor performance.

3DMark® 2001SE PRO (D3D Software T&L) by Futuremark® Corporation

3D gaming may reveal limitations in the graphics solution and may not truly represent relative processor performance.

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 6

October 2004

Page 7

Computer Gaming

Computer Gaming

3D gaming may reveal limitations in the graphics solution and may not truly represent relative processor performance.

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 14

October 2004

Page 15

Digital Media

Digital Media Overall

Digital Media Overall Results

With a revolutionary processor design and support for both 3DNow!™ Professional technology and SSE2 instructions, the AMD performance for multimedia applications. Compose, edit, and encode digital audio, video, and image files quickly and smoothly so you can save time and produce outstanding work.

Athlon™ 64 processor provides outstanding

This benchmark is an average of compiled data from the list of benchmark scores from the following list of tests. The score is normalized to the Intel Pentium

4 550

processor.

Ziff Davis Media Inc. Multimedia Content Creation Winstone® 2004 Version 1.0

BAPCO® SYSmark® 2004 Internet Content Creation

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 14

October 2004

Dr. DivX POV-Ray RazorLAME 1.1.5 MP3 Encoder Panorama Factory

Page 16

Digital Media

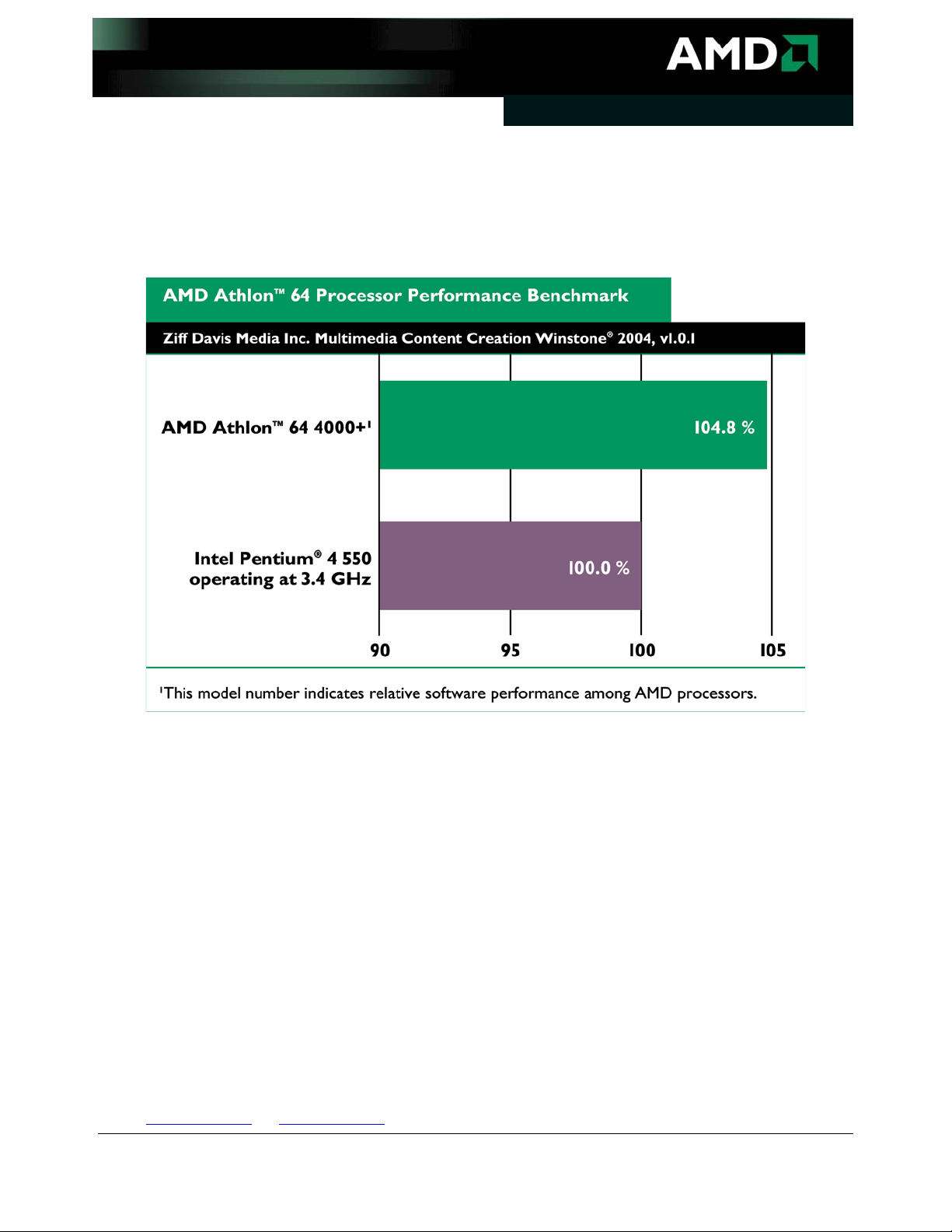

Ziff Davis Media Inc. Multimedia Content Creation Winstone® 2004 Version 1.0

Multimedia Content Creation Winstone® is a system-level, application-based benchmark that measures a PC's overall performance when running top, Windows operating system-based multimedia content creation applications.

The score is normalized to the Intel Pentium® 4 550 processor. Multimedia Content Creation Winstone 2004 version 1.0 uses the following applications:

Windows® Media Encoder 9

• Adobe® Photoshop® 7.0.1

• Adobe Premiere 6.50

• Macromedia Director MX 9.0

• Macromedia Dreamweaver MX 6.1

•Microsoft Version 9.00.00.2980

• NewTek's LightWave 3D 7.5b

• Steinberg WaveLab 4.0f

Multimedia Content Creation Winstone 2004 is a single large test that runs the listed applications through a series of scripted activities and returns a single score.

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 15

October 2004

Page 17

Digital Media

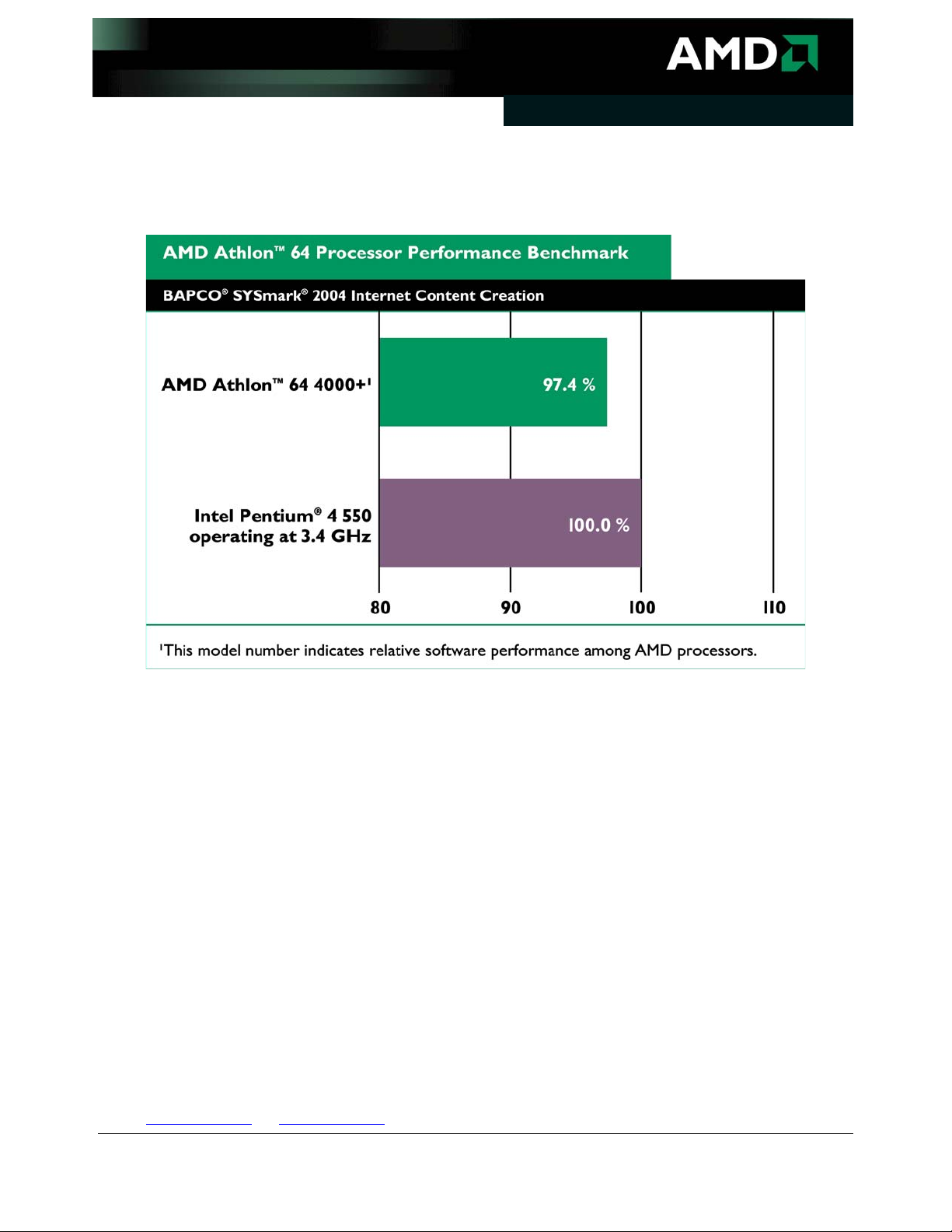

BAPCO® SYSmark® 2004 Internet Content Creation

SYSmark® 2004 is an application-based benchmark.

This benchmark incorporates the following Internet Content Creation applications. The score is normalized to the Intel Pentium

• Adobe® After Effects 5 .5

• Adobe Photoshop 7.01

• Adobe Premiere 6.5

• Discrete 3ds max 5.1

• Network Associates McAfee VirusScan 7.0

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

4 550 processor.

• WinZip Computing WinZip 8.1

• Macromedia Dreamweaver MX

• Macromedia Flash MX

•Windows

Media Encoder 9 Series

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 16

October 2004

Page 18

Digital Media

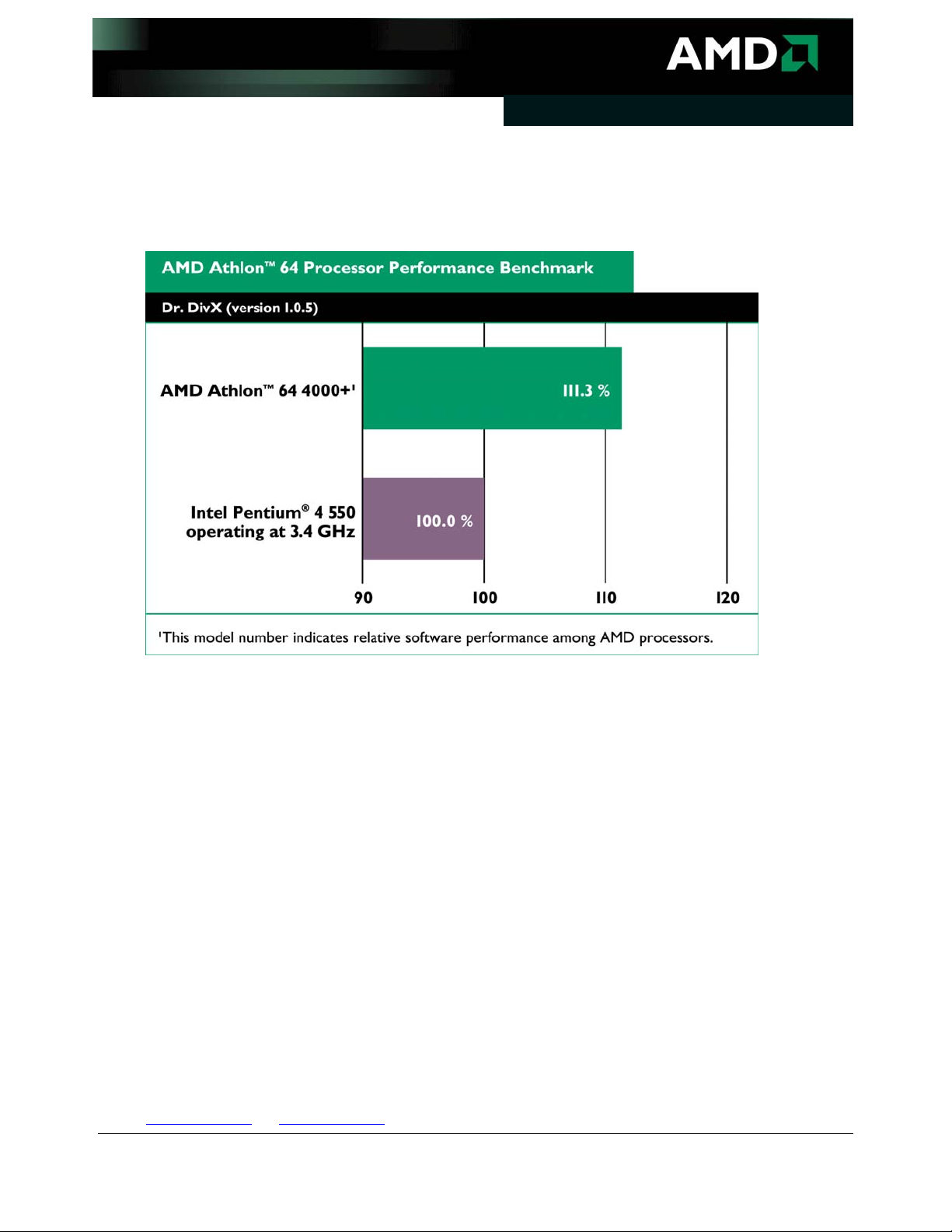

Dr. DivX

Dr. DivX converts video to a MPEG-4-based format. The test is a measure of the time required to convert a video file to MPEG-4 format.

The score is normalized to the the Intel Pentium® 4 550 processor.

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 17

October 2004

Page 19

Digital Media

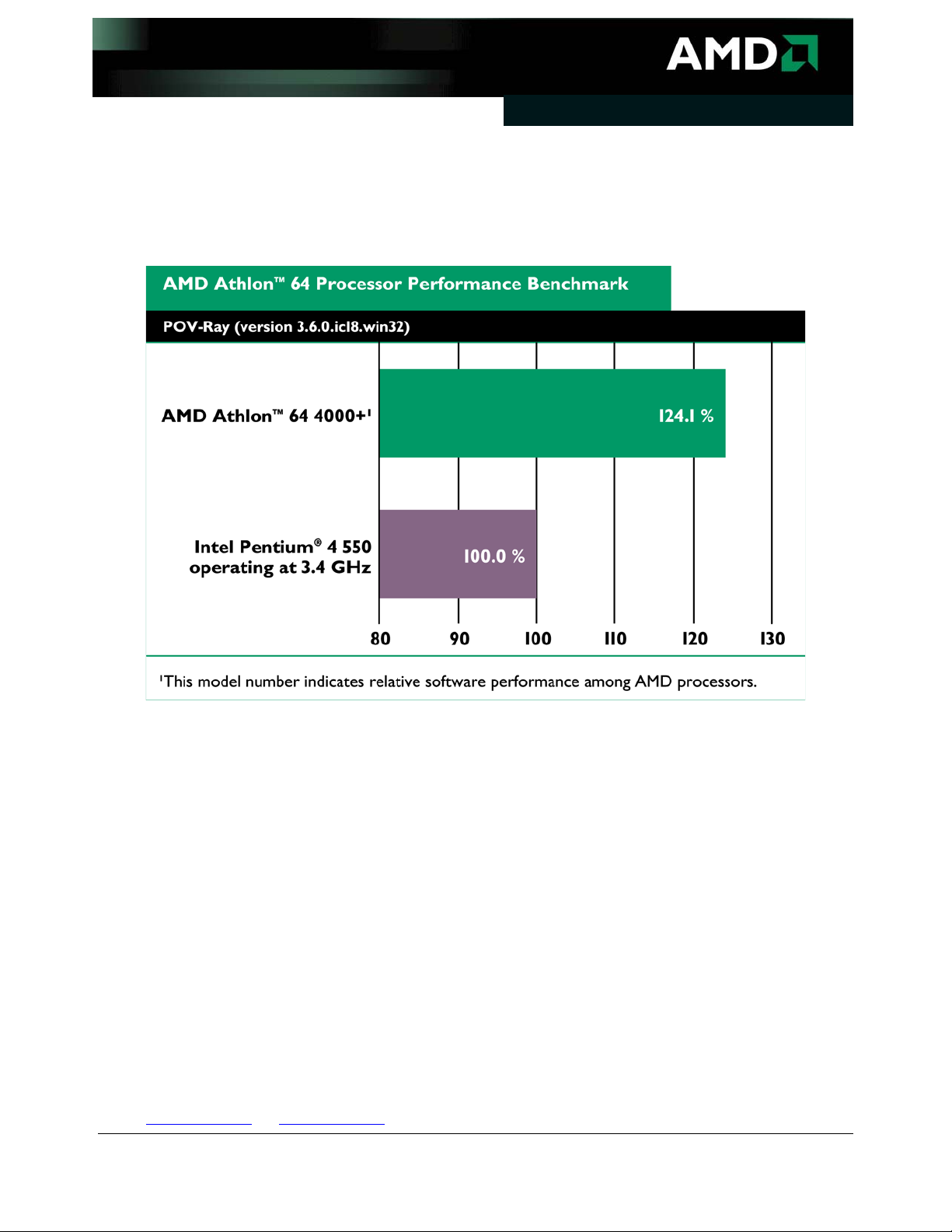

POV-Ray

This benchmark uses POV-Ra y to create three-dimensional photo-realistic images using a rendering technique called ray-tracing. The test is a measure of pixels per second generated while creating a standard benchmark image.

The score is normalized to the Intel Pentium® 4 550 processor.

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 18

October 2004

Page 20

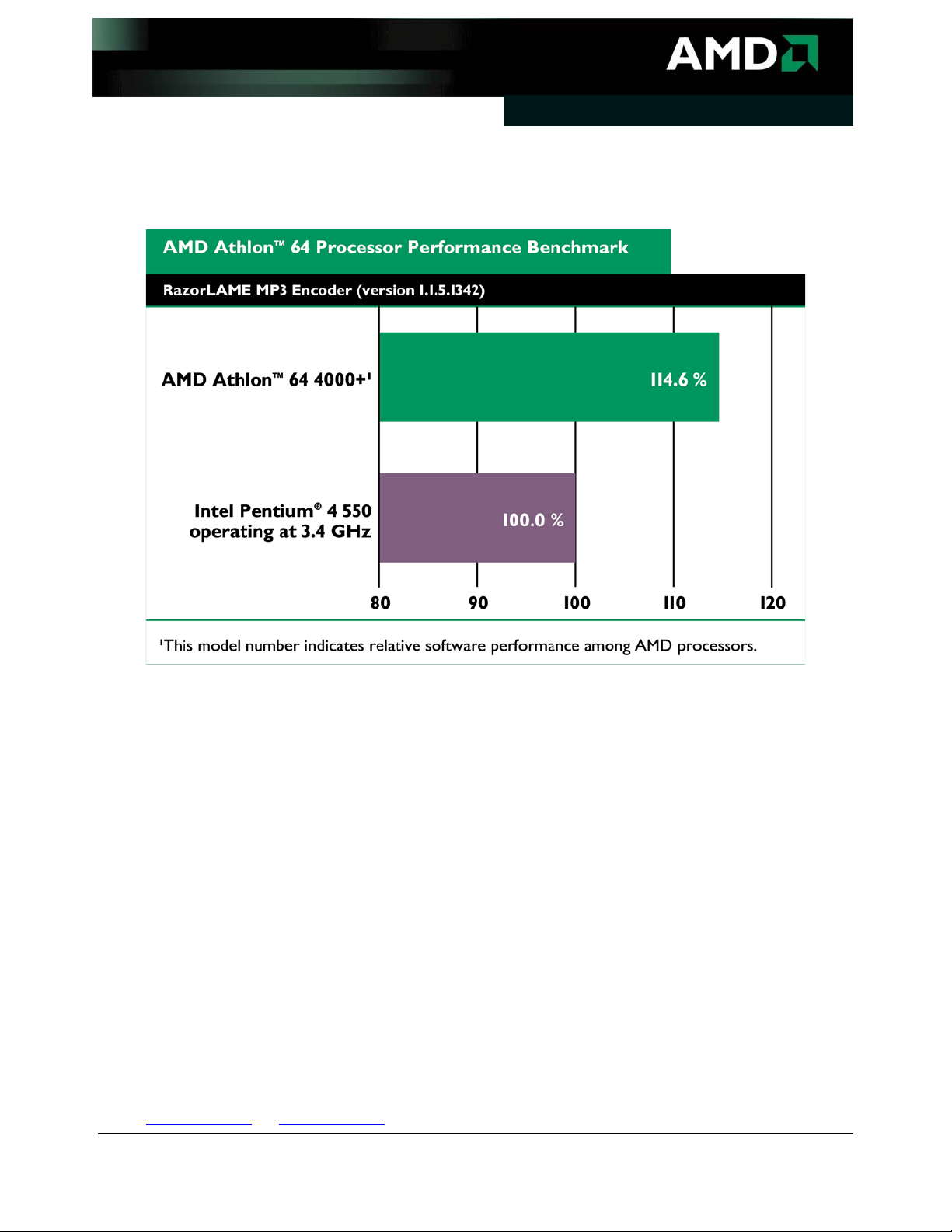

RazorLAME 1.1.5 MP3 Encoder

Digital Media

The score is normalized to the Intel Pentium® 4 550 processor. This benchmark is the compiled data from the RazorLAME version 1.1.5 MP3 benchmark scores.

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 19

October 2004

Page 21

Digital Media

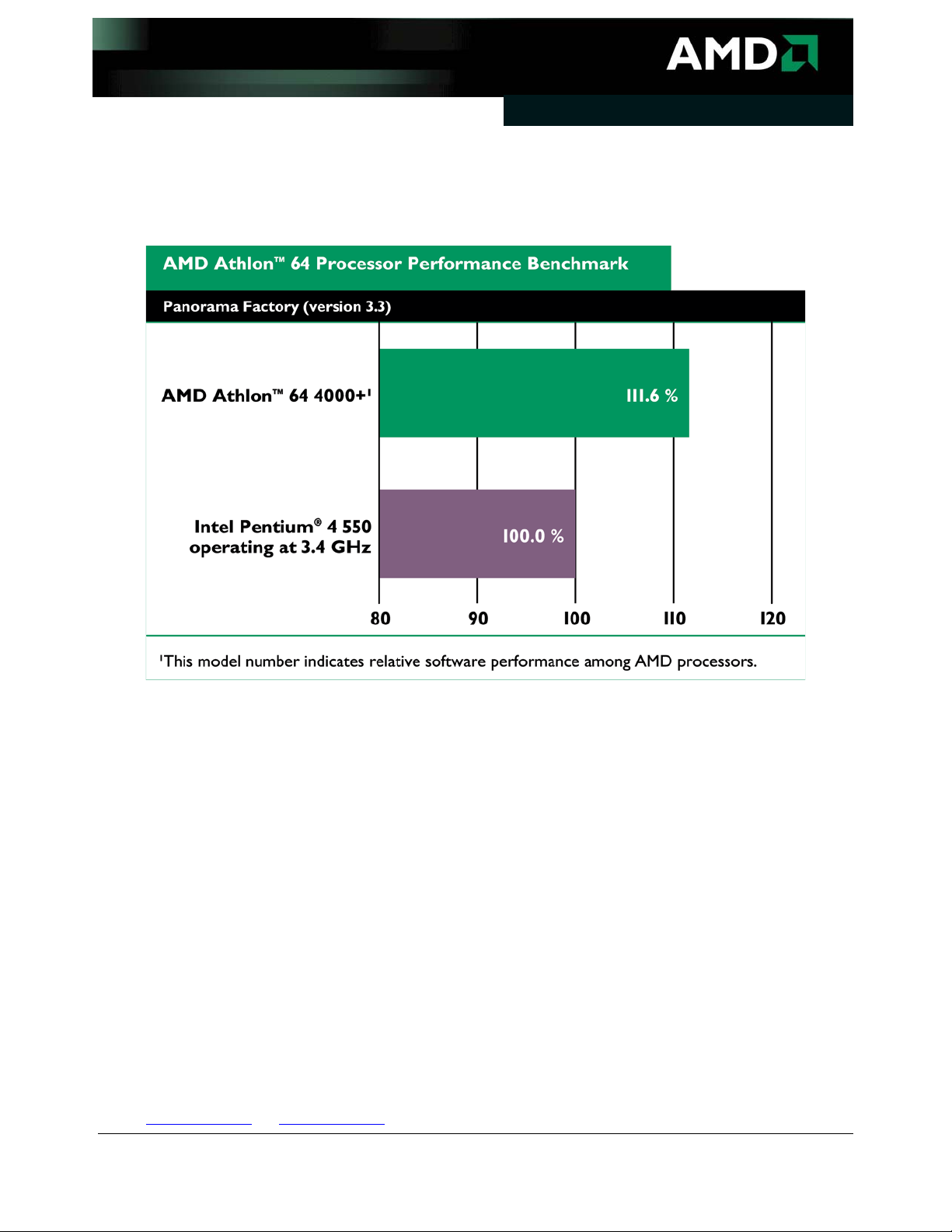

Panorama Factory

Panorama Factory is a digital photo-editing application that creates panoramic photos and 360° photographs.

The score is normalized to the Intel Pentium® 4 550 processor. The benchmark is a measure of the time required to stitch together a set of photos into a panorama.

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 20

October 2004

Page 22

Office Productivity

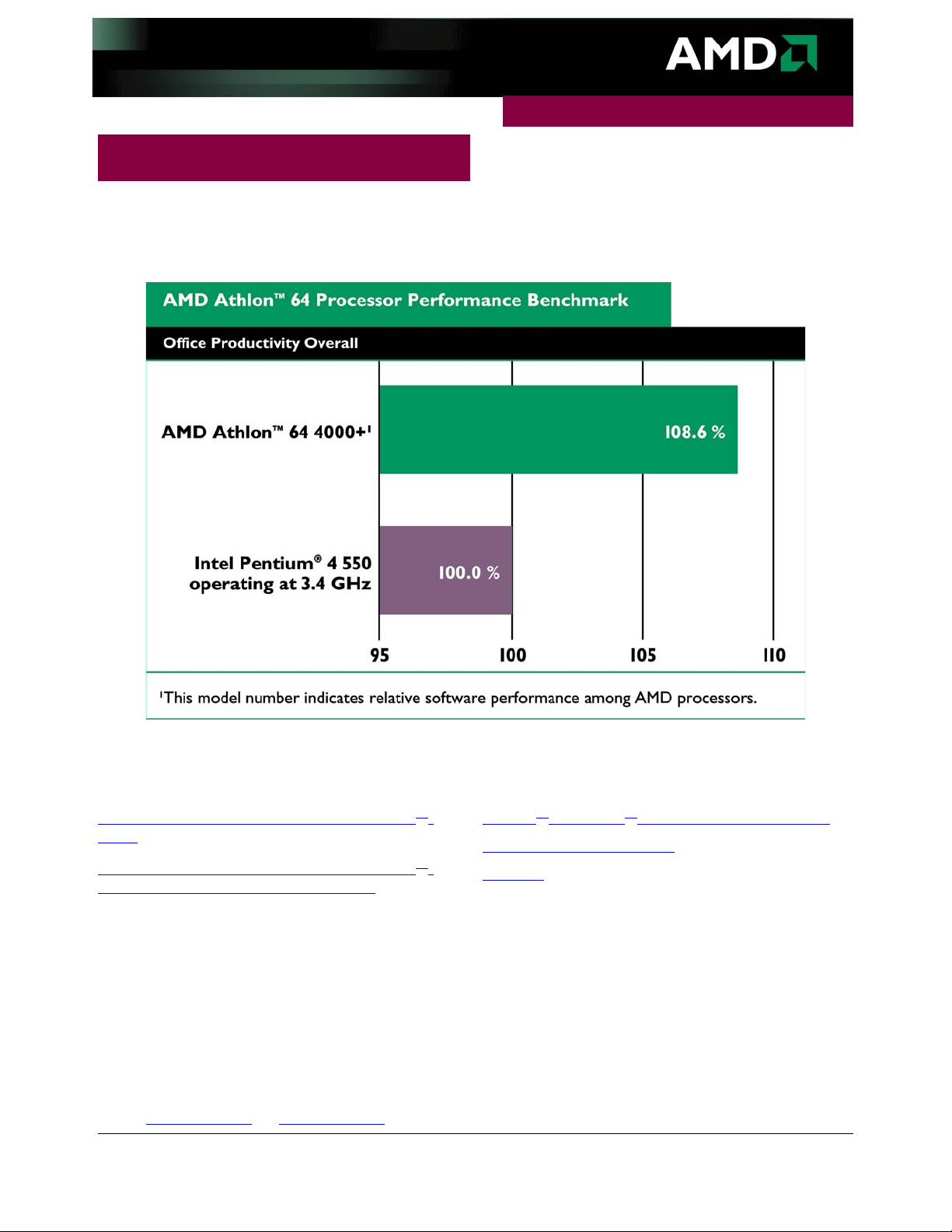

Office Productivity Overall

The AMD Athlon™ 64 processor effortlessly runs multiple applications at the same time which helps to minimize work stoppage and interruptions. It allows you to operate your system more efficiently and helps improve overall productivity.

The score is normalized to the Intel Pentium® 4 550 pro cess or sc ore. This benc hmar k is an average of compiled data from the list of benchmark scores from the following list of tests:

Ziff Davis Media, Inc. Business Winstone® 2004

Ziff Davis Media, Inc. Business Winstone® 2004 Version 1.0 Multitasking Tests

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 20

October 2004

BAPCO® SYSmark® 2004 Office Productivity PC Worldbench™ Overall WinRAR

Page 23

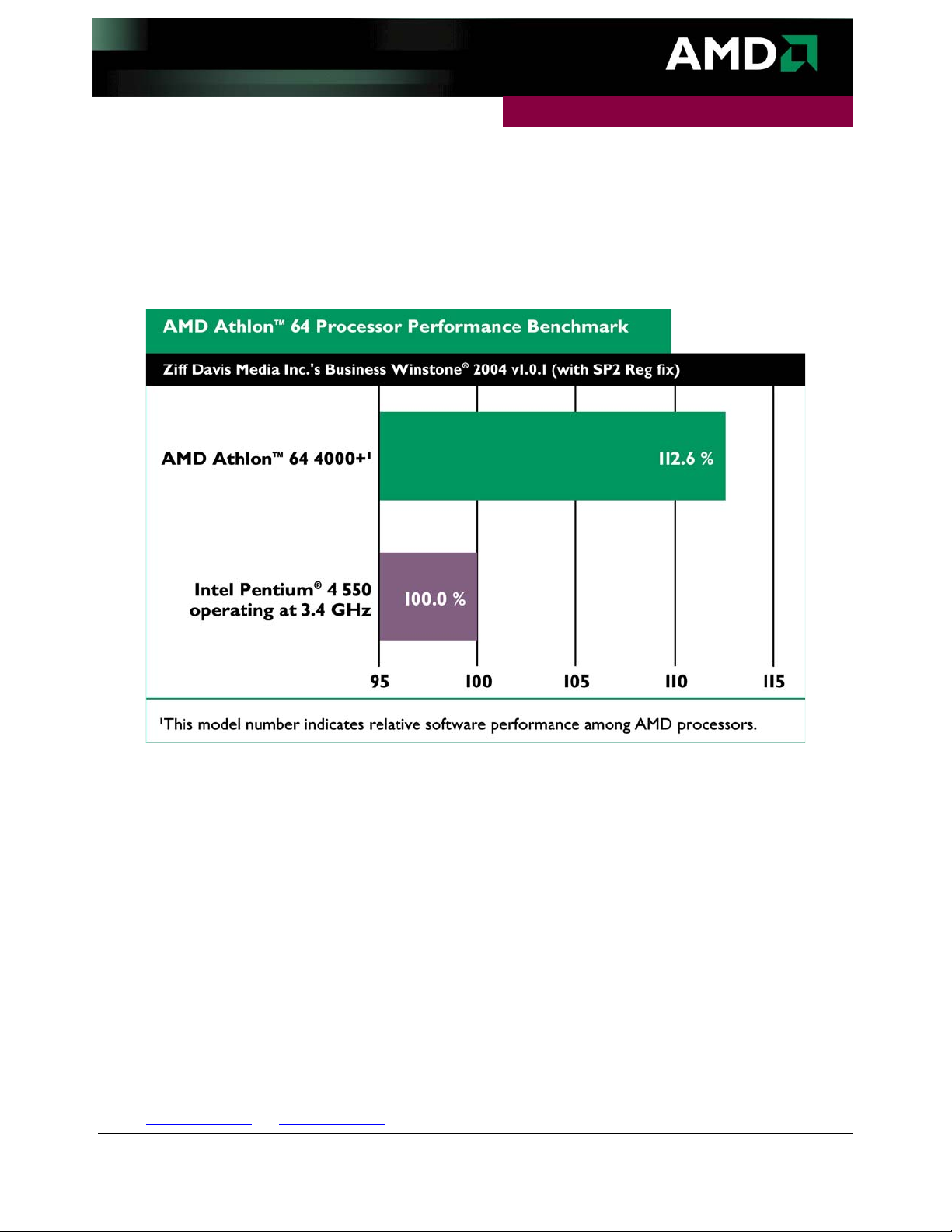

Ziff Davis Media, Inc. Business Winstone® 2004

Office Productivity

Business Winstone® is a system-level, application-based benchmark that measures overall PC performance when running today's top-selling Windows

operating systembased applications. Business Winstone does not mimic what these packages do; it runs real applications through a series of scripted activities and uses the time a PC takes to complete those activities to produce its performance scores.

The score is normalized to the Intel Pentium® 4 550 processor score. The Business Winstone benchmark uses the following applications:

•Microsoft® Internet Explorer 6

• Microsoft Outlook 2002 SP-2

• Microsoft Project 2002

• Microsoft Access 2002 SP-2

• Microsoft PowerPoint 2002 SP-2

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 21

October 2004

• Microsoft Excel 2002 SP-2

• Microsoft FrontPage 2002 SP-2

• Microsoft Word 2002 SP-2

• Norton AntiVirus Professional Edition 2003

• WinZip 8.1 SR-1

Page 24

Office Productivity

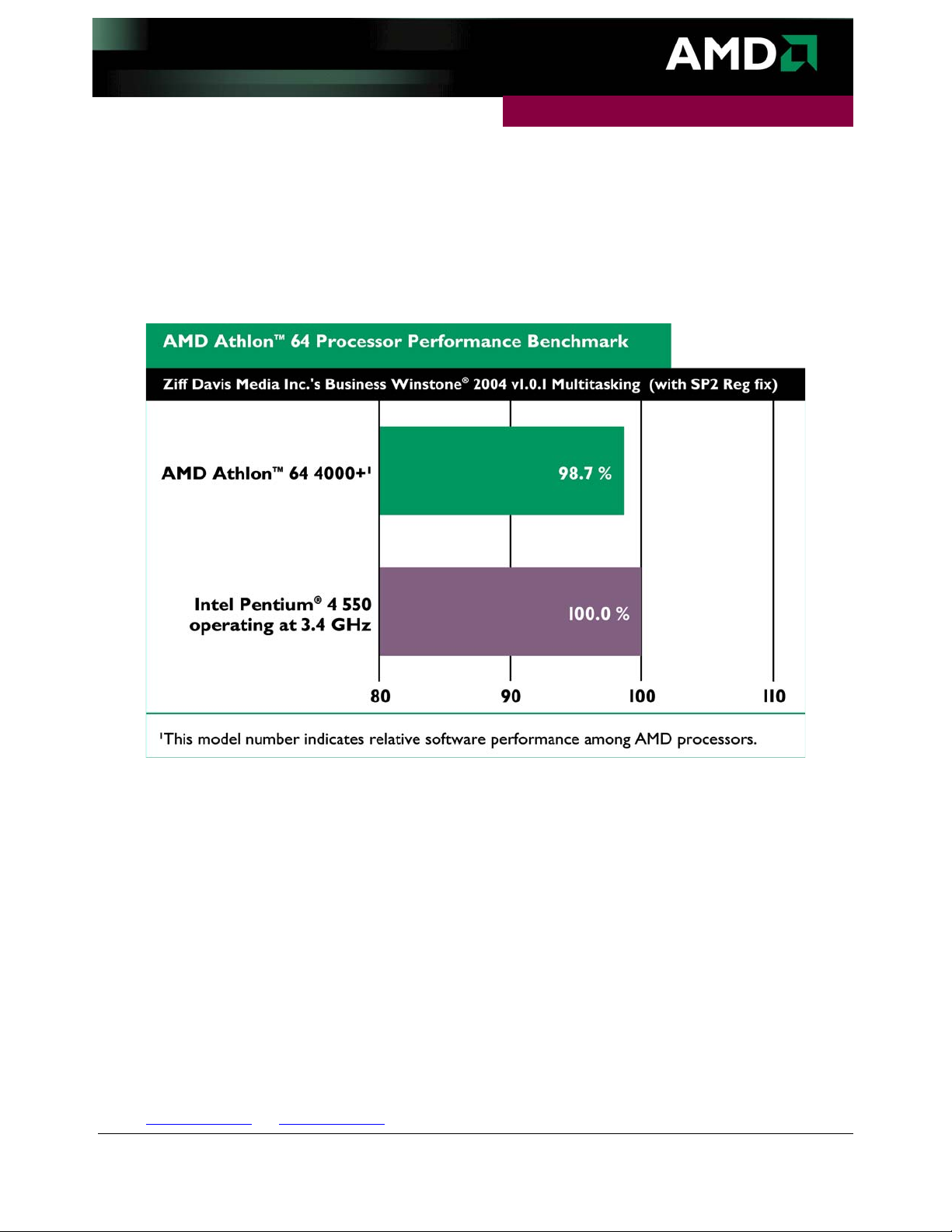

Ziff Davis Media, Inc. Business Winstone® 2004 Version 1.0 Multitasking Tests

Business Winstone® Multitasking test uses the same applications as Business Winstone, but runs some of the applications in the background while doing work in the foreground. If you're the type of person who runs a virus check in the background while using office applications in the foreground, you'll want to check out this test.

The score is normalized to the Intel Pentium® 4 550 processor score. The Business Winstone Multitasking benchmark uses the following applications:

•Microsoft® Internet Explorer 6

• Microsoft Outlook 2002 SP-2

• Microsoft Project 2002

• Microsoft Access 2002 SP-2

• Microsoft PowerPoint 2002 SP-2

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 22

October 2004

• Microsoft Excel 2002 SP-2

• Microsoft FrontPage 2002 SP-2

• Microsoft Word 2002 SP-2

• Norton AntiVirus Professional Edition 2003

• WinZip 8.1 SR-1

Page 25

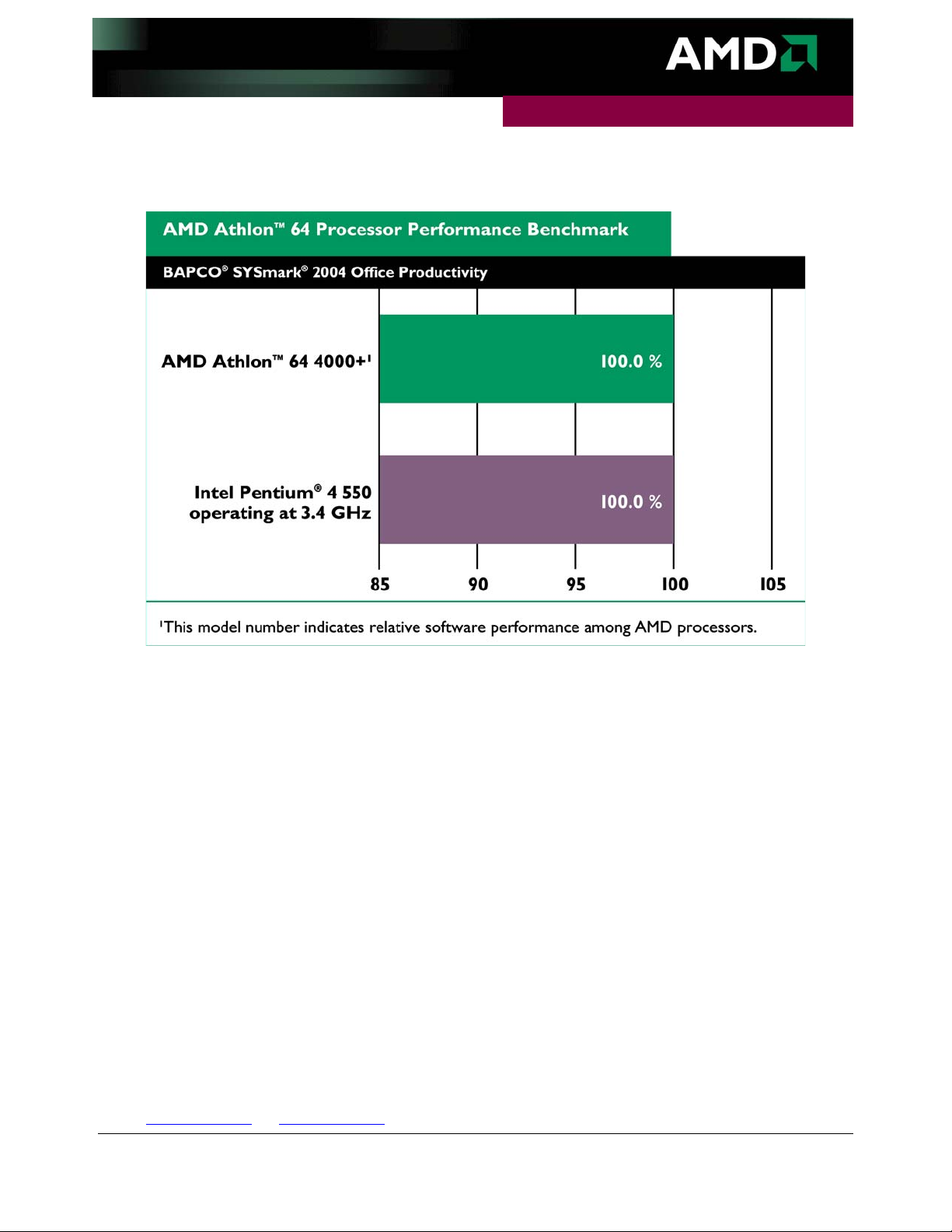

BAPCO® SYSmark® 2004 Office Productivity

The BAPCO® SYSmark® 2004 is an application-based benchmark.

Office Productivity

The score is normalized to the Intel Pentium® 4 550 processor score. The BAPCO SYSmark benchmark uses the following applications.

• Adobe® Acrobat® 5.0.5

•Microsoft

Access 2002

• Microsoft Excel 2002

• Microsoft Internet Explorer 6

• Microsoft Outlook 2002

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

• Microsoft PowerPoint 2002

• Microsoft Word 2002

• Network Associates McAfee VirusScan 7.0

• ScanSoft Dragon Na turally Speaking 6 Preferred

• WinZip Computing WinZip 8.1

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 23

October 2004

Page 26

Office Productivity

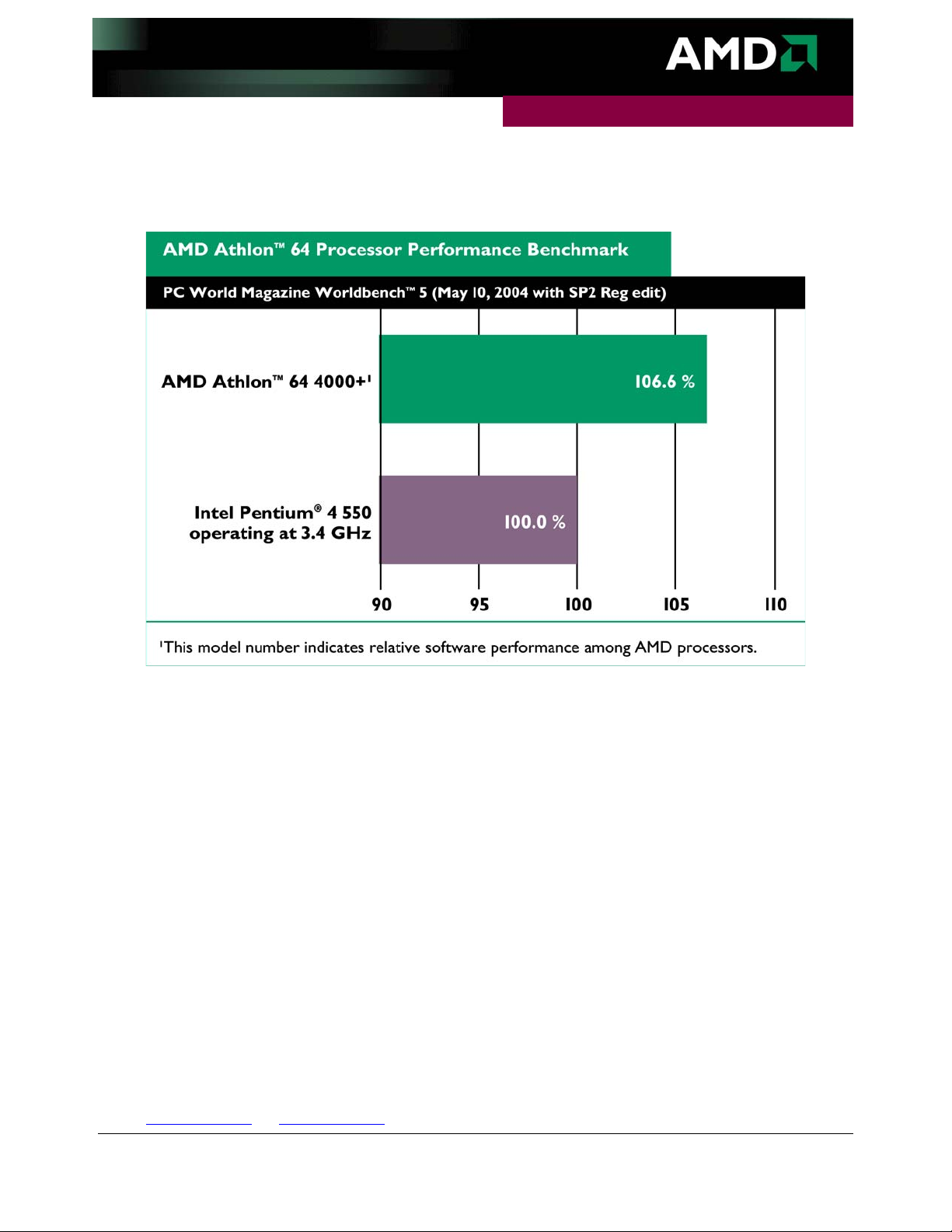

PC Worldbench™ Overall

PC World Magazine Worldbench™ is an office productivity benchmark developed by PC World magazine.

The score is normalized to the Intel Pentium® 4 550 processor score. PC Worldbench uses the following applications:

• ACD Systems ACDSee PowerPack 5.0

• Adobe

Photoshop® 7.0.1

• Adobe Premiere 6.5

• Ahead Software Nero Express 6.0.0.3

• Discreet 3ds max 5.1 (DirectX)

• Discreet 3ds max 5.1 (OpenGL)

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

•Microsoft

• Microsoft Windows Media Encoder 9.0

• Mozilla 1.4

• Musicmatch Jukebox 7.10

• Roxio VideoWave Movie Creator 1.5

• WinZip Computing WinZip 8.1

Office XP with SP-2

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 24

October 2004

Page 27

Office Productivity

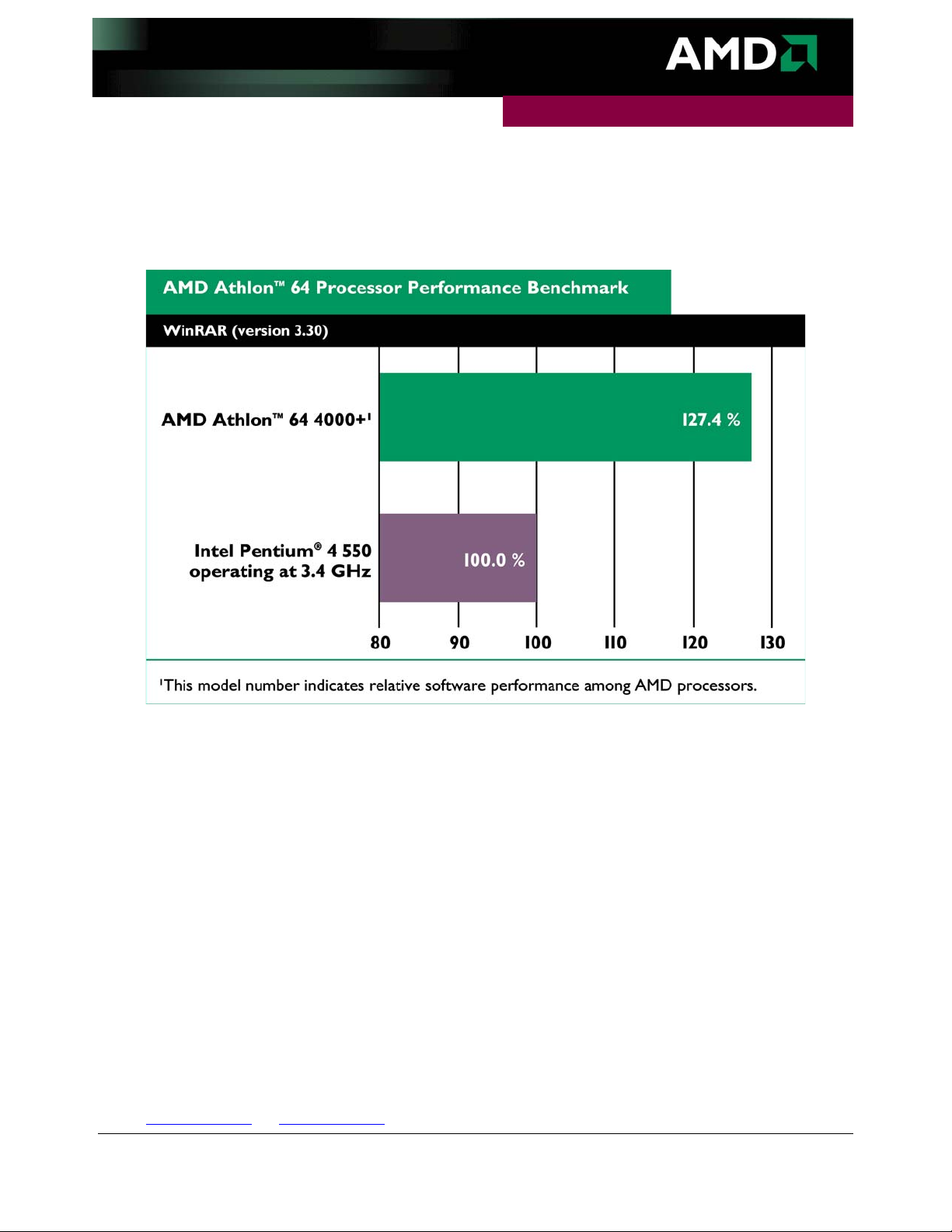

WinRAR

WinRAR is archive management software. WinRAR may be used to backup data and to reduce the size of e-mail attachments, to decompress RAR, ZIP, and other files downloaded from Internet, and to create new archives in RAR and ZIP file format.

The score is normalized to the the Intel Pentium® 4 550 processor score. This benchmark is the compiled data from the WinRAR benchmark scores.

Refer to Table 1 on page 25 and Table 2 on page 26 for benchma r k system configuration.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 25

October 2004

Page 28

Benchmark System Configuration

This section describes the configurations AMD used to perform the benchmarks. Table 1 and Table 2 on page 26 represent the system configurations used for this document.

Table 1. AMD Athlon™ 64 4000+ Processor System Configuration

Component Manufacturer an d Model Description

Operating System

Processor Motherboard MSIMS-6702 NEO, BIOS A6702VMS v3.0 7/6/04 Chipset VIA K8T800

RAM memory

Hardware

Hard drive

Video Card NVIDIA GeForce 6800 Ultra, 256MB DDR3 Audio RealTek AC’97 Audio

LAN

AGP

SATA Promise Technologies, v1.0.0.13, 2/10/2004

Drivers

Video NVIDIA v6.1.7.7, 7/15/2004, 1024x768, 85 Hz refresh rate

Microsoft

Windows® XP Professional, RTM, Service Pack 1a

installed, Build 2600, DirectX 9.0C

AMD Athlon™ 64 4000+ processor

1 GB DDR SDRAM total (qty (2) 512 MB DIMM Module

CMX512-3500XLPro)

Qty (2) Western Digital Raptor WD360GD, 36.0 GB, SATA Raid 0

10,000 RPM (NTFS used to format the hard disk).

Drives are configured in a Raid 0 configuration.

RealTek RTL8169/8110 F amily Gigabit Ethernet NIC

(integrated on motherboard)

AGP Miniport VIA CPU to AGP2.0/AGP3.0 Controller, v5.1.0.3442

7/2/2003

Audio RealTek v5.10.0.5420, 12/12/2003 LAN RealTek v5.612.413.2004, 2/10/2004

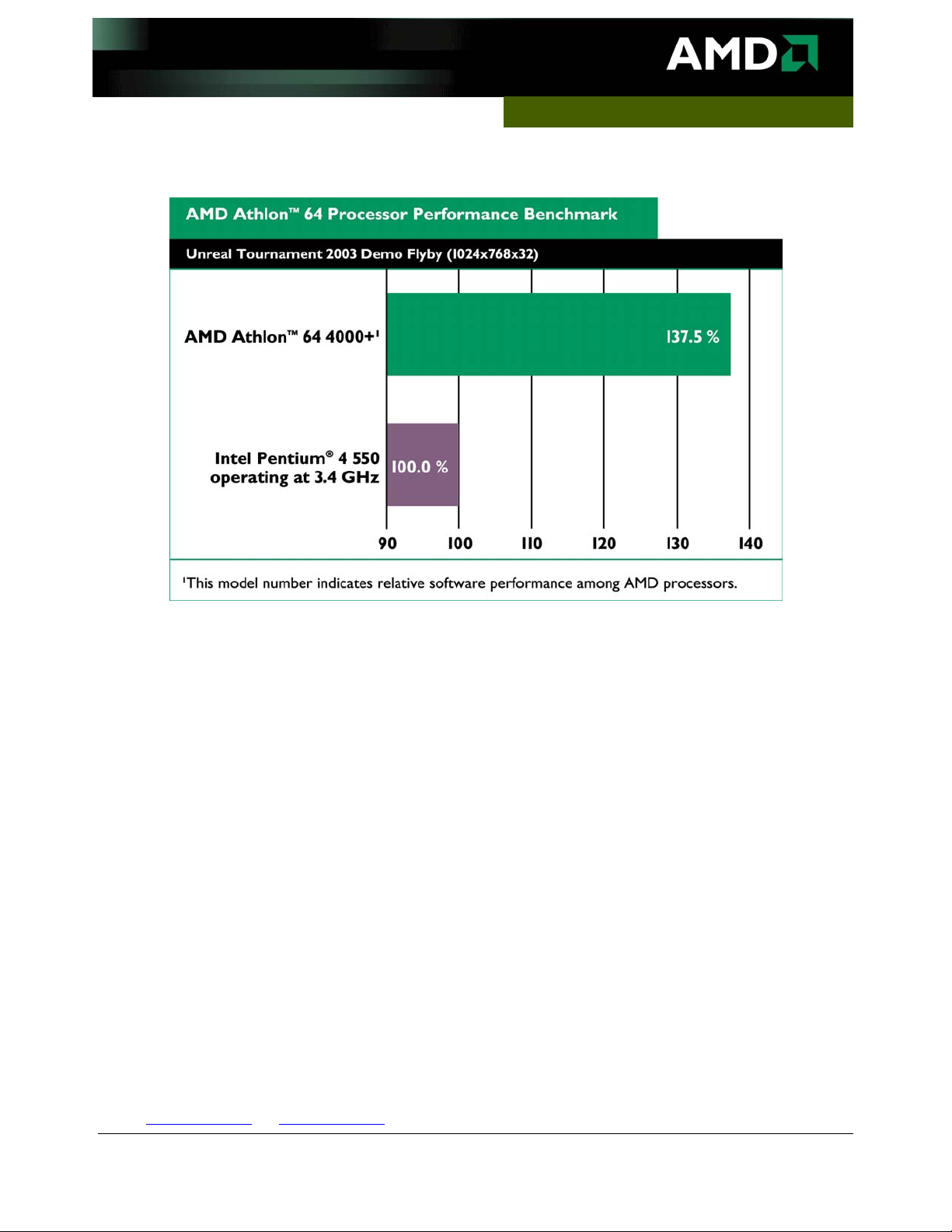

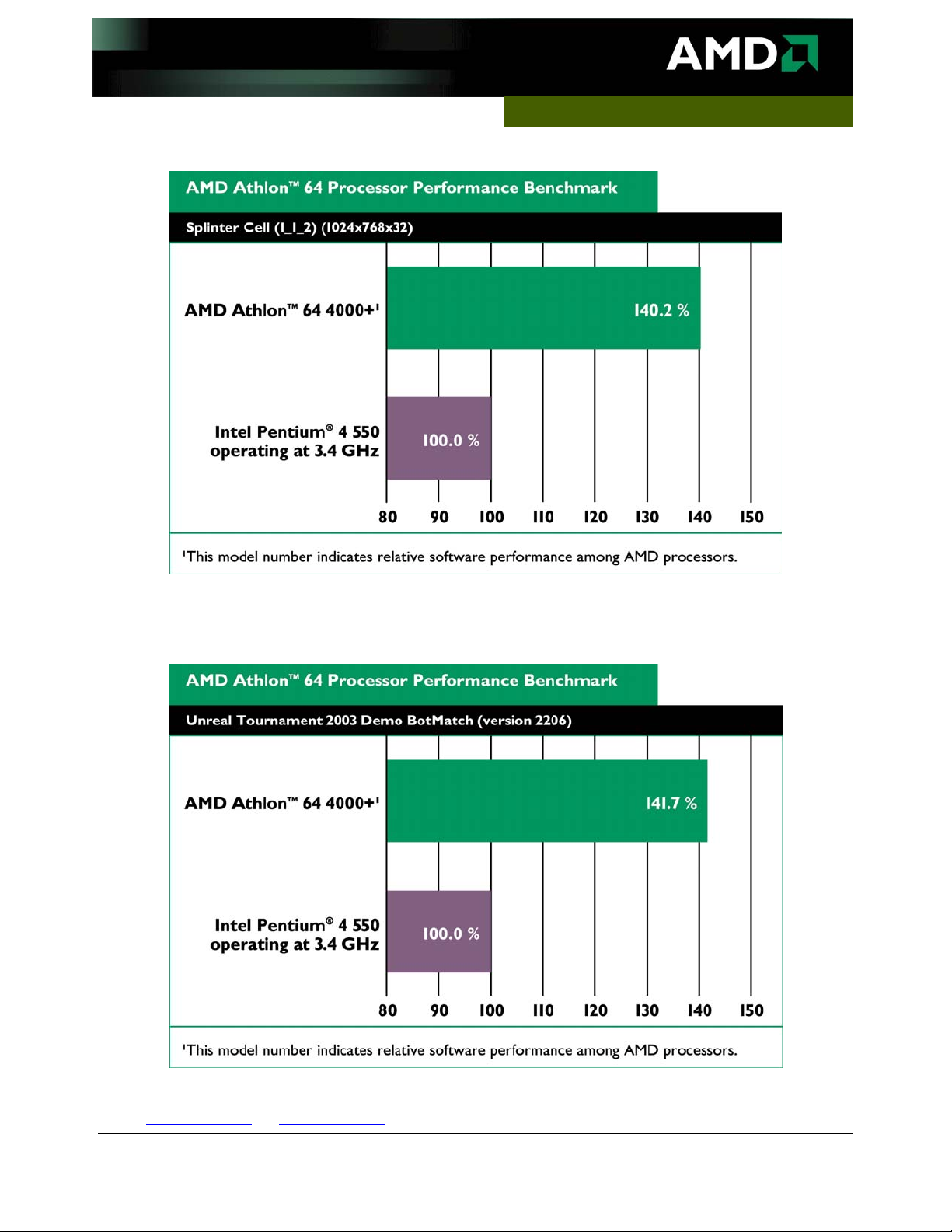

This model number indicates relative software performance among AMD processors.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 25 October 2004

Page 29

Table 2. Intel Pentium® 4 550 Processor System Configuration

Component Manufacturer and Mod el Description

Operating System

Processor Motherboard Intel 925XCV, BIOS CV92510A.86A.0218 Chipset 925X chipset

RAM memory

Hardware

Hard drive

Video Card NVIDIA GeForce 6800 Ultra, 256MB DDR3 Audio RealTek AC’97 Audio LAN Marvell Yukon 88E8050 PCI-E ASF

AGP

SATA Intel 82801FR SATA Raid Controller, v4.0.0.6211, 3/23/2004

Drivers

Video NVIDIA v6.1.7.7, 7/15/2004, 1024x768, 85 Hz refresh rate

Microsoft® Windows® XP Professiona l, R TM, Servic e Pack 2 installe d,

Build 2600, DirectX 9.0C

Intel Pentium® 4 550 processor (Hyperthreading enabled)

1 GB DDR SDRAM total (qty (2) 512 MB DIMM Module

Corsair CMX512-3500LL)

Qty (2) Western Digital Raptor WD360GD, 36.0 GB, SATA Raid 0

10,000 RPM (NTFS used to format the hard disk).

Drives are configured in a Raid 0 configuration.

Intel 82801FB/FBM PCI Express Root Port 2660, v 6.0.0.1013

4/1/2004

Audio RealTek v5.612.413.2004, 2/10/2004 LAN Marvell v7.14.1.3, 6/16/2004

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 26 October 2004

Page 30

© 2004 Advanced Micro Devices, Inc. All rights reserved. The contents of this document are provided in connection with Advanced Micro Devices, Inc. (“AMD”) products. AMD makes no representations or warranties with respect to the accuracy or completeness of the c ontents of this pu blication and r eserves the right to make changes to specificatio ns and product desc riptions at any time without notice. No license, whether express, implied, arising by estoppel or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in AMD’s Standard T er ms and Co ndition s of Sale, AMD assumes no liabi lity whats oever, and disclai ms any express or implie d w a r r a nt y, relatin g to i ts pr odu ct s in c lud in g, b ut n ot li mit e d to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

AMD’s products are not designed, intended, authori zed or warranted for use as components in systems intended for surgical implant into the body, or in other applications intended to support or sustain life, or in any other application in whic h the failure of AMD’s product cou ld create a situation where personal injury, death, or severe property or environmental damage may occur. AMD reserves the right to discontinue or make changes to it s products at any time without notice.

Trademarks

AMD, the AMD Arrow logo, AMD A thlon, and combinations thereof, and 3D Now!, are trademarks of Advanced

Microsoft and Windows are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation in the United States and/or other jurisdiction. Winstone is a registered trademarks of Ziff Davis Publishing Holdings Inc. in the U.S. and other countries. BAPCO and SYSmark are registered trademarks of Business Applications P erformance Corporation. 3DMark and Futuremark are registered trademarks of Futuremark Corporation. Adobe, Acrobat, and Photoshop are registered trademarks of Adobe Systems, Incorporated. nForce is a trademark of NVIDIA Corporation. Worldbench is a trademark of International DataGroup, Inc. Other product names and company names used in this public a tion are for identification purposes only and

may be trademarks of their respective companies. Tests performed without independent verification by the VeriTest testing division of Lionbridge Technologies

Inc. (“VeriTest”) nor Ziff Davis Me dia Inc. and that neither Ziff Davis Media I n c. nor Ve riTest make any representations or warranties a s to the results of the tests.

Test results have not been verified by PC World, and neither PC World nor International Data Group, Inc. makes any representations or w a rranties as to the accuracy of the tes t results.

Micro Devices, Inc.

31783B AMD Athlon™ 64 Processor Competitive Performance Guide 27 October 2004
