AMD64 Technology

AMD64 Architecture

Programmer’s Manual

Volume 2:

System Programming

Publication No. Revision Date

24593 3.14 September 2007

Advanced Micro Devices

AMD64 Technology 24593—Rev. 3.14—September 2007

© 2002 – 2007 Advanced Micro Devices, Inc. All rights reserved.

The contents of this document are provided in connection with Advanced Micro
Devices, Inc. (“AMD”) products. AMD makes no representations or warranties with
respect to the accuracy or completeness of the contents of this publication and
reserves the right to make changes to specifications and product descriptions at
any time without notice. The information contained herein may be of a preliminary
or advance nature and is subject to change without notice. No license, whether
express, implied, arising by estoppel or otherwise, to any intellectual property rights
is granted by this publication. Except as set forth in AMD’s Standard Terms and
Conditions of Sale, AMD assumes no liability whatsoever, and disclaims any
express or implied warranty, relating to its products including, but not limited to, the
implied warranty of merchantability, fitness for a particular purpose, or infringement
of any intellectual property right.

AMD’s products are not designed, intended, authorized or warranted for use as
components in systems intended for surgical implant into the body, or in other appli­cations intended to support or sustain life, or in any other application in which the
failure of AMD’s product could create a situation where personal injury, death, or
severe property or environmental damage may occur. AMD reserves the right to
discontinue or make changes to its products at any time without notice.

Trademarks

AMD, the AMD arrow logo, AMD Athlon, and AMD Opteron, and combinations thereof, AMD Virtualization and 3DNow!
are trademarks, and AMD-K6 is a registered trademark of Advanced Micro Devices, Inc.

MMX is a trademark and Pentium is a registered trademark of Intel Corporation.

Windows NT is a registered trademark of Microsoft Corporation.

HyperTransport is a licensed trademark of the HyperTransport Technology Consortium.

Other product names used in this publication are for identification purposes only and may be trademarks of their
respective companies.

24593—Rev. 3.14—September 2007 AMD64 Technology

Contents

Revision History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxv

Preface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxvii

About This Book. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxvii

Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xxvii

Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xxvii

Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxix

Terms and Notation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxix

Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxxvi

Endian Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxxix

Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxxix

1 System-Programming Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

1.1 Memory Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Memory Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Memory Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Canonical Address Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.2 Memory Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Segmentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Mixing Segmentation and Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Real Addressing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.3 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Long Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

64-Bit Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Compatibility Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Legacy Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

System Management Mode (SMM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.4 System Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.5 System-Data Structures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

1.6 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

1.7 Additional System-Programming Facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Hardware Multitasking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Machine Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Software Debugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Performance Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

2 x86 and AMD64 Architecture Differences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

2.1 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Long Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

System-Management Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2.2 Memory Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Memory Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Page Translation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Contents i

AMD64 Technology 24593—Rev. 3.14—September 2007

Segmentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

2.3 Protection Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2.4 Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

General-Purpose Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

128-Bit Media Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Flags Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Instruction Pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Stack Pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Control Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Debug Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Extended Feature Register (EFER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Memory Type Range Registers (MTRRs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Other Model-Specific Registers (MSRs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

2.5 Instruction Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

REX Prefixes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Segment-Override Prefixes in 64-Bit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Operands and Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Address Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Instructions that Reference RSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Branches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

NOP Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Single-Byte INC and DEC Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

MOVSXD Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Invalid Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

FXSAVE and FXRSTOR Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

2.6 Interrupts and Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Interrupt Descriptor Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Stack Frame Pushes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Stack Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

IRET Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Task-Priority Register (CR8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

New Exception Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

2.7 Hardware Task Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

2.8 Long-Mode vs. Legacy-Mode Differences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

3 System Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

3.1 System-Control Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

CR0 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

CR2 and CR3 Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

CR4 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

CR1 and CR5–CR7 Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

64-Bit-Mode Extended Control Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

CR8 (Task Priority Register, TPR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

RFLAGS Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Extended Feature Enable Register (EFER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

3.2 Model-Specific Registers (MSRs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

System Configuration Register (SYSCFG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

System-Linkage Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

ii Contents

24593—Rev. 3.14—September 2007 AMD64 Technology

Memory-Typing Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Debug-Extension Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Performance-Monitoring Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Machine-Check Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

3.3 Processor Feature Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

4 Segmented Virtual Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

4.1 Real Mode Segmentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

4.2 Virtual-8086 Mode Segmentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

4.3 Protected Mode Segmented-Memory Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Multi-Segmented Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Flat-Memory Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Segmentation in 64-Bit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

4.4 Segmentation Data Structures and Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

4.5 Segment Selectors and Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Segment Selectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Segment Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Segment Registers in 64-Bit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

4.6 Descriptor Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Global Descriptor Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Global Descriptor-Table Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Local Descriptor Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Local Descriptor-Table Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Interrupt Descriptor Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Interrupt Descriptor-Table Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

4.7 Legacy Segment Descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Descriptor Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Code-Segment Descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Data-Segment Descriptors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

System Descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Gate Descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

4.8 Long-Mode Segment Descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Code-Segment Descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Data-Segment Descriptors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

System Descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Gate Descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Long Mode Descriptor Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

4.9 Segment-Protection Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Privilege-Level Concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Privilege-Level Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

4.10 Data-Access Privilege Checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Accessing Data Segments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Accessing Stack Segments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

4.11 Control-Transfer Privilege Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Direct Control Transfers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Control Transfers Through Call Gates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Return Control Transfers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

4.12 Limit Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Contents iii

AMD64 Technology 24593—Rev. 3.14—September 2007

Determining Limit Violations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

4.13 Type Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Type Checks in Legacy and Compatibility Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Long Mode Type Check Differences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

5 Page Translation and Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

5.1 Page Translation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Page-Translation Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Page-Translation Enable (PG) Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Physical-Address Extensions (PAE) Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Page-Size Extensions (PSE) Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Page-Directory Page Size (PS) Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

5.2 Legacy-Mode Page Translation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

CR3 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Normal (Non-PAE) Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

PAE Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

5.3 Long-Mode Page Translation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Canonical Address Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

CR3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

4-Kbyte Page Translation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

2-Mbyte Page Translation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

1-Gbyte Page Translation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

5.4 Page-Translation-Table Entry Fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Field Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Notes on Access and Dirty Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

5.5 Translation-Lookaside Buffer (TLB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Global Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

TLB Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

5.6 Page-Protection Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

No Execute (NX) Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

User/Supervisor (U/S) Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Read/Write (R/W) Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Write Protect (CR0.WP) Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

5.7 Protection Across Paging Hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Access to User Pages when CR0.WP=1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

5.8 Effects of Segment Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

6 System-Management Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

6.1 Fast System Call and Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

SYSCALL and SYSRET. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

SYSENTER and SYSEXIT (Legacy Mode Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

SWAPGS Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

6.2 System Status and Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Processor Feature Identification (CPUID). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Accessing Control Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Accessing the RFLAGs Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Accessing Debug Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Accessing Model-Specific Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

iv Contents

24593—Rev. 3.14—September 2007 AMD64 Technology

6.3 Segment Register and Descriptor Register Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Accessing Segment Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Accessing Descriptor-Table Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

6.4 Protection Checking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Checking Access Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Checking Segment Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Checking Read/Write Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Adjusting Access Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

6.5 Processor Halt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

6.6 Cache and TLB Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Cache Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

TLB Invalidation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

7 Memory System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159

7.1 Single-Processor Memory Access Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Read Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Write Ordering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Read/Write Barriers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

7.2 Multiprocessor Memory Access Ordering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

7.3 Memory Coherency and Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Special Coherency Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

7.4 Memory Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Memory Barrier Interaction with Memory Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

7.5 Buffering and Combining Memory Writes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Write Buffering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Write Combining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

7.6 Memory Caches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Cache Organization and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Cache Control Mechanisms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Cache and Memory Management Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Serializing Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

7.7 Memory-Type Range Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

MTRR Type Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

MTRRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Using MTRRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

MTRRs and Page Cache Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

MTRRs in Multi-Processing Environments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

7.8 Page-Attribute Table Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

PAT Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

PAT Indexing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Identifying PAT Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

PAT Accesses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Combined Effect of MTRRs and PAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

PATs in Multi-Processing Environments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

7.9 Memory-Mapped I/O. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Extended Fixed-Range MTRR Type-Field Encodings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

IORRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

IORR Overlapping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

Contents v

AMD64 Technology 24593—Rev. 3.14—September 2007

Top of Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

8 Exceptions and Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .205

8.1 General Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

Precision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

Instruction Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Types of Exceptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Masking External Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Masking Floating-Point and Media Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Disabling Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

8.2 Vectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

#DE—Divide-by-Zero-Error Exception (Vector 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

#DB—Debug Exception (Vector 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

NMI—Non-Maskable-Interrupt Exception (Vector 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

#BP—Breakpoint Exception (Vector 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

#OF—Overflow Exception (Vector 4). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

#BR—Bound-Range Exception (Vector 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

#UD—Invalid-Opcode Exception (Vector 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

#NM—Device-Not-Available Exception (Vector 7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

#DF—Double-Fault Exception (Vector 8). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

Coprocessor-Segment-Overrun Exception (Vector 9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

#TS—Invalid-TSS Exception (Vector 10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

#NP—Segment-Not-Present Exception (Vector 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

#SS—Stack Exception (Vector 12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218

#GP—General-Protection Exception (Vector 13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218

#PF—Page-Fault Exception (Vector 14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

#MF—x87 Floating-Point Exception-Pending (Vector 16). . . . . . . . . . . . . . . . . . . . . . . . . . 220

#AC—Alignment-Check Exception (Vector 17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221

#MC—Machine-Check Exception (Vector 18) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

#XF—SIMD Floating-Point Exception (Vector 19) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223

User-Defined Interrupts (Vectors 32–255). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223

8.3 Exceptions During a Task Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224

8.4 Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224

Selector-Error Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

Page-Fault Error Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

8.5 Priorities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226

Floating-Point Exception Priorities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

External Interrupt Priorities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

8.6 Real-Mode Interrupt Control Transfers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229

8.7 Legacy Protected-Mode Interrupt Control Transfers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Locating the Interrupt Handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232

Interrupt To Same Privilege. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

Interrupt To Higher Privilege. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234

Privilege Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235

Returning From Interrupt Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

8.8 Virtual-8086 Mode Interrupt Control Transfers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

Protected-Mode Handler Control Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

Virtual-8086 Handler Control Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

vi Contents

24593—Rev. 3.14—September 2007 AMD64 Technology

8.9 Long-Mode Interrupt Control Transfers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

Interrupt Gates and Trap Gates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

Locating the Interrupt Handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

Interrupt Stack Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

Interrupt-Stack Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245

Returning From Interrupt Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246

8.10 Virtual Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

Virtual-8086 Mode Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

Protected Mode Virtual Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

Effect of Instructions that Modify EFLAGS.IF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

9 Machine Check Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255

9.1 Determining Machine-Check Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255

9.2 Machine-Check Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255

Error Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256

9.3 Machine Check MSRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256

Global Status and Control Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

Error-Reporting Register Banks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

9.4 Initializing the Machine-Check Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267

9.5 Using Machine Check Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267

Handling Machine Check Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

Reporting Correctable Machine Check Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

10 System-Management Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .271

10.1 SMM Differences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271

10.2 SMM Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272

SMRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272

SMBASE Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273

SMRAM State-Save Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274

SMM-Revision Identifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

SMRAM Protected Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279

10.3 Using SMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281

System-Management Interrupt (SMI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281

SMM Operating-Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281

Exceptions and Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282

Invalidating the Caches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283

Saving Additional Processor State. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283

Operating in Protected Mode and Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284

Auto-Halt Restart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284

I/O Instruction Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

10.4 Leaving SMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286

11 128-Bit, 64-Bit, and x87 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .289

11.1 Overview of System-Software Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289

11.2 Determining Media and x87 Feature Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289

11.3 Enabling 128-Bit Media Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290

11.4 Media and x87 Processor State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

Contents vii

AMD64 Technology 24593—Rev. 3.14—September 2007

128-Bit Media State. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

64-Bit Media State. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

x87 State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

Saving Media and x87 Processor State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295

12 Task Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .307

12.1 Hardware Multitasking Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

12.2 Task-Management Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

TSS Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310

TSS Descriptor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310

Task Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311

Legacy Task-State Segment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313

64-Bit Task State Segment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317

Task Gate Descriptor (Legacy Mode Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320

12.3 Hardware Task-Management in Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320

Task Memory-Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320

Switching Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321

Task Switches Using Task Gates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323

Nesting Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325

13 Debug and Performance Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .327

13.1 Software-Debug Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327

Debug Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328

13.2 Breakpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

Setting Breakpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

Using Breakpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337

Single Stepping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339

Breakpoint Instruction (INT3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340

Control-Transfer Breakpoint Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340

13.3 Performance Optimization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341

Performance Counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342

Performance Event-Select Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343

Using Performance Counters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346

Time-Stamp Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346

14 Processor Initialization and Long Mode Activation. . . . . . . . . . . . . . . . . . . . . . . . . . . . .349

14.1 Reset and Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349

Built-In Self Test (BIST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349

Clock Multiplier Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350

Processor Initialization State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350

Multiple Processor Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352

Fetching the First Instruction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352

14.2 Hardware Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353

Processor Implementation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353

Enabling Internal Caches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353

Initializing Media and x87 Processor State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353

Model-Specific Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355

14.3 Initializing Real Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356

viii Contents

24593—Rev. 3.14—September 2007 AMD64 Technology

14.4 Initializing Protected Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356

14.5 Initializing Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357

14.6 Enabling and Activating Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358

Activating Long Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359

Consistency Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359

Updating System Descriptor Table References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360

Relocating Page-Translation Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360

14.7 Leaving Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361

14.8 Long-Mode Initialization Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361

15 Secure Virtual Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .367

15.1 The Virtual Machine Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367

15.2 SVM Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367

Virtualization Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367

Guest Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367

External Access Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368

Tagged TLB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368

Interrupt Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368

Restartable Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368

Security Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368

15.3 SVM Processor and Platform Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368

15.4 Enabling SVM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369

15.5 VMRUN Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369

Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370

15.6 #VMEXIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374

15.7 Intercept Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375

State Saved on Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375

Intercepts During IDT Interrupt Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376

EXITINTINFO Pseudo-Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377

15.8 Instruction Intercepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378

15.9 IOIO Intercepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380

15.10 MSR Intercepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382

15.11 Exception Intercepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383

Vector 2 (Reserved) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

#BP (Breakpoint) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

#OF (Overflow) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

#BR (Bound-Range) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

#UD (Invalid Opcode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

#NM (Device-Not-Available) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

#DF (Double Fault) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

Vector 9 (Reserved) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

#TS (Invalid TSS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

#NP (Segment Not Present). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385

#SS (Stack Fault) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385

#GP (General Protection) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385

#PF (Page Fault) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385

#MF (X87 Floating Point) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385

#AC (Alignment Check) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385

Contents ix

AMD64 Technology 24593—Rev. 3.14—September 2007

#MC (Machine Check) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385

#XF (SIMD Floating Point). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385

15.12 Interrupt Intercepts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386

INTR Intercept. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386

NMI Intercept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386

SMI Intercept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386

INIT Intercept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387

Virtual Interrupt Intercept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387

15.13 Miscellaneous Intercepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388

Task Switch Intercept. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388

Ferr_Freeze Intercept. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388

Shutdown Intercept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388

15.14 VMSAVE and VMLOAD Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388

15.15 TLB Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389

TLB Flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390

Invalidate Page, Alternate ASID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390

15.16 Global Interrupt Flag, STGI and CLGI Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390

15.17 VMMCALL Instruction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391

15.18 Paged Real Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391

15.19 Event Injection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391

15.20 Interrupt and Local APIC Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393

Physical (INTR) Interrupt Masking in EFLAGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393

Virtualizing APIC.TPR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393

TPR Access in 32-Bit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393

Injecting Virtual (INTR) Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 394

Interrupt Shadows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395

Virtual Interrupt Intercept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395

Interrupt Masking in Local APIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395

INIT Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395

NMI Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396

15.21 SMM Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396

Sources of SMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396

Response to SMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397

Containerizing Platform SMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397

15.22 Last Branch Record Virtualization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 398

Enabling LBR Virualization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

Host and Guest LBR Virtualization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

LBR Virtualization CPUID Feature Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

15.23 External Access Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

Device IDs and Protection Domains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400

Device Exclusion Vector (DEV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400

Access Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 401

DEV Capability Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402

DEV Register Access Mechanism. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403

DEV Control and Status Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404

Unauthorized Access Logging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406

Secure Initialization Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406

x Contents

24593—Rev. 3.14—September 2007 AMD64 Technology

15.24 Nested Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406

Traditional Paging versus Nested Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406

Replicated State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

Enabling Nested Paging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409

Nested Paging and VMRUN/#VMEXIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409

Nested Table Walk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409

Nested versus Guest Page Faults, Fault Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410

Combining Nested and Guest Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411

Combining Memory Types, MTRRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411

Page Splintering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413

Legacy PAE Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413

A20 Masking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413

Detecting Nested Paging Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413

15.25 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414

15.26 Secure Startup with SKINIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414

Secure Loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414

Secure Loader Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414

Secure Loader Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415

Trusted Platform Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 416

System Interface, Memory Controller and I/O Hub Logic . . . . . . . . . . . . . . . . . . . . . . . . . . 417

SKINIT Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417

SL Abort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418

Secure Multiprocessor Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418

15.27 Security Exception (#SX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419

15.28 SVM Related MSRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420

VM_CR MSR (C001_0114h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420

IGNNE MSR (C001_0115h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421

SMM_CTL MSR (C001_0116h). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421

VM_HSAVE_PA MSR (C001_0117h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422

15.29 SVM-Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422

SVM_KEY MSR (C001_0118h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422

15.30 SMM-Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422

SmmLock Bit — HWCR[0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423

SMM_KEY MSR (C001_0119h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423

16 Advanced Programmable Interrupt Controller (APIC) . . . . . . . . . . . . . . . . . . . . . . . . .425

16.1 Sources of Interrupts to the Local APIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426

16.2 Interrupt Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427

16.3 Local APIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427

Local APIC Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427

APIC Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428

Local APIC ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430

APIC Version Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430

Extended APIC Control Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431

16.4 Local Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431

APIC Timer Interrupt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433

Local Interrupts LINT0 and LINT1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435

Performance Monitor Counter Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435

Contents xi

AMD64 Technology 24593—Rev. 3.14—September 2007

Thermal Sensor Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436

Extended Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436

APIC Error Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436

Spurious Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438

16.5 Interprocessor Interrupts (IPI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438

16.6 Local APIC Handling of Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442

Receiving System and IPI Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442

Lowest Priority Messages and Arbitration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443

Accepting System and IPI Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444

Selecting and Handling Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 447

16.7 SVM Support for Interrupts and the Local APIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449

Extended APIC Feature Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449

Specific End of Interrupt Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450

Interrupt Enable Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450

17 OS-Visible Workaround Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .453

17.1 Erratum Process Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455

18 Hardware P-State Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .457

Appendix A MSR Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .459

A.1 MSR Cross-Reference by MSR Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 459

A.2 System-Software MSRs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 463

A.3 Memory-Typing MSRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464

A.4 Machine-Check MSRs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 466

A.5 Software-Debug MSRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 467

A.6 Performance-Monitoring MSRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 468

A.7 Secure Virtual Machine MSRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 468

A.8 System Management Mode MSRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 469

A.9 CPUID Name MSR Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 469

Appendix B Layout of VMCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .471

B.1 Layout of VMCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 471

Appendix C SVM Intercept Exit Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .477

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 479

xii Contents

24593—Rev. 3.14—September 2007 AMD64 Technology

Figures

Figure 1-1. Segmented-Memory Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 1-2. Flat Memory Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 1-3. Paged Memory Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 1-4. 64-Bit Flat, Paged-Memory Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 1-5. Real-Address Memory Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 1-6. Operating Modes of the AMD64 Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 1-7. System Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 1-8. System-Data Structures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 3-1. Control Register 0 (CR0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Figure 3-2. Control Register 2 (CR2)—Legacy-Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Figure 3-3. Control Register 2 (CR2)—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Figure 3-4. Control Register 3 (CR3)—Legacy-Mode Non-PAE Paging. . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Figure 3-5. Control Register 3 (CR3)—Legacy-Mode PAE Paging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Figure 3-6. Control Register 3 (CR3)—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Figure 3-7. Control Register 4 (CR4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Figure 3-8. RFLAGS Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Figure 3-9. Extended Feature Enable Register (EFER). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Figure 3-10. AMD64 Architecture Model-Specific Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Figure 3-11. System-Configuration Register (SYSCFG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Figure 4-1. Segmentation Data Structures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Figure 4-2. Segment and Descriptor-Table Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Figure 4-3. Segment Selector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Figure 4-4. Segment-Register Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Figure 4-5. FS and GS Segment-Register Format—64-Bit Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Figure 4-6. Global and Local Descriptor-Table Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Figure 4-7. GDTR and IDTR Format—Legacy Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Figure 4-8. GDTR and IDTR Format—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Figure 4-9. Relationship between the LDT and GDT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Figure 4-10. LDTR Format—Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Figure 4-11. LDTR Format—Long Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Figure 4-12. Indexing an IDT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Figures xiii

AMD64 Technology 24593—Rev. 3.14—September 2007

Figure 4-13. Generic Segment Descriptor—Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Figure 4-14. Code-Segment Descriptor—Legacy Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Figure 4-15. Data-Segment Descriptor—Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Figure 4-16. LDT and TSS Descriptor—Legacy/Compatibility Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Figure 4-17. Call-Gate Descriptor—Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Figure 4-18. Interrupt-Gate and Trap-Gate Descriptors—Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Figure 4-19. Task-Gate Descriptor—Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Figure 4-20. Code-Segment Descriptor—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Figure 4-21. Data-Segment Descriptor—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Figure 4-22. System-Segment Descriptor—64-Bit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Figure 4-23. Call-Gate Descriptor—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Figure 4-24. Interrupt-Gate and Trap-Gate Descriptors—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Figure 4-25. Privilege-Level Relationships. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Figure 4-26. Data-Access Privilege-Check Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Figure 4-27. Stack-Access Privilege-Check Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Figure 4-28. Nonconforming Code-Segment Privilege-Check Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Figure 4-29. Conforming Code-Segment Privilege-Check Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Figure 4-30. Legacy-Mode Call-Gate Transfer Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Figure 4-31. Long-Mode Call-Gate Access Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Figure 4-32. Privilege-Check Examples for Call Gates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Figure 4-33. Legacy-Mode 32-Bit Stack Switch, with Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Figure 4-34. 32-Bit Stack Switch, No Parameters—Legacy Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Figure 4-35. Stack Switch—Long Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Figure 5-1. Virtual to Physical Address Translation—Long Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Figure 5-2. Control Register 3 (CR3)—Non-PAE Paging Legacy-Mode. . . . . . . . . . . . . . . . . . . . . . . . . . 121

Figure 5-3. Control Register 3 (CR3)—PAE Paging Legacy-Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Figure 5-4. 4-Kbyte Non-PAE Page Translation—Legacy Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Figure 5-5. 4-Kbyte PDE—Non-PAE Paging Legacy-Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Figure 5-6. 4-Kbyte PTE—Non-PAE Paging Legacy-Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Figure 5-7. 4-Mbyte Page Translation—Non-PAE Paging Legacy-Mode . . . . . . . . . . . . . . . . . . . . . . . . . 124

Figure 5-8. 4-Mbyte PDE—Non-PAE Paging Legacy-Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Figure 5-9. 4-Kbyte PAE Page Translation—Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Figure 5-10. 4-Kbyte PDPE—PAE Paging Legacy-Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

xiv Figures

24593—Rev. 3.14—September 2007 AMD64 Technology

Figure 5-11. 4-Kbyte PDE—PAE Paging Legacy-Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Figure 5-12. 4-Kbyte PTE—PAE Paging Legacy-Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Figure 5-13. 2-Mbyte PAE Page Translation—Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Figure 5-14. 2-Mbyte PDPE—PAE Paging Legacy-Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Figure 5-15. 2-Mbyte PDE—PAE Paging Legacy-Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Figure 5-16. Control Register 3 (CR3)—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Figure 5-17. 4-Kbyte Page Translation—Long Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Figure 5-18. 4-Kbyte PML4E—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Figure 5-19. 4-Kbyte PDPE—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Figure 5-20. 4-Kbyte PDE—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Figure 5-21. 4-Kbyte PTE—Long Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Figure 5-22. 2-Mbyte Page Translation—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Figure 5-23. 2-Mbyte PML4E—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Figure 5-24. 2-Mbyte PDPE—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Figure 5-25. 2-Mbyte PDE—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Figure 5-26. 1-Gbyte Page Translation—Long Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Figure 5-27. 1-Gbyte PML4E—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Figure 5-28. 1-Gbyte PDPE—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Figure 6-1. STAR, LSTAR, CSTAR, and MASK MSRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Figure 6-2. SYSENTER_CS, SYSENTER_ESP, SYSENTER_EIP MSRs . . . . . . . . . . . . . . . . . . . . . . . . 152

Figure 7-1. Processor and Memory System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

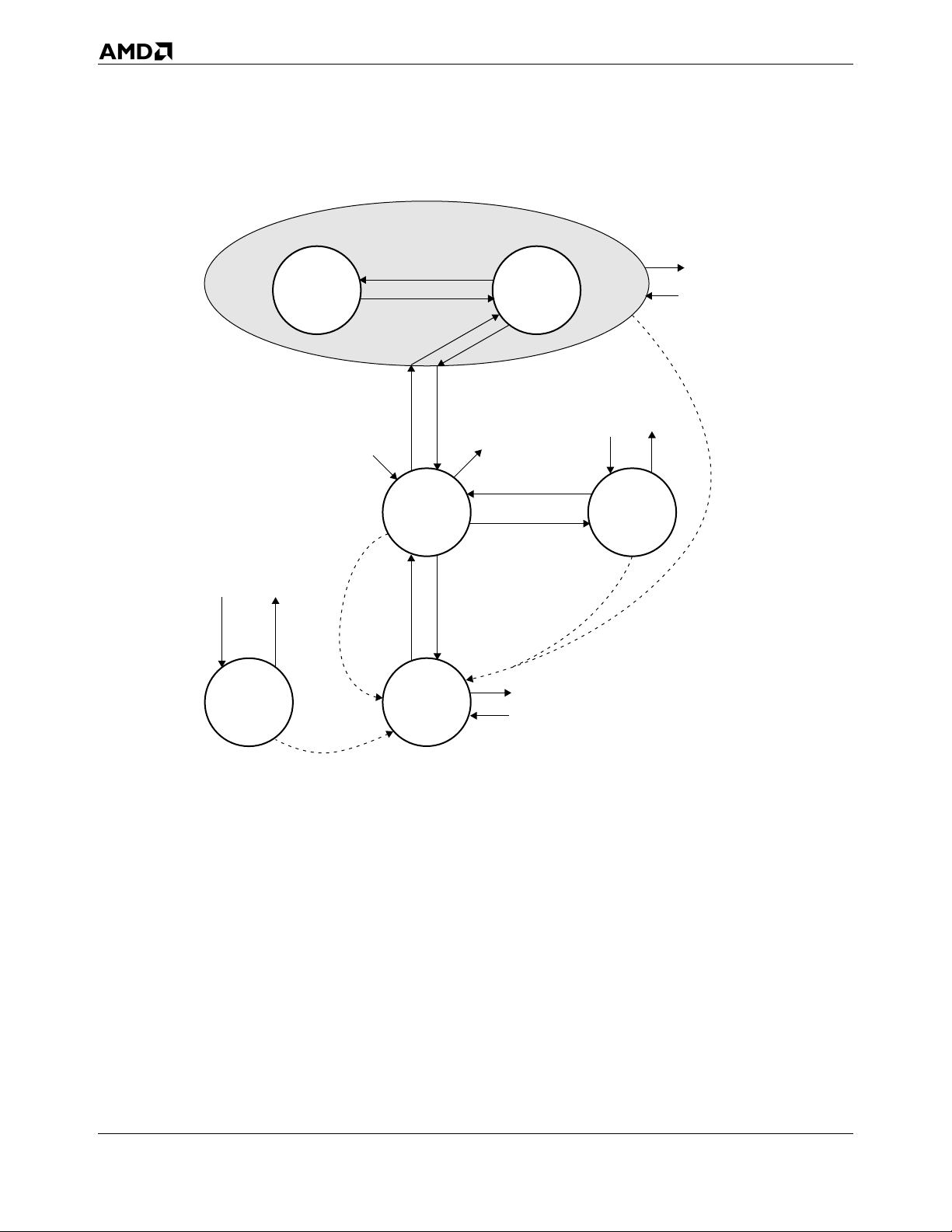

Figure 7-2. MOESI State Transitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Figure 7-3. Cache Organization Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Figure 7-4. MTRR Mapping of Physical Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Figure 7-5. Fixed-Range MTRR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Figure 7-6. MTRRphysBasen Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Figure 7-7. MTRRphysMaskn Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

Figure 7-8. MTRR defType Register Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Figure 7-9. MTRR Capability Register Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Figure 7-10. PAT Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

Figure 7-11. Extended MTRR Type-Field Format (Fixed-Range MTRRs) . . . . . . . . . . . . . . . . . . . . . . . . . 198

Figure 7-12. IORRBasen Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Figure 7-13. IORRMaskn Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

Figures xv

AMD64 Technology 24593—Rev. 3.14—September 2007

Figure 7-14. Memory Organization Using Top-of-Memory Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Figure 7-15. Top-of-Memory Registers (TOP_MEM, TOP_MEM2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Figure 8-1. Control Register 2 (CR2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220

Figure 8-2. Selector Error Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

Figure 8-3. Page-Fault Error Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

Figure 8-4. Task Priority Register (CR8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229

Figure 8-5. Real-Mode Interrupt Control Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

Figure 8-6. Stack After Interrupt in Real Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Figure 8-7. Protected-Mode Interrupt Control Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

Figure 8-8. Stack After Interrupt to Same Privilege Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234

Figure 8-9. Stack After Interrupt to Higher Privilege . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235

Figure 8-10. Privilege-Check Examples for Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

Figure 8-11. Stack After Virtual-8086 Mode Interrupt to Protected Mode. . . . . . . . . . . . . . . . . . . . . . . . . . 240

Figure 8-12. Long-Mode Interrupt Control Transfer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

Figure 8-13. Long-Mode Stack After Interrupt—Same Privilege. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

Figure 8-14. Long-Mode Stack After Interrupt—Higher Privilege. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245

Figure 8-15. Long-Mode IST Mechanism. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246

Figure 9-1. MCG_CAP Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

Figure 9-2. MCG_STATUS Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258

Figure 9-3. MCG_CTL Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259

Figure 9-4. CPU Watchdog Timer Register Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259

Figure 9-5. MCi_CTL Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

Figure 9-6. MCi_STATUS Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

Figure 9-7. MCi_MISC1 Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

Figure 9-8. Machine Check Miscellaneous Error-Information Register (MCi_MISCj) . . . . . . . . . . . . . . . 265

Figure 10-1. Default SMRAM Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273

Figure 10-2. SMBASE Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273

Figure 10-3. SMM-Revision Identifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279

Figure 10-4. SSM_ADDR Register Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280

Figure 10-5. SSM_MASK Register Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280

Figure 10-6. I/O Instruction Restart Dword. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286

Figure 11-1. 128-Bit Media-Instruction State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

Figure 11-2. 64-Bit Media-Instruction State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293

xvi Figures

24593—Rev. 3.14—September 2007 AMD64 Technology

Figure 11-3. x87-Instruction State. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295

Figure 11-4. FSAVE/FNSAVE Image (32-Bit, Protected Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297

Figure 11-5. FSAVE/FNSAVE Image (32-Bit, Real/Virtual-8086 Modes) . . . . . . . . . . . . . . . . . . . . . . . . . 298

Figure 11-6. FSAVE/FNSAVE Image (16-Bit, Protected Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299

Figure 11-7. FSAVE/FNSAVE Image (16-Bit, Real/Virtual-8086 Modes) . . . . . . . . . . . . . . . . . . . . . . . . . 300

Figure 11-8. FXSAVE and FXRSTOR Image (64-bit Mode). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302

Figure 11-9. FXSAVE and FXRSTOR Image (Non-64-bit Mode). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303

Figure 12-1. Task-Management Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309

Figure 12-2. Task-Segment Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310

Figure 12-3. TR Format, Legacy Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311

Figure 12-4. TR Format, Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312

Figure 12-5. Relationship between the TSS and GDT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312

Figure 12-6. Legacy 32-bit TSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314

Figure 12-7. I/O-Permission Bitmap Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317

Figure 12-8. Long Mode TSS Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319

Figure 12-9. Task-Gate Descriptor, Legacy Mode Only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320

Figure 12-10. Privilege-Check Examples for Task Gates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324

Figure 13-1. Address-Breakpoint Registers (DR0–DR3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329

Figure 13-2. Debug-Status Register (DR6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330

Figure 13-3. Debug-Control Register (DR7). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331

Figure 13-4. Debug-Control MSR (DebugCtlMSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334

Figure 13-5. Control-Transfer Recording MSRs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

Figure 13-6. Performance Counter (PerfCtrn). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342

Figure 13-7. Performance Event-Select Register (PerfEvtSeln) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344

Figure 13-8. Time-Stamp Counter (TSC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346

Figure 15-1. EXITINTINFO for All Intercepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376

Figure 15-2. EXITINFO1 for IOIO Intercept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381

Figure 15-3. EXITINFO1 for SMI Intercept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387

Figure 15-4. EVENTINJ Field in the VMCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392

Figure 15-5. Host Bridge DMA Checking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402

Figure 15-6. Format of DEV_OP Register (in PCI Config Space) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403

Figure 15-7. Format of DEV_CAP Register (in PCI Config Space). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404

Figure 15-8. Format of DEV_BASE_HI[n] Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405

Figures xvii

AMD64 Technology 24593—Rev. 3.14—September 2007

Figure 15-9. Format of DEV_BASE_LO[n] Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405

Figure 15-10. Format of DEV_MAP[n] Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405

Figure 15-11. Address Translation with Traditional Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407

Figure 15-12. Address Translation with Nested Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

Figure 15-13. SLB Example Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 416

Figure 15-14. Layout of VM_CR MSR (C001_0114h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420

Figure 15-15. Layout of SMM_CTL MSR (C001_0116h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421

Figure 16-1. Block Diagram of a Typical APIC Implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425

Figure 16-2. APIC Base Address Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428

Figure 16-3. APIC ID Register (APIC Offset 20h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430

Figure 16-4. APIC Version Register (APIC Offset 30h). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430

Figure 16-5. Extended APIC Control Register (APIC Offset 410h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431

Figure 16-6. General Local Vector Table Register Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432

Figure 16-7. APIC Timer Local Vector Table Register (APIC Offset 320h) . . . . . . . . . . . . . . . . . . . . . . . . 433

Figure 16-8. Timer Current Count Register (APIC Offset 390h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434

Figure 16-9. Timer Initial Count Register (APIC Offset 380h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434

Figure 16-10. Divide Configuration Register (APIC Offset 3E0h). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434

Figure 16-11. Local Interrupt 0/1 (LINT0/1) Local Vector Table Register (APIC Offset 350h/360h) . . . . . 435

Figure 16-12. Performance Monitor Counter Local Vector Table Register (APIC Offset 340h) . . . . . . . . . . 436

Figure 16-13. Thermal Sensor Local Vector Table Register (APIC Offset 330h) . . . . . . . . . . . . . . . . . . . . . 436

Figure 16-14. APIC Error Local Vector Table Register (APIC Offset 370h). . . . . . . . . . . . . . . . . . . . . . . . . 437

Figure 16-15. APIC Error Status Register (APIC Offset 280h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437

Figure 16-16. Spurious Interrupt Register (APIC Offset F0h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438

Figure 16-17. Interrupt Command Register (APIC Offset 310:300h). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 439

Figure 16-18. Remote Read Register (APIC Offset C0h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441

Figure 16-19. Logical Destination Register (APIC Offset D0h). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442

Figure 16-20. Destination Format Register (APIC Offset E0h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442

Figure 16-21. Arbitration Priority Register (APIC Offset 90h). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443

Figure 16-22. Interrupt Request Register (APIC Offset 270:200h). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445

Figure 16-23. In Service Register (APIC Offset 170:100h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445

Figure 16-24. Trigger Mode Register (APIC Offset 1F0:180h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 446

Figure 16-25. Task Priority Register (APIC Offset 80h). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 447

Figure 16-26. Processor Priority Register (APIC Offset A0h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 448

xviii Figures

24593—Rev. 3.14—September 2007 AMD64 Technology

Figure 16-27. End of Interrupt (APIC Offset B0h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449

Figure 16-28. Extended APIC Feature Register (APIC Offset 400h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449

Figure 16-29. Specific End of Interrupt (APIC Offset 420h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450

Figure 16-30. Interrupt Enable Register (APIC Offset 4F0:480h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450

Figure 17-1. OSVW MSR0: OSVW_ID_Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 453

Figure 17-2. OSVW MSR1: OSVW Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454

Figure 17-3. OSVW MSRn: OSVW Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454

Figure 18-1. P-State Current Limit Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 457

Figure 18-2. P-State Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 458

Figure 18-3. P-State Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 458

Figures xix

AMD64 Technology 24593—Rev. 3.14—September 2007

xx Figures

24593—Rev. 3.14—September 2007 AMD64 Technology

Tables

Table 1-1. Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Table 1-2. Interrupts and Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 2-1. Instructions That Reference RSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 2-2. 64-Bit Mode Near Branches, Default 64-Bit Operand Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 2-3. Invalid Instructions in 64-Bit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 2-4. Invalid Instructions in Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 2-5. Reassigned Instructions in 64-Bit Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 2-6. Differences Between Long Mode and Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table 4-1. Segment Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Table 4-2. Descriptor Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Table 4-3. Code-Segment Descriptor Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Table 4-4. Data-Segment Descriptor Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Table 4-5. System-Segment Descriptor Types (S=0)—Legacy Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Table 4-6. System-Segment Descriptor Types—Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Table 4-7. Descriptor-Entry Field Changes in Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Table 5-1. Supported Paging Alternatives (CR0.PG=1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Table 5-2. Physical-Page Protection, CR0.WP=0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Table 5-3. Effect of CR0.WP=1 on Supervisor Page Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Table 6-1. System Management Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Table 7-1. Memory Access by Memory Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Table 7-2. Caching Policy by Memory Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Table 7-3. Memory Access Ordering Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Table 7-4. AMD64 Architecture Cache-Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Table 7-5. MTRR Type Field Encodings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Table 7-6. Fixed-Range MTRR Address Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Table 7-7. Combined MTRR and Page-Level Memory Type with Unmodified PAT MSR . . . . . . . . . . . 191

Table 7-8. PAT Type Encodings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Table 7-9. PAT-Register PA-Field Indexing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Table 7-10. Combined Effect of MTRR and PAT Memory Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Table 7-11. Extended Fixed-Range MTRR Type Encodings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Table 8-1. Interrupt-Vector Source and Cause. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Table 8-2. Interrupt-Vector Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

Table 8-3. Double-Fault Exception Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Table 8-4. Invalid-TSS Exception Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

Tables xxi

AMD64 Technology 24593—Rev. 3.14—September 2007

Table 8-5. Stack Exception Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218

Table 8-6. General-Protection Exception Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

Table 8-7. Data-Type Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

Table 8-8. Simultaneous Interrupt Priorities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226

Table 8-9. Simultaneous Floating-Point Exception Priorities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

Table 8-10. Virtual-8086 Mode Interrupt Mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

Table 8-11. Effect of Instructions that Modify the IF Bit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Table 9-1. CPU Watchdog Timer Time Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

Table 9-2. CPU Watchdog Timer Count Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

Table 10-1. AMD64 Architecture SMM State-Save Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274

Table 10-2. Legacy SMM State-Save Area (Not used by AMD64 Architecture) . . . . . . . . . . . . . . . . . . . . 277

Table 10-3. SMM Register Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281

Table 11-1. Deriving FSAVE Tag Field from FXSAVE Tag Field. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306

Table 12-1. Effects of Task Nesting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325

Table 13-1. Breakpoint-Setting Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336

Table 13-2. Breakpoint Location by Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337

Table 13-3. Operating-System Mode and User Mode Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345

Table 14-1. Initial Processor State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350

Table 14-2. Initial State of Segment-Register Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352

Table 14-3. x87 Floating-Point State Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354

Table 14-4. Processor Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358

Table 14-5. Long-Mode Consistency Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360

Table 15-1. Guest Exception or Interrupt Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376

Table 15-2. Instruction Intercepts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378

Table 15-3. Ranges of MSR Permissions Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382

Table 15-4. Effect of the GIF on Interrupt Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390

Table 15-5. Guest Exception or Interrupt Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392

Table 15-6. INIT Handling in Different Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396

Table 15-7. NMI Handling in Different Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396

Table 15-8. SMI Handling in Different Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397

Table 15-9. DEV Capability Block, Overall Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402

Table 15-10. DEV Capability Header (DEV_HDR) (in PCI Config Space) . . . . . . . . . . . . . . . . . . . . . . . . . 403

Table 15-11. Encoding of Function Field in DEV_OP Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403

Table 15-12. DEV_CR Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404

Table 15-13. Combining Guest and Host PAT Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412

Table 15-14. Combining PAT and MTRR Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413

xxii Tables

24593—Rev. 3.14—September 2007 AMD64 Technology

Table 16-1. Interrupt Sources for Local APIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426

Table 16-2. APIC Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 429

Table 16-3. Divide Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435

Table 16-4. Valid ICR Field Combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441

Table A-1. MSRs of the AMD64 Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 459

Table A-2. System-Software MSR Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 463

Table A-3. Memory-Typing MSR Cross-Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464

Table A-4. Machine-Check MSR Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 466

Table A-5. Software-Debug MSR Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 467

Table A-6. Performance-Monitoring MSR Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 468

Table A-7. Secure Virtual Machine MSR Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 468

Table A-8. System Management Mode MSR Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 469

Table A-9. CPUID Namestring MSRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 469

Table B-1. VMCB Layout, Control Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 471

Table B-2. VMCB Layout, State Save Area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 474

Table C-1. SVM Intercept Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477

Tables xxiii

AMD64 Technology 24593—Rev. 3.14—September 2007

xxiv Tables

24593—Rev. 3.14—September 2007 AMD64 Technology

Revision History

Date Revision Description

Added information on ”Speculative Caching of Address Translations,”
”Caching of Upper Level Translation Table Entries,” ”Use of Cached Entries
When Reporting a Page Fault Exception,” ”Use of Cached Entries When
Reporting a Page Fault Exception,” ”Handling of D-Bit Updates,” ”Invalidation

September

2007

July 2007 3.13

3.14

of Cached Upper-level Entries by INVLPG” and ”Handling of PDPT Entries
in PAE Mode” to section 5.5.2, ”TLB Management” on page 140.

Added 15.20.7, ”Interrupt Masking in Local APIC” on page 395.
Added 16.3.5, ”Extended APIC Control Register” on page 431; clarified the

use of the ICR DS bit in 16.5, ”Interprocessor Interrupts (IPI)” on page 438.
Added minor clarifications and corrected typographical and formatting

errors.

Added 5.3.5, ”1-Gbyte Page Translation” on page 133.
Added 7.2, ”Multiprocessor Memory Access Ordering” on page 164
Added divide-by-zero exception to Table 8-8, “Simultaneous Interrupt

Priorities”‚ on page 226.
Added information on ”CPU Watchdog Timer Register” and ”Machine-Check

Miscellaneous-Error Information Registers (MCi_MISCj)” to Chapter 9.
Added SSE4A support to Chapter 11, ”128-Bit, 64-Bit, and x87

Programming” on page 289.
Added Monitor and MWAIT intercept information to section 15.8, ”Instruction

Intercepts” on page 378 and reorganized intercept information; clarified

15.15.1, ”TLB Flush” on page 390.
Added Monitor and MWAIT intercepts to tables B-1, ”VMCB Layout, Control

Area” on page 471 and C-1, ”SVM Intercept Codes” on page 477.
Added Chapter 16, ”Advanced Programmable Interrupt Controller (APIC)”

on page 425, Chapter 17, ”OS-Visible Workaround Information” on page
453, Chapter 18, ”Hardware P-State Control” on page 457.

Added Table A-7, “Secure Virtual Machine MSR Cross-Reference”‚ on
page 468.

Added minor clarifications and corrected typographical and formatting
errors.

September

2006

December

2005

February 2005 3.10

3.12 Added numerous minor clarifications.

3.11

Added Chapter 15, Secure Virtual Machine. Incorporated numerous factual
corrections and updates.

Corrected Table 8-6, “General-Protection Exception Conditions”‚ on
page 219. Added SSE3 information. Clarified and corrected information on
the CPUID instruction and feature identification. Added information on the
RDTSCP instruction. Clarified information about MTRRs and PATs in
multiprocessing systems.

Revision History xxv

AMD64 Technology 24593—Rev. 3.14—September 2007

Date Revision Description

September

2003

April 2003 3.08

September

2002

3.09 Corrected numerous minor typographical errors.

3.07

Clarified terms in section on FXSAVE/FXSTOR. Corrected several minor
errors of omission. Documentation of CR0.NW bit has been corrected.
Several register diagrams and figure labels have been corrected.
Description of shared cache lines has been clarified in 7.3, ”Memory
Coherency and Protocol” on page 167.

Made numerous small grammatical changes and factual clarifications.
Added Revision History.

xxvi Revision History

24593—Rev. 3.14—September 2007 AMD64 Technology

Preface

About This Book

This book is part of a multivolume work entitled the AMD64 Architecture Pr ogrammer’s Manual. This

table lists each volume and its order number.

Title Order No.

Volume 1: Application Programming 24592

Volume 2: System Programming 24593

Volume 3: General-Purpose and System Instructions 24594

Volume 4: 128-Bit Media Instructions 26568

Volume 5: 64-Bit Media and x87 Floating-Point Instructions 26569

Audience

This volume (Volume 2) is intended for programmers writing operating systems, loaders, linkers,
device drivers, or system utilities. It assumes an understanding of AMD64 architecture application­level programming as described in Volume 1.

This volume describes the AMD64 architecture’s resources and functions that are managed by system
software, including operating-mode control, memory management, interrupts and exceptions, task and
state-change management, system-management mode (including power management), multi­processor support, debugging, and processor initialization.

Application-programming topics are described in Volume 1. Details about each instruction are
described in volumes 3, 4, and 5.

Organization

This volume begins with an overview of system programming and differences between the x86 and
AMD64 architectures. This is followed by chapters that describe the following details of system
programming:

• System Resour ces—The system registers and processor ID (CPUID) functions.

• Segmented Virtual Memory—The segmented-memory models supported by the architecture and

their associated data structures and protection checks.

• Page Translation and Protection—The page-translation functions supported by the architecture

and their associated data structures and protection checks.

Preface xxvii

AMD64 Technology 24593—Rev. 3.14—September 2007

• System-Management Instructions—The instructions used to manage system functions.

• Memory System—The memory-system hierarchy and its resources and protocols, including

memory-characterization, caching, and buffering functions.

• Exceptions and Interrupts—Details about the types and causes of exceptions and interrupts, and

the methods of transferring control during these events.

• Machine-Check Mechanism—The resources and functions that support detection and handling of

machine-check errors.

• System-Management Mode—The resources and functions that support system-management mode

(SMM), including power-management functions.

• 128-Bit, 64-Bit, and x87 Programming—The resources and functions that support use (by

application software) and state-saving (by the operation system) of the 128-bit media, 64-bit
media, and x87 floating-point instructions.

• Multiple-Pr ocessor Management—The features of the instruction set and the system resources and

functions that support multiprocessing environments.

• Debug and Performance Resources—The system resources and functions that support software

debugging and performance monitoring.

• Legacy Task Management—Support for the legacy hardware multitasking functions, including

register resources and data structures.

• Processor Initialization and Long-Mode Activation—The methods by which system software

initializes and changes operating modes.

• Mixing Code Across Operating Modes—Things to remember when running programs in different

operating modes.

• Secure Virtual Machine—The system resources that support virtualization development and

deployment.

There are appendices describing details of model-specific registers (MSRs) and machine-check
implementations. Definitions assumed throughout this volume are listed below. The index at the end of
this volume cross-references topics within the volume. For other topics relating to the AMD64
architecture, see the tables of contents and indexes of the other volumes.

xxviii Preface

24593—Rev. 3.14—September 2007 AMD64 Technology

Definitions

Some of the following definitions assume a knowledge of the legacy x86 architecture. See “Related
Documents” on page xxxix for descriptions of the legacy x86 architecture.

Terms and Notation

1011b

A binary value—in this example, a 4-bit value.

F0EAh

A hexadecimal value—in this example a 2-byte value.

[1,2)

A range that includes the left-most value (in this case, 1) but excludes the right-most value (in this
case, 2).

7–4

A bit range, from bit 7 to 4, inclusive. The high-order bit is shown first.

128-bit media instructions

Instructions that use the 128-bit XMM registers. These are a combination of the SSE and SSE2
instruction sets.

64-bit media instructions

Instructions that use the 64-bit MMX registers. These are primarily a combination of MMX and
3DNow!™ instruction sets, with some additional instructions from the SSE and SSE2 instruction
sets.

16-bit mode

Legacy mode or compatibility mode in which a 16-bit address size is active. See legacy mode and
compatibility mode.

32-bit mode

Legacy mode or compatibility mode in which a 32-bit address size is active. See legacy mode and
compatibility mode.

64-bit mode

A submode of long mode. In 64-bit mode, the default address size is 64 bits and new features, such

as register extensions, are supported for system and application software.

#GP(0)

Notation indicating a general-protection exception (#GP) with error code of 0.

Preface xxix

AMD64 Technology 24593—Rev. 3.14—September 2007

absolute

Said of a displacement that references the base of a code segment rather than an instruction pointer.

Contrast with relative.

ASID

Address space identifier.

biased exponent

The sum of a floating-point value’s exponent and a constant bias for a particular floating-point data
type. The bias makes the range of the biased exponent always positive, which allows reciprocation
without overflow.

byte

Eight bits.

clear

To write a bit value of 0. Compare set.

compatibility mode

A submode of long mode. In compatibility mode, the default address size is 32 bits, and legacy 16-

bit and 32-bit applications run without modification.

commit

To irreversibly write, in program order, an instruction’s result to software-visible storage, such as a
register (including flags), the data cache, an internal write buffer, or memory.

CPL

Current privilege level.

CR0–CR4

A register range, from register CR0 through CR4, inclusive, with the low-order register first.

CR0.PE = 1

Notation indicating that the PE bit of the CR0 register has a value of 1.

direct

Referencing a memory location whose address is included in the instruction’s syntax as an

immediate operand. The address may be an absolute or relative address. Compare indirect.

dirty data

Data held in the processor’s caches or internal buffers that is more recent than the copy held in
main memory.

displacement

A signed value that is added to the base of a segment (absolute addressing) or an instruction pointer

(relative addressing). Same as offset.

xxx Preface

24593—Rev. 3.14—September 2007 AMD64 Technology

doubleword

Two words, or four bytes, or 32 bits.

double quadword

Eight words, or 16 bytes, or 128 bits. Also called octword.

DS:rSI

The contents of a memory location whose segment address is in the DS register and whose offset
relative to that segment is in the rSI register.

EFER.LME = 0

Notation indicating that the LME bit of the EFER register has a value of 0.

effective address size

The address size for the current instruction after accounting for the default address size and any
address-size override prefix.

effective operand size

The operand size for the current instruction after accounting for the default operand size and any
operand-size override prefix.

element

See vector.

exception

An abnormal condition that occurs as the result of executing an instruction. The processor’s
response to an exception depends on the type of the exception. For all exceptions except 128-bit
media SIMD floating-point exceptions and x87 floating-point exceptions, control is transferred to
the handler (or service routine) for that exception, as defined by the exception’s vector. For
floating-point exceptions defined by the IEEE 754 standard, there are both masked and unmasked
responses. When unmasked, the exception handler is called, and when masked, a default response
is provided instead of calling the handler.

FF /0

Notation indicating that FF is the first byte of an opcode, and a subopcode in the ModR/M byte has
a value of 0.

flush

An often ambiguous term meaning (1) writeback, if modified, and invalidate, as in “flush the cache
line,” or (2) invalidate, as in “flush the pipeline,” or (3) change a value, as in “flush to zero.”

GDT

Global descriptor table.

Preface xxxi

AMD64 Technology 24593—Rev. 3.14—September 2007

GIF

Global interrupt flag.

IDT

Interrupt descriptor table.

IGN

Ignore. Field is ignored.

indirect

Referencing a memory location whose address is in a register or other memory location. The

address may be an absolute or relative address. Compare direct.

IRB

The virtual-8086 mode interrupt-redirection bitmap.

IST

The long-mode interrupt-stack table.

IVT

The real-address mode interrupt-vector table.

LDT

Local descriptor table.

legacy x86

The legacy x86 architecture. See “Related Documents” on page xxxix for descriptions of the
legacy x86 architecture.

legacy mode

An operating mode of the AMD64 architecture in which existing 16-bit and 32-bit applications and
operating systems run without modification. A processor implementation of the AMD64

architecture can run in either long mode or legacy mode. Legacy mode has three submodes, real

mode, pr otected mode, and virtual-8086 mode.

long mode

An operating mode unique to the AMD64 architecture. A processor implementation of the

AMD64 architecture can run in either long mode or legacy mode. Long mode has two submodes,

64-bit mode and compatibility mode.

lsb

Least-significant bit.

LSB

Least-significant byte.

xxxii Preface

24593—Rev. 3.14—September 2007 AMD64 Technology

main memory

Physical memory, such as RAM and ROM (but not cache memory) that is installed in a particular
computer system.

mask

(1) A control bit that prevents the occurrence of a floating-point exception from invoking an
exception-handling routine. (2) A field of bits used for a control purpose.

MBZ

Must be zero. If software attempts to set an MBZ bit to 1, a general-protection exception (#GP)
occurs.

memory

Unless otherwise specified, main memory.

ModRM

A byte following an instruction opcode that specifies address calculation based on mode (Mod),
register (R), and memory (M) variables.

moffset

A 16, 32, or 64-bit offset that specifies a memory operand directly, without using a ModRM or SIB
byte.

msb

Most-significant bit.

MSB

Most-significant byte.

multimedia instructions

A combination of 128-bit media instructions and 64-bit media instructions.

octword

Same as double quadword.

offset

Same as displacement.

overflow

The condition in which a floating-point number is larger in magnitude than the largest, finite,
positive or negative number that can be represented in the data-type format being used.

packed

See vector.

Preface xxxiii

AMD64 Technology 24593—Rev. 3.14—September 2007

PAE

Physical-address extensions.

physical memory

Actual memory, consisting of main memory and cache.

probe

A check for an address in a processor’s caches or internal buffers. External probes originate
outside the processor, and internal pr obes originate within the processor.

protected mode

A submode of legacy mode.

quadword

Four words, or eight bytes, or 64 bits.

RAZ

Read as zero (0), regardless of what is written.

real-addr ess mode

See real mode.

real mode

A short name for real-addr ess mode, a submode of legacy mode.

relative

Referencing with a displacement (also called offset) from an instruction pointer rather than the

base of a code segment. Contrast with absolute.

reserved

Fields marked as reserved may be used at some future time.

To preserve compatibility with future processors, reserved fields require special handling when
read or written by software.

Reserved fields may be further qualified as MBZ, RAZ, SBZ or IGN (see definitions).

Software must not depend on the state of a reserved field, nor upon the ability of such fields to
return to a previously written state.

If a reserved field is not marked with one of the above qualifiers, software must not change the state
of that field; it must reload that field with the same values returned from a prior read.

REX

An instruction prefix that specifies a 64-bit operand size and provides access to additional
registers.

RIP-relative addr essing

Addressing relative to the 64-bit RIP instruction pointer.

xxxiv Preface

24593—Rev. 3.14—September 2007 AMD64 Technology

SBZ

Should be zero. An attempt by software to set an SBZ bit to 1 results in undefined behavior.

set

To write a bit value of 1. Compare clear.

SIB

A byte following an instruction opcode that specifies address calculation based on scale (S), index
(I), and base (B).

SIMD

Single instruction, multiple data. See vector.

SSE

Streaming SIMD extensions instruction set. See 128-bit media instructions and 64-bit media
instructions.

SSE2

Extensions to the SSE instruction set. See 128-bit media instructions and 64-bit media
instructions.

SSE3

Further extensions to the SSE instruction set. See 128-bit media instructions.

sticky bit

A bit that is set or cleared by hardware and that remains in that state until explicitly changed by
software.

TOP

The x87 top-of-stack pointer.

TSS

Task-state segment.

underflow

The condition in which a floating-point number is smaller in magnitude than the smallest nonzero,
positive or negative number that can be represented in the data-type format being used.

vector

(1) A set of integer or floating-point values, called elements, that are packed into a single operand.

Most of the 128-bit and 64-bit media instructions use vectors as operands. Vectors are also called

packed or SIMD (single-instruction multiple-data) operands.

(2) An index into an interrupt descriptor table (IDT), used to access exception handlers. Compare

exception.

Preface xxxv

AMD64 Technology 24593—Rev. 3.14—September 2007

virtual-8086 mode

A submode of legacy mode.

VMCB

Virtual machine control block.

VMM

Virtual machine monitor.

word

Two bytes, or 16 bits.

x86

See legacy x86.

Registers

In the following list of registers, the names are used to refer either to a given register or to the contents
of that register:

AH–DH

The high 8-bit AH, BH, CH, and DH registers. Compare AL–DL.

AL–DL

The low 8-bit AL, BL, CL, and DL registers. Compare AH–DH.

AL–r15B

The low 8-bit AL, BL, CL, DL, SIL, DIL, BPL, SPL, and R8B–R15B registers, available in 64-bit
mode.

BP

Base pointer register.

CRn

Control register number n.

CS

Code segment register.

eAX–eSP

The 16-bit AX, BX, CX, DX, DI, SI, BP, and SP registers or the 32-bit EAX, EBX, ECX, EDX,

EDI, ESI, EBP, and ESP registers. Compare rAX–rSP.

EFER

Extended features enable register.

xxxvi Preface

24593—Rev. 3.14—September 2007 AMD64 Technology

eFLAGS

16-bit or 32-bit flags register. Compare rFLAGS.

EFLAGS

32-bit (extended) flags register.

eIP

16-bit or 32-bit instruction-pointer register. Compare rIP.

EIP

32-bit (extended) instruction-pointer register.

FLAGS

16-bit flags register.

GDTR

Global descriptor table register.

GPRs

General-purpose registers. For the 16-bit data size, these are AX, BX, CX, DX, DI, SI, BP, and SP.
For the 32-bit data size, these are EAX, EBX, ECX, EDX, EDI, ESI, EBP, and ESP. For the 64-bit
data size, these include RAX, RBX, RCX, RDX, RDI, RSI, RBP, RSP, and R8–R15.

IDTR

Interrupt descriptor table register.

IP

16-bit instruction-pointer register.

LDTR

Local descriptor table register.

MSR

Model-specific register.

r8–r15

The 8-bit R8B–R15B registers, or the 16-bit R8W–R15W registers, or the 32-bit R8D–R15D
registers, or the 64-bit R8–R15 registers.

rAX–rSP

The 16-bit AX, BX, CX, DX, DI, SI, BP, and SP registers, or the 32-bit EAX, EBX, ECX, EDX,
EDI, ESI, EBP, and ESP registers, or the 64-bit RAX, RBX, RCX, RDX, RDI, RSI, RBP, and RSP

registers. Replace the placeholder r with nothing for 16-bit size, “E” for 32-bit size, or “R” for 64-

bit size.

Preface xxxvii

AMD64 Technology 24593—Rev. 3.14—September 2007

RAX

64-bit version of the EAX register.

RBP

64-bit version of the EBP register.

RBX

64-bit version of the EBX register.

RCX

64-bit version of the ECX register.

RDI

64-bit version of the EDI register.

RDX

64-bit version of the EDX register.

rFLAGS

16-bit, 32-bit, or 64-bit flags register. Compare RFLAGS.

RFLAGS

64-bit flags register. Compare rFLAGS.

rIP

16-bit, 32-bit, or 64-bit instruction-pointer register. Compare RIP.

RIP

64-bit instruction-pointer register.

RSI

64-bit version of the ESI register.

RSP

64-bit version of the ESP register.

SP

Stack pointer register.

SS

Stack segment register.

TPR

Task priority register (CR8), a new register introduced in the AMD64 architecture to speed
interrupt management.

xxxviii Preface

24593—Rev. 3.14—September 2007 AMD64 Technology

TR

Task register.

Endian Order

The x86 and AMD64 architectures address memory using little-endian byte-ordering. Multibyte
values are stored with their least-significant byte at the lowest byte address, and they are illustrated
with their least significant byte at the right side. Strings are illustrated in reverse order, because the
addresses of their bytes increase from right to left.

Related Documents

• Peter Abel, IBM PC Assembly Language and Pr ogramming , Prentice-Hall, Englewood Cliffs, NJ,

1995.

• Rakesh Agarwal, 80x86 Architecture & Programming: Volume II, Prentice-Hall, Englewood

Cliffs, NJ, 1991.

• AMD data sheets and application notes for particular hardware implementations of the AMD64

architecture.

• AMD, AMD-K6™ MMX™ Enhanced Processor Multimedia Technology, Sunnyvale, CA, 2000.

• AMD, 3DNow!™ Technology Manual, Sunnyvale, CA, 2000.

• AMD, AMD Extensions to the 3DNow!™ and MMX™ Instruction Sets, Sunnyvale, CA, 2000.

• AMD, SYSCALL and SYSRET Instruction Specification Application Note, Sunnyvale, CA, 1998.

• Don Anderson and Tom Shanley, Pentium Processor System Architecture, Addison-Wesley, New

York, 1995.

• Nabajyoti Barkakati and Randall Hyde, Microsoft Macr o Assembler Bible, Sams, Carmel, Indiana,

1992.

• Barry B. Brey, 8086/8088, 80286, 80386, and 80486 Assembly Language Programming,

Macmillan Publishing Co., New York, 1994.

• Barry B. Brey, Programming the 80286, 80386, 80486, and Pentium Based Personal Computer,

Prentice-Hall, Englewood Cliffs, NJ, 1995.

• Ralf Brown and Jim Kyle, PC Interrupts, Addison-Wesley, New York, 1994.

• Penn Brumm and Don Brumm, 80386/80486 Assembly Language Programming, Windcrest

McGraw-Hill, 1993.

• Geoff Chappell, DOS Internals, Addison-Wesley, New York, 1994.

• Chips and Technologies, Inc. Super386 DX Programmer’s Reference Manual, Chips and

Technologies, Inc., San Jose, 1992.

• John Crawford and Patrick Gelsinger, Programming the 80386 , Sybex, San Francisco, 1987.

• Cyrix Corporation, 5x86 Processor BIOS Writer's Guide, Cyrix Corporation, Richardson, TX,

1995.

Preface xxxix

AMD64 Technology 24593—Rev. 3.14—September 2007

• Cyrix Corporation, M1 Pr ocessor Data Book, Cyrix Corporation, Richardson, TX, 1996.

• Cyrix Corporation, MX Pr ocessor MMX Extension Opcode Table, Cyrix Corporation, Richardson,

TX, 1996.

• Cyrix Corporation, MX Pr ocessor Data Book, Cyrix Corporation, Richardson, TX, 1997.

• Ray Duncan, Extending DOS: A Programmer's Guide to Protected-Mode DOS, Addison Wesley,

NY, 1991.

• William B. Giles, Assembly Language Programming for the Intel 80xxx Family, Macmillan, New

York, 1991.

• Frank van Gilluwe, The Undocumented PC, Addison-Wesley, New York, 1994.

• John L. Hennessy and David A. Patterson, Computer Architecture, Morgan Kaufmann Publishers,

San Mateo, CA, 1996.

• Thom Hogan, The Pr ogrammer’s PC Sourcebook, Microsoft Press, Redmond, WA, 1991.

• Hal Katircioglu, Inside the 486, Pentium, and Pentium Pr o, Peer-to-Peer Communications, Menlo

Park, CA, 1997.

• IBM Corporation, 486SLC Microprocessor Data Sheet, IBM Corporation, Essex Junction, VT,

1993.

• IBM Corporation, 486SLC2 Microprocessor Data Sheet, IBM Corporation, Essex Junction, VT,

1993.

• IBM Corporation, 80486DX2 Processor Floating Point Instructions, IBM Corporation, Essex

Junction, VT, 1995.

• IBM Corporation, 80486DX2 Processor BIOS Writer's Guide, IBM Corporation, Essex Junction,

VT, 1995.

• IBM Corporation, Blue Lightning 486DX2 Data Book, IBM Corporation, Essex Junction, VT,

1994.

• Institute of Electrical and Electronics Engineers, IEEE Standard for Binary Floating-Point

Arithmetic, ANSI/IEEE Std 754-1985.

• Institute of Electrical and Electronics Engineers, IEEE Standard for Radix-Independent Floating-

Point Arithmetic, ANSI/IEEE Std 854-1987.

• Muhammad Ali Mazidi and Janice Gillispie Mazidi, 80X86 IBM PC and Compatible Computers,

Prentice-Hall, Englewood Cliffs, NJ, 1997.

• Hans-Peter Messmer, The Indispensable Pentium Book, Addison-Wesley, New York, 1995.

• Karen Miller, An Assembly Language Introduction to Computer Architecture: Using the Intel

Pentium, Oxford University Press, New York, 1999.

• Stephen Morse, Eric Isaacson, and Douglas Albert, The 80386/387 Architecture, John Wiley &

Sons, New York, 1987.

TM

• NexGen Inc., Nx586

Processor Data Book, NexGen Inc., Milpitas, CA, 1993.

• NexGen Inc., Nx686TM Processor Data Book, NexGen Inc., Milpitas, CA, 1994.

xl Preface

24593—Rev. 3.14—September 2007 AMD64 Technology

• Bipin Patwardhan, Introduction to the Streaming SIMD Extensions in the Pentium® III,

www.x86.org/articles/sse_pt1/ simd1.htm, June, 2000.

• Peter Norton, Peter Aitken, and Richard Wilton, PC Programmer’s Bible, Microsoft Press,

Redmond, WA, 1993.

• PharLap 386|ASM Refer ence Manual, Pharlap, Cambridge MA, 1993.

• PharLap TNT DOS-Extender Refer ence Manual, Pharlap, Cambridge MA, 1995.

• Sen-Cuo Ro and Sheau-Chuen Her, i386/i486 Advanced Programming, Van Nostrand Reinhold,

New York, 1993.

• Jeffrey P. Royer, Introduction to Protected Mode Programming, course materials for an onsite

class, 1992.

• Tom Sha n ley, Protected Mode System Architectur e , Addison Wesley, NY, 1996.

• SGS-Thomson Corporation, 80486DX Processor SMM Programming Manual, SGS-Thomson

Corporation, 1995.

• Walter A. Triebel, The 80386DX Microprocessor, Prentice-Hall, Englewood Cliffs, NJ, 1992.

• John Wharton, The Complete x86, MicroDesign Resources, Sebastopol, California, 1994.

• Web sites and newsgroups:

- www.amd.com

- news.comp.arch

- news.comp.lang.asm.x86

- news.intel.microprocessors

- news.microsoft

Preface xli

AMD64 Technology 24593—Rev. 3.14—September 2007

xlii Preface

24593—Rev. 3.14—September 2007 AMD64 Technology

1 System-Programming Overview

This entire volume is intended for system-software developers—programmers writing operating
systems, loaders, linkers, device drivers, or utilities that require access to system resources. These
system resources are generally available only to software running at the highest-privilege level

(CPL=0), also referred to as privileged software. Privilege levels and their interactions are fully

described in “Segment-Protection Overview” on page 93.

This chapter introduces the basic features and capabilities of the AMD64 architecture that are available
to system-software developers. The concepts include:

• The supported address forms and how memory is organized.

• How memory-management hardware makes use of the various address forms to access memory.

• The processor operating modes, and how the memory-management hardware supports each of

those modes.

• The system-control registers used to manage system resources.

• The interrupt and exception mechanism, and how it is used to interrupt program execution and to

report errors.

• Additional, miscellaneous features available to system software, including support for hardware

multitasking, reporting machine-check exceptions, debugging software problems, and optimizing
software performance.

Many of the legacy features and capabilities are enhanced by the AMD64 architecture to support 64­bit operating systems and applications, while providing backward-compatibility with existing
software.

1.1 Memory Model

The AMD64 architecture memory model is designed to allow system software to manage application
software and associated data in a secure fashion. The memory model is backward-compatible with the
legacy memory model. Hardware-translation mechanisms are provided to map addresses between
virtual-memory space and physical-memory space. The translation mechanisms allow system
software to relocate applications and data transparently, either anywhere in physical-memory space, or
in areas on the system hard drive managed by the operating system.

In long mode, the AMD64 architecture implements a flat-memory model. In legacy mode, the
architecture implements all legacy memory models.

System-Programming Overview 1

AMD64 Technology 24593—Rev. 3.14—September 2007

1.1.1 Memory Addressing

The AMD64 architecture supports address relocation. To do this, several types of addresses are needed
to completely describe memory organization. Specifically, four types of addresses are defined by the
AMD64 architecture:

• Logical addresses

• Effective addresses, or segment offsets, which are a portion of the logical address.

• Linear (virtual) addresses

• Physical addresses

Logical Addresses. A logical address is a reference into a segmented-address space. It is comprised

of the segment selector and the effective address. Notationally, a logical address is represented as

Logical Address = Segment Selector : Offset

The segment selector specifies an entry in either the global or local descriptor table. The specified
descriptor-table entry describes the segment location in virtual-address space, its size, and other
characteristics. The effective address is used as an offset into the segment specified by the selector.

Logical addresses are often referred to as far pointers. Far pointers are used in software addressing

when the segment reference must be explicit (i.e., a reference to a segment outside the current
segment).

Effective Addresses. The offset into a memory segment is referred to as an effective address (see

“Segmentation” on page 5 for a description of segmented memory). Effective addresses are formed by
adding together elements comprising a base value, a scaled-index value, and a displacement value. The
effective-address computation is represented by the equation

Effective Address = Base + (Scale x Index) + Displacement

The elements of an effective-address computation are defined as follows:

• Base—A value stored in any general-purpose register.

• Scale—A positive value of 1, 2, 4, or 8.

• Index—A two’s-complement value stored in any general-purpose register.

• Displacement—An 8-bit, 16-bit, or 32-bit two’s-complement value encoded as part of the

instruction.

Effective addresses are often referred to as near pointers. A near pointer is used when the segment

selector is known implicitly or when the flat-memory model is used.

Long mode defines a 64-bit effective-address length. If a processor implementation does not support

the full 64-bit virtual-address space, the effective address must be in canonical form (see “Canonical

Address Form” on page 4).

2 System-Programming Overview

24593—Rev. 3.14—September 2007 AMD64 Technology

Linear (Virtual) Addresses. The segment-selector portion of a logical address specifies a segment-

descriptor entry in either the global or local descriptor table. The specified segment-descriptor entry
contains the segment-base address, which is the starting location of the segment in linear-address

space. A linear address is formed by adding the segment-base address to the effective address

(segment offset), which creates a reference to any byte location within the supported linear-address

space. Linear addresses are often referred to as virtual addresses, and both terms are used

interchangeably throughout this document.

Linear Address = Segment Base Address + Effective Address

When the flat-memory model is used—as in 64-bit mode—a segment-base address is treated as 0. In
this case, the linear address is identical to the effective address. In long mode, linear addresses must be
in canonical address form, as described in “Canonical Address Form” on page 4.

Physical Addresses. A physical address is a reference into the physical-address space, typically

main memory. Physical addresses are translated from virtual addresses using page-translation
mechanisms. See “Paging” on page 7 for information on how the paging mechanism is used for
virtual-address to physical-address translation. When the paging mechanism is not enabled, the virtual
(linear) address is used as the physical address.

1.1.2 Memory Organization

The AMD64 architecture organizes memory into virtual memory and physical memory. Virtual-

memory and physical-memory spaces can be (and usually are) different in size. Generally, the virtual­address space is much larger than physical-address memory. System software relocates applications
and data between physical memory and the system hard disk to make it appear that much more
memory is available than really exists. System software then uses the hardware memory-management
mechanisms to map the larger virtual-address space into the smaller physical-address space.

Virtual Memory. Software uses virtual addresses to access locations within the virtual-memory

space. System software is responsible for managing the relocation of applications and data in virtual­memory space using segment-memory management. System software is also responsible for mapping
virtual memory to physical memory through the use of page translation. The AMD64 architecture
supports different virtual-memory sizes using the following address-translation modes:

• Pr otected Mode—This mode supports 4 gigabytes of virtual-address space using 32-bit virtual

addresses.

• Long Mode—This mode supports 16 exabytes of virtual-address space using 64-bit virtual

addresses.

System-Programming Overview 3

AMD64 Technology 24593—Rev. 3.14—September 2007

Physical Memory. Physical addresses are used to directly access main memory. For a particular

computer system, the size of the available physical-address space is equal to the amount of main

memory installed in the system. The maximum amount of physical memory accessible depends on the
processor implementation and on the address-translation mode. The AMD64 architecture supports
varying physical-memory sizes using the following address-translation modes:

• Real-Addr ess Mode—This mode, also called r eal mode, supports 1 megabyte of physical-address

space using 20-bit physical addresses. This address-translation mode is described in “Real
Addressing” on page 10. Real mode is available only from legacy mode (see “Legacy Modes” on
page 14).

• Legacy Pr otected Mode—This mode supports several different address-space sizes, depending on

the translation mechanism used and whether extensions to those mechanisms are enabled.

Legacy protected mode supports 4 gigabytes of physical-address space using 32-bit physical
addresses. Both segment translation (see “Segmentation” on page 5) and page translation (see
“Paging” on page 7) can be used to access the physical address space, when the processor is
running in legacy protected mode.

When the physical-address size extensions are enabled (see “Physical-Address Extensions (PAE)
Bit” on page 119), the page-translation mechanism can be extended to support 52-bit physical
addresses. 52-bit physical addresses allow up to 4 petabytes of physical-address space to be
supported. (Currently, the AMD64 architecture supports 40-bit addresses in this mode, allowing up
to 1 terabyte of physical-address space to be supported.

• Long Mode—This mode is unique to the AMD64 architecture. This mode supports up to 4

petabytes of physical-address space using 52-bit physical addresses. Long mode requires the use of
page-translation and the physical-address size extensions (PAE).

1.1.3 Canonical Address Form

Long mode defines 64 bits of virtual-address space, but processor implementations can support less.
Although some processor implementations do not use all 64 bits of the virtual address, they all check
bits 63 through the most-significant implemented bit to see if those bits are all zeros or all ones. An

address that complies with this property is in canonical address form . In most cases, a virtual-memory

reference that is not in canonical form causes a general-protection exception (#GP) to occur. However,
implied stack references where the stack address is not in canonical form causes a stack exception
(#SS) to occur. Implied stack references include all push and pop instructions, and any instruction
using RSP or RBP as a base register.

By checking canonical-address form, the AMD64 architecture prevents software from exploiting
unused high bits of pointers for other purposes. Software complying with canonical-address form on a
specific processor implementation can run unchanged on long-mode implementations supporting
larger virtual-address spaces.

4 System-Programming Overview

24593—Rev. 3.14—September 2007 AMD64 Technology

1.2 Memory Management

Memory management consists of the methods by which addresses generated by software are translated
by segmentation and/or paging into addresses in physical memory. Memory management is not visible
to application software. It is handled by the system software and processor hardware.

1.2.1 Segmentation

Segmentation was originally created as a method by which system software could isolate software
processes (tasks), and the data used by those processes, from one another in an effort to increase the
reliability of systems running multiple processes simultaneously.

The AMD64 architecture is designed to support all forms of legacy segmentation. However, most
modern system software does not use the segmentation features available in the legacy x86
architecture. Instead, system software typically handles program and data isolation using page-level
protection. For this reason, the AMD64 architecture dispenses with multiple segments in 64-bit mode
and, instead, uses a flat-memory model. The elimination of segmentation allows new 64-bit system
software to be coded more simply, and it supports more efficient management of multi-processing than
is possible in the legacy x86 architecture.

Segmentation is, however, used in compatibility mode and legacy mode. Here, segmentation is a form
of base memory-addressing that allows software and data to be relocated in virtual-address space off of
an arbitrary base address. Software and data can be relocated in virtual-address space using one or

more variable-sized memory segments. The legacy x86 architecture provides several methods of

restricting access to segments from other segments so that software and data can be protected from
interfering with each other.

In compatibility and legacy modes, up to 16,383 unique segments can be defined. The base-address

value, segment size (called a limit), protection, and other attributes for each segment are contained in a
data structure called a segment descriptor. Collections of segment descriptors are held in descriptor

tables. Specific segment descriptors are referenced or selected from the descriptor table using a
segment selector register. Six segment-selector registers are available, providing access to as many as

six segments at a time.

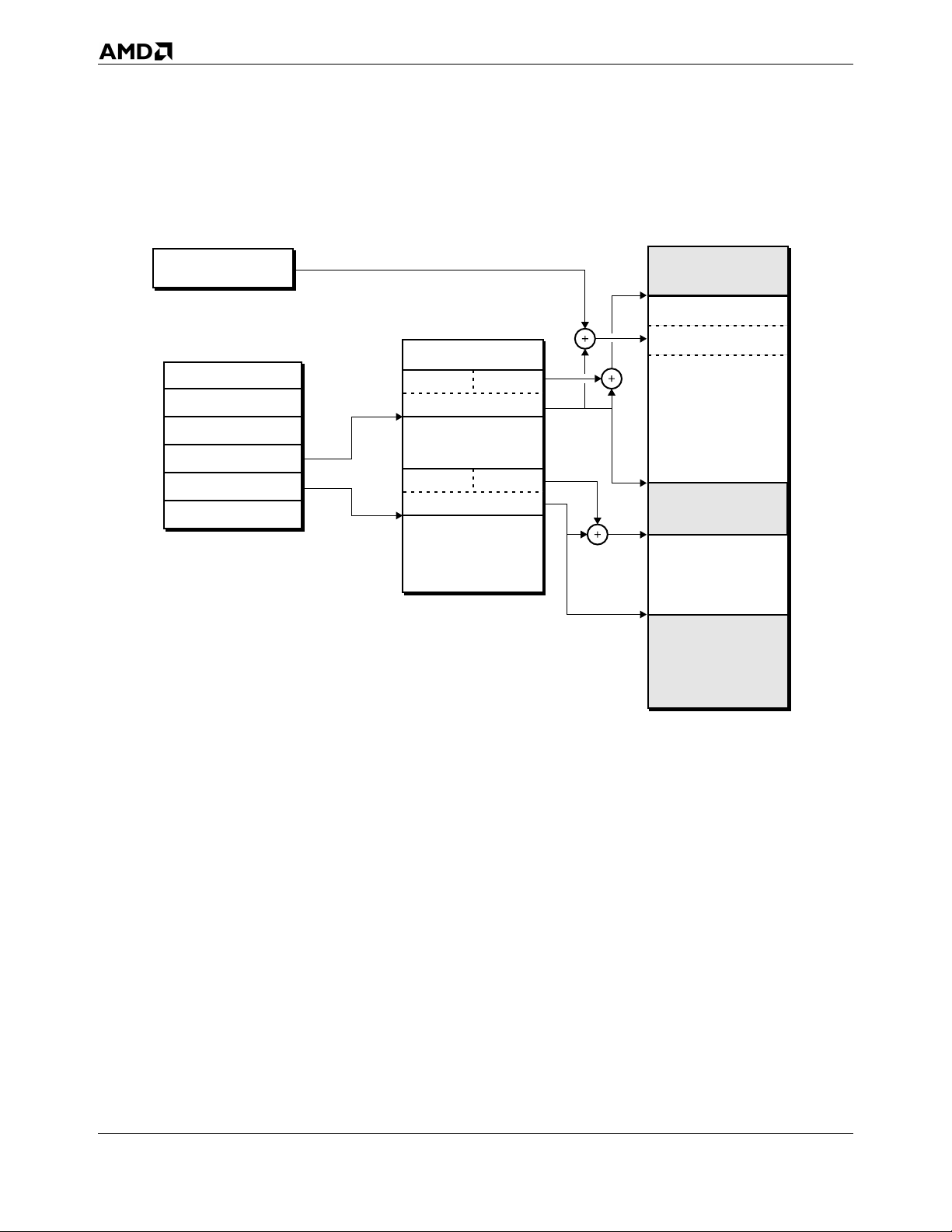

Figure 1-1 on page 6 shows an example of segmented memory. Segmentation is described in
Chapter 4, “Segmented Virtual Memory.”

System-Programming Overview 5

AMD64 Technology 24593—Rev. 3.14—September 2007

Virtual Address

Space

Effective Address

Descriptor Table

Selectors

Virtual Address

CS

DS

ES

FS

GS

SS

Limit

Base

Segment

Limit

Base

Segment

513-201.eps

Figure 1-1. Segmented-Memory Model

Flat Segmentation. One special case of segmented memory is the flat-memory model. In the legacy

flat-memory model, all segment-base addresses have a value of 0, and the segment limits are fixed at
4 Gbytes. Segmentation cannot be disabled but use of the flat-memory model effectively disables
segment translation. The result is a virtual address that equals the effective address. Figure 1-2 on
page 7 shows an example of the flat-memory model.

Software running in 64-bit mode automatically uses the flat-memory model. In 64-bit mode, the
segment base is treated as if it were 0, and the segment limit is ignored. This allows an effective
addresses to access the full virtual-address space supported by the processor.

6 System-Programming Overview

24593—Rev. 3.14—September 2007 AMD64 Technology

Virtual Address

Space

Effective Address

Virtual Address

Flat Segment

513-202.eps

Figure 1-2. Flat Memory Model

1.2.2 Paging

Paging allows software and data to be relocated in physical-address space using fixed-size blocks

called physical pages. The legacy x86 architecture supports three different physical-page sizes of

4 Kbytes, 2 Mbytes, and 4 Mbytes. As with segment translation, access to physical pages by lesser­privileged software can be restricted.

Page translation uses a hierarchical data structure called a page-translation table to translate virtual
pages into physical-pages. The number of levels in the translation-table hierarchy can be as few as one
or as many as four, depending on the physical-page size and processor operating mode. Translation
tables are aligned on 4-Kbyte boundaries. Physical pages must be aligned on 4-Kbyte, 2-Mbyte, or 4­Mbyte boundaries, depending on the physical-page size.

Each table in the translation hierarchy is indexed by a portion of the virtual-address bits. The entry
referenced by the table index contains a pointer to the base address of the next-lower-level table in the
translation hierarchy. In the case of the lowest-level table, its entry points to the physical-page base
address. The physical page is then indexed by the least-significant bits of the virtual address to yield
the physical address.

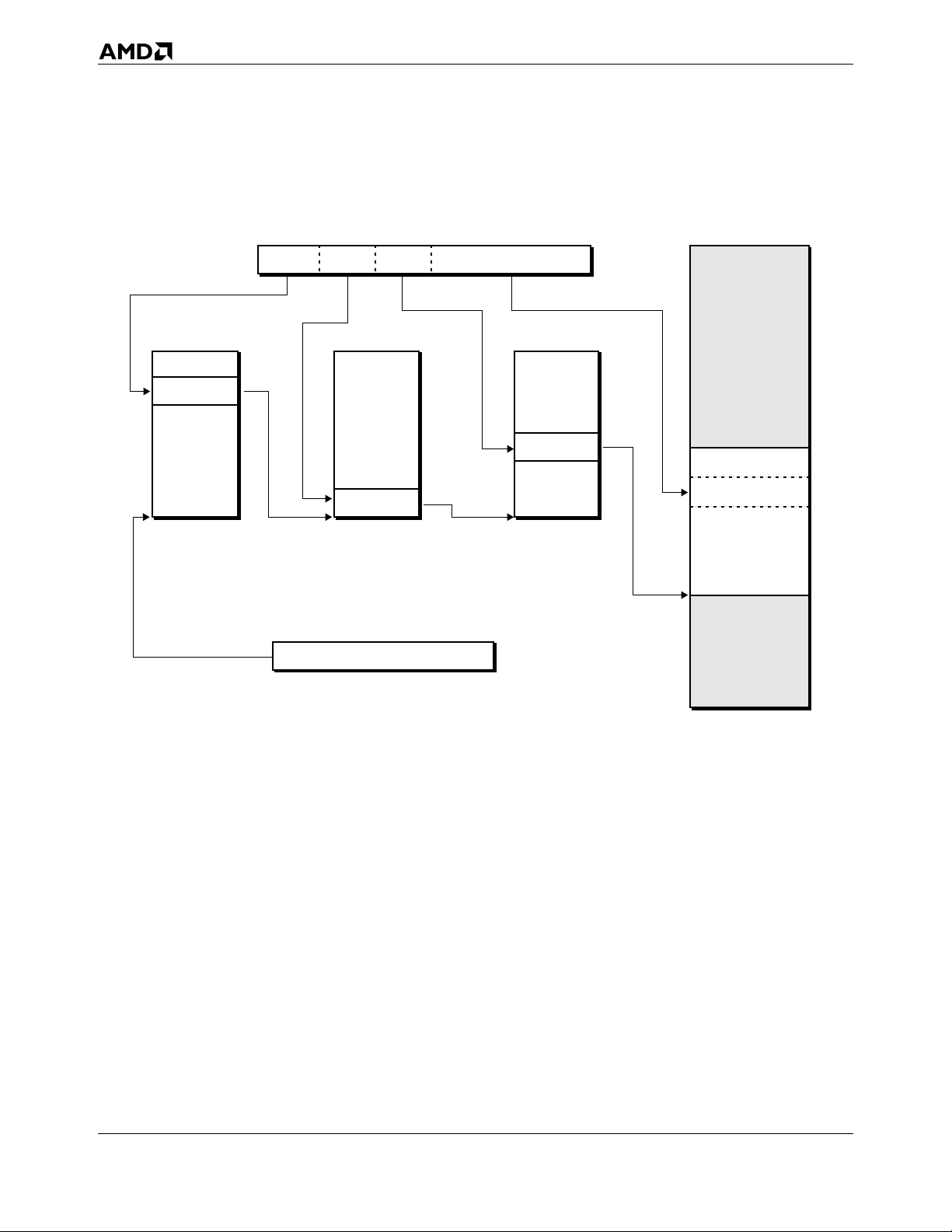

Figure 1-3 on page 8 shows an example of paged memory with three levels in the translation-table
hierarchy. Paging is described in Chapter 5, “Page Translation and Protection.”

System-Programming Overview 7

AMD64 Technology 24593—Rev. 3.14—September 2007

Physical Address

Virtual Address

Table 3Table 2Table 1

Space

Physical Address

Page Translation Tables

Physical Page

Page Table Base Address

513-203.eps

Figure 1-3. Paged Memory Model

Software running in long mode is required to have page translation enabled.

1.2.3 Mixing Segmentation and Paging

Memory-management software can combine the use of segmented memory and paged memory.
Because segmentation cannot be disabled, paged-memory management requires some minimum
initialization of the segmentation resources. Paging can be completely disabled, so segmented­memory management does not require initialization of the paging resources.

Segments can range in size from a single byte to 4 Gbytes in length. It is therefore possible to map
multiple segments to a single physical page and to map multiple physical pages to a single segment.
Alignment between segment and physical-page boundaries is not required, but memory-management
software is simplified when segment and physical-page boundaries are aligned.

8 System-Programming Overview

24593—Rev. 3.14—September 2007 AMD64 Technology

The simplest, most efficient method of memory management is the flat-memory model. In the flat­memory model, all segment base addresses have a value of 0 and the segment limits are fixed at 4
Gbytes. The segmentation mechanism is still used each time a memory reference is made, but because
virtual addresses are identical to effective addresses in this model, the segmentation mechanism is
effectively ignored. Translation of virtual (or effective) addresses to physical addresses takes place
using the paging mechanism only.

Because 64-bit mode disables segmentation, it uses a flat, paged-memory model for memory
management. The 4 Gbyte segment limit is ignored in 64-bit mode. Figure 1-4 shows an example of
this model.

Effective Address

Virtual Address

Space

Virtual Address

Physical Address

Space

Physical Address

Page Translation Tables

Page Frame

Flat Segment

Page Table Base Address

513-204.eps

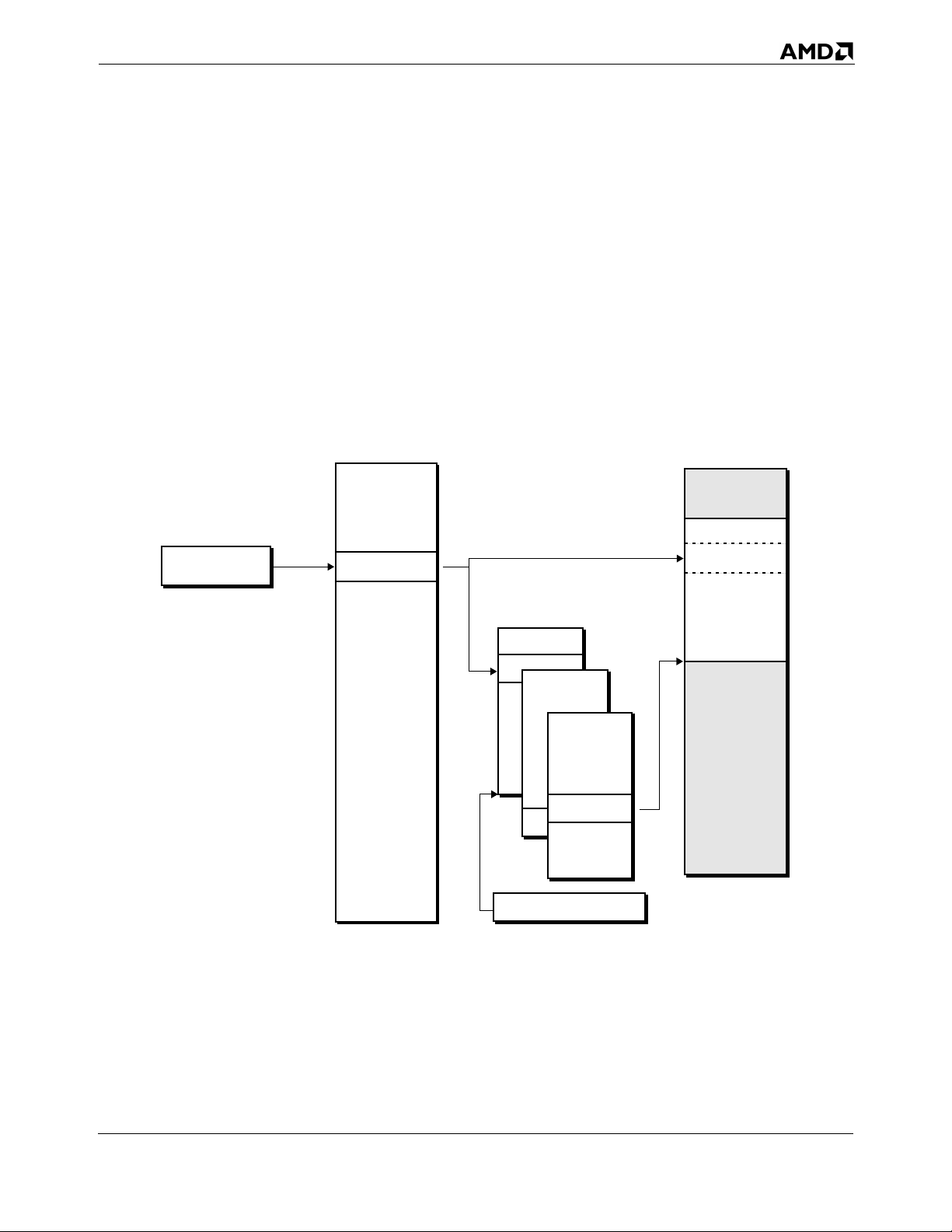

Figure 1-4. 64-Bit Flat, Paged-Memory Model

System-Programming Overview 9

AMD64 Technology 24593—Rev. 3.14—September 2007

1.2.4 Real Addressing

Real addressing is a legacy-mode form of address translation used in real mode. This simplified form
of address translation is backward compatible with 8086-processor effective-to-physical address
translation. In this mode, 16-bit effective addresses are mapped to 20-bit physical addresses, providing
a 1-Mbyte physical-address space.

Segment selectors are used in real-address translation, but not as an index into a descriptor table.
Instead, the 16-bit segment-selector value is shifted left by 4 bits to form a 20-bit segment-base
address. The 16-bit effective address is added to this 20-bit segment base address to yield a 20-bit
physical address. If the sum of the segment base and effective address carries over into bit 20, that bit
can be optionally truncated to mimic the 20-bit address wrapping of the 8086 processor by using the
A20M# input signal to mask the A20 address bit.

Real-address translation supports a 1-Mbyte physical-address space using up to 64K segments aligned
on 16-byte boundaries. Each segment is exactly 64K bytes long. Figure 1-5 shows an example of real­address translation.

015

Effective Address

0000 Effective Address 0000Selector

+

Physical Address

Selectors

CS

DS

ES

FS

GS

SS

019019

019

513-205.eps

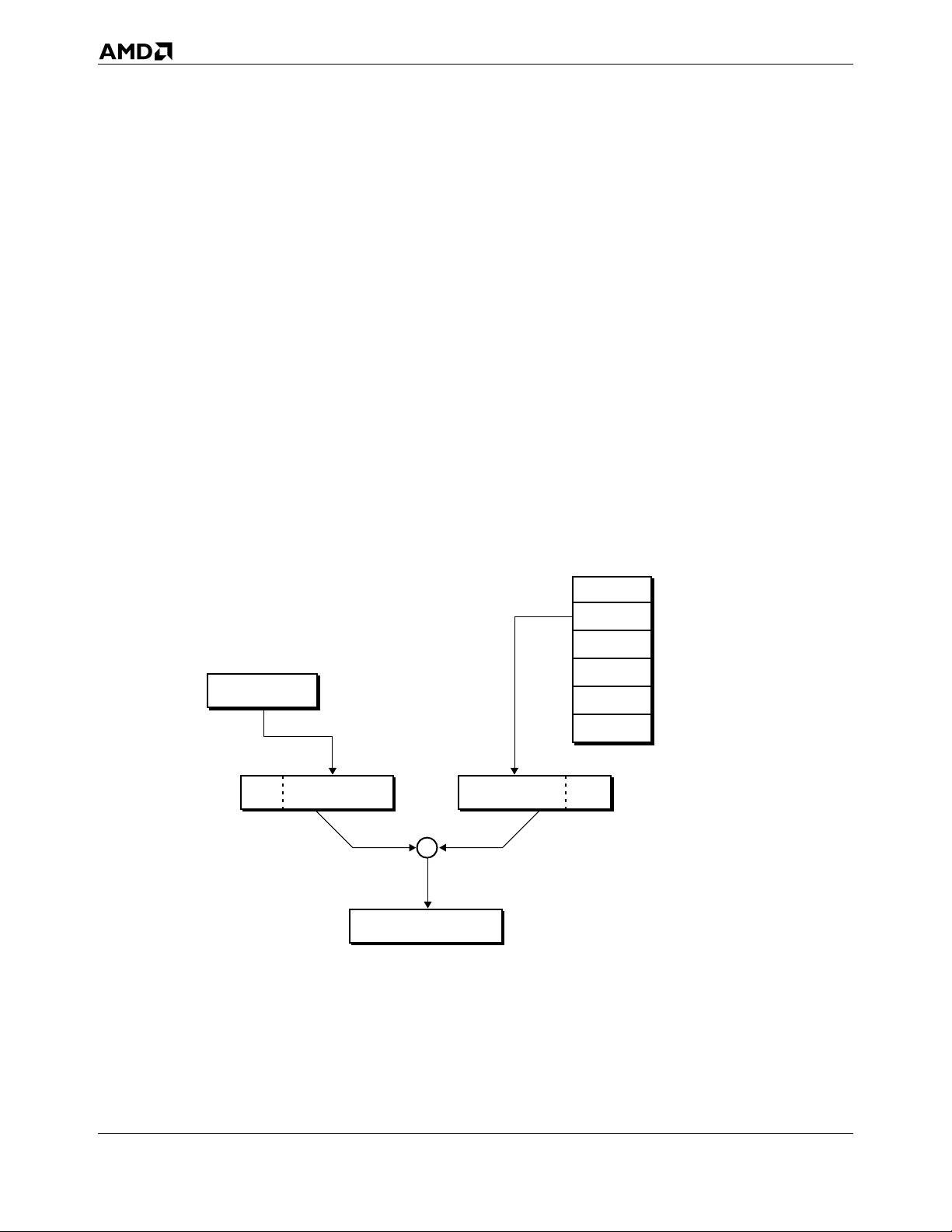

Figure 1-5. Real-Address Memory Model

10 System-Programming Overview

24593—Rev. 3.14—September 2007 AMD64 Technology

1.3 Operating Modes

The legacy x86 architecture provides four operating modes or environments that support varying
forms of memory management, virtual-memory and physical-memory sizes, and protection:

• Real Mode.

• Protected Mode.

• Virtual-8086 Mode.

• System Management Mode.

The AMD64 architecture supports all these legacy modes, and it adds a new operating mode called

long mode. Table 1-1 shows the differences between long mode and legacy mode. Software can move

between all supported operating modes as shown in Figure 1-6 on page 12. Each operating mode is
described in the following sections.

Table 1-1. Operating Modes

System

Mode

64-Bit
Long

Mode

Legacy
Mode

Note:

1. Defaults can be overridden in most modes using an instruction prefix or system control bit.

2. Register extensions includes eight new GPRs and eight new XMM registers (also called SSE registers).

3. Long mode supports only x86 protected mode. It does not support x86 real mode or virtual-8086 mode.

Mode

3

Compatibility

Mode

Protected

Mode

Virtual-8086

Mode

Real Mode

Software

Required

New

64-bit OS

Legacy

32-bit OS

Legacy

16-bit OS

Application

Recompile

Required

yes 64

no

no

Defaults

Address

Size

(bits)

32

16 16

32 32

16 16

16 16 32

1

Operand

Size

(bits)

32

Register

Extensions

yes 64

no 32

no

Maximum

2

GPR

Width

(bits)

32

System-Programming Overview 11

AMD64 Technology 24593—Rev. 3.14—September 2007

Long Mode

RSMSMI#

System

Management

Mode

64-bit
Mode

CS.L=0

EFER.LME=1, CR4.PAE=1
then CR0.PG=1

RSM

CR0.PE=1

Reset

Reset

CS.L=1

CS.L=0

Protected

Mode

Real

Mode

Compatibility

CR0.PG=0
then EFER.LME=0

SMI#

EFLAGS.VM=0

EFLAGS.VM=1

CR0.PE=0

SMI#

Mode

RSM

Reset

RSM

SMI#

RSM

SMI#

Reset

Virtual

8086

Mode

513-206.eps

Figure 1-6. Operating Modes of the AMD64 Architecture

1.3.1 Long Mode

Long mode consists of two submodes: 64-bit mode and compatibility mode. 64-bit mode supports

several new features, including the ability to address 64-bit virtual-address space. Compatibility mode
provides binary compatibility with existing 16-bit and 32-bit applications when running on 64-bit
system software.

Throughout this document, references to long mode refer collectively to both 64-bit mode and
compatibility mode. If a function is specific to either 64-bit mode or compatibility mode, then those
specific names are used instead of the name long mode.

Before enabling and activating long mode, system software must first enable protected mode. The
process of enabling and activating long mode is described in Chapter 14, “Processor Initialization and

12 System-Programming Overview

24593—Rev. 3.14—September 2007 AMD64 Technology

Long Mode Activation.” Long mode features are described throughout this document, where
applicable.

1.3.2 64-Bit Mode

64-bit mode, a submode of long mode, provides support for 64-bit system software and applications by
adding the following new features:

• 64-bit virtual addresses (processor implementations can have fewer).

• Register extensions through a new instruction prefix (REX):

- Adds eight GPRs (R8–R15).

- Widens GPRs to 64 bits.

- Adds eight 128-bit streaming SIMD extension (SSE) registers (XMM8–XMM15).

• 64-bit instruction pointer (RIP).

• New RIP-relative data-addressing mode.

• Flat-segment address space with single code, data, and stack space.

The mode is enabled by the system software on an individual code-segment basis. Although code
segments are used to enable and disable 64-bit mode, the legacy segmentation mechanism is largely
disabled. Page translation is required for memory management purposes. Because 64-bit mode
supports a 64-bit virtual-address space, it requires 64-bit system software and development tools.

In 64-bit mode, the default address size is 64 bits, and the default operand size is 32 bits. The defaults
can be overridden on an instruction-by-instruction basis using instruction prefixes. A new REX prefix
is introduced for specifying a 64-bit operand size and the new registers.

1.3.3 Compatibility Mode

Compatibility mode, a submode of long mode, allows system software to implement binary
compatibility with existing 16-bit and 32-bit x86 applications. It allows these applications to run,
without recompilation, under 64-bit system software in long mode, as shown in Table 1-1 on page 11.

In compatibility mode, applications can only access the first 4 Gbytes of virtual-address space.
Standard x86 instruction prefixes toggle between 16-bit and 32-bit address and operand sizes.

Compatibility mode, like 64-bit mode, is enabled by system software on an individual code-segment
basis. Unlike 64-bit mode, however, segmentation functions the same as in the legacy-x86
architecture, using 16-bit or 32-bit protected-mode semantics. From an application viewpoint,
compatibility mode looks like a legacy protected-mode environment. From a system-software
viewpoint, the long-mode mechanisms are used for address translation, interrupt and exception
handling, and system data-structures.

System-Programming Overview 13

AMD64 Technology 24593—Rev. 3.14—September 2007

1.3.4 Legacy Modes

Legacy mode consists of three submodes: real mode, protected mode, and virtual-8086 mode.
Protected mode can be either paged or unpaged. Legacy mode preserves binary compatibility not only

with existing x86 16-bit and 32-bit applications but also with existing x86 16-bit and 32-bit system
software.

Real Mode. In this mode, also called real-address mode, the processor supports a physical-memory

space of 1 Mbyte and operand sizes of 16 bits (default) or 32 bits (with instruction prefixes). Interrupt
handling and address generation are nearly identical to the 80286 processor's real mode. Paging is not
supported. All software runs at privilege level 0.

Real mode is entered after reset or processor power-up. The mode is not supported when the processor
is operating in long mode because long mode requires that paged protected mode be enabled.

Protected Mode. In this mode, the processor supports virtual-memory and physical-memory spaces

of 4 Gbytes and operand sizes of 16 or 32 bits. All segment translation, segment protection, and
hardware multitasking functions are available. System software can use segmentation to relocate
effective addresses in virtual-address space. If paging is not enabled, virtual addresses are equal to
physical addresses. Paging can be optionally enabled to allow translation of virtual addresses to
physical addresses and to use the page-based memory-protection mechanisms.

In protected mode, software runs at privilege levels 0, 1, 2, or 3. Typically, application software runs at
privilege level 3, the system software runs at privilege levels 0 and 1, and privilege level 2 is available
to system software for other uses. The 16-bit version of this mode was first introduced in the 80286
processor.

Virtual-8086 Mode. Virtual-8086 mode allows system software to run 16-bit real-mode software on a

virtualized-8086 processor. In this mode, software written for the 8086, 8088, 80186, or 80188
processor can run as a privilege-level-3 task under protected mode. The processor supports a virtual­memory space of 1 Mbytes and operand sizes of 16 bits (default) or 32 bits (with instruction prefixes),
and it uses real-mode address translation.

Virtual-8086 mode is enabled by setting the virtual-machine bit in the EFLAGS register
(EFLAGS.VM). EFLAGS.VM can only be set or cleared when the EFLAGS register is loaded from
the TSS as a result of a task switch, or by executing an IRET instruction from privileged software. The
POPF instruction cannot be used to set or clear the EFLAGS.VM bit.

Virtual-8086 mode is not supported when the processor is operating in long mode. When long mode is
enabled, any attempt to enable virtual-8086 mode is silently ignored.

14 System-Programming Overview

24593—Rev. 3.14—September 2007 AMD64 Technology

1.3.5 System Management Mode (SMM)

System management mode (SMM) is an operating mode designed for system-control activities that are
typically transparent to conventional system software. Power management is one popular use for
system management mode. SMM is primarily targeted for use by the basic input-output system (BIOS)
and specialized low-level device drivers. The code and data for SMM are stored in the SMM memory
area, which is isolated from main memory by the SMM output signal.

SMM is entered by way of a system management interrupt (SMI). Upon recognizing an SMI, the
processor enters SMM and switches to a separate address space where the SMM handler is located and
executes. In SMM, the processor supports real-mode addressing with 4 Gbyte segment limits and
default operand, address, and stack sizes of 16 bits (prefixes can be used to override these defaults).

1.4 System Registers

Figure 1-7 on page 16 shows the system registers defined for the AMD64 architecture. System
software uses these registers to, among other things, manage the processor operating environment,
define system resource characteristics, and to monitor software execution. With the exception of the
RFLAGS register, system registers can be read and written only from privileged software.

Except for the descriptor-table registers and task register, the AMD64 architecture defines all system
registers to be 64 bits wide. The descriptor table and task registers are defined by the AMD64
architecture to include 64-bit base-address fields, in addition to their other fields.

As shown in Figure 1-7 on page 16, the system registers include:

• Contr ol Registers—These registers are used to control system operation and some system features.

See “System-Control Registers” on page 41 for details.

• System-Flags Register—The RFLAGS register contains system-status flags and masks. It is also

used to enable virtual-8086 mode and to control application access to I/O devices and interrupts.
See “RFLAGS Register” on page 50 for details.

• Descriptor-Table Registers—These registers contain the location and size of descriptor tables

stored in memory. Descriptor tables hold segmentation data structures used in protected mode. See
“Descriptor Tables” on page 71 for details.

• Task Register—The task register contains the location and size in memory of the task-state

segment. The hardware-multitasking mechanism uses the task-state segment to hold state
information for a given task. The TSS also holds other data, such as the inner-level stack pointers
used when changing to a higher privilege level. See “Task Register” on page 311 for details.

• Debug Registers—Debug registers are used to control the software-debug mechanism, and to

report information back to a debug utility or application. See “Debug Registers” on page 328 for
details.

System-Programming Overview 15

AMD64 Technology 24593—Rev. 3.14—September 2007

Control Registers

CR0

CR2

CR3

CR4

CR8

System-Flags Register

RFLAGS

Debug Registers

DR0

DR1

DR2

DR3

DR6

DR7

Descriptor-Table Registers

GDTR

IDTR

LDTR

Extended-Feature-Enable Register

EFER

System-Configuration Register

SYSCFG

System-Linkage Registers

STAR

LSTAR

CSTAR

SFMASK

FS.base

GS.base

KernelGSbase

SYSENTER_CS

SYSENTER_ESP

SYSENTER_EIP

Debug-Extension Registers

DebugCtlMSR

LastBranchFromIP

LastBranchToIP

LastIntFromIP

LastIntToIP

Memory-Typing Registers

MTRRcap

MTRRdefType

MTRRphysBasen

MTRRphysMaskn

MTRRfixn

PAT

TOP_MEM

TOP_MEM2

Performance-Monitoring Registers

TSC

PerfEvtSeln

PerfCtrn

Machine-Check Registers

MCG_CAP

MCG_STAT

MCG_CTL

MCi_CTL

MCi_STATUS

MCi_ADDR

MCi_MISC

Task Register

TR

Model-Specific Registers

513-260.eps

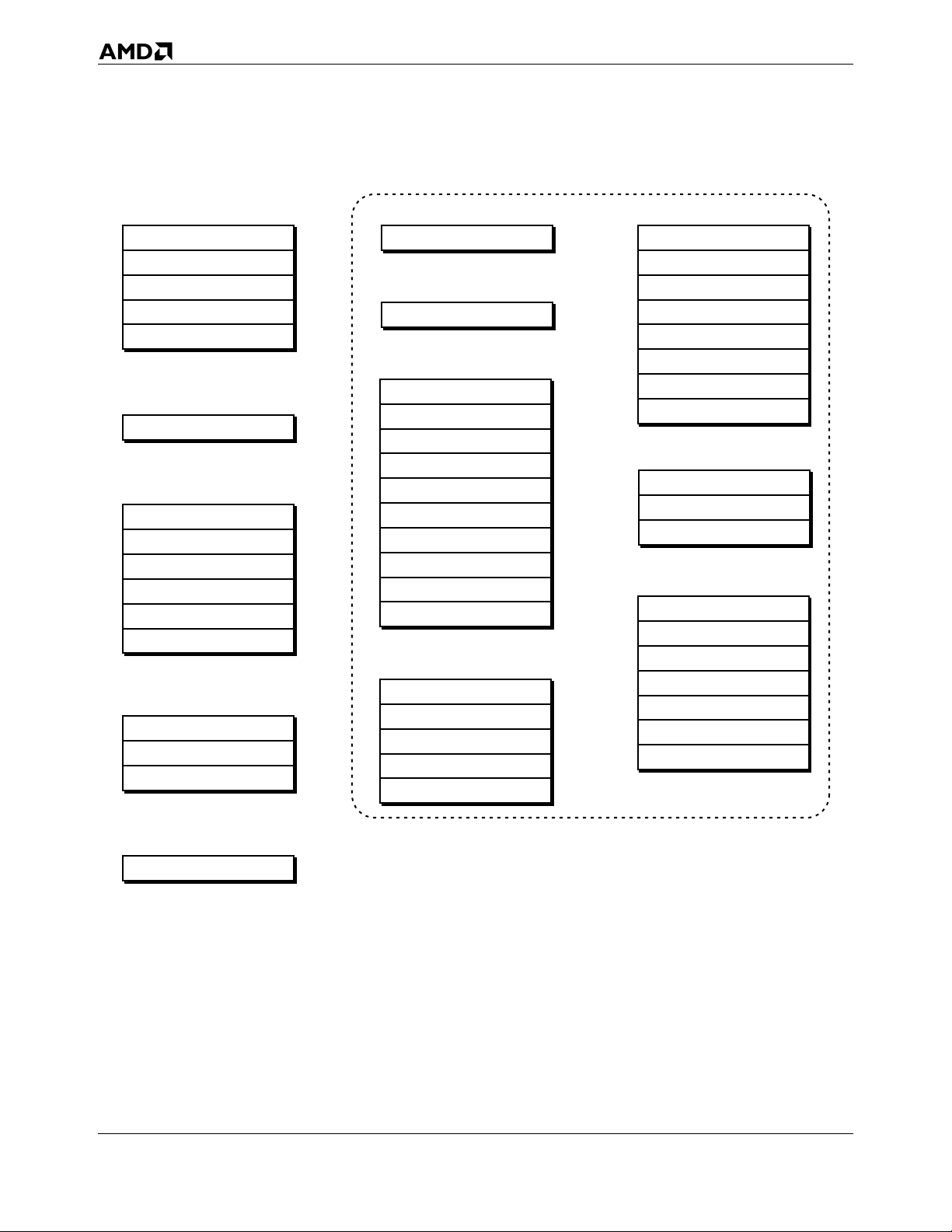

Figure 1-7. System Registers

Also defined as system registers are a number of model-specific registers included in the AMD64

architectural definition, and shown in Figure 1-7:

• Extended-Featur e-Enable Register—The EFER register is used to enable and report status on

special features not controlled by the CRn control registers. In particular, EFER is used to control

activation of long mode. See “Extended Feature Enable Register (EFER)” on page 54 for more
information.

16 System-Programming Overview

24593—Rev. 3.14—September 2007 AMD64 Technology

• System-Configuration Register—The SYSCFG register is used to enable and configure system-

bus features. See “System Configuration Register (SYSCFG)” on page 57 for more information.

• System-Linkage Registers—These registers are used by system-linkage instructions to specify

operating-system entry points, stack locations, and pointers into system-data structures. See “Fast
System Call and Return” on page 149 for details.

• Memory-Typing Registers—Memory-typing registers can be used to characterize (type) system

memory. Typing memory gives system software control over how instructions and data are cached,
and how memory reads and writes are ordered. See “MTRRs” on page 184 for details.

• Debug-Extension Registers—These registers control additional software-debug reporting features.

See “Debug Registers” on page 328 for details.

• Performance-Monitoring Registers—Performance-monitoring registers are used to count

processor and system events, or the duration of events. See “Performance Optimization” on
page 341 for more information.

• Machine-Check Registers—The machine-check registers control the response of the processor to

non-recoverable failures. They are also used to report information on such failures back to system
utilities designed to respond to such failures. See “Machine Check MSRs” on page 256 for more
information.

1.5 System-Data Structures

Figure 1-8 on page 18 shows the system-data structures defined for the AMD64 architecture. System­data structures are created and maintained by system software for use by the processor when running
in protected mode. A processor running in protected mode uses these data structures to manage
memory and protection, and to store program-state information when an interrupt or task switch
occurs.

System-Programming Overview 17

AMD64 Technology 24593—Rev. 3.14—September 2007

Segment Descriptors (Contained in Descriptor Tables)

Code

Stack

Data

Descriptor Tables

Global-Descriptor Table

Descriptor

Descriptor

. . .

Descriptor

Page-Translation Tables

Page-Map Level-4

Gate

Task-State Segment

Local-Descriptor Table

Interrupt-Descriptor Table

Gate Descriptor

Gate Descriptor

. . .

Gate Descriptor

Task-State Segment

Local-Descriptor Table

Descriptor

Descriptor

. . .

Descriptor

Page TablePage DirectoryPage-Directory Pointer

513-261.eps

Figure 1-8. System-Data Structures

As shown in Figure 1-8, the system-data structures include:

• Descriptors—A descriptor provides information about a segment to the processor, such as its

location, size and privilege level. A special type of descriptor, called a gate, is used to provide a

code selector and entry point for a software routine. Any number of descriptors can be defined, but
system software must at a minimum create a descriptor for the currently executing code segment
and stack segment. See “Legacy Segment Descriptors” on page 77, and “Long-Mode Segment
Descriptors” on page 86 for complete information on descriptors.

• Descriptor Tables—As the name implies, descriptor tables hold descriptors. The global-descriptor

table holds descriptors available to all programs, while a local-descriptor table holds descriptors
used by a single program. The interrupt-descriptor table holds only gate descriptors used by

18 System-Programming Overview

24593—Rev. 3.14—September 2007 AMD64 Technology

interrupt handlers. System software must initialize the global-descriptor and interrupt-descriptor
tables, while use of the local-descriptor table is optional. See “Descriptor Tables” on page 71 for
more information.

• Task-S tate Segment—The task-state segment is a special segment for holding processor-state

information for a specific program, or task. It also contains the stack pointers used when switching
to more-privileged programs. The hardware multitasking mechanism uses the state information in
the segment when suspending and resuming a task. Calls and interrupts that switch stacks cause the
stack pointers to be read from the task-state segment. System software must create at least one
task-state segment, even if hardware multitasking is not used. See “Legacy Task-State Segment”
on page 313, and “64-Bit Task State Segment” on page 317 for details.

• Page-Translation Tables—Use of page translation is optional in protected mode, but it is required

in long mode. A four-level page-translation data structure is provided to allow long-mode
operating systems to translate a 64-bit virtual-address space into a 52-bit physical-address space.
Legacy protected mode can use two- or three-level page-translation data structures. See “Page
Translation Overview” on page 115 for more information on page translation.

1.6 Interrupts

The AMD64 architecture provides a mechanism for the processor to automatically suspend (interrupt)
software execution and transfer control to an interrupt handler when an interrupt or exception occurs.
An interrupt handler is privileged software designed to identify and respond to the cause of an interrupt

or exception, and return control back to the interrupted software. Interrupts can be caused when

system hardware signals an interrupt condition using one of the external-interrupt signals on the

processor. Interrupts can also be caused by software that executes an interrupt instruction. Exceptions

occur when the processor detects an abnormal condition as a result of executing an instruction. The
term “interrupts” as used throughout this volume includes both interrupts and exceptions when the
distinction is unnecessary.

System software not only sets up the interrupt handlers, but it must also create and initialize the data
structures the processor uses to execute an interrupt handler when an interrupt occurs. The data
structures include the code-segment descriptors for the interrupt-handler software and any data­segment descriptors for data and stack accesses. Interrupt-gate descriptors must also be supplied.
Interrupt gates point to interrupt-handler code-segment descriptors, and the entry point in an interrupt
handler. Interrupt gates are stored in the interrupt-descriptor table. The code-segment and data­segment descriptors are stored in the global-descriptor table and, optionally, the local-descriptor table.

When an interrupt occurs, the processor uses the interrupt vector to find the appropriate interrupt gate
in the interrupt-descriptor table. The gate points to the interrupt-handler code segment and entry point,
and the processor transfers control to that location. Before invoking the interrupt handler, the processor
saves information required to return to the interrupted program. For details on how the processor
transfers control to interrupt handlers, see “Legacy Protected-Mode Interrupt Control Transfers” on
page 231, and “Long-Mode Interrupt Control Transfers” on page 241.

System-Programming Overview 19

AMD64 Technology 24593—Rev. 3.14—September 2007

Table 1-2 shows the supported interrupts and exceptions, ordered by their vector number. Refer to
“Vectors” on page 208 for a complete description of each interrupt, and a description of the interrupt
mechanism.

Table 1-2. Interrupts and Exceptions

Vector Description

0 Integer Divide-by-Zero Exception

1 Debug Exception

2 Non-Maskable-Interrupt

3 Breakpoint Exception (INT 3)

4 Overflow Exception (INTO instruction)

5 Bound-Range Exception (BOUND instruction)

6 Invalid-Opcode Exception

7 Device-Not-Available Exception

8 Double-Fault Exception

9

10 Invalid-TSS Exception

11 Segment-Not-Present Exception

12 Stack Exception

13 General-Protection Exception

14 Page-Fault Exception

15 (Reserved)

16 x87 Floating-Point Exception

17 Alignment-Check Exception

18 Machine-Check Exception

19 SIMD Floating-Point Exception

0-255 Interrupt Instructions

Any Hardware Maskable Interrupts

Coprocessor-Segment-Overrun Exception (reserved in
AMD64)

1.7 Additional System-Programming Facilities

1.7.1 Hardware Multitasking

A task is any program that the processor can execute, suspend, and later resume executing at the point
of suspension. During the time a task is suspended, other tasks are allowed to execute. Each task has its
own execution space, consisting of a code segment, data segments, and a stack segment for each
privilege level. Tasks can also have their own virtual-memory environment managed by the page­translation mechanism. The state information defining this execution space is stored in the task-state
segment (TSS) maintained for each task.

20 System-Programming Overview

24593—Rev. 3.14—September 2007 AMD64 Technology

Support for hardware multitasking is provided by implementations of the AMD64 architecture when
software is running in legacy mode. Hardware multitasking provides automated mechanisms for
switching tasks, saving the execution state of the suspended task, and restoring the execution state of
the resumed task. When hardware multitasking is used to switch tasks, the processor takes the
following actions:

• The processor automatically suspends execution of the task, allowing any executing instructions to

complete and save their results.

• The execution state of a task is saved in the task TSS.

• The execution state of a new task is loaded into the processor from its TSS.

• The processor begins executing the new task at the location specified in the new task TSS.

Use of hardware-multitasking features is optional in legacy mode. Generally, modern operating
systems do not use the hardware-multitasking features, and instead perform task management entirely
in software. Long mode does not support hardware multitasking at all.

Whether hardware multitasking is used or not, system software must create and initialize at least one
task-state segment data-structure. This requirement holds for both long-mode and legacy-mode
software. The single task-state segment holds critical pieces of the task execution environment and is
referenced during certain control transfers.

Detailed information on hardware multitasking is available in Chapter 12, “Task Management,” along
with a full description of the requirements that must be met in initializing a task-state segment when
hardware multitasking is not used.

1.7.2 Machine Check

Implementations of the AMD64 architecture support the machine-check exception. This exception is
useful in system applications with stringent requirements for reliability, availability, and serviceability.
The exception allows specialized system-software utilities to report hardware errors that are generally
severe and non-recoverable. Providing the capability to report such errors can allow complex system
problems to be pinpointed rapidly.

The machine-check exception is described in Chapter 9, “Machine Check Mechanism.” Much of the
error-reporting capabilities is implementation dependent. For more information, developers of
machine-check error-reporting software should also refer to the BIOS writer’s guide for a specific
implementation.

1.7.3 Software Debugging

A software-debugging mechanism is provided in hardware to help software developers quickly isolate
programming errors. This capability can be used to debug system software and application software
alike. Only privileged software can access the debugging facilities. Generally, software-debug support
is provided by a privileged application program rather than by the operating system itself.

The facilities supported by the AMD64 architecture allow debugging software to perform the
following:

System-Programming Overview 21

AMD64 Technology 24593—Rev. 3.14—September 2007

• Set breakpoints on specific instructions within a program.

• Set breakpoints on an instruction-address match.

• Set breakpoints on a data-address match.

• Set breakpoints on specific I/O-port addresses.

• Set breakpoints to occur on task switches when hardware multitasking is used.

• Single step an application instruction-by-instruction.

• Single step only branches and interrupts.

• Record a history of branches and interrupts taken by a program.

The debugging facilities are fully described in “Software-Debug Resources” on page 327. Some
processors provide additional, implementation-specific debug support. For more information, refer to
the BIOS writer’s guide for the specific implementation.

1.7.4 Performance Monitoring

For many software developers, the ability to identify and eliminate performance bottlenecks from a
program is nearly as important as quickly isolating programming errors. Implementations of the
AMD64 architecture provide hardware performance-monitoring resources that can be used by special
software applications to identify such bottlenecks. Non-privileged software can access the
performance monitoring facilities, but only if privileged software grants that access.

The performance-monitoring facilities allow the counting of events, or the duration of events.
Performance-analysis software can use the data to calculate the frequency of certain events, or the time
spent performing specific activities. That information can be used to suggest areas for improvement
and the types of optimizations that are helpful.

The performance-monitoring facilities are fully described in “Performance Optimization” on
page 341. The specific events that can be monitored are generally implementation specific. For more

information, refer to the BIOS writer’s guide for the specific implementation.

22 System-Programming Overview

24593—Rev. 3.14—September 2007 AMD64 Technology

2 x86 and AMD64 Architecture Differences

The AMD64 architecture is designed to provide full binary compatibility with all previous AMD
implementations of the x86 architecture. This chapter summarizes the new features and architectural
enhancements introduced by the AMD64 architecture, and compares those features and enhancements
with previous AMD x86 processors. Most of the new capabilities introduced by the AMD64
architecture are available only in long mode (64-bit mode, compatibility mode, or both). However,
some of the new capabilities are also available in legacy mode, and are mentioned where appropriate.

The material throughout this chapter assumes the reader has a solid understanding of the x86
architecture. For those who are unfamiliar with the x86 architecture, please read the remainder of this
volume before reading this chapter.

2.1 Operating Modes

See “Operating Modes” on page 11 for a complete description of the operating modes supported by the
AMD64 architecture.

2.1.1 Long Mode

The AMD64 architecture introduces long mode and its two sub-modes: 64-bit mode and compatibility
mode.

64-Bit Mode. 64-bit mode provides full support for 64-bit system software and applications. The new

features introduced in support of 64-bit mode are summarized throughout this chapter. To use 64-bit
mode, a 64-bit operating system and tool chain are required.

Compatibility Mode. Compatibility mode allows 64-bit operating systems to implement binary

compatibility with existing 16-bit and 32-bit x86 applications. It allows these applications to run,
without recompilation, under control of a 64-bit operating system in long mode. The architectural
enhancements introduced by the AMD64 architecture that support compatibility mode are
summarized throughout this chapter.

Unsupported Modes. Long mode does not support the following two operating modes:

• Virtual-8086 Mode—The virtual-8086 mode bit (EFLAGS.VM) is ignored when the processor is

running in long mode. When long mode is enabled, any attempt to enable virtual-8086 mode is
silently ignored. System software must leave long mode in order to use virtual-8086 mode.

• Real Mode—Real mode is not supported when the processor is operating in long mode because

long mode requires that protected mode be enabled.

2.1.2 Legacy Mode

The AMD64 architecture supports a pure x86 legacy mode, which preserves binary compatibility not
only with existing 16-bit and 32-bit applications but also with existing 16-bit and 32-bit operating

x86 and AMD64 Architecture Differences 23

AMD64 Technology 24593—Rev. 3.14—September 2007

systems. Legacy mode supports real mode, protected mode, and virtual-8086 mode. A reset always

places the processor in legacy mode (real mode), and the processor continues to run in legacy mode
until system software activates long mode. New features added by the AMD64 architecture that are
supported in legacy mode are summarized in this chapter.

2.1.3 System-Management Mode

The AMD64 architecture supports system-management mode (SMM). SMM can be entered from both
long mode and legacy mode, and SMM can return directly to either mode. The following differences
exist between the support of SMM in the AMD64 architecture and the SMM support found in previous
processor generations:

• The SMRAM state-save area format is changed to hold the 64-bit processor state. This state-save

area format is used regardless of whether SMM is entered from long mode or legacy mode.

• The auto-halt restart and I/O-instruction restart entries in the SMRAM state-save area are one byte

instead of two bytes.

• The initial processor state upon entering SMM is expanded to reflect the 64-bit nature of the

processor.

• New conditions exist that can cause a processor shutdown while exiting SMM.

• SMRAM caching considerations are modified because the legacy FLUSH# external signal

(writeback, if modified, and invalidate) is not supported on implementations of the AMD64
architecture.

See Chapter 10, “System-Management Mode,” for more information on the SMM differences.

2.2 Memory Model

The AMD64 architecture provides enhancements to the legacy memory model to support very large
physical-memory and virtual-memory spaces while in long mode. Some of this expanded support for
physical memory is available in legacy mode.

2.2.1 Memory Addressing

Virtual-Memory Addressing. Virtual-memory support is expanded to 64 address bits in long mode.

This allows up to 16 exabytes of virtual-address space to be accessed. The virtual-address space
supported in legacy mode is unchanged.

Physical-Memory Addressing. Physical-memory support is expanded to 52 address bits in long

mode and legacy mode. This allows up to 4 petabytes of physical memory to be accessed. The
expanded physical-memory support is achieved by using paging and the page-size extensions.

Implementations can support fewer than 52 physical-address bits. The first implementation of the
AMD64 architecture, for example, supports 40-bit physical addressing in both long mode and legacy
mode.

24 x86 and AMD64 Architecture Differences

24593—Rev. 3.14—September 2007 AMD64 Technology

Effective Addressing. The effective-address length is expanded to 64 bits in long mode. An

effective-address calculation uses 64-bit base and index registers, and sign-extends 8-bit and 32-bit
displacements to 64 bits. In legacy mode, effective addresses remain 32 bits long.

2.2.2 Page Translation

The AMD64 architecture defines an expanded page-translation mechanism supporting translation of a
64-bit virtual address to a 52-bit physical address. See “Long-Mode Page Translation” on page 128 for
detailed information on the enhancements to page translation in the AMD64 architecture. The
enhancements are summarized below.

Physical-Address Extensions (PAE). The AMD64 architecture requires physical-address

extensions to be enabled (CR4.PAE=1) before long mode is entered. When PAE is enabled, all paging
data-structures are 64 bits, allowing references into the full 52-bit physical-address space supported by
the architecture.

Page-Size Extensions (PSE). Page-size extensions (CR4.PSE) are ignored in long mode. Long

mode does not support the 4-Mbyte page size enabled by page-size extensions. Long mode does,
however, support 4-Kbyte and 2-Mbyte page sizes.

Paging Data Structures. The AMD64 architecture extends the page-translation data structures in

support of long mode. The extensions are:

• Page-map level-4 (PML4)—Long mode defines a new page-translation data structure, the PML4

table. The PML4 table sits at the top of the page-translation hierarchy and references PDP tables.

• Page-directory pointer (PDP)—The PDP tables in long mode are expanded from 4 entries to 512

entries each.

• Page-dir ectory pointer entry (PDPE)—Previously undefined fields within the legacy-mode PDPE

are defined by the AMD64 architecture.

CR3 Register. The CR3 register is expanded to 64 bits for use in long-mode page translation. When

long mode is active, the CR3 register references the base address of the PML4 table. In legacy mode,
the upper 32 bits of CR3 are masked by the processor to support legacy page translation. CR3
references the PDP base-address when physical-address extensions are enabled, or the page-directory
table base-address when physical-address extensions are disabled.

Legacy-Mode Enhancements. Legacy-mode software can take advantage of the enhancements

made to the physical-address extension (PAE) support and page-size extension (PSE) support. The
four-level page translation mechanism introduced by long mode is not available to legacy-mode
software.

• PAE—When physical-address extensions are enabled (CR4.PAE=1), the AMD64 architecture

allows legacy-mode software to load up to 52-bit (maximum size) physical addresses into the PDE

and PTE. (Addresses are expanded to the maximum physical address size supported by the

implementation.)

x86 and AMD64 Architecture Differences 25

AMD64 Technology 24593—Rev. 3.14—September 2007

• PSE—The use of page-size extensions allows legacy mode software to define 4-Mbyte pages using

the 32-bit page-translation tables. When page-size extensions are enabled (CR4.PSE=1), the
AMD64 architecture enhances the 4-Mbyte PDE to support 40 physical-address bits.

See “Legacy-Mode Page Translation” on page 120 for more information on these enhancements.

2.2.3 Segmentation

In long mode, the effects of segmentation depend on whether the processor is running in compatibility
mode or 64-bit mode:

• In compatibility mode, segmentation functions just as it does in legacy mode, using legacy 16-bit

or 32-bit protected mode semantics.

• 64-bit mode requires a flat-memory model for creating a flat 64-bit virtual-address space. Much of

the segmentation capability present in legacy mode and compatibility mode is disabled when the
processor is running in 64-bit mode.

The differences in the segmentation model as defined by the AMD64 architecture are summarized in
the following sections. See Chapter 4, “Segmented Virtual Memory,” for a thorough description of
these differences.

Descriptor-Table Registers. In long mode, the base-address portion of the descriptor-table registers

(GDTR, IDTR, LDTR, and TR) are expanded to 64 bits. The full 64-bit base address can only be
loaded by software when the processor is running in 64-bit mode (using the LGDT, LIDT, LLDT, and

LTR instructions, respectively). However, the full 64-bit base address is used by a processor running in

compatibility mode (in addition to 64-bit mode) when making a reference into a descriptor table.

A processor running in legacy mode can only load the low 32 bits of the base address, and the high 32
bits are ignored when references are made to the descriptor tables.

Code-Segment Descriptors. The AMD64 architecture defines a new code-segment descriptor

attribute, L (long). In compatibility mode, the processor treats code-segment descriptors as it does in
legacy mode, with the exception that the processor recognizes the L attribute. If a code descriptor with
L=1 is loaded in compatibility mode, the processor leaves compatibility mode and enters 64-bit mode.
In legacy mode, the L attribute is reserved.

The following differences exist for code-segment descriptors in 64-bit mode only:

• The CS base-address field is ignored by the processor.

• The CS limit field is ignored by the processor.

• Only the L (long), D (default size), and DPL (descriptor-privilege level) fields are used by the

processor in 64-bit mode. All remaining attributes are ignored.

Data-Segment Descriptors. The following differences exist for data-segment descriptors in 64-bit

mode only:

• The DS, ES, and SS descriptor base-address fields are ignored by the processor.

26 x86 and AMD64 Architecture Differences

24593—Rev. 3.14—September 2007 AMD64 Technology

• The FS and GS descriptor base-address fields are expanded to 64 bits and used in effective-address

calculations. The 64 bits of base address are mapped to model-specific registers (MSRs), and can
only be loaded using the WRMSR instruction.

• The limit fields and attribute fields of all data-segment descriptors (DS, ES, FS, GS, and SS) are

ignored by the processor.

In compatibility mode, the processor treats data-segment descriptors as it does in legacy mode.
Compatibility mode ignores the high 32 bits of base address in the FS and GS segment descriptors
when calculating an effective address.

System-Segment Descriptors. In 64-bit mode only, The LDT and TSS system-segment descriptor

formats are expanded by 64 bits, allowing them to hold 64-bit base addresses. LLDT and LTR
instructions can be used to load these descriptors into the LDTR and TR registers, respectively, from
64-bit mode.

In compatibility mode and legacy mode, the formats of the LDT and TSS system-segment descriptors

are unchanged. Also, unlike code-segment and data-segment descriptors, system-segment descriptor

limits ar e checked by the processor in long mode.

Some legacy mode LDT and TSS type-field encodings are illegal in long mode (both compatibility
mode and 64-bit mode), and others are redefined to new types. See “System Descriptors” on page 88
for additional information.

Gate Descriptors. The following differences exist between gate descriptors in long mode (both

compatibility mode and 64-bit mode) and in legacy mode:

• In long mode, all 32-bit gate descriptors are redefined as 64-bit gate descriptors, and are expanded

to hold 64-bit offsets. The length of a gate descriptor in long mode is therefore 128 bits (16 bytes),
versus the 64 bits (8 bytes) in legacy mode.

• Some type-field encodings are illegal in long mode, and others are redefined to new types. See

“Gate Descriptors” on page 90 for additional information.

• The interrupt-gate and trap-gate descriptors define a new field, called the interrupt-stack table

(IST) field.

2.3 Protection Checks

The AMD64 architecture makes the following changes to the protection mechanism in long mode:

• The page-protection-check mechanism is expanded in long mode to include the U/S and R/W

protection bits stored in the PML4 entries and PDP entries.

• Several system-segment types and gate-descriptor types that are legal in legacy mode are illegal in

long mode (compatibility mode and 64-bit mode) and fail type checks when used in long mode.

• Segment-limit checks are disabled in 64-bit mode for the CS, DS, ES, FS, GS, and SS segments.

Segment-limit checks remain enabled for the LDT, GDT, IDT and TSS system segments.

All segment-limit checks are performed in compatibility mode.

x86 and AMD64 Architecture Differences 27

AMD64 Technology 24593—Rev. 3.14—September 2007

• Code and data segments used in 64-bit mode are treated as both readable and writable.

See “Page-Protection Checks” on page 142 and “Segment-Protection Overview” on page 93 for
detailed information on the protection-check changes.

2.4 Registers

The AMD64 architecture adds additional registers to the architecture, and in many cases expands the
size of existing registers to 64 bits. The 80-bit floating-point stack registers and their overlaid 64-bit
MMX™ registers are not modified by the AMD64 architecture.

2.4.1 General-Purpose Registers

In 64-bit mode, the general-purpose registers (GPRs) are 64 bits wide, and eight additional GPRs are
available. The GPRs are: RAX, RBX, RCX, RDX, RDI, RSI, RBP, RSP, and the new R8–R15
registers. To access the full 64-bit operand size, or the new R8–R15 registers, an instruction must
include a new REX instruction-prefix byte (see “REX Prefixes” on page 29 for a summary of this
prefix).

In compatibility and legacy modes, the GPRs consist only of the eight legacy 32-bit registers. All
legacy rules apply for determining operand size.

2.4.2 128-Bit Media Registers

In 64-bit mode, eight additional 128-bit XMM registers are available, XMM8–XMM15. A REX
instruction prefix is used to access these registers. In compatibility and legacy modes, the XMM
registers consist of the eight 128-bit legacy registers, XMM0–XMM7.

2.4.3 Flags Register

The flags register is expanded to 64 bits, and is called RFLAGS. All 64 bits can be accessed in 64-bit
mode, but the upper 32 bits are reserved and always read back as zeros. Compatibility mode and legacy
mode can read and write only the lower-32 bits of RFLAGS (the legacy EFLAGS).

2.4.4 Instruction Pointer

In long mode, the instruction pointer is extended to 64 bits, to support 64-bit code offsets. This 64-bit
instruction pointer is called RIP.

2.4.5 Stack Pointer

In 64-bit mode, the size of the stack pointer, RSP, is always 64 bits. The stack size is not controlled by
a bit in the SS descriptor, as it is in compatibility or legacy mode, nor can it be overridden by an
instruction prefix. Address-size overrides are ignored for implicit stack references.

28 x86 and AMD64 Architecture Differences

24593—Rev. 3.14—September 2007 AMD64 Technology

2.4.6 Control Registers

The AMD64 architecture defines several enhancements to the control registers (CRn). In long mode,

all control registers are expanded to 64 bits, although the entire 64 bits can be read and written only
from 64-bit mode. A new control register, the task-priority register (CR8 or TPR) is added, and can be
read and written from 64-bit mode. Last, the function of the page-enable bit (CR0.PG) is expanded.
When long mode is enabled, the PG bit is used to activate and deactivate long mode.

2.4.7 Debug Registers

In long mode, all debug registers are expanded to 64 bits, although the entire 64 bits can be read and
written only from 64-bit mode. Expanded register encodings for the decode registers allow up to eight
new registers to be defined (DR8–DR15), although presently those registers are not supported by the
AMD64 architecture.

2.4.8 Extended Feature Register (EFER)

The EFER is expanded by the AMD64 architecture to include a long-mode-enable bit (LME), and a
long-mode-active bit (LMA). These new bits can be accessed from legacy mode and long mode.

2.4.9 Memory Type Range Registers (MTRRs)

The legacy MTRRs are architecturally defined as 64 bits, and can accommodate the maximum 52-bit
physical address allowed by the AMD64 architecture. From both long mode and legacy mode,
implementations of the AMD64 architecture reference the entire 52-bit physical-address value stored
in the MTRRs. Long mode and legacy mode system software can update all 64 bits of the MTRRs to
manage the expanded physical-address space.

2.4.10 Other Model-Specific Registers (MSRs)

Several other MSRs have fields holding physical addresses. Examples include the APIC-base register
and top-of-memory register. Generally, any model-specific register that contains a physical address is
defined architecturally to be 64 bits wide, and can accommodate the maximum physical-address size
defined by the AMD64 architecture. When physical addresses are read from MSRs by the processor,
the entire value is read regardless of the operating mode. In legacy implementations, the high-order
MSR bits are reserved, and software must write those values with zeros. In legacy mode on AMD64
architecture implementations, software can read and write all supported high-order MSR bits.

2.5 Instruction Set

2.5.1 REX Prefixes

REX prefixes are a new family of instruction-prefix bytes used in 64-bit mode to:

• Specify the new GPRs and XMM registers.

• Specify a 64-bit operand size.

x86 and AMD64 Architecture Differences 29

AMD64 Technology 24593—Rev. 3.14—September 2007

• Specify additional control registers. One additional control register, CR8, is defined in 64-bit

mode.

• Specify additional debug registers (although none are currently defined).

Not all instructions require a REX prefix. The prefix is necessary only if an instruction references one
of the extended registers or uses a 64-bit operand. If a REX prefix is used when it has no meaning, it is
ignored.

Default 64-Bit Operand Size. In 64-bit mode, two groups of instructions have a default operand size

of 64 bits and thus do not need a REX prefix for this operand size:

• Near branches.

• All instructions, except far branches, that implicitly reference the RSP. See “Instructions that

Reference RSP” on page 31 for additional information.

2.5.2 Segment-Override Prefixes in 64-Bit Mode

In 64-bit mode, the DS, ES, SS, and CS segment-override prefixes have no effect. These four prefixes
are no longer treated as segment-override prefixes in the context of multiple-prefix rules. Instead, they
are treated as null prefixes.

The FS and GS segment-override prefixes are treated as segment-override prefixes in 64-bit mode. Use
of the FS and GS prefixes cause their respective segment bases to be added to the effective address
calculation. See “FS and GS Registers in 64-Bit Mode” on page 70 for additional information on using
these segment registers.

2.5.3 Operands and Results

The AMD64 architecture provides support for using 64-bit operands and generating 64-bit results
when operating in 64-bit mode. See “Operands” in Volume 1 for details.

Operand-Size Overrides. In 64-bit mode, the default operand size is 32 bits. A REX prefix can be

used to specify a 64-bit operand size. Software uses a legacy operand-size (66h) prefix to toggle to 16­bit operand size. The REX prefix takes precedence over the legacy operand-size prefix.

Zero Extension of Results. In 64-bit mode, when performing 32-bit operations with a GPR

destination, the processor zero-extends the 32-bit result into the full 64-bit destination. Both 8-bit and
16-bit operations on GPRs preserve all unwritten upper bits of the destination GPR. This is consistent
with legacy 16-bit and 32-bit semantics for partial-width results.

2.5.4 Address Calculations

The AMD64 architecture modifies aspects of effective-address calculation to support 64-bit mode.
These changes are summarized in the following sections. See “Memory Addressing” in Volume 1 for
details.

30 x86 and AMD64 Architecture Differences

24593—Rev. 3.14—September 2007 AMD64 Technology

Address-Size Overrides. In 64-bit mode, the default-address size is 64 bits. The address size can be

overridden to 32 bits by using the address-size prefix (67h). 16-bit addresses are not supported in 64­bit mode. In compatibility mode and legacy mode, address-size overrides function the same as in x86
legacy architecture.

Displacements and Immediates. Generally, displacement and immediate values in 64-bit mode are

not extended to 64 bits. They are still limited to 32 bits and are sign extended during effective-address
calculations. In 64-bit mode, however, support is provided for some 64-bit displacement and
immediate forms of the MOV instruction.

Zero Extending 16-Bit and 32-Bit Addresses. All 16-bit and 32-bit address calculations are zero-

extended in long mode to form 64-bit addresses. Address calculations are first truncated to the
effective-address size of the current mode (64-bit mode or compatibility mode), as overridden by any
address-size prefix. The result is then zero-extended to the full 64-bit address width.

RIP-Relative Addressing. A new addressing form, RIP-relative (instruction-pointer relative)

addressing, is implemented in 64-bit mode. The effective address is formed by adding the
displacement to the 64-bit RIP of the next instruction.

2.5.5 Instructions that Reference RSP

With the exception of far branches, all instructions that implicitly reference the 64-bit stack pointer,
RSP, default to a 64-bit operand size in 64-bit mode (see Table 2-1 for a listing). Pushes and pops of
32-bit stack values are not possible in 64-bit mode with these instructions, but they can be overridden
to 16 bits.

Table 2-1. Instructions That Reference RSP

Mnemonic

ENTER C8 Create Procedure Stack Frame

LEAVE C9 Delete Procedure Stack Frame

POP reg/mem 8F/0 Pop Stack (register or memory)

POP reg 58-5F Pop Stack (register)

POP FS 0F A1 Pop Stack into FS Segment Register

POP GS 0F A9 Pop Stack into GS Segment Register

POPF, POPFD, POPFQ 9D Pop to rFLAGS Word, Doubleword, or Quadword

PUSH imm32 68 Push onto Stack (sign-extended doubleword)

PUSH imm8 6A Push onto Stack (sign-extended byte)

PUSH reg/mem FF/6 Push onto Stack (register or memory)

PUSH reg 50-57 Push onto Stack (register)

PUSH FS 0F A0 Push FS Segment Register onto Stack

PUSH GS 0F A8 Push GS Segment Register onto Stack

PUSHF, PUSHFD, PUSHFQ 9C Push rFLAGS Word, Doubleword, or Quadword onto Stack

Opcode

(hex)

Description

x86 and AMD64 Architecture Differences 31

AMD64 Technology 24593—Rev. 3.14—September 2007

2.5.6 Branches

The AMD64 architecture expands two branching mechanisms to accommodate branches in the full 64­bit virtual-address space:

• In 64-bit mode, near-branch semantics are redefined.

• In both 64-bit and compatibility modes, a 64-bit call-gate descriptor is defined for far calls.

In addition, enhancements are made to the legacy SYSCALL and SYSRET instructions.

Near Branches. In 64-bit mode, the operand size for all near branches defaults to 64 bits (see

Table 2-2 for a listing). Therefore, these instructions update the full 64-bit RIP without the need for a
REX operand-size prefix. The following aspects of near branches default to 64 bits:

• Truncation of the instruction pointer.

• Size of a stack pop or stack push, resulting from a CALL or RET.

• Size of a stack-pointer increment or decrement, resulting from a CALL or RET.

• Size of operand fetched by indirect-branch operand size.

The operand size for near branches can be overridden to 16 bits in 64-bit mode.

Table 2-2. 64-Bit Mode Near Branches, Default 64-Bit Operand Size

Mnemonic

CALL E8, FF/2 Call Procedure Near

Jcc many Jump Conditional Near

JMP E9, EB, FF/4 Jump Near

LOOP E2 Loop

LOOPcc E0, E1 Loop Conditional

RET C3, C2 Return From Call (near)

Opcode

(hex)

Description

The address size of near branches is not forced in 64-bit mode. Such addresses are 64 bits by default,
but they can be overridden to 32 bits by a prefix.

The size of the displacement field for relative branches is still limited to 32 bits.

Far Branches Through Long-Mode Call Gates. Long mode redefines the 32-bit call-gate

descriptor type as a 64-bit call-gate descriptor and expands the call-gate descriptor size to hold a 64-bit
offset. The long-mode call-gate descriptor allows far branches to reference any location in the
supported virtual-address space. In long mode, the call-gate mechanism is changed as follows:

• In long mode, CALL and JMP instructions that reference call-gates must reference 64-bit call

gates.

• A 64-bit call-gate descriptor must reference a 64-bit code-segment.

32 x86 and AMD64 Architecture Differences

24593—Rev. 3.14—September 2007 AMD64 Technology

• When a control transfer is made through a 64-bit call gate, the 64-bit target address is read from the

64-bit call-gate descriptor. The base address in the target code-segment descriptor is ignored.

Stack Switching. Automatic stack switching is also modified when a control transfer occurs through

a call gate in long mode:

• The target-stack pointer read from the TSS is a 64-bit RSP value.

• The SS register is loaded with a null selector. Setting the new SS selector to null allows nested

control transfers in 64-bit mode to be handled properly. The SS.RPL value is updated to remain
consistent with the newly loaded CPL value.

• The size of pushes onto the new stack is modified to accommodate the 64-bit RIP and RSP values.

• Automatic parameter copying is not supported in long mode.

Far Returns. In long mode, far returns can load a null SS selector from the stack under the following

conditions:

• The target operating mode is 64-bit mode.

• The target CPL<3.

Allowing RET to load SS with a null selector under these conditions makes it possible for the
processor to unnest far CALLs (and interrupts) in long mode.

Task Gates. Control transfers through task gates are not supported in long mode.

Branches to 64-Bit Offsets. Because immediate values are generally limited to 32 bits, the only way

a full 64-bit absolute RIP can be specified in 64-bit mode is with an indirect branch. For this reason,
direct forms of far branches are eliminated from the instruction set in 64-bit mode.

SYSCALL and SYSRET Instructions. The AMD64 architecture expands the function of the legacy

SYSCALL and SYSRET instructions in long mode. In addition, two new STAR registers, LSTAR and
CSTAR, are provided to hold the 64-bit target RIP for the instructions when they are executed in long
mode. The legacy STAR register is not expanded in long mode. See “SYSCALL and SYSRET” on
page 150 for additional information.

SWAPGS Instruction. The AMD64 architecture provides the SWAPGS instruction as a fast method

for system software to load a pointer to system data-structures. SWAPGS is valid only in 64-bit mode.
An undefined-opcode exception (#UD) occurs if software attempts to execute SWAPGS in legacy
mode or compatibility mode. See “SWAPGS Instruction” on page 152 for additional information.

SYSENTER and SYSEXIT Instructions. The SYSENTER and SYSEXIT instructions are invalid in

long mode, and result in an invalid opcode exception (#UD) if software attempts to use them. Software
should use the SYSCALL and SYSRET instructions when running in long mode. See “SYSENTER
and SYSEXIT (Legacy Mode Only)” on page 152 for additional information.

x86 and AMD64 Architecture Differences 33

AMD64 Technology 24593—Rev. 3.14—September 2007

2.5.7 NOP Instruction

The legacy x86 architecture commonly uses opcode 90h as a one-byte NOP. In 64-bit mode, the
processor treats opcode 90h specially in order to preserve this NOP definition. This is necessary
because opcode 90h is actually the XCHG EAX, EAX instruction in the legacy architecture. Without
special handling in 64-bit mode, the instruction would not be a true no-operation. Therefore, in 64-bit
mode the processor treats opcode 90h (the legacy XCHG EAX, EAX instruction) as a true NOP,
regardless of a REX operand-size prefix.

This special handling does not apply to the two-byte ModRM form of the XCHG instruction. Unless a
64-bit operand size is specified using a REX prefix byte, using the two-byte form of XCHG to
exchange a register with itself does not result in a no-operation, because the default operation size is 32
bits in 64-bit mode.

2.5.8 Single-Byte INC and DEC Instructions

In 64-bit mode, the legacy encodings for the 16 single-byte INC and DEC instructions (one for each of
the eight GPRs) are used to encode the REX prefix values. The functionality of these INC and DEC
instructions is still available, however, using the ModRM forms of those instructions (opcodes FF /0
and FF /1). See “Single-Byte INC and DEC Instructions in 64-Bit Mode” in Volume 3 for additional
information.

2.5.9 MOVSXD Instruction

MOVSXD is a new instruction in 64-bit mode (the legacy ARPL instruction opcode, 63h, is reassigned
as the MOVSXD opcode). It reads a fixed-size 32-bit source operand from a register or memory and (if
a REX prefix is used with the instruction) sign-extends the value to 64 bits. MOVSXD is analogous to
the MOVSX instruction, which sign-extends a byte to a word or a word to a doubleword, depending on
the effective operand size. See “General-Purpose Instruction Reference” in Volume 3 for additional
information.

2.5.10 Invalid Instructions

Table 2-3 lists instructions that are illegal in 64-bit mode. Table 2-4 on page 35 lists instructions that
are invalid in long mode (both compatibility mode and 64-bit mode). Attempted use of these
instructions causes an invalid-opcode exception (#UD) to occur.

Table 2-3. Invalid Instructions in 64-Bit Mode

Mnemonic

AAA 37 ASCII Adjust After Addition

AAD D5 ASCII Adjust Before Division

AAM D4 ASCII Adjust After Multiply

AAS 3F ASCII Adjust After Subtraction

BOUND 62 Check Array Bounds

Opcode

(hex)

Description

34 x86 and AMD64 Architecture Differences

24593—Rev. 3.14—September 2007 AMD64 Technology

Table 2-3. Invalid Instructions in 64-Bit Mode (continued)

Mnemonic

CALL (far) 9A Procedure Call Far (absolute)

DAA 27 Decimal Adjust after Addition

DAS 2F Decimal Adjust after Subtraction

INTO CE Interrupt to Overflow Vector

JMP (far) EA Jump Far (absolute)

LDS C5 Load DS Segment Register

LES C4 Load ES Segment Register

POP DS 1F Pop Stack into DS Segment

POP ES 07 Pop Stack into ES Segment

POP SS 17 Pop Stack into SS Segment

POPA, POPAD 61 Pop All to GPR Words or Doublewords

PUSH CS 0E Push CS Segment Selector onto Stack

PUSH DS 1E Push DS Segment Selector onto Stack

PUSH ES 06 Push ES Segment Selector onto Stack

PUSH SS 16 Push SS Segment Selector onto Stack

PUSHA,
PUSHAD

Redundant Grp1
(undocumented)

SALC
(undocumented)

Opcode

(hex)

60

82

D6 Set AL According to CF

Push All GPR Words or Doublewords onto
Stack

Redundant encoding of group1 Eb,Ib
opcodes

Description

Table 2-4. Invalid Instructions in Long Mode

Mnemonic

SYSENTER 0F 34 System Call

SYSEXIT 0F 35 System Return

Opcode

(hex)

Description

Table 2-5 on page 36 lists the instructions that are no longer valid in 64-bit mode because their
opcodes have been reassigned. The reassigned opcodes are used in 64-bit mode as REX instruction
prefixes.

x86 and AMD64 Architecture Differences 35

AMD64 Technology 24593—Rev. 3.14—September 2007

Table 2-5. Reassigned Instructions in 64-Bit Mode

Mnemonic

ARPL 63

DEC and INC 40-4F

Opcode

(hex)

Description

Opcode for MOVSXD instruction in 64-bit
mode. In all other modes, this the Adjust
Requestor Privilege Level instruction opcode.

Decrement by 1, Increment by 1. Two-byte
versions of DEC and INC are still valid.

2.5.11 FXSAVE and FXRSTOR Instructions

The FXSAVE and FXRSTOR instructions are used to save and restore the entire 128-bit media, 64-bit
media, and x87 instruction-set environment during a context switch. The AMD64 architecture
modifies the memory format used by these instructions in order to save and restore the full 64-bit
instruction and data pointers, as well as the XMM8–XMM15 registers. Selection of the 32-bit legacy
format or the expanded 64-bit format is accomplished by using the corresponding operand size with
the FXSAVE and FXRSTOR instructions. When 64-bit software executes an FXSAVE and FXRSTOR
with a 32-bit operand size (no operand-size override) the 32-bit legacy format is used. When 64-bit
software executes an FXSAVE and FXRSTOR with a 64-bit operand size, the 64-bit format is used.

If the fast-FXSAVE/FXRSTOR (FFXSR) feature is enabled in EFER, FXSAVE and FXRSTOR do not
save or restore the XMM0-XMM15 registers when executed in 64-bit mode at CPL 0. The x87
environment and MXCSR are saved whether fast-FXSAVE/FXRSTOR is enabled or not. Software
can use CPUID to determine whether the fast-FXSAVE/FXRSTOR feature is available (CPUID
function 8000_0001h, EDX bit 25). The fast-FXSAVE/FXRSTOR feature has no effect on
FXSAVE/FXRSTOR in non 64-bit mode or when CPL > 0.

2.6 Interrupts and Exceptions

When a processor is running in long mode, an interrupt or exception causes the processor to enter 64­bit mode. All long-mode interrupt handlers must be implemented as 64-bit code. The AMD64
architecture expands the legacy interrupt-processing and exception-processing mechanism to support
handling of interrupts by 64-bit operating systems and applications. The changes are summarized in
the following sections. See “Long-Mode Interrupt Control Transfers” on page 241 for detailed
information on these changes.

2.6.1 Interrupt Descriptor Table

The long-mode interrupt-descriptor table (IDT) must contain 64-bit mode interrupt-gate or trap-gate
descriptors for all interrupts or exceptions that can occur while the processor is running in long mode.
Task gates cannot be used in the long-mode IDT, because control transfers through task gates are not
supported in long mode. In long mode, the IDT index is formed by scaling the interrupt vector by 16.
In legacy protected mode, the IDT is indexed by scaling the interrupt vector by eight.

36 x86 and AMD64 Architecture Differences

24593—Rev. 3.14—September 2007 AMD64 Technology

2.6.2 Stack Frame Pushes

In legacy mode, the size of an IDT entry (16 bits or 32 bits) determines the size of interrupt-stack­frame pushes, and SS:eSP is pushed only on a CPL change. In long mode, the size of interrupt stack­frame pushes is fixed at eight bytes, because interrupts are handled in 64-bit mode. Long mode
interrupts also cause SS:RSP to be pushed unconditionally, rather than pushing only on a CPL change.

2.6.3 Stack Switching

Legacy mode provides a mechanism to automatically switch stack frames in response to an interrupt.
In long mode, a slightly modified version of the legacy stack-switching mechanism is implemented,
and an alternative stack-switching mechanism—called the interrupt stack table (IST)—is supported.

Long-Mode Stack Switches. When stacks are switched as part of a long-mode privilege-level

change resulting from an interrupt, the following occurs:

• The target-stack pointer read from the TSS is a 64-bit RSP value.

• The SS register is loaded with a null selector. Setting the new SS selector to null allows nested

control transfers in 64-bit mode to be handled properly. The SS.RPL value is cleared to 0.

• The old SS and RSP are saved on the new stack.

Interrupt Stack Table. In long mode, a new interrupt stack table (IST) mechanism is available as an

alternative to the modified legacy stack-switching mechanism. The IST mechanism unconditionally
switches stacks when it is enabled. It can be enabled for individual interrupt vectors using a field in the
IDT entry. This allows mixing interrupt vectors that use the modified legacy mechanism with vectors
that use the IST mechanism. The IST pointers are stored in the long-mode TSS. The IST mechanism is
only available when long mode is enabled.

2.6.4 IRET Instruction

In compatibility mode, IRET pops SS:eSP off the stack only if there is a CPL change. This allows
legacy applications to run properly in compatibility mode when using the IRET instruction.

In 64-bit mode, IRET unconditionally pops SS:eSP off of the interrupt stack frame, even if the CPL
does not change. This is done because the original interrupt always pushes SS:RSP. Because interrupt
stack-frame pushes are always eight bytes in long mode, an IRET from a long-mode interrupt handler
(64-bit code) must pop eight-byte items off the stack. This is accomplished by preceding the IRET
with a 64-bit REX operand-size prefix.

In long mode, an IRET can load a null SS selector from the stack under the following conditions:

• The target operating mode is 64-bit mode.

• The target CPL<3.

Allowing IRET to load SS with a null selector under these conditions makes it possible for the
processor to unnest interrupts (and far CALLs) in long mode.

x86 and AMD64 Architecture Differences 37

AMD64 Technology 24593—Rev. 3.14—September 2007

2.6.5 Task-Priority Register (CR8)

The AMD64 architecture allows software to define up to 15 external interrupt-priority classes. Priority
classes are numbered from 1 to 15, with priority-class 1 being the lowest and priority-class 15 the
highest.

A new control register (CR8) is introduced by the AMD64 architecture for managing priority classes.

This register, also called the task-priority register (TPR), uses the four low-order bits for specifying a

task priority. How external interrupts are organized into these priority classes is implementation
dependent. See “External Interrupt Priorities” on page 228 for information on this feature.

2.6.6 New Exception Conditions

The AMD64 architecture defines a number of new conditions that can cause an exception to occur
when the processor is running in long mode. Many of the conditions occur when software attempts to
use an address that is not in canonical form. See “Vectors” on page 208 for information on the new
exception conditions that can occur in long mode.

2.7 Hardware Task Switching

The legacy hardware task-switch mechanism is disabled when the processor is running in long mode.
However, long mode requires system software to create data structures for a single task—the long­mode task.

• TSS Descriptors—A new TSS-descriptor type, the 64-bit TSS type, is defined for use in long

mode. It is the only valid TSS type that can be used in long mode, and it must be loaded into the TR

by executing the LTR instruction in 64-bit mode. See “TSS Descriptor” on page 310 for additional

information.

• Task Gates—Because the legacy task-switch mechanism is not supported in long mode, software

cannot use task gates in long mode. Any attempt to transfer control to another task through a task

gate causes a general-protection exception (#GP) to occur.

• Task-State Segment—A 64-bit task state segment (TSS) is defined for use in long mode. This new

TSS format contains 64-bit stack pointers (RSP) for privilege levels 0–2, interrupt-stack-table
(IST) pointers, and the I/O-map base address. See “64-Bit Task State Segment” on page 317 for
additional information.

2.8 Long-Mode vs. Legacy-Mode Differences

Table 2-6 on page 39 summarizes several major system-programming differences between 64-bit
mode and legacy protected mode. The third column indicates whether the difference also applies to
compatibility mode. “Differences Between Long Mode and Legacy Mode” in Volume 3 summarizes
the application-programming model differences.

38 x86 and AMD64 Architecture Differences

24593—Rev. 3.14—September 2007 AMD64 Technology

Table 2-6. Differences Between Long Mode and Legacy Mode

Applies To

Subject 64-Bit Mode Difference

x86 Modes Real and virtual-8086 modes not supported

Task Switching Task switching not supported

64-bit virtual addresses

Addressing

Loaded Segment (Usage
during memory reference)

Exception and Interrupt
Handling

Call Gates

System-Descriptor
Registers

System-Descriptor Table
Entries and Pseudo­Descriptors

4-level paging structures

PAE must always be enabled

CS, DS, ES, SS segment bases are ignored

CS, DS, ES, FS, GS, SS segment limits are ignored

DS, ES, FS, GS attribute are ignored

CS, DS, ES, SS Segment prefixes are ignored

All pushes are 8 bytes

IDT entries are expanded to 16 bytes

SS is not changed for stack switch

SS:RSP is pushed unconditionally

All pushes are 8 bytes

16-bit call gates are illegal

32-bit call gate type is redefined as 64-bit call gate and is
expanded to 16 bytes

SS is not changed for stack switch

GDT, IDT, LDT, TR base registers expanded to 64 bits

LGDT and LIDT use expanded 10-byte pseudo-descriptors

LLDT and LTR use expanded 16-byte table entries

Compatibility

Mode?

Ye s

Ye s

No

Ye s

No

Ye s

Ye s

Ye s

No

x86 and AMD64 Architecture Differences 39

AMD64 Technology 24593—Rev. 3.14—September 2007

40 x86 and AMD64 Architecture Differences

24593—Rev. 3.14—September 2007 AMD64 Technology

3 System Resources

The operating system manages the software-execution environment and general system operation
through the use of system resources. These resources consist of system registers (control registers and
model-specific registers) and system-data structures (memory-management and protection tables).
The system-control registers are described in detail in this chapter; many of the features they control
are described elsewhere in this volume. The model-specific registers supported by the AMD64
architecture are introduced in this chapter.

Because of their complexity, system-data structures are described in separate chapters. Refer to the
following chapters for detailed information on these data structures:

• Descriptors and descriptor tables are described in “Segmentation Data Structures and Registers”

on page 65.

• Page-translation tables are described in “Legacy-Mode Page Translation” on page 120 and “Long-

Mode Page Translation” on page 128.

• The task-state segment is described in “Legacy Task-State Segment” on page 313 and “64-Bit Task

State Segment” on page 317.

Not all processor implementations are required to support all possible features. The last section in this
chapter addresses processor-feature identification. System software uses the capabilities described in
that section to determine which features are supported so that the appropriate service routines are
loaded.

3.1 System-Control Registers

The registers that control the AMD64 architecture operating environment include:

• CR0—Provides operating-mode controls and some processor-feature controls.

• CR2—This register is used by the page-translation mechanism. It is loaded by the processor with

the page-fault virtual address when a page-fault exception occurs.

• CR3—This register is also used by the page-translation mechanism. It contains the base address of

the highest-level page-translation table, and also contains cache controls for the specified table.

• CR4—This register contains additional controls for various operating-mode features.

• CR8—This new register, accessible in 64-bit mode using the REX prefix, is introduced by the

AMD64 architecture. CR8 is used to prioritize external interrupts and is referred to as the task­priority register (TPR).

• RFLAGS—This register contains processor-status and processor-control fields. The status and

control fields are used primarily in the management of virtual-8086 mode, hardware multitasking,
and interrupts.

System Resources 41

AMD64 Technology 24593—Rev. 3.14—September 2007

• EFER—This model-specific register contains status and controls for additional features not

managed by the CR0 and CR4 registers. Included in this register are the long-mode enable and
activation controls introduced by the AMD64 architecture.

Control registers CR1, CR5–CR7, and CR9–CR15 are reserved.

In legacy mode, all control registers and RFLAGS are 32 bits. The EFER register is 64 bits in all
modes. The AMD64 architecture expands all 32-bit system-control registers to 64 bits. In 64-bit mode,

the MOV CRn instructions read or write all 64 bits of these registers (operand-size prefixes are

ignored). In compatibility and legacy modes, control-register writes fill the low 32 bits with data and
the high 32 bits with zeros, and control-register reads return only the low 32 bits.

In 64-bit mode, the high 32 bits of CR0 and CR4 are reserved and must be written with zeros. Writing
a 1 to any of the high 32 bits results in a general-protection exception, #GP(0). All 64 bits of CR2 are

writable. However, the MOV CRn instructions do not check that addresses written to CR2 are within

the virtual-address limitations of the processor implementation.

All CR3 bits are writable, except for unimplemented physical address bits, which must be cleared to 0.

The upper 32 bits of RFLAGS are always read as zero by the processor. Attempts to load the upper 32
bits of RFLAGS with anything other than zero are ignored by the processor.

3.1.1 CR0 Register

The CR0 register is shown in Figure 3-1 on page 43. The legacy CR0 register is identical to the low 32
bits of the register shown in Figure 3-1 on page 43 (CR0 bits 31–0).

42 System Resources

24593—Rev. 3.14—September 2007 AMD64 Technology

63 32

Reserved, MBZ

31302928 1918171615 6543210

A

PGCDN

W

Bits Mnemonic Description R/W

63–32 Reserved Reserved, Must be Zero
31 PG Paging R/W
30 CD Cache Disable R/W
29 NW Not Writethrough R/W
28–19 Reserved Reserved
18 AM Alignment Mask R/W
17 Reserved Reserved
16 WP Write Protect R/W
15-6 Reserved Reserved
5 NE Numeric Error R/W
4 ET Extension Type R
3 TS Task Switched R/W
2EM Emulation R/W
1 MP Monitor Coprocessor R/W
0 PE Protection Enabled R/W

Reserved

W

R

M

P

Reserved

NEETTSEMMPP

E

Figure 3-1. Control Register 0 (CR0)

The functions of the CR0 control bits are (unless otherwise noted, all bits are read/write):

Protected-Mode Enable (PE) Bit. Bit 0. Software enables protected mode by setting PE to 1, and

disables protected mode by clearing PE to 0. When the processor is running in protected mode,
segment-protection mechanisms are enabled.

See “Segment-Protection Overview” on page 93 for information on the segment-protection
mechanisms.

Monitor Coprocessor (MP) Bit. Bit 1. Software uses the MP bit with the task-switched control bit

(CR0.TS) to control whether execution of the WAIT/FWAIT instruction causes a device-not-available
exception (#NM) to occur, as follows:

• If both the monitor-coprocessor and task-switched bits are set (CR0.MP=1 and CR0.TS=1), then

executing the WAIT/FWAIT instruction causes a device-not-available exception (#NM).

• If either the monitor-coprocessor or task-switched bits are clear (CR0.MP=0 or CR0.TS=0), then

executing the WAIT/FWAIT instruction proceeds normally.

System Resources 43

AMD64 Technology 24593—Rev. 3.14—September 2007

Software typically should set MP to 1 if the processor implementation supports x87 instructions. This
allows the CR0.TS bit to completely control when the x87-instruction context is saved as a result of a
task switch.

Emulate Coprocessor (EM) Bit. Bit 2. Software forces all x87 instructions to cause a device-not-

available exception (#NM) by setting EM to 1. Likewise, setting EM to 1 forces an invalid-opcode
exception (#UD) when an attempt is made to execute any of the 64-bit or 128-bit media instructions.
The exception handlers can emulate these instruction types if desired. Setting the EM bit to 1 does not
cause an #NM exception when the WAIT/FWAIT instruction is executed.

Task Switched (TS) Bit. Bit 3. When an attempt is made to execute an x87 or media instruction while

TS=1, a device-not-available exception (#NM) occurs. Software can use this mechanism—sometimes
referred to as “lazy context-switching”—to save the unit contexts before executing the next instruction
of those types. As a result, the x87 and media instruction-unit contexts are saved only when necessary
as a result of a task switch.

When a hardware task switch occurs, TS is automatically set to 1. System software that implements
software task-switching rather than using the hardware task-switch mechanism can still use the TS bit
to control x87 and media instruction-unit context saves. In this case, the task-management software
uses a MOV CR0 instruction to explicitly set the TS bit to 1 during a task switch. Software can clear
the TS bit by either executing the CLTS instruction or by writing to the CR0 register directly. Long­mode system software can use this approach even though the hardware task-switch mechanism is not
supported in long mode.

The CR0.MP bit controls whether the WAIT/FWAIT instruction causes an #NM exception when
TS=1.

Extension Type (ET) Bit. Bit 4, read-only. In some early x86 processors, software set ET to 1 to

indicate support of the 387DX math-coprocessor instruction set. This bit is now reserved and forced to
1 by the processor. Software cannot clear this bit to 0.

Numeric Error (NE) Bit. Bit 5. Clearing the NE bit to 0 disables internal control of x87 floating-point

exceptions and enables external control. When NE is cleared to 0, the IGNNE# input signal controls
whether x87 floating-point exceptions are ignored:

• When IGNNE# is 1, x87 floating-point exceptions are ignored.

• When IGNNE# is 0, x87 floating-point exceptions are reported by setting the FERR# input signal

to 1. External logic can use the FERR# signal as an external interrupt.

When NE is set to 1, internal control over x87 floating-point exception reporting is enabled and the
external reporting mechanism is disabled. It is recommended that software set NE to 1. This enables
optimal performance in handling x87 floating-point exceptions.

Write Protect (WP) Bit. Bit 16. Read-only pages are protected from supervisor-level writes when the

WP bit is set to 1. When WP is cleared to 0, supervisor software can write into read-only pages.

See “Page-Protection Checks” on page 142 for information on the page-protection mechanism.

44 System Resources

24593—Rev. 3.14—September 2007 AMD64 Technology

Alignment Mask (AM) Bit. Bit 18. Software enables automatic alignment checking by setting the

AM bit to 1 when eFLAGS.AC=1. Alignment checking can be disabled by clearing either AM or
eFLAGS.AC to 0. When automatic alignment checking is enabled and CPL=3, a memory reference to
an unaligned operand causes an alignment-check exception (#AC).

Not Writethrough (NW) Bit. Bit 29. Ignored. This bit can be set to 1 or cleared to 0, but its value is

ignored. The NW bit exists only for legacy purposes.

Cache Disable (CD) Bit. Bit 30. When CD is cleared to 0, the internal caches are enabled. When CD

is set to 1, no new data or instructions are brought into the internal caches. However, the processor still
accesses the internal caches when CD=1 under the following situations:

• Reads that hit in an internal cache cause the data to be read from the internal cache that reported the

hit.

• Writes that hit in an internal cache cause the cache line that reported the hit to be written back to

memory and invalidated in the cache.

Cache misses do not affect the internal caches when CD=1. Software can prevent cache access by
writing back and invalidating the caches before setting CD to 1 (this avoids caching the instructions
that set CD to 1).

Setting CD to 1 also causes the processor to ignore the page-level cache-control bits (PWT and PCD)
when paging is enabled. These bits are located in the page-translation tables and CR3 register. See
“Page-Level Writethrough (PWT) Bit” on page 137 and “Page-Level Cache Disable (PCD) Bit” on
page 137 for information on page-level cache control.

See “Memory Caches” on page 176 for information on the internal caches.

Paging Enable (PG) Bit. Bit 31. Software enables page translation by setting PG to 1, and disables

page translation by clearing PG to 0. Page translation cannot be enabled unless the processor is in
protected mode (CR0.PE=1). If software attempts to set PG to 1 when PE is cleared to 0, the processor
causes a general-protection exception (#GP).

See “Page Translation Overview” on page 115 for information on the page-translation mechanism.

Reserved Bits. Bits 28–19, 17, 15–6, and 63–32. When writing the CR0 register, software should set

the values of reserved bits to the values found during the previous CR0 read. No attempt should be
made to change reserved bits, and software should never rely on the values of reserved bits. In long
mode, bits 63–32 are reserved and must be written with zero, otherwise a #GP occurs.

3.1.2 CR2 and CR3 Registers

The CR2 (page-fault linear address) register, shown in Figure 3-2 on page 46 and Figure 3-3 on
page 46, and the CR3 (page-translation-table base address) register, shown in Figure 3-4 and
Figure 3-5 on page 46, and Figure 3-6 on page 46, are used only by the page-translation mechanism.

System Resources 45

AMD64 Technology 24593—Rev. 3.14—September 2007

31 0

Page-Fault Virtual Address

Figure 3-2. Control Register 2 (CR2)—Legacy-Mode

63 32

Page-Fault Virtual Address

31 0

Page-Fault Virtual Address

Figure 3-3. Control Register 2 (CR2)—Long Mode

See “CR2 Register” on page 220 for a description of the CR2 register.

The CR3 register is used to point to the base address of the highest-level page-translation table.

31 12 11 5 4 3 2 0

P

P

Page-Directory-Table Base Address Reserved

C

WTReserved

D

Figure 3-4. Control Register 3 (CR3)—Legacy-Mode Non-PAE Paging

31 5432 0

P

P

Page-Directory-Pointer-Table Base Address

C

WTReserved

D

Figure 3-5. Control Register 3 (CR3)—Legacy-Mode PAE Paging

63 52 51 32

Reserved, MBZ

(This is an architectural limit. A given implementation may support fewer bits.)

Page-Map Level-4 Table Base Address

31 12 11 5 4 3 2 0

P

P

Page-Map Level-4 Table Base Address Reserved

C
D

Reserved

W

T

Figure 3-6. Control Register 3 (CR3)—Long Mode

46 System Resources

24593—Rev. 3.14—September 2007 AMD64 Technology

The legacy CR3 register is described in “CR3 Register” on page 120, and the long-mode CR3 register
is described in “CR3” on page 128.

3.1.3 CR4 Register

The CR4 register is shown in Figure 3-7. In legacy mode, the CR4 register is identical to the low 32
bits of the register (CR4 bits 31–0). The features controlled by the bits in the CR4 register are model­specific extensions. Except for the performance-counter extensions (PCE) feature, software can use
the CPUID instruction to verify that each feature is supported before using that feature.

63 32

Reserved, MBZ

31 1110 9 876543210

Reserved, MBZ

O
S
X

OSF
XSR

P

P

M

P

P

T

P

C

G

C

E

E

E

D

A

S

S

E

E

E

D

V

V

M

I

E

Bits Mnemonic Description R/W

63–11 Reserved Reserved, Must be Zero
10 OSXMMEXCPT Operating System Unmasked Exception Support R/W
9 OSFXSR Operating System FXSAVE/FXRSTOR Support R/W
8 PCE Performance-Monitoring Counter Enable R/W
7 PGE Page-Global Enable R/W
6 MCE Machine Check Enable R/W
5 PAE Physical-Address Extension R/W
4 PSE Page Size Extensions R/W
3 DE Debugging Extensions R/W
2 TSD Time Stamp Disable R/W
1 PVI Protected-Mode Virtual Interrupts R/W
0 VME Virtual-8086 Mode Extensions R/W

Figure 3-7. Control Register 4 (CR4)

The function of the CR4 control bits are (all bits are read/write):

Virtual-8086 Mode Extensions (VME) Bit. Bit 0. Setting VME to 1 enables hardware-supported

performance enhancements for software running in virtual-8086 mode. Clearing VME to 0 disables
this support. The enhancements enabled when VME=1 include:

• Virtualized, maskable, external-interrupt control and notification using the VIF and VIP bits in the

rFLAGS register. Virtualizing affects the operation of several instructions that manipulate the
rFLAGS.IF bit.

• Selective intercept of software interrupts (INTn instructions) using the interrupt-redirection bitmap

in the TSS.

System Resources 47

AMD64 Technology 24593—Rev. 3.14—September 2007

Protected-Mode Virtual Interrupts (PVI) Bit. Bit 1. Setting PVI to 1 enables support for protected-

mode virtual interrupts. Clearing PVI to 0 disables this support. When PVI=1, hardware support of two
bits in the rFLAGS register, VIF and VIP, is enabled.

Only the STI and CLI instructions are affected by enabling PVI. Unlike the case when CR0.VME=1,

the interrupt-redirection bitmap in the TSS cannot be used for selective INTn interception.

PVI enhancements are also supported in long mode. See “Virtual Interrupts” on page 247 for more
information on using PVI.

Time-Stamp Disable (TSD) Bit. Bit 2. The TSD bit allows software to control the privilege level at

which the time-stamp counter can be read. When TSD is cleared to 0, software running at any privilege
level can read the time-stamp counter using the RDTSC or RDTSCP instructions. When TSD is set to
1, only software running at privilege-level 0 can execute the RDTSC or RDTSCP instructions.

Debugging Extensions (DE) Bit. Bit 3. Setting the DE bit to 1 enables the I/O breakpoint capability

and enforces treatment of the DR4 and DR5 registers as reserved. Software that accesses DR4 or DR5
when DE=1 causes a invalid opcode exception (#UD).

When the DE bit is cleared to 0, I/O breakpoint capabilities are disabled. Software references to the
DR4 and DR5 registers are aliased to the DR6 and DR7 registers, respectively.

Page-Size Extensions (PSE) Bit. Bit 4. Setting PSE to 1 enables the use of 4-Mbyte physical pages.

With PSE=1, the physical-page size is selected between 4 Kbytes and 4 Mbytes using the page­directory entry page-size field (PS). Clearing PSE to 0 disables the use of 4-Mbyte physical pages and
restricts all physical pages to 4 Kbytes.

The PSE bit has no effect when physical-address extensions are enabled (CR4.PAE=1). Because long
mode requires CR4.PAE=1, the PSE bit is ignored when the processor is running in long mode.

See “4-Mbyte Page Translation” on page 123 for more information on 4-Mbyte page translation.

Physical-Address Extension (PAE) Bit. Bit 5. Setting PAE to 1 enables the use of physical-address

extensions and 2-Mbyte physical pages. Clearing PAE to 0 disables these features.

With PAE=1, the page-translation data structures are expanded from 32 bits to 64 bits, allowing the
translation of up to 52-bit physical addresses. Also, the physical-page size is selectable between
4 Kbytes and 2 Mbytes using the page-directory-entry page-size field (PS). Long mode requires PAE
to be enabled in order to use the 64-bit page-translation data structures to translate 64-bit virtual
addresses to 52-bit physical addresses.

See “PAE Paging” on page 124 for more information on physical-address extensions.

Machine-Check Enable (MCE) Bit. Bit 6. Setting MCE to 1 enables the machine-check exception

mechanism. Clearing this bit to 0 disables the mechanism. When enabled, a machine-check exception
(#MC) occurs when an uncorrectable machine-check error is encountered.

48 System Resources

24593—Rev. 3.14—September 2007 AMD64 Technology

Regardless of whether machine-check exceptions are enabled, the processor records enabled-errors
when they occur. Error-reporting is performed by the machine-check error-reporting register banks.
Each bank includes a control register for enabling error reporting and a status register for capturing
errors. Correctable machine-check errors are also reported, but they do not cause a machine-check
exception.

See Chapter 9, “Machine Check Mechanism,” for a description of the machine-check mechanism, the
registers used, and the types of errors captured by the mechanism.

Page-Global Enable (PGE) Bit. Bit 7. When page translation is enabled, system-software

performance can often be improved by making some page translations global to all tasks and

procedures. Setting PGE to 1 enables the global-page mechanism. Clearing this bit to 0 disables the
mechanism.

When PGE is enabled, system software can set the global-page (G) bit in the lowest level of the page­translation hierarchy to 1, indicating that the page translation is global. Page translations marked as
global are not invalidated in the TLB when the page-translation-table base address (CR3) is updated.
When the G bit is cleared, the page translation is not global. All supported physical-page sizes also
support the global-page mechanism. See “Global Pages” on page 140 for information on using the
global-page mechanism.

Performance-Monitoring Counter Enable (PCE) Bit. Bit 8. Setting PCE to 1 allows software

running at any privilege level to use the RDPMC instruction. Software uses the RDPMC instruction to
read the four performance-monitoring MSRs, PerfCTR[3:0]. Clearing PCE to 0 allows only the most­privileged software (CPL=0) to use the RDPMC instruction.

FXSAVE/FXRSTOR Support (OSFXSR) Bit. Bit 9. System software must set the OSFXSR bit to 1

to enable use of the 128-bit media instructions. When this bit is set to 1, it also indicates that system
software uses the FXSAVE and FXRSTOR instructions to save and restore the processor state for the
x87, 64-bit media, and 128-bit media instructions.

Clearing the OSFXSR bit to 0 indicates that 128-bit media instructions cannot be used. Attempts to use
those instructions while this bit is clear result in an invalid-opcode exception (#UD). Software can
continue to use the FXSAVE/FXRSTOR instructions for saving and restoring the processor state for
the x87 and 64-bit media instructions.

Unmasked Exception Support (OSXMMEXCPT) Bit. Bit 10. System software must set the

OSXMMEXCPT bit to 1 when it supports the SIMD floating-point exception (#XF) for handling of
unmasked 128-bit media floating-point errors. Clearing the OSXMMEXCPT bit to 0 indicates the
#XF handler is not supported. When OSXMMEXCPT=0, unmasked 128-bit media floating-point
exceptions cause an invalid-opcode exception (#UD). See “SIMD Floating-Point Exception Causes”
in Volume 1 for more information on 128-bit media unmasked floating-point exceptions.

3.1.4 CR1 and CR5–CR7 Registers

Control registers CR1, CR5–CR7, and CR9–CR15 are reserved. Attempts by software to use these
registers result in an undefined-opcode exception (#UD).

System Resources 49

AMD64 Technology 24593—Rev. 3.14—September 2007

3.1.5 64-Bit-Mode Extended Control Registers

In 64-bit mode, additional encodings for control registers are available. The REX.R bit, in a REX

prefix, is used to modify the ModRM reg field when that field encodes a control register, as shown in

“REX Prefixes” in Volume 3. These additional encodings enable the processor to address CR8–CR15.

One additional control register, CR8, is defined in 64-bit mode for all hardware implementations, as
described in “CR8 (Task Priority Register, TPR),” below. Access to the CR9–CR15 registers is
implementation-dependent. Any attempt to access an unimplemented register results in an invalid­opcode exception (#UD).

3.1.6 CR8 (Task Priority Register, TPR)

The AMD64 architecture introduces a new control register, CR8, defined as the task priority register
(TPR). The register is accessible in 64-bit mode using the REX prefix. See “External Interrupt
Priorities” on page 228 for a description of the TPR and how system software can use the TPR for
controlling external interrupts.

3.1.7 RFLAGS Register

The RFLAGS register contains two different types of information:

• Control bits provide system-software controls and directional information for string operations.

Some of these bits can have privilege-level restrictions.

• Status bits provide information resulting from logical and arithmetic operations. These are written

by the processor and can be read by software running at any privilege level.

Figure 3-8 on page 51 shows the format of the RFLAGS register. The legacy EFLAGS register is

identical to the low 32 bits of the register shown in Figure 3-8 (RFLAGS bits 31–0). The term rFLAGS

is used to refer to the 16-bit, 32-bit, or 64-bit flags register, depending on context.

50 System Resources

24593—Rev. 3.14—September 2007 AMD64 Technology

63 32

Reserved, RAZ

31 222120191817161514131211109876543210

V

V

Reserved, RAZ

Bits Mnemonic Description R/W

63–22 Reserved Reserved, Read as Zero
21 ID ID Flag R/W
20 VIP Virtual Interrupt Pending R/W
19 VIF Virtual Interrupt Flag R/W
18 AC Alignment Check R/W
17 VM Virtual-8086 Mode R/W
16 RF Resume Flag R/W
15 Reserved Reserved, Read as Zero
14 NT Nested Task R/W
13-12 IOPL I/O Privilege Level R/W
11 OF Overflow Flag R/W
10 DF Direction Flag R/W
9 IF Interrupt Flag R/W
8 TF Trap Flag R/W
7 SF Sign Flag R/W
6 ZF Zero Flag R/W
5 Reserved Reserved, Read as Zero
4 AF Auxiliary Flag R/W
3 Reserved Reserved, Read as Zero
2 PF Parity Flag R/W
1 Reserved Reserved, Read as One
0 CF Carry Flag R/W

I

D

P

ACVMR

I

I

F

F

N

0

T

OFDFIFTFSFZ

IOPL

A

0

F

F

P

0

F

C

1

F

Figure 3-8. RFLAGS Register

The functions of the RFLAGS control and status bits used by application software are described in
“Flags Register” in Volume 1. The functions of RFLAGS system bits are (unless otherwise noted, all
bits are read/write):

Trap Flag (TF) Bit. Bit 8. Software sets the TF bit to 1 to enable single-step mode during software

debug. Clearing this bit to 0 disables single-step mode.

When single-step mode is enabled, a debug exception (#DB) occurs after each instruction completes

execution. Single stepping begins with the instruction following the instruction that sets TF. Single

stepping is disabled (TF=0) when the #DB exception occurs or when any exception or interrupt occurs.

System Resources 51

AMD64 Technology 24593—Rev. 3.14—September 2007

See “Single Stepping” on page 339 for information on using the single-step mode during debugging.

Interrupt Flag (IF) Bit. Bit 9. Software sets the IF bit to 1 to enable maskable interrupts. Clearing this

bit to 0 causes the processor to ignore maskable interrupts. The state of the IF bit does not affect the
response of a processor to non-maskable interrupts, software-interrupt instructions, or exceptions.

The ability to modify the IF bit depends on several factors:

• The current privilege-level (CPL)

• The I/O privilege level (RFLAGS.IOPL)

• Whether or not virtual-8086 mode extensions are enabled (CR4.VME=1)

• Whether or not protected-mode virtual interrupts are enabled (CR4.PVI=1)

See “Masking External Interrupts” on page 207 for information on interrupt masking. See “Accessing
the RFLAGs Register” on page 154 for information on the specific instructions used to modify the IF
bit.

I/O Privilege Level Field (IOPL) Field. Bits 13–12. The IOPL field specifies the privilege level

required to execute I/O address-space instructions (i.e., instructions that address the I/O space rather
than memory-mapped I/O, such as IN, OUT, INS, OUTS, etc.). For software to execute these
instructions, the current privilege-level (CPL) must be equal to or higher than (lower numerical value
than) the privilege specified by IOPL (CPL <= IOPL). If the CPL is lower than (higher numerical value
than) that specified by the IOPL (CPL > IOPL), the processor causes a general-protection exception
(#GP) when software attempts to execute an I/O instruction. See “Protected-Mode I/O” in Volume 1
for information on how IOPL controls access to address-space I/O.

Virtual-8086 mode uses IOPL to control virtual interrupts and the IF bit when virtual-8086 mode
extensions are enabled (CR4.VME=1). The protected-mode virtual-interrupt mechanism (PVI) also
uses IOPL to control virtual interrupts and the IF bit when PVI is enabled (CR4.PVI=1). See “Virtual
Interrupts” on page 247 for information on how IOPL is used by the virtual interrupt mechanism.

Nested Task (NT) Bit. Bit 14, IRET reads the NT bit to determine whether the current task is nested

within another task. When NT is set to 1, the current task is nested within another task. When NT is
cleared to 0, the current task is at the top level (not nested).

The processor sets the NT bit during a task switch resulting from a CALL, interrupt, or exception
through a task gate. When an IRET is executed from legacy mode while the NT bit is set, a task switch
occurs. See “Task Switches Using Task Gates” on page 323 for information on switching tasks using
task gates, and “Nesting Tasks” on page 325 for information on task nesting.

Resume Flag (RF) Bit. Bit 16. The RF bit allows an instruction to be restarted following an

instruction breakpoint resulting in a debug exception (#DB). This bit prevents multiple debug
exceptions from occurring on the same instruction.

52 System Resources

24593—Rev. 3.14—September 2007 AMD64 Technology

The processor clears the RF bit after every instruction is successfully executed, except when the
instruction is:

• An IRET that sets the RF bit.

• JMP, CALL, or INTn through a task gate.

In both of the above cases, RF is not cleared to 0 until the next instruction successfully executes.

When an exception occurs (or when a string instruction is interrupted), the processor normally sets
RF=1 in the rFLAGS image saved on the interrupt stack. However, when a #DB exception occurs as a
result of an instruction breakpoint, the processor clears the RF bit to 0 in the interrupt-stack rFLAGS
image.

For instruction restart to work properly following an instruction breakpoint, the #DB exception
handler must set RF to 1 in the interrupt-stack rFLAGS image. When an IRET is later executed to
return to the instruction that caused the instruction-breakpoint #DB exception, the set RF bit (RF=1) is
loaded from the interrupt-stack rFLAGS image. RF is not cleared by the processor until the instruction
causing the #DB exception successfully executes.

Virtual-8086 Mode (VM) Bit. Bit 17. Software sets the VM bit to 1 to enable virtual-8086 mode.

Software clears the VM bit to 0 to disable virtual-8086 mode. System software can only change this bit
using a task switch or an IRET. It cannot modify the bit using the POPFD instruction.

Alignment Check (AC) Bit. Bit 18. Software enables automatic alignment checking by setting the

AC bit to 1 when CR0.AM=1. Alignment checking can be disabled by clearing either AC or CR0.AM
to 0. When automatic alignment checking is enabled and the current privilege-level (CPL) is 3 (least
privileged), a memory reference to an unaligned operand causes an alignment-check exception (#AC).

Virtual Interrupt (VIF) Bit. Bit 19. The VIF bit is a virtual image of the RFLAGS.IF bit. It is enabled

when either virtual-8086 mode extensions are enabled (CR4.VME=1) or protected-mode virtual
interrupts are enabled (CR4.PVI=1), and the RFLAGS.IOPL field is less than 3. When enabled,
instructions that ordinarily would modify the IF bit actually modify the VIF bit with no effect on the
RFLAGS.IF bit.

System software that supports virtual-8086 mode should enable the VIF bit using CR4.VME. This
allows 8086 software to execute instructions that can set and clear the RFLAGS.IF bit without causing
an exception. With VIF enabled in virtual-8086 mode, those instructions set and clear the VIF bit
instead, giving the appearance to the 8086 software that it is modifying the RFLAGS.IF bit. System
software reads the VIF bit to determine whether or not to take the action desired by the 8086 software
(enabling or disabling interrupts by setting or clearing the RFLAGS.IF bit).

In long mode, the use of the VIF bit is supported when CR4.PVI=1. See “Virtual Interrupts” on
page 247 for more information on virtual interrupts.

Virtual Interrupt Pending (VIP) Bit. Bit 20. The VIP bit is provided as an extension to both virtual-

8086 mode and protected mode. It is used by system software to indicate that an external, maskable
interrupt is pending (awaiting) execution by either a virtual-8086 mode or protected-mode interrupt-

System Resources 53

AMD64 Technology 24593—Rev. 3.14—September 2007

service routine. Software must enable virtual-8086 mode extensions (CR4.VME=1) or protected­mode virtual interrupts (CR4.PVI=1) before using VIP.

VIP is normally set to 1 by a protected-mode interrupt-service routine that was entered from virtual­8086 mode as a result of an external, maskable interrupt. Before returning to the virtual-8086 mode
application, the service routine sets VIP to 1 if EFLAGS.VIF=1. When the virtual-8086 mode
application attempts to enable interrupts by clearing EFLAGS.VIF to 0 while VIP=1, a general­protection exception (#GP) occurs. The #GP service routine can then decide whether to allow the
virtual-8086 mode service routine to handle the pending external, maskable interrupt. (EFLAGS is
specifically referred to in this case because virtual-8086 mode is supported only from legacy mode.)

In long mode, the use of the VIP bit is supported when CR4.PVI=1. See “Virtual Interrupts” on
page 247 for more information on virtual-8086 mode interrupts and the VIP bit.

Processor Feature Identification (ID) Bit. Bit 21. The ability of software to modify this bit

indicates that the processor implementation supports the CPUID instruction. See “Processor Feature
Identification” on page 61 for more information on the CPUID instruction.

3.1.8 Extended Feature Enable Register (EFER)

The extended-feature-enable register (EFER) contains control bits that enable additional processor
features not controlled by the legacy control registers. The EFER is a model-specific register (MSR)
with an address of C000_0080h (see “Model-Specific Registers (MSRs)” on page 56 for more
information on MSRs). It can be read and written only by privileged software. Figure 3-9 on page 55
shows the format of the EFER register.

54 System Resources

24593—Rev. 3.14—September 2007 AMD64 Technology

63 32

Reserved, MBZ

31 15 14 13 12 11 10 9 8 7 1 0

F

S

F

Reserved, MBZ

Bits Mnemonic Description R/W

63–15 Reserved, MBZ Reserved, Must be Zero
14 FFXSR Fast FXSAVE/FXRSTOR R/W
13 Reserved, MBZ Reserved, Must be Zero
12 SVME Secure Virtual Machine Enable R/W
11 NXE No-Execute Enable R/W
10 LMA Long Mode Active R
9 Reserved, MBZ Reserved, Must be Zero
8 LME Long Mode Enable R/W
7-1 Reserved, RAZ Reserved, Read as Zero
0 SCE System Call Extensions R/W

X
S
R

M

N

L

M

V

B

X

M

Z

E

M

E

A

L

B

M

Z

E

Reserved, RAZ

S
C
E

Figure 3-9. Extended Feature Enable Register (EFER)

The function of the EFER bits are (unless otherwise noted, all bits are read/write):

System-Call Extension (SCE) Bit. Bit 0. Setting this bit to 1 enables the SYSCALL and SYSRET

instructions. Application software can use these instructions for low-latency system calls and returns
in a non-segmented (flat) address space. See “Fast System Call and Return” on page 149 for additional
information.

Long Mode Enable (LME) Bit. Bit 8. Setting this bit to 1 enables the processor to activate long mode.

Long mode is not activated until software enables paging some time later. When paging is enabled
after LME is set to 1, the processor sets the EFER.LMA bit to 1, indicating that long mode is not only
enabled but also active. See Chapter 14, “Processor Initialization and Long Mode Activation,” for
more information on activating long mode.

Long Mode Active (LMA) Bit. Bit 10, read-only. This bit indicates that long mode is active. The

processor sets LMA to 1 when both long mode and paging have been enabled by system software. See
Chapter 14, “Processor Initialization and Long Mode Activation,” for more information on activating
long mode.

When LMA=1, the processor is running either in compatibility mode or 64-bit mode, depending on the
value of the L bit in a code-segment descriptor, as shown in Figure 1-6 on page 12.

System Resources 55

AMD64 Technology 24593—Rev. 3.14—September 2007

When LMA=0, the processor is running in legacy mode. In this mode, the processor behaves like a
standard 32-bit x86 processor, with none of the new 64-bit features enabled.

No-Execute Enable (NXE) Bit. Bit 11. Setting this bit to 1 enables the no-execute page-protection

feature. The feature is disabled when this bit is cleared to 0. See “No Execute (NX) Bit” on page 143
for more information.

Before setting NXE, system software should verify the processor supports the feature by examining

the extended-feature flags returned by the CPUID instruction. For more information, see the CPUID
Specification, order# 25481.
