Page 1

AMD64 Technology

AMD64 Architecture

Programmer’s Manual

Volume 1:

Application Programming

Publication No. Revision Date

24592 3.10 March 2005

Advanced Micro Devices

Page 2

AMD64 Technology 24592—Rev. 3.10—March 2005

(“AMD”) products. AMD makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any time without notice. No license, whether express, implied, arising by estoppel or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in AMD’s Standard Terms and Conditions of Sale, AMD assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

AMD’s products are not designed, intended, authorized or warranted for use as components in systems intended for surgical implant into the body, or in other applications intended to support or sustain life, or in any other application in which the failure of AMD’s product could create a situation where personal injury, death, or severe property or environmental damage may occur. AMD reserves the right to discontinue or make changes to its products at any time without notice.

Trademarks

AMD, the AMD arrow logo, AMD Athlon, and AMD Opteron, and combinations thereof, and 3DNow! are trademarks, and AMD-K6 is a registered trademark of Advanced Micro Devices, Inc.

MMX is a trademark and Pentium is a registered trademark of Intel Corporation. Windows NT is a registered trademark of Microsoft Corporation. Other product names used in this publication are for identification purposes only and may be trademarks of their respective companies.

Page 3

24592—Rev. 3.10—March 2005 AMD64 Technology

Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xix

About This Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xix

Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xxxi

1 Overview of the AMD64 Architecture . . . . . . . . . . . . . . . . . . . . 1

1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

New Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Instruction Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Media Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Floating-Point Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.2 Modes of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Long Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

64-Bit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Compatibility Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2 Memory Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1 Memory Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Virtual Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Segment Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Physical Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Memory Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.2 Memory Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Byte Ordering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

64-bit Canonical Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Effective Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Address-Size Prefix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

RIP-Relative Addressing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.3 Pointers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Near and Far Pointers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2.4 Stack Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2.5 Instruction Pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3 General-Purpose Programming. . . . . . . . . . . . . . . . . . . . . . . . . 27

Contents iii

Page 4

AMD64 Technology 24592—Rev. 3.10—March 2005

3.1 Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Legacy Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

64-Bit-Mode Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Implicit Uses of GPRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Flags Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Instruction Pointer Register. . . . . . . . . . . . . . . . . . . . . . . . . . . 41

3.2 Operands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Operand Sizes and Overrides. . . . . . . . . . . . . . . . . . . . . . . . . . 44

Operand Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Data Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

3.3 Instruction Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Data Conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Load Segment Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Load Effective Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Arithmetic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Rotate and Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Compare and Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Logical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

String . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Control Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Input/Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Semaphores . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Processor Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Cache and Memory Management . . . . . . . . . . . . . . . . . . . . . . 79

No Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

System Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

3.4 General Rules for Instructions in 64-Bit Mode. . . . . . . . . . . . 81

Address Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Canonical Address Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Branch-Displacement Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Operand Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

High 32 Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Invalid and Reassigned Instructions . . . . . . . . . . . . . . . . . . . . 84

Instructions with 64-Bit Default Operand Size. . . . . . . . . . . . 85

3.5 Instruction Prefixes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Legacy Prefixes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

REX Prefixes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

3.6 Feature Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

3.7 Control Transfers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Privilege Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Procedure Stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Jumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

iv Contents

Page 5

24592—Rev. 3.10—March 2005 AMD64 Technology

Procedure Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Returning from Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 100

System Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

General Considerations for Branching . . . . . . . . . . . . . . . . . 103

Branching in 64-Bit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Interrupts and Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

3.8 Input/Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

I/O Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

I/O Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Protected-Mode I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

3.9 Memory Optimization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Accessing Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Forcing Memory Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Caches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Cache Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Cache Pollution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Cache-Control Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . 123

3.10 Performance Considerations . . . . . . . . . . . . . . . . . . . . . . . . . 125

Use Large Operand Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Use Short Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Align Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Avoid Branches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Prefetch Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Keep Common Operands in Registers. . . . . . . . . . . . . . . . . . 127

Avoid True Dependencies. . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Avoid Store-to-Load Dependencies . . . . . . . . . . . . . . . . . . . . 127

Optimize Stack Allocation . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Consider Repeat-Prefix Setup Time . . . . . . . . . . . . . . . . . . . 127

Replace GPR with Media Instructions . . . . . . . . . . . . . . . . . 127

Organize Data in Memory Blocks. . . . . . . . . . . . . . . . . . . . . . 128

4 128-Bit Media and Scientific Programming . . . . . . . . . . . . . 129

4.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Origins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

4.2 Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Types of Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Integer Vector Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Floating-Point Vector Operations . . . . . . . . . . . . . . . . . . . . . 132

Data Conversion and Reordering. . . . . . . . . . . . . . . . . . . . . . 133

Block Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Matrix and Special Arithmetic Operations. . . . . . . . . . . . . . 137

Branch Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

4.3 Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

XMM Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

MXCSR Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Other Data Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

rFLAGS Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Contents v

Page 6

AMD64 Technology 24592—Rev. 3.10—March 2005

4.4 Operands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Operand Sizes and Overrides. . . . . . . . . . . . . . . . . . . . . . . . . 149

Operand Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Data Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Integer Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Floating-Point Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Floating-Point Number Representation . . . . . . . . . . . . . . . . 155

Floating-Point Number Encodings. . . . . . . . . . . . . . . . . . . . . 158

Floating-Point Rounding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

4.5 Instruction Summary—Integer Instructions. . . . . . . . . . . . . 162

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Data Conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Data Reordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Arithmetic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Compare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Logical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

Save and Restore State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

4.6 Instruction Summary—Floating-Point Instructions. . . . . . . 190

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Data Conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Data Reordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Arithmetic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

Compare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Logical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

4.7 Instruction Effects on Flags . . . . . . . . . . . . . . . . . . . . . . . . . . 213

4.8 Instruction Prefixes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

Supported Prefixes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

Special-Use and Reserved Prefixes . . . . . . . . . . . . . . . . . . . . 214

Prefixes That Cause Exceptions . . . . . . . . . . . . . . . . . . . . . . 214

4.9 Feature Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

4.10 Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

General-Purpose Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . 216

SIMD Floating-Point Exception Causes . . . . . . . . . . . . . . . . 217

SIMD Floating-Point Exception Priority. . . . . . . . . . . . . . . . 222

SIMD Floating-Point Exception Masking . . . . . . . . . . . . . . . 224

4.11 Saving, Clearing, and Passing State . . . . . . . . . . . . . . . . . . . 228

Saving and Restoring State . . . . . . . . . . . . . . . . . . . . . . . . . . 228

Parameter Passing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

Accessing Operands in MMX™ Registers. . . . . . . . . . . . . . . 229

4.12 Performance Considerations . . . . . . . . . . . . . . . . . . . . . . . . . 230

Use Small Operand Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

Reorganize Data for Parallel Operations . . . . . . . . . . . . . . . 230

Remove Branches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

vi Contents

Page 7

24592—Rev. 3.10—March 2005 AMD64 Technology

Use Streaming Stores . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Align Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Organize Data for Cacheability . . . . . . . . . . . . . . . . . . . . . . . 231

Prefetch Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Use 128-Bit Media Code for Moving Data. . . . . . . . . . . . . . . 232

Retain Intermediate Results in XMM Registers . . . . . . . . . 232

Replace GPR Code with 128-bit media Code. . . . . . . . . . . . 232

Replace x87 Code with 128-Bit Media Code. . . . . . . . . . . . . 232

5 64-Bit Media Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 235

5.1 Origins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235

5.2 Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

5.3 Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

Parallel Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

Data Conversion and Reordering. . . . . . . . . . . . . . . . . . . . . . 237

Matrix Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

Saturation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Branch Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Floating-Point (3DNow!™) Vector Operations . . . . . . . . . . . 242

5.4 Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

MMX™ Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

Other Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

5.5 Operands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

Operand Sizes and Overrides. . . . . . . . . . . . . . . . . . . . . . . . . 246

Operand Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246

Data Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

Integer Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

Floating-Point Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . 249

5.6 Instruction Summary—Integer Instructions. . . . . . . . . . . . . 251

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Exit Media State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254

Data Conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256

Data Reordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

Arithmetic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

Compare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

Logical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Save and Restore State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270

5.7 Instruction Summary—Floating-Point Instructions. . . . . . . 271

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272

Data Conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272

Arithmetic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273

Compare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

5.8 Instruction Effects on Flags . . . . . . . . . . . . . . . . . . . . . . . . . . 278

5.9 Instruction Prefixes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

Supported Prefixes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

Contents vii

Page 8

AMD64 Technology 24592—Rev. 3.10—March 2005

Special-Use and Reserved Prefixes . . . . . . . . . . . . . . . . . . . . 279

Prefixes That Cause Exceptions . . . . . . . . . . . . . . . . . . . . . . 279

5.10 Feature Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279

5.11 Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280

General-Purpose Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . 280

x87 Floating-Point Exceptions (#MF) . . . . . . . . . . . . . . . . . . 282

5.12 Actions Taken on Executing 64-Bit Media Instructions . . . 282

5.13 Mixing Media Code with x87 Code . . . . . . . . . . . . . . . . . . . . 284

Mixing Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284

Clearing MMX™ State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

5.14 State-Saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

Saving and Restoring State . . . . . . . . . . . . . . . . . . . . . . . . . . 285

State-Saving Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286

5.15 Performance Considerations . . . . . . . . . . . . . . . . . . . . . . . . . 287

Use Small Operand Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287

Reorganize Data for Parallel Operations . . . . . . . . . . . . . . . 287

Remove Branches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287

Align Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288

Organize Data for Cacheability . . . . . . . . . . . . . . . . . . . . . . . 288

Prefetch Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288

Retain Intermediate Results in MMX™ Registers . . . . . . . 289

6 x87 Floating-Point Programming . . . . . . . . . . . . . . . . . . . . . . 291

6.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

Origins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

6.2 Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

6.3 Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293

x87 Data Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

x87 Status Word Register (FSW) . . . . . . . . . . . . . . . . . . . . . . 295

x87 Control Word Register (FCW) . . . . . . . . . . . . . . . . . . . . . 299

x87 Tag Word Register (FTW) . . . . . . . . . . . . . . . . . . . . . . . . 301

Pointers and Opcode State . . . . . . . . . . . . . . . . . . . . . . . . . . . 303

x87 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304

Floating-Point Emulation (CR0.EM) . . . . . . . . . . . . . . . . . . . 305

6.4 Operands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306

Operand Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306

Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306

Number Representation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310

Number Encodings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314

Precision. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319

Rounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320

6.5 Instruction Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321

Data Transfer and Conversion . . . . . . . . . . . . . . . . . . . . . . . . 323

Load Constants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327

Arithmetic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327

Transcendental Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 332

viii Contents

Page 9

24592—Rev. 3.10—March 2005 AMD64 Technology

Compare and Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334

Stack Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337

No Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338

6.6 Instruction Effects on rFLAGS . . . . . . . . . . . . . . . . . . . . . . . 342

6.7 Instruction Prefixes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342

6.8 Feature Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343

6.9 Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344

General-Purpose Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . 344

x87 Floating-Point Exception Causes . . . . . . . . . . . . . . . . . . 345

x87 Floating-Point Exception Priority. . . . . . . . . . . . . . . . . . 349

x87 Floating-Point Exception Masking . . . . . . . . . . . . . . . . . 351

6.10 State-Saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358

State-Saving Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358

6.11 Performance Considerations . . . . . . . . . . . . . . . . . . . . . . . . . 359

Replace x87 Code with 128-Bit Media Code. . . . . . . . . . . . . 359

Use FCOMI-FCMOVx Branching . . . . . . . . . . . . . . . . . . . . . . 359

Use FSINCOS Instead of FSIN and FCOS . . . . . . . . . . . . . . 360

Break Up Dependency Chains . . . . . . . . . . . . . . . . . . . . . . . . 360

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361

Contents ix

Page 10

AMD64 Technology 24592—Rev. 3.10—March 2005

x Contents

Page 11

24592—Rev. 3.10—March 2005 AMD64 Technology

Figures

Figure 1-1. Application-Programming Register Set . . . . . . . . . . . . . . . . . . . . 2

Figure 2-1. Virtual-Memory Segmentation . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 2-2. Segment Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 2-3. Long-Mode Memory Management . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 2-4. Legacy-Mode Memory Management . . . . . . . . . . . . . . . . . . . . . 15

Figure 2-5. Byte Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 2-6. Example of 10-Byte Instruction in Memory. . . . . . . . . . . . . . . . 18

Figure 2-7. Complex Address Calculation (Protected Mode) . . . . . . . . . . . 19

Figure 2-8. Near and Far Pointers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 2-9. Stack Pointer Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 2-10.Instruction Pointer (rIP) Register . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 3-1. General-Purpose Programming Registers . . . . . . . . . . . . . . . . . 28

Figure 3-2. General Registers in Legacy and Compatibility Modes. . . . . . 29

Figure 3-3. General Registers in 64-Bit Mode. . . . . . . . . . . . . . . . . . . . . . . . 31

Figure 3-4. GPRs in 64-Bit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Figure 3-5. rFLAGS Register—Flags Visible to Application Software . . . 38

Figure 3-6. General-Purpose Data Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Figure 3-7. Mnemonic Syntax Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Figure 3-8. BSWAP Doubleword Exchange. . . . . . . . . . . . . . . . . . . . . . . . . . 57

Figure 3-9. Privilege-Level Relationships . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Figure 3-10.Procedure Stack, Near Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Figure 3-11.Procedure Stack, Far Call to Same Privilege . . . . . . . . . . . . . . 99

Figure 3-12.Procedure Stack, Far Call to Greater Privilege . . . . . . . . . . . 100

Figure 3-13.Procedure Stack, Near Return . . . . . . . . . . . . . . . . . . . . . . . . . 101

Figure 3-14.Procedure Stack, Far Return from Same Privilege . . . . . . . . 102

Figure 3-15.Procedure Stack, Far Return from Less Privilege . . . . . . . . . 102

Figure 3-16.Procedure Stack, Interrupt to Same Privilege . . . . . . . . . . . . 109

Figure 3-17.Procedure Stack, Interrupt to Higher Privilege . . . . . . . . . . . 110

Figure 3-18.I/O Address Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Figure 3-19.Memory Hierarchy Example . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Figure 4-1. Parallel Operations on Vectors of Integer Elements . . . . . . . 131

Figures xi

Page 12

AMD64 Technology 24592—Rev. 3.10—March 2005

Figure 4-2. Parallel Operations on Vectors of Floating-Point Elements . 132

Figure 4-3. Unpack and Interleave Operation . . . . . . . . . . . . . . . . . . . . . . 133

Figure 4-4. Pack Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Figure 4-5. Shuffle Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Figure 4-6. Move Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Figure 4-7. Move Mask Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Figure 4-8. Multiply-Add Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Figure 4-9. Sum-of-Absolute-Differences Operation . . . . . . . . . . . . . . . . . 139

Figure 4-10.Branch-Removal Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Figure 4-11.Move Mask Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Figure 4-12.128-bit Media Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Figure 4-13.128-Bit Media Control and Status Register (MXCSR) . . . . . . 143

Figure 4-14.128-Bit Media Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Figure 4-15.128-Bit Media Floating-Point Data Types . . . . . . . . . . . . . . . . 153

Figure 4-16.Mnemonic Syntax for Typical Instruction . . . . . . . . . . . . . . . . 162

Figure 4-17.Integer Move Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Figure 4-18.MASKMOVDQU Move Mask Operation . . . . . . . . . . . . . . . . . 168

Figure 4-19.PMOVMSKB Move Mask Operation. . . . . . . . . . . . . . . . . . . . . 169

Figure 4-20.PACKSSDW Pack Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Figure 4-21.PUNPCKLWD Unpack and Interleave Operation . . . . . . . . . 173

Figure 4-22.PINSRW Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Figure 4-23.PSHUFD Shuffle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Figure 4-24.PSHUFHW Shuffle Operation . . . . . . . . . . . . . . . . . . . . . . . . . 176

Figure 4-25.Arithmetic Operation on Vectors of Bytes . . . . . . . . . . . . . . . 177

Figure 4-26.PMULxW Multiply Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Figure 4-27.PMULUDQ Multiply Operation . . . . . . . . . . . . . . . . . . . . . . . . 181

Figure 4-28.PMADDWD Multiply-Add Operation . . . . . . . . . . . . . . . . . . . . 182

Figure 4-29.PSADBW Sum-of-Absolute-Differences Operation . . . . . . . . . 184

Figure 4-30.PCMPEQB Compare Operation . . . . . . . . . . . . . . . . . . . . . . . . 187

Figure 4-31.Floating-Point Move Operations . . . . . . . . . . . . . . . . . . . . . . . . 192

Figure 4-32.MOVMSKPS Move Mask Operation . . . . . . . . . . . . . . . . . . . . . 195

Figure 4-33.UNPCKLPS Unpack and Interleave Operation . . . . . . . . . . . 200

Figure 4-34.SHUFPS Shuffle Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

xii Figures

Page 13

24592—Rev. 3.10—March 2005 AMD64 Technology

Figure 4-35.ADDPS Arithmetic Operation. . . . . . . . . . . . . . . . . . . . . . . . . . 202

Figure 4-36.CMPPD Compare Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

Figure 4-37.COMISD Compare Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 212

Figure 4-38.SIMD Floating-Point Detection Process. . . . . . . . . . . . . . . . . . 223

Figure 5-1. Parallel Integer Operations on Elements of Vectors . . . . . . . 237

Figure 5-2. Unpack and Interleave Operation . . . . . . . . . . . . . . . . . . . . . . 238

Figure 5-3. Shuffle Operation (1 of 256) . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

Figure 5-4. Multiply-Add Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Figure 5-5. Branch-Removal Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

Figure 5-6. Floating-Point (3DNow!™ Instruction) Operations . . . . . . . . 242

Figure 5-7. 64-bit Media Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

Figure 5-8. 64-Bit Media Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245

Figure 5-9. 64-Bit Floating-Point (3DNow!) Vector Operand . . . . . . . . . . 249

Figure 5-10.Mnemonic Syntax for Typical Instruction . . . . . . . . . . . . . . . . 252

Figure 5-11.MASKMOVQ Move Mask Operation . . . . . . . . . . . . . . . . . . . . 255

Figure 5-12.PACKSSDW Pack Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . 258

Figure 5-13.PUNPCKLWD Unpack and Interleave Operation . . . . . . . . . 259

Figure 5-14.PSHUFW Shuffle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

Figure 5-15.PSWAPD Swap Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

Figure 5-16.PMADDWD Multiply-Add Operation . . . . . . . . . . . . . . . . . . . . 265

Figure 5-17.PFACC Accumulate Operation . . . . . . . . . . . . . . . . . . . . . . . . . 275

Figure 6-1. x87 Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293

Figure 6-2. x87 Physical and Stack Registers . . . . . . . . . . . . . . . . . . . . . . . 294

Figure 6-3. x87 Status Word Register (FSW) . . . . . . . . . . . . . . . . . . . . . . . 296

Figure 6-4. x87 Control Word Register (FCW) . . . . . . . . . . . . . . . . . . . . . . 299

Figure 6-5. x87 Tag Word Register (FTW) . . . . . . . . . . . . . . . . . . . . . . . . . 302

Figure 6-6. x87 Pointers and Opcode State . . . . . . . . . . . . . . . . . . . . . . . . . 303

Figure 6-7. x87 Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

Figure 6-8. x87 Floating-Point Data Types . . . . . . . . . . . . . . . . . . . . . . . . . 308

Figure 6-9. x87 Packed Decimal Data Type . . . . . . . . . . . . . . . . . . . . . . . . 310

Figure 6-10.Mnemonic Syntax for Typical Instruction . . . . . . . . . . . . . . . . 322

Figures xiii

Page 14

AMD64 Technology 24592—Rev. 3.10—March 2005

xiv Figures

Page 15

24592—Rev. 3.10—March 2005 AMD64 Technology

Tables

Table 1-1. Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Table 1-2. Application Registers and Stack, by Operating Mode . . . . . . . . 4

Table 2-1. Address-Size Prefixes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 3-1. Implicit Uses of GPRs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 3-2. Representable Values of General-Purpose Data Types . . . . . . 44

Table 3-3. Operand-Size Overrides. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Table 3-4. rFLAGS for CMOVcc Instructions . . . . . . . . . . . . . . . . . . . . . . . 52

Table 3-5. rFLAGS for SETcc Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . 67

Table 3-6. rFLAGS for Jcc Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Table 3-7. Legacy Instruction Prefixes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Table 3-8. Instructions that Implicitly Reference RSP in 64-Bit Mode . . 98

Table 3-9. Near Branches in 64-Bit Mode. . . . . . . . . . . . . . . . . . . . . . . . . . 105

Table 3-10. Interrupts and Exceptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Table 4-1. MXCSR Register Reset Values. . . . . . . . . . . . . . . . . . . . . . . . . 146

Table 4-2. Range of Values in 128-Bit Media Integer Data Types . . . . . 153

Table 4-3. Saturation Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Table 4-4. Range of Values in Normalized Floating-Point Data Types . 156

Table 4-5. Example of Denormalization. . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Table 4-6. NaN Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Table 4-7. Supported Floating-Point Encodings . . . . . . . . . . . . . . . . . . . . 161

Table 4-8. Indefinite-Value Encodings. . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Table 4-9. Types of Rounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Table 4-10. Example PANDN Bit Values . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Table 4-11. SIMD Floating-Point Exception Flags . . . . . . . . . . . . . . . . . . . 220

Table 4-12. Invalid-Operation Exception (IE) Causes . . . . . . . . . . . . . . . . 222

Table 4-13. Priority of SIMD Floating-Point Exceptions . . . . . . . . . . . . . . 224

Table 4-14. SIMD Floating-Point Exception Masks . . . . . . . . . . . . . . . . . . 226

Table 4-15. Masked Responses to SIMD Floating-Point Exceptions. . . . . 227

Table 5-1. Range of Values in 64-Bit Media Integer Data Types . . . . . . 250

Table 5-2. Saturation Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

Table 5-3. Range of Values in 64-Bit Media Floating-Point Data Types 252

Table 5-4. 64-Bit Floating-Point Exponent Ranges . . . . . . . . . . . . . . . . . . 252

Table 5-5. Example PANDN Bit Values . . . . . . . . . . . . . . . . . . . . . . . . . . . 272

Table 5-6. Mapping Between Internal and Software-Visible Tag Bits . . 286

Tab le s xv

Page 16

AMD64 Technology 24592—Rev. 3.10—March 2005

Table 6-1. Precision Control (PC) Summary . . . . . . . . . . . . . . . . . . . . . . . 302

Table 6-2. Types of Rounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303

Table 6-3. Mapping Between Internal and Software-Visible Tag Bits . . 304

Table 6-4. Instructions that Access the x87 Environment . . . . . . . . . . . . 307

Table 6-5. Range of Finite Floating-Point Values. . . . . . . . . . . . . . . . . . . 311

Table 6-6. Example of Denormalization. . . . . . . . . . . . . . . . . . . . . . . . . . . 315

Table 6-7. NaN Results from NaN Source Operands . . . . . . . . . . . . . . . . 317

Table 6-8. Supported Floating-Point Encodings . . . . . . . . . . . . . . . . . . . . 318

Table 6-9. Unsupported Floating-Point Encodings. . . . . . . . . . . . . . . . . . 320

Table 6-10. Indefinite-Value Encodings. . . . . . . . . . . . . . . . . . . . . . . . . . . . 321

Table 6-11. Precision Control Field (PC) Values and Bit Precision . . . . . 321

Table 6-12. Types of Rounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322

Table 6-13. rFLAGS Conditions for FCMOVcc . . . . . . . . . . . . . . . . . . . . . . 327

Table 6-14. rFLAGS Values for FCOMI Instruction . . . . . . . . . . . . . . . . . . 337

Table 6-15. Condition-Code Settings for FXAM . . . . . . . . . . . . . . . . . . . . . 339

Table 6-16. Instruction Effects on rFLAGS . . . . . . . . . . . . . . . . . . . . . . . . . 344

Table 6-17. x87 Floating-Point (#MF) Exception Flags . . . . . . . . . . . . . . . 348

Table 6-18. Invalid-Operation Exception (IE) Causes . . . . . . . . . . . . . . . . 349

Table 6-19. Priority of x87 Floating-Point Exceptions . . . . . . . . . . . . . . . . 352

Table 6-20. x87 Floating-Point (#MF) Exception Masks . . . . . . . . . . . . . . 353

Table 6-21. Masked Responses to x87 Floating-Point Exceptions . . . . . . 354

Table 6-22. Unmasked Responses to x87 Floating-Point Exceptions . . . . 357

xvi Tab le s

Page 17

24592—Rev. 3.10—March 2005 AMD64 Technology

Revision History

Date Revision Description

February 2005 3.10 Clarified “Self-Modifying Code” on page 123. Made several patches to index

references. Added general descriptions of SSE3 instructions to Chapter 4. Added description of the CMPXCHG16B instruction to Chapter 3. Corrected minor typographical errors. Elaborated explanation of PREFETCHlevel instructions.

September 2003 3.09 Corrected several factual errors.

September, 2002 3.07 Corrected minor organizational problems in sections dealing with ‘Prefetch’

instructions in chapters 3, 4, and 5. Clarified the general description of the operation of certain 128-bit media instructions in chapter 1. Corrected a factual error in the description of the FNINIT/FINIT instructions in chapter 6. Corrected operand descriptions for the CMOVcc instructions in chapter 3. Added Revision History. Corrected marketing denotations.

: xvii

Revision History xvii

Page 18

AMD64 Technology 24592—Rev. 3.10—March 2005

xviii Revision History

Page 19

24592—Rev. 3.10—March 2005 AMD64 Technology

Preface

About This Book

This book is part of a multivolume work entitled the AMD64 Architecture Programmer’s Manual. This table lists each volume

and its order number.

Title Order No.

Volume 1, Application Programming 24592

Volume 2, System Programming 24593

Volume 3, General-Purpose and System Instructions 24594

Volume 4, 128-Bit Media Instructions 26568

Volume 5, 64-Bit Media and x87 Floating-Point Instructions 26569

Audience

Contact Information

This volume (Volume 1) is intended for programmers writing application programs, compilers, or assemblers. It assumes prior experience in microprocessor programming, although it does not assume prior experience with the legacy x86 or AMD64 microprocessor architecture.

This volume describes the AMD64 architecture’s resources and functions that are accessible to application software, including memory, registers, instructions, operands, I/O facilities, and application-software aspects of control transfers (including interrupts and exceptions) and performance optimization.

System-programming topics—including the use of instructions running at a current privilege level (CPL) of 0 (mostprivileged)—are described in Volume 2. Details about each instruction are described in volumes 3, 4, and 5.

To submit questions or comments concerning this document, contact our technical documentation staff at [email protected].

Preface xix

Page 20

AMD64 Technology 24592—Rev. 3.10—March 2005

Organization

This volume begins with an overview of the architecture and its memory organization and is followed by chapters that describe the four application-programming models available in the AMD64 architecture:

 General-Purpose Programming—This model uses the integer

general-purpose registers (GPRs). The chapter describing it also describes the basic application environment for exceptions, control transfers, I/O, and memory optimization that applies to all other application-programming models.

 128-bit Media Programming—This model uses the 128-bit

XMM registers and supports integer and floating-point operations on vector (packed) and scalar data types.

 64-bit Media Programming—This model uses the 64-bit

MMX™ registers and supports integer and floating-point operations on vector (packed) and scalar data types.

 x87 Floating-Point Programming—This model uses the 80-bit

x87 registers and supports floating-point operations on scalar data types.

Definitions assumed throughout this volume are listed below. The index at the end of this volume cross-references topics within the volume. For other topics relating to the AMD64 architecture, see the tables of contents and indexes of the other volumes.

Definitions

Some of the following definitions assume a knowledge of the legacy x86 architecture. See “Related Documents” on page xxxi for further information about the legacy x86 architecture.

Terms and Notation 1011b

A binary value—in this example, a 4-bit value.

F0EAh

A hexadecimal value—in this example a 2-byte value.

[1,2)

A range that includes the left-most value (in this case, 1) but excludes the right-most value (in this case, 2).

xx Preface

Page 21

24592—Rev. 3.10—March 2005 AMD64 Technology

7–4

A bit range, from bit 7 to 4, inclusive. The high-order bit is shown first.

128-bit media instructions

Instructions that use the 128-bit XMM registers. These are a combination of the SSE and SSE2 instruction sets.

64-bit media instructions

Instructions that use the 64-bit MMX registers. These are primarily a combination of MMX and 3DNow!™ instruction sets, with some additional instructions from the SSE and SSE2 instruction sets.

16-bit mode

Legacy mode or compatibility mode in which a 16-bit address size is active. See legacy mode and compatibility

mode.

32-bit mode

Legacy mode or compatibility mode in which a 32-bit address size is active. See legacy mode and compatibility

mode.

64-bit mode

A submode of long mode. In 64-bit mode, the default address size is 64 bits and new features, such as register extensions, are supported for system and application software.

#GP(0)

Notation indicating a general-protection exception (#GP) with error code of 0.

absolute

Said of a displacement that references the base of a code segment rather than an instruction pointer. Contrast with

relative.

biased exponent

The sum of a floating-point value’s exponent and a constant bias for a particular floating-point data type. The bias makes the range of the biased exponent always positive, which allows reciprocation without overflow.

Preface xxi

Page 22

AMD64 Technology 24592—Rev. 3.10—March 2005

byte

Eight bits.

clear

To write a bit value of 0. Compare set.

compatibility mode

A submode of long mode. In compatibility mode, the default address size is 32 bits, and legacy 16-bit and 32-bit applications run without modification.

commit

To irreversibly write, in program order, an instruction’s result to software-visible storage, such as a register (including flags), the data cache, an internal write buffer, or memory.

CPL

Current privilege level.

CR0–CR4

A register range, from register CR0 through CR4, inclusive, with the low-order register first.

CR0.PE = 1

Notation indicating that the PE bit of the CR0 register has a value of 1.

direct

Referencing a memory location whose address is included in the instruction’s syntax as an immediate operand. The address may be an absolute or relative address. Compare

indirect.

dirty data

Data held in the processor’s caches or internal buffers that is more recent than the copy held in main memory.

displacement

A signed value that is added to the base of a segment (absolute addressing) or an instruction pointer (relative addressing). Same as offset.

doubleword

Two words, or four bytes, or 32 bits.

xxii Preface

Page 23

24592—Rev. 3.10—March 2005 AMD64 Technology

double quadword

Eight words, or 16 bytes, or 128 bits. Also called octword.

DS:rSI

The contents of a memory location whose segment address is in the DS register and whose offset relative to that segment is in the rSI register.

EFER.LME = 0

Notation indicating that the LME bit of the EFER register has a value of 0.

effective address size

The address size for the current instruction after accounting for the default address size and any address-size override prefix.

effective operand size

The operand size for the current instruction after accounting for the default operand size and any operandsize override prefix.

element

See vector.

exception

An abnormal condition that occurs as the result of executing an instruction. The processor’s response to an exception depends on the type of the exception. For all exceptions except 128-bit media SIMD floating-point exceptions and x87 floating-point exceptions, control is transferred to the handler (or service routine) for that exception, as defined by the exception’s vector. For floating-point exceptions defined by the IEEE 754 standard, there are both masked and unmasked responses. When unmasked, the exception handler is called, and when masked, a default response is provided instead of calling the handler.

FF /0

Notation indicating that FF is the first byte of an opcode, and a subopcode in the ModR/M byte has a value of 0.

flush

An often ambiguous term meaning (1) writeback, if modified, and invalidate, as in “flush the cache line,” or (2)

Preface xxiii

Page 24

AMD64 Technology 24592—Rev. 3.10—March 2005

invalidate, as in “flush the pipeline,” or (3) change a value, as in “flush to zero.”

GDT

Global descriptor table.

IDT

Interrupt descriptor table.

IGN

Ignore. Field is ignored.

indirect

Referencing a memory location whose address is in a register or other memory location. The address may be an absolute or relative address. Compare direct.

IRB

The virtual-8086 mode interrupt-redirection bitmap.

IST

The long-mode interrupt-stack table.

IVT

The real-address mode interrupt-vector table.

LDT

Local descriptor table.

legacy x86

The legacy x86 architecture. See “Related Documents” on page xxxi for descriptions of the legacy x86 architecture.

legacy mode

An operating mode of the AMD64 architecture in which existing 16-bit and 32-bit applications and operating systems run without modification. A processor implementation of the AMD64 architecture can run in either long mode or legacy

mode. Legacy mode has three submodes, real mode, protected mode, and virtual-8086 mode.

long mode

An operating mode unique to the AMD64 architecture. A processor implementation of the AMD64 architecture can run in either long mode or legacy mode. Long mode has two submodes, 64-bit mode and compatibility mode.

xxiv Preface

Page 25

24592—Rev. 3.10—March 2005 AMD64 Technology

lsb

Least-significant bit.

LSB

Least-significant byte.

main memory

Physical memory, such as RAM and ROM (but not cache memory) that is installed in a particular computer system.

mask

(1) A control bit that prevents the occurrence of a floatingpoint exception from invoking an exception-handling routine. (2) A field of bits used for a control purpose.

MBZ

Must be zero. If software attempts to set an MBZ bit to 1, a general-protection exception (#GP) occurs.

memory

Unless otherwise specified, main memory.

ModRM

A byte following an instruction opcode that specifies address calculation based on mode (Mod), register (R), and memory (M) variables.

moffset

A 16, 32, or 64-bit offset that specifies a memory operand directly, without using a ModRM or SIB byte.

msb

Most-significant bit.

MSB

Most-significant byte.

multimedia instructions

A combination of 128-bit media instructions and 64-bit media instructions.

octword

Same as double quadword.

offset

Same as displacement.

Preface xxv

Page 26

AMD64 Technology 24592—Rev. 3.10—March 2005

overflow

The condition in which a floating-point number is larger in magnitude than the largest, finite, positive or negative number that can be represented in the data-type format being used.

packed

See vector.

PAE

Physical-address extensions.

physical memory

Actual memory, consisting of main memory and cache.

probe

A check for an address in a processor’s caches or internal buffers. External probes originate outside the processor, and

internal probes originate within the processor.

protected mode

A submode of legacy mode.

quadword

Four words, or eight bytes, or 64 bits.

RAZ

Read as zero (0), regardless of what is written.

real-address mode

See real mode.

real mode

A short name for real-address mode, a submode of legacy mode.

relative

Referencing with a displacement (also called offset) from an instruction pointer rather than the base of a code segment. Contrast with absolute.

reserved

Fields marked as reserved may be used at some future time.

xxvi Preface

Page 27

24592—Rev. 3.10—March 2005 AMD64 Technology

To preserve compatibility with future processors, reserved fields require special handling when read or written by software.

Reserved fields may be further qualified as MBZ, RAZ, SBZ or IGN (see definitions).

Software must not depend on the state of a reserved field, nor upon the ability of such fields to return to a previously written state.

If a reserved field is not marked with one of the above qualifiers, software must not change the state of that field; it must reload that field with the same values returned from a prior read.

REX

An instruction prefix that specifies a 64-bit operand size and provides access to additional registers.

RIP-relative addressing

Addressing relative to the 64-bit RIP instruction pointer.

set

To write a bit value of 1. Compare clear.

SIB

A byte following an instruction opcode that specifies address calculation based on scale (S), index (I), and base (B).

SIMD

Single instruction, multiple data. See vector.

SSE

Streaming SIMD extensions instruction set. See 128-bit media instructions and 64-bit media instructions.

SSE2

Extensions to the SSE instruction set. See 128-bit media instructions and 64-bit media instructions.

SSE3

Further extensions to the SSE instruction set. See 128-bit media instructions.

Preface xxvii

Page 28

AMD64 Technology 24592—Rev. 3.10—March 2005

sticky bit

A bit that is set or cleared by hardware and that remains in that state until explicitly changed by software.

TOP

The x87 top-of-stack pointer.

TPR

Task-priority register (CR8).

TSS

Task-state segment.

underflow

The condition in which a floating-point number is smaller in magnitude than the smallest nonzero, positive or negative number that can be represented in the data-type format being used.

vector

(1) A set of integer or floating-point values, called elements, that are packed into a single operand. Most of the 128-bit and 64-bit media instructions use vectors as operands. Vectors are also called packed or SIMD (single-instruction multiple-data) operands.

(2) An index into an interrupt descriptor table (IDT), used to access exception handlers. Compare exception.

virtual-8086 mode

A submode of legacy mode.

word

Two bytes, or 16 bits.

x86

See legacy x86.

Registers In the following list of registers, the names are used to refer

either to a given register or to the contents of that register:

AH–DH

The high 8-bit AH, BH, CH, and DH registers. Compare

AL–DL.

xxviii Preface

Page 29

24592—Rev. 3.10—March 2005 AMD64 Technology

AL–DL

The low 8-bit AL, BL, CL, and DL registers. Compare AH–DH.

AL–r15B

The low 8-bit AL, BL, CL, DL, SIL, DIL, BPL, SPL, and R8B–R15B registers, available in 64-bit mode.

Base pointer register.

CRn

Control register number n.

Code segment register.

eAX–eSP

The 16-bit AX, BX, CX, DX, DI, SI, BP, and SP registers or the 32-bit EAX, EBX, ECX, EDX, EDI, ESI, EBP, and ESP registers. Compare rAX–rSP.

EFER

Extended features enable register.

eFLAGS

16-bit or 32-bit flags register. Compare rFLAGS.

EFLAGS

32-bit (extended) flags register.

eIP

16-bit or 32-bit instruction-pointer register. Compare rIP.

EIP

32-bit (extended) instruction-pointer register.

FLAGS

16-bit flags register.

GDTR

Global descriptor table register.

GPRs

General-purpose registers. For the 16-bit data size, these are AX, BX, CX, DX, DI, SI, BP, and SP. For the 32-bit data size, these are EAX, EBX, ECX, EDX, EDI, ESI, EBP, and ESP. For

Preface xxix

Page 30

AMD64 Technology 24592—Rev. 3.10—March 2005

the 64-bit data size, these include RAX, RBX, RCX, RDX, RDI, RSI, RBP, RSP, and R8–R15.

IDTR

Interrupt descriptor table register.

16-bit instruction-pointer register.

LDTR

Local descriptor table register.

MSR

Model-specific register.

r8–r15

The 8-bit R8B–R15B registers, or the 16-bit R8W–R15W registers, or the 32-bit R8D–R15D registers, or the 64-bit R8–R15 registers.

rAX–rSP

The 16-bit AX, BX, CX, DX, DI, SI, BP, and SP registers, or the 32-bit EAX, EBX, ECX, EDX, EDI, ESI, EBP, and ESP registers, or the 64-bit RAX, RBX, RCX, RDX, RDI, RSI, RBP, and RSP registers. Replace the placeholder r with nothing for 16-bit size, “E” for 32-bit size, or “R” for 64-bit size.

RAX

64-bit version of the EAX register.

RBP

64-bit version of the EBP register.

RBX

64-bit version of the EBX register.

RCX

64-bit version of the ECX register.

RDI

64-bit version of the EDI register.

RDX

64-bit version of the EDX register.

xxx Preface

Page 31

24592—Rev. 3.10—March 2005 AMD64 Technology

rFLAGS

16-bit, 32-bit, or 64-bit flags register. Compare RFLAGS.

RFLAGS

64-bit flags register. Compare rFLAGS.

rIP

16-bit, 32-bit, or 64-bit instruction-pointer register. Compare

RIP.

RIP

64-bit instruction-pointer register.

RSI

64-bit version of the ESI register.

RSP

64-bit version of the ESP register.

Stack pointer register.

Stack segment register.

TPR

Task priority register, a new register introduced in the AMD64 architecture to speed interrupt management.

Task register.

Endian Order The x86 and AMD64 architectures address memory using little-

endian byte-ordering. Multibyte values are stored with their least-significant byte at the lowest byte address, and they are illustrated with their least significant byte at the right side. Strings are illustrated in reverse order, because the addresses of their bytes increase from right to left.

1 Overview of the AMD64 Architecture

1.1 Introduction

The AMD64 architecture is a simple yet powerful 64-bit, backward-compatible extension of the industry-standard (legacy) x86 architecture. It adds 64-bit addressing and expands register resources to support higher performance for recompiled 64-bit programs, while supporting legacy 16-bit and 32-bit applications and operating systems without modification or recompilation. It is the architectural basis on which new processors can provide seamless, high-performance support for both the vast body of existing software and new 64-bit software required for higher-performance applications.

The need for a 64-bit x86 architecture is driven by applications that address large amounts of virtual and physical memory, such as high-performance servers, database management systems, and CAD tools. These applications benefit from both 64-bit addresses and an increased number of registers. The small number of registers available in the legacy x86 architecture limits performance in computation-intensive applications. Increasing the number of registers provides a performance boost to many such applications.

1.1.1 New Features The AMD64 architecture introduces these new features:

 Register Extensions (see Figure 1-1 on page 2):

- 8 new general-purpose registers (GPRs).

- All 16 GPRs are 64 bits wide.

- 8 new 128-bit XMM registers.

- Uniform byte-register addressing for all GPRs.

- A new instruction prefix (REX) accesses the extended registers.

 Long Mode (see Table 1-1 on page 3):

- Up to 64 bits of virtual address.

- 64-bit instruction pointer (RIP).

- New instruction-pointer-relative data-addressing mode.

- Flat address space.

Chapter 1: Overview of the AMD64 Architecture 1

Page 36

AMD64 Technology 24592—Rev. 3.10—March 2005

General-Purpose Registers (GPRs)

64-Bit Media and

Floating-Point Registers

RAX RBX RCX RDX RBP RSI RDI RSP R8

63 0

R9 R10 R11 R12 R13 R14 R15

63 0 63 0

Legacy x86 registers, supported in all modes Application-programming registers also include the

Flags Register

0 RFLAGS

EFLAGS

63 0

Instruction Pointer

EIP

128-Bit Media

Registers

MMX0/FPR0 MMX1/FPR1 MMX2/FPR2 MMX3/FPR3 MMX4/FPR4 MMX5/FPR5 MMX6/FPR6 MMX7/FPR7

RIP

127 0

128-bit media control-and-status register and the x87 tag-word, control-word, and status-word registers

XMM0 XMM1 XMM2 XMM3 XMM4 XMM5 XMM6 XMM7 XMM8 XMM9 XMM10 XMM11 XMM12 XMM13 XMM14 XMM15

513-101.eps

Figure 1-1. Application-Programming Register Set

2 Chapter 1: Overview of the AMD64 Architecture

Page 37

24592—Rev. 3.10—March 2005 AMD64 Technology

Table 1-1. Operating Modes

Operating Mode

Long Mode

Legacy Mode

64-Bit Mode

Compatibility Mode

Protected Mode

Virtual-8086 Mode

Real Mode

Operating

System Required

New 64-bit OS

Legacy 32-bit OS

Legacy 16-bit OS

Application

Recompile

Required

yes 64

Defaults

Address

Size (bits)

16 16 16

32 32

16 16

16 16 16

Operand

Size (bits)

Extensions

yes 64

Typical

GPR

Width (bits)

1.1.2 Registers Table 1-2 on page 4 compares the register and stack resources

available to application software, by operating mode. The left set of columns shows the legacy x86 resources, which are available in the AMD64 architecture’s legacy and compatibility modes. The right set of columns shows the comparable resources in 64-bit mode. Gray shading indicates differences between the modes. These register differences (not including stack-width difference) represent the register extensions shown in Figure 1-1.

Chapter 1: Overview of the AMD64 Architecture 3

Page 38

AMD64 Technology 24592—Rev. 3.10—March 2005

Table 1-2. Application Registers and Stack, by Operating Mode

General-Purpose Registers (GPRs)

Legacy and Compatibility Modes

Name Number Size (bits) Name Number Size (bits)

EAX, EBX, ECX,

EDX, EBP, ESI,

832

EDI, ESP

128-Bit XMM Registers XMM0–XMM7 8 128

64-Bit MMX Registers MMX0–MMX7

x87 Registers FPR0–FPR7

Instruction Pointer

Flags

EIP 1 32 RIP 1 64

EFLAGS 1 32 RFLAGS 1 64

864MMX0–MMX73864

880FPR0–FPR73880

64-Bit Mode

RAX, RBX, RCX,

RDX, RBP, RSI,

RDI, RSP, R8–R15

XMM0–XMM15 16 128

16 64

Stack — 16 or 32 —

Note:

1. Gray-shaded entries indicate differences between the modes. These differences (except stack-width difference) are the AMD64 architecture’s register extensions.

2. This list of GPRs shows only the 32-bit registers. The 16-bit and 8-bit mappings of the 32-bit registers are also accessible, as described in “Registers” on page 27.

3. The MMX0–MMX7 registers are mapped onto the FPR0–FPR7 physical registers, as shown in Figure 1-1. The x87 stack registers, ST(0)–ST(7), are the logical mappings of the FPR0–FPR7 physical registers.

As Table 1-2 shows, the legacy x86 architecture (called legacy mode in the AMD64 architecture) supports eight GPRs. In

reality, however, the general use of at least four registers (EBP, ESI, EDI, and ESP) is compromised because they serve special purposes when executing many instructions. The AMD64 architecture’s addition of eight new GPRs—and the increased width of these registers from 32 bits to 64 bits—allows compilers to substantially improve software performance. Compilers have more flexibility in using registers to hold variables. Compilers can also minimize memory traffic—and thus boost performance—by localizing work within the GPRs.

1.1.3 Instruction Set The AMD64 architecture supports the full legacy x86

instruction set, and it adds a few new instructions to support long mode (see Table 1-1 for a summary of operating modes). The application-programming instructions are organized and described in the following subsets:

 General-Purpose Instructions—These are the basic x86

integer instructions used in virtually all programs. Most of

4 Chapter 1: Overview of the AMD64 Architecture

Page 39

24592—Rev. 3.10—March 2005 AMD64 Technology

these instructions load, store, or operate on data located in the general-purpose registers (GPRs) or memory. Some of the instructions alter sequential program flow program by branching to other program locations.

 128-Bit Media Instructions—These are the streaming SIMD

extension (SSE and SSE2) instructions that load, store, or operate on data located primarily in the 128-bit XMM registers. They perform integer and floating-point operations on vector (packed) and scalar data types. Because the vector instructions can independently and simultaneously perform a single operation on multiple sets of data, they are called single-instruction, multiple-data (SIMD) instructions. They are useful for high-performance media and scientific applications that operate on blocks of data.

 64-Bit Media Instructions—These are the multimedia

extension (MMX™ technology) and AMD 3DNow!™ technology instructions. They load, store, or operate on data located primarily on the 64-bit MMX registers. Like their 128-bit counterparts, described above, they perform integer and floating-point operations on vector (packed) and scalar data types. Thus, they are also SIMD instructions and are useful in media applications that operate on blocks of data.

1.1.4 Media Instructions

 x87 Floating-Point Instructions—These are the floating-point

instructions used in legacy x87 applications. They load, store, or operate on data located in the x87 registers.

Some of these application-programming instructions bridge two or more of the above subsets. For example, there are instructions that move data between the general-purpose registers and the XMM or MMX registers, and many of the integer vector (packed) instructions can operate on either XMM or MMX registers, although not simultaneously. If instructions bridge two or more subsets, their descriptions are repeated in all subsets to which they apply.

Media applications—such as image processing, music synthesis, speech recognition, full-motion video, and 3D graphics rendering—share certain characteristics:

 They process large amounts of data.

 They often perform the same sequence of operations

repeatedly across the data.

Chapter 1: Overview of the AMD64 Architecture 5

Page 40

AMD64 Technology 24592—Rev. 3.10—March 2005

 The data are often represented as small quantities, such as 8

bits for pixel values, 16 bits for audio samples, and 32 bits for object coordinates in floating-point format.

The 128-bit and 64-bit media instructions are designed to accelerate these applications. The instructions use a form of vector (or packed) parallel processing known as singleinstruction, multiple data (SIMD) processing. This vector technology has the following characteristics:

 A single register can hold multiple independent pieces of

data. For example, a single 128-bit XMM register can hold 16 8-bit integer data elements, or four 32-bit single-precision floating-point data elements.

 The vector instructions can operate on all data elements in a

register, independently and simultaneously. For example, a PADDB instruction operating on byte elements of two vector operands in 128-bit XMM registers performs 16 simultaneous additions and returns 16 independent results in a single operation.

1.1.5 Floating-Point Instructions

128-bit and 64-bit media instructions take SIMD vector technology a step further by including special instructions that perform operations commonly found in media applications. For example, a graphics application that adds the brightness values of two pixels must prevent the add operation from wrapping around to a small value if the result overflows the destination register, because an overflow result can produce unexpected effects such as a dark pixel where a bright one is expected. The 128-bit and 64-bit media instructions include saturatingarithmetic instructions to simplify this type of operation. A result that otherwise would wrap around due to overflow or underflow is instead forced to saturate at the largest or smallest value that can be represented in the destination register.

The AMD64 architecture provides three floating-point instruction subsets, using three distinct register sets:

 128-Bit Media Instructions support 32-bit single-precision

and 64-bit double-precision floating-point operations, in addition to integer operations. Operations on both vector data and scalar data are supported, with a dedicated floating-point exception-reporting mechanism. These floating-point operations comply with the IEEE-754 standard.

6 Chapter 1: Overview of the AMD64 Architecture

Page 41

24592—Rev. 3.10—March 2005 AMD64 Technology

 64-Bit Media Instructions (the subset of 3DNow! technology

instructions) support single-precision floating-point operations. Operations on both vector data and scalar data are supported, but these instructions do not support floating-point exception reporting.

 x87 Floating-Point Instructions support single-precision,

double-precision, and 80-bit extended-precision floatingpoint operations. Only scalar data are supported, with a dedicated floating-point exception-reporting mechanism. The x87 floating-point instructions contain special instructions for performing trigonometric and logarithmic transcendental operations. The single-precision and doubleprecision floating-point operations comply with the IEEE754 standard.

Maximum floating-point performance can be achieved using the 128-bit media instructions. One of these vector instructions can support up to four single-precision (or two doubleprecision) operations in parallel. In 64-bit mode, the AMD64 architecture doubles the number of legacy XMM registers from 8 to 16.

Applications gain additional benefits using the 64-bit media and x87 instructions. The separate register sets supported by these instructions relieve pressure on the XMM registers available to the 128-bit media instructions. This provides application programs with three distinct sets of floating-point registers. In addition, certain high-end implementations of the AMD64 architecture may support 128-bit media, 64-bit media, and x87 instructions with separate execution units.

1.2 Modes of Operation

Table 1-1 on page 3 summarizes the modes of operation supported by the AMD64 architecture. In most cases, the default address and operand sizes can be overridden with instruction prefixes. The register extensions shown in the second-from-right column of Table 1-1 are those illustrated in Figure 1-1 on page 2.

1.2.1 Long Mode Long mode is an extension of legacy protected mode. Long

mode consists of two submodes: 64-bit mode and compatibility mode. 64-bit mode supports all of the new features and register extensions of the AMD64 architecture. Compatibility mode

Chapter 1: Overview of the AMD64 Architecture 7

Page 42

AMD64 Technology 24592—Rev. 3.10—March 2005

supports binary compatibility with existing 16-bit and 32-bit applications. Long mode does not support legacy real mode or legacy virtual-8086 mode, and it does not support hardware task switching.

Throughout this document, references to long mode refer to both 64-bit mode and compatibility mode. If a function is specific to either of these submodes, then the name of the specific submode is used instead of the name long mode.

1.2.2 64-Bit Mode 64-bit mode—a submode of long mode—supports the full range

of 64-bit virtual-addressing and register-extension features. This mode is enabled by the operating system on an individual code-segment basis. Because 64-bit mode supports a 64-bit virtual-address space, it requires a new 64-bit operating system and tool chain. Existing application binaries can run without recompilation in compatibility mode, under an operating system that runs in 64-bit mode, or the applications can also be recompiled to run in 64-bit mode.

Addressing features include a 64-bit instruction pointer (RIP) and a new RIP-relative data-addressing mode. This mode accommodates modern operating systems by supporting only a flat address space, with single code, data, and stack space.

Register Extensions. 64-bit mode implements register extensions through a new group of instruction prefixes, called REX prefixes. These extensions add eight GPRs (R8–R15), widen all GPRs to 64 bits, and add eight 128-bit XMM registers (XMM8–XMM15).

The REX instruction prefixes also provide a new byte-register capability that makes the low byte of any of the sixteen GPRs available for byte operations. This results in a uniform set of byte, word, doubleword, and quadword registers that is better suited to compiler register-allocation.

64-Bit Addresses and Operands. In 64-bit mode, the default virtualaddress size is 64 bits (implementations can have fewer). The default operand size for most instructions is 32 bits. For most instructions, these defaults can be overridden on an instruction-by-instruction basis using instruction prefixes. REX prefixes specify the 64-bit operand size and new registers.

RIP-Relative Data Addressing. 64-bit mode supports data addressing relative to the 64-bit instruction pointer (RIP). The legacy x86

8 Chapter 1: Overview of the AMD64 Architecture

Page 43

24592—Rev. 3.10—March 2005 AMD64 Technology

architecture supports IP-relative addressing only in controltransfer instructions. RIP-relative addressing improves the efficiency of position-independent code and code that addresses global data.

Opcodes. A few instruction opcodes and prefix bytes are redefined to allow register extensions and 64-bit addressing. These differences are described in “General-Purpose Instructions in 64-Bit Mode” in Volume 3 and “Differences Between Long Mode and Legacy Mode” in Volume 3.

1.2.3 Compatibility Mode

Compatibility mode—the second submode of long mode— allows 64-bit operating systems to run existing 16-bit and 32-bit x86 applications. These legacy applications run in compatibility mode without recompilation.

Applications running in compatibility mode use 32-bit or 16-bit addressing and can access the first 4GB of virtual-address space. Legacy x86 instruction prefixes toggle between 16-bit and 32-bit address and operand sizes.

As with 64-bit mode, compatibility mode is enabled by the operating system on an individual code-segment basis. Unlike 64-bit mode, however, x86 segmentation functions the same as in the legacy x86 architecture, using 16-bit or 32-bit protectedmode semantics. From the application viewpoint, compatibility mode looks like the legacy x86 protected-mode environment. From the operating-system viewpoint, however, address translation, interrupt and exception handling, and system data structures use the 64-bit long-mode mechanisms.

1.2.4 Legacy Mode Legacy mode preserves binary compatibility not only with

existing 16-bit and 32-bit applications but also with existing 16bit and 32-bit operating systems. Legacy mode consists of the following three submodes:

 Protected Mode—Protected mode supports 16-bit and 32-bit

programs with memory segmentation, optional paging, and privilege-checking. Programs running in protected mode can access up to 4GB of memory space.

 Virtual-8086 Mode—Virtual-8086 mode supports 16-bit real-

mode programs running as tasks under protected mode. It uses a simple form of memory segmentation, optional paging, and limited protection-checking. Programs running in virtual-8086 mode can access up to 1MB of memory space.

Chapter 1: Overview of the AMD64 Architecture 9

Page 44

AMD64 Technology 24592—Rev. 3.10—March 2005

 Real Mode—Real mode supports 16-bit programs using

simple register-based memory segmentation. It does not support paging or protection-checking. Programs running in real mode can access up to 1MB of memory space.

Legacy mode is compatible with existing 32-bit processor implementations of the x86 architecture. Processors that implement the AMD64 architecture boot in legacy real mode, just like processors that implement the legacy x86 architecture.

Throughout this document, references to legacy mode refer to all three submodes—protected mode, virtual-8086 mode, and real mode. If a function is specific to either of these submodes, then the name of the specific submode is used instead of the name legacy mode.

10 Chapter 1: Overview of the AMD64 Architecture

Page 45

24592—Rev. 3.10—March 2005 AMD64 Technology

2 Memory Model

This chapter describes the memory characteristics that apply to application software in the various operating modes of the AMD64 architecture. These characteristics apply to all instructions in the architecture. Several additional system-level details about memory and cache management are described in Vol um e 2 .

2.1 Memory Organization

2.1.1 Virtual Memory Virtual memory consists of the entire address space available to

programs. It is a large linear-address space that is translated by a combination of hardware and operating-system software to a smaller physical-address space, parts of which are located in memory and parts on disk or other external storage media.

Figure 2-1 on page 12 shows how the virtual-memory space is treated in the two submodes of long mode:

 64-bit mode—This mode uses a flat segmentation model of

virtual memory. The 64-bit virtual-memory space is treated as a single, flat (unsegmented) address space. Program addresses access locations that can be anywhere in the linear 64-bit address space. The operating system can use separate selectors for code, stack, and data segments for memory-protection purposes, but the base address of all these segments is always 0. (For an exception to this general rule, see “FS and GS as Base of Address Calculation” on page 20.)

 Compatibility mode—This mode uses a protected, multi-

segment model of virtual memory, just as in legacy protected mode. The 32-bit virtual-memory space is treated as a segmented set of address spaces for code, stack, and data segments, each with its own base address and protection parameters. A segmented space is specified by adding a segment selector to an address.

Chapter 2: Memory Model 11

Page 46

AMD64 Technology 24592—Rev. 3.10—March 2005

64-Bit Mode

(Flat Segmentation Model)

264 - 1

Legacy and Compatibility Mode

(Multi-Segment Model)

232 - 1

Code Segment (CS) Base

code

stack

data

513-107.eps

Base Address for

All Segments

Stack Segment (SS) Base

Data Segment (DS) Base

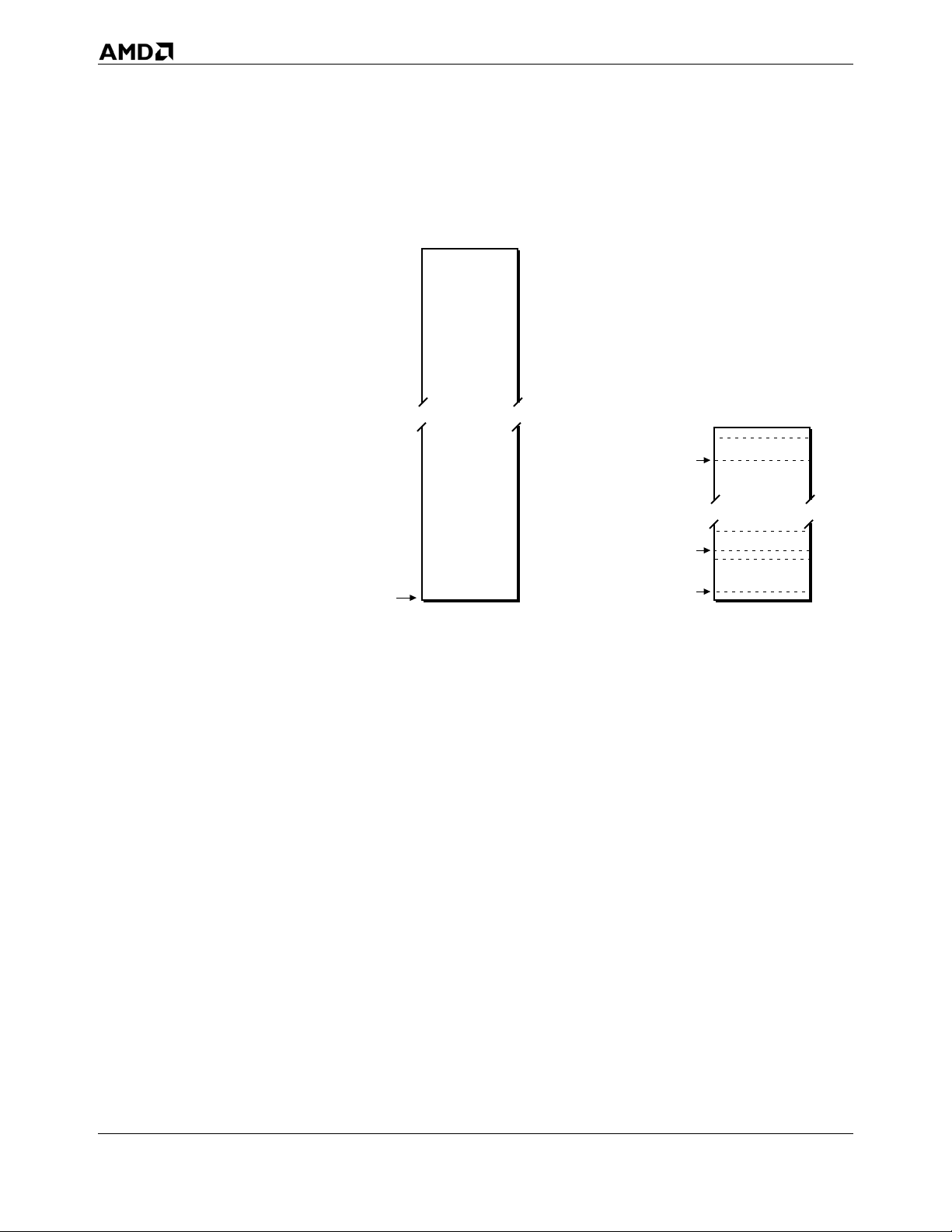

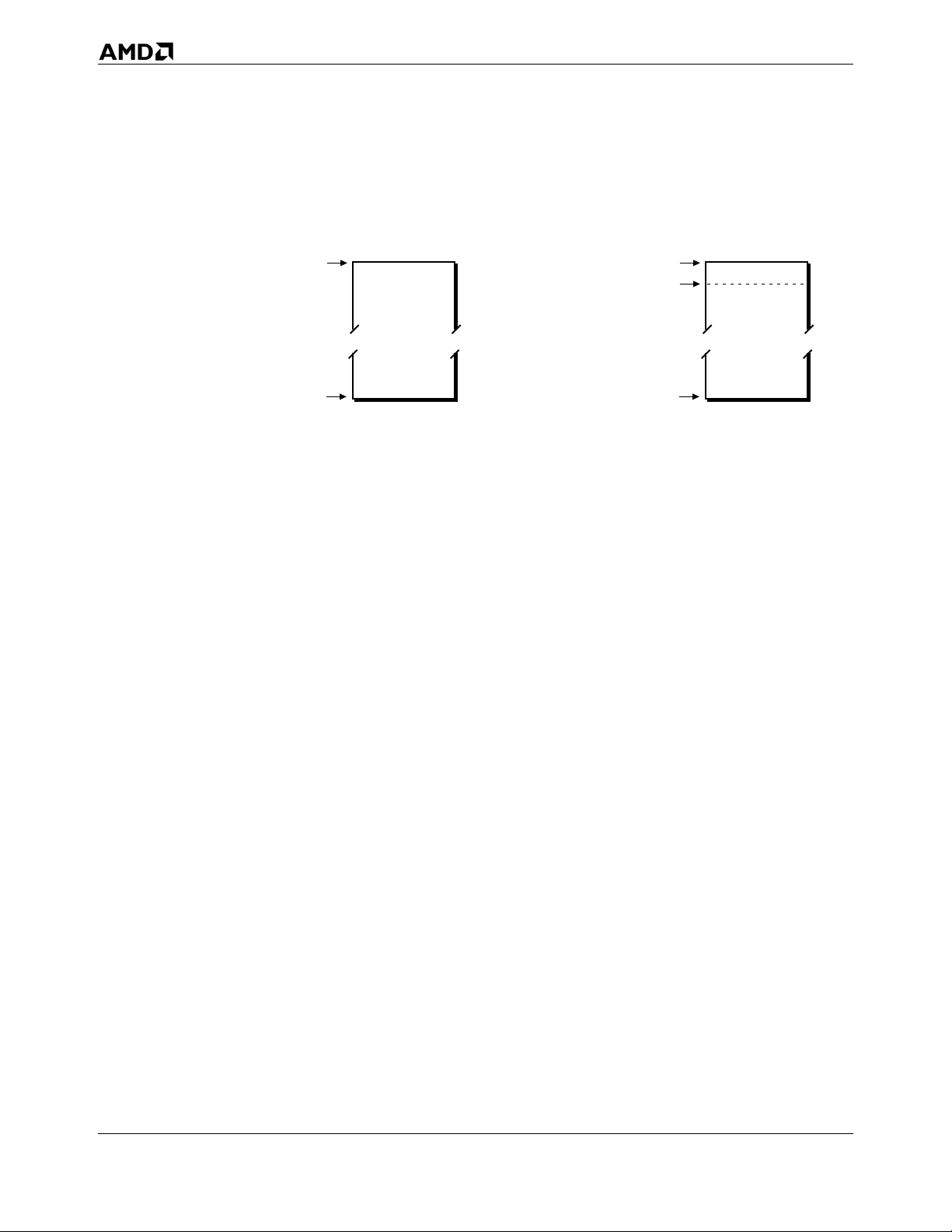

Figure 2-1. Virtual-Memory Segmentation

Segmented memory has been used as a method by which operating systems could isolate programs, and the data used by programs, from each other in an effort to increase the reliability of systems running multiple programs simultaneously. However, most modern operating systems do not use the segmentation features available in the legacy x86 architecture. Instead, these operating systems handle segmentation functions entirely in software. For this reason, the AMD64 architecture dispenses with most of the legacy segmentation functions in 64-bit mode. This allows new 64-bit operating systems to be coded more simply, and it supports more efficient management of multiprogramming environments than is possible in the legacy x86 architecture.

2.1.2 Segment Registers

Segment registers hold the selectors used to access memory segments. Figure 2-2 on page 13 shows the application-visible portion of the segment registers. In legacy and compatibility modes, all segment registers are accessible to software. In 64bit mode, only the CS, FS, and GS segments are recognized by

12 Chapter 2: Memory Model

Page 47

24592—Rev. 3.10—March 2005 AMD64 Technology

the processor, and software can use the FS and GS segmentbase registers as base registers for address calculation, as described in “FS and GS as Base of Address Calculation” on page 20. For references to the DS, ES, or SS segments in 64-bit mode, the processor assumes that the base for each of these segments is zero, neither their segment limit nor attributes are checked, and the processor simply checks that all such addresses are in canonical form, as described in “64-bit Canonical Addresses” on page 18.

2.1.3 Physical Memory

Legacy Mode and

Compatibility Mode

15 0

64-Bit Mode

(Attributes only)

ignored

(Base only)

ignored

15 0

513-312.eps

Figure 2-2. Segment Registers

For details on segmentation and the segment registers, see “Segmented Virtual Memory” in Volume 2.

Physical memory is the installed memory (excluding cache memory) in a particular computer system that can be accessed through the processor’s bus interface. The maximum size of the physical memory space is determined by the number of address bits on the bus interface. In a virtual-memory system, the large virtual-address space (also called linear-address space) is translated to a smaller physical-address space by a combination of segmentation and paging hardware and software.

Segmentation is illustrated in Figure 2-1 on page 12. Paging is a mechanism for translating linear (virtual) addresses into fixedsize blocks called pages, which the operating system can move, as needed, between memory and external storage media

Chapter 2: Memory Model 13

Page 48

AMD64 Technology 24592—Rev. 3.10—March 2005

(typically disk). The AMD64 architecture supports an expanded version of the legacy x86 paging mechanism, one that is able to translate the full 64-bit virtual-address space into the physicaladdress space supported by the particular implementation.

2.1.4 Memory Management

63 0

Memory management consists of the methods by which addresses generated by programs are translated via segmentation and/or paging into addresses in physical memory. Memory management is not visible to application programs. It is handled by the operating system and processor hardware. The following description gives a very brief overview of these functions. Details are given in “System-Management Instructions” in Volume 2.

Long-Mode Memory Management. Figure 2-3 shows the flow, from top to bottom, of memory management functions performed in the two submodes of long mode.

64-Bit Mode

Virtual (Linear) Address

Compatibility Mode

031015

Effective AddressSelector

Segmentation

0313263

Virtual Address0

Paging

051

Physical Address

Paging

051

Physical Address

513-184.eps

Figure 2-3. Long-Mode Memory Management

In 64-bit mode, programs generate virtual (linear) addresses that can be up to 64 bits in size. The virtual addresses are

14 Chapter 2: Memory Model

Page 49

24592—Rev. 3.10—March 2005 AMD64 Technology

passed to the long-mode paging function, which generates physical addresses that can be up to 52 bits in size. (Specific implementations of the architecture can support fewer virtualaddress and physical-address sizes.)

In compatibility mode, legacy 16-bit and 32-bit applications run using legacy x86 protected-mode segmentation semantics. The 16-bit or 32-bit effective addresses generated by programs are combined with their segments to produce 32-bit virtual (linear) addresses that are zero-extended to a maximum of 64 bits. The paging that follows is the same long-mode paging function used in 64-bit mode. It translates the virtual addresses into physical addresses. The combination of segment selector and effective address is also called a logical address or far pointer. The virtual address is also called the linear address.

Legacy-Mode Memory Management. Figure 2-4 shows the memorymanagement functions performed in the three submodes of legacy mode.

Protected Mode

031015

Effective Address (EA)Selector

Segmentation

031

Linear Address

Paging

031

Physical Address (PA)

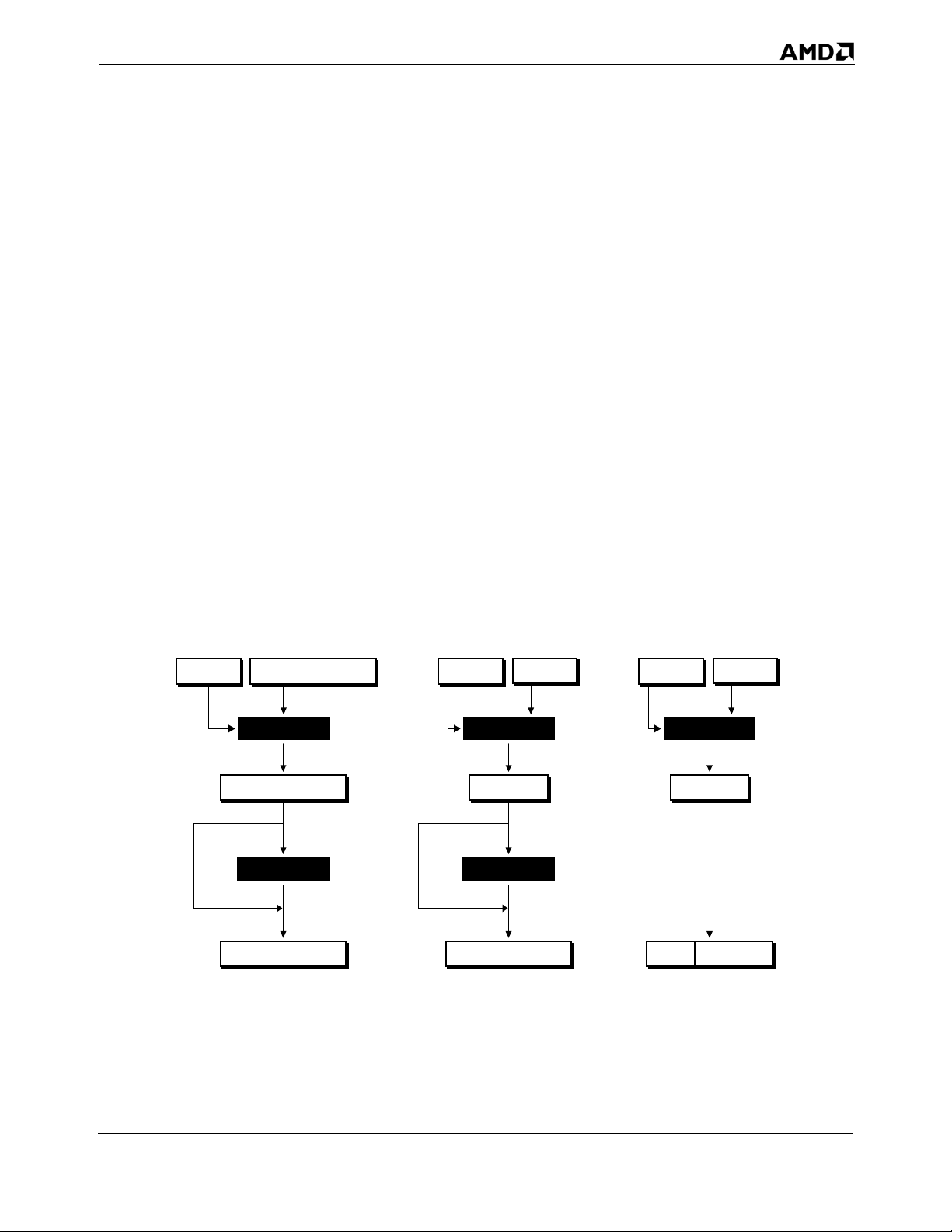

Figure 2-4. Legacy-Mode Memory Management

Virtual-8086 Mode

015

Selector

Segmentation

Linear Address

Paging

Physical Address (PA)

Real Mode

015

019

031

015

Selector

Segmentation

Linear Address

19 031

015

019

513-185.eps

Chapter 2: Memory Model 15

Page 50

AMD64 Technology 24592—Rev. 3.10—March 2005

The memory-management functions differ, depending on the submode, as follows:

 Protected Mode—Protected mode supports 16-bit and 32-bit

programs with table-based memory segmentation, paging, and privilege-checking. The segmentation function takes 32bit effective addresses and 16-bit segment selectors and produces 32-bit linear addresses into one of 16K memory segments, each of which can be up to 4GB in size. Paging is optional. The 32-bit physical addresses are either produced by the paging function or the linear addresses are used without modification as physical addresses.

 Virtual-8086 Mode—Virtual-8086 mode supports 16-bit

programs running as tasks under protected mode. 20-bit linear addresses are formed in the same way as in real mode, but they can optionally be translated through the paging function to form 32-bit physical addresses that access up to 4GB of memory space.

 Real Mode—Real mode supports 16-bit programs using

register-based shift-and-add segmentation, but it does not support paging. Sixteen-bit effective addresses are zeroextended and added to a 16-bit segment-base address that is left-shifted four bits, producing a 20-bit linear address. The linear address is zero-extended to a 32-bit physical address that can access up to 1MB of memory space.

2.2 Memory Addressing

2.2.1 Byte Ordering Instructions and data are stored in memory in little-endian byte

order. Little-endian ordering places the least-significant byte of the instruction or data item at the lowest memory address and the most-significant byte at the highest memory address.

Figure 2-5 on page 17 shows a generalization of little-endian memory and register images of a quadword data type. The leastsignificant byte is at the lowest address in memory and at the right-most byte location of the register image.

16 Chapter 2: Memory Model

Page 51

24592—Rev. 3.10—March 2005 AMD64 Technology

Quadword in Memory

High (most-significant)

Quadword in General-Purpose Register

Figure 2-5. Byte Ordering

byte 7

byte 6

byte 5

byte 4

byte 3

byte 2

byte 1

byte 0

07h

06h

05h

04h

03h

02h

01h

00h

High (most-significant)

Low (least-significant)

byte 0byte 1byte 2byte 3byte 4byte 5byte 6byte 7

063

513-116.eps

Figure 2-6 on page 18 shows the memory image of a 10-byte instruction. Instructions are byte data types. They are read from memory one byte at a time, starting with the leastsignificant byte (lowest address). For example, the following instruction specifies the 64-bit instruction MOV RAX, 1122334455667788 instruction that consists of the following ten bytes:

48 B8 8877665544332211

48 is a REX instruction prefix that specifies a 64-bit operand size, B8 is the opcode that—together with the REX prefix— specifies the 64-bit RAX destination register, and 8877665544332211 is the 8-byte immediate value to be moved, where 88 represents the eighth (least-significant) byte and 11 represents the first (most-significant) byte. In memory, the REX prefix byte (48) would be stored at the lowest address, and the first immediate byte (11) would be stored at the highest instruction address.

Chapter 2: Memory Model 17

Page 52

AMD64 Technology 24592—Rev. 3.10—March 2005

2.2.2 64-bit Canonical Addresses

09h

08h

07h

06h

05h

04h

03h

02h

01h

00h

High (most-significant)

Low (least-significant)

513-186.eps

Figure 2-6. Example of 10-Byte Instruction in Memory

Long mode defines 64 bits of virtual address, but implementations of the AMD64 architecture may support fewer bits of virtual address. Although implementations might not use all 64 bits of the virtual address, they check bits 63 through the most-significant implemented bit to see if those bits are all zeros or all ones. An address that complies with this property is said to be in canonical address form. If a virtual-memory reference is not in canonical form, the implementation causes a general-protection exception or stack fault.

2.2.3 Effective Addresses

Programs provide effective addresses to the hardware prior to segmentation and paging translations. Long-mode effective addresses are a maximum of 64 bits wide, as shown in Figure 2-3 on page 14. Programs running in compatibility mode generate (by default) 32-bit effective addresses, which the hardware zeroextends to 64 bits. Legacy-mode effective addresses, with no address-size override, are 32 or 16 bits wide, as shown in Figure 2-4. These sizes can be overridden with an address-size instruction prefix, as described in “Instruction Prefixes” on page 87.

There are five methods for generating effective addresses, depending on the specific instruction encoding:

18 Chapter 2: Memory Model

Page 53

24592—Rev. 3.10—March 2005 AMD64 Technology

 Absolute Addresses—These addresses are given as

displacements (or offsets) from the base address of a data segment. They point directly to a memory location in the data segment.

 Instruction-Relative Addresses—These addresses are given as

displacements (or offsets) from the current instruction pointer (IP), also called the program counter (PC). They are generated by control-transfer instructions. A displacement in the instruction encoding, or one read from memory, serves as an offset from the address that follows the transfer. See “RIP-Relative Addressing” on page 22 for details about RIPrelative addressing in 64-bit mode.

 ModR/M Addressing—These addresses are calculated using a

scale, index, base, and displacement. Instruction encodings contain two bytes—MODR/M and optional SIB (scale, index, base) and a variable length displacement—that specify the variables for the calculation. The base and index values are contained in general-purpose registers specified by the SIB byte. The scale and displacement values are specified directly in the instruction encoding. Figure 2-7 shows the components of a complex-address calculation. The resultant effective address is added to the data-segment base address to form a linear address, as described in “Segmented Virtual Memory” in Volume 2. “Instruction Formats” in Volume 3 gives further details on specifying this form of address. The encoding of instructions specifies how the address is calculated.

Base

Scale by 1, 2, 4, or 8

DisplacementIndex

Effective Address

513-108.eps

Figure 2-7. Complex Address Calculation (Protected Mode)

Chapter 2: Memory Model 19

Page 54

AMD64 Technology 24592—Rev. 3.10—March 2005

 Stack Addresses—PUSH, POP, CALL, RET, IRET, and INT

instructions implicitly use the stack pointer, which contains the address of the procedure stack. See “Stack Operation” on page 23 for details about the size of the stack pointer.

 String Addresses—String instructions generate sequential

addresses using the rDI and rSI registers, as described in “Implicit Uses of GPRs” on page 34.

In 64-bit mode, with no address-size override, the size of effective-address calculations is 64 bits. An effective-address calculation uses 64-bit base and index registers and signextends displacements to 64 bits. Due to the flat address space in 64-bit mode, virtual addresses are equal to effective addresses. (For an exception to this general rule, see “FS and GS as Base of Address Calculation” on page 20.)

Long-Mode Zero-Extension of 16-Bit and 32-Bit Addresses. In long mode, all 16-bit and 32-bit address calculations are zero-extended to form 64-bit addresses. Address calculations are first truncated to the effective-address size of the current mode (64-bit mode or compatibility mode), as overridden by any address-size prefix. The result is then zero-extended to the full 64-bit address width.

Because of this, 16-bit and 32-bit applications running in compatibility mode can access only the low 4GB of the longmode virtual-address space. Likewise, a 32-bit address generated in 64-bit mode can access only the low 4GB of the long-mode virtual-address space.

Displacements and Immediates. In general, the maximum size of address displacements and immediate operands is 32 bits. They can be 8, 16, or 32 bits in size, depending on the instruction or, for displacements, the effective address size. In 64-bit mode, displacements are sign-extended to 64 bits during use, but their actual size (for value representation) remains a maximum of 32 bits. The same is true for immediates in 64-bit mode, when the operand size is 64 bits. However, support is provided in 64-bit mode for some 64-bit displacement and immediate forms of the MOV instruction.

FS and GS as Base of Address Calculation. In 64-bit mode, the FS and GS segment-base registers (unlike the DS, ES, and SS segmentbase registers) can be used as non-zero data-segment base registers for address calculations, as described in “Segmented Virtual Memory” in Volume 2. 64-bit mode assumes all other

20 Chapter 2: Memory Model

Page 55

24592—Rev. 3.10—March 2005 AMD64 Technology

data-segment registers (DS, ES, and SS) have a base address of

2.2.4 Address-Size Prefix

The default address size of an instruction is determined by the default-size (D) bit and long-mode (L) bit in the current codesegment descriptor (for details, see “Segmented Virtual Memory” in Volume 2). Application software can override the default address size in any operating mode by using the 67h address-size instruction prefix byte. The address-size prefix allows mixing 32-bit and 64-bit addresses on an instruction-byinstruction basis.

Table 2-1 shows the effects of using the address-size prefix in all operating modes. In 64-bit mode, the default address size is 64 bits. The address size can be overridden to 32 bits. 16-bit addresses are not supported in 64-bit mode. In compatibility and legacy modes, the address-size prefix works the same as in the legacy x86 architecture.

Table 2-1. Address-Size Prefixes

Address-

Size Prefix

(67h)

Required?

Operating Mode

Default

Address Size

(Bits)

Effective

Address Size

(Bits)

64 no

64-Bit Mode

Long Mode

Compatibility Mode

Legacy Mode (Protected, Virtual-8086, or Real Mode)

Note:

1. “No’ indicates that the default address size is used.

Chapter 2: Memory Model 21

32 yes

32 no

16 ye s

32 yes

16 no

32 no

16 ye s

32 yes

16 no

Page 56

AMD64 Technology 24592—Rev. 3.10—March 2005

2.2.5 RIP-Relative Addressing

RIP-relative addressing—that is, addressing relative to the 64bit instruction pointer (also called program counter)—is available in 64-bit mode. The effective address is formed by adding the displacement to the 64-bit RIP of the next instruction.

In the legacy x86 architecture, addressing relative to the instruction pointer (IP or EIP) is available only in controltransfer instructions. In the 64-bit mode, any instruction that uses ModRM addressing (see “ModRM and SIB Bytes” in Volume 3) can use RIP-relative addressing. The feature is particularly useful for addressing data in position-independent code and for code that addresses global data.

Programs usually have many references to data, especially global data, that are not register-based. To load such a program, the loader typically selects a location for the program in memory and then adjusts the program’s references to global data based on the load location. RIP-relative addressing of data makes this adjustment unnecessary.

Range of RIP-Relative Addressing. Without RIP-relative addressing, instructions encoded with a ModRM byte address memory relative to zero. With RIP-relative addressing, instructions with a ModRM byte can address memory relative to the 64-bit RIP using a signed 32-bit displacement. This provides an offset range of ±2GB from the RIP.

Effect of Address-Size Prefix on RIP-relative Addressing. RIP-relative addressing is enabled by 64-bit mode, not by a 64-bit addresssize. Conversely, use of the address-size prefix does not disable RIP-relative addressing. The effect of the address-size prefix is to truncate and zero-extend the computed effective address to 32 bits, like any other addressing mode.

Encoding. For details on instruction encoding of RIP-relative addressing, see in “RIP-Relative Addressing” in Volume 3.

2.3 Pointers

Pointers are variables that contain addresses rather than data. They are used by instructions to reference memory. Instructions access data using near and far pointers. Stack pointers locate the current stack.

22 Chapter 2: Memory Model

Page 57

24592—Rev. 3.10—March 2005 AMD64 Technology

2.3.1 Near and Far Pointers

Near pointers contain only an effective address, which is used as an offset into the current segment. Far pointers contain both an effective address and a segment selector that specifies one of several segments. Figure 2-8 illustrates the two types of pointers.

Far PointerNear Pointer

Effective Address (EA) Effective Address (EA)Selector

513-109.eps

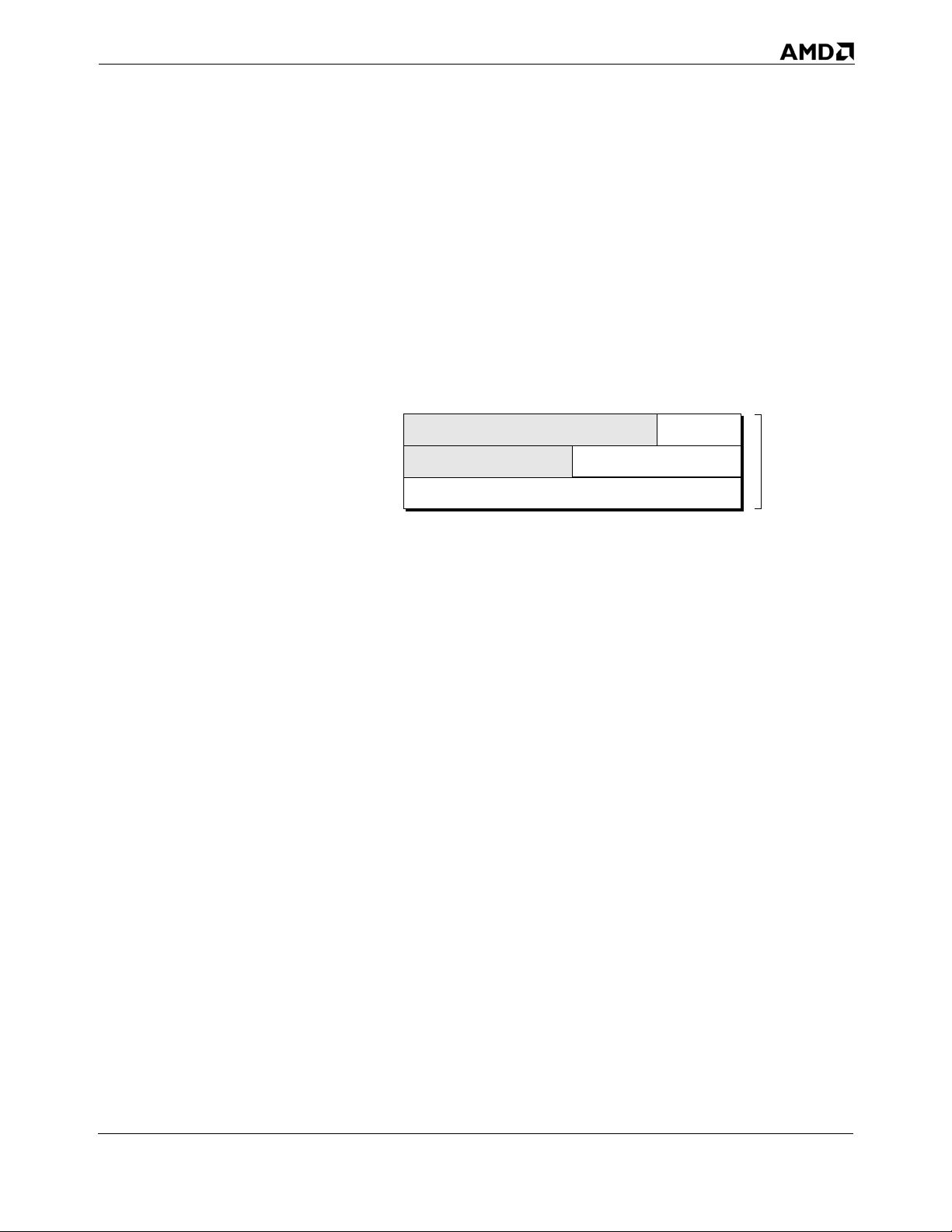

Figure 2-8. Near and Far Pointers

In 64-bit mode, the AMD64 architecture supports only the flatmemory model in which there is only one data segment, so the effective address is used as the virtual (linear) address and far pointers are not needed. In compatibility mode and legacy protected mode, the AMD64 architecture supports multiple memory segments, so effective addresses can be combined with segment selectors to form far pointers, and the terms logical address (segment selector and effective address) and far pointer are synonyms. Near pointers can also be used in compatibility mode and legacy mode.

2.4 Stack Operation

A stack is a portion of a stack segment in memory that is used to link procedures. Software conventions typically define stacks using a stack frame, which consists of two registers—a stack- frame base pointer (rBP) and a stack pointer (rSP)—as shown in Figure 2-9 on page 24. These stack pointers can be either near pointers or far pointers.

The stack-segment (SS) register, points to the base address of the current stack segment. The stack pointers contain offsets from the base address of the current stack segment. All instructions that address memory using the rBP or rSP registers cause the processor to access the current stack segment.

Chapter 2: Memory Model 23

Page 58

AMD64 Technology 24592—Rev. 3.10—March 2005

Stack Frame Before Procedure Call Stack Frame After Procedure Call

Stack-Frame Base Pointer (rBP)

and Stack Pointer (rSP)

Stack-Segment (SS) Base Address

Figure 2-9. Stack Pointer Mechanism

In typical APIs, the stack-frame base pointer and the stack pointer point to the same location before a procedure call (the top-of-stack of the prior stack frame). After data is pushed onto the stack, the stack-frame base pointer remains where it was and the stack pointer advances downward to the address below the pushed data, where it becomes the new top-of-stack.

In legacy and compatibility modes, the default stack pointer size is 16 bits (SP) or 32 bits (ESP), depending on the defaultsize (B) bit in the stack-segment descriptor, and multiple stacks can be maintained in separate stack segments. In 64-bit mode, stack pointers are always 64 bits wide (RSP).

Stack-Frame Base Pointer (rBP)

Stack Pointer (rSP)

Stack-Segment (SS) Base Address

passed data

513-110.eps

Further application-programming details on the stack mechanism are described in “Control Transfers” on page 94. System-programming details on the stack segments are described in “Segmented Virtual Memory” in Volume 2.

2.5 Instruction Pointer

The instruction pointer is used in conjunction with the codesegment (CS) register to locate the next instruction in memory. The instruction-pointer register contains the displacement (offset)—from the base address of the current CS segment, or from address 0 in 64-bit mode—to the next instruction to be executed. The pointer is incremented sequentially, except for branch instructions, as described in “Control Transfers” on page 94.

24 Chapter 2: Memory Model

Page 59

24592—Rev. 3.10—March 2005 AMD64 Technology

In legacy and compatibility modes, the instruction pointer is a 16-bit (IP) or 32-bit (EIP) register. In 64-bit mode, the instruction pointer is extended to a 64-bit (RIP) register to support 64-bit offsets. The case-sensitive acronym, rIP, is used to refer to any of these three instruction-pointer sizes, depending on the software context.

Figure 2-10 shows the relationship between RIP, EIP, and IP. The 64-bit RIP can be used for RIP-relative addressing, as described in “RIP-Relative Addressing” on page 22.

EIP

RIP

63 31 032

513-140.eps

rIP

Figure 2-10. Instruction Pointer (rIP) Register

The contents of the rIP are not directly readable by software. However, the rIP is pushed onto the stack by a call instruction.

The memory model described in this chapter is used by all of the programming environments that make up the AMD64 architecture. The next four chapters of this volume describe the application programming environments, which include:

 General-purpose programming (Chapter 3 on page 27).

 128-bit media programming (Chapter 4 on page 131).

 64-bit media programming (Chapter 5 on page 237).

 x87 floating-point programming (Chapter 6 on page 293).

Chapter 2: Memory Model 25

Page 60

AMD64 Technology 24592—Rev. 3.10—March 2005

26 Chapter 2: Memory Model

Page 61

24592—Rev. 3.10—March 2005 AMD64 Technology

3 General-Purpose Programming

The general-purpose programming model includes the generalpurpose registers (GPRs), integer instructions and operands that use the GPRs, program-flow control methods, memory optimization methods, and I/O. This programming model includes the original x86 integer-programming architecture, plus 64-bit extensions and a few additional instructions. Only the application-programming instructions and resources are described in this chapter. Integer instructions typically used in system programming, including all of the privileged instructions, are described in Volume 2, along with other system-programming topics.

The general-purpose programming model is used to some extent by almost all programs, including programs consisting primarily of 128-bit media instructions, 64-bit media instructions, x87 floating-point instructions, or system instructions. For this reason, an understanding of the general-purpose programming model is essential for any programming work using the AMD64 instruction set architecture.

3.1 Registers

Figure 3-1 on page 28 shows an overview of the registers used in general-purpose application programming. They include the general-purpose registers (GPRs), segment registers, flags register, and instruction-pointer register. The number and width of available registers depends on the operating mode.

The registers and register ranges shaded light gray in Figure 3-1 are available only in 64-bit mode. Those shaded dark gray are available only in legacy mode and compatibility mode. Thus, in 64-bit mode, the 32-bit general-purpose, flags, and instructionpointer registers available in legacy mode and compatibility mode are extended to 64-bit widths, eight new GPRs are available, and the DS, ES, and SS segment registers are ignored.

When naming registers, if reference is made to multiple register widths, a lower-case r notation is used. For example, the notation rAX refers to the 16-bit AX, 32-bit EAX, or 64-bit RAX register, depending on an instruction’s effective operand size.

Chapter 3: General-Purpose Programming 27

Page 62

AMD64 Technology 24592—Rev. 3.10—March 2005

General-Purpose Registers (GPRs)

rAX

rBX

rCX

rDX

rBP

rSI

rDI

rSP

R10

Segment Registers

63 31 032

Flags and Instruction Pointer Registers

15 0

Available to sofware in all modes

Available to sofware only in 64-bit mode

Ignored by hardware in 64-bit mode

63 31 032

Figure 3-1. General-Purpose Programming Registers

R11

R12

R13

R14

R15

rFLAGS

rIP

513-131.eps

3.1.1 Legacy Registers In legacy and compatibility modes, all of the legacy x86

registers are available. Figure 3-2 shows a detailed view of the GPR, flag, and instruction-pointer registers.

28 Chapter 3: General-Purpose Programming

Page 63

24592—Rev. 3.10—March 2005 AMD64 Technology

encoding

low

high

8-bit

8-bit 32-bit

AH (4)

BH (7)

CH (5)

DH (6)

31 15 016

31 0

FLAGS

16-bit

FLAGSIPEFLAGS

EAX

EBX

ECX

EDX

ESI

EDI

EBP

ESP

EIP

513-311.eps

Figure 3-2. General Registers in Legacy and Compatibility Modes

The legacy GPRs include:

 Eight 8-bit registers (AH, AL, BH, BL, CH, CL, DH, DL).

 Eight 16-bit registers (AX, BX, CX, DX, DI, SI, BP, SP).

 Eight 32-bit registers (EAX, EBX, ECX, EDX, EDI, ESI, EBP,

ESP).

The size of register used by an instruction depends on the effective operand size or, for certain instructions, the opcode, address size, or stack size. The 16-bit and 32-bit registers are encoded as 0 through 7 in Figure 3-2. For opcodes that specify a byte operand, registers encoded as 0 through 3 refer to the lowbyte registers (AL, BL, CL, DL) and registers encoded as 4 through 7 refer to the high-byte registers (AH, BH, CH, DH).

The 16-bit FLAGS register, which is also the low 16 bits of the 32-bit EFLAGS register, shown in Figure 3-2, contains control and status bits accessible to application software, as described in Section 3.1.4, “Flags Register,” on page 38. The 16-bit IP or

Chapter 3: General-Purpose Programming 29

Page 64

AMD64 Technology 24592—Rev. 3.10—March 2005

32-bit EIP instruction-pointer register contains the address of the next instruction to be executed, as described in Section 2.5, “Instruction Pointer,” on page 24.

3.1.2 64-Bit-Mode Registers

In 64-bit mode, eight new GPRs are added to the eight legacy GPRs, all 16 GPRs are 64 bits wide, and the low bytes of all registers are accessible. Figure 3-3 on page 31 shows the GPRs, flags register, and instruction-pointer register available in 64bit mode. The GPRs include:

 Sixteen 8-bit low-byte registers (AL, BL, CL, DL, SIL, DIL,

BPL, SPL, R8B, R9B, R10B, R11B, R12B, R13B, R14B, R15B).

 Four 8-bit high-byte registers (AH, BH, CH, DH),

addressable only when no REX prefix is used.

 Sixteen 16-bit registers (AX, BX, CX, DX, DI, SI, BP, SP,

R8W, R9W, R10W, R11W, R12W, R13W, R14W, R15W).

 Sixteen 32-bit registers (EAX, EBX, ECX, EDX, EDI, ESI,

EBP, ESP, R8D, R9D, R10D, R11D, R12D, R13D, R14D, R15D).

 Sixteen 64-bit registers (RAX, RBX, RCX, RDX, RDI, RSI,

RBP, RSP, R8, R9, R10, R11, R12, R13, R14, R15).

The size of register used by an instruction depends on the effective operand size or, for certain instructions, the opcode, address size, or stack size. For most instructions, access to the extended GPRs requires a REX prefix (Section 3.5.2, “REX Prefixes,” on page 91). The four high-byte registers (AH, BH, CH, DH) available in legacy mode are not addressable when a REX prefix is used.

In general, byte and word operands are stored in the low 8 or 16 bits of GPRs without modifying their high 56 or 48 bits, respectively. Doubleword operands, however, are normally stored in the low 32 bits of GPRs and zero-extended to 64 bits.

The 64-bit RFLAGS register, shown in Figure 3-3 on page 31, contains the legacy EFLAGS in its low 32-bit range. The high 32 bits are reserved. They can be written with anything but they always read as zero (RAZ). The 64-bit RIP instruction-pointer register contains the address of the next instruction to be executed, as described in Section 3.1.5, “Instruction Pointer Register,” on page 42.

30 Chapter 3: General-Purpose Programming

Page 65

24592—Rev. 3.10—March 2005 AMD64 Technology

not modified for 8-bit operands

not modified for 16-bit operands

zero-extended

for 32-bit operands

low

16-bit 32-bit 64-bit

8-bit

AH*

BH*

CH*

DH*

SIL**

DIL**

BPL**

SPL**

R8B

R9B

R10B

R11B

R12B

R13B

R14B

R8W

R9W

R10W

R11W

R12W

R13W

R14W

EAX

EBX

ECX

EDX

ESI

EDI

EBP

ESP

R8D

R9D

R10D

R11D

R12D

R13D

R14D

RAX

RBX

RCX

RDX

RSI

RDI

RBP

RSP

R10

R11

R12

R13

R14

63 31 15 7 081632

R15B

R15W

RFLAGS

R15D

R15

513-309.eps

RIP

63 31 032

* Not addressable when

a REX prefix is used.

** Only addressable when

a REX prefix is used.

Figure 3-3. General Registers in 64-Bit Mode

Figure 3-4 on page 32 illustrates another way of viewing the 64bit-mode GPRs, showing how the legacy GPRs overlap the extended GPRs. Gray-shaded bits are not modified in 64-bit mode.

Chapter 3: General-Purpose Programming 31

Page 66

AMD64 Technology 24592—Rev. 3.10—March 2005

63 32 31 16 15 8 7 0

Gray areas are not modified in 64-bit mode. AH* AL

0EAX

RAX

0EBX

RBX

CH* CL

0ECX

RCX

DH* DL

0EDX

RDX

0 ESI

RSI

0EDI

RDI

0EBP

RBP

0 ESP

RSP

BH* BL

SIL**

DIL**

BPL**

SPL**

R8B

R8W

R15B

R15W

0R8D

…

0R15D

* Not addressable when a REX prefix is used. ** Only addressable when a REX prefix is used.

R15

Figure 3-4. GPRs in 64-Bit Mode

32 Chapter 3: General-Purpose Programming

Page 67

24592—Rev. 3.10—March 2005 AMD64 Technology

Default Operand Size. For most instructions, the default operand size in 64-bit mode is 32 bits. To access 16-bit operand sizes, an instruction must contain an operand-size prefix (66h), as described in Section 3.2.2, “Operand Sizes and Overrides,” on page 45. To access the full 64-bit operand size, most instructions must contain a REX prefix.

For details on operand size, see Section 3.2.2, “Operand Sizes and Overrides,” on page 45.

Byte Registers. 64-bit mode provides a uniform set of low-byte, low-word, low-doubleword, and quadword registers that is wellsuited for register allocation by compilers. Access to the four new low-byte registers in the legacy-GPR range (SIL, DIL, BPL, SPL), or any of the low-byte registers in the extended registers (R8B–R15B), requires a REX instruction prefix. However, the legacy high-byte registers (AH, BH, CH, DH) are not accessible when a REX prefix is used.

Zero-Extension of 32-Bit Results. As Figure 3-3 and Figure 3-4 show, when performing 32-bit operations with a GPR destination in 64-bit mode, the processor zero-extends the 32-bit result into the full 64-bit destination. 8-bit and 16-bit operations on GPRs preserve all unwritten upper bits of the destination GPR. This is consistent with legacy 16-bit and 32-bit semantics for partialwidth results.

Software should explicitly sign-extend the results of 8-bit, 16bit, and 32-bit operations to the full 64-bit width before using the results in 64-bit address calculations.

The following four code examples show how 64-bit, 32-bit, 16bit, and 8-bit ADDs work. In these examples, “48” is a REX prefix specifying 64-bit operand size, and “01C3” and “00C3” are the opcode and ModRM bytes of each instruction (see “Opcode Syntax” in Volume 3 for details on the opcode and ModRM encoding).

Example 1: 64-bit Add:

Before:RAX =0002_0001_8000_2201

RBX =0002_0002_0123_3301

48 01C3 ADD RBX,RAX ;48 is a REX prefix for size.

Result:RBX = 0004_0003_8123_5502

Chapter 3: General-Purpose Programming 33

Page 68

AMD64 Technology 24592—Rev. 3.10—March 2005

Example 2: 32-bit Add:

Before:RAX = 0002_0001_8000_2201

RBX = 0002_0002_0123_3301

01C3 ADD EBX,EAX ;32-bit add

Result:RBX = 0000_0000_8123_5502

(32-bit result is zero extended)

Example 3: 16-bit Add:

Before:RAX = 0002_0001_8000_2201

RBX = 0002_0002_0123_3301

66 01C3 ADD BX,AX ;66 is 16-bit size override

Result:RBX = 0002_0002_0123_5502

(bits 63:16 are preserved)

Example 4: 8-bit Add:

3.1.3 Implicit Uses of GPRs

Before:RAX = 0002_0001_8000_2201

RBX = 0002_0002_0123_3301

00C3 ADD BL,AL ;8-bit add

Result:RBX = 0002_0002_0123_3302

(bits 63:08 are preserved)

GPR High 32 Bits Across Mode Switches. The processor does not preserve the upper 32 bits of the 64-bit GPRs across switches from 64-bit mode to compatibility or legacy modes. When using 32-bit operands in compatibility or legacy mode, the high 32 bits of GPRs are undefined. Software must not rely on these undefined bits, because they can change from one implementation to the next or even on a cycle-to-cycle basis within a given implementation. The undefined bits are not a function of the data left by any previously running process.

Most instructions can use any of the GPRs for operands. However, as Table 3-1 shows, some instructions use some GPRs implicitly. Details about implicit use of GPRs are described in “General-Purpose Instruction Reference” in Volume 3.

Table 3-1 on page 35 shows implicit register uses only for application instructions. Certain system instructions also make implicit use of registers. These system instructions are described in “System Instruction Reference” in Volume 3.

34 Chapter 3: General-Purpose Programming

Page 69

24592—Rev. 3.10—March 2005 AMD64 Technology

Table 3-1. Implicit Uses of GPRs

Registers

Low 8-Bit 16-Bit 32-Bit 64-Bit

AL AX EAX

BL BX EBX

CL CX ECX

RAX

RBX

RCX

Name Implicit Uses

• Operand for decimal arithmetic, multiply, divide, string, compareand-exchange, table-translation, and I/O instructions.

Accumulator

• Special accumulator encoding for ADD, XOR, and MOV instructions.

• Used with EDX to hold doubleprecision operands.

• CPUID processor-feature information.

• Address generation in 16-bit code.

Base

• Memory address for XLAT instruction.

• CPUID processor-feature information.

• Bit index for shift and rotate instructions.

• Iteration count for loop and

Count

repeated string instructions.

• Jump conditional if zero.

• CPUID processor-feature information.

• Operand for multiply and divide instructions.

• Port number for I/O instructions.

DL DX EDX

RDX

I/O Address

• Used with EAX to hold doubleprecision operands.

• CPUID processor-feature information.

Note:

1. Gray-shaded registers have no implicit uses.

2. Accessible only in 64-bit mode.

Chapter 3: General-Purpose Programming 35

Page 70

AMD64 Technology 24592—Rev. 3.10—March 2005

Table 3-1. Implicit Uses of GPRs (continued)

Registers

Low 8-Bit 16-Bit 32-Bit 64-Bit

SIL

DIL

BPL

SPL

R8B–R10B

R11B

SI ESI

DI EDI

BP EBP

SP ESP

R8W–R10W

R11W

R8D–R10D

R11D

RSI

RDI

RBP

RSP

R8–R10

R11

Name Implicit Uses

• Memory address of source

Source Index

operand for string instructions.

• Memory index for 16-bit addresses.

• Memory address of destination

Destination Index

operand for string instructions.

• Memory index for 16-bit addresses.

Base Pointer

Stack Pointer

None No implicit uses

None

• Memory address of stack-frame base pointer.

• Memory address of last stack entry (top of stack).

• Holds the value of RFLAGS on SYSCALL/SYSRET.

R12B–R15B2R12W–R15W2R12D–R15D

Note:

1. Gray-shaded registers have no implicit uses.

2. Accessible only in 64-bit mode.

Arithmetic Operations. Several forms of the add, subtract, multiply, and divide instructions use AL or rAX implicitly. The multiply and divide instructions also use the concatenation of rDX:rAX for double-sized results (multiplies) or quotient and remainder (divides).

Sign-Extensions. The instructions that double the size of operands by sign extension (for example, CBW, CWDE, CDQE, CWD, CDQ, CQO) use rAX register implicitly for the operand. The CWD, CDQ, and CQO instructions also uses the rDX register.

Special MOVs. The MOV instruction has several opcodes that implicitly use the AL or rAX register for one operand.

String Operations. Many types of string instructions use the accumulators implicitly. Load string, store string, and scan

R12–R15

None No implicit uses

36 Chapter 3: General-Purpose Programming

Page 71

24592—Rev. 3.10—March 2005 AMD64 Technology

string instructions use AL or rAX for data and rDI or rSI for the offset of a memory address.

I/O-Address-Space Operations. The I/O and string I/O instructions use rAX to hold data that is received from or sent to a device located in the I/O-address space. DX holds the device I/Oaddress (the port number).

Table Translations. The table translate instruction (XLATB) uses AL for an memory index and rBX for memory base address.

Compares and Exchanges. Compare and exchange instructions (CMPXCHG) use the AL or rAX register for one operand.

Decimal Arithmetic. The decimal arithmetic instructions (AAA, AAD, AAM, AAS, DAA, DAS) that adjust binary-coded decimal (BCD) operands implicitly use the AL and AH register for their operations.

Shifts and Rotates. Shift and rotate instructions can use the CL register to specify the number of bits an operand is to be shifted or rotated.

Conditional Jumps. Special conditional-jump instructions use the rCX register instead of flags. The JCXZ and JrCXZ instructions check the value of the rCX register and pass control to the target instruction when the value of rCX register reaches 0.

Repeated String Operations. With the exception of I/O string instructions, all string operations use rSI as the source-operand pointer and rDI as the destination-operand pointer. I/O string instructions use rDX to specify the input-port or output-port number. For repeated string operations (those preceded with a repeat-instruction prefix), the rSI and rDI registers are incremented or decremented as the string elements are moved from the source location to the destination. Repeat-string operations also use rCX to hold the string length, and decrement it as data is moved from one location to the other.

Stack Operations. Stack operations make implicit use of the rSP register, and in some cases, the rBP register. The rSP register is used to hold the top-of-stack pointer (or simply, stack pointer). rSP is decremented when items are pushed onto the stack, and incremented when they are popped off the stack. The ENTER and LEAVE instructions use rBP as a stack-frame base pointer.

Chapter 3: General-Purpose Programming 37

Page 72

AMD64 Technology 24592—Rev. 3.10—March 2005

Here, rBP points to the last entry in a data structure that is passed from one block-structured procedure to another.

The use of rSP or rBP as a base register in an address calculation implies the use of SS (stack segment) as the default segment. Using any other GPR as a base register without a segment-override prefix implies the use of the DS data segment as the default segment.

The push all and pop all instructions (PUSHA, PUSHAD, POPA, POPAD) implicitly use all of the GPRs.

CPUID Information. The CPUID instruction makes implicit use of the EAX, EBX, ECX, and EDX registers. Software loads a function code into EAX, executes the CPUID instruction, and then reads the associated processor-feature information in EAX, EBX, ECX, and EDX.

3.1.4 Flags Register Figure 3-5 on page 39 shows the 64-bit RFLAGS register and the

flag bits visible to application software. Bits 15–0 are the FLAGS register (accessed in legacy real and virtual-8086 modes), bits 31–0 are the EFLAGS register (accessed in legacy protected mode and compatibility mode), and bits 63–0 are the RFLAGS register (accessed in 64-bit mode). The name rFLAGS refers to any of the three register widths, depending on the current software context.

38 Chapter 3: General-Purpose Programming

Page 73

24592—Rev. 3.10—March 2005 AMD64 Technology

3263

Reserved, Read as Zero (RAZ)

1516

See Volume 2 for System Flags

Reserved or System Flag

Symbol Description Bit

OF Overflow Flag 11 DF Direction Flag 10 SF Sign Flag 7 ZF Zero Flag 6 AF Auxiliary Carry Flag 4 PF Parity Flag 2 CF Carry Flag 0

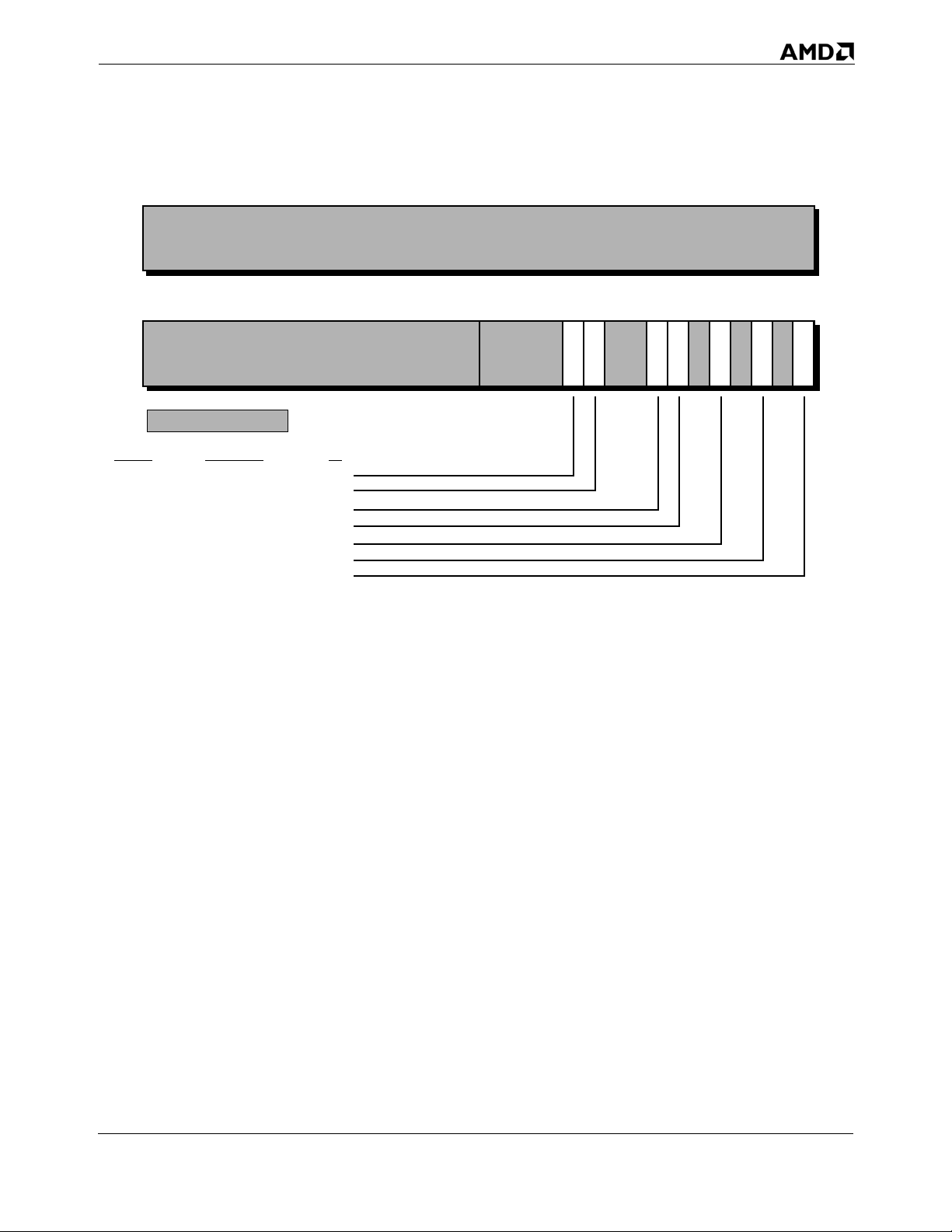

Figure 3-5. rFLAGS Register—Flags Visible to Application Software

The low 16 bits (FLAGS portion) of rFLAGS are accessible by application software and hold the following flags:

 One control flag (the direction flag DF).

987654321010111231

DFO

ZFS

 Six status flags (carry flag CF, parity flag PF, auxiliary carry

flag AF, zero flag ZF, sign flag SF, and overflow flag OF).

The direction flag (DF) flag controls the direction of string operations. The status flags provide result information from logical and arithmetic operations and control information for conditional move and jump instructions.

Bits 31–16 of the rFLAGS register contain flags that are accessible only to system software. These flags are described in “System Registers” in Volume 2. The highest 32 bits of RFLAGS are reserved. In 64-bit mode, writes to these bits are ignored. They are read as zeros (RAZ). The rFLAGS register is initialized to 02h on reset, so that all of the programmable bits are cleared to zero.

Chapter 3: General-Purpose Programming 39

Page 74

AMD64 Technology 24592—Rev. 3.10—March 2005

The effects that rFLAGS bit-values have on instructions are summarized in the following places:

 Conditional Moves (CMOVcc)—Table 3-4 on page 52.

 Conditional Jumps (Jcc)—Table 3-5 on page 67.

 Conditional Sets (SETcc)—Table 3-6 on page 72.

The effects that instructions have on rFLAGS bit-values are summarized in “Instruction Effects on RFLAGS” in Volume 3.

The sections below describe each application-visible flag. All of these flags are readable and writable. For example, the POPF, POPFD, POPFQ, IRET, IRETD, and IRETQ instructions write all flags. The carry and direction flags are writable by dedicated application instructions. Other application-visible flags are written indirectly by specific instructions. Reserved bits and bits whose writability is prevented by the current values of system flags, current privilege level (CPL), or the current operating mode, are unaffected by the POPFx instructions.

Carry Flag (CF). Bit 0. Hardware sets the carry flag to 1 if the last integer addition or subtraction operation resulted in a carry (for addition) or a borrow (for subtraction) out of the mostsignificant bit position of the result. Otherwise, hardware clears the flag to 0.

The increment and decrement instructions—unlike the addition and subtraction instructions—do not affect the carry flag. The bit shift and bit rotate instructions shift bits of operands into the carry flag. Logical instructions like AND, OR, XOR clear the carry flag. Bit-test instructions (BTx) set the value of the carry flag depending on the value of the tested bit of the operand.

Software can set or clear the carry flag with the STC and CLC instructions, respectively. Software can complement the flag with the CMC instruction.

Parity Flag (PF). Bit 2. Hardware sets the parity flag to 1 if there is an even number of 1 bits in the least-significant byte of the last result of certain operations. Otherwise (i.e., for an odd number of 1 bits), hardware clears the flag to 0. Software can read the flag to implement parity checking.

Auxiliary Carry Flag (AF). Bit 4. Hardware sets the auxiliary carry flag to 1 if the last binary-coded decimal (BCD) operation

40 Chapter 3: General-Purpose Programming

Page 75

24592—Rev. 3.10—March 2005 AMD64 Technology

resulted in a carry (for addition) or a borrow (for subtraction) out of bit 3. Otherwise, hardware clears the flag to 0.

The main application of this flag is to support decimal arithmetic operations. Most commonly, this flag is used internally by correction commands for decimal addition (AAA) and subtraction (AAS).

Zero Flag (ZF). Bit 6. Hardware sets the zero flag to 1 if the last arithmetic operation resulted in a value of zero. Otherwise (for a non-zero result), hardware clears the flag to 0. The compare and test instructions also affect the zero flag.

The zero flag is typically used to test whether the result of an arithmetic or logical operation is zero, or to test whether two operands are equal.

Sign Flag (SF). Bit 7. Hardware sets the sign flag to 1 if the last arithmetic operation resulted in a negative value. Otherwise (for a positive-valued result), hardware clears the flag to 0. Thus, in such operations, the value of the sign flag is set equal to the value of the most-significant bit of the result. Depending on the size of operands, the most-significant bit is bit 7 (for bytes), bit 15 (for words), bit 31 (for doublewords), or bit 63 (for quadwords).

Direction Flag (DF). Bit 10. The direction flag determines the order in which strings are processed. Software can set the direction flag to 1 to specify decrementing the data pointer for the next string instruction (LODSx, STOSx, MOVSx, SCASx, CMPSx, OUTSx, or INSx). Clearing the direction flag to 0 specifies incrementing the data pointer. The pointers are stored in the rSI or rDI register. Software can set or clear the flag with the STD and CLD instructions, respectively.

Overflow Flag (OF). Bit 11. Hardware sets the overflow flag to 1 to indicate that the most-significant (sign) bit of the result of the last signed integer operation differed from the signs of both source operands. Otherwise, hardware clears the flag to 0. A set overflow flag means that the magnitude of the positive or negative result is too big (overflow) or too small (underflow) to fit its defined data type.

The OF flag is undefined after the DIV instruction and after a shift of more than one bit. Logical instructions clear the overflow flag.

Chapter 3: General-Purpose Programming 41

Page 76

AMD64 Technology 24592—Rev. 3.10—March 2005

3.1.5 Instruction Pointer Register

The instruction pointer register—IP, EIP, or RIP, or simply rIP for any of the three depending on the context—is used in conjunction with the code-segment (CS) register to locate the next instruction in memory. See Section 2.5, “Instruction Pointer,” on page 24 for details.

3.2 Operands

Operands are either referenced by an instruction's encoding or included as an immediate value in the instruction encoding. Depending on the instruction, referenced operands can be located in registers, memory locations, or I/O ports.

3.2.1 Data Types Figure 3-6 on page 43 shows the register images of the general-

purpose data types. In the general-purpose programming environment, these data types can be interpreted by instruction syntax or the software context as the following types of numbers and strings:

 Signed (two's-complement) integers.

 Unsigned integers.

 BCD digits.

 Packed BCD digits.

 Strings, including bit strings.

The double quadword data type is supported in the RDX:RAX registers by the MUL, IMUL, DIV, IDIV, and CQO instructions. Software can interpret the data types in ways other than those shown in Figure 3-6 on page 43 but the AMD64 instruction set does not directly support such interpretations and software must handle them entirely on its own.

Table 3-2 on page 44 shows the range of representable values for the general-purpose data types.

42 Chapter 3: General-Purpose Programming

Page 77

24592—Rev. 3.10—March 2005 AMD64 Technology

127

Signed Integer

16 bytes (64-bit mode only)

Unsigned Integer

16 bytes (64-bit mode only)

8 bytes (64-bit mode only)

4 bytes

2 bytes

Double Quadword

Quadword

Doubleword

Word

Byte

Double Quadword

Quadword

Doubleword

Word

Byte

Packed BCD

513-326.eps

Figure 3-6. General-Purpose Data Types

Signed and Unsigned Integers. The architecture supports signed and

unsigned 1 byte, 2 bytes, 4 byte and 8 byte integers. The sign bit is stored in the most significant bit.

BCD Digit

Bit

Chapter 3: General-Purpose Programming 43

Page 78

AMD64 Technology 24592—Rev. 3.10—March 2005

Table 3-2. Representable Values of General-Purpose Data Types

Data Type Byte Word Doubleword Quadword

Signed Integers

Unsigned Integers

Packed BCD Digits

BCD Digit

Note:

1. The sign bit is the most-significant bit (e.g., bit 7 for a byte, bit 15 for a word, etc.).

2. The double quadword data type is supported in the RDX:RAX registers by the MUL, IMUL, DIV, IDIV, and CQO instructions.

-27 to +(27 -1) -215 to +(215 -1) -231 to +(231 -1) -263 to +(263 -1) -2

0 to +2 (0 to 255)

-1

00 to 99 multiple packed BCD-digit bytes

0 to 9 multiple BCD-digit bytes

0 to +216-1

(0 to 65,535)

0 to +232-1

(0 to 4.29 x 10

(0 to 1.84 x 10

)

0 to +2

-1

)

Double

Quadword

127

to +(2

0 to +2

(0 to 3.40 x 10

Binary-Coded-Decimal (BCD) Digits. BCD digits have values ranging from 0 to 9. These values can be represented in binary encoding with four bits. For example, 0000b represents the decimal number 0 and 1001b represents the decimal number 9. Values ranging from 1010b to 1111b are invalid for this data type. Because a byte contains eight bits, two BCD digits can be stored in a single byte. This is referred to as packed-BCD. If a single BCD digit is stored per byte, it is referred to as unpacked-BCD. In the x87 floating-point programming environment (described in Section 6, “x87 Floating-Point Programming,” on page 293) an 80-bit packed BCD data type is also supported, along with conversions between floating-point and BCD data types, so that data expressed in the BCD format can be operated on as floating-point values.

128

127

-1

-1)

)

Integer add, subtract, multiply, and divide instructions can be used to operate on single (unpacked) BCD digits. The result must be adjusted to produce a correct BCD representation. For unpacked BCD numbers, the ASCII-adjust instructions are provided to simplify that correction. In the case of division, the adjustment must be made prior to executing the integer-divide instruction.

Similarly, integer add and subtract instructions can be used to operate on packed-BCD digits. The result must be adjusted to produce a correct packed-BCD representation. Decimal-adjust

44 Chapter 3: General-Purpose Programming

Page 79

24592—Rev. 3.10—March 2005 AMD64 Technology

instructions are provided to simplify packed-BCD result corrections.

Strings. Strings are a continuous sequence of a single data type. The string instructions can be used to operate on byte, word, doubleword, or quadword data types. The maximum length of a string of any data type is 232–1 bytes, in legacy or compatibility modes, or 264–1 bytes in 64-bit mode. One of the more common types of strings used by applications are byte data-type strings known as ASCII strings, which can be used to represent character data.

Bit strings are also supported by instructions that operate specifically on bit strings. In general, bit strings can start and end at any bit location within any byte, although the BTx bitstring instructions assume that strings start on a byte boundary. The length of a bit string can range in size from a single bit up to 232–1 bits, in legacy or compatibility modes, or 264-–1 bits in 64-bit mode.

3.2.2 Operand Sizes and Overrides

Default Operand Size. In legacy and compatibility modes, the default operand size is either 16 bits or 32 bits, as determined by the default-size (D) bit in the current code-segment descriptor (for details, see “Segmented Virtual Memory” in Volume 2). In 64-bit mode, the default operand size for most instructions is 32 bits.

Application software can override the default operand size by using an operand-size instruction prefix. Table 3-3 on page 46 shows the instruction prefixes for operand-size overrides in all operating modes. In 64-bit mode, the default operand size for most instructions is 32 bits. A REX prefix (see Section 3.5.2, “REX Prefixes,” on page 91) specifies a 64-bit operand size, and a 66h prefix specifies a 16-bit operand size. The REX prefix takes precedence over the 66h prefix.

Chapter 3: General-Purpose Programming 45

Page 80

AMD64 Technology 24592—Rev. 3.10—March 2005

Table 3-3. Operand-Size Overrides

Default

Operating Mode

64-Bit Mode

Long Mode

Compatibility Mode

Legacy Mode (Protected, Virtual-8086, or Real Mode)

Note:

1. A “no” indicates that the default operand size is used. An “x” means “don’t care.”

2. Near branches, instructions that implicitly reference the stack pointer, and certain other instructions default to 64-bit operand size. See “General-Purpose Instructions in 64-Bit Mode” in Volume 3

Operand

Size (Bits)

Effective Operand

Size

(Bits)

64 x yes

32 no no

16 yes no

32 no

16 yes

32 yes

16 n o

32 no

16 yes

32 yes

16 n o

Instruction Prefix

66h

Applicable

REX

Not

There are several exceptions to the 32-bit operand-size default in 64-bit mode, including near branches and instructions that implicitly reference the RSP stack pointer. For example, the near CALL, near JMP, Jcc, LOOPcc, POP, and PUSH instructions all default to a 64-bit operand size in 64-bit mode. Such instructions do not need a REX prefix for the 64-bit operand size. For details, see “General-Purpose Instructions in 64-Bit Mode” in Volume 3.

Effective Operand Size. The term effective operand size describes the operand size for the current instruction, after accounting for the instruction’s default operand size and any operand-size override or REX prefix that is used with the instruction.

46 Chapter 3: General-Purpose Programming

Page 81

24592—Rev. 3.10—March 2005 AMD64 Technology

Immediate Operand Size. In legacy mode and compatibility modes, the size of immediate operands can be 8, 16, or 32 bits, depending on the instruction. In 64-bit mode, the maximum size of an immediate operand is also 32 bits, except that 64-bit immediates can be copied into a 64-bit GPR using the MOV instruction.

When the operand size of a MOV instruction is 64 bits, the processor sign-extends immediates to 64 bits before using them. Support for true 64-bit immediates is accomplished by expanding the semantics of the MOV reg, imm16/32 instructions. In legacy and compatibility modes, these instructions—opcodes B8h through BFh—copy a 16-bit or 32-bit immediate (depending on the effective operand size) into a GPR. In 64-bit mode, if the operand size is 64 bits (requires a REX prefix), these instructions can be used to copy a true 64-bit immediate into a GPR.

3.2.3 Operand Addressing

Operands for general-purpose instructions are referenced by the instruction's syntax or they are incorporated in the instruction as an immediate value. Referenced operands can be in registers, memory, or I/O ports.

Register Operands. Most general-purpose instructions that take register operands reference the general-purpose registers (GPRs). A few general-purpose instructions reference operands in the RFLAGS register, XMM registers, or MMX™ registers.

The type of register addressed is specified in the instruction syntax. When addressing GPRs or XMM registers, the REX instruction prefix can be used to access the extended GPRs or XMM registers, as described in Section 3.5, “Instruction Prefixes,” on page 87.

Memory Operands. Many general-purpose instructions can access operands in memory. Section 2.2, “Memory Addressing,” on page 16 describes the general methods and conditions for addressing memory operands.

I/O Ports. Operands in I/O ports are referenced according to the conventions described in Section 3.8, “Input/Output,” on page 111.

Immediate Operands. In certain instructions, a source operand— called an immediate operand, or simply immediate—is included

Chapter 3: General-Purpose Programming 47

Page 82

AMD64 Technology 24592—Rev. 3.10—March 2005

as part of the instruction rather than being accessed from a register or memory location. For details on the size of immediate operands, see “Immediate Operand Size” on page 47.

3.2.4 Data Alignment A data access is aligned if its address is a multiple of its operand

size, in bytes. The following examples illustrate this definition:

 Byte accesses are always aligned. Bytes are the smallest

addressable parts of memory.

 Word (two-byte) accesses are aligned if their address is a

multiple of 2.

 Doubleword (four-byte) accesses are aligned if their address

is a multiple of 4.

 Quadword (eight-byte) accesses are aligned if their address

is a multiple of 8.

The AMD64 architecture does not impose data-alignment requirements for accessing data in memory. However, depending on the location of the misaligned operand with respect to the width of the data bus and other aspects of the hardware implementation (such as store-to-load forwarding mechanisms), a misaligned memory access can require more bus cycles than an aligned access. For maximum performance, avoid misaligned memory accesses.

Performance on many hardware implementations will benefit from observing the following operand-alignment and operandsize conventions:

 Avoid misaligned data accesses.

 Maintain consistent use of operand size across all loads and

stores. Larger operand sizes (doubleword and quadword) tend to make more efficient use of the data bus and any data-forwarding features that are implemented by the hardware.

 When using word or byte stores, avoid loading data from the

same doubleword of memory, other than the identical start addresses of the stores.

48 Chapter 3: General-Purpose Programming

Page 83

24592—Rev. 3.10—March 2005 AMD64 Technology

3.3 Instruction Summary

This section summarizes the functions of the general-purpose instructions. The instructions are organized by functional group—such as, data-transfer instructions, arithmetic instructions, and so on. Details on individual instructions are given in the alphabetically organized “General-Purpose Instruction Reference” in Volume 3.

3.3.1 Syntax Each instruction has a mnemonic syntax used by assemblers to

specify the operation and the operands to be used for source and destination (result) data. Figure 3-7 shows an example of the mnemonic syntax for a compare (CMP) instruction. In this example, the CMP mnemonic is followed by two operands, a 32bit register or memory operand and an 8-bit immediate operand.

CMP reg/mem32, imm8

Mnemonic

First Source Operand

and Destination Operand

Second Source Operand

513-139.eps

Figure 3-7. Mnemonic Syntax Example

In most instructions that take two operands, the first (left-most) operand is both a source operand and the destination operand. The second (right-most) operand serves only as a source. Instructions can have one or more prefixes that modify default instruction functions or operand properties. These prefixes are summarized in Section 3.5, “Instruction Prefixes,” on page 87. Instructions that access 64-bit operands in a general-purpose register (GPR) or any of the extended GPR or XMM registers require a REX instruction prefix.

Unless otherwise stated in this section, the word register means a general-purpose register (GPR). Several instructions affect the flag bits in the RFLAGS register. “Instruction Effects on

Chapter 3: General-Purpose Programming 49

Page 84

AMD64 Technology 24592—Rev. 3.10—March 2005

RFLAGS” in Volume 3 summarizes the effects that instructions have on rFLAGS bits.

3.3.2 Data Transfer The data-transfer instructions copy data between registers and

memory.

Move.

 MOV—Move

 MOVSX—Move with Sign-Extend

 MOVZX—Move with Zero-Extend

 MOVD—Move Doubleword or Quadword

 MOVNTI—Move Non-Temporal Doubleword or Quadword

MOVx copies a byte, word, doubleword, or quadword from a register or memory location to a register or memory location. The source and destination cannot both be memory locations. An immediate constant can be used as a source operand with the MOV instruction. For MOV, the destination must be of the same size as the source, but the MOVSX and MOVZX instructions copy values of smaller size to a larger size by using sign-extension or zero-extension. The MOVD instruction copies a doubleword or quadword between a general-purpose register or memory and an XMM or MMX register.

The MOV instruction is in many aspects similar to the assignment operator in high-level languages. The simplest example of their use is to initialize variables. To initialize a register to 0, rather than using a MOV instruction it may be more efficient to use the XOR instruction with identical destination and source operands.

The MOVNTI instruction stores a doubleword or quadword from a register into memory as “non-temporal” data, which assumes a single access (as opposed to frequent subsequent accesses of “temporal data”). The operation therefore minimizes cache pollution. The exact method by which cache pollution is minimized depends on the hardware implementation of the instruction. For further information, see Section 3.9, “Memory Optimization,” on page 115.

Conditional Move.

 CMOVcc—Conditional Move If condition

50 Chapter 3: General-Purpose Programming

Page 85

24592—Rev. 3.10—March 2005 AMD64 Technology

The CMOVcc instructions conditionally copy a word, doubleword, or quadword from a register or memory location to a register location. The source and destination must be of the same size.

The CMOVcc instructions perform the same task as MOV but work conditionally, depending on the state of status flags in the RFLAGS register. If the condition is not satisfied, the instruction has no effect and control is passed to the next instruction. The mnemonics of CMOVcc instructions indicate the condition that must be satisfied. Several mnemonics are often used for one opcode to make the mnemonics easier to remember. For example, CMOVE (conditional move if equal) and CMOVZ (conditional move if zero) are aliases and compile to the same opcode. Table 3-4 on page 52 shows the RFLAGS values required for each CMOVcc instruction.

In assembly languages, the conditional move instructions correspond to small conditional statements like:

IF a = b THEN x = y

CMOVcc instructions can replace two instructions—a conditional jump and a move. For example, to perform a highlevel statement like:

IF ECX = 5 THEN EAX = EBX

without a CMOVcc instruction, the code would look like:

cmp ecx, 5 ; test if ecx equals 5 jnz Continue ; test condition and skip if not met mov eax, ebx ; move Continue: ; continuation

but with a CMOVcc instruction, the code would look like:

cmp ecx, 5 ; test if ecx equals to 5 cmovz eax, ebx ; test condition and move

Replacing conditional jumps with conditional moves also has the advantage that it can avoid branch-prediction penalties that may be caused by conditional jumps.

Support for CMOVcc instructions depends on the processor implementation. To find out if a processor is able to perform CMOVcc instructions, use the CPUID instruction.

Chapter 3: General-Purpose Programming 51

Page 86

AMD64 Technology 24592—Rev. 3.10—March 2005

Table 3-4. rFLAGS for CMOVcc Instructions

Mnemonic

CMOVO OF = 1 Conditional move if overflow

CMOVNO OF = 0 Conditional move if not overflow

CMOVB CMOVC CMOVNAE

CMOVAE CMOVNB CMOVNC

CMOVE CMOVZ

CMOVNE CMOVNZ

CMOVBE CMOVNA

CMOVA CMOVNBE

Required Flag

State

CF = 1

CF = 0

ZF = 1

ZF = 0

CF = 1 or ZF = 1

CF = 0 and ZF = 0

Description

Conditional move if below Conditional move if carry Conditional move if not above or equal

Conditional move if above or equal Conditional move if not below Conditional move if not carry

Conditional move if equal Conditional move if zero

Conditional move if not equal Conditional move if not zero

Conditional move if below or equal Conditional move if not above

Conditional move if not below or equal Conditional move if not below or equal

CMOVS SF = 1 Conditional move if sign

CMOVNS SF = 0 Conditional move if not sign

CMOVP CMOVPE

CMOVNP CMOVPO

CMOVL CMOVNGE

CMOVGE CMOVNL

CMOVLE CMOVNG

CMOVG CMOVNLE

PF = 1

PF = 0

SF <> OF

SF = OF

ZF = 1 or SF <> OF

ZF = 0 and SF = OF

Conditional move if parity Conditional move if parity even

Conditional move if not parity Conditional move if parity odd

Conditional move if less Conditional move if not greater or equal

Conditional move if greater or equal Conditional move if not less

Conditional move if less or equal Conditional move if not greater

Conditional move if greater Conditional move if not less or equal

52 Chapter 3: General-Purpose Programming

Page 87

24592—Rev. 3.10—March 2005 AMD64 Technology

Stack Operations.

 POP—Pop Stack

 POPA—Pop All to GPR Words

 POPAD—Pop All to GPR Doublewords

 PUSH—Push onto Stack

 PUSHA—Push All GPR Words onto Stack

 PUSHAD—Push All GPR Doublewords onto Stack

 ENTER—Create Procedure Stack Frame

 LEAVE—Delete Procedure Stack Frame

PUSH copies the specified register, memory location, or immediate value to the top of stack. This instruction decrements the stack pointer by 2, 4, or 8, depending on the operand size, and then copies the operand into the memory location pointed to by SS:rSP.

POP copies a word, doubleword, or quadword from the memory location pointed to by the SS:rSP registers (the top of stack) to a specified register or memory location. Then, the rSP register is incremented by 2, 4, or 8. After the POP operation, rSP points to the new top of stack.

PUSHA or PUSHAD stores eight word-sized or doublewordsized registers onto the stack: eAX, eCX, eDX, eBX, eSP, eBP, eSI and eDI, in that order. The stored value of eSP is sampled at the moment when the PUSHA instruction started. The resulting stack-pointer value is decremented by 16 or 32.

POPA or POPAD extracts eight word-sized or doubleword-sized registers from the stack: eDI, eSI, eBP, eSP, eBX, eDX, eCX and eAX, in that order (which is the reverse of the order used in the PUSHA instruction). The stored eSP value is ignored by the POPA instruction. The resulting stack pointer value is incremented by 16 or 32.

It is a common practice to use PUSH instructions to pass parameters (via the stack) to functions and subroutines. The typical instruction sequence used at the beginning of a subroutine looks like:

push ebp ; save current EBP mov ebp, esp ; set stack frame pointer value sub esp, N ; allocate space for local variables

Chapter 3: General-Purpose Programming 53

Page 88

AMD64 Technology 24592—Rev. 3.10—March 2005

The rBP register is used as a stack frame pointer—a base address of the stack area used for parameters passed to subroutines and local variables. Positive offsets of the stack frame pointed to by rBP provide access to parameters passed while negative offsets give access to local variables. This technique allows creating reentrant subroutines.

The ENTER and LEAVE instructions provide support for procedure calls, and are mainly used in high-level languages. The ENTER instruction is typically the first instruction of the procedure, and the LEAVE instruction is the last before the RET instruction.

The ENTER instruction creates a stack frame for a procedure. The first operand, size, specifies the number of bytes allocated in the stack. The second operand, depth, specifies the number of stack-frame pointers copied from the calling procedure’s stack (i.e., the nesting level). The depth should be an integer in the range 0–31.

Typically, when a procedure is called, the stack contains the following four components:

 Parameters passed to the called procedure (created by the

calling procedure).

 Return address (created by the CALL instruction).

 Array of stack-frame pointers (pointers to stack frames of

procedures with smaller nesting-level depth) which are used to access the local variables of such procedures.

 Local variables used by the called procedure.

All these data are called the stack frame. The ENTER instruction simplifies management of the last two components of a stack frame. First, the current value of the rBP register is pushed onto the stack. The value of the rSP register at that moment is a frame pointer for the current procedure: positive offsets from this pointer give access to the parameters passed to the procedure, and negative offsets give access to the local variables which will be allocated later. During procedure execution, the value of the frame pointer is stored in the rBP register, which at that moment contains a frame pointer of the calling procedure. This frame pointer is saved in a temporary register. If the depth operand is greater than one, the array of depth-1 frame pointers of procedures with smaller nesting level is pushed onto the stack. This array is copied from the stack

54 Chapter 3: General-Purpose Programming

Page 89

24592—Rev. 3.10—March 2005 AMD64 Technology

frame of the calling procedure, and it is addressed by the rBP register from the calling procedure. If the depth operand is greater than zero, the saved frame pointer of the current procedure is pushed onto the stack (forming an array of depth frame pointers). Finally, the saved value of the frame pointer is copied to the rBP register, and the rSP register is decremented by the value of the first operand, allocating space for local variables used in the procedure. See “Stack Operations” on page 53 for a parameter-passing instruction sequence using PUSH that is equivalent to ENTER.

The LEAVE instruction removes local variables and the array of frame pointers, allocated by the previous ENTER instruction, from the stack frame. This is accomplished by the following two steps: first, the value of the frame pointer is copied from the rBP register to the rSP register. This releases the space allocated by local variables and an array of frame pointers of procedures with smaller nesting levels. Second, the rBP register is popped from the stack, restoring the previous value of the frame pointer (or simply the value of the rBP register, if the depth operand is zero). Thus, the LEAVE instruction is equivalent to the following code:

mov rSP, rBP pop rBP

3.3.3 Data Conversion The data-conversion instructions perform various

transformations of data, such as operand-size doubling by sign extension, conversion of little-endian to big-endian format, extraction of sign masks, searching a table, and support for operations with decimal numbers.

Sign Extension.

 CBW—Convert Byte to Word

 CWDE—Convert Word to Doubleword

 CDQE—Convert Doubleword to Quadword

 CWD—Convert Word to Doubleword

 CDQ—Convert Doubleword to Quadword

 CQO—Convert Quadword to Octword

The CBW, CWDE, and CDQE instructions sign-extend the AL, AX, or EAX register to the upper half of the AX, EAX, or RAX register, respectively. By doing so, these instructions create a double-sized destination operand in rAX that has the same

Chapter 3: General-Purpose Programming 55

Page 90

AMD64 Technology 24592—Rev. 3.10—March 2005

numerical value as the source operand. The CBW, CWDE, and CDQE instructions have the same opcode, and the action taken depends on the effective operand size.

The CWD, CDQ and CQO instructions sign-extend the AX, EAX, or RAX register to all bit positions of the DX, EDX, or RDX register, respectively. By doing so, these instructions create a double-sized destination operand in rDX:rAX that has the same numerical value as the source operand. The CWD, CDQ, and CQO instructions have the same opcode, and the action taken depends on the effective operand size.

Flags are not affected by these instructions. The instructions can be used to prepare an operand for signed division (performed by the IDIV instruction) by doubling its storage size.

Extract Sign Mask.

 MOVMSKPS—Extract Packed Single-Precision Floating-

Point Sign Mask

 MOVMSKPD—Extract Packed Double-Precision Floating-

Point Sign Mask

The MOVMSKPS instruction moves the sign bits of four packed single-precision floating-point values in an XMM register to the four low-order bits of a general-purpose register, with zeroextension. MOVMSKPD does a similar operation for two packed double-precision floating-point values: it moves the two sign bits to the two low-order bits of a general-purpose register, with zero-extension. The result of either instruction is a sign-bit mask.

Translate.

 XLAT—Translate Table Index

The XLAT instruction replaces the value stored in the AL register with a table element. The initial value in AL serves as an unsigned index into the table, and the start (base) of table is specified by the DS:rBX registers (depending on the effective address size).

This instruction is not recommended. The following instruction serves to replace it:

MOV AL,[rBX + AL]

56 Chapter 3: General-Purpose Programming

Page 91

24592—Rev. 3.10—March 2005 AMD64 Technology

ASCII Adjust.

 AAA—ASCII Adjust After Addition

 AAD—ASCII Adjust Before Division

 AAM—ASCII Adjust After Multiply

 AAS—ASCII Adjust After Subtraction

The AAA, AAD, AAM, and AAS instructions perform corrections of arithmetic operations with non-packed BCD values (i.e., when the decimal digit is stored in a byte register). There are no instructions which directly operate on decimal numbers (either packed or non-packed BCD). However, the ASCII-adjust instructions correct decimal-arithmetic results. These instructions assume that an arithmetic instruction, such as ADD, was performed on two BCD operands, and that the result was stored in the AL or AX register. This result can be incorrect or it can be a non-BCD value (for example, when a decimal carry occurs). After executing the proper ASCII-adjust instruction, the AX register contains a correct BCD representation of the result. (The AAD instruction is an exception to this, because it should be applied before a DIV instruction, as explained below). All of the ASCII-adjust instructions are able to operate with multiple-precision decimal values.

AAA should be applied after addition of two non-packed decimal digits. AAS should be applied after subtraction of two non-packed decimal digits. AAM should be applied after multiplication of two non-packed decimal digits. AAD should be applied before the division of two non-packed decimal numbers.

Although the base of the numeration for ASCII-adjust instructions is assumed to be 10, the AAM and AAD instructions can be used to correct multiplication and division with other bases.

BCD Adjust.

 DAA—Decimal Adjust after Addition

 DAS—Decimal Adjust after Subtraction

The DAA and DAS instructions perform corrections of addition and subtraction operations on packed BCD values. (Packed BCD values have two decimal digits stored in a byte register, with the higher digit in the higher four bits, and the lower one in the

Chapter 3: General-Purpose Programming 57

Page 92

AMD64 Technology 24592—Rev. 3.10—March 2005

lower four bits.) There are no instructions for correction of multiplication and division with packed BCD values.

DAA should be applied after addition of two packed-BCD numbers. DAS should be applied after subtraction of two packed-BCD numbers.

DAA and DAS can be used in a loop to perform addition or subtraction of two multiple-precision decimal numbers stored in packed-BCD format. Each loop cycle would operate on corresponding bytes (containing two decimal digits) of operands.

Endian Conversion.

 BSWAP—Byte Swap

The BSWAP instruction changes the byte order of a doubleword or quadword operand in a register, as shown in Figure 3-8. In a doubleword, bits 7–0 are exchanged with bits 31–24, and bits 15–8 are exchanged with bits 23–16. In a quadword, bits 7–0 are exchanged with bits 63–56, bits 15–8 with bits 55–48, bits 23–16 with bits 47–40, and bits 31–24 with bits 39–32. See the following illustration.

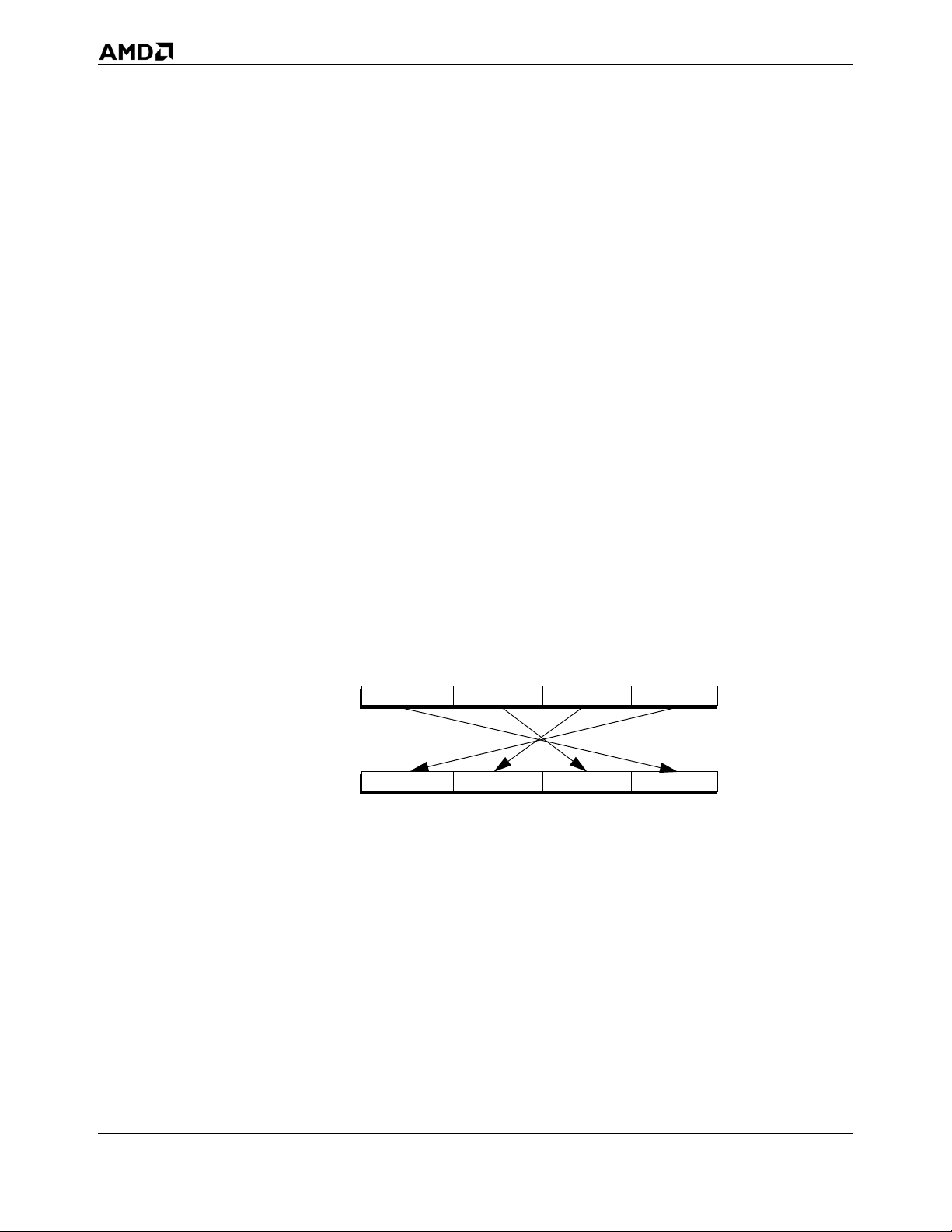

Figure 3-8. BSWAP Doubleword Exchange

A second application of the BSWAP instruction to the same operand restores its original value. The result of applying the BSWAP instruction to a 16-bit register is undefined. To swap bytes of a 16-bit register, use the XCHG instruction.

The BSWAP instruction is used to convert data between littleendian and big-endian byte order.

07815162331 24

58 Chapter 3: General-Purpose Programming

Page 93

24592—Rev. 3.10—March 2005 AMD64 Technology

3.3.4 Load Segment Registers

These instructions load segment registers.

 LDS, LES, LFS, LGS, LSS—Load Far Pointer

 MOV segReg—Move Segment Register

 POP segReg—Pop Stack Into Segment Register

The LDS, LES, LFD, LGS, and LSS instructions atomically load the two parts of a far pointer into a segment register and a general-purpose register. A far pointer is a 16-bit segment selector and a 16-bit or 32-bit offset. The load copies the segment-selector portion of the pointer from memory into the segment register and the offset portion of the pointer from memory into a general-purpose register.

The effective operand size determines the size of the offset loaded by the LDS, LES, LFD, LGS, and LSS instructions. The instructions load not only the software-visible segment selector into the segment register, but they also cause the hardware to load the associated segment-descriptor information into the software-invisible (hidden) portion of that segment register.

The MOV segReg and POP segReg instructions load a segment selector from a general-purpose register or memory (for MOV segReg) or from the top of the stack (for POP segReg) to a segment register. These instructions not only load the softwarevisible segment selector into the segment register but also cause the hardware to load the associated segment-descriptor information into the software-invisible (hidden) portion of that segment register.

In 64-bit mode, the POP DS, POP ES, and POP SS instructions are invalid.

3.3.5 Load Effective Address

 LEA—Load Effective Address

The LEA instruction calculates and loads the effective address (offset within a given segment) of a source operand and places it in a general-purpose register.

LEA is related to MOV, which copies data from a memory location to a register, but LEA takes the address of the source operand, whereas MOV takes the contents of the memory location specified by the source operand. In the simplest cases, LEA can be replaced with MOV. For example:

lea eax, [ebx]

Chapter 3: General-Purpose Programming 59

Page 94

AMD64 Technology 24592—Rev. 3.10—March 2005

has the same effect as:

mov eax, ebx

However, LEA allows software to use any valid addressing mode for the source operand. For example:

lea eax, [ebx+edi]

loads the sum of EBX and EDI registers into the EAX register. This could not be accomplished by a single MOV instruction.

LEA has a limited capability to perform multiplication of operands in general-purpose registers using scaled-index addressing. For example:

lea eax, [ebx+ebx*8]

loads the value of the EBX register, multiplied by 9, into the EAX register.

3.3.6 Arithmetic The arithmetic instructions perform basic arithmetic

operations, such as addition, subtraction, multiplication, and division on integer operands.

Add and Subtract.

 ADC—Add with Carry

 ADD—Signed or Unsigned Add

 SBB—Subtract with Borrow

 SUB—Subtract

 NEG—Two’s Complement Negation

The ADD instruction performs addition of two integer operands. There are opcodes that add an immediate value to a byte, word, doubleword, or quadword register or a memory location. In these opcodes, if the size of the immediate is smaller than that of the destination, the immediate is first signextended to the size of the destination operand. The arithmetic flags (OF, SF, ZF, AF, CF, PF) are set according to the resulting value of the destination operand.

The ADC instruction performs addition of two integer operands, plus 1 if the carry flag (CF) is set.

The SUB instruction performs subtraction of two integer operands.

60 Chapter 3: General-Purpose Programming

Page 95

24592—Rev. 3.10—March 2005 AMD64 Technology

The SBB instruction performs subtraction of two integer operands, and it also subtracts an additional 1 if the carry flag is set.

The ADC and SBB instructions simplify addition and subtraction of multiple-precision integer operands, because they correctly handle carries (and borrows) between parts of a multiple-precision operand.

The NEG instruction performs negation of an integer operand. The value of the operand is replaced with the result of subtracting the operand from zero.

Multiply and Divide.

 MUL—Multiply Unsigned

 IMUL—Signed Multiply

 DIV—Unsigned Divide

 IDIV—Signed Divide

The MUL instruction performs multiplication of unsigned integer operands. The size of operands can be byte, word, doubleword, or quadword. The product is stored in a destination which is double the size of the source operands (multiplicand and factor).

The MUL instruction's mnemonic has only one operand, which is a factor. The multiplicand operand is always assumed to be an accumulator register. For byte-sized multiplies, AL contains the multiplicand, and the result is stored in AX. For word-sized, doubleword-sized, and quadword-sized multiplies, rAX contains the multiplicand, and the result is stored in rDX and rAX.

The IMUL instruction performs multiplication of signed integer operands. There are forms of the IMUL instruction with one, two, and three operands, and it is thus more powerful than the MUL instruction. The one-operand form of the IMUL instruction behaves similarly to the MUL instruction, except that the operands and product are signed integer values. In the two-operand form of IMUL, the multiplicand and product use the same register (the first operand), and the factor is specified in the second operand. In the three-operand form of IMUL, the product is stored in the first operand, the multiplicand is specified in the second operand, and the factor is specified in the third operand.

Chapter 3: General-Purpose Programming 61

Page 96

AMD64 Technology 24592—Rev. 3.10—March 2005

The DIV instruction performs division of unsigned integers. The instruction divides a double-sized dividend in AH:AL or rDX:rAX by the divisor specified in the operand of the instruction. It stores the quotient in AL or rAX and the remainder in AH or rDX.

The IDIV instruction performs division of signed integers. It behaves similarly to DIV, with the exception that the operands are treated as signed integer values.

Division is the slowest of all integer arithmetic operations and should be avoided wherever possible. One possibility for improving performance is to replace division with

multiplication, such as by replacing i/j/k with i/(j*k). This

replacement is possible if no overflow occurs during the computation of the product. This can be determined by considering the possible ranges of the divisors.

Increment and Decrement.

 DEC—Decrement by 1

 INC—Increment by 1

The INC and DEC instructions are used to increment and decrement, respectively, an integer operand by one. For both instructions, an operand can be a byte, word, doubleword, or quadword register or memory location.

These instructions behave in all respects like the corresponding ADD and SUB instructions, with the second operand as an immediate value equal to 1. The only exception is that the carry flag (CF) is not affected by the INC and DEC instructions.

Apart from their obvious arithmetic uses, the INC and DEC instructions are often used to modify addresses of operands. In this case it can be desirable to preserve the value of the carry flag (to use it later), so these instructions do not modify the carry flag.

3.3.7 Rotate and Shift The rotate and shift instructions perform cyclic rotation or non-

cyclic shift, by a given number of bits (called the count), in a given byte-sized, word-sized, doubleword-sized or quadwordsized operand.

When the count is greater than 1, the result of the rotate and shift instructions can be considered as an iteration of the same

62 Chapter 3: General-Purpose Programming

Page 97

24592—Rev. 3.10—March 2005 AMD64 Technology

1-bit operation by count number of times. Because of this, the descriptions below describe the result of 1-bit operations.

The count can be 1, the value of the CL register, or an immediate 8-bit value. To avoid redundancy and make rotation and shifting quicker, the count is masked to the 5 or 6 leastsignificant bits, depending on the effective operand size, so that its value does not exceed 31 or 63 before the rotation or shift takes place.

Rotate.

 RCL—Rotate Through Carry Left

 RCR—Rotate Through Carry Right

 ROL—Rotate Left

 ROR—Rotate Right

The RCx instructions rotate the bits of the first operand to the left or right by the number of bits specified by the source (count) operand. The bits rotated out of the destination operand are rotated into the carry flag (CF) and the carry flag is rotated into the opposite end of the first operand.

The ROx instructions rotate the bits of the first operand to the left or right by the number of bits specified by the source operand. Bits rotated out are rotated back in at the opposite end. The value of the CF flag is determined by the value of the last bit rotated out. In single-bit left-rotates, the overflow flag (OF) is set to the XOR of the CF flag after rotation and the most-significant bit of the result. In single-bit right-rotates, the OF flag is set to the XOR of the two most-significant bits. Thus, in both cases, the OF flag is set to 1 if the single-bit rotation changed the value of the most-significant bit (sign bit) of the operand. The value of the OF flag is undefined for multi-bit rotates.

Bit-rotation instructions provide many ways to reorder bits in an operand. This can be useful, for example, in character conversion, including cryptography techniques.

Shift.

 SAL—Shift Arithmetic Left

 SAR—Shift Arithmetic Right

 SHL—Shift Left

Chapter 3: General-Purpose Programming 63

Page 98

AMD64 Technology 24592—Rev. 3.10—March 2005

 SHR—Shift Right

 SHLD—Shift Left Double

 SHRD—Shift Right Double

The SHx instructions (including SHxD) perform shift operations on unsigned operands. The SAx instructions operate with signed operands.

SHL and SAL instructions effectively perform multiplication of an operand by a power of 2, in which case they work as moreefficient alternatives to the MUL instruction. Similarly, SHR and SAR instructions can be used to divide an operand (signed or unsigned, depending on the instruction used) by a power of

Although the SAR instruction divides the operand by a power of 2, the behavior is different from the IDIV instruction. For example, shifting –11 (FFFFFFF5h) by two bits to the right (i.e. divide –11 by 4), gives a result of FFFFFFFDh, or –3, whereas the IDIV instruction for dividing –11 by 4 gives a result of –2. This is because the IDIV instruction rounds off the quotient to zero, whereas the SAR instruction rounds off the remainder to zero for positive dividends, and to negative infinity for negative dividends. This means that, for positive operands, SAR behaves like the corresponding IDIV instruction, and for negative operands, it gives the same result if and only if all the shiftedout bits are zeroes, and otherwise the result is smaller by 1.

The SAR instruction treats the most-significant bit (msb) of an operand in a special way: the msb (the sign bit) is not changed, but is copied to the next bit, preserving the sign of the result. The least-significant bit (lsb) is shifted out to the CF flag. In the SAL instruction, the msb is shifted out to CF flag, and the lsb is cleared to 0.

The SHx instructions perform logical shift, i.e. without special treatment of the sign bit. SHL is the same as SAL (in fact, their opcodes are the same). SHR copies 0 into the most-significant bit, and shifts the least-significant bit to the CF flag.

The SHxD instructions perform a double shift. These instructions perform left and right shift of the destination operand, taking the bits to copy into the most-significant bit (for the SHRD instruction) or into the least-significant bit (for the SHLD instruction) from the source operand. These instructions behave like SHx, but use bits from the source

64 Chapter 3: General-Purpose Programming

Page 99

24592—Rev. 3.10—March 2005 AMD64 Technology

operand instead of zero bits to shift into the destination operand. The source operand is not changed.

3.3.8 Compare and Test

The compare and test instructions perform arithmetic and logical comparison of operands and set corresponding flags, depending on the result of comparison. These instruction are used in conjunction with conditional instructions such as Jcc or SETcc to organize branching and conditionally executing blocks in programs. Assembler equivalents of conditional operators in high-level languages (do…while, if…then…else, and similar) also include compare and test instructions.

Compare.

 CMP—Compare

The CMP instruction performs subtraction of the second operand (source) from the first operand (destination), like the SUB instruction, but it does not store the resulting value in the destination operand. It leaves both operands intact. The only effect of the CMP instruction is to set or clear the arithmetic flags (OF, SF, ZF, AF, CF, PF) according to the result of subtraction.

The CMP instruction is often used together with the conditional jump instructions (Jcc), conditional SET instructions (SETcc) and other instructions such as conditional loops (LOOPcc) whose behavior depends on flag state.

Test.

 TEST—Test Bits

The TEST instruction is in many ways similar to the AND instruction: it performs logical conjunction of the corresponding bits of both operands, but unlike the AND instruction it leaves the operands unchanged. The purpose of this instruction is to update flags for further testing.

The TEST instruction is often used to test whether one or more bits in an operand are zero. In this case, one of the instruction operands would contain a mask in which all bits are cleared to zero except the bits being tested. For more advanced bit testing and bit modification, use the BTx instructions.

Chapter 3: General-Purpose Programming 65

Page 100

AMD64 Technology 24592—Rev. 3.10—March 2005

Bit Scan.

 BSF—Bit Scan Forward

 BSR—Bit Scan Reverse

The BSF and BSR instructions search a source operand for the least-significant (BSF) or most-significant (BSR) bit that is set to 1. If a set bit is found, its bit index is loaded into the destination operand, and the zero flag (ZF) is set. If no set bit is found, the zero flag is cleared and the contents of the destination are undefined.

Bit Test.

 BT—Bit Test

 BTC—Bit Test and Complement

 BTR—Bit Test and Reset

 BTS—Bit Test and Set

The BTx instructions copy a specified bit in the first operand to the carry flag (CF) and leave the source bit unchanged (BT), or complement the source bit (BTC), or clear the source bit to 0 (BTR), or set the source bit to 1 (BTS).

These instructions are useful for implementing semaphore arrays. Unlike the XCHG instruction, the BTx instructions set the carry flag, so no additional test or compare instruction is needed. Also, because these instructions operate directly on bits rather than larger data types, the semaphore arrays can be smaller than is possible when using XCHG. In such semaphore applications, bit-test instructions should be preceded by the LOCK prefix.

Set Byte on Condition.

 SETcc—Set Byte if condition

The SETcc instructions store a 1 or 0 value to their byte operand depending on whether their condition (represented by certain rFLAGS bits) is true or false, respectively. Table 3-5 on page 67 shows the rFLAGS values required for each SETcc instruction.

66 Chapter 3: General-Purpose Programming

AMD 64 Architecture Programmer_2527s Manual. Vol.1 - Application Programming. [rev.3.10].[2005-03] Datasheet

Contents

Figures

Tables

Revision History

Preface

About This Book

Audience

Contact Information

Organization

Definitions

Related Documents

1 Overview of the AMD64 Architecture

1.1 Introduction

1.1.1 New Features The AMD64 architecture introduces these new features:

1.1.2 Registers Table 1-2 on page 4 compares the register and stack resources

1.1.3 Instruction Set The AMD64 architecture supports the full legacy x86

1.1.4 Media Instructions

1.1.5 Floating-Point Instructions

1.2 Modes of Operation

1.2.1 Long Mode Long mode is an extension of legacy protected mode. Long

1.2.2 64-Bit Mode 64-bit mode—a submode of long mode—supports the full range

1.2.3 Compatibility Mode
