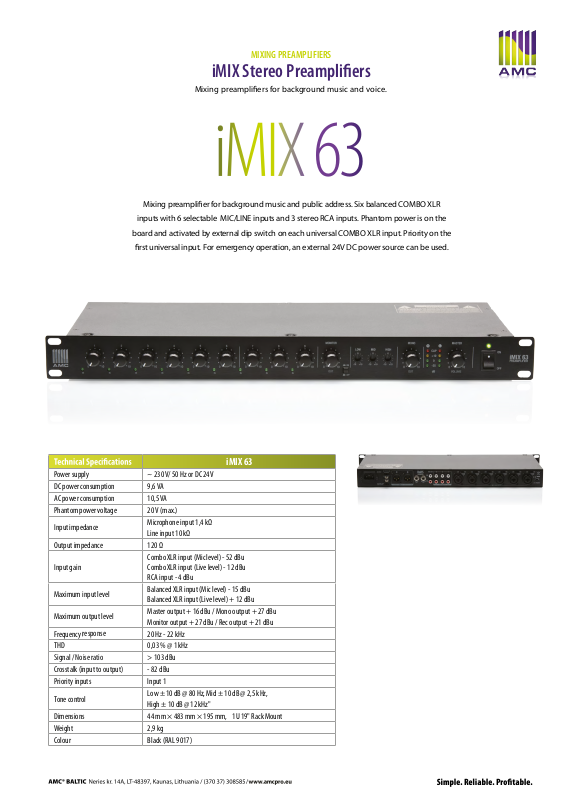

MIXING PREAMPLIFIERS
iMIX Stereo Preamplifiers
Mixing preamplifiers for background music and voice.
Mixing preamplifier for background music and public address. Six balanced COMBO XLR
inputs with 6 selectable MIC/LINE inputs and 3 stereo RCA inputs. Phantom power is on the
board and activated by external dip switch on each universal COMBO XLR input. Priority on the
first universal input. For emergency operation, an external 24V DC power source can be used.
iMIX 63
Power supply ~ 230 V/ 50 Hz or DC 24V
DC power consumption 9,6 VA
AC power consumption 10,5 VA
Phantom power voltage 20 V (max.)
Input impedance
Output impedance 120 Ω
Input gain
Maximum input level
Maximum output level
response
Frequency responce 20 Hz - 22 kHz
THD 0,03 % @ 1 kHz
Signal / Noise ratio > 103 dBu
Crosstalk (input to output) - 82 dBu
Priority inputs Input 1
Tone control
Dimensions 44 mm × 483 mm × 195 mm, 1U 19" Rack Mount
Weight 2,9 kg
Colour Black (RAL 9017)
Microphone input 1,4 kΩ
Line input 10 kΩ
Combo XLR input (Mic level) - 52 dBu
Combo XLR input (Live level) - 12 dBu
RCA input - 4 dBu
Balanced XLR input (Mic level) - 15 dBu
Balanced XLR input (Live level) + 12 dBu
Master output + 16 dBu / Mono output + 27 dBu
Monitor output + 27 dBu / Rec output + 21 dBu
Low ± 10 dB @ 80 Hz, Mid ± 10 dB @ 2,5 kHz,
High ± 10 dB @ 12 kHz"
