iM05iM05
Studio
Monitor Speakers
&
Architectural
Multi-zone Speakers
with
Balanced Unbalanced
input connectors for
Monitoring and architectural
for fitting up to 500ft CAT5
cable wiring systems like
AMC XO, XOi etc.
and
USER GUIDE
Table of Contents
Introduction ....................................................4
What's in the Box? ..............................................4
iM05Features..............................................4
Front and Rear Panel Features ...................................5
Installation ....................................................7
Connecting to Preamp or Computer Outputs .....................8
PlacingtheiM05......................................9
Appendix A - Technical Specifications ..........................10
1
CAUTION:
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.
ATTENTION:
AVEC UN PROLONGATEUR. UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT, SAUF
SILES LAMES PEUVENT ETRE INSEREES AFOND SANS EN LAISSER AUCuNE PARTIE FOND SANS EN
LAISSERAUCUNE PARTIE ADECOUVERT.
PRECAUCION:
POLARIZADA CON UN CORDON DE PROLONGACION, RECEPTACULO U OTRO TIPO DE SALIDA A
MENOS QUE SE HAYAN INSERTASO COMPLETAMENTE LAS LENG ETAS PARA EVITAR SU
EXPOSICION.
NOTE:
panel). If youwish tochange the voltage, please bring yourunit to an authorised service technician for internal
conversion.
ATTENTION:
panneau arri re). Si vous voulez changer le voltage, veuillez apporter votre appareil au fournisseur de pour
le transformer.
ZUR BEACHTUNG:
(Ein Vermerkauf derR ckseite weistdarauf hin).
Die Anpassung, wenn notwendig, mu von einem qualifizieren Techniker in einer Servicestation
vorgenommen werden.
NOTA:
que se indica en el panel posterior). Si se desea cambiar la tensi n, s rvanse llevar el aparato a un t cnico
autorizado por para suconversi n interna.
TO PREVENT ELECTRIC SHOCKDO NOTUSETHIS (POLARISED) PLUG WITH AN EXTENSION
POUR PREVENIRLES CHOCS ELECTRIQUESNE PAS UTILISER CETTE FICHEPOLARISEE
PARA EVITAR SACUDIDAS ELECTRICAS, NO DEBERA UTILIZARSE ESTA CLAVIJA
Ü
Some products are equipped with dual or multi-voltage transformers (which is indicated on the back
Quelques pi ces sont munies de transformateurs double ou multi-voltage (indiqu au
é
Ciertos componentes de est n dotadosde transformadoresde doble tensi n o de varias tensiones (Io
éááé
Einige Ger te sind mit Umschaltern f r unterschiedliche Netzspannungern ausger stet
äü ü
ü
ß
áó
ó
óí é
NOTE TO CATV systems installer:
Article 820-22of the NECthat provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall beconnected to the grounding system of thebuilding, as close to the pointof cable entry as practical.
NOTA PARA EL INSTALADOR DE ANTENAS DE TELEVISION COLECTIVAS:
provee para llamar la atenci n del instalador al Art culo 820-22 de NEC (C rdigo El ctrico Nacional) donde se
facilitan lasdirectrices para la pertinente puesta a tierra y que especifica enparticular que el condutor a tierra del
cable debe connectarse al sistema de conexi n a tierra del edificio, lo m s proximo posible al punto de entrada
del cable.
This reminder is provided to call the CATV system installer's attention to
óí óé
óá
La presente advertencia se
2
IMPORTANT SAFETY INSTRUCTION
1. READ INSTRUCTIONS
All the safety and operating instructions should be read
before theappliance isoperated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for
future reference.
3. HEED WARNINGS
All warnings on the appliance and in the operating instructions
should beadhered to.
4. FOLLOW INSTRUCTIONS
All operatingand useinstructions should befollowed.
5. WATER AND MOISTURE
The appliance should not be used near water - for example,
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, ornear aswimming pool, etc.
6. CARTS AND STANDS
The appliance should be used only with a cart or stand that is
recommended bythe manufacturer.
An applianceand cartcombination should be
6A.
moved withcare. Quickstops, excessive force,
and unevensurfaces maycause the appliance
and cartcombination tooverturn.
7. WALL OR CEILING MOUNTING
This equipment is not designed for use mounted on a wall or a
ceiling.
8. VENTILATION
The appliance should be situated so that its location or position
does not interfere with its proper ventilation. For example, the
appliance should not be situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings, or placed in a
built-in installation, such as bookcase or cabinet that may
impede theflow ofair through theventilation openings.
At least30cm free space aroundthe unit fornormal ventilation is
required.
9. HEAT
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
10. CLEANING
The applianceshould becleaned only with drycloth.
11. POWER SOURCES
The appliance should be connected to a power supply only of
the type described in the operating instructions or as marked
on theappliance.
12. POWER CORD PROTECTION
Power-supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the appliance
13. POLARIZED PLUG
Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong.The wide blade orthe third prong areprovided
for your safety. When the provided plug does not fit into your
outlet. consult an electrician for replacement of the obsolete
outlet.
14. UNPLUG POWER CORD
Unplug this apparatus during lightning storms or when unused
for longperiods of time.
15. OBJECT AND LIQUID ENTRY
No object filled with liquids, such as vases, etc. shall be placed
on theapparatus.
16. ACCESSORIES
Only use attachments/accessories specified by the
manufacturer.
17. SERVICING
The user should not attempt to service the appliance beyond
that described in the operating instructions. All other servicing
should bereferred toqualified service personnel.
18. DAMAGE REQUIRING SERVICE
The appliance should be serviced by qualified service
personnel when:
a) The power-supplycord orthe plug hasbeen damaged;or
b) Objects have fallen, or liquid has been spilled into the
appliance; or
c) The appliancehas been exposedto rain;or
d) The appliance does not appear to operate normally or
exhibits amarked changein performance; or
e) The appliance has been dropped, or the enclosure is
damaged.
3
Introduction
Thank you for choosing the iM05 bi-amplified studio monitor & Architectural multi-zone
speakers.
The AMC iM05 is with Balanced and Unbalanced input connectors for Monitoring and
architectural for fitting up to 500ft CAT5 cable wiring systems like AMC XO, XOi etc.
AMC is well known for digital audio interface technology, digital converters, audio preamps and
mixers. Now, after extensive research and development, AMC is proud to present iM05.
The iM05 was designed and tested by veteran audio engineers to meet your needs in a studio
monitoring and architectural environment. It is focused on the functional goal of delivering pure,
original sound without any additional coloration. The iM05 monitor is self-powered, directly
accepting a line level signal from a variety of sources.
The Studiophile iM05 is designed to overcome all the limitations of conventional studio
reference monitors within the digital audio environment and so it will also fit architectural
applications. This system delivers a wide range frequency response by employing two
extraordinary drivers and unique crossover technology licensed by AMC. It boasts a stable and
balanced low-mid frequency response along with a defined mid- and high-frequency response
as well. Both drivers are magnetically shielded for desktop music production.
For pro engineers at commercial studios to home studio owners and architectural applications,
the iM05 sets a new affordable standard in studio monitoring and architectural multi-zone
speaker systems.
Sets a new affordable standard in studio monitoring and architectural
Multi-zone speakers systems
What's in the Box?
Your iM05 box contains:
Two i speakers· M05
Two detachable AC power cords
·
This manual
·
One Cable - RCA to TRS
·
iM05 Features
1.Woofer
The woofer unit is 5 inches in diameter with a magnetically shielded mineral-filled
polypropylene cone, high-temperature voice coil and damped rubber surround. It is designed to
deliver balanced mid- and low- frequency response. Polypropylene is used to react against the
input signals accurately and to deliver even minimal input precisely while minimizing distortion.
2.Tweeter
By employing a specially developed dome with magnetic shielding, the tweeter can deliver
distortion-free original sound and offer an extremely natural response. It's design minimizes
reaction time by using a specially shaped dome for excellent delivery, and also minimizes
resonance by adapting a unique internal damping technology.
4
3.Sub-Frequency Port
The air vent hole in the rear panel is called a Sub-Frequency Port and is designed to allow the
discharge of extreme low frequencies occurring below 60Hz.
4.Enclosure
Like the other components, the iM05's enclosure has an important role in shaping the overall
sonic response. In order to provide more stable performance, the iM05's enclosure employs a
special high-acoustic efficiency MDF and unique interior reinforcement designed to absorb
vibration and impact generated under extreme conditions. The custom design on the front
panel will aid in diffraction and will benefit stereo imaging.
5.Network & Power Amplifiers
The active crossover networks and power amplifiers for the iM05 are specially designed for this
woofer and tweeter. The network properly distributes low, mid, and high frequencies to the
driver components in order to reduce distortion and loss of sound, thus achieving a naturally
balanced sound.
In order to generate powerful, ultra-crisp sound, there are two separate power amplifiers inside
the iM05 for driving the woofer and tweeter separately in a high-end bi-amp structure. The
power delivered to the woofer driver at a low-rated distortion is 40W, and 30W is also delivered
to the tweeter.
Front and Rear Panel Features
Rear Panel Features
4
1
2
3
5
5
9
8
6
7
1. This jack accepts XLR input connections with either balanced or unbalanced
XLR INPUT:
wiring. The input wiring of an XLR connector should be as follows:
XLR PIN 1 Signal ground (Shield)
·
XLR PIN 2 Signal positive (+)
·
XLR PIN 3 Signal negative (-)
·
2. This jack accepts 1/4" connections with either balanced or unbalanced wiring.
TRS INPUT:
For balanced wiring, a three-conductor TRS plug is necessary. The input wiring of a TRS
connector should be as follows:
TRS TIP Signal positive (+)
·
TRS RING Signal negative (-)
·
TRS SLEEVE Signal ground (Shield)
·
Unbalanced 1/4" wiring can be done with either a two- or three-conductor (TS or TRS) plug.
A two-conductor (TS) plug automatically grounds the signal negative input, whereas a threeconductor (TRS) plug, wired unbalanced, provides the option of leaving the negative input open
or grounded. We recommend that you ground the unused negative input (this can be done by
wiring the ring and sleeve of the TRS plug together).
The TRS input is summed through a balanced input amplifier with the XLR input, allowing both
inputs to be used simultaneously. Input specifications apply to both.
3. This label contains the model and specification information.
PRODUCT SPECIFICATION:
4. This port aids in reproduction of very low frequencies by
SUB-FREQUENCY PORT:
discharging frequencies below 60 Hz.
5. Use the volume control to set the output sound pressure from the
VOLUME CONTROL:
iM05 to proper levels as required.
6. Accepts a detachable 3-circuit line cord in order to power the
POWER RECEPTACLE:
monitor.
7. Holds the external main fuse.
FUSE HOLDER:
8. Provides two selections - 115VAC and 230VAC, and should
VOLTAGE-SELECT SWITCH:
be set to match the "house supply" (receptacle) voltage of the country or location in
which the speaker is used. The 115V setting is correct for the USA, while 230V setting is
correct for most of the UK and Europe.
9. This switch turns the monitor on and off.POWER SWITCH:
6
Front Panel Features
The front panel houses the Power LED, which indicates whether the speakers (amplifier) power
is on or off.
Power
LED
9.87 inches
HF Driver
(Tweeter)
6.5 inches
LF Drive
(Woofer)
r
Installation
For optimal performance of the iM05, please read the following thoroughly and carefully prior to
installation.
Precautions
Handling: Please do not touch the speaker cones. The iM05 set is packaged in the box tightly,
so your attention is required when taking the monitors out of the box. To avoid possible damage
to the speaker units, hold both sides of the monitor in order to pull it out of the box. The
speaker cones should not be touched in order to avoid damage even after they are out of the
box.
Correct Power Operation: Since the iM05 contains its own amplifier, it must be connected to a
power outlet using the detachable AC cable provided. Before connecting power, please make
sure that the Voltage-Select Switch located on the speaker's rear panel is set to the appropriate
position, as described in the rear-panel features list appearing earlier in this manual.
WARNING!
speaker components not covered by speaker warranty.
Connections: You can use either an XLR balanced cable or TRS balanced/unbalanced cable
from the input of each iM05 to your corresponding preamp, computer or game console outputs.
We recommend that you use high-quality balanced or unbalanced cables for input connections.
Also, ALWAYS turn off the power of the iM05 and turn the volume of the iM05 down to a
minimum before making the necessary connections.
- Use of improper voltage may result in hazardous conditions and/or damage to
7
XLR Balanced Connection
Assure that the power switch of the iM05 is turned off and that the volume control of the iM05 is
turned down to a minimum. Connect the male end of an XLR balanced cable to the balanced
input of the iM05 (refer to the following diagram for balanced connection).
TRS Balanced/Unbalanced Connection
Assure that the power switch of the iM05 is turned off and that the volume control of the iM05 is
turned down to a minimum. Connect the male end of a TRS balanced or TS unbalanced cable
to the TRS input of the iM05 (refer to the following diagram for TRS connection).
Connecting to Preamp or Computer Outputs
Before connecting, make sure the output device's power has been turned off. Plug the XLR
balanced, TRS balanced or TS unbalanced cable to the corresponding output connectors of a
pre-amplifier, computer or game console.
8
Placing the iM05
-Studio Monitor Speakers and Architectural Multi-Zone Speakers
Studio Monitor Speaker Applications
Placing the speakers is one of the most important procedures in order to monitor sound
accurately. To monitor with the iM05's performing to their maximum capability, an
appropriate listening environment and correct placement are required. Please refer to the
following for correct iM05 placement.

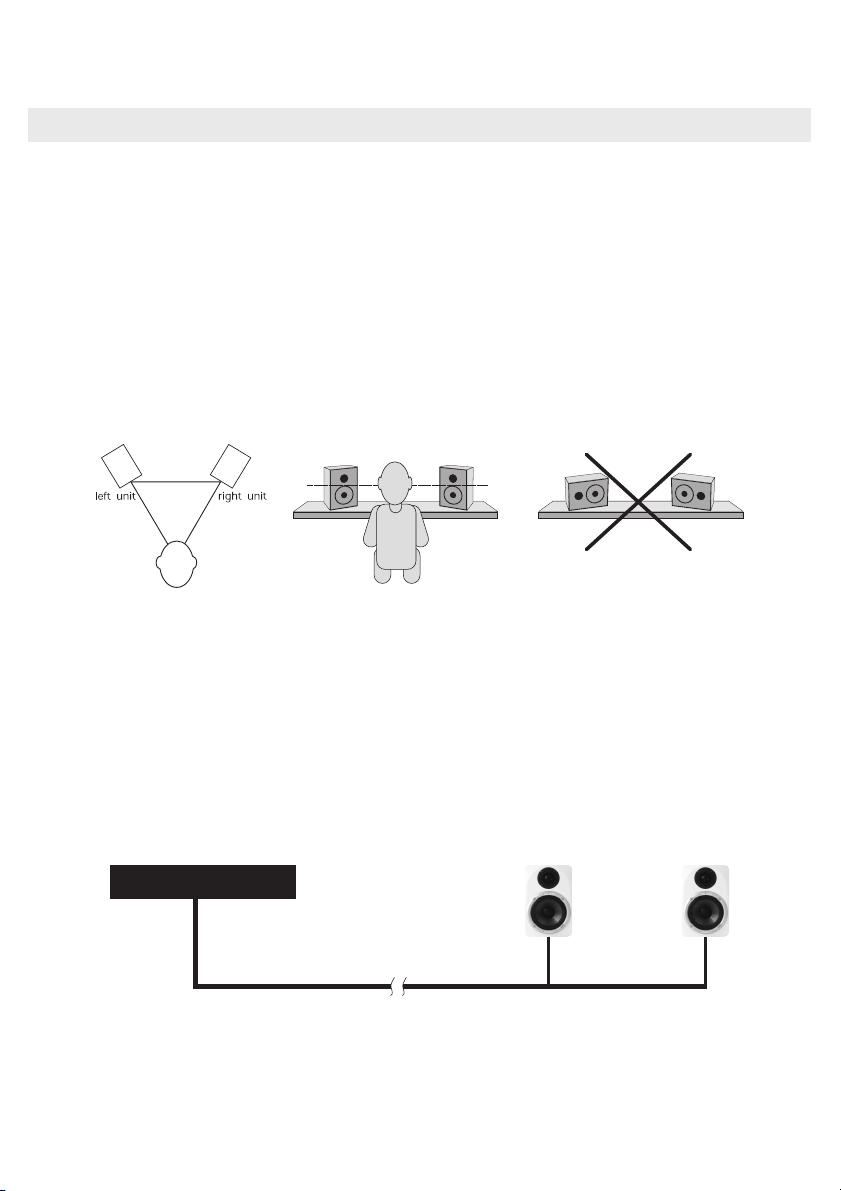

1. The two units and the listener should basically align to form a regular triangle. Refer to
the following diagram.
2. Position the monitors so that the top of the woofers are level with your ears in a normal
listening environment. Refer to the following diagram.
3. Place the iM05's vertically with the woofer on the bottom. Placing the iM05's horizontally
is not recommended.
Remarks: DO NOT place any obstacles that may block the flow of air in front or between the
monitors. Also remove reflective materials such as glass, mirrors or metal from the monitoring
environment. PLACE THOSE MATERIALS AWAY FROM THE PATH OF THE SOUND
FROM THE iM05's.
Architectural Multi-zone speaker applications
Digital H.O.M.E. System
AMC XO
CAT5 Cable up to 500ft
Remarks: Above is a simplified diagram. For detail wiring please refer to brochure of
Cable - RCA_to_TRS
9
Multi-Zone Speakers
Appendix A - Technical Specifications
Type:
LF Driver:
HF Driver:
Frequency Response:
Crossover Frequency:
LF Amplifier Power:
HF Amplifier Power:
S/N Ratio:
Input Connectors:
Polarity:
Input Impedance:
Input Sensitivity:
Protection:
Indicator:
Power Requirements:
Cabinet:
Dimension:
Weight:
*Above specifications subject to change without notice
2-way studio reference monitors & Architectural Speakers
5-inch cone with high temperature voice coil and damped rubber
surround
Specially developed dome with magnetic shielding
56Hz - 22kHz
3kHz
40W
30W
> 100dB typical A-weighted
1 x XLR balanced input connector
1 x TRS balanced/unbalanced input connector
Positive signal at + input produces outward LF cone displacement
20k ohms balanced, 10k ohms unbalanced
85mV pink noise input produces 90dBA output SPL at one meter
with volume control at maximum
RF interference, output current limiting, over temperature, turnon/off transient, subsonic filter, external main fuse
Blue power on/off indicator on front panel
factory programmed either 115V~50/60Hz, 230V~50/60Hz or
100V~50/60Hz
vinyl-laminated high acoustic efficiency MDF
250 mm (H) x 176 mm (W) x 200 mm (D)
5kg/unit (without packing)
10
www.amchome.com
Part No.:21R-4212
Loading...
