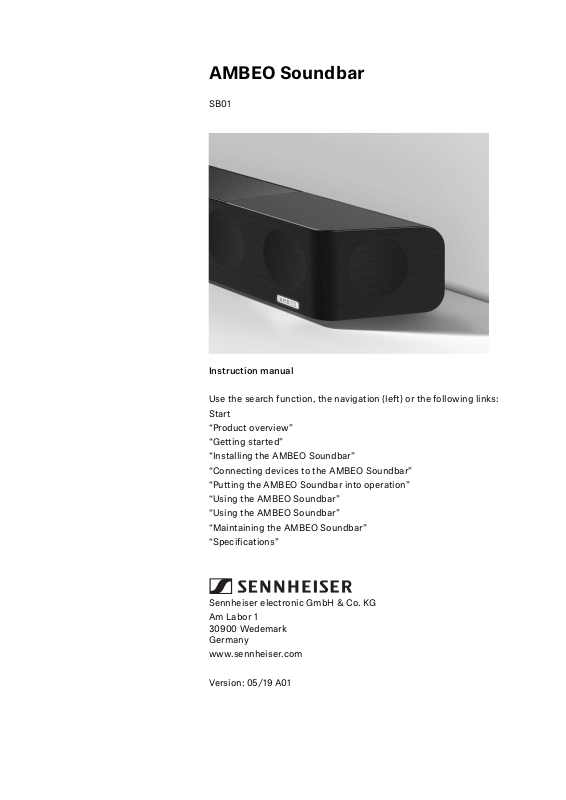

AMBEO Soundbar

SB01

Instruction manual

Use the search function, the navigation (left) or the following links:

Start

“Product overview”

“Getting started”

“Installing the AMBEO Soundbar”

“Connecting devices to the AMBEO Soundbar”

“Putting the AMBEO Soundbar into operation”

“Using the AMBEO Soundbar”

“Maintaining the AMBEO Soundbar”

“Specifications”

Sennheiser electronic GmbH & Co. KG

Am Labor 1 30900 Wedemark Germany

www.sennheiser.com

Version: 05/19 A01

Page 2

Important safety instructions

1. Read these safety instructions.

2. Keep these safety instructions. Always include these safety nstructions when passing the product on to others.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use the product near water.

6. Only clean the product when it is not conn

ply system. Clean only with a dry cloth.

7. Ensure circulating ventilation. The pr

is dissipated through the housing. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, stoves, or

ther products that produce heat and do not expose to direct sun-

o light.

9. Do not defeat the safety purpose of

type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power supply cord from being walked on or pinched,

articularly at plugs, convenience receptacles, and the point

p where it exits from the product.

11. Use only attachments/accessories/spare parts supplied or rec-

ommended by Sennheiser.

12. Use only with shelves, racks, or tables that can safely support the

eight of the product (see instruction manual).

13. Unplug the product during lightning storms or when unused for ong periods of time.

ected to the power sup-

oduct generates heat which

the polarized or grounding-

2 | AMBEO Soundbar

14. Refer all servicing to qualified service personnel. Servicing is

equired when the product has been damaged in any way, such as

r power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, when the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

15.WARNING: To reduce the risk of fire and electric shock, do not

xpose the product to dripping or splashing and ensure that no

e objects filled with liquids, such as vases, are placed on the product.

16. To completely disconnect this product from the AC mains, dis-

connect the power supply cord plug fr

17. The plug of the power supply cord sh

om the AC receptacle.

all remain readily accessible.

Page 3

Important safety instructions

Hazard warnings on the bottom of the product

The product generates heat which is dissipated through the housing! Do not touch when in use or directly after

The following label is attached to the bottom of the product.

The symbols on this label have the following meaning:

Read and follow the safety and operating instructions contained in this instructi

on manual.

Presence of uninsulated dangerous voltage within the product's enclosure t

hat may be of sufficient magnitude

to constitute a risk of fire or electric shock.

Never open the product. There is a risk of electric shock when touching live parts.

e are no user serviceable parts inside

Ther the product. Refer repairs to an authorized Sennheiser service partner.

Safety instructions for lithium batteries

ote control)

(rem

WARNING

If abused or misused, the batteries may leak. In extreme ca

ses, they may even present a risk of

•explosion,

• fire development,

•heat generation,

• smoke or gas development.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Keep away from children.

Observe correct polarity.

Immediately remove the batteries from obviously defective product.

Dispose of batteries at special collection points or return them to your specialist dealer.

Do not mutilate or dismantle.

Do not expose to moisture.

AMBEO Soundbar | 3

Page 4

Important safety instructions

Remove the batteries if the product will not be used for extended periods of time.

Pack/store batteries so that the terminals cannot contact each other – danger of shorting out/fire hazard.

Only use batteries specified by Sennheiser.

Store the products in a cool and dry place at room temperature (approx. 20 °C/68 °F).

Do not continue to use defective batteries.

Do not heat above 70 °C/158 °F, e.g. do not expose to sunlight or throw into a fire.

Preventing damage to health and accidents

4 | AMBEO Soundbar

▷ Protect your hearing from high volume levels. Permanent hearing

damage may occur when listening at high volume levels for long periods of time.

▷ The product generates stronger permanent magnetic fields that

could cause interference with cardiac pacemakers, implanted defibrillators (ICDs) and other implants. Always maintain a distance of at least 3.94"/10 cm between the product component

ning the magnet and the cardiac pacemaker, implanted

contai defibrillator, or other implant.

▷ Keep the product, accessories and packaging parts out of reach

of children and pets to prevent accidents. Swallowing and choking hazard.

▷ Do not use the product in an environment that requires your spe-

cial attention (e.g. when performing skilled jobs).

Preventing damage to the product and malfunctions

▷ If the product was moved from a cold environment to a warm one,

allow the product to stand for at least 2 hours before putting it into operation.

Intended use/Liability

This product has been designed for playing TV sound and music via

e connections, Bluetooth, WiFi or Ethernet. This product is

cabl intended for private domestic use only. It is not intended for commercial use.

It is considered improper use when this product is used for any application not named in the instruction manual. Sen for damages to USB devices that are not consistent with the USB specifications. Sennheiser does not accept liability for damage arising from improper use or misuse of this pr ments/accessories.

Before putting the product into operation, please observe the respec

tive country-specific regulations.

nheiser is not liable

oduct and its attach-

Page 5

Important safety instructions

Notes on data collection and processing and on firmware updates

This product stores individual settings such as volume, sound and UI settings (e.g. LED brightness), selected input and designations, Bluetooth addresses of paired devices, WiFi settings and usage data (e.g. power-on cycles and operating times). This data is required for the operation of the product and is not transferred to Sennheiser or companies commissioned by Sennheiser and is not processed.

You can update the firmware of the product for free via an Internet connection. If the product is connected to the Internet, the following data is automatically transferred to and processed by Sennheiser servers in order to provide and transfer suitable firmware updates: MAC address, IP address. The data will only be used as specified and will not be stored permanently. If you do not want this data to be transferred and processed, do not connect to the Internet.

Notes on the packaging

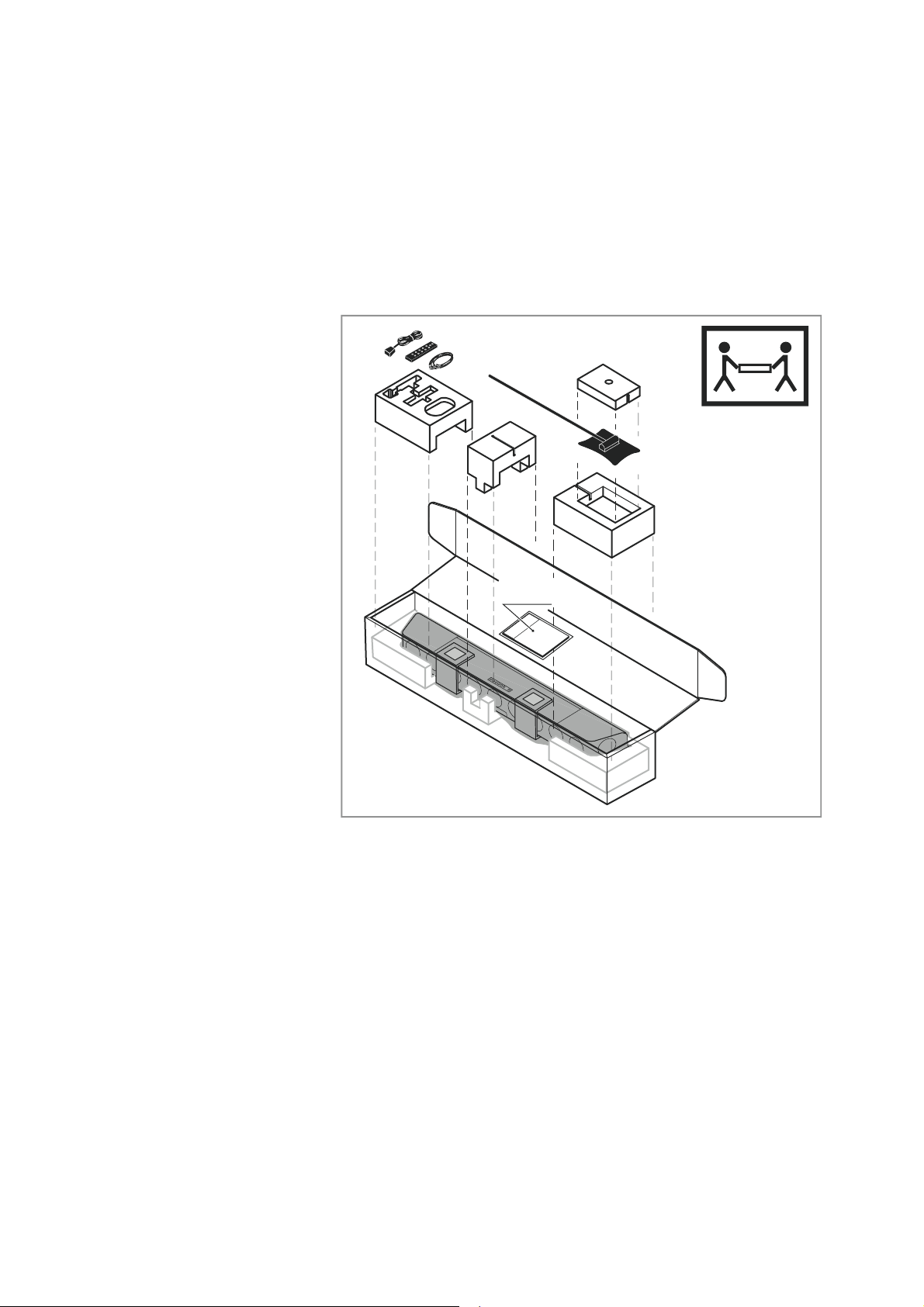

We recommend using the original packaging to ensure safe storage and transport of the Soundbar. Damage during transport is often caused by the use of unsuitable packaging. The original packaging of the Soundbar provides optimal protection and minimizes the risk of damage during transport.

AMBEO Soundbar | 5

Page 6

Package contents

SB01 AMBEO Soundbar

Power cable, country-specific

High Speed HDMI® Cable, length approx. 1 m

SB01-RC remote control (incl. 1x CR2032 battery)

SB01-MS microphone for room calibration  with microphone holder, cabl

Quick guide

Safety guide

Online you can find:

• this detailed instruction manual a (www.sennheiser.com/download)

• the Sennheiser Smart Control app f Soundbar and for additional functions  (www.sennheiser.com/smartcontrol)

Optional accessories

SB01-WM wall mount for the AMBEO Soundbar, bracket for wall mounting (article no.: 508612)

e length approx. 5 m

nd additional information

or configuring the AMBEO

6 | AMBEO Soundbar

You can find a list of accessories on the AMBEO Soundbar product page at www.sennheiser.com or contact your local Sennheiser partner: www.sennheiser.com > “Service & Sup port”.

Page 7

Product overview

76 8 9

0AC0D

SB01 AMBEO Soundbar

Front

Product overview

Control panel

MUTE button

Volume - button (volume down)

Volume +button (volume up)

AMBEO button

for activating the AMBEO Soundbar  (pressing for 4 seconds activates the room calibration)

Multi-function button • for controlling the media playback

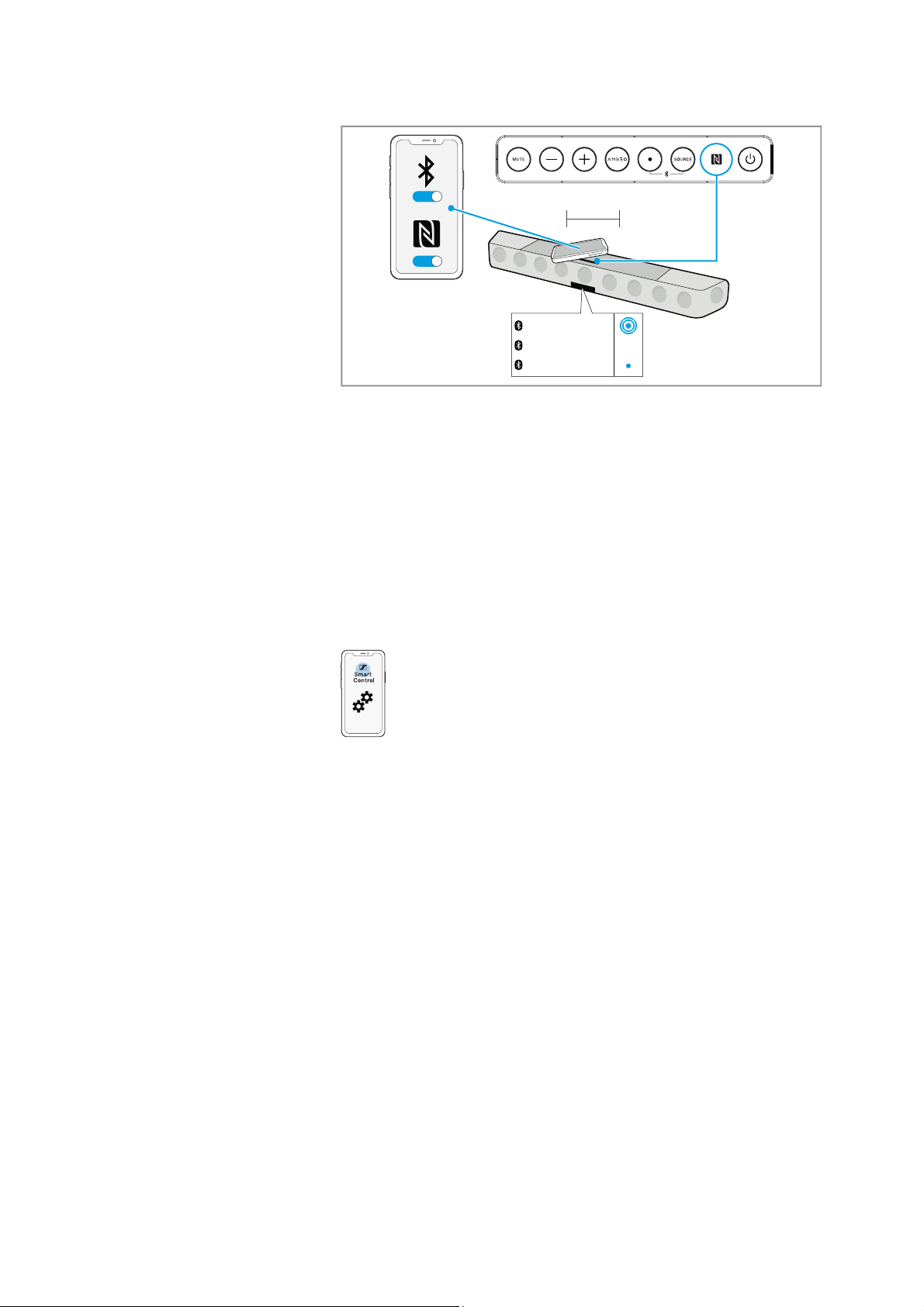

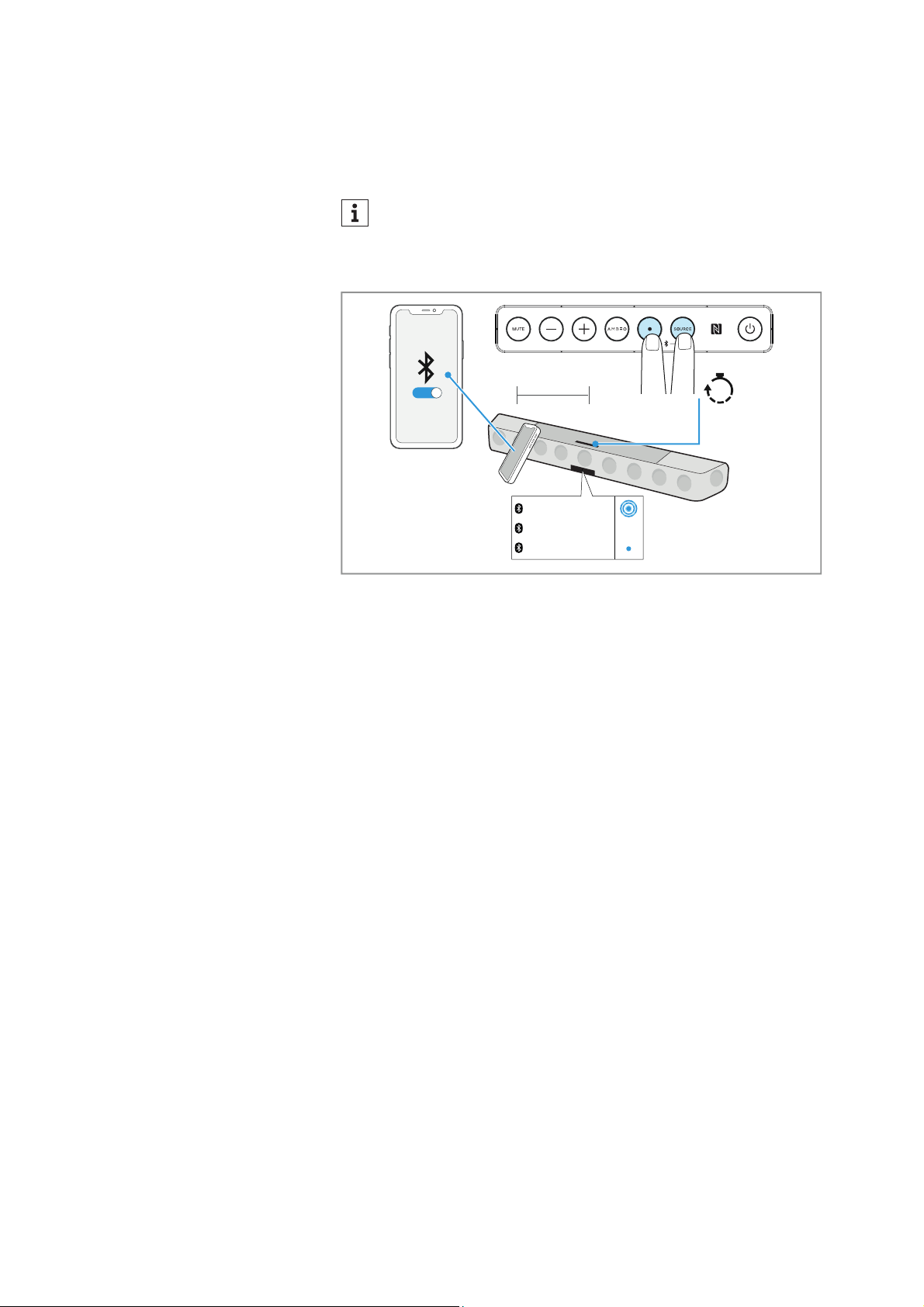

Bluetooth pairing (by simultaneously pressing the multi-function button and the input

SOURCE button (input source selection)

NFC antenna

On/off button

Vibration absorbing feet

source button for 2 seconds)

Input for room calibration microphone

OLED display with matt, scratch-resistant surface

Status LED

AMBEO display

AMBEO Soundbar | 7

Page 8

Product overview

0 0E

5 V⎓ 1 A

AUX IN

SW PRE

OUT

OPT IN

HDMI 3 IN

HDMI 2 IN

HDMI 1 IN

HDMI TV

(eARC) OUT

ETHERNET

USB

POWER

F G H JI M N OK L

TR S

Back

Bottom

Connections

Cooling vents

IEC mains socket

POWER 100 - 240 V~, 50/60 Hz, 250 W

USB input (for updates only) type B, USB 5 V

⎓, 1 A

Ethernet input RJ45, ETHERNET

HDMI output

HDMI TV (eARC) OUT 5 V

⎓, 1 A

HDMI input

HDMI 1 IN

HDMI input

HDMI 2 IN

HDMI input

HDMI 3 IN

S/PDIF input, optical, OPT IN

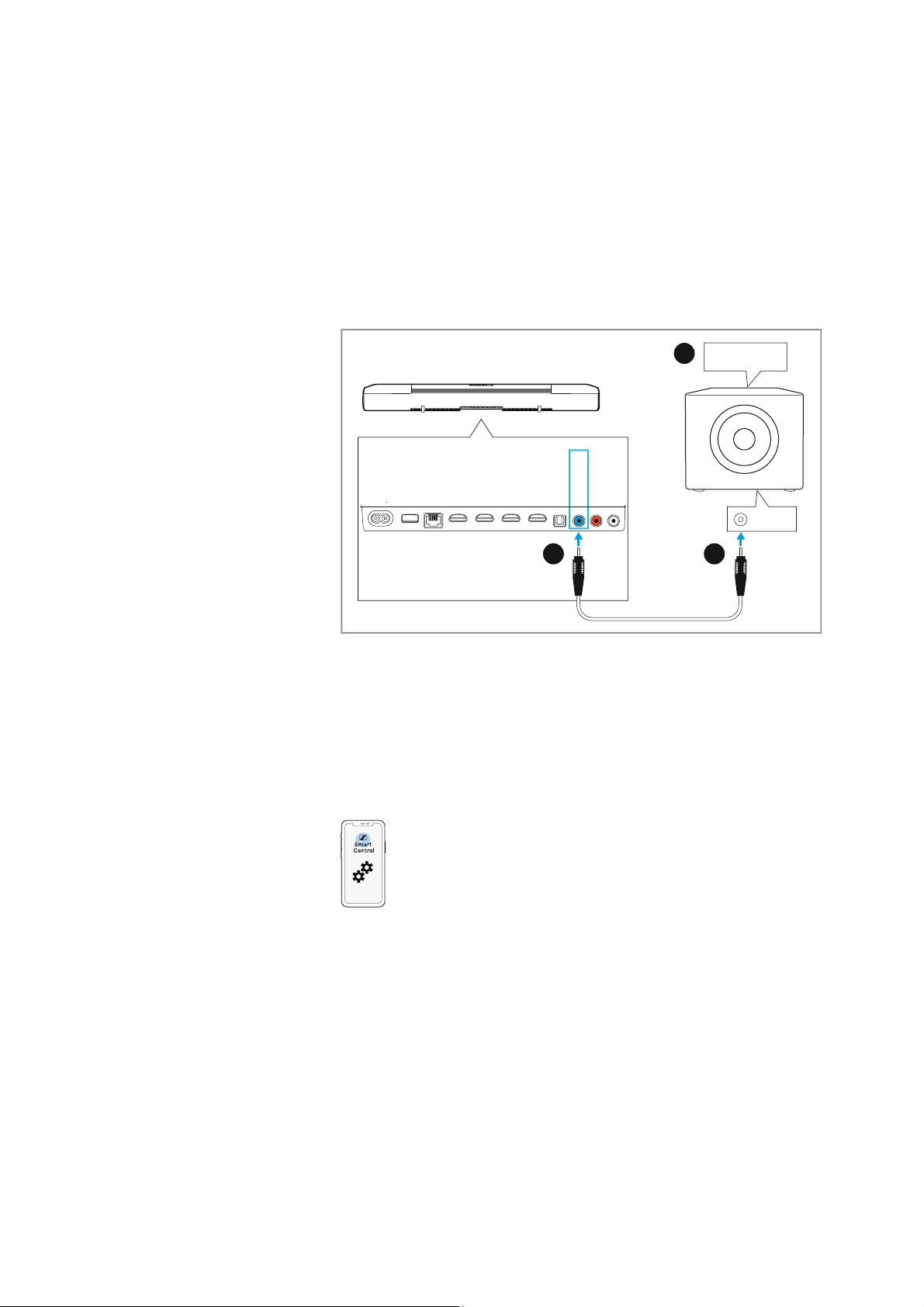

Output for connecting a subwoofer with power amplifier RCA socket SW PRE OUT

RCA input sockets for an analog audio source

AUX IN

Mounting thread (under the rubber foot) for the SB01-WM wall mount (optional accessory)

Type plate

8 | AMBEO Soundbar

Page 9

NEWS SPORTS

NEUTRAL NIGHT

MUSICMOVIE

VOLSOURCE

[

]

Cable tie for bundling and strain-relieving the connected cables

RESET button

SETUP button

for WiFi setup (WiFi Protected Setup; WPS)

SB01-RC remote control

Product overview

Infrared transmitting diode

On/off button

AMBEO button for activating the AMBEO Soundbar  (pressing for 4 seconds activates the room calibration)

Multi-function button

Volume buttons

Sound profile button

Night mode button

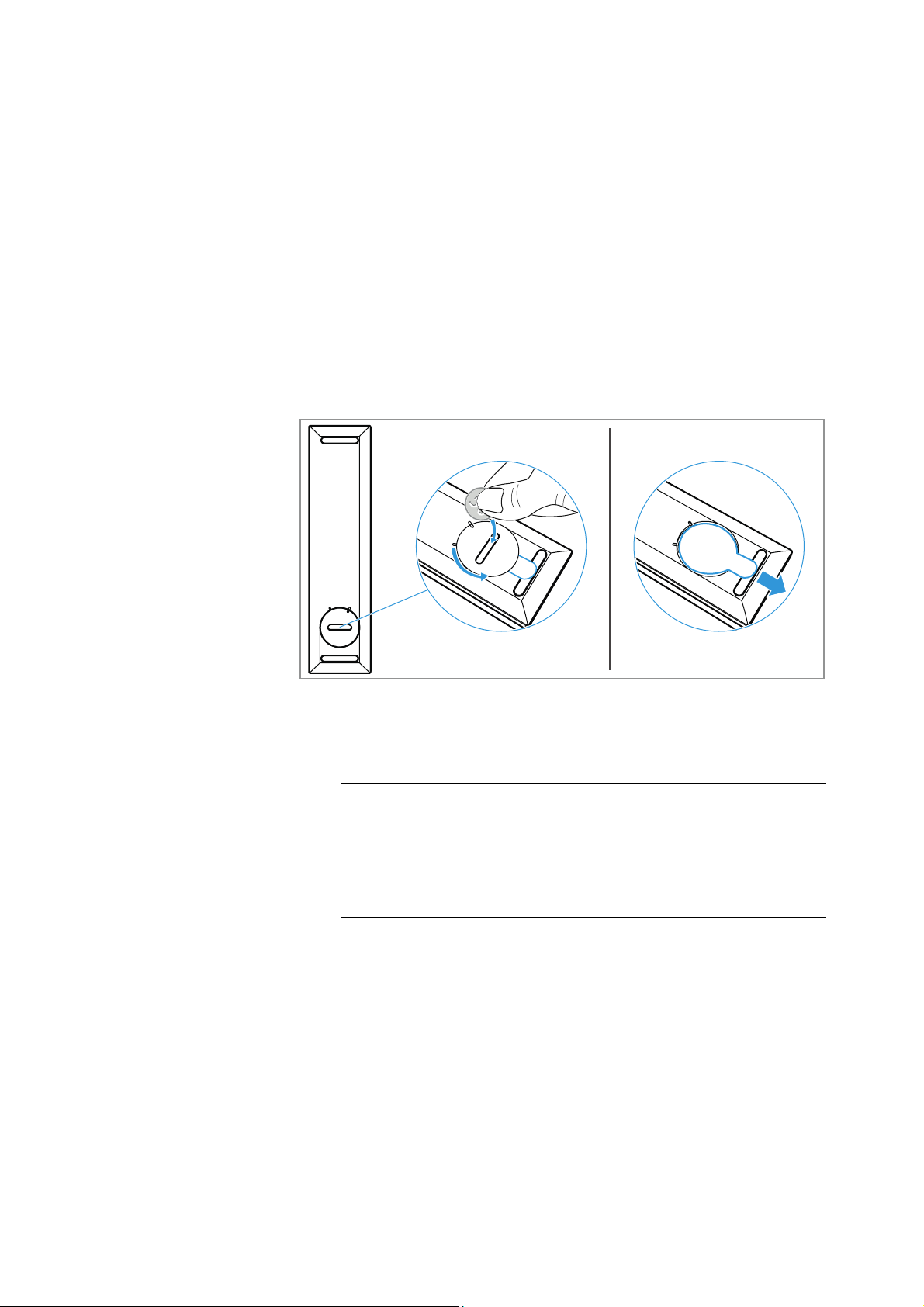

Battery compartment (for 1x CR2032 battery)

Input source button

Mute button

AMBEO Soundbar | 9

Page 10

Product overview

SB01-MS microphone for room calibration

Microphone head Omni-directional pick-up pattern

Microphone holder

Cable with 2.5 mm jack plug

Overview of the displays

Status LED

Color Status Meaning

white

blue

yellow

orange

red lights up Soundbar in standby mode

lights up 1x

pulses Booting, connecting via Chromecast

red

yellow Connecting via Bluetooth

pulses

flashes

red

yellow

Status change e.g. volume adjustment, sound profile selection

Connected via Bluetooth

Update is being loaded and installed

WiFi lost (check router settings, restart router if necessary)

Reset is terminated

WPS found

Reset in progress

WPS search

10 | AMBEO Soundbar

Page 11

Product overview

AMBEO display

AMBEO display Meaning

lights up white

AMBEO mode is on

off AMBEO mode is off

pulses white Room calibration in progress

The brightness of the AMBEO display and the OLED display can be adj

usted via the Smart Control app.

Error messages on the display

Message on the display

Possible error Possible solution

The Soundbar mutes itse

TV Speakers On

lf when the TV speakers are selected as the audio output.

OVER HEAT

Overheating of the Soundbar

Selected function (e.g. sound profile

DOLBY PassThrough

AMBEO mode) cannot be activated because the “Dolby Virtualizer” is activated.

In the TV settings, select the Soundbar as the audio output (“HDMI ARC Audio Output”).

Switch the Soundbar off and let it cool down (> 32).

Deactivate the “Dolby

tualizer” in the

Vir Smart Control app  (> 42).

AMBEO Soundbar | 11

Page 12

Getting started

1. Setting up the Soundbar

The correct placement and setup of the AMBEO Soundbar is important for an optimum sound experience. You can place the AMBEO Soundb using the wall mount (optional accessory) (> 18).

ar on a piece of furniture (> 15) or mount it directly to a wall

2. Connecting a TV and/or audio devices

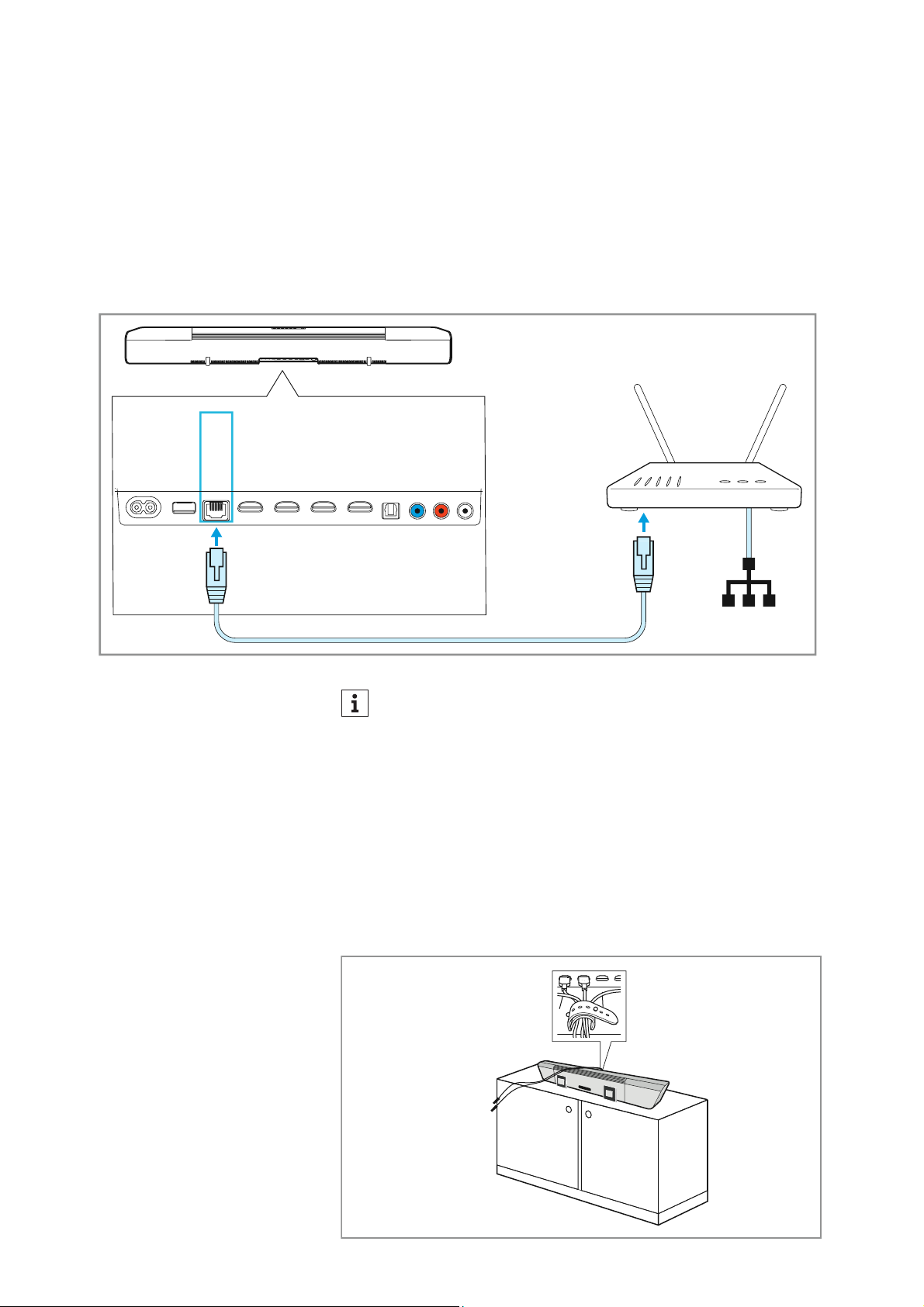

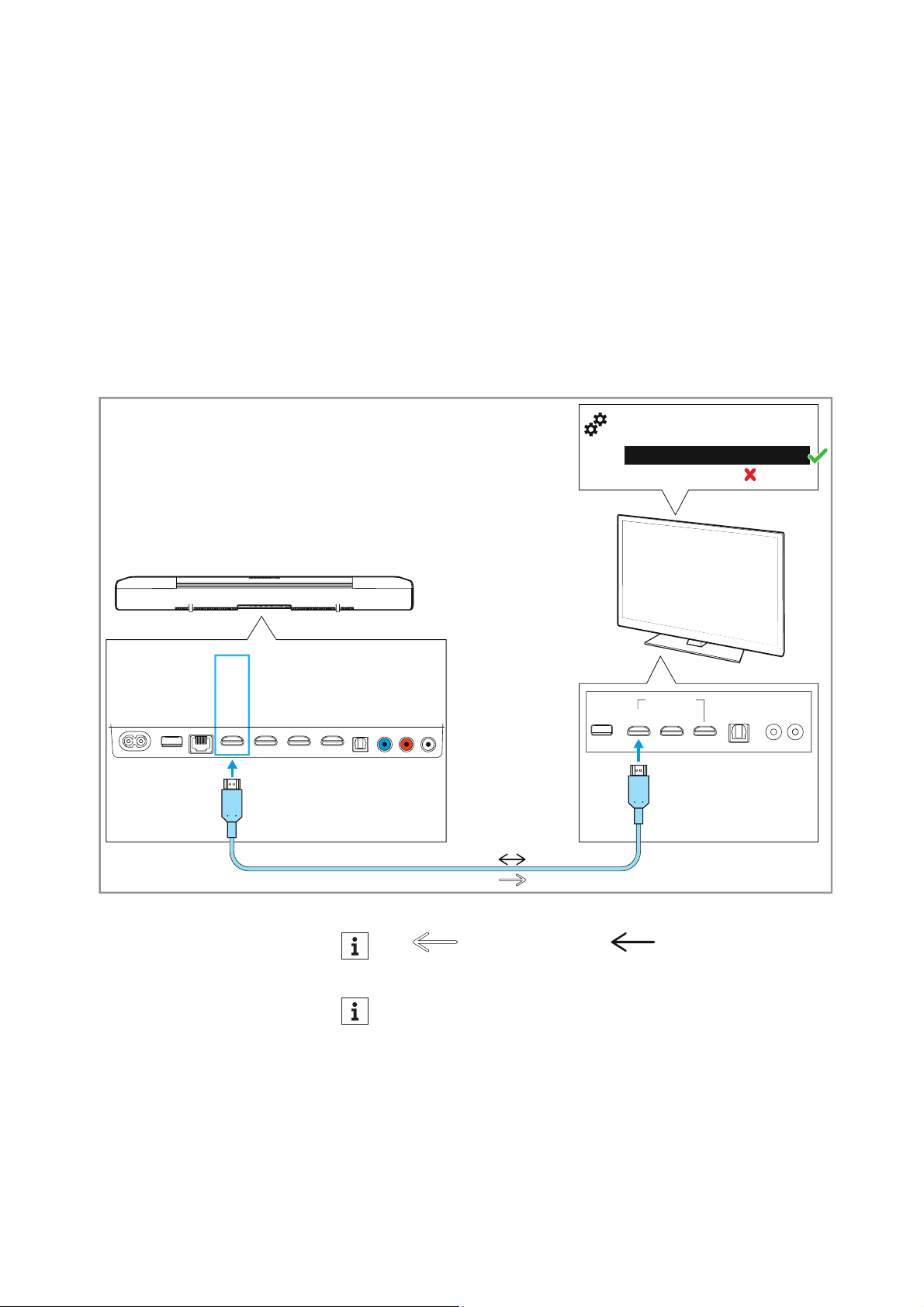

Connect your TV to the Soundbar. You can also connect other audio/ video devices (> 19) or play wireless audio via Bluetooth or WiFi  (> 36).

12 | AMBEO Soundbar

Page 13

Getting started

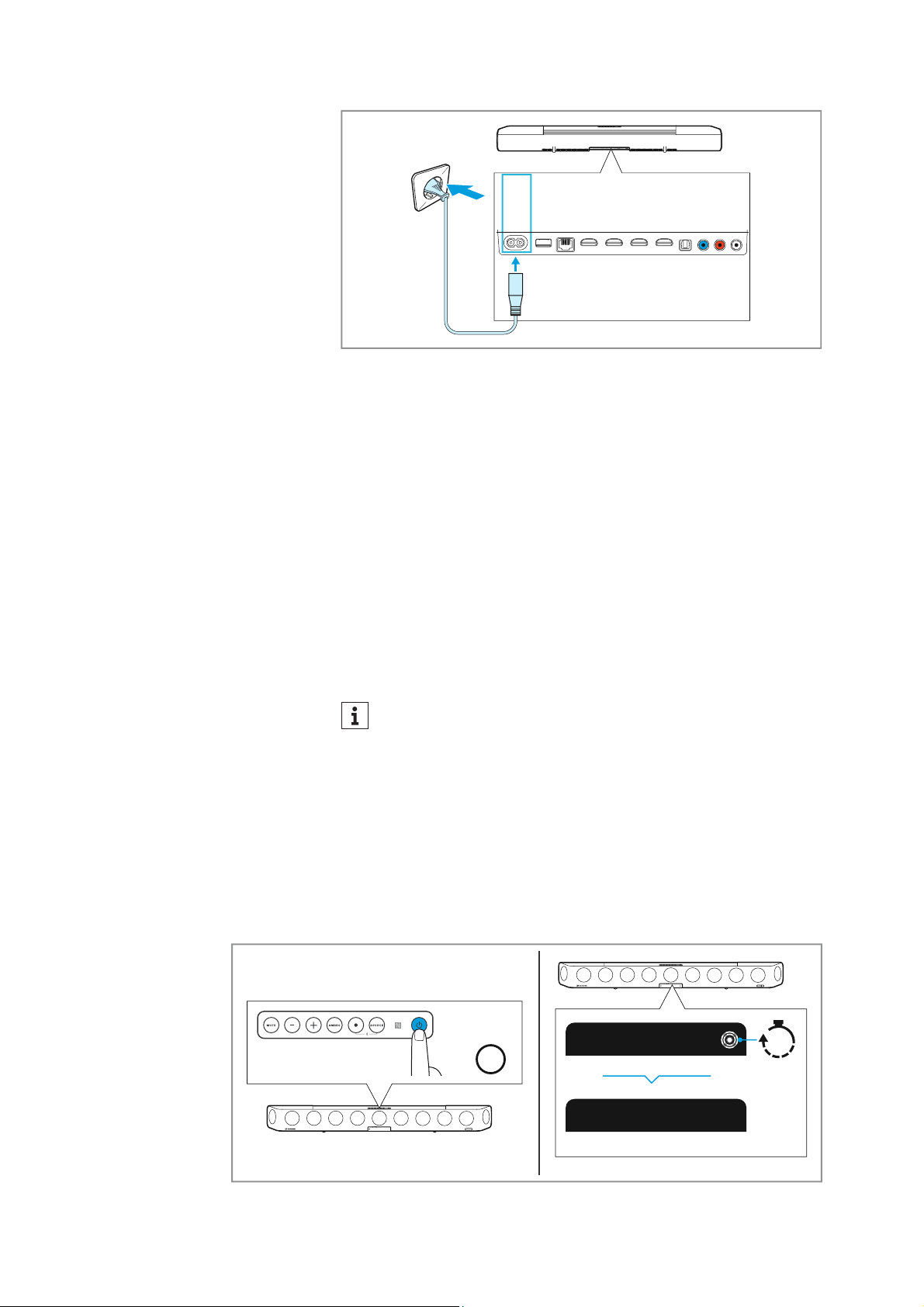

3. Connecting the AMBEO Soundbar to the power supply system

Connect the AMBEO Soundbar to the power supply system - the AMBEO Soundbar comes to life and guides you through the initial switch-on process (> 27).

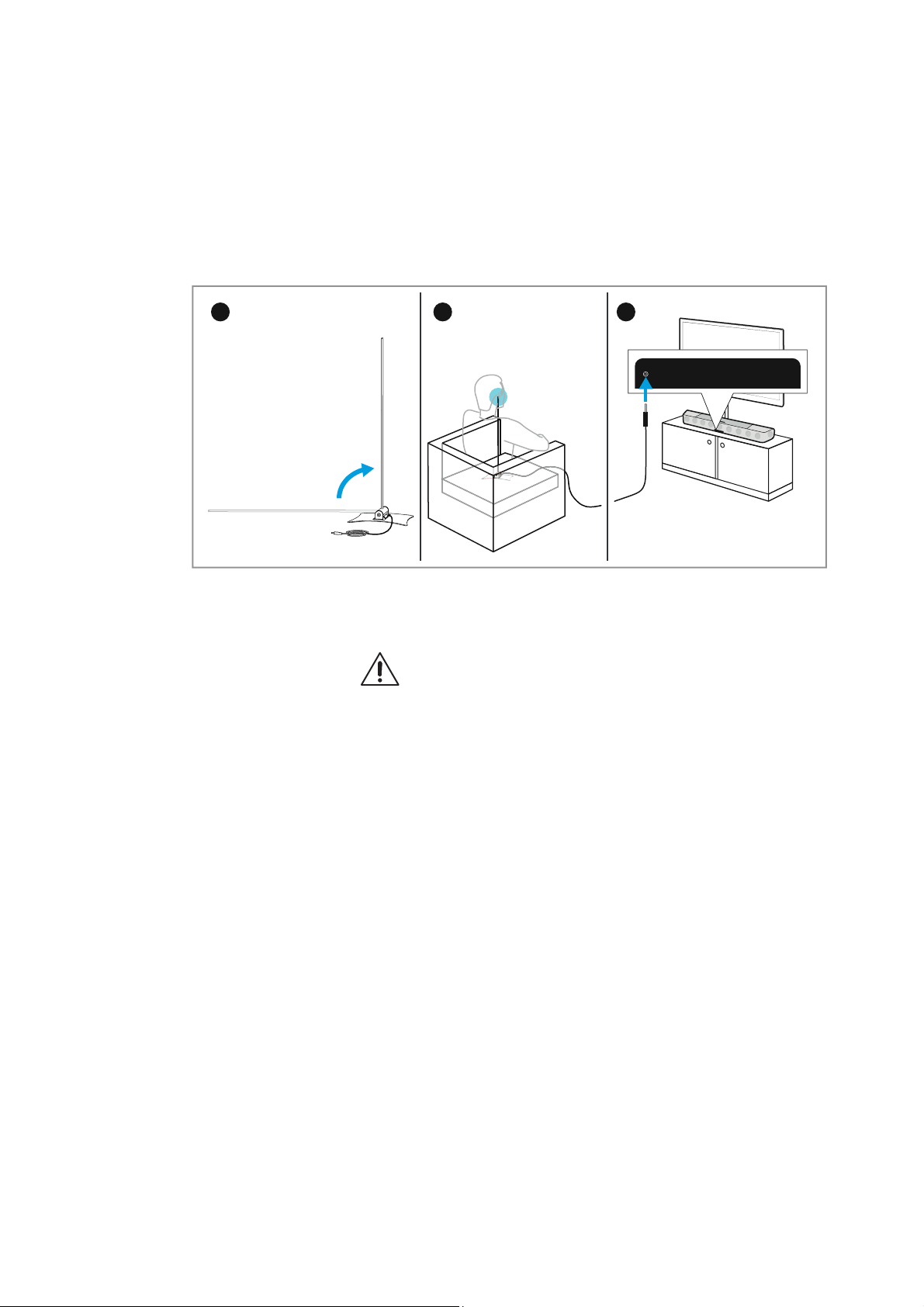

4. Starting the room calibration

For an optimum spatial sound experience, the AMBEO Soundbar must perform a room calibration. Connect the microphone for the room calibration and start the calibration. The calibration takes only a few minutes and leads to the best possible 3D spatial sound (> 28).

AMBEO Soundbar | 13

Page 14

Getting started

5. Installing the Google Home app on your smartphone

With the Google Home app, you can make the AMBEO Soundbar's WiFi settings. With Internet connectivity/WiFi, you can get up-todate firmware updates for the AMBEO soundbar and use Chromcast buit-in functionality. Follow the setup process in the Google Home app for the AMBEO Soundbar.

6. Installing the Smart Control app on your smartphone

The Sennheiser Smart Control app allows you to use all functions and settings of the AMBEO Soundbar and to e.g. adjust the sound to your liking using the equalizer (> 38).

14 | AMBEO Soundbar

Page 15

Installing the AMBEO Soundbar

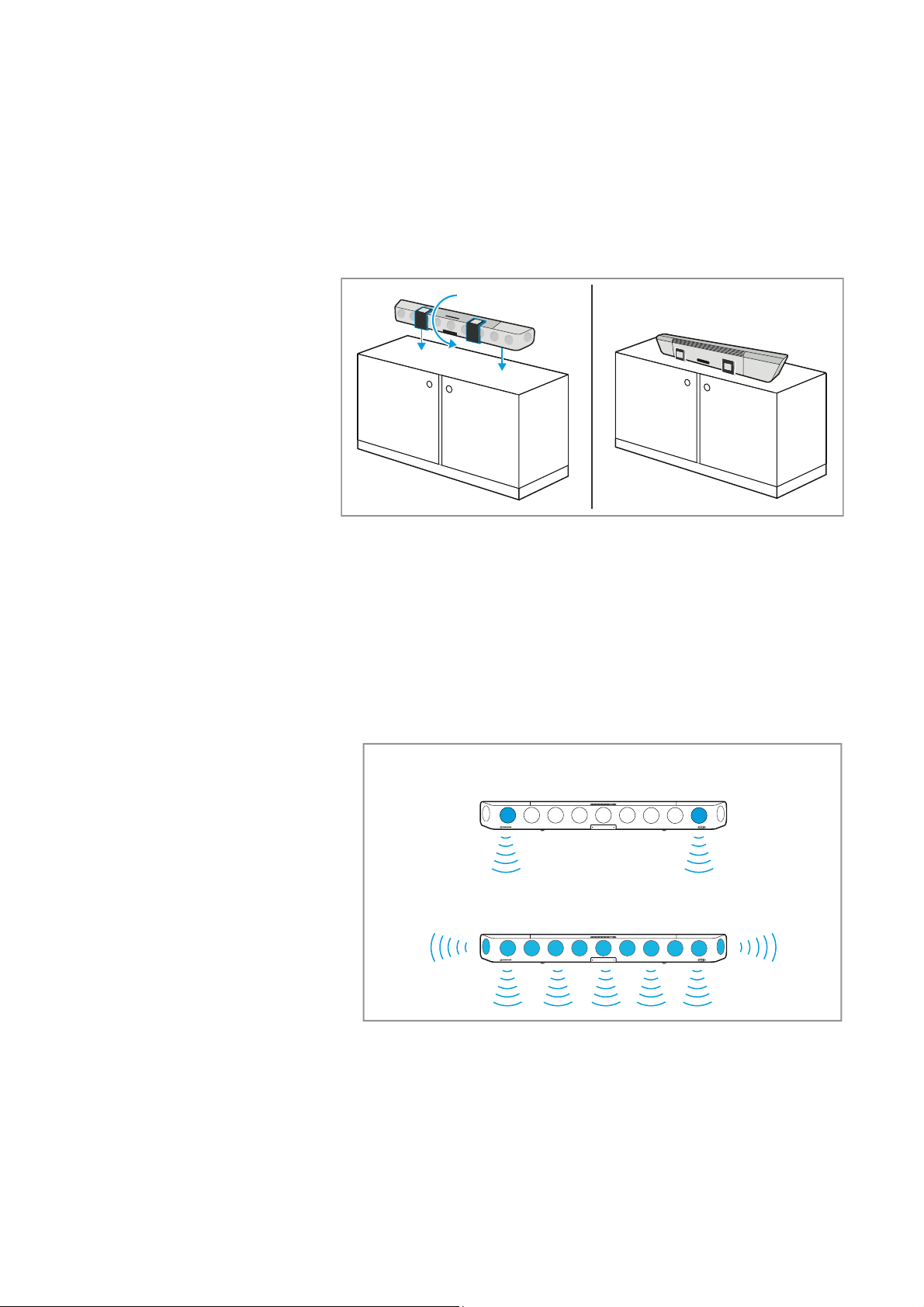

Placing the Soundbar on the device feet

CAUTION

Material damage due to overheating

Inadequate ventilation may cause the Soundbar to overheat.

▷ Do not place any objects on the Soundbar, keep the minimum

clearances and ensure circulating ventilation.

CAUTION

Risk of staining of fu

Varnish or furniture polish may degrade the feet of the product, whi

ch could stain your furniture.

▷ Do not place the product on delicate surfaces; if necessary, use a

non-slip pad under the product.

▷ With the help of a second person, take the Soundbar out of the

packaging.

▷ Remove the protective foil.

▷ Remove the protective foil from the OLED display.

rniture surfaces!

▷ With the help of a second person, place the Soundbar on a sturdy,

level, horizontal piece of furniture that can safely carry the weight of the Soundbar (approx. 18.5 kg).

▷ Observe the following:

–The distance X of the Soundbar to the side walls should ideally

the same so that the Soundbar is centered in the room. The

be optimum distance between the Soundbar and the walls is between 1 and 5 meters.

– There must be no objects that block the sound or have a strong

nd-absorbing effect (e.g. furniture such as shelves or arm-

sou chairs, room dividers, curtains, flo Soundbar and the side walls and the ceiling of the room.

–The distance X of the Soundbar to the ceiling should be

een 1 to 5 meters, but should not exceed 5 meters. The ceil-

betw ing should be flat and horizontal ( roof).

– The Soundbar should be positioned below the TV.

wer pots) between the

no pitched roof or domed

AMBEO Soundbar | 15

Page 16

Installing the AMBEO Soundbar

≥2 m

18.5 kg

>10 cm

• The distance of the Soundbar to the TV should be at least 10 cm.

• The seat (optimal point “sweet spot”) should be positioned centrally in front of the Soundbar and have a distance of at least 2 meters to the Soundbar.

16 | AMBEO Soundbar

▷ Ensure circulating ventilation. The product generates heat which

is dissipated through the housing. Do not touch when in use or directly after use!

Page 17

Installing the AMBEO Soundbar

30°

≤15 m

≥2 m

20°

Optimum positioning

Schematic structure of the sound waves from the Soundbar, which ar

e reflected by walls and objects and thus reach the optimal point (“sweet spot”). Thus, a virtual surround sound can be created with a Soundbar.

Object Meaning

Reflecting surface

Soundbar

Furniture/curtain

Optimal point “sweet spot”

Sound waves of the loudspeakers

Sound waves from the top-firing loudspeakers to the ceiling

AMBEO Soundbar | 17

Page 18

Installing the AMBEO Soundbar

When positioning the Soundbar, keep in mind that the sound is reflected by the walls and ceiling. Many curtains, thick carpets and other rough surfaces can affect the 3D spatial sound.

Mounting the Soundbar to a wall

To mount the Soundbar to a wall, you require the SB01-WM wall mount (optional accessory, > 6).

▷ Proceed as described in the mounting instructions (enclosed with

the SB01-WM wall mount) and use the drilling template.

18 | AMBEO Soundbar

Page 19

Connecting devices to the AMBEO Soundbar

▷ Put a protective material (e.g. the foam parts of the packaging or

a blanket) between the piece of furniture and the Soundbar.

▷ Carefully turn the Soundbar on its front.

Preparation

Adjust the sound settings on the TV and on the audio/video device.

▷ On your devices, adjust the sound settings for the HDMI and opti-

cal output from “Downmix/Stereo” to “Auto/Bypass/Pass-

hrough”. (The menu of the devices may use different names

T depending on the manufacturer). This ensures that the audio signals for 3D spatial sound from the

rce (e.g. TV) are passed on to the AMBEO Soundbar.

sou

Downmix/Stereo

Auto/Bypass/Pass-Through

▷ On your TV, set the Soundbar as the audio output.

AMBEO Soundbar | 19

Page 20

Connecting devices to the AMBEO Soundbar

AUX IN

SW PRE

OUT

OPT IN

HDMI 3 IN

HDMI 2 IN

HDMI 1 IN

HDMI TV

(eARC) OUT

ETHERNET

USB

POWER

HDMI IN

High Speed HDMI Cable *

eARC

Auto/Bypass/Pass-Through

Downmix/Stereo

TV/Player sound menu*: HDMI Audio OUT/Optical OUT

Connecting a TV

Connection to the HDMI eARC socket (recommended)

• Required cable: High Speed HDMI

To connect the Soundbar to a TV with an HDMI IN socket labeled “A

RC/e AR C” :

▷ Connect one connector of the supplied high-speed HDMI cable to

the HDMI TV (eARC) OUT socket on the Soundbar.

▷ Connect the other connector of the cable to the HDMI (eARC) IN

socket of your TV.

▷ Please note the settings of your devices > 19.

® Cable (supplied)

Video signal Audio signal

TV sets with an “ARC” output (not “eARC”) can transmit surround formats only to a limited extent.

20 | AMBEO Soundbar

Page 21

Connecting devices to the AMBEO Soundbar

AUX IN

SW PRE

OUT

OPT IN

HDMI 3 IN

HDMI 2 IN

HDMI 1 IN

HDMI TV

(eARC) OUT

ETHERNET

USB

POWER

HDMI IN OPTICAL

OUT

Auto/Bypass/Pass-Through

Downmix/Stereo

TV/Player sound menu*: HDMI Audio OUT/Optical OUT

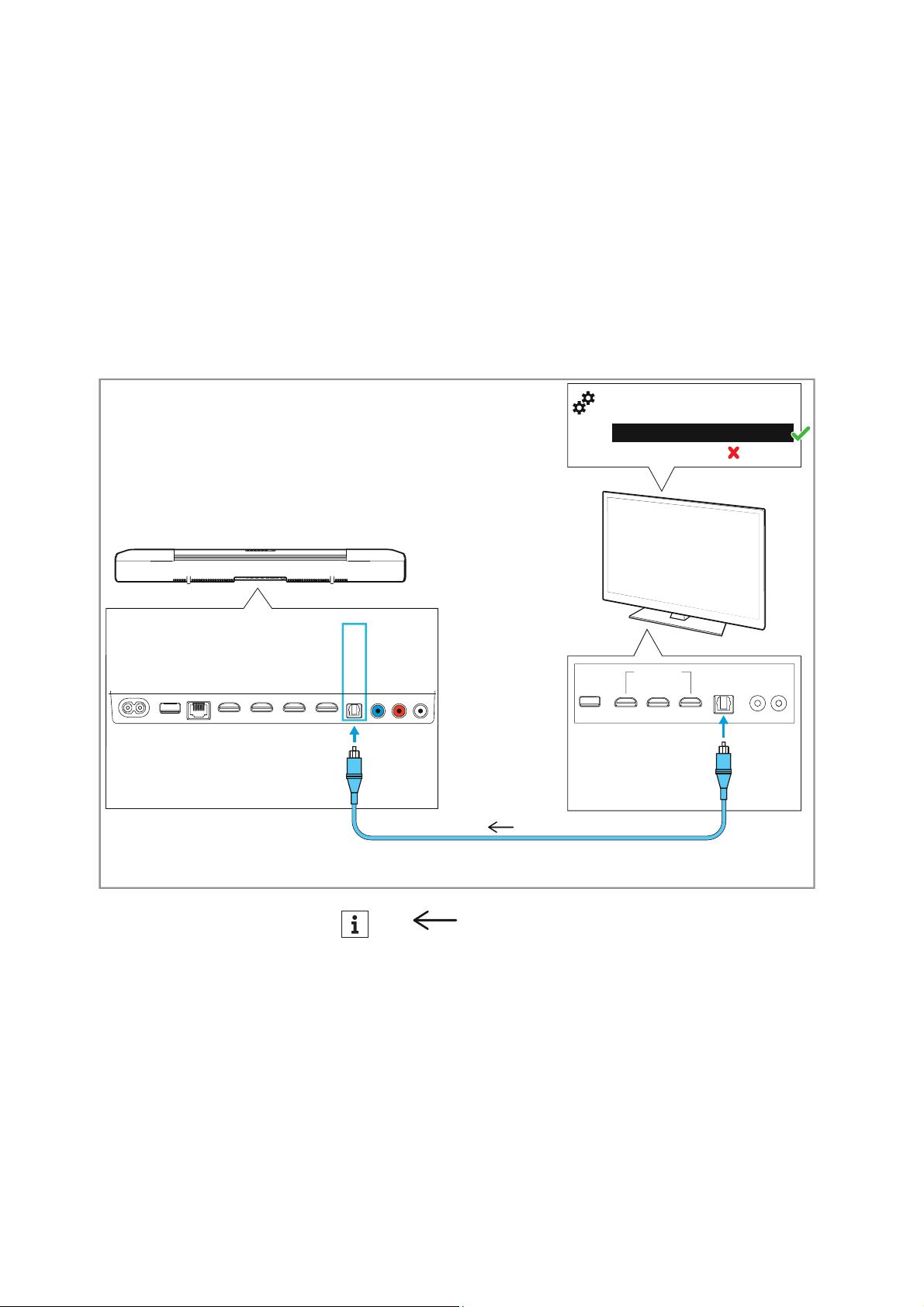

Connection without HDMI eARC socket

• Required cable: optical cable (recommended length: max. 5 m)

To connect the Soundbar to a TV without an HDM

I IN socket labeled

“ARC/eARC ”:

▷ Connect one connector of an optical cable (to be ordered sepa-

rately) to the OPT IN socket on the Soundbar.

▷ Connect the other connector of the cable to the OPTICAL OUT

socket of your TV.

▷ Please note the settings of your devices > 19.

Audio signal

AMBEO Soundbar | 21

Page 22

Connecting devices to the AMBEO Soundbar

AUX IN

SW PRE

OUT

OPT IN

HDMI 3 IN

HDMI 2 IN

HDMI 1 IN

HDMI TV

(eARC) OUT

ETHERNET

USB

POWER

HDMI

OUT

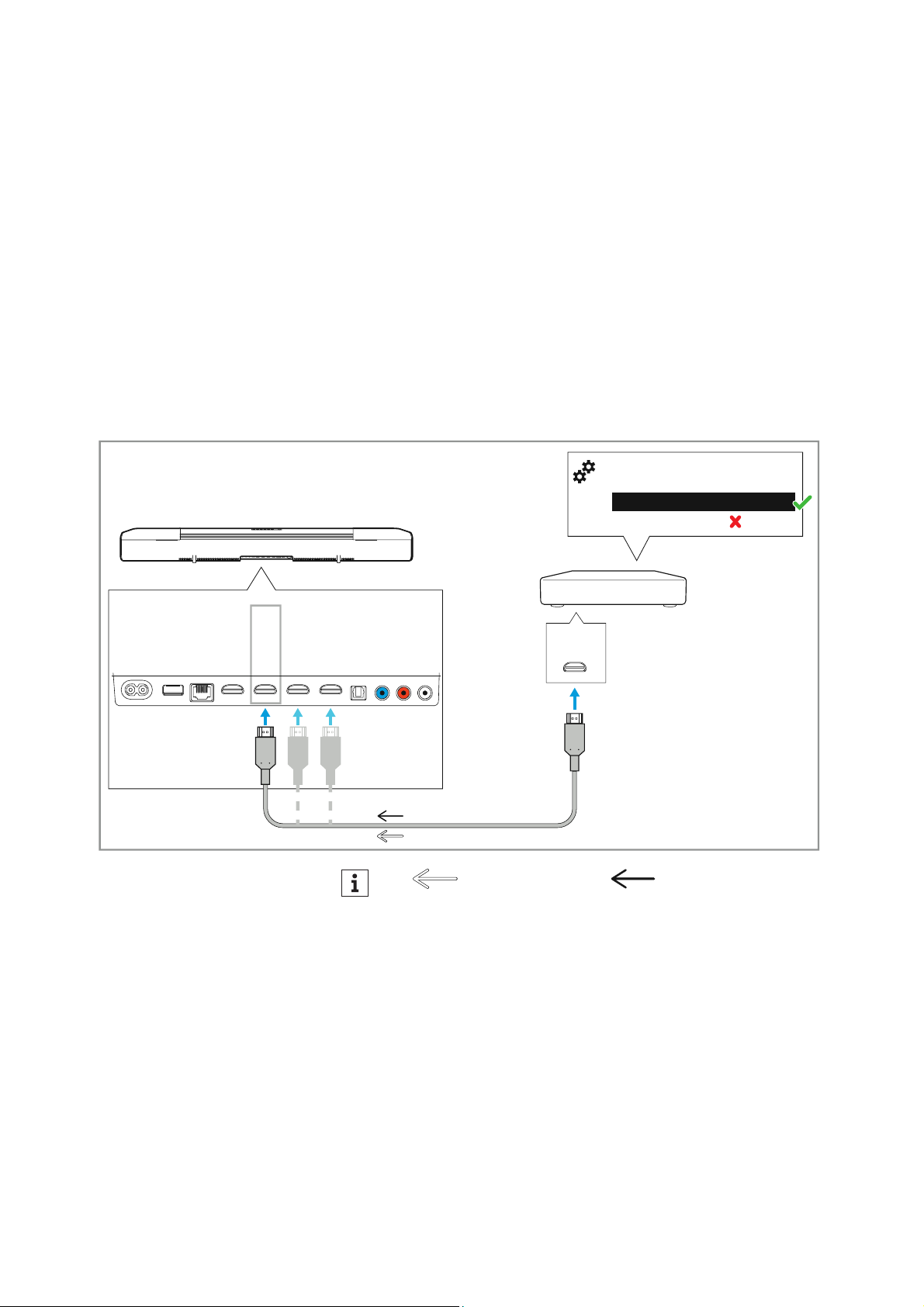

Blu-ray player, DVD player, cable or satellite receiver

Auto/Bypass/Pass-Through

Downmix/Stereo

TV/Player sound menu*: HDMI Audio OUT/Optical OUT

Connecting an audio/video device

Digital connection

• Required cable: HDMI

To connect the Soundbar to an audio source (e.g. Blu Ray player, DVD p

layer):

▷ Connect one connector of an HDMI cable (to be ordered sepa-

rately) to one of the three HDMI sockets (HDMI 1 IN, HDMI 2 IN,

HDMI 3

▷ Connect the other connector of the cable to the HDMI OUT socket

of your audio source.

▷ Please note the settings of your devices > 19.

▷

IN) on the Soundbar.

Video signal Audio signal

22 | AMBEO Soundbar

Page 23

Connecting devices to the AMBEO Soundbar

AUDIO

AUX IN

SW PRE

OUT

OPT IN

HDMI 3 IN

HDMI 2 IN

HDMI 1 IN

HDMI TV

(eARC) OUT

ETHERNET

USB

POWER

e.g. CD player

AUDIO

Analog connection

• Required cable: stereo RCA cable

To connect the Soundbar to a TV or an audio source (e.g. CD player):

▷ Connect the red connector of an RCA cable (to be ordered sepa-

rately) to the red AUX IN socket and the white connector of the

ame cable end to the white AUX IN socket on the Soundbar.

▷ Connect the other red connector of the cable to the red socket

and the white connector of the same cable end to the white socket of the TV or audio source.

Audio signal

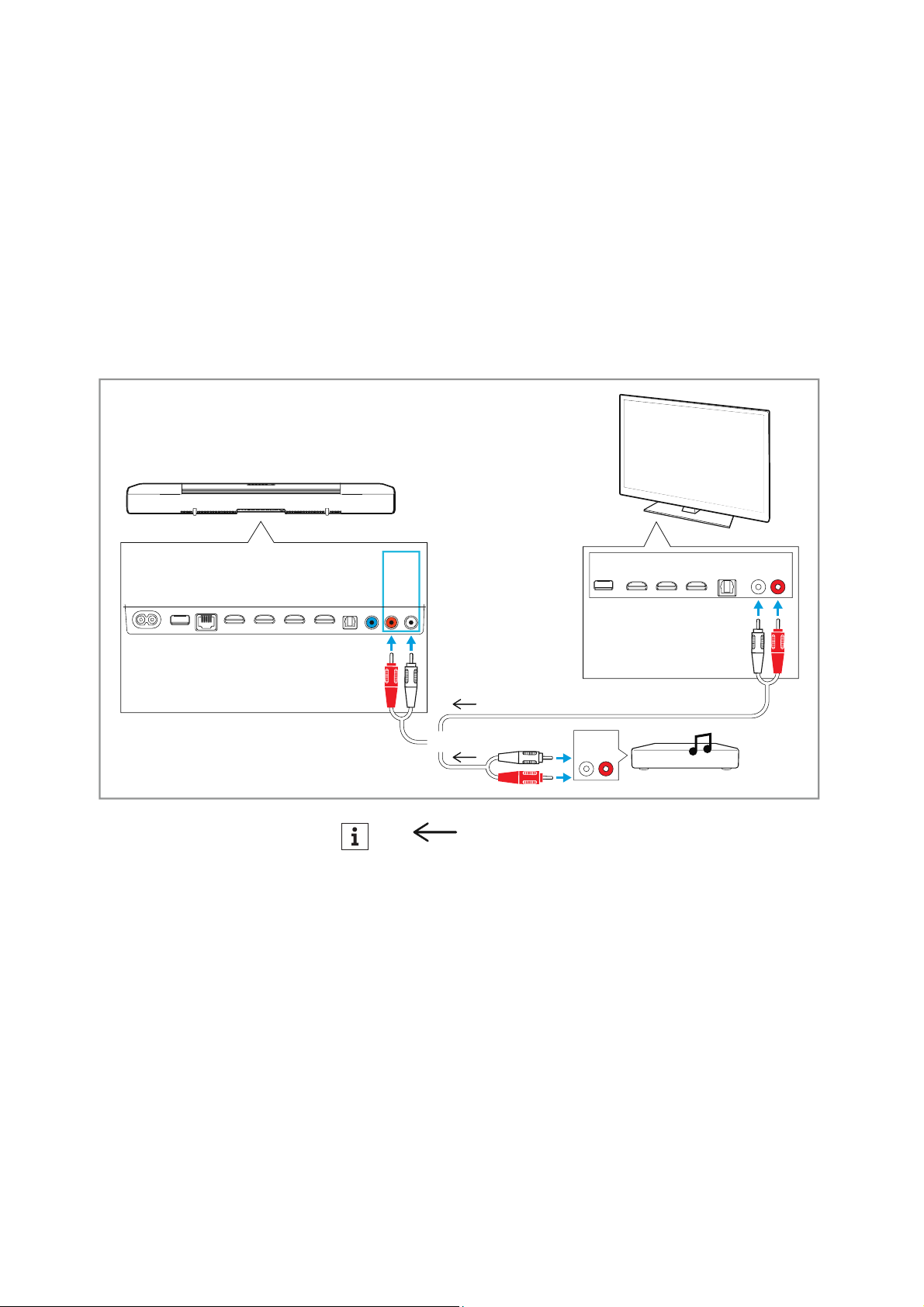

Connection diagram (example)

Connect your audio sources to the AMBEO Soundbar and your TV according to the following diagram (example). Sennheiser recommends connecting the audio sources f formats directly to the AMBEO Soundbar using a High Speed HDMI Cable.

or high-resolution surround

AMBEO Soundbar | 23

Page 24

Connecting devices to the AMBEO Soundbar

AUX IN

SW PRE

OUT

OPT IN

HDMI 3 IN

HDMI 2 IN

HDMI 1 IN

HDMI TV

(eARC) OUT

ETHERNET

USB

POWER

LOW LEVEL

IN/MONO

Volume: 50 % Crossover: Max

Connecting a subwoofer (optional)

Optionally, you can connect a subwoofer to the Soundbar.

▷ Recommended settings: Adjust the volume on the subwoofer to

“approx. 50%” and set the crossover to “Max”.

▷ Connect one connector of the mono RCA cable (to be ordered

separately) to the SW PRE OUT socket on the Soundbar.

▷ Connect the other connector of the cable to the socket LOW

LEVEL IN/MONO of the subwoofer.

▷ Calibrate the Soundbar (> 28).

Disconnecting the subwoofer

When the subwoofer is disconnected from the Soundbar, the Soundbar will use the previous calibration without subwoofer, if one exists.

The app allows you to choose between the calibration with and without subwoofer.

24 | AMBEO Soundbar

Page 25

POWER

USB

HDMI TV

(eARC) OUT

ETHERNET

HDMI 1 IN

Connecting devices to the AMBEO Soundbar

Connecting an Ethernet cable

To connect the Soundbar to a wired network:

▷ Connect one connector of a network cable (with RJ-45 connector,

to be ordered separately) to the ETHERNET socket on the Soundbar.

▷ Connect the other connector of the cable to the network socket of

your router. You may have to make sett

AUX IN

SW PRE

OUT

OPT IN

HDMI 3 IN

HDMI 2 IN

ings to your router.

Router

LAN

If you connect the Soundbar to the Internet/Ethernet via cable, the WiFi function of the Soundbar is automatically deactivated.

Alternatively, the Soundbar can be connected to the Internet via WiFi. For more information > 39.

Using the cable tie

To achieve strain relief on the sockets of the Soundbar:

▷ Bundle the cables.

▷ Place the cables in the cable tie and tighten it.

▷ Close the cable tie.

AMBEO Soundbar | 25

Page 26

Connecting devices to the AMBEO Soundbar

AUX IN

SW PRE

OUT

OPT IN

HDMI 3 IN

HDMI 2 IN

HDMI 1 IN

HDMI TV

(eARC) OUT

ETHERNET

USB

POWER

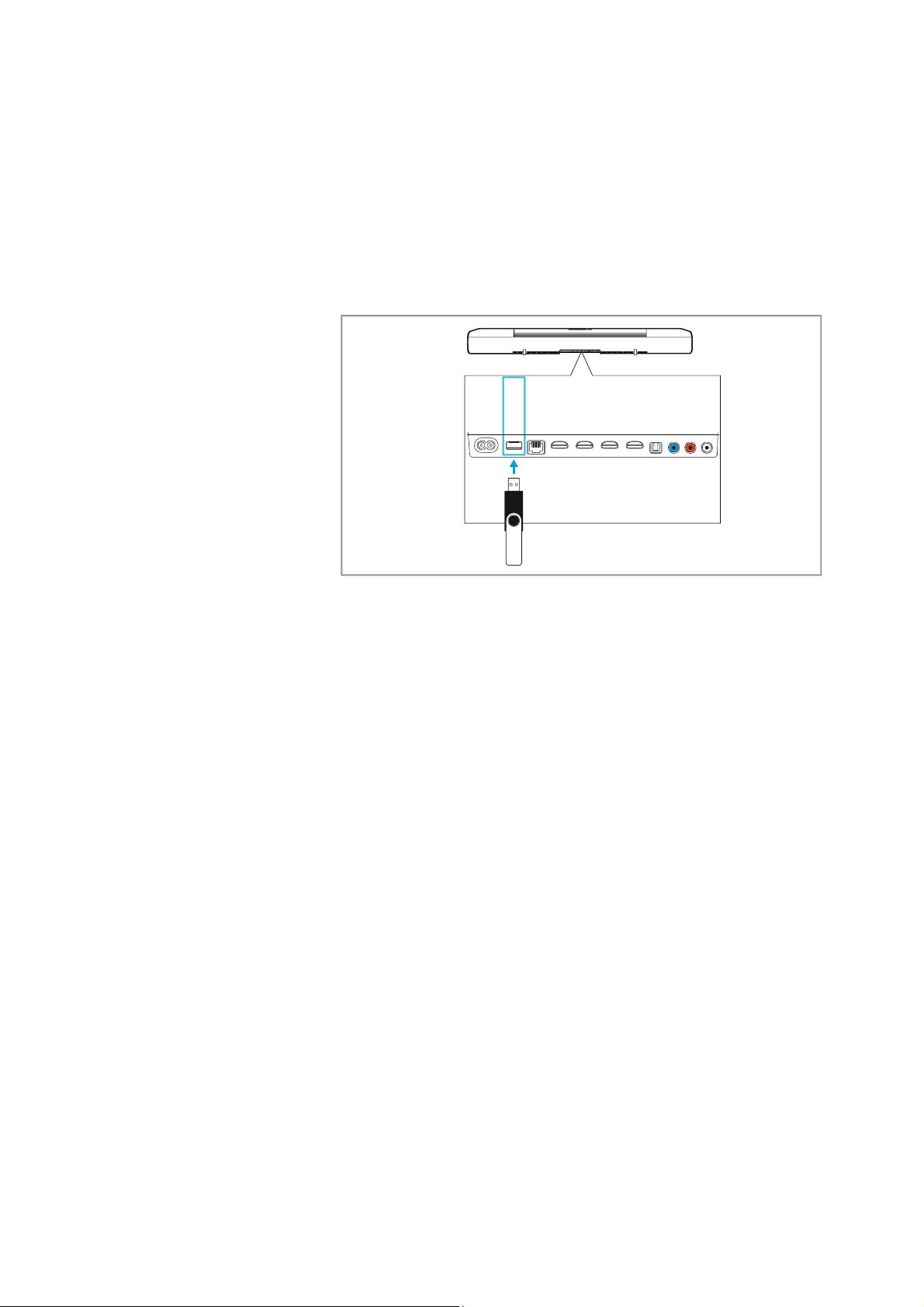

Using the USB socket for updates

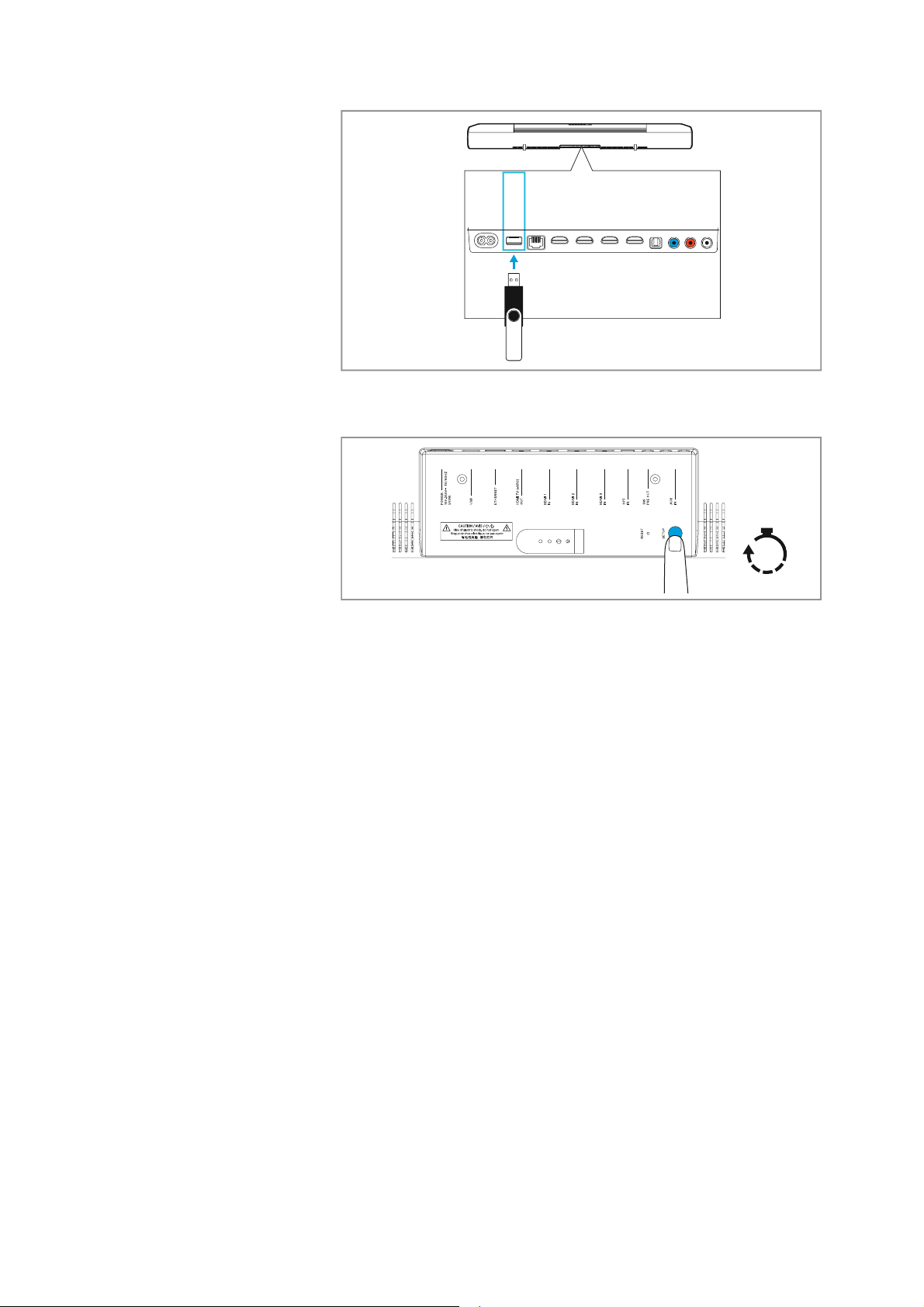

If the Soundbar is not connected to the Internet, you can install a firmware update on the Soundbar using a USB flash drive. For more information on the update > 46.

A power supply of 5 V possible.

▷ Insert a USB flash drive or external accessory powered by USB

(type B, to be ordered separately) into the USB socket on the

oundbar.

⎓, 1 A for accessories (external devices) is

26 | AMBEO Soundbar

Page 27

Putting the AMBEO Soundbar into operation

Preparing the SB01-RC remote control

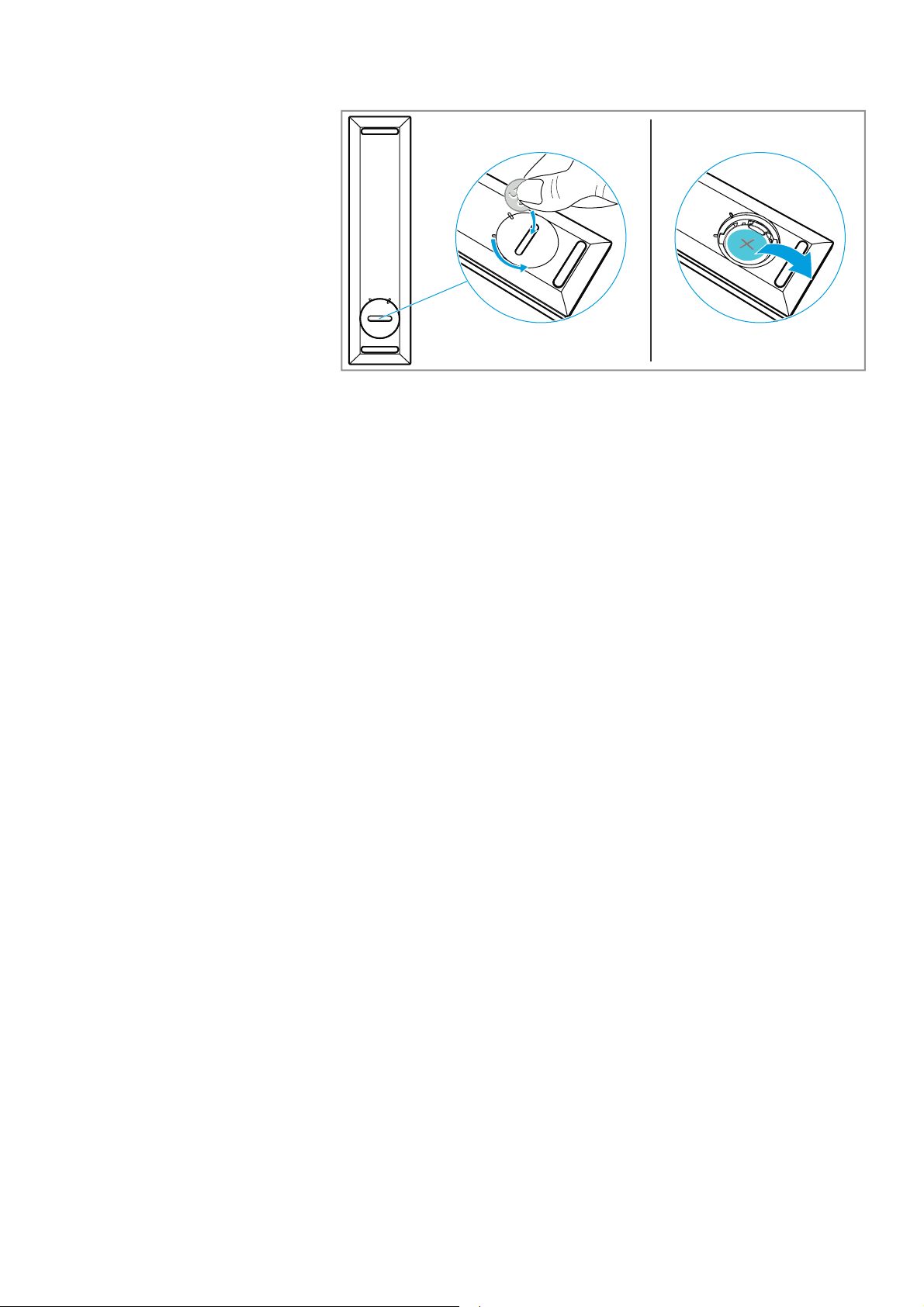

To remove the transport protection of the battery:

▷ Use a suitable object (e.g. a coin) to open the battery compart-

ment cover (located on the bottom side of the remote control) by

rning one turn counter-clockwise.

▷ Remove the plastic strip.

▷ Close the battery compartment cover by turning one turn clock-

wise.

Connecting/disconnecting the Soundbar to/from the power supply system

CAUTION

Danger of damage to the product!

If you connect to an unsuitable power supply, the product can be damag

▷ Use a suitable power cable to connect the product to the power

Connecting the Soundbar to the power supply system

▷ Connect the plug of the power cable to the POWER socket on the

▷ Connect the power plug of the power cable to a suitable wall

ed.

supply system (100 - 240 V~, 50/60 Hz).

Soundbar.

socket.

AMBEO Soundbar | 27

Page 28

AUX IN

SW PRE

OUT

OPT IN

HDMI 3 IN

HDMI 2 IN

HDMI 1 IN

HDMI TV

(eARC) OUT

ETHERNET

USB

POWER

Putting the AMBEO Soundbar into operation

Disconnecting the Soundbar from the power supply system

▷ Unplug the power plug of the power cable from the wall socket.

▷ Unplug the plug of the power cable from the POWER socket on

the Soundbar.

Starting the room calibration

The room calibration is necessary for the measurement of the room in order to let you get the optimum spatial sound experience.

Therefore, the room calibrati

• the Soundbar is put into operation for the first time in a room,

• the position of the Soundbar has been changed,

• a subwoofer has been connect

• the room has been changed (e.g. furniture has been moved).

If the “Dolby Virtualizer” is activated, you cannot perform a room calibration. If necessary, deactivate the “Dolby Virtual izer” in the Smart Control app (> 42).

Preparations for calibration

▷ Connect the Soundbar to the power supply system (> 27).

The Soundbar switches on. This process takes The status LED pulses white.

▷ Press the on/off button on the top of the Soundbar or the on/off

button on the remote control. The display shows “Hello” and the prompt “Set up microphone”.

on should be performed when

ed or disconnected,

about 15 seconds.

28 | AMBEO Soundbar

Press

On/Off

15s

Hello!

Page 29

Putting the AMBEO Soundbar into operation

Calibrating the Soundbar

▷ Straighten up the microphone in the microphone holder.

▷ Place the microphone with the microphone holder on the seat in

front of the Soundbar. The microphone head should be located approximately at ear height during normal use.

▷ Connect the jack plug of the microphone cable to the microphone

input on the Soundbar.

▷ Press the AMBEO button on the top of the Soundbar or the

AMBEO button on the remote control.

The display shows “Please step to the side”.

Please note that the test tones are played at a high volume during calibration.

▷ Avoid disturbing noises (open windows, household appliances,

etc.) and do not stay between the Soundbar and the microphone as this can falsify the calibration. The display shows a countdown for the start of the calibration

libration starts in 10 / 9 / ...”.

“Ca The calibration process takes several minutes. The display shows “Done!” and “Press AMBEO to finalize”.

▷ Press the AMBEO button on the top of the Soundbar or the

AMBEO button on the remote control.

The display shows “Welcome”. The AMBE

O demo sound is played

(approx. 10 seconds).

▷ Disconnect the jack plug of the microphone cable from the micro-

phone input on the Soundbar.

AMBEO Soundbar | 29

Page 30

Welcome

Press

AMBEO

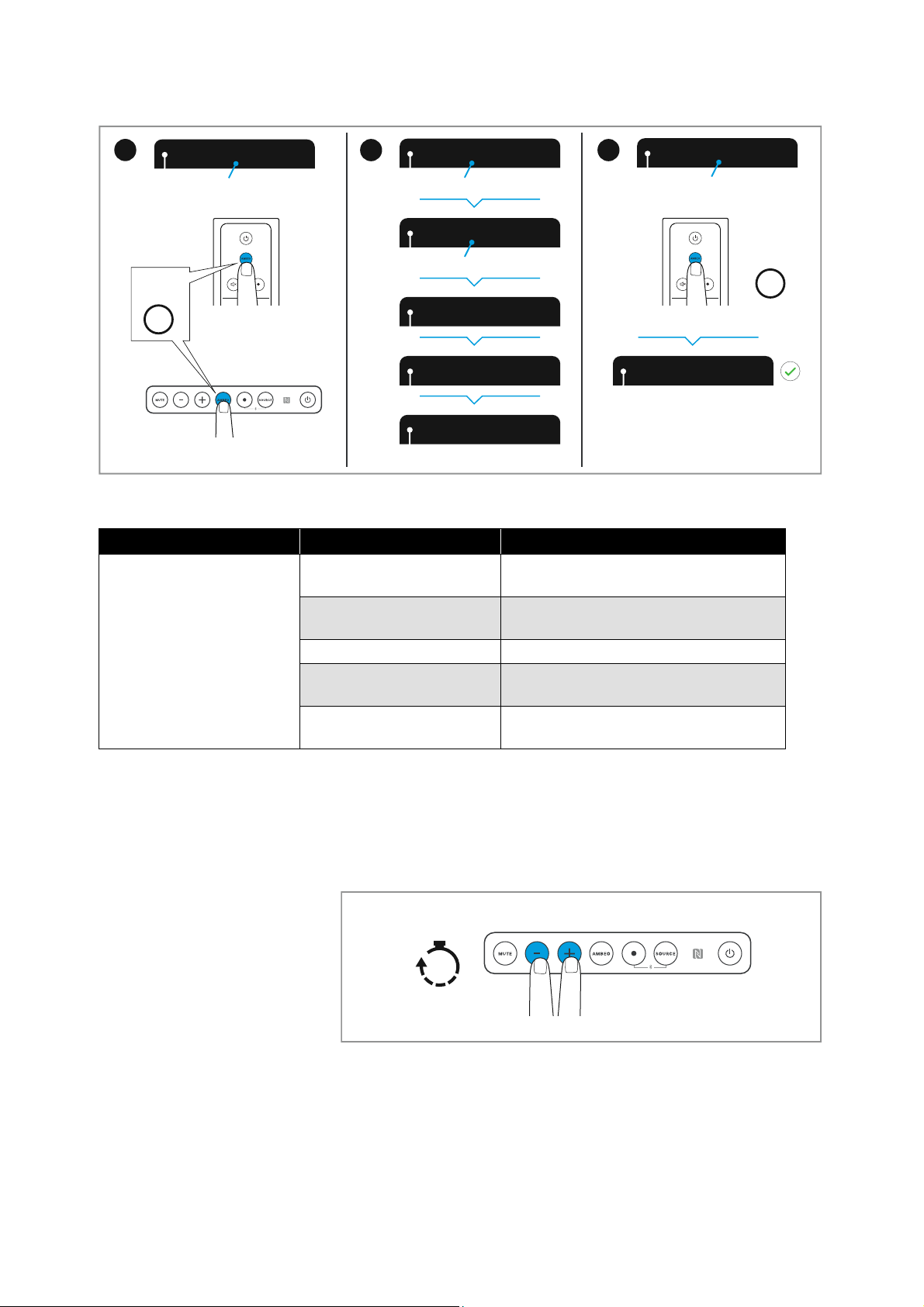

Press AMBEO to ﬁnalize

Please step to the side

Calibration starts in 10 / 9 / ..

Press AMBEO to start callibration

Press

AMBEO

Putting the AMBEO Soundbar into operation

Hold

Press AMBE

Please step

Calibration s

Calibration

Processing

Done!

Error messages during room calibration

Message on the display Possible error Possible solution

Calibration failed. Please p

ress AMBEO to cancel.

Subwoofer volume is too low

Microphone is not

Increase the volume of the subwoofer and restart the calibration

Connect the microphone

connected

Ambient noise is too high

Too few sound reflecting surfaces in room

Reduce ambient noise

Change position of the microphone within the room

General error An error has occured, restart the

calibration

Press AMBE

30 | AMBEO Soundbar

Canceling the calibration

To cancel the calibration:

Press the volume buttons – (volume down) and + (volume up) for 4 se

conds.

Page 31

Putting the AMBEO Soundbar into operation

Repeating the calibration

If you want to repeat the calibrati

on, you have the following options:

•Press the AMBEO button on the Soundbar for 4 seconds.

•Press the AMBEO button on the remote control for 4 seconds.

• Use the Smart Control app.

The app provides more detailed calibration options and an overview of the status of the calibration.

AMBEO Soundbar | 31

Page 32

Using the AMBEO Soundbar

Switching the AMBEO Soundbar on

WARNING

Danger of hearing damage due t

Listening at high volume lev hearing defects.

▷ Adjust the volume to a low level before selecting a

source.

▷ Do not continuously expose yourself to high volume lev-

els.

If you want to switch the Soundbar on, you have the following options:

•Press the on/

•Press the on/off button on the remote control.

• Press the on/off button on the TV remote control nected to the Soundbar via HMDI CEC).

• Use the Smart Control app.

off button on the Soundbar.

o high volume levels!

els can lead to permanent

(if the TV is con-

If the Soundbar is inactive for 20 minutes (default setting), it automatically switches to standby, >

33.

Switching the AMBEO Soundbar off (standby)

If you want to switch the Soundbar off (standby), you have the following options:

•Press the on/off button on the Soundbar.

•Press the on/off button on the remote control.

• Press the on/off button on the TV remote control nected to the Soundbar via HMDI CEC).

• Use the Smart Control app. The status LED lights up red.

To completely disconnect the Soundbar from the power supply system, > 27.

(if the TV is con-

ECO standby mode

The Soundbar has an ECO standby mode. You can set the mode via the Smart Control app. Booting the Soundbar takes longer when ECO standby mode is activated.

• ECO standby mode is activated: Booting takes approx. 20 seconds. The power consumption of the Soundbar is approx. 1.9 W

activated upon delivery).

(

• ECO standby mode is deactivated: Booting takes approx. 1 seconds. The power consumption of the Soundbar is approx. 5.5 W.

32 | AMBEO Soundbar

Page 33

Using the AMBEO Soundbar

Auto standby

If there is no playback for 20 minutes, the Soundbar automatically switches to standby.

No playback:

• Bluetooth or Chromecast input is paused

• Bluetooth or Chromecast connection is

• Analog, optical or HDMI input: no playback available

When playback is muted (“MUTE”), auto standby is not active.

disconnected

The time after which the Soundbar switches to auto standby can be adjusted via the Smart Control app.

Selecting the input source

WARNING

Danger of hearing damage due to high volume levels!

Listening at high volume levels can lead to permanent hearing defects.

▷ Adjust the volume to a low level before selecting a source.

▷ Do not continuously expose yourself to high volume lev-

els.

If you want to change the input source, you have the following options:

•Press the SOUR

•Press the SOURCE button on the remote control.

• Use the Smart Control app.

CE button on the Soundbar.

Source selection:

•HDMI TV

•HDMI 1

•HDMI 2

•HDMI 3

•AUX

•Optical

AMBEO Soundbar | 33

Page 34

Using the AMBEO Soundbar

• Bluetooth

•Streaming: –Casting Spotify – Casting TuneIn – Casting Soundcloud

•Media

The sources Streaming (e.g. Chromecast) and Media can not be

lected via the input source buttons. The Soundbar automatically

witches to the source when playback is started from the corre-

s sponding app.

If the connection is disconnected, the Soundbar jumps to the previous source.

The name of the source can be changed via the Smart Control app. The ne

w name can consist of up to 9 characters (A-Z, a-z and 0-9).

Adjusting the volume

WARNING

Danger of hearing damage due to high volume levels!

Listening at high volume levels can lead to permanent hear

ing defects.

▷ Adjust the volume to a low level before selecting a

source.

▷ Do not continuously expose yourself to high volume

levels.

If you want to adjust the volume of the Soundbar, you have the following options:

•Press the volume button – (volume down) or + (volume up) on the S

oundbar.

•Press the volume buttons on the remote control.

• Press the volume button on the TV remote control (if the TV is connect

• Use the Smart Control app.

• Use your connected Bluetooth device to adjust the volume.

ed to the Soundbar via HMDI CEC).

34 | AMBEO Soundbar

The volume can be adjusted from 0 - 50.

If the volume is adjusted to 0, the mute function is activated  (> 35).

Page 35

Using the AMBEO Soundbar

Activating/deactivating the mute function

If you want to activate the mute function, you have the following options:

•Press the MU

•Press the MUTE button on the remote control.

• Press the mute button on the TV remote con nected to the Soundbar via HMDI CEC).

• Use the Smart Control app.

• Adjust the volume to 0.

TE button on the Soundbar.

trol (if the TV is con-

If you want to deactivate the mut options:

• Increase the volume (> 34).

• Press one of the mute buttons again.

The mute function remains activated when the input source is changed.

The mute function deactivates the auto standby function (> 33).

e function, you have the following

AMBEO Soundbar | 35

Page 36

Using the AMBEO Soundbar

paired + connected

paired

Using the AMBEO Soundbar

Connecting the AMBEO Soundbar to a Bluetooth/NFC device

Information on the Bluetooth wireless connection

The Soundbar is compatible with the Bluetooth standard 4.2.

If your audio source supports one of audio encoding methods, music is automatically played in high audio quality: AAC. Otherwise the Soundbar will play your music in normal audio quality (SBC).

When selecting the “Bluetooth” input or when switching on with the

t used input “Bluetooth”, the Soundbar automatically tries to con-

las nect to the last used Bluetooth device.

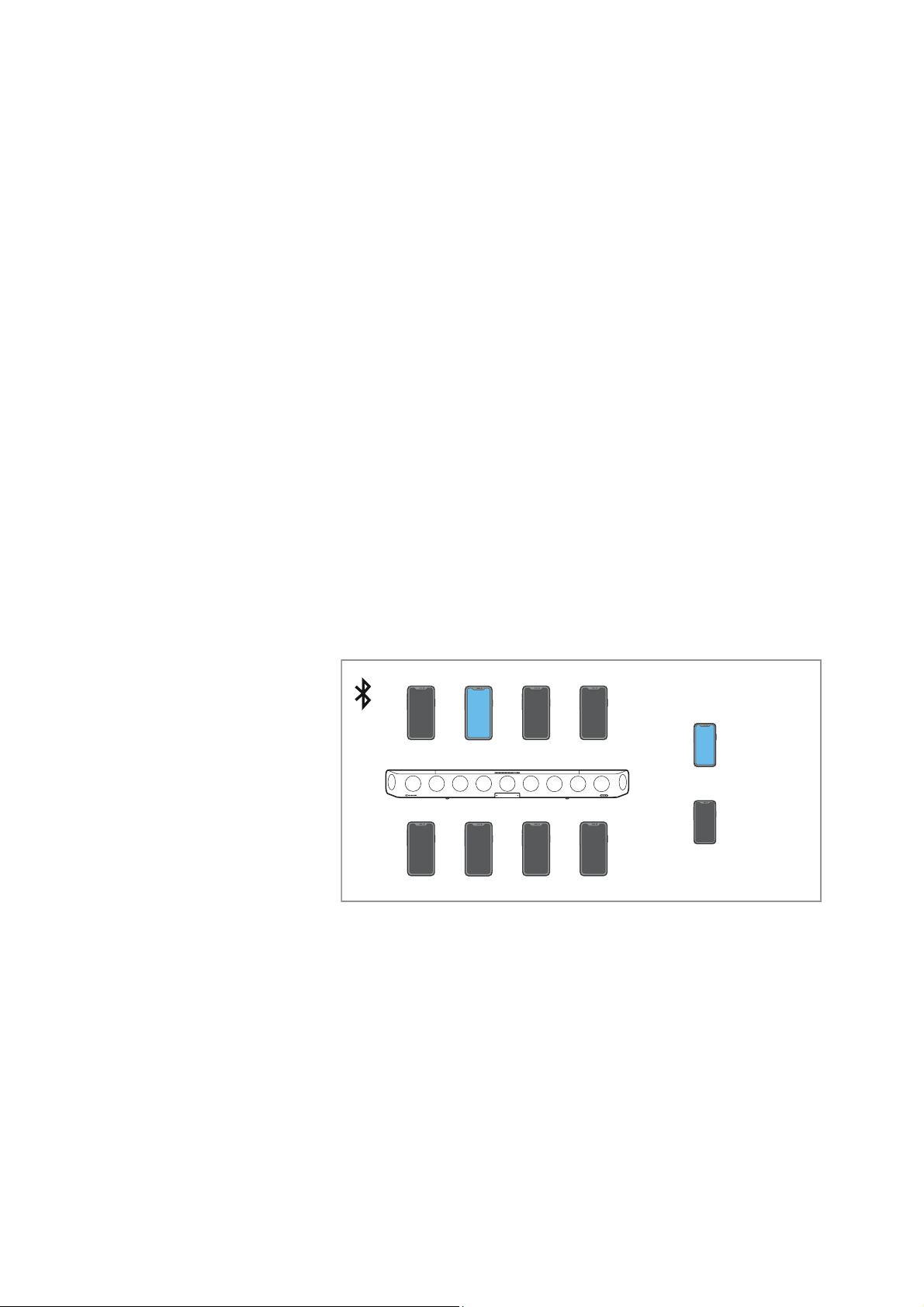

The Soundbar can save the connection profiles of up to eight Bluetooth devices with which it has been paired.

If you pair the Soundbar with the nint connection profile of the least used Bluetooth device will be overwritten. If you want to re-establish a connection with the overwritten

ooth device, you have to pair the earphones again.

Bluet

If a device is connected, you first hav new device.

You can use the Near Field Communication (NFC) function for easy

airing of the devices.

the following high-resolution

h Bluetooth device, the saved

e to disconnect it to connect a

36 | AMBEO Soundbar

Pairing the AMBEO Soundbar with a Bluetooth device

▷ Activate Bluetooth on your Bluetooth device.

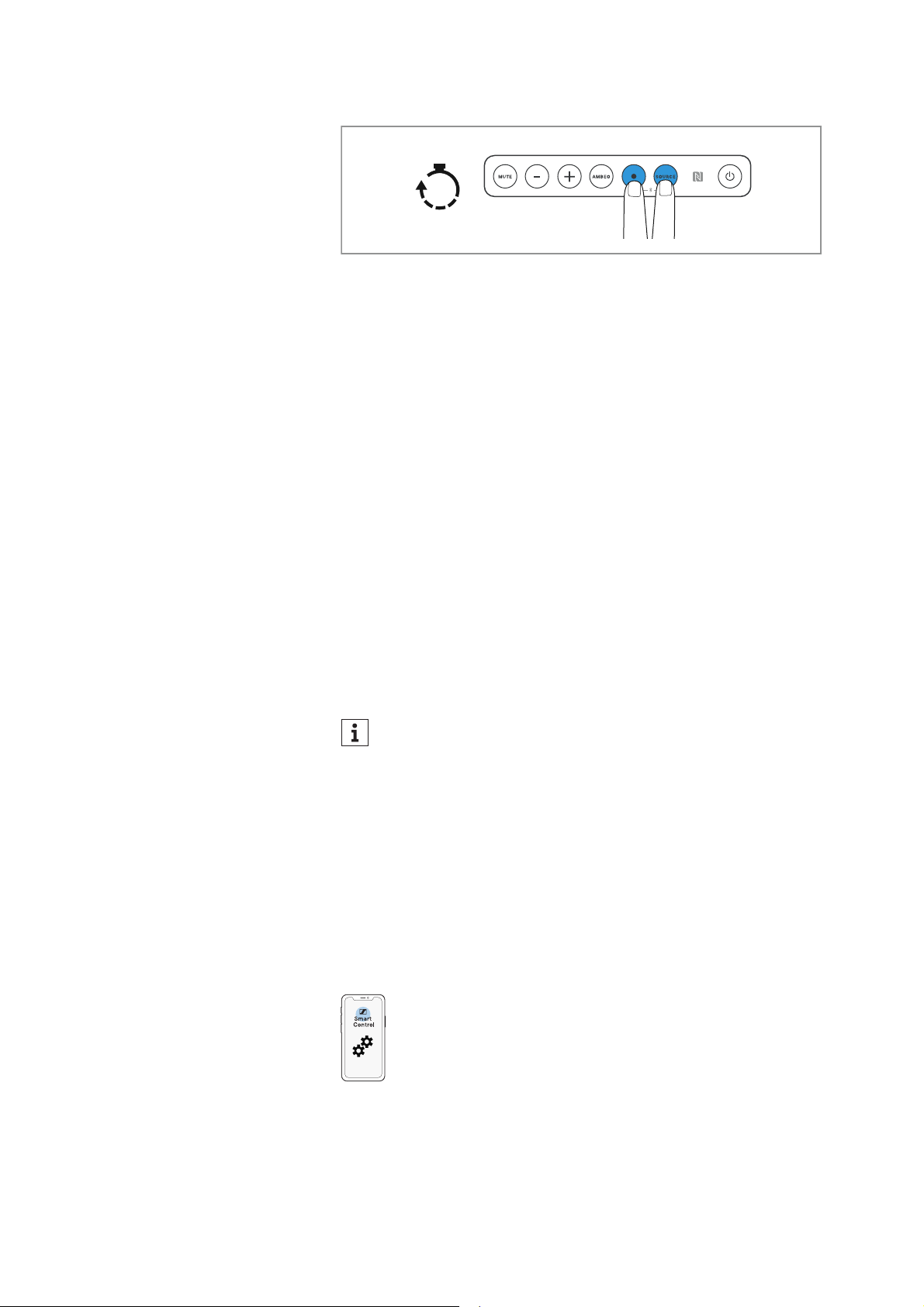

▷ Press the multi-function button and the SOURCE button for 2 sec-

onds. The status LED pulses blue.

The Soundbar is in pairing mode.

▷ Hold your Bluetooth device at a distance of approx. 20 cm to the

Soundbar.

▷ Via the menu of your Bluetooth device, start the search for new

Bluetooth devices. All active Bluetooth devices in the are displayed.

proximity of your smartphone

Page 37

Using the AMBEO Soundbar

Hold

< 20 cm

Pairing

Connected

Stan‘s iPhone

▷ From the list of found Bluetooth devices, select “AMBEO Sound-

bar”. If necessary, enter the default pin code “0000”. If pairing was successful, the st

atus LED lights up blue.

If no connection is established within 3 minutes, pairing mode is terminated. If necessary, start the pairing mode again.

The device name of the Soundbar can be changed in the Chromecast app (e.g. “Soundbar family room”).

Disconnecting the AMBEO Soundbar from a Bluetooth device

▷ Via the menu of your Bluetooth device, disconnect the connection

to the Soundbar. The Soundbar is disconnected from the Bluet

ooth device. The

display shows “Disconnected”. The status LED goes off.

Pairing the AMBEO Soundbar with an NFC device (NFC pairing)

▷ Activate Bluetooth and NFC on your Bluetooth device.

▷ Place your NFC device close (less than 3 cm) to the NFC antenna

on the Soundbar. The status LED pulses blue. The devices are being paired.

If pairing was successful, the status LED lights up blue.

AMBEO Soundbar | 37

Page 38

< 3 cm

Pairing

Connected

Stan‘s iPhone

Using the AMBEO Soundbar

Disconnecting the AMBEO Soundbar from an NFC device

▷ Place your paired NFC device close (less than 3 cm) to the NFC

antenna on the Soundbar.

The Soundbar is disconnected from the NFC device. The display shows “Disconnected”.

The status LED goes off.

Installing the Smart Control app

To control the Soundbar using a smartphone, Bluetooth Low Energy (Bluetooth LE, at least version 4.2) is required.

To make full use of all the settings and functions of the AMBEO Soundbar, you need to have the free Sennheiser Smart Control app installed on your smartphone.

Download the app from the Apple App install it on your smartphone. Alternatively, you can visit the following website:

http://www.sennheiser.com/smartcontrol

▷ Start the Smart Control app.

▷ Follow the instructions in the app.

▷ Press the multi-function button and the SOURCE button for 2 sec-

onds to accept the Bluetoot

h Low Energy connection.

The Smart Control app recognizes the Soundbar and activates all

vailable settings and functions.

Store or from Google Play and

38 | AMBEO Soundbar

Page 39

Hold

Using the AMBEO Soundbar

Network connection via WiFi or Ethernet

Use the WiFi connection or the Ethernet connection for:

•Chromecast

• UPnP (Universal Plug and Play)

•Updates

Using Chromecast

To use Chromecast:

▷ Download the Google Home app.

▷ Start the setup in the app.

Establishing a WiFi connection

To establish a WiFi connection:

▷ Press the SETUP button for approx. 2 seconds to activate WPS

(WiFi Protected Setup). The Soundbar searches for a connection.

The display shows “WPS searching” and the status LED flashes

ange.

If no connection is established within 2 minutes, the search is terminated.

0 Press the WPS button on your router.

The Soundbar connects to the WiFi. The display shows “WiFi connected” for 4 seconds and the status

D lights up orange.

The Soundbar must be on the same network as the devices the Soundb

The WiFi connection can be set up managed via the Smart Control app.

ar wants to communicate with.

via the Google Home app and

Establishing an Ethernet network connection

▷ Make sure that the Ethernet cable is properly connected to the

Soundbar and your network (> 25).

AMBEO Soundbar | 39

Page 40

Using the AMBEO Soundbar

▷ The Ethernet connection can be set up via the Google Home app

and managed via the Smart Control app.

If you connect the Soundbar to the Internet/Ethernet via cable, the WiFi function of the Soundbar is automatically deactivated.

Controlling the music playback

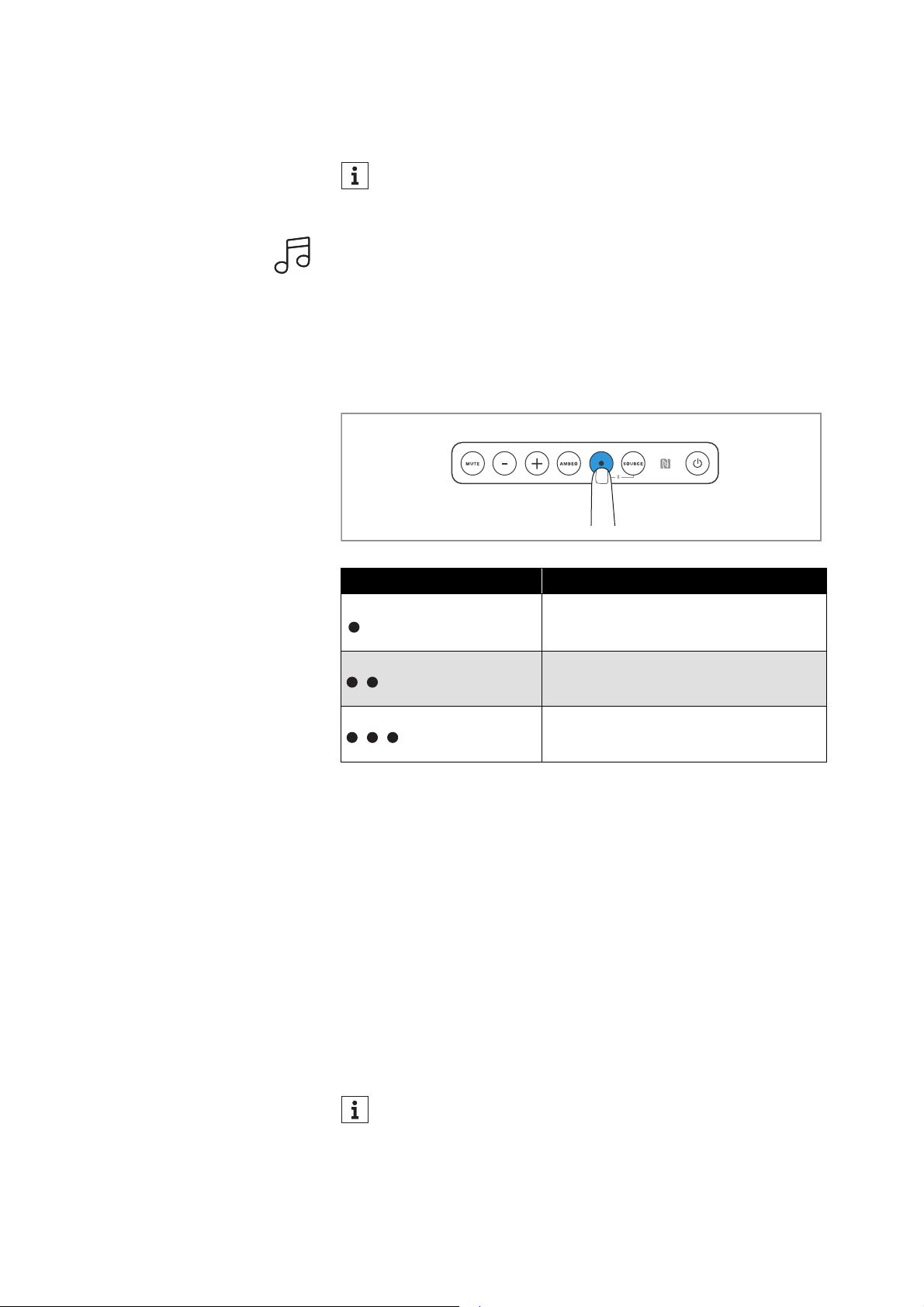

You can control music playback by pressing the multi-function

button on the Soundbar or the multi-function button on the remote

control. work connection.

Functions of the multi-function button

▷ Press the multi-function button.

The function is available for playback via Bluetooth or net-

Multi-function button Result

Press 1x

Press 2x Plays the next track in the playlist

Press 3x

Plays or pauses music

Plays the previous track in the playlist

Using the sound profiles

If you want to activate a sound profile, you have the following options:

•Press the sound profile buttons on the remote control.

• Use the Smart Control app.

There are the following sound profiles:

•Movie

•Music

•News

•Sports

• Neutral

40 | AMBEO Soundbar

If the “Dolby Virtualizer” is activated, you cannot use the sound profiles (>

42).

Page 41

Using the AMBEO Soundbar

Movie

Adjusting the AMBEO modes

If you want to activate an AMBEO mode, you have the following options:

•Press the AMBEO button on the Soundbar.

•Press the AMBEO button on the remote control.

• Use the Smart Control app. The AMBEO display lights up.

Order of modes

•Off

•AMBEO Light

• AMBEO Standard

• AMBEO Boost

The preset mode for all inputs is AMBEO Standard.

The modes Light, Standard and Boost can be adjusted in the app and

signed to the sound profiles (> 40).

If the “Dolby Virtualizer” is activated, you cannot use the AMBEO modes (>

42).

Using the night mode “NIGHT”

To activate the night mode:

▷ Press the night mode button on the remote control.

When the night mode is activated, the display shows an icon in front of the

The bass is compressed (reduced).



The night mode can be applied to all sound profiles and modes,

xcept AMBEO Boost.

name of the sound profile.

Adjusting the equalizer

To be able to use the equalizer, you require the Smart Control app >

38).

▷ Adjust the equalizer via the Smart control app.

The settings are stored in the Soundbar. These settings are active

ven without using the Smart Control app, i.e. when you are using

e another Bluetooth device for music playback.

AMBEO Soundbar | 41

Page 42

Using the AMBEO Soundbar

Parameters:

•4-band EQ split into –Foundation – Low-Mid –Clarity – Brillance

• Adjustment range + 10 dB to -10 dB

The app allows you to make additional acoustical settings in addition

o the equalizer settings.

If the “Dolby Virtualizer” is activated, you cannot use the equalizer (> 42).

Using the Dolby DRC

You can use the “Dolby DRC” (“Dynamic Range Compression”) to play back Dolby audio content. This function compresses the dynamics of the audio signal, thus changing differences from soft to loud passages.

The “Dolby DRC” function can be activated/deactivated in the codec

ttings of the Smart Control app.

• “Off”: no change, full dynamics

•“Auto”: automatic reduction of dy be perceived during playback

• “Normal”: slight compression of dynamics

• “Heavy”: heavy compression of dynamics

namics; changes in volume can

Using the Dolby Dialog Normalizer

You can use the “Dolby Dialog Normalizer” to play back Dolby audio content. This function makes dialogs easier to understand by reducing loud music/background noise and amplifying softer dialog audio.

The “Dolby Dialog Normalizer” can be activated/deactivated in the codec s

ettings of the Smart Control app.

42 | AMBEO Soundbar

Using the Dolby Virtualizer

You can use the “Dolby Virtualizer” to play back Dolby audio content. This function plays back Dolby audio content unchanged.

The “Dolby Virtualizer” can be activated/deactivated in the codec

ttings of the Smart Control app.

Page 43

Using the AMBEO Soundbar

If the “Dolby Virtualizer” is activated, you can no longer use the following functions/settings:

• Sound profiles

•AMBEO modes

• Equalizer

• Room calibration data (the measured Dolby audio content)

room data is not used for

Adjusting the brightness of the display and the AMBEO display

The brightness of the display and the AMBEO display can be adjusted via the Smart Control app.

There are three brightness levels:

• low brightness

• high brightness

• automatic brightness (activ

If “automatic brightness” is selected, the display and the AMBEO dis-

play automatically adjust to the ambient brightness.

The brightness of the display and the AMBEO display can also be

usted independently of each other via the app.

adj

ated upon delivery)

Sound feedback

The beep tones can be switched off via the app.

Transporting the AMBEO Soundbar

ATTENTION

Material damage due to improper transport!

Incorrect packing of the Soundbar bar during transport.

▷ Only transport the Soundbar in the original packaging with its

protective foam parts.

Use the original packaging to transport the Soundbar.

may cause damage to the Sound-

AMBEO Soundbar | 43

Page 44

Using the AMBEO Soundbar

Quick Guide, Safety Guide

To transport the Soundbar:

▷ Switch the Soundbar off (> 32).

▷ Disconnect the Soundbar from the power supply system (> 27).

▷ Disconnect all other cables and connections from the Soundbar

(> 19).

▷ With the help of a second person, place the Soundbar, the acces-

sories and the foam parts in the original packaging as shown.

44 | AMBEO Soundbar

▷ Close the packaging.

▷ Close the packaging so that it does not open during transport.

▷ The Soundbar in its packaging must be carried by at least two

people.

Page 45

Maintaining the AMBEO Soundbar

Cleaning the Soundbar

ATTENTION

Liquids can damage the electronics of the product!

Liquids entering the housing of the product can cause a short-circuit and da

▷ Keep all liquids far away from the product.

▷ Do not use any solvents or cleansing agents.

▷ Clean the product only with a soft, dry cloth.

The fabric of the Soundbar cannot be removed.

▷ Clean the fabric with a soft brush.

mage the electronics.

Replacing the battery of the remote control

If the range of the remote control decreases, you have to replace the battery.

CAUTION

Danger of accidents!

Misuse or swallowing of batteries can cause injuries and

alth problems.

▷ Observe the safety instructions for lithium batteries

(> 3).

▷ Keep batteries away from children.

▷ Use a suitable object (e.g. a coin) to open the battery compart-

ment cover by turning one turn counter-clockwise.

▷ Remove the used battery. In order to protect the environment, dis-

pose of used batteries at special collection points or return them

o your specialist dealer.

▷ Insert the new battery (type CR2032, 3 V) into the battery com-

partment. Observe correct polarity when inserting the battery.

▷ Close the battery compartment cover by turning one turn clock-

wise.

AMBEO Soundbar | 45

Page 46

Maintaining the AMBEO Soundbar

Installing firmware updates

Firmware updates are available free of charge and serve to enhance product improvement and also function extension.

You can update the Soundbar's firmware via a USB flash drive or

sing the Sennheiser Smart Control app.

Update via the Smart Control app

To update the firmware via the Smart Control app, the Soundbar

ust be connected to the Internet via WiFi or Ethernet (> 39).

▷ Start the Smart Control app on your smartphone.

▷ The app provides information on available firmware updates and

guides you through the installation process.

Update via a USB flash drive

Required USB flash drive:

•Memory size: 1 GB

• File system: FAT

▷ Download the update file with the file name “image.swu” from the

website www.sennheiser.com/download and save it on a USB flash drive.

▷ Do not change the file name!

▷ Switch the Soundbar on.

▷ Connect the USB flash drive to the USB socket on the Soundbar.

46 | AMBEO Soundbar

Page 47

AUX IN

SW PRE

OUT

OPT IN

HDMI 3 IN

HDMI 2 IN

HDMI 1 IN

HDMI TV

(eARC) OUT

ETHERNET

USB

POWER

Maintaining the AMBEO Soundbar

Hold

▷ Press the SETUP button for 5 seconds.

The display shows “Updating” and the status LED pulses yellow.

5 V⎓ 1 A

The Soundbar restarts several times during the update. The process can take up to 8 minutes.

AMBEO Soundbar | 47

Page 48

Maintaining the AMBEO Soundbar

Resetting the Soundbar

▷ Switch the Soundbar on.

If you want to reset the Soundbar, you have the following options:

• Insert a paper clip into the RESET recess on the bottom Soundbar and press the paper clip for 2 seconds.

• Use the Smart Control app.

Action Display Status LED

Reset in progress RESET

Reset terminated RESET OK lights up orange

pulses orange

side of the

48 | AMBEO Soundbar

Page 49

Specifications

SB01 AMBEO Soundbar

Number of channels 5.1.4

Amplifier class D

Total audio power 250 W (RMS)

500 W (peak)

Total number of speakers 13

Low and mid-range sp

eakers

Tweeters quantity: 5 (sideways: right and left,

Top-firing broadband sp

eakers

Frequency response 30 Hz to 20 kHz (-3 dB)

Audio processors Dual Core 1.2 GHz ARM Cortex-A7

Display graphic OLED with bright

Power plug county-specific

Voltage range 100 – 240 V~ 50/60 Hz

Power consumption 250 W

Standby power consumption

Temperature range operation: 0 °C to +45 °C 

Relative humidity  (non condensing)

Dimensions (W x H x D) approx. 126.5 x 13.5 x 17.1 cm incl. feet

Weight approx. 18.5 kg

Magnetic field strength 9 mT

quantity: 6

⌀ 10 cm/4 inch

cellulose sandwich cones

front: right, center and left)

⌀ 2.5 cm/1 inch

aluminum cones

quantity: 2

⌀ 9 cm/3.5 inch

cellulose sandwich cones

ocessor

2 x Dual Core 500 MHz SHARC DSP

ness sensor,

status LED, AMBEO LED

ECO standby mode activated: 1.9 W ECO standby mode deactivated:

5.5 W

storage: -20 °C to +70 °C

operation: 20 to 85 %  storage: 10 to 95 %

approx. 126.5 x 12.5 x feet

17.1 cm without

AMBEO Soundbar | 49

Page 50

Specifications

Inputs/outputs

HDMI TV (eARC) OUT default: HDMI 2.0a, eARC (HDMI 2.1)

control: CEC video formats: up to 4K (60 Hz),

ll HD, MHL 2.1 Encoding: HDCP 1.4 Power supply for accessories (extern

HDMI 1 IN HDMI 2 IN HDMI 3 IN

OPT IN S/PDIF

AUX IN stereo RCA sockets

USB USB socket (type A), for power supply

default: HDMI 2.0a encoding: HDCP 2.2 control: CEC video formats: up to 4K (60 Hz),

Fu HDR formats: Dolby Vision PassTh

Supported sampling rates: up to 192 kHz

al devices): 5 V

ll HD, MHL 2.1

rough

or accessories (external devices): 5 V

⎓, 1 A

⎓, 1 A; service socket for updates

ETHERNET RJ-45 socket, 100/10 MBit

Subwoofer SW Pre-OUT mono RCA, max. 2 V

Microphone input for room calibration

2.5 mm jack socket, mono

SB01-RC remote control

Transmission infra-red

Range approx. 8 m

Power supply coin cell, type CR2032, 3 V

WiFi

Standard IEEE 802.11 a/b/g/n/ac

Transmission system 2 x 2 MIMO

Transmission frequency (country-spec

Modulation 2.4 GHz band CCK, DQPSK, DBPSK für DSSS

Modulation 5 GHz band 64QAM, 16QAM, QPSK, BPSK

Output power 100 mW (max)

ific)

2,400 MHz to 2,483.5 MHz 5,170 MHz to 5,835 MHz

64QAM, 16QAM, QPSK, BPSK for OFDM

50 | AMBEO Soundbar

Page 51

Specifications

Bluetooth

Version 4.2, class 1, BR/EDR, BLE

Transmission frequency 2,400 MHz to 2,483.5 MHz

Modulation GFSK, π/4 DQPSK

, 8DPSK

Profiles A2DP, AVRCP, GATT

Output power 10 mW (max)

Codec AAC, SBC

Pairing option Near Field Communication (NFC)

Network streaming

Network Ethernet

WiFi

Services Chromecast built-in

uPnP

Playable audio formats

Audio format/codec File extension

MP3 .mp3

AAC/HE-AAC .m4a

.aac .mp4 .3gp

LPCM .wav

FLAC .flac

AIFF .aiff

.aif

ALAC .m4a

Vorbis .ogg

AMBEO Soundbar | 51

Page 52

Specifications

Supported audio formats/surround formats

Format

LPCM 2 Channel

LPCM 5.1 Channel

LPCM 7.1 Channel

Dolby Digital

Dolby Digital Plus

Dolby True HD

Dolby Atmos - Dolby TrueHD

Dolby Atmos - Dolby Digital Plus

DTS

DTS-ES Discrete 6.1, DTS-ES Matrix 6.1

DTS 96/24

DTS-HD High Resolution Audio

DTS-HD Master Audion

DTS-HD LBR

DTS:X

MPEG-H (Fraunhofer)

Audio source via:

HDMI, HDMI eARC, OPTICAL, network streaming*

yes – yes

yes yes yes

yes – –

yes yes yes

yes – –

yes – yes

HDMI ARC** OPTICAL

* not all streaming services support the playback of all codecs

** TV sets with an “ARC” output can transmit surround formats only t

o a limited extent

52 | AMBEO Soundbar

Page 53

Manufacturer Declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.

For the current warranty conditions, please visit our website at

w.sennheiser.com or contact your Sennheiser partner.

In compliance with the following requirements

EU declaration of conformity

• ErP Directive (2009/125/EC)

• RoHS Directive (2011/65/EU)

Hereby, Sennheiser electronic GmbH & Co. KG declares that the rad

io equipment type SB01 is in compliance with the Radio Equip-

ment Directive (2014/53/EU).

The full text of the EU declaration of conformity is available at the following Internet address:  www.sennheiser.com/download.

Notes on disposal

• Battery Directive (2006/66/EC & 2013/56/EU)

• WEEE Directive (2012/19/EU)

The symbol of the crossed-out wheeled bi tery/rechargeable battery (if applica cates that these products must not be disposed of with normal

sehold waste, but must be disposed of separately at the end of

hou their operational lifetime. For packaging disposal, please observe the legal regulations on waste segregation applicable in your country.

Further information on the recycling of theses products can be

ned from your municipal administration, from the municipal col-

obtai lection points, or from y

The separate collection of waste electrical and electronic equipment, batteries/rechargeable batteries (if applicable) and packagings is used to promote the reuse ative effects caused by e.g. potentially hazardous substances

ned in these products. Herewith you make an important con-

contai tribution to the protection of the environment and public health.

Trademarks and licenses

Sennheiser is a registered trade mark of Sennheiser electronic GmbH & Co. KG.

Other product and company names mentioned in the user docum tation may be the trademarks or registered trademarks of their

espective holders.

Licenses are available at: www.sennheiser.com/download.

our Sennheiser partner.

and recycling and to prevent neg-

n on the product, the bat-

ble) and/or the packaging indi-

en-

AMBEO Soundbar | 53

Page 54

Manufacturer Declarations

This product includes software developed by the University of California, Berkeley and its contributors.

App Store is a service mark of Apple Inc.

Android, Google play, Google play logo, Google Chromecast and Google Home are trademarks of Google Inc.

The AAC logo is a trademark of Dolby Laboratories.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sennhe iser electronic GmbH & Co. KG is under license.

The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

Manufactured under license from Dolby laboratories. Dolby, Dolby Atmos, Dolby Vision and the Double-D symbol are trademarks of Dolby laboratories.

Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. This product is made under license to certain US patents and/or foreign counterparts.

The MPEG-H TV Audio system logo is a trademark of Fraunhofer IIS in Germany and other countries.

This system incorporates High-Definition Multimedia Interface (HDMI™) technology.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo, are trademarks or registered trademarks of HDMI Licensing, LLC in the USA and other countries.

54 | AMBEO Soundbar

Page 55

Appendix

Open Source license terms and conditions

The AMBEO Soundbar SB01 has a user interface to call up additional license terms and conditions for the open source software used. You can open the license terms and conditions on your computer or a mobile device in an Internet browser. This requires that the com puter/mobile device is connected to the WiFi of the Soundbar (“AMBEO Soundbar [serial number]”).

▷ Open an Internet browser on your computer/mobile device and

enter http://ambeo.soundbar face is loaded and you can open the license terms and conditions.

In addition, you can access the license terms and conditions via the free “Sennheiser Smart Control” app.

in the address bar. The user inter-

AMBEO Soundbar | 55
