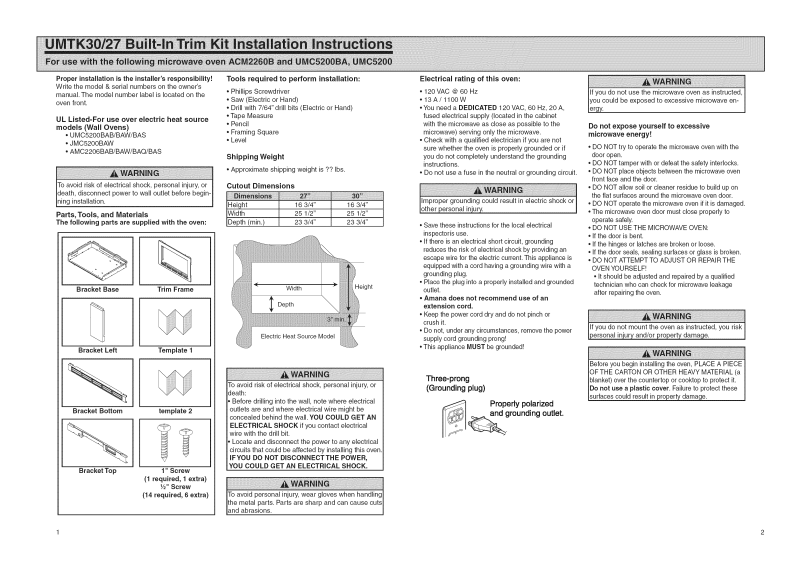

Amana UMTK30 User Manual

Proper installation is the installer's responsibility!

Write the model & serial numbers on the owner's
manual. The model number label is located on the
oven front.

UL Listed=For use over electric heat source

models (Wall Ovens)

, UMC5200BAB/BAW/BAS

• JMC5200BAW

• AMC2206 BAB/BAW/BAQ/BAS

To avoid risk of electrical shock, personal injury,or
death, disconnect power to wall outlet before begin-
ning installation.

Parts, Tools, and Materials
The following parts are supplied with the oven:

Bracket Base Trim Frame

Bracket Left

Template 1

Tools required to perform installation:

• Phillips Screwdriver

• Saw (Electric or Hand)

• Drill with 7/64" drill bits (Electric or Hand)

• Tape Measure

• Pencil

• Framing Square
,_Level

Shipping Weight

• Approximate shipping weight is ?? Ibs.

Cutout Dimensions

Height 16 3/4" 16 3/4"

Width 25 1/2" 25 1/2"

Depth (min.) 23 3/4" 23 3/4"

-leight

Electric Heat Source Model

Electrical rating of this oven:

,120VAC@60Hz

• 13A/1100W

• You need a DEDICATED 120 VAC, 60 Hz, 20A,
fused electrical supply (located in the cabinet

with the microwave as close as possible to the

microwave) serving only the microwave.

• Check with a qualified electrician if you are not
sure whether the oven is properly grounded or if
you do not completely understand the grounding

instructions.

• Do not use a fuse in the neutral or grounding circuit.

)ersonal ir

,, Save these instructions for the local electrical

inspectoris use.

• If there is an electrical short circuit, grounding
reduces the risk of electrical shock by providing an
escape wire for the electric current. This appliance is
equipped with a cord having a grounding wire with a
grounding plug.

,, Place the plug intoa properly installedand grounded

outlet.

• Amana does not recommend use of an
extension cord.

• Keep the power cord dry and do not pinch or
crush it.

• Do not, under any circumstances, remove the power
supply cord grounding prong!

• This appliance MUST be grounded!

could be exposed to excessive microwave en-

Do not expose yourself to excessive

microwave energy!

• DO NOT try to operate the microwave oven with the
door open.

• DO NOT tamper with or defeat the safety interlocks.

• DO NOT place objects between the microwave oven
front face and the door.

• DO NOT allow soil or cleaner residue to build up on
the flat surfaces around the microwave oven door.

• DO NOT operate the microwave oven ifit isdamaged.

•The microwave oven door must close properly to
operate safely.

• DO NOT USE THE MICROWAVE OVEN:

,,If the door is bent.
,,If the hinges or latches are broken or loose.

• If the door seals, sealing surfaces or glass is broken.

• DO NOT ATTEMPT TO ADJUST OR REPAIR THE
OVEN YOURSELF!

• It should be adjusted and repaired by a qualified
technician who can check for microwave leakage

after repairing the oven.

)ersonal in

Before you begin installingthe oven, PLACE A PIECE

Toavoid risk of electrical shock, personal injury,or
Jeath:

, Before drilling into the wall, note where electrical

Bracket Bottom

Bracket Top

1 2

template 2

1" Screw

(1 required, 1 extra)

1/2" Screw

(14 required, 6 extra)

outlets are and where electrical wire might be
concealed behind the wall. YOU COULD GET AN

ELECTRICAL SHOCK if you contact electrical
wire with the drill bit.

, Locate and disconnect the power to any electrical

circuits that could be affected by installingthis oven.
IFYOU DO NOT DISCONNECTTHE POWER,

IYOU COULD GET AN ELECTRICAL SHOCK_

(Grounding plug)

Properly polarized

grounding outlet.

Three-prong

OF THE CARTON OR OTHER HEAVY MATERIAL (a
blanket) over the countertop or cooktop to protect it.
Do not use a plastic cover. Failure to protect these

1. "SET" installment in Bracket Base 3. Fixing 'location screw' in cabinet 5. Installment of Bracket Bottom 7. Installment of Trim Frame

With product, use boxed screw(4 x 20 ram).

Leave the screws protruding from

a minimum of 3.5 to a maximum of 4.5 mm

4,5 mm m_

Remove 4 screws from the lower right and left parts

of outer panel, place "SET" in Bracket Base and fix

it by tightening 4 screws again.

2. installment of Bracket Left

Fix '1" screw' at the bottom of cabinet with use of
template 1.

4. "SET" installment in cabinet

Place Bracket Bottom on Bracket Base like picture
B. Make holes of position A fit to Bracket Base's

and fix screws after making holes with a 7/64 drill or
a #35 drill.

Install "Bracket Bottom" by tightening screws at

screw points.

6. installment of Bracket Top

With template 2, make 2 holes each at the upper

right and left parts of cabinet. (Others for the extra)
Fix "Bracket Top" according to the holes.

install Trim Frame to make contact cabinet.

8. installment of Trim Frame

Fix 2 screws each at the upper and lower parts of
Trim Frmae with the door open.

Fix it by color screw

Trim Frame Dimensions
(Depth of trim Frame is 7/8")

Assemble the Bracket Left to outer panel.

Push "SET" into the cabinet inside so that the fixed

26 _"

29 34"

bottom screw of cabinet can place in the hole of
Bracket Bottom.

Push "SET" in until the bent part of front Bracket
Base touches the front of cabinet.

f 7//_ f'

27" Trim Frame

27_ ,,

i/_ ,,

30" Trim Frame

3 4
