Amana Mm-3022c, Mm-3022d Installation Guide

R

Microwave Oven
Service Manual

LD510D

CAUTION

BEFORE SERVICING THE UNIT, READ THE
SAFETY PRECAUTIONS IN THIS MANUAL.

This device is to be serviced only by properly qualified service personnel.
Consult the service manual for proper service procedures to assure continued safety operation and for precautions to be
taken to avoid possible exposure to excessive microwave energy.

PRECAUTIONS TO BE OBSERVED BEFORE AND
DURING SERVICING TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

A) Do not operate or allow the oven to be operated with the door open.

B) Make the following safety checks on all ovens to be serviced before activating the magnetron or other

microwave source, and make repairs as necessary; (1) interlock operation, (2) proper door closing, (3)

seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and

latches, (5) evidence of dropping or abuse.

C) Before turning on microwave power for any service test or inspection within the microwave generating

compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment,

integrity, and connections.

D) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation

and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual

before the oven is released to the owner.

E) A microwave leakage check to verify compliance with the Federal Performance Standard should be

performed on each oven prior to release to the owner.

SAFETY PRECAUTIONS

(Page)

SAFETY PRECAUTIONS

---------------------------------------------------------------------

Inside front cover

SPECIFICATIONS

-----------------------------------------------------------------------------------------------------

1-1

CAUTIONS

--------------------------------------------------------------------------------------------------------------

2-1

INSTALLATIONS

------------------------------------------------------------------------------------------------------

3-1

OPERATING INSTRUCTIONS

------------------------------------------------------------------------------------

4-1

FEATURES

------------------------------------------------------------------------------------------------------------------------

4-1

OPERATION CHECK

---------------------------------------------------------------------------------------------------------

4-1

OPERATING PROCEDURE

-------------------------------------------------------------------------------------------------

4-1

SCHEMATIC DIAGRAM

------------------------------------------------------------------------------------------------------

4-2

CIRCUIT DESCRIPTION

-----------------------------------------------------------------------------------------------------

4-3

SERVICE INFORMATION

------------------------------------------------------------------------------------------

5-1

TOOLS AND MEASURING INSTRUMENTS

---------------------------------------------------------------------------

5-1

MICROWAVE LEAKAGE TEST

--------------------------------------------------------------------------------------------

5-1

MEASUREMENT OF MICROWAVE POWER OUTPUT

-----------------------------------------------------------

5-3

DISASSEMBLY AND ADJUSTMENT

-------------------------------------------------------------------------------------

5-3

INTERLOCK CONTINUITY TEST

------------------------------------------------------------------------------------------

5-8

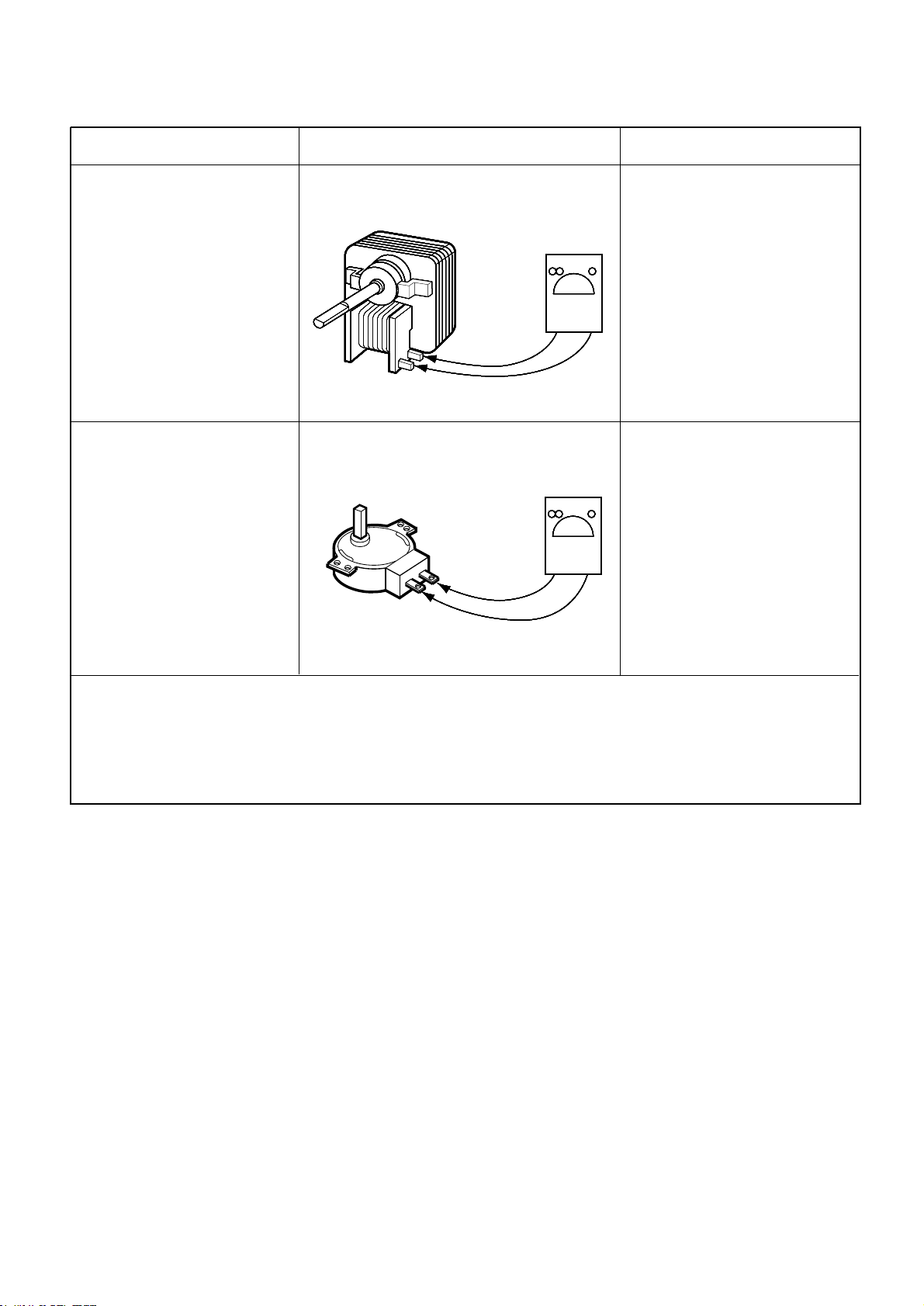

COMPONENT TEST PROCEDURE

--------------------------------------------------------------------------------------

5-9

TROUBLE SHOOTING

------------------------------------------------------------------------------------------------------

5-12

EXPLODED VIEW

-----------------------------------------------------------------------------------------------------

6-1

REPLACEMENT PARTS LIST

------------------------------------------------------------------------------------

7-1

CONTENTS

1-1

This microwave oven is designed for commercial use only.
It is not recommended for built-in installation.

ITEM

MODEL

Power Requirement

Power Output
Microwave Frequency
Magnetron
Timer
Outside Dimensions
Cavity Dimensions
Net Weight
Shipping weight
Control Complement

Nameplate Location

Accessories

DESCRIPTION

DEL10D

230 Volts AC50 Hz
1,00
Single phase, 3 wire grounded
1,000 Watts full microwave power (IEC60705)
2,450 MHz
2M246 - 050 GF

20

7

/8” (W) x 123/8” (H) x 151/2” (D) mm

34 lbs (approx.)
37 lbs (approx.)
Mechanical Rotary System
Full power Cooking

Owner's manual

1-1

This microwave oven is designed for commercial use only.
It is not recommended for built-in installation.

ITEM

MODEL

Power Requirement

Power Output
Microwave Frequency
Magnetron
Timer
Outside Dimensions
Cavity Dimensions
Net Weight
Shipping weight
Control Complement

Nameplate Location

Accessories

DESCRIPTION

DEL10D

230 Volts AC50 Hz
1,00
Single phase, 3 wire grounded
1,000 Watts full microwave power (IEC60705)
2,450 MHz
2M246 - 050 GF
in.
20

7

/8” (W) x 123/8” (H) x 151/2” (D) mm

34 lbs (approx.)
37 lbs (approx.)
Mechanical Rotary System
Full power Cooking

Owner's manual

1-1

This microwave oven is designed for commercial use only.
It is not recommended for built-in installation.

ITEM

MODEL

Power Requirement

Power Output
Microwave Frequency
Magnetron
Timer
Outside Dimensions
Cavity Dimensions
Net Weight
Shipping weight
Control Complement

Nameplate Location

Accessories

DESCRIPTION

DEL10D

230 Volts AC50 Hz
1,00
Single phase, 3 wire grounded
1,000 Watts full microwave power (IEC60705)
2,450 MHz
2M246 - 050 GF

20

7

/8” (W) x 123/8” (H) x 151/2” (D) mm

34 lbs (approx.)
37 lbs (approx.)
Mechanical Rotary System
Full power Cooking

Owner's manual

1-1

This microwave oven is designed for commercial use only.
It is not recommended for built-in installation.

ITEM

MODEL

Power Requirement

Power Output
Microwave Frequency
Magnetron
Timer
Outside Dimensions
Cavity Dimensions
Net Weight
Shipping weight
Control Complement

Nameplate Location

Accessories

DESCRIPTION

LD510D

230 Volts AC 50 Hz
1,300 Watts
Single phase, 3 wire grounded
1,000 Watts full microwave power (IEC60705)
2,450 MHz
2M246 - 050 GF
0 ~ 7 min.
20

7

/8” (W) x 123/8” (H) x 151/2” (D) mm

34 lbs (approx.)
37 lbs (approx.)
Mechanical Rotary System
Full power Cooking

Owner's manual

Control
Panel Side

Control
Panel Side

Control
Panel Side

Control
Panel Side

Control
Panel Side

Control
Panel Side

Control
Panel Side

Control
Panel Side

SPECIFICATIONS

9

9

9

9

13

/16”(W) x 95/32”(H) x 14

13

/16”(W) x 95/32”(H) x 14

13

/16”(W) x 95/32”(H) x 14

13

/16”(W) x 95/32”(H) x 14

3

3

3

3

/8

(D) mm

/8

(D) mm

/8

(D) mm

/8

(D) mm

”

”

”

”

¥ DO NOT operate on a 2-wire extension cord during

repair and use.

¥ NEVER TOUCH any oven components or wiring during

operation.

¥ BEFORE TOUCHING any parts of the oven, always

remove the power plug from the outlet.

¥ For about 30 seconds after the oven stops, an electric

charge remains in the high voltage capacitor. When
replacing or checking, you must discharge the high
voltage capacitor by shorting across the two terminals
with an insulated screwdriver.

¥

Remove your watches whenever working close to or

replacing the Magnetron.

¥ DO NOT touch any parts of the control panel circuit. A

resulting static electric discharge may damage this

P.C.B.
¥ NEVER operate the oven with no load.
¥ NEVER injure the door seal and front plate of the oven

cavity.
¥ NEVER put iron tools on the magnetron.
¥ NEVER put anything into the latch hole and the

interlock switches area.

¥ Proper operation of the microwave oven requires that

the magnetron be assembled to the waveguide and
cavity. Never operate the magnetron unless it is
properly installed.

¥ Be sure that the magnetron gasket is properly

installed around the dome of the tube whenever
installing the magnetron.

2-1

CAUTIONS

Unlike other appliances, the microwave oven is
high-voltage and high-current equipment.
Though it is free from danger in ordinary use,
extreme care should be taken during repair.

THE OVEN IS TO BE SERVICED ONLY
BY PROPERLY QUALIFIED SERVICE
PERSONNEL.

MICROWAVE RADIATION

Personnel should not be exposed to the
microwave energy which may radiate from the
magnetron or other microwave generating
device if it is improperly used or connection.
All input and output microwave connections,
waveguide, flange, and gasket must be secure
never operate the device without a microwave
energy absorbing load attached.
Never look into an open waveguide or antenna
while the device is energized.

Gasket

ANTENNA

COOLING FIN

MAGNETRON
CHASSIS GROUND

FILAMENT
TERMINALS

MAGNETRON

INSTALLATIONS

3-1

INSTALLING

1. Empty the microwave oven and clean inside it with
a soft, damp cloth. Check for damage such as
misaligned door, damage around the door or dents
inside the cavity or on the exterior.

2. Put the oven on a counter, table, or shelf that is
strong enough to hold the oven and the food and
utensils you put in it. (The control panel side of the
oven is the heavy side. Use care when handling.)

3. Do not block the vent and the air intake openings.
Blocking vent or air intake openings can cause
damage to the oven and poor cooking results.
Make sure the microwave oven legs are in place to
ensure proper air flow.

4. The oven should not be installed in any area where
heat and steam are generated, because they may
damage the electronic or mechanical parts of the
unit.
Do not install the oven next to a conventional
surface unit or above a conventional wall oven.

5. Use microwave oven in an ambient temperature
less than 104°F(40°C).

6. Place the microwave oven on a sturdy and flat
surface at least 10 cm(4 inches) from the wall.

7. Place the microwave oven as far away as possible
from TV, RADIO, COMPUTER, etc., to prevent
interference.

8. Do not touch the front glass during or after cooking
of the Grill and Combination mode.
This glass is very hot during heater operating.

9. Do not operate the oven at microwave and
combination mode with Grill rack placed in the
cavity when the oven is empty.

EARTHING INSTRUCTIONS

This microwave oven is designed to be used in a fully
earthed condition.
It is imperative, therefore, to make sure it is properly
earthed before servicing

WARNING­THIS APPLIANCE
MUST BE EARTHED

IMPORTANT

As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows.

The wire which is colored green-and-yellow must be
connected to the terminal in the plug which is marked
with the letter E or by the earth symbol ( ) or
colored green or green-and-yellow.

The wire which is colored blue must be connected to
the terminal in the plug which is marked with the letter
N or colored black.

The wire which is colored brown must be connected
to the terminal in the plug which is marked with the
letter L or colored red.

BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.

INSTALLATIONS

3-1

INSTALLING

1. Empty the microwave oven and clean inside it with

a soft, damp cloth. Check for damage such as
misaligned door, damage around the door or dents
inside the cavity or on the exterior.

2. Put the oven on a counter, table, or shelf that is
strong enough to hold the oven and the food and
utensils you put in it. (The control panel side of the
oven is the heavy side. Use care when handling.)

3. Do not block the vent and the air intake openings.
Blocking vent or air intake openings can cause
damage to the oven and poor cooking results.
Make sure the microwave oven legs are in place to
ensure proper air flow.

4. The oven should not be installed in any area where
heat and steam are generated, because they may
damage the electronic or mechanical parts of the
unit.
Do not install the oven next to a conventional
surface unit or above a conventional wall oven.

5. Use microwave oven in an ambient temperature
less than 104°F(40°C).

6. Place the microwave oven on a sturdy and flat
surface at least 10 cm(4 inches) from the wall.

7. Place the microwave oven as far away as possible
from TV, RADIO, COMPUTER, etc., to prevent
interference.

8. Do not touch the front glass during or after cooking
of the Grill and Combination mode.
This glass is very hot during heater operating.

9. Do not operate the oven at microwave and
combination mode with Grill rack placed in the
cavity when the oven is empty.

EARTHING INSTRUCTIONS

This microwave oven is designed to be used in a fully
earthed condition.
It is imperative, therefore, to make sure it is properly
earthed before servicing

WARNING­THIS APPLIANCE
MUST BE EARTHED

IMPORTANT

As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows.

The wire which is colored green-and-yellow must be
connected to the terminal in the plug which is marked
with the letter E or by the earth symbol ( ) or
colored green or green-and-yellow.

The wire which is colored blue must be connected to
the terminal in the plug which is marked with the letter
N or colored black.

The wire which is colored brown must be connected
to the terminal in the plug which is marked with the
letter L or colored red.

BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.

10cm

INSTALLATIONS

3-1

INSTALLING

1. Empty the microwave oven and clean inside it with

a soft, damp cloth. Check for damage such as
misaligned door, damage around the door or dents
inside the cavity or on the exterior.

2. Put the oven on a counter, table, or shelf that is
strong enough to hold the oven and the food and
utensils you put in it. (The control panel side of the
oven is the heavy side. Use care when handling.)

3. Do not block the vent and the air intake openings.
Blocking vent or air intake openings can cause
damage to the oven and poor cooking results.
Make sure the microwave oven legs are in place to
ensure proper air flow.

4. The oven should not be installed in any area where
heat and steam are generated, because they may
damage the electronic or mechanical parts of the
unit.
Do not install the oven next to a conventional
surface unit or above a conventional wall oven.

5. Use microwave oven in an ambient temperature
less than 104°F(40°C).

6. Place the microwave oven on a sturdy and flat
surface at least 10 cm(4 inches) from the wall.

7. Place the microwave oven as far away as possible
from TV, RADIO, COMPUTER, etc., to prevent
interference.

8. Do not touch the front glass during or after cooking
of the Grill and Combination mode.
This glass is very hot during heater operating.

9. Do not operate the oven at microwave and
combination mode with Grill rack placed in the
cavity when the oven is empty.

EARTHING INSTRUCTIONS

This microwave oven is designed to be used in a fully
earthed condition.
It is imperative, therefore, to make sure it is properly
earthed before servicing

WARNING­THIS APPLIANCE
MUST BE EARTHED

IMPORTANT

As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows.

The wire which is colored green-and-yellow must be
connected to the terminal in the plug which is marked
with the letter E or by the earth symbol ( ) or
colored green or green-and-yellow.

The wire which is colored blue must be connected to
the terminal in the plug which is marked with the letter
N or colored black.

The wire which is colored brown must be connected
to the terminal in the plug which is marked with the
letter L or colored red.

BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.

INSTALLATIONS

3-1

INSTALLING

1. Empty the microwave oven and clean inside it with

a soft, damp cloth. Check for damage such as
misaligned door, damage around the door or dents
inside the cavity or on the exterior.

2. Put the oven on a counter, table, or shelf that is
strong enough to hold the oven and the food and
utensils you put in it. (The control panel side of the
oven is the heavy side. Use care when handling.)

3. Do not block the vent and the air intake openings.
Blocking vent or air intake openings can cause
damage to the oven and poor cooking results.
Make sure the microwave oven legs are in place to
ensure proper air flow.

4. The oven should not be installed in any area where
heat and steam are generated, because they may
damage the electronic or mechanical parts of the
unit.
Do not install the oven next to a conventional
surface unit or above a conventional wall oven.

5. Use microwave oven in an ambient temperature
less than 104°F(40°C).

6. Place the microwave oven on a sturdy and flat
surface at least 10 cm(4 inches) from the wall.

7. Place the microwave oven as far away as possible
from TV, RADIO, COMPUTER, etc., to prevent
interference.

8. Do not touch the front glass during or after cooking
of the Grill and Combination mode.
This glass is very hot during heater operating.

9. Do not operate the oven at microwave and
combination mode with Grill rack placed in the
cavity when the oven is empty.

EARTHING INSTRUCTIONS

This microwave oven is designed to be used in a fully
earthed condition.
It is imperative, therefore, to make sure it is properly
earthed before servicing

WARNING­THIS APPLIANCE
MUST BE EARTHED

IMPORTANT

As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows.

The wire which is colored green-and-yellow must be
connected to the terminal in the plug which is marked
with the letter E or by the earth symbol ( ) or
colored green or green-and-yellow.

The wire which is colored blue must be connected to
the terminal in the plug which is marked with the letter
N or colored black.

The wire which is colored brown must be connected
to the terminal in the plug which is marked with the
letter L or colored red.

BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.

10cm

The wires in this mains lead are colored in
accordance with the following code:

Green-and-yellow: Earth
Blue: Neutral
Brown: Live

The wires in this mains lead are colored in
accordance with the following code:

Green-and-yellow: Earth
Blue: Neutral
Brown: Live

The wires in this mains lead are colored in
accordance with the following code:

Green-and-yellow: Earth
Blue: Neutral
Brown: Live

The wires in this mains lead are colored in
accordance with the following code:

Green-and-yellow: Earth
Blue: Neutral
Brown: Live

4-1

FEATURES

Timer Knob

Splatter Shield

Door Open Button

Safety Door Lock System

Door Window Screen

Timer Knob

Splatter Shield

Door Open Button

Safety Door Lock System

Door Window Screen

Timer Knob

Splatter Shield

Door Open Button

Safety Door Lock System

Door Window Screen

Timer Knob

Splatter Shield

Door Open Button

Safety Door Lock System

Door Window Screen

Timer Knob

Splatter Shield

Door Open Button

Safety Door Lock System

Door Window Screen

Timer Knob

Splatter Shield

Door Open Button

Safety Door Lock System

Door Window Screen

Timer Knob

Splatter Shield

Door Open Button

Safety Door Lock System

Door Window Screen

OPERATION CHECK

OPERATING INSTRUCTIONS

Heating

1. Open oven door, place food in oven and close door.

2. Set timer knob to desired cooking time by
turning clockwise.

• Turn timer knob slightly past, and then back to

desired cooking time for the most accurate time
setting.

• Heating begins.

3. When time has elapsed, bell sounds and oven shuts
off.

Pausing or Stopping Operation

1. Open oven door.

• Oven stops cooking.

• Timer maintains current time setting.

2. Cooking resumes when door is closed.

3. Turn timer knob counterclockwise to “OFF” to clear all
cooking time.

To avoid damaging oven, only heat in microwave
oven when turntable is in place.

OPERATION CHECK

Heating

1. Open oven door, place food in oven and close door.

2. Set timer knob to desired cooking time by
turning clockwise.

• Turn timer knob slightly past, and then back to

desired cooking time for the most accurate time
setting.

• Heating begins.

3. When time has elapsed, bell sounds and oven shuts
off.

Pausing or Stopping Operation

1. Open oven door.

• Oven stops cooking.

• Timer maintains current time setting.

2. Cooking resumes when door is closed.

3. Turn timer knob counterclockwise to “OFF” to clear all
cooking time.

To avoid damaging oven, only heat in microwave
oven when turntable is in place.

OPERATION CHECK

Heating

1. Open oven door, place food in oven and close door.

2. Set timer knob to desired cooking time by
turning clockwise.

• Turn timer knob slightly past, and then back to

desired cooking time for the most accurate time
setting.

• Heating begins.

3. When time has elapsed, bell sounds and oven shuts
off.

Pausing or Stopping Operation

1. Open oven door.

• Oven stops cooking.

• Timer maintains current time setting.

2. Cooking resumes when door is closed.

3. Turn timer knob counterclockwise to “OFF” to clear all
cooking time.

To avoid damaging oven, only heat in microwave
oven when turntable is in place.

OPERATION CHECK

Heating

1. Open oven door, place food in oven and close door.

2. Set timer knob to desired cooking time by
turning clockwise.

• Turn timer knob slightly past, and then back to

desired cooking time for the most accurate time
setting.

• Heating begins.

3. When time has elapsed, bell sounds and oven shuts
off.

Pausing or Stopping Operation

1. Open oven door.

• Oven stops cooking.

• Timer maintains current time setting.

2. Cooking resumes when door is closed.

3. Turn timer knob counterclockwise to “OFF” to clear all
cooking time.

To avoid damaging oven, only heat in microwave
oven when turntable is in place.

To avoid fire, do not dry newspapers or clothes in
microwave oven.

To avoid fire, do not dry newspapers or clothes in
microwave oven.

To avoid fire, do not dry newspapers or clothes in
microwave oven.

To avoid fire, do not dry newspapers or clothes in
microwave oven.

CAUTION

CAUTION

SCHEMATIC DIAGRAM

4-2

CIRCUIT DESCRIPTION

GENERAL DETAILS

• When the door is closed, the primary switch is ON, the
secondary switch is ON, and the monitor switch opens
(contact COM and NO).

• The latches are secured by the latch board, the oven
light turns on while the oven is operation.

WHEN THE TIMER KNOB IS ROTATED

• When the timer knob is rotated, The contacts of timer
switch close.

• The contact of the secondary switch close the circuit.

• Power input is supplied to the high voltage transformer
through the fuse to the primary, timer and secondary

switches.

• Stirrerfan rotates.

• The fan motor rotates and cools the magnetron by
blowing the air (coming from the intake on the back­plate).

• The air is also directed into the oven to exhaust the
vapor in the oven through the upper plate.

• The timer starts rotating.

• 3.3 volts AC is generated from the filament winding of
the high voltage transformer. This 3.3 volts is applied to
the magnetron to heat the magnetron filament through
two noise-preventing choke coils.

• A high voltage of approximately 2100 volts AC is
generated in the secondary of the high voltage
transformer which is increased by the action of the high
voltage diode and charging of the high voltage
capacitor.

• The negative 4,000 Volts DC is applied to the filament
of the magnetron.

WHEN THE DOOR IS OPENED DURING
COOKING

• Both the primary and timer switches are cut off primary
winding voltage of the high voltage transformer.

• When the door is opened, the secondary switch is
opened and when the door is closed, the secondary
switch is closed.

• The timer, stirrerfan and fan motor stop.

• As the door is opened, if the contact of primary switch
fails to open, the fuse opens due to the large current
surge caused by the monitor switch activation, which in
turn stops magnetron oscillation.

4-3

FUSE

H.V.

TRANS-

FORMER

P/S

P/S: Primary Switch
T/S: Timer Switch

S/S: Secondary Switch
M/S: Monitor Switch

T/S

S/S

M/S

FUSE

H.V.

TRANS-

FORMER

P/S

P/S: Primary Switch
T/S: Timer Switch

S/S: Secondary Switch
M/S: Monitor Switch

T/S

S/S

M/S

FUSE

H.V.

TRANS-

FORMER

P/S

P/S: Primary Switch
T/S: Timer Switch

S/S: Secondary Switch
M/S: Monitor Switch

T/S

S/S

M/S

FUSE

H.V.

TRANS-

FORMER

P/S

P/S: Primary Switch
T/S: Timer Switch

S/S: Secondary Switch
M/S: Monitor Switch

T/S

S/S

M/S

FUSE

H.V.

TRANS-

FORMER

P/S

P/S: Primary Switch
T/S: Timer Switch

S/S: Secondary Switch
M/S: Monitor Switch

T/S

S/S

M/S

FUSE

H.V.

TRANS-

FORMER

P/S

P/S: Primary Switch
T/S: Timer Switch

S/S: Secondary Switch
M/S: Monitor Switch

T/S

S/S

M/S

FUSE

H.V.

TRANS-

FORMER

P/S

P/S: Primary Switch
T/S: Timer Switch

S/S: Secondary Switch
M/S: Monitor Switch

T/S

S/S

M/S

FUSE

H.V.

TRANS-

FORMER

P/S

P/S: Primary Switch
T/S: Timer Switch

S/S: Secondary Switch
M/S: Monitor Switch

T/S

S/S

M/S

P/S

T/S

FUSE

P/S: Primary Switch
T/S: Timer Switch

S/S

M/S

S/S: Secondary Switch
M/S: Monitor Switch

H.V.

TRANS-

FORMER

CAUTIONS

¥ Be sure to check microwave leakage prior to

servicing the oven if the oven is operative prior to
servicing.

¥ The service personnel should inform the

manufacturer, importer, or assembler of any
certified oven unit found to have a microwave
emission level in excess of 5 mW/cm2and should

repair any unit found to have excessive emission levels
at no cost to the owner and should ascertain the cause
of the excessive leakage. The service personnel
should instruct the owner not to use the unit until the
oven has been brought into compliance.

¥ If the oven operates with the door open, the service

personnel should:

- Tell the user not to operate the oven.

- Contact the manufacturer and CDRH
(Center for Devices and Radiological Health)

immediately.

NOTE: Address on CDRH

Office of Compliance(HFZ-312)
Center for Devices and Radiological
Healthe 1390, Piccard Drive,
Rockville. MD 20850

¥ The service personnel should check all surface and

vent openings for microwave leakage.

¥ Check for microwave leakage after every servicing.

The power density of the microwave radiation leakage
emitted by the microwave oven should not exceed
4 mW/cm2. Always start measuring of an unknown field
to assure safety for operating personnel from radiation
leakage.

MEASURING MICROWAVE ENERGY
LEAKAGE

¥ Pour 275±15cc of 20±5¡C(68±9¡F) water in a beaker

which is graduated to 600 cc, and place the beaker
on the center of the turntable.

¥ Set the energy leakage monitor to 2,450 MHz and

use it following the manufacturer's recommended
test procedure to assure correct result.

¥ When measuring the leakage, always use the 2-

inch (5cm) spacer supplied with the probe.
¥ Operate the oven at its maximum output.
¥ Measure the microwave radiation using and

electromagnetic radiation monitor by holding the

probe perpendicular to the surface being measured

Move probe along shaded area

Probe scanning speed

Less than 2.5 cm/sec

( 1in/sec)

5-1

SERVICE INFORMATION

TOOLS AND MEASURING INSTRUMENTS

MICROWAVE LEAKAGE TEST

NECESSARY TOOLS

Tools normally used for TV servicing are sufficient.
Standard tools are listed below.

¥ Diagonal pliers
¥ Long nose pliers
¥ Phillips screwdriver
¥ Flat blade screwdriver
¥ Wrench (size 5mm)
¥ Nutdriver (size 5mm)
¥ Adjustable wrench
¥ Soldering iron
¥ Solder
¥ Vinyl insulation tape
¥ Polishing cloth

NECESSARY MEASURING INSTRUMENTS

¥ TESTER (VOLTS-DC, AC, Ohmmeter)
¥ Microwave survey meter

- Holaday HI-1500
HI-1501

- Narda 8100

8200
¥ Inch scale
¥ 600 cc non conductive material beaker (glass or plastic),

inside diameter: approx. 8.5 cm (3

1

/2 in.)

¥ Cylindrical and made of borosilicate glass vessel.

max. thickness: 3 mm
outside diameter: approx. 190mm
height: approx. 90mm

¥ Glass thermometer: 100¡C or 212¡F (1 deg scale)

MEASUREMENT WITH OUTER CASE
REMOVED

¥ When you replace the magnetron, measure for

microwave energy leakage before the outer case is
installed and after all necessary components are
replaced or adjusted.

Special care should be taken in measuring the

following parts. (Circled area of below Fig.)

- Around the magnetron

- The waveguide

MEASUREMENT WITH A FULLY
ASSEMBLED OVEN

¥ After all components, including the outer case, are fully

assembled, measure for microwave energy leakage
around the door viewing window, the exhaust opening,
and air inlet openings.

¥ Microwave energy leakage must not exceed the values

prescribed below.

NOTE: Leakage with the outer case removedless than

5 mW/cm.sq. Leakage for a fully assembled
oven (Before the latch switch (primary) is
interrupted) with the door in a slightly opened
position-less than 2 mW/cm.sq.

NOTES WHEN MEASURING

¥ Do not exceed meter full scale deflection.
¥ The test probe must be removed no faster than

1 inch/sec (2.5 cm/sec) along the shaded area,
otherwise a false reading may result.

¥ The test probe must be held with the grip portion of the

handle.

A false reading may result if the operator's hand is

between the handle and the probe.

¥ When testing near a corner of the door, keep the probe

perpendicular to the surface making sure the probe
horizontally along the oven surface, this may possibly
cause probe damage.

RECORD KEEPING AND NOTIFICATION
AFTER MEASUREMENT

¥ After adjustment and repair of any microwave energy

interruption or microwave energy blocking device,
record the measured values for future reference. Also
enter the information on the service invoice.

¥ The microwave energy leakage should not be more

than 4 mW/cm.sq. after determining that all parts are in
good condition, functioning properly and genuine
replacement parts which are listed in this manual have
been used.

¥ At least once a year, have the electromagnetic energy

leakage monitor checked for calibration by its
manufacturer.

5-2

WARNING : AVOID CONTACTING ANY

HIGH VOLTAGE PARTS

• Microwave power output measurement is made with
the microwave oven supplied at its rated voltage and
operated at its maximum microwave power setting with
a load of (1000±5) g of potable water.

• The water is contained in a cylindrical borosilicate glass
vessel having a maximum material thickness of 3 mm
and an outside diameter of approximately 190mm.

• The oven and the empty vessel are at ambient
temperature prior to the start of the test.

• The initial temperature (T1) of the water is (10±2)°C It
is measured immediately before the water is added to
the vessel. After addition of the water to the vessel,
the load is immediately placed on the center of the
ceramic plate which is in the lowest position and the
microwave power switched on.

• The time T for the temperature of the water to rise by a
value ∆ T of (10±2)°K is measured, where T is the time

in seconds and ∆ T is the temperature rise. The initial
and final water temperatures are selected so that the
maximum difference between the final water
temperature and the ambient temperature is 5°K.

• The microwave power output P in watts is calculated
from the following formula :

4187 x (∆ T)

T

is measured while the microwave generator is
operating at full power. Magnetron filament heat-up
time is not included. (about 3 sec)

• The water is stirred to equalize temperature throughout
the vessel, prior to measuring the final water
temperature.

• Stirring devices and measuring instruments are
selected in order to minimize addition or removal of
heat.

A. OUTER CASE REMOVAL

1) Disconnect the power supply cord from the outlet.

2) Remove the screws from the rear of the case.
The outer case must be moved backward to be lifted
off.

B. POWER SUPPLY CORD

1) Remove the outer case.

2) Disconnect two terminals, and remove one screw of
the ground terminal.

C. CONTROL PANEL ASSEMBLY

1) Open the door.

2) Remove the screw for securing the

control panel.

3) Disconnect the leadwire from the timer motor.

4) Lift up and pull out control panel assembly carefully

from the cavity.

CAUTION: DISCHARGE THE HIGH VOLTAGE

CAPACITOR BEFORE SERVICING

(refer to page 2-1)

• Microwave power output measurement is made with

the microwave oven supplied at its rated voltage and
operated at its maximum microwave power setting with
a load of (1000±5) g of potable water.

• The water is contained in a cylindrical borosilicate glass

vessel having a maximum material thickness of 3 mm
and an outside diameter of approximately 190mm.

• The oven and the empty vessel are at ambient

temperature prior to the start of the test.

• The initial temperature (T1) of the water is (10±2)°C It

is measured immediately before the water is added to
the vessel. After addition of the water to the vessel,
the load is immediately placed on the center of the
ceramic plate which is in the lowest position and the
microwave power switched on.

• The time T for the temperature of the water to rise by a

value ∆ T of (10±2)°K is measured, where T is the time

in seconds and ∆ T is the temperature rise. The initial
and final water temperatures are selected so that the
maximum difference between the final water
temperature and the ambient temperature is 5°K.

• The microwave power output P in watts is calculated
from the following formula :

4187 x (∆ T)

T

is measured while the microwave generator is
operating at full power. Magnetron filament heat-up
time is not included. (about 3 sec)

• The water is stirred to equalize temperature throughout
the vessel, prior to measuring the final water
temperature.

• Stirring devices and measuring instruments are
selected in order to minimize addition or removal of
heat.

1) Disconnect the power supply cord from the outlet.

2) Remove the screws from the rear of the case.
The outer case must be moved backward to be lifted
off.

1) Remove the outer case.

2) Disconnect two terminals, and remove one screw of
the ground terminal.

1) Open the door.

2) Remove the screw for securing the

control panel.

3) Disconnect the leadwire from the timer motor.

4) Lift up and pull out control panel assembly carefully

from the cavity.

(refer to page 2-1)

• Microwave power output measurement is made with

the microwave oven supplied at its rated voltage and
operated at its maximum microwave power setting with
a load of (1000±5) g of potable water.

• The water is contained in a cylindrical borosilicate glass

vessel having a maximum material thickness of 3 mm
and an outside diameter of approximately 190mm.

• The oven and the empty vessel are at ambient

temperature prior to the start of the test.

• The initial temperature (T1) of the water is (10±2)°C It

is measured immediately before the water is added to
the vessel. After addition of the water to the vessel,
the load is immediately placed on the center of the
ceramic plate which is in the lowest position and the
microwave power switched on.

• The time T for the temperature of the water to rise by a

value ∆ T of (10±2)°K is measured, where T is the time

in seconds and ∆ T is the temperature rise. The initial
and final water temperatures are selected so that the
maximum difference between the final water
temperature and the ambient temperature is 5°K.

• The microwave power output P in watts is calculated
from the following formula :

4187 x (∆ T)

T

is measured while the microwave generator is
operating at full power. Magnetron filament heat-up
time is not included. (about 3 sec)

• The water is stirred to equalize temperature throughout
the vessel, prior to measuring the final water
temperature.

• Stirring devices and measuring instruments are
selected in order to minimize addition or removal of
heat.

1) Disconnect the power supply cord from the outlet.

2) Remove the screws from the rear of the case.
The outer case must be moved backward to be lifted
off.

1) Remove the outer case.

2) Disconnect two terminals, and remove one screw of
the ground terminal.

1) Open the door.

2) Remove the screw for securing the

control panel.

3) Disconnect the leadwire from the timer motor.

4) Lift up and pull out control panel assembly carefully

from the cavity.

(refer to page 2-1)

5-3

• Microwave power output measurement is made with

the microwave oven supplied at its rated voltage and
operated at its maximum microwave power setting with
a load of (1000±5) g of potable water.

• The water is contained in a cylindrical borosilicate glass

vessel having a maximum material thickness of 3 mm
and an outside diameter of approximately 190mm.

• The oven and the empty vessel are at ambient

temperature prior to the start of the test.

• The initial temperature (T1) of the water is (10±2)°C It

is measured immediately before the water is added to
the vessel. After addition of the water to the vessel,
the load is immediately placed on the center of the
ceramic plate which is in the lowest position and the
microwave power switched on.

• The time T for the temperature of the water to rise by a

value ∆ T of (10±2)°K is measured, where T is the time

in seconds and ∆ T is the temperature rise. The initial
and final water temperatures are selected so that the
maximum difference between the final water
temperature and the ambient temperature is 5°K.

• The microwave power output P in watts is calculated
from the following formula :

4187 x (∆ T)

T

is measured while the microwave generator is
operating at full power. Magnetron filament heat-up
time is not included. (about 3 sec)

• The water is stirred to equalize temperature throughout
the vessel, prior to measuring the final water
temperature.

• Stirring devices and measuring instruments are
selected in order to minimize addition or removal of
heat.

1) Disconnect the power supply cord from the outlet.

2) Remove the screws from the rear of the case.
The outer case must be moved backward to be lifted
off.

1) Remove the outer case.

2) Disconnect two terminals, and remove one screw of
the ground terminal.

1) Open the door.

2) Remove the screw for securing the

control panel.

3) Disconnect the leadwire from the timer motor.

4) Lift up and pull out control panel assembly carefully

from the cavity.

(refer to page 2-1)

MEASUREMENT OF MICROWAVE POWER OUTPUT

P =

DISASSEMBLY AND ADJUSTMENT

P =P =P =

WATER LOAD

CERAMIC PLATE

Remove the screw

securing
screw

Lift up and pull out control panel

D. TIMER MOTOR REMOVAL

1) Remove the control panel assembly from the
cavity. (Refer to control panel assembly removal
on previous page.)

2) Remove screws which hold the timer motor to the
control panel.

3) Removed the timer knob.

4) Remove the door open button.

E. DOOR MAIN ASSEMBLY REMOVAL

1) Open the door.

2) Remove the choke cover cap very carefully with a

flat-blade screwdriver.

CAUTION : Be careful not to damage door seal plate

by screwdriver.

3) Lift up and push the door.

NOTE:

1. After replacing the door, be sure to check that the

primary switch, monitor switch, and secondary switch
operate normally.

2. After replacing the door, check for microwave energy

leakage with a survey meter. Microwave energy must
be below the limit of 4 mW/cm. (with a 275 ml water
load)

3. When mounting the door assembly to the oven

assembly, be sure to adjust the door assembly parallel
to the chassis. Also adjust so the door has no play
between the inner door surface and oven frame
assembly. If the door assembly is not mounted
properly, microwaves may leak from the clearance
between the door and the oven.

Remove choke cover cap

Remove door

Remove choke cover cap

Remove door

Remove choke cover cap

Remove door

Remove choke cover cap

Remove door

Spacer

5-4

Spacer

5-4

Spacer

5-4

Spacer

5-4

Timer

Knob

Timer Motor

Button Spring

Door Open Button

Door seal plate

F. MAGNETRON REMOVAL

1) Disconnect the leadwire from the magnetron.

2) Carefully remove the mounting screws holding the
magnetron and the waveguide.

3) Remove the magnetron ASS’Y until the tube is
clear from the waveguide.

NOTE:

1. When removing the magnetron, make sure its

dome does not hit any adjacent parts, or it may be
damaged.

2. When replacing the magnetron, be sure to install

the magnetron gasket in the correct position and be
sure that the gasket is in good condition.

3. After replacing the magnetron, check for microwave

leakage with a survey meter around the magnetron.
Microwave energy must be below the limit of 5

mW/cm

Make sure that gasket is rigidly attached to the
magnetron. To prevent microwave leakage, tighten

the mounting screws properly, making sure there is
no gap between the waveguide and the magnetron.

2

. (With a 275 ml. water load).

G. REMOVING THE STIRRER FAN MOTOR

1) Lay the unit down on its back.

2) Remove the stirrer fan motor cover.
The stirrer fan base cover is easily removed by
pinching the eight parts with a wire cutting.

3) Disconnect the leadwire from the stirrer fan motor
terminals.

4) Remove the screw securing the stirrer fan motor to
the oven cavity ASS’Y

5) After repairing the motor, rotate the removed
stirrer fan motor cover.

6) Fit the stirrer fan motor cover’s projecting part to the
base plate slit.

7) The taptite screw shall be used when a turntable
motor cover is secured with a screw.

NOTE:

1. Remove the wire lead from the stirrer fan motor

VERY CAREFULLY.

2. Be sure to grasp the connector, not the wires, when

removing.

Waveguide

Dome

Waveguide
Bracket

Magnetron
Gasket

Magnetron

Air Duct

Magnetron

Taptite Screw

Wire Leads

Stirrer Fan Motor

5-5

H. HIGH VOLTAGE TRANSFORMER

REMOVAL

1) Discharge the high voltage capacitor.

2) Disconnect the leadwire from magnetron, high voltage
transformer, and capacitor.

3) Remove the screw holding the high voltage
transformer to the baseplate.

I. FAN MOTOR ASSEMBLY REMOVAL

1) Discharge the high voltage capacitor.

2) Disconnect the leadwire from fan motor, noise filter
and high voltage capacitor.

3) Remove the two screws holding the the suction guide
ASS’Y to the oven cavity and remove the high voltage
diode earth screw.

4) Remove the two screws holding the fan motor ASS’Y
to the suction guide ASS’Y.

J. HIGH VOLTAGE CAPACITOR AND

DIODE REMOVAL

1) Discharge the high voltage capacitor.

2) Disconnect the leadwire from fan motor, noise filter
and high voltage capacitor.

3) Remove the screw holding the suction guide ASS’Y to
the oven cavity and remove the high voltage diode
earth screw.

4) Remove the screw holding the high voltage capacitor
bracket.

Fan Motor ASS'Y

K. INTERLOCK SYSTEM

1) INTERLOCK MECHANISM
The door lock mechanism is a device which has

been specially designed to eliminate completely
microwave activity when the door is opened during
cooking and thus to prevent the danger resulting
from the microwave leakage.

2) MOUNTING OF THE PRIMARY/MONITOR/

SECONDARY SWITCHES TO THE LATCH
BOARD

3) INSTALLATION AND ADJUSTMENT OF THE

LATCH BOARD TO THE OVEN ASSEMBLY

• Mount the latch b oard to the oven assembly.

• Adjust the latch board in the arrow direction so that

oven door will not have any play in it when the door
is closed.

• Tighten the mounting screw.

• Check for play in the door by pushing the door

release button. Door movement should be less
than 0.5 mm. (1/64 inch)

Don't push the door release button while making this
adjustment. Make sure that the latch moves
smoothly after adjustment is completed and that the
screws are tight. Make sure the primary, monitor,
and secondary switches operate properly by
following the continuity test procedure.

ADJUSTMENT
DIRECTION

H.V.
Transformer

H.V.
Diode

Suction
Guide

H.V.
Capacitor

SECONDARY
SWITCH

MONITOR
SWITCH

PRIMARY
SWITCH

5-6

5-7

A. PRIMARY INTERLOCK SWITCH TEST

When the door release button is depressed slowly
with the door closed, an audible click should be
heard at the same time or successively at
intervals. When the button is released slowly, the
latches should activate the switches with an
audible click.
If the latches do not activate the switches when
the door is closed, the switches should be a
adjusted in accordance with the adjustment
procedure. Disconnect the wire leads from the
primary switch. Connect the ohmmeter leads to
the common (COM) and normally open (NO)
terminal of the switch. The meter should indicate
an open circuit in the door open condition.
When the door is closed, the meter should
indicate a closed circuit.
When the primary switch operation is abnormal,
make the necessary adjustment or replace the
switch using only the same type of switch.

B. SECONDARY INTERLOCK SWITCH TEST

Disconnect the wire leads from the secondary
switch.
Connect the ohmmeter leads to the common
(COM) and normally open (NO) terminals of the
switch. The meter should indicate an open circuit
with the door open. When the door is closed,
meter should indicate a closed circuit. When the
secondary switch operation is abnormal, make the
necessary adjustment or replace the switch using
only the same type of switch.

C. MONITOR SWITCH TEST

Disconnect the wire leads from the monitor switch.
Connect the ohmmeter leads to the common
(COM) and normally closed (NC) terminals of the
switch. The meter should indicate a closed circuit
with the door open. When the door is closed,
meter should indicate an open circuit. When the
monitor switch operation is abnormal, replace it
with the same type of switch.

NOTE: After repairing the door or the interlock
system, it is necessary to do this continuity
test before operating the oven.

WARNING : FOR CONTINUED PROTECTION AGAINST EXCESSIVE RADIATION

EMISSION, REPLACE ONLY WITH IDENTICAL REPLACEMENT PARTS.

TYPE NO. SZM-V 16-FA-63 OR VP-533A-OF FOR PRIMARY SWITCH
TYPE NO. SZM-V 16-FA-62 OR VP-532A-OF FOR MONITOR SWITCH
TYPE NO. SZM-V 16-FA-63 OR VP-533A-OF FOR SECONDARY SWITCH

COMPONENTS TEST PROCEDURE RESULTS

SWITCHES Check for continuity of the Door Door
(Wire leads removed) switch with an Ohm-meter open closed

Primary
Switch

Monitor
Switch

Secondary
Switch

NOTE : After checking for the continuity of switches, make sure that are

connected correctly.

INTERLOCK CONTINUITY TEST

COM

COM

COM

NO

NC

NO

5-8

CAUTIONS

1. DISCONNECT THE POWER SUPPLY CORD FROM THE OUTLET WHENEVER REMOVING THE
OUTER CASE FROM THE UNIT. PROCEED WITH THE TEST ONLY AFTER DISCHARGING THE HIGH
VOLTAGE CAPACITOR AND REMOVING THE WIRE LEADS FROM THE PRIMARY WINDING OF THE
HIGH VOLTAGE TRANSFORMER. (SEE PAGE 2-1)

2. ALL OPERATIONAL CHECKS WITH MICROWAVE ENERGY MUST BE DONE WITH A LOAD (1 LITER
OF WATER IN CONTAINER) IN THE OVEN.

COMPONENTS TEST PROCEDURE RESULTS

HIGH VOLTAGE
TRANSFORMER
(Wire leads removed)

MAGNETRON
(Wire leads removed)

1. Measure the resistance.
(Ohm-meter scale: Rx1 and Rx100)
¥ Primary winding
¥ Secondary winding
¥ Filament winding

2. Measure the resistance.
(Ohm-meter scale: Rx1000)
¥ Primary winding to ground
¥ Filament winding to ground

1. Measure the resistance.
(Ohm-meter scale: Rx1)
¥ Filament terminal

2. Measure the resistance.
(Ohm-meter scale: Rx1000)
¥ Filament to chassis

Approx.: 1.5 ~ 2.2 ohm
Approx.: 90 ~ 110 ohm

Less than: 1 ohm

Normal: Infinite
Normal: Infinite

Normal: Less than 1 ohm

Normal: Infinite

PRIMARY 
TERMINALS

SECONDARY 
TERMINAL

FILAMENT 
WINDING


COMPONENT TEST PROCEDURE

FILAMENT
WINDING

SECONDARY
TERMINAL

PRIMARY
TERMINAL

5-9

COMPONENTS TEST PROCEDURE RESULTS

HIGH VOLTAGE
CAPACITOR

HIGH VOLTAGE
DIODE

NOTE :
Some inexpensive meters
may indicate infinite
resistance in both direction.

Measure the resistance.
(Ohm-meter scale: Rx1000)

• Terminal to terminal.

Measure the resistance.
(Ohm-meter scale: Rx1000)

• Terminal to case.

Measure the continuity (Forward).
(Ohm-meter scale: Rx10000)

Measure the continuity (Reverse).
(Ohm-meter scale: Rx10000)

Normal: Momentarily indicates

several ohms, and then
gradually returns to
infinite.

Normal: Infinite.

Normal: Infinite.
Abnormal: Continuity.

Normal: Continuity.
Abnormal: Infinite.

NOTE: When testing the magnetron, be sure to install the magnetron gasket

in the correct position and be sure that the gasket is in good condition.

5-9

COMPONENTS TEST PROCEDURE RESULTS

HIGH VOLTAGE
CAPACITOR

HIGH VOLTAGE
DIODE

NOTE :
Some inexpensive meters
may indicate infinite
resistance in both direction.

Measure the resistance.
(Ohm-meter scale: Rx1000)

• Terminal to terminal.

Measure the resistance.
(Ohm-meter scale: Rx1000)

• Terminal to case.

Measure the continuity (Forward).
(Ohm-meter scale: Rx10000)

Measure the continuity (Reverse).
(Ohm-meter scale: Rx10000)

Normal: Momentarily indicates

several ohms, and then
gradually returns to
infinite.

Normal: Infinite.

Normal: Infinite.
Abnormal: Continuity.

Normal: Continuity.
Abnormal: Infinite.

NOTE: When testing the magnetron, be sure to install the magnetron gasket

in the correct position and be sure that the gasket is in good condition.

5-9

COMPONENTS TEST PROCEDURE RESULTS

HIGH VOLTAGE
CAPACITOR

HIGH VOLTAGE
DIODE

NOTE :
Some inexpensive meters
may indicate infinite
resistance in both direction.

Measure the resistance.
(Ohm-meter scale: Rx1000)

• Terminal to terminal.

Measure the resistance.
(Ohm-meter scale: Rx1000)

• Terminal to case.

Measure the continuity (Forward).
(Ohm-meter scale: Rx10000)

Measure the continuity (Reverse).
(Ohm-meter scale: Rx10000)

Normal: Momentarily indicates

several ohms, and then
gradually returns to
infinite.

Normal: Infinite.

Normal: Infinite.
Abnormal: Continuity.

Normal: Continuity.
Abnormal: Infinite.

NOTE: When testing the magnetron, be sure to install the magnetron gasket

in the correct position and be sure that the gasket is in good condition.

5-9

COMPONENTS TEST PROCEDURE RESULTS

HIGH VOLTAGE
CAPACITOR

HIGH VOLTAGE
DIODE

NOTE :
Some inexpensive meters
may indicate infinite
resistance in both direction.

Measure the resistance.
(Ohm-meter scale: Rx1000)

• Terminal to terminal.

Measure the resistance.
(Ohm-meter scale: Rx1000)

• Terminal to case.

Measure the continuity (Forward).
(Ohm-meter scale: Rx10000)

Measure the continuity (Reverse).
(Ohm-meter scale: Rx10000)

Normal: Momentarily indicates

several ohms, and then
gradually returns to
infinite.

Normal: Infinite.

Normal: Infinite.
Abnormal: Continuity.

Normal: Continuity.
Abnormal: Infinite.

NOTE: When testing the magnetron, be sure to install the magnetron gasket

in the correct position and be sure that the gasket is in good condition.

Antenna
Gasket

Chassis

Filament

Antenna
Gasket

Chassis

Filament

Antenna
Gasket

Chassis

Filament

Antenna
Gasket

Chassis

Filament

Antenna
Gasket

Chassis

Filament

Antenna
Gasket

Chassis

Filament

Antenna
Gasket

Chassis

Filament

Antenna
Gasket

Chassis

Filament

5-10

COMPONENTS TEST PROCEDURE RESULTS

FAN MOTOR
(Wire leads removed)

STIRRERFAN
MOTOR
(Wire leads removed)

Measure the resistance.
(Ohm-meter scale: R x 100)

Measure the resistance.
(Ohm-meter scale: R x 1000)

Normal: Approx. 350 ~450 ohm
Abnormal: Infinite or several

K-ohm.

Normal: Approx. 12 ~ 14K ohm
Abnormal: Infinite or several

K-ohm.

NOTE : • A MICROWAVE LEAKAGE TEST MUST ALWAYS BE PERFORMED WHEN THE UNIT IS

SERVICED FOR ANY REASON.

• MAKE SURE THE WIRE LEADS ARE IN THE CORRECT POSITION.

• WHEN REMOVING THE WIRE LEADS FROM THE PARTS, BE SURE TO GRASP THE
CONNECTOR, NOT THE WIRES.

5-10

COMPONENTS TEST PROCEDURE RESULTS

FAN MOTOR
(Wire leads removed)

MOTOR
(Wire leads removed)

Measure the resistance.
(Ohm-meter scale: R x 100)

Measure the resistance.
(Ohm-meter scale: R x 1000)

Normal: Approx. 350 ~450 ohm
Abnormal: Infinite or several

K-ohm.

Normal: Approx. 12 ~ 14K ohm
Abnormal: Infinite or several

K-ohm.

NOTE : • A MICROWAVE LEAKAGE TEST MUST ALWAYS BE PERFORMED WHEN THE UNIT IS

SERVICED FOR ANY REASON.

• MAKE SURE THE WIRE LEADS ARE IN THE CORRECT POSITION.

• WHEN REMOVING THE WIRE LEADS FROM THE PARTS, BE SURE TO GRASP THE
CONNECTOR, NOT THE WIRES.

5-10

COMPONENTS TEST PROCEDURE RESULTS

FAN MOTOR
(Wire leads removed)

MOTOR
(Wire leads removed)

Measure the resistance.
(Ohm-meter scale: R x 100)

Measure the resistance.
(Ohm-meter scale: R x 1000)

Normal: Approx. 350 ~450 ohm
Abnormal: Infinite or several

K-ohm.

Normal: Approx. 12 ~ 14K ohm
Abnormal: Infinite or several

K-ohm.

NOTE : • A MICROWAVE LEAKAGE TEST MUST ALWAYS BE PERFORMED WHEN THE UNIT IS

SERVICED FOR ANY REASON.

• MAKE SURE THE WIRE LEADS ARE IN THE CORRECT POSITION.

• WHEN REMOVING THE WIRE LEADS FROM THE PARTS, BE SURE TO GRASP THE
CONNECTOR, NOT THE WIRES.

5-10

COMPONENTS TEST PROCEDURE RESULTS

FAN MOTOR
(Wire leads removed)

MOTOR
(Wire leads removed)

Measure the resistance.
(Ohm-meter scale: R x 100)

Measure the resistance.
(Ohm-meter scale: R x 1000)

Normal: Approx. 350 ~450 ohm
Abnormal: Infinite or several

K-ohm.

Normal: Approx. 12 ~ 14K ohm
Abnormal: Infinite or several

K-ohm.

NOTE : • A MICROWAVE LEAKAGE TEST MUST ALWAYS BE PERFORMED WHEN THE UNIT IS

SERVICED FOR ANY REASON.

• MAKE SURE THE WIRE LEADS ARE IN THE CORRECT POSITION.

• WHEN REMOVING THE WIRE LEADS FROM THE PARTS, BE SURE TO GRASP THE
CONNECTOR, NOT THE WIRES.

5-11

TROUBLE SHOOTING

WHEN YOU GET A COMPLAINT FROM YOUR CUSTOMER, EVALUATE THE COMPLAINT CAREFULLY. IF
THE FOLLOWING SYMPTOMS APPLY, PLEASE INSTRUCT THE CUSTOMER IN THE PROPER USE OF THE
MICROWAVE OVEN. THIS CAN ELIMINATE AN UNNECESSARY SERVICE CALL.

CAUTIONS

1. Check grounding before checking for trouble.

2. Be careful of the high voltage circuit.

3. Discharge the high voltage capacitor. (See page 2-1)

4. When checking the continuity of the switches or of the high voltage transformer, disconnect one lead wire
from these parts and then check continuity with the AC plug removed. To do otherwise may result in a
false reading or damage to your meter.

CONDITION

Microwave oven

does not work.

Inserting many plug into one
plug outlet and using
them at the same time
(blown fuse or breaker)

Microwave oven plug is not
inserted tightly.

Output power is too low. Low AC input voltage.

Food temperature is too low.

Using metallic ware and
allowing it to touch the oven
wall.

Sparks occur.

Inconsistent intensity of
microwave by their
characteristics.

1. Use plastic wrap or lid.

2. Stir once or twice while
cooking soup, cocoa or
milk, etc.

Uneven cooking.

Ceramic ware trimmed in
gold or silver powder is used.

Avoid using other electrical
appliances when you use the
microwave oven.

Insert microwave oven plug
securely.

Use the microwave oven at
adequate line voltage.

This may not be a defect.
It is possible that the food
should be cooked for a
longer time period.

Do not use metallic ware for
cooking except where noted
in the cooking guide.

Do not use any type of
cookware with metallic
trimming.

CAUSE REMEDY

5-12

CONDITION CHECK RESULT CAUSE REMEDY

1. Fuse blows. Continuity.

No continuity.

Continuity.

Shorted contact at
the primary switch.

Replace fuse,
primary, monitor
and secondary
switches.

No continuity.

Malfunction of the
monitor switch.

Replace fuse,
primary, monitor
and secondary
switches.

Check continuity
of monitor
switch (with
door closed).

Check continuity
of primary
switch (with
door opened).

Replace fuse

2. Fuse does not
blow.

No continuity.

Continuity.

No continuity.

Defective power
supply cord.

Replace power
supply cord.

Defective
thermostat.

Replace
thermostat.

Check continuity
of thermostat.

Check continuity
of power supply
cord.

(TROUBLE 1)

Oven does not operate at all

NOTE : All these switches must be replaced at the same time. Refer to page 5-8

Normal.

Normal.

Abnormal.

Defective high
voltage capacitor.

Replace high
voltage capacitor.

Set is good condition
(defective fuse only)

Fuse blows again

Defective high volt­age transformer.

Replace high volt­age transformer.

Disconnect one
side of the wire
lead connected
from transformer
to the high voltage
capacitor and
operate the unit.

Measure to
resistance high
voltage capacitor
(refer to page 5-9)

5-13

(TROUBLE 2) Oven seems to be operating but little heat is produced in oven load.

NOTE :

Simple test of power output-conducted by heating one liter water for one min. if available.
Minimum 8.5¡C temperature rise is normal condition.

CONDITION CHECK RESULT CAUSE REMEDY

Output is low

Lower than 90% of
rating voltage.

Normal

Abnormal

Measure the
output power.

Defective
magnetron.

Replace
magnetron.

Decrease in power
source voltage
with load.

Suggest customer
contact local
electric power
utility co. or
qualified
electrician.

Check the
power source
voltage.

5-14

CONDITION CHECK RESULT CAUSE REMEDY

No microwave
oscillation.

No continuity.

Continuity.

Abnormal

Defective high
voltage
transformer.

Replace high
voltage
transformer.

Normal

Defective timer
motor.

Replace timer
motor.

Check the timer
switch of timer
motor.(cooking
state)

Check high vol­tage transformer

Abnormal

Defective high
voltage capacitor.

Replace high
voltage capacitor.

Normal

Check high vol­tage capacitor.

Abnormal

Defective high
voltage diode.

Replace high
voltage diode.

Normal

Check high vol­tage diode.

Abnormal

Defective
magnetron.

Replace
magnetron.

Check
magnetron.

(TROUBLE 3)

No microwave oscillation even though oven lamp and fan motor run.

NOTE : ¥ Make sure the wire leads are in the correct position.

¥ When removing the wire leads from the parts, be sure to grasp the connector, not the wires.
¥ When removing the magnetron, be sure to install the magnetron gasket in the correct position

and in good condition.

6-1

EXPLODED VIEW

INTRODUCTION

#EV#

MODEL: LD510D

6-2

DOOR PARTS

#EV#

1005

1013

2384

2385

1004

1006

1007

6-3

CONTROL PANEL PARTS

#EV#

2014

2002

W102

2015

2003

2386

W109

2007

2005

6-4

OVEN CAVITY PARTS

#EV#

3001

W108

7037

5024

W118

*01

3009

W105

6-5

LATCH BOARD PARTS

#EV#

4001

4000

W102

4002

4003

4002

6-6

INTERIOR PARTS

#EV#

5016

3006

5014

3031

5007

W140

W140

5003

5010

W140

5049

5001

5041

5012

W102

W110

5020

9000

5015

W136

5006

5055

W101

W108

5053

W109

5009

W101

5000

3007

W128

W101

5013

W109

5002

6-7

BASE PLATE PARTS

#EV#

6001

5008

W108

6000

W115

W101

6007
