Amana KEHS01P User Manual
FRONT-LOADING ELECTRIC DRYER
Use & Care Guide
For questions about features, operation/performance, parts accessories or service, call:
In Canada, call for assistance
1-800-461-5681
www.kitchenaid.com
, for installation and service, call:
www.KitchenAid.ca
or
1-800-807-6777
1-800-422-1230
or visit our website at...
SECADORA ELÉCTRICA DE CARGA FRONTAL
Manual de Uso y Cuidado
Si tiene preguntas respecto a las características, funcionamiento/rendimiento, partes, accesorios o servicio técnico, llame al:
Para la instalación y el servicio llame al:
1-800-807-6777
o visite nuestro sitio web en...
www.kitchenaid.com
1-800-422-1230
SÉCHEUSE ÉLECTRIQUE À CHARGEMENT
À L'AVANT
Guide d’utilisation et d’entretien
Au Canada, pour assistance composez le
ou visitez notre site web à...
Table of Contents/Índice/Table des matières...............................................................2-3
1-800-461-5681
, pour installation ou service composez le
www.KitchenAid.ca
1-800-807-6777
Models/Modelos/Modèles KEHS01P, YKEHS01P
8557328
TABLE OF CONTENTS
ÍNDICE
DRYER SAFETY..............................................................................4
INSTALLATION INSTRUCTIONS..................................................5
Tools and Parts ............................................................................5
Options.........................................................................................5
Location Requirements ...............................................................5
Electrical Requirements - U.S.A. Only......................................... 7
Electrical Requirements - Canada Only.......................................8
Electrical Connection - U.S.A. Only.............................................9
Venting Requirements................................................................13
Plan Vent System.......................................................................13
Install Vent System.....................................................................15
Install Leveling Legs...................................................................15
Level Dryer .................................................................................15
Connect Vent..............................................................................15
Reverse Door Swing ..................................................................15
Complete Installation .................................................................17
DRYER USE ..................................................................................18
Starting Your Dryer.....................................................................18
Stopping Your Dryer ..................................................................19
Pausing or Restarting.................................................................19
Control Locked...........................................................................19
Loading.......................................................................................19
Drying and Cycle Tips................................................................19
Status Lights ..............................................................................20
Cycles.........................................................................................20
Additional Features ....................................................................21
Drying Rack................................................................................22
DRYER CARE ...............................................................................22
Cleaning the Dryer Location ......................................................22
Cleaning the Lint Screen............................................................23
Cleaning the Dryer Interior .........................................................23
Removing Accumulated Lint......................................................23
Vacation and Moving Care.........................................................23
Changing the Drum Light...........................................................24
TROUBLESHOOTING ..................................................................24
ASSISTANCE OR SERVICE.........................................................25
In the U.S.A. ...............................................................................25
In Canada ...................................................................................25
WARRANTY ..................................................................................26
SEGURIDAD DE LA SECADORA................................................27
INSTRUCCIONES DE INSTALACIÓN.........................................28
Herramientas y piezas................................................................28
Opciones ....................................................................................28
Requisitos de ubicación ............................................................28
Requisitos eléctricos - Sólo en EE. UU......................................30
Conexión eléctrica - Sólo en EE. UU. ........................................32
Requisitos de ventilación ...........................................................36
Planificación del sistema de ventilación ....................................36
Instalación del sistema de ventilación .......................................38
Instalación de las patas niveladoras..........................................38
Nivelación de la secadora..........................................................39
Conexión del ducto de escape..................................................39
Cómo invertir el cierre de la puerta............................................39
Complete la instalación..............................................................40
USO DE LA SECADORA ..............................................................41
Puesta en marcha de la secadora .............................................41
Detención de la marcha de la secadora ....................................42
Pausa o reanudación de la marcha ...........................................42
Control bloqueado .....................................................................42
Cómo cargar...............................................................................42
Sugerencias de ciclos y secado ................................................42
Luces de estado.........................................................................43
Ciclos..........................................................................................43
Características adicionales ........................................................44
Estante de secado......................................................................45
CUIDADO DE LA SECADORA.....................................................46
Limpieza del lugar donde está la secadora...............................46
Limpieza del filtro de pelusa ......................................................46
Limpieza del interior de la secadora ..........................................47
Eliminación de pelusa acumulada .............................................47
Cuidado para las vacaciones y la mudanza..............................47
Cambio de la luz del tambor......................................................47
SOLUCIÓN DE PROBLEMAS......................................................48
AYUDA O SERVICIO TÉCNICO...................................................49
GARANTÍA.....................................................................................50
2
TABLE DES MATIÈRES
SÉCURITÉ DE LA SÉCHEUSE....................................................51
INSTRUCTIONS D'INSTALLATION ............................................52
Outillage et pièces nécessaires .................................................52
Options.......................................................................................52
Emplacement d’installation........................................................52
Spécifications électriques - Canada seulement........................54
Exigences concernant l’évacuation...........................................55
Planification du système d'évacuation......................................56
Installation du conduit d’évacuation..........................................57
Installation des pieds de nivellement.........................................58
Mise à niveau de la sécheuse....................................................58
Conduit d’évacuation.................................................................58
Inversion de l'ouverture de la porte ...........................................58
Achever l’installation ..................................................................60
UTILISATION DE LA SÉCHEUSE................................................61
Mise en marche de la sécheuse ................................................61
Arrêt de la sécheuse ..................................................................62
Arrêt ou remise en marche.........................................................62
Verrouillage des commandes ....................................................62
Chargement................................................................................62
Conseils pour le séchage et les programmes ...........................63
Témoins lumineux ......................................................................63
Programmes...............................................................................64
Caractéristiques supplémentaires .............................................65
Grille de séchage........................................................................66
ENTRETIEN DE LA SÉCHEUSE..................................................67
Nettoyage de l'emplacement de la sécheuse ...........................67
Nettoyage du filtre à charpie......................................................67
Nettoyage de l’intérieur de la sécheuse ....................................67
Retrait de la charpie accumulée ................................................68
Précautions à prendre pour les vacances et avant
un déménagement .....................................................................68
Changement de l’ampoule d’éclairage du tambour..................68
DÉPANNAGE ................................................................................68
ASSISTANCE OU SERVICE.........................................................70
GARANTIE.....................................................................................71
3
DRYER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or
“WARNING.” These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
can be killed or seriously injured if you don't
You
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic
WARNING:
precautions, including the following:
■
Read all instructions before using the dryer.
■
Do not place items exposed to cooking oils in
your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could
cause a load to catch fire.
■
Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, other flammable,
or explosive substances as they give off vapors
that could ignite or explode.
■
Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children.
■
Before the dryer is removed from service or discarded, remove the door to the drying compartment.
■
Do not reach into the dryer if the drum is moving.
■
Do not install or store the dryer where it will be
exposed to the weather.
■
Do not tamper with controls.
■
Do not repair or replace any part of the dryer or
attempt any servicing unless specifically recommended in this Use and Care Guide or in published
user-repair instructions that you understand and have
the skills to carry out.
■
Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of
the fabric softener or product.
■
Do not use heat to dry articles containing foam rubber
or similarly textured rubber-like materials.
■
Clean lint screen before or after each load.
■
Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint,
dust, and dirt.
■
The interior of the dryer and exhaust vent should be
cleaned periodically by qualified service personnel.
■
See installation instructions for grounding requirements.
SAVE THESE INSTRUCTIONS
4
INSTALLATION INSTRUCTIONS
Tool s a nd Parts
Check that you have everything necessary for correct installation.
Proper installation is your responsibility.
■
Flat-blade screwdriver
■
Adjustable wrench that
opens to 1 in. (2.5 cm) or
hex-head socket wrench
(for adjusting dryer feet)
■
Level
■
Wire stripper (direct wire
installations)
■
#2 Phillips screwdriver
Parts supplied
Remove parts packages from dryer drum. Check that all parts are
included.
4 Leveling legs
NOTE:
Do not use leveling legs if installing the dryer on a
pedestal.
Parts needed
Check local codes. Check existing electrical supply and venting.
See “Electrical Requirements” and “Venting Requirements”
before purchasing parts.
■
For close-clearance installations between 31.5 in. (80.01 cm)
and 37 in. (93.98 cm), see “Plan Vent System” section for
venting requirements.
■
Safety glasses
■
Vent clamps
■
Caulking gun and
compound (for installing
new exhaust vent)
■
Gloves
■
Tin snips (new vent
installations)
■
¼ in. nut driver
Options
Pedestal
Are you placing the dryer on a pedestal? You may purchase a
pedestal separately for this dryer. This pedestal will add about
13 in. (33 cm) to the height of your unit for a total height of
approximately 51 in. (130 cm).
Optional pedestal
To order, call the dealer from whom you purchased your dryer or
refer to the “Assistance or Service” section of this manual. Ask
for Part Number LAB2700PMT.
Stack Kit
Are you planning to stack your washer and dryer? To do so, you
will need to purchase a Stack Kit.
To order, call the dealer from whom you purchased your dryer or
refer to the “Assistance or Service” section of this manual. Ask
for Part Number 8541503.
Location Requirements
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your dryer. For further information, please refer to the “Assistance
or Service” section of this manual.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (46 cm) above the
floor for a garage installation.
Failure to do so can result in death, explosion,
or fire.
You will need
■
A location that allows for proper exhaust installation. See
“Venting Requirements.”
■
A separate 30 amp circuit.
■
A grounded electrical outlet located within 2 ft (61 cm) of
either side of the dryer. See “Electrical Requirements.”
5
■
"
in.
in.
"
"
"
"
"
"
½
1
2
A sturdy floor to support the total dryer weight of 200 lbs
(90.7 kg). The combined weight of a companion appliance
should also be considered.
■
A level floor with a maximum slope of 1 in. (2.5 cm) under
entire dryer. If slope is greater than 1 in. (2.5 cm), install
Extended Dryer Feet Kit, Part Number 279810. Clothes may
not tumble properly and automatic sensor cycles may not
operate correctly if dryer is not level.
■
For a garage installation, you will need to place the dryer at
least 18 in. (46 cm) above the floor. If using a pedestal, you
will need an additional 6 in. (15.24 cm).
Do not operate your dryer at temperatures below 45ºF (7ºC). At
lower temperatures, the dryer might not shut off at the end of an
automatic cycle. This can result in longer drying times.
The dryer must not be installed or stored in an area where it will
be exposed to water and/or weather.
Check code requirements. Some codes limit, or do not permit,
installation of the dryer in garages, closets, mobile homes, or
sleeping quarters. Contact your local building inspector.
Installation clearances
■
The location must be large enough to fully open the dryer
door.
■
Additional spacing should be considered for ease of
installation and servicing.
■
Additional clearances might be required for wall, door and
floor moldings.
■
Additional spacing of 1 in. (2.5 cm) on all sides of the dryer is
recommended to reduce noise transfer.
■
Companion appliance spacing should also be considered.

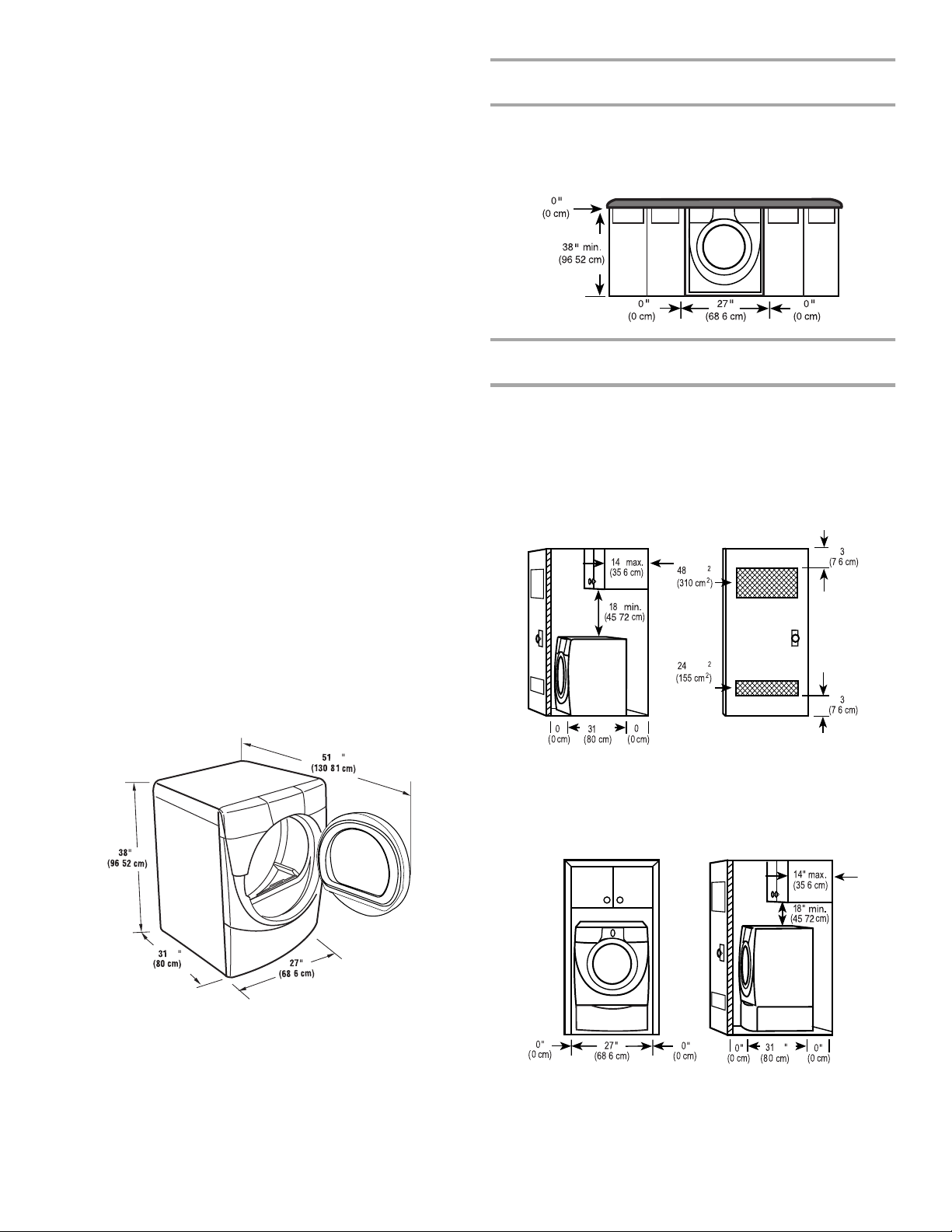

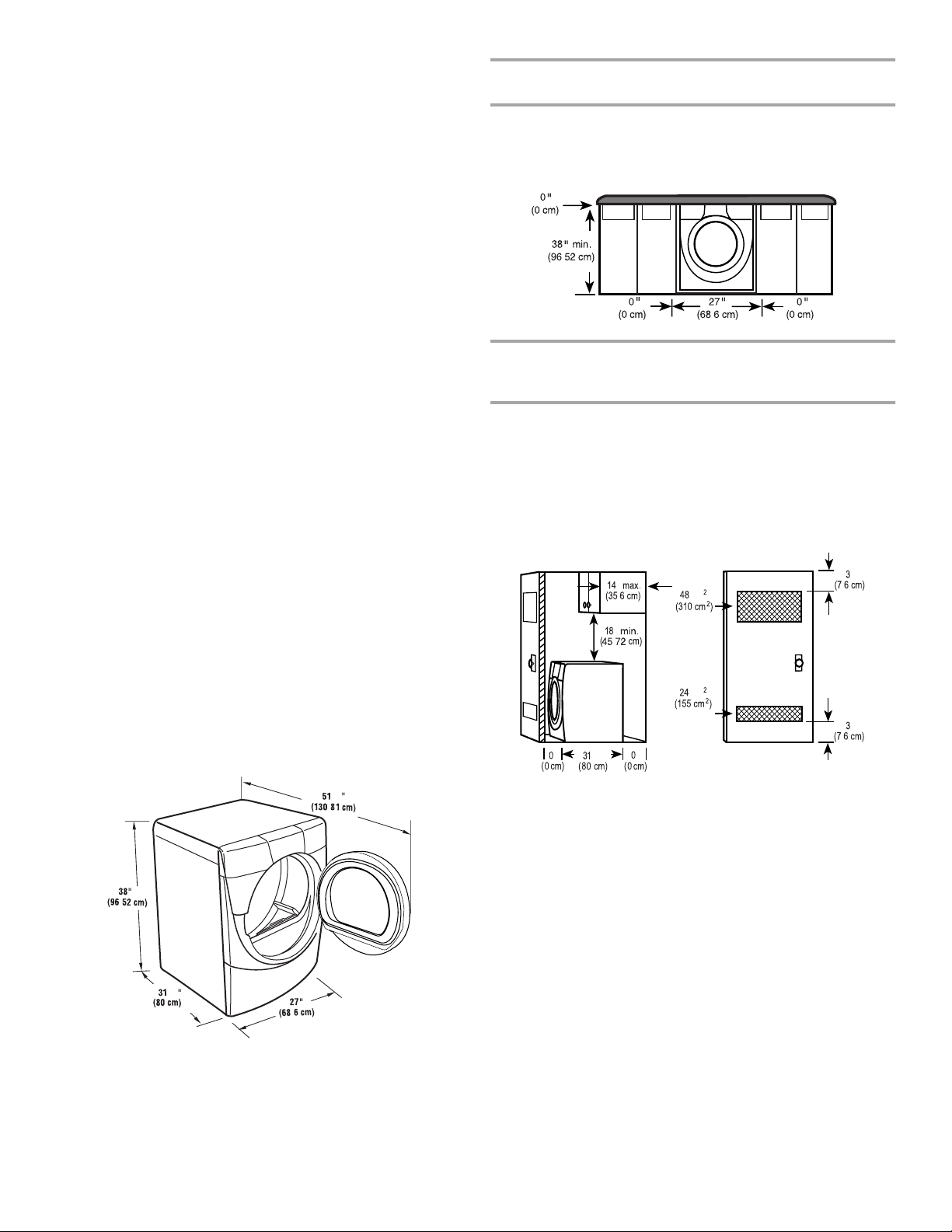

Dryer Dimensions
Minimum installation spacing for custom undercounter
installation
The dimensions shown are for the minimum spacing allowed.
Custom undercounter installation - Dryer only
Minimum installation spacing for recessed or closet
installation, with or without a pedestal
■
The dimensions shown are for the minimum spacing allowed.
■
For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
Closet installation - Dryer only
½
½
*
*Most installations require a minimum 5½ in. (14 cm) clearance
behind the dryer for the exhaust vent with elbow. See “Venting
Requirements.”
1. Side view- closet or confined area
2. Closet door with vents
Recessed or closet installation - Dryer on pedestal
½
12
1. Recessed area
2. Side view - closet or confined area
6
Minimum installation spacing for cabinet installation
■
The dimensions shown are for the minimum spacing allowed.
■
For cabinet installation, with a door, minimum ventilation
openings in the top of the cabinet are required.
7" (17.8 cm)
7" (17.8 cm)
0"
(0 cm)
31¹₂"
(80.0 cm)
0"
(0 cm)0"(0 cm)
27"
(68.6 cm)
0"
(0 cm)
9"
(22.9 cm)
Mobile home - Additional installation requirements
This dryer is suitable for mobile home installations. The
installation must conform to the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile Home Construction and
Safety, Title 24, HUD Part 280) or Standard CAN/CSA-Z240 MH.
Mobile home installations require:
■
Metal exhaust system hardware which is available for
purchase from your dealer.
■
Special provisions must be made in mobile homes to
introduce outside air into the dryer. The opening (such as a
nearby window) should be at least twice as large as the dryer
exhaust opening.
Electrical Connection
To properly install your dryer, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
■
This dryer is manufactured ready to install with a 3-wire
electrical supply connection. The green cabinet-grounding
conductor is permanently connected to the neutral conductor
(white wire) within the dryer. If the dryer is installed with a
4-wire electrical supply connection, the green cabinetgrounding conductor must be removed from the external
ground connector (green screw), and secured under the
neutral terminal (center or white wire) of the terminal block.
When the green cabinet-grounding conductor is secured
under the neutral terminal (center or white wire) of the
terminal block, the dryer cabinet is isolated from the neutral
conductor.
■
If local codes do not permit the connection of a cabinet
ground connector to the neutral wire, see “Optional 3-wire
connection” section.
■
Use a 4-wire conductor cord when the dryer is installed in a
mobile home or an area where local codes do not permit
grounding through the neutral.
If using a power supply cord:
Use a UL listed power supply cord kit marked for use with
clothes dryers. The kit should contain:
■
A UL listed 30 amp power supply cord, rated 120/240 volt
minimum. The cord should be type SRD or SRDT and be at
least 4 ft (1.22 m) long. The wires that connect to the dryer
must end in ring terminals or spade terminals with upturned
ends.
■
A UL listed strain relief.

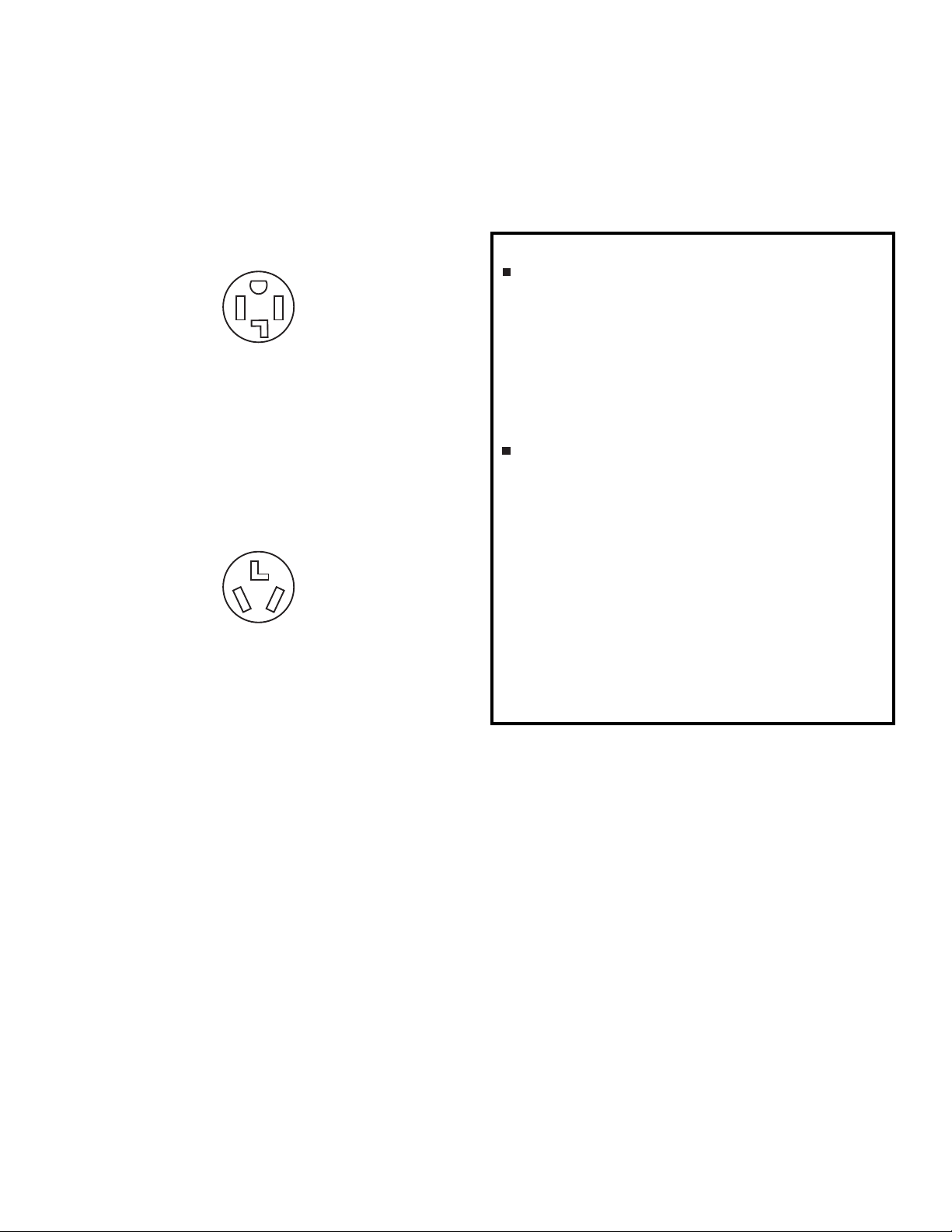

If your outlet looks like this:
4-wire receptacle (14-30R)
Electrical Requirements - U.S.A. Only
It is your responsibility
■
To contact a qualified electrical installer.
■
To be sure that the electrical connection is adequate and in
conformance with the National Electrical Code, ANSI/NFPA
70-latest edition and all local codes and ordinances.
The National Electric Code requires a 4-wire power supply
connection for homes built after 1996, dryer circuits involved
in remodeling after 1996, and all mobile home installations.
A copy of the above code standards can be obtained from:
National Fire Protection Association, One Batterymarch Park,
Quincy, MA 02269.
■
To supply the required 3 or 4 wire, single phase, 120/240-volt,
60-Hz., AC-only electrical supply (or 3 or 4 wire, 120/208-volt
electrical supply, if specified on the serial/rating plate) on a
separate 30-amp circuit, fused on both sides of the line. A
time-delay fuse or circuit breaker is recommended. Connect
to an individual branch circuit. Do not have a fuse in the
neutral or grounding circuit.
■
Do not use an extension cord.
■
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the
ground path is adequate.
Then choose a 4-wire power supply cord with ring or spade
terminals and UL listed strain relief. The 4-wire power supply
cord, at least 4 ft (1.22 m) long, must have 4, 10-gauge solid
copper wires and match a 4-wire receptacle of NEMA Type
14-30R. The ground wire (ground conductor) may be either green
or bare. The neutral conductor must be identified by a white
cover.
If your outlet looks like this:
3-wire receptacle (10-30R)
Then choose a 3-wire power supply cord with ring or spade
terminals and UL listed strain relief. The 3-wire power supply
cord, at least 4 ft (1.22 m) long, must have 3, 10-gauge solid
copper wires and match a 3-wire receptacle of NEMA Type
10-30R.
7
If connecting by direct wire:
Power supply cable must match power supply (4-wire or 3-wire)
and be:
■
Flexible armored cable or nonmetallic sheathed copper cable
(with ground wire), protected with flexible metallic conduit. All
current-carrying wires must be insulated.
■
10-gauge solid copper wire (do not use aluminum).
■
At least 5 ft (1.52 m) long.
For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current. This
dryer uses a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
For a permanently connected dryer:
This dryer must be connected to a grounded metal, permanent
wiring system, or an equipment-grounding conductor must be
run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dryer.
■
To supply the required 4 wire, single phase, 115/230-volt,
60-Hz., AC-only electrical supply on a separate 30-amp
circuit, fused on both sides of the line. A time-delay fuse or
circuit breaker is recommended. Connect to an individual
branch circuit.
■
This dryer is equipped with a CSA International Certified
Power Cord intended to be plugged into a standard 14-30R
wall receptacle. The cord is 5 ft (1.52 m) in length. Be sure
wall receptacle is within reach of dryer’s final location.
4-wire receptacle 14-30R
■
Do not use an extension cord.
If using a replacement power supply cord, it is recommended
that you use Power Supply Cord Replacement Part Number
9831317. For further information, please reference the service
numbers located in the “Assistance or Service” section on this
manual.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative or
personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug on the power supply cord:
if it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
Electrical Requirements - Canada Only
Electrical Shock Hazard
Plug into a grounded 4 prong outlet.
Failure to do so can result in death or
electrical shock.
For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current. This
dryer is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING:
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative or
personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug provided with the dryer: if
it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
Improper connection of the equipment-
It is your responsibility
■
To contact a qualified electrical installer.
■
To be sure that the electrical connection is adequate and in
conformance with the Canadian Electrical Code, C22.1-latest
edition and all local codes. A copy of the above codes
standard may be obtained from: Canadian Standards
Association, 178 Rexdale Blvd., Toronto, ON M9W 1R3
CANADA.
8
Electrical Connection - U.S.A. Only
Power Supply Cord
Fire Hazard
Use a new UL listed 30 amp power
supply cord.
Use a UL listed strain relief.
Disconnect power before making electrical
connections.
Connect neutral wire (white or center wire) to
center terminal (silver).
Ground wire (green or bare wire) must be
connected to green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
Direct Wire
Fire Hazard
Use 10 gauge solid copper wire.
Use a UL listed strain relief.
Disconnect power before making electrical
connections.
Connect neutral wire (white or center wire) to
center terminal (silver).
Ground wire (green or bare wire) must be
connected to green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
1.
Disconnect power.
2.
Remove the hold-down screw and terminal block cover.
3
2
1
1. Neutral grounding wire (green/yellow)
2. External ground conductor screw
3. Center, silver-colored terminal block screw
4. Terminal block cover and hold-down screw
3.
Assemble a
on strain relief) into the hole below the terminal block
opening. Tighten strain relief screws just enough to hold the
two clamp sections together. Put power supply cord through
the strain relief. The strain relief should have a tight fit with the
dryer cabinet and be in a horizontal position.
³⁄₄
in. (1.9 cm) UL listed strain relief (UL marking
4
4.
Now complete installation following instructions for your type
of electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
9
Electrical Connection Options
3
4
5
If your home has: And you will be
connecting to:
4-wire receptacle
(NEMA Type 14-30R)
A UL listed,
120/240 volt
minimum, 30
amp, dryer
power supply
cord*
Go to Section
4-wire connection:
Power supply cord
1.
Remove center terminal block screw.
2.
Remove appliance ground wire (green with yellow stripes)
from external ground conductor screw. Fasten it under center,
silver-colored terminal block screw.
1
2
4-wire direct A fused
disconnect or
4-wire connection:
Direct Wire
circuit breaker
5"
(12.7 cm)
3-wire receptacle
(NEMA type 10-30R)
box*
A UL listed,
120/240 volt
3-wire connection:
Power supply cord
minimum, 30
amp., dryer
power supply
cord*
3-wire direct A fused
disconnect or
1
3 / "
(8.9 cm)
2
circuit breaker
box*
3-wire connection:
Direct Wire
*If local codes do not permit the connection of a frame-grounding
conductor to the neutral wire, go to “Optional
3-wire Connection” section.
4-wire connection: Power supply cord
IMPORTANT:
and where local codes do not permit the use of 3-wire
connections.
1
A 4-wire connection is required for mobile homes
2
6
1. External ground conductor screw- Dotted line
shows position of NEUTRAL ground wire
before being moved to center terminal block screw
2. Center silver-colored terminal block screw
3. Green/yellow wire of harness
3.
Connect ground wire (green or bare) of power supply cord to
external ground conductor screw. Tighten screw.
4.
Connect neutral wire (white or center wire) of power supply
cord under center screw of the terminal block.
1
2
3
6
1. External ground conductor screw
2. Green or bare copper wire of power supply cord
³⁄₄
in. (1.9 cm) UL listed strain relief
3.
4. Center silver-colored terminal block screw
5. Neutral grounding wire (green/yellow)
6. Neutral wire (white or center wire)
10
4
3
1. 4-wire receptacle (NEMA type 14-30R)
2. 4-prong plug
3. Ground prong
4. Neutral prong
5. Spade terminals with upturned ends
6. ¾ in. (1.9 cm) UL listed strain relief
7. Ring terminals
5
5.
7
Connect the other wires to outer terminal block screws.
Tighten screws.
6.
Tighten strain relief screws.
7.
Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
4-wire connection: Direct wire
4
5
1
2
4
3
5
6
7
5
IMPORTANT:
and where local codes do not permit the use of 3-wire
connections.
Direct wire cable must have 5 ft (1.52 m) of extra length so dryer
can be moved if needed.
Strip 5 in. (12.7 cm) of outer covering from end of cable, leaving
bare ground wire at 5 in. (12.7 cm). Cut 1
3 remaining wires. Strip insulation back 1 in. (2.5 cm). Shape
ends of wires into a hook shape.
When connecting to the terminal block, place the hooked end of
the wire under the screw of the terminal block (hook facing right),
squeeze hooked end together and tighten screw. See example
below.
1.
Remove center terminal block screw.
2.
Remove appliance ground wire (green with yellow stripes)
from external ground conductor screw. Fasten it under center,
silver-colored terminal block screw.
3.
Connect ground wire (green or bare) of power supply cable to
external ground conductor screw. Tighten screw.
A 4-wire connection is required for mobile homes
¹⁄₂
in. (3.8 cm) from
5.
Place the hooked ends of the other power supply cable wires
under the outer terminal block screws (hooks facing right).
Squeeze hooked ends together. Tighten screws.
6.
Tighten strain relief screws.
7.
Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
3-wire connection: Power supply cord
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
1. 3-wire receptacle (NEMA type 10-30R)
2. 3-wire plug
3. Neutral prong
4. Spade terminals with up turned ends
³⁄₄
in. (1.9 cm) UL listed strain relief
5.
6. Ring terminals
7. Neutral (white or center wire)
1.
Loosen or remove center terminal block screw.
2.
Connect neutral wire (white or center wire) of power supply
cord to the center, silver-colored terminal screw of the
terminal block. Tighten screw.
1
2
3
1. External ground conductor screw
2. Green or bare copper wire of power supply cord
³⁄₄
in. (1.9 cm) UL listed strain relief
3.
4. Center silver-colored terminal block screw
5. Neutral grounding wire (green/yellow)
6. Neutral wire (white or center wire)
4.
Place the hooked end of the neutral wire (white wire) of power
supply cable under the center screw of terminal block (hook
facing right). Squeeze hooked end together. Tighten screw.
6
1
2
1. External ground conductor screw
2. Neutral grounding wire (green/yellow)
3. Center silver-colored terminal block screw
4. Neutral wire (white or center wire)
³⁄₄
in. (1.9 cm) UL listed strain relief
5.
3.
Connect the other wires to outer terminal block screws.
Tighten screws.
4.
Tighten strain relief screws.
5.
Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
3
4
11
3-wire connection: Direct wire
4
3
5
1
2
3
4
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
Direct wire cable must have 5 ft (1.52 m) of extra length so dryer
can be moved if needed.
¹⁄₂
Strip 3
insulation back 1 in. (2.5 cm). If using 3-wire cable with ground
wire, cut bare wire even with outer covering. Shape ends of wires
into a hook shape.
When connecting to the terminal block, place the hooked end of
the wire under the screw of the terminal block (hook facing right),
squeeze hooked end together and tighten screw. See example
below.
1.
2.
in. (8.9 cm) of outer covering from end of cable. Strip
1
Loosen or remove center terminal block screw.
Place the hooked end of the neutral wire (white or center wire)
of power supply cable under the center screw of terminal
block (hook facing right). Squeeze hooked end together.
Tighten screw.
3.
Place the hooked ends of the other power supply cable wires
under the outer terminal block screws (hooks facing right).
Squeeze hooked ends together. Tighten screws.
4.
Tighten strain relief screws.
5.
Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
Optional 3-wire connection
Use for direct wire or power supply cord where local codes
do not permit connecting cabinet-ground conductor to
neutral wire.
1.
Remove center terminal block screw.
2.
Remove appliance ground wire (green with yellow stripes)
from external ground conductor screw. Connect appliance
ground wire and the neutral wire (white or center wire) of
power supply cord/cable under center, silver-colored terminal
block screw. Tighten screw.
3.
Connect the other wires to outer terminal block screws.
Tighten screws.
1
4.
Tighten strain relief screws.
5.
Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
2
6.
Connect a separate copper ground wire from the external
ground conductor screw to an adequate ground.
1. External ground conductor screw
2. Neutral grounding wire (green/yellow)
3. Center silver-colored terminal block screw
4. Neutral wire (white or center wire)
³⁄₄
in. (1.9 cm) UL listed strain relief
5.
1. External ground conductor screw
2. Neutral grounding wire (green/yellow)
3. Neutral wire (white or center wire)
4. Grounding path determined by a qualified electrician
12
Venting Requirements
8
5
4
3
1
2
3
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Plan Vent System
Typical exhaust installations
Typical installations vent the dryer from the rear of the dryer.
Other installations are possible.
2
1
6
7
Do not use a metal foil vent.
Failure to follow these instructions can result in
death or fire.
WARNING:
EXHAUSTED OUTDOORS.
4 in. (10.2 cm) heavy metal exhaust vent and clamps must be
used. DURASAFE™ vent products are recommended.
DURASAFE™ vent products can be purchased from your dealer
or by calling Whirlpool Parts and Accessories. For more information, see the “Assistance or Service” section of this manual.
■
The dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling, or a concealed space of a building.
■
Do not use an exhaust hood with a magnetic latch.
■
Do not install flexible metal vent in enclosed walls, ceilings or
floors.
■
Use clamps to seal all joints. Exhaust vent must not be
connected or secured with screws or other fastening devices
which extend into the interior of the duct. Do not use duct
tape.
IMPORTANT:
Improper venting can cause moisture and lint to collect
indoors, which may result in:
Moisture damage to woodwork, furniture, paint, wall-
paper, carpets, etc.
Housecleaning problems and health problems.
To reduce the risk of fire, this dryer MUST BE
Observe all governing codes and ordinances.
1. Dryer
2. Elbow
3. Wall
4. Exhaust hood
5. Clamps
6. Rigid metal or flexible metal vent
7. Vent length necessary to
connect elbows
8. Exhaust outlet
Optional exhaust installations
This dryer can be converted to exhaust out the right side, left
side, or through the bottom. Contact your local dealer to have the
dryer converted.
Fire Hazard
Cover unused exhaust holes with the
following kit:
280028 (meteorite)
Contact your local dealer.
Failure to follow these instructions can result in
death, fire, electrical shock, or serious injury.
Use a heavy metal vent. Do not use plastic or metal foil vent.
Rigid metal vent is recommended to prevent crushing and
kinking.
Flexible metal vent must be fully extended and supported when
the dryer is in its final position. Remove excess flexible metal vent
to avoid sagging and kinking that can result in reduced airflow
and poor performance.
An exhaust hood should cap the vent to prevent rodents and
insects from entering the home.
Exhaust hood must be at least 12 in. (30.5 cm) from the ground or
any object that is in the path of the exhaust (such as flowers,
rocks or bushes, etc.).
If using an existing vent system, clean lint from the entire length
of the system and make sure exhaust hood is not plugged with
lint. Replace any plastic or metal foil vent with rigid metal or
flexible metal vent.
1. Standard rear offset exhaust installation
2. Left or right side exhaust installation
3. Bottom exhaust installation (Not an option with
pedestal installations.)
13
Alternate installations for close clearances
4"
(10.2 cm)
4"
(10.2 cm)
2
1
4"
10.2 cm)
2½"
(6.4 cm)
Venting systems come in many varieties. Select the type best for
your installation. Two close-clearance installations are shown.
Refer to the manufacturer’s instructions.
12
1. Over the top installation (also available with one
offset elbow)
2. Periscope installation
NOTE:
The following kits for close clearance alternate
installations are available for purchase. Please see the
“Assistance or Service” section of this manual to order.
■
Over the top Installation:
Part Number 4396028
■
Periscope Installation (For use with dryer vent to wall vent
mismatch):
Part Number 4396037 - 0 in. (0 cm) to 18 in. (45.72 cm)
mismatch
Part Number 4396011 - 18 in. (45.72 cm) to 29 in. (73.66 cm)
mismatch
Part Number 4396014 - 29 in. (73.66 cm) to 50 in. (127 cm)
mismatch
Special provisions for mobile home installations
The exhaust vent must be securely fastened to a noncombustible
portion of the mobile home structure and must not terminate
beneath the mobile home. Terminate the exhaust vent outside.
2.
Determine vent length.
The maximum length of the exhaust system depends upon:
■
The type of vent (rigid metal or flexible metal).
■
The number of elbows used.
■
Type of hood.
Recommended hood styles are shown here.
1. Louvered hood style
2. Box hood style
The angled hood style (shown following) is acceptable.
See the exhaust vent length chart that matches your hood
type for the maximum vent lengths you can use.
Exhaust systems longer than specified will:
■
Shorten the life of the dryer.
■
Reduce performance, resulting in longer drying times and
increased energy usage.
3.
Determine the number of elbows you will need.
IMPORTANT:
Do not use vent runs longer than those
specified in the Vent Length Chart.
The following chart helps you determine your maximum vent
length based on the number of 90° turns or elbows you will
need and the type of vent (rigid or flexible metal) and hood
that you will use.
Vent Length Chart
Determine Vent Length
1.
Select the route that will provide the straightest and most
direct path outdoors. Plan the installation to use the fewest
number of elbows and turns. When using elbows or making
turns, allow as much room as possible. Bend vent gradually
to avoid kinking. Avoid 90º turns.
14
Number of
90º turns
or elbows
0Rigid metal
1Rigid metal
2Rigid metal
3Rigid metal
4Rigid metal
NOTE:
Side and bottom exhaust installations have a 90º turn
Type of
vent
Flexible metal
Flexible metal
Flexible metal
Flexible metal
Flexible metal
Box or
Louvered
hoods
64 ft (20 m)
36 ft (11 m)
54 ft (16.5 m)
31 ft (9.4 m)
44 ft (13.4 m)
27 ft (8.2 m)
35 ft (10.7 m)
25 ft (7.6 m)
27 ft (8.2 m)
23 ft (7 m)
Angled
hoods
58 ft (17.7 m)
28 ft (8.5 m)
48 ft (14.6 m)
23 ft (7 m)
38 ft (11.6 m)
19 ft (5.8 m)
29 ft (8.8 m)
17 ft (5.2 m)
21 ft (6.4 m)
15 ft (4.6 m)
inside the dryer. To determine maximum exhaust length, add one
90º turn to the chart.
Install Vent System
1.
(Optional) Put on safety glasses and gloves.
2.
Install exhaust hood. Use caulking compound to seal exterior
wall opening around exhaust hood.
3.
Connect vent to exhaust hood. Vent must fit inside exhaust
hood. Secure vent to exhaust hood with 4 in. (10.2 cm)
clamp.
4.
Run vent to dryer location. Use the straightest path possible.
See “Determine Vent Length.” Avoid 90º turns. Use clamps to
seal all joints. Do not use duct tape, screws or other fastening
devices that extend into the interior of the vent to secure
vent.
Install Leveling Legs
WARNING
Level Dryer
Check the levelness of the dryer. Check levelness first side to
side, then front to back.
If the dryer is not level, prop up the dryer using a wood block.
Use a wrench to adjust the legs up or down and check again for
levelness.
NOTE:
It might be necessary to level the dryer again after it has
been moved into its final position.
Excessive Weight Hazard
Use two or more people to move and install
dryer.
Failure to do so can result in back or other injury.
1.

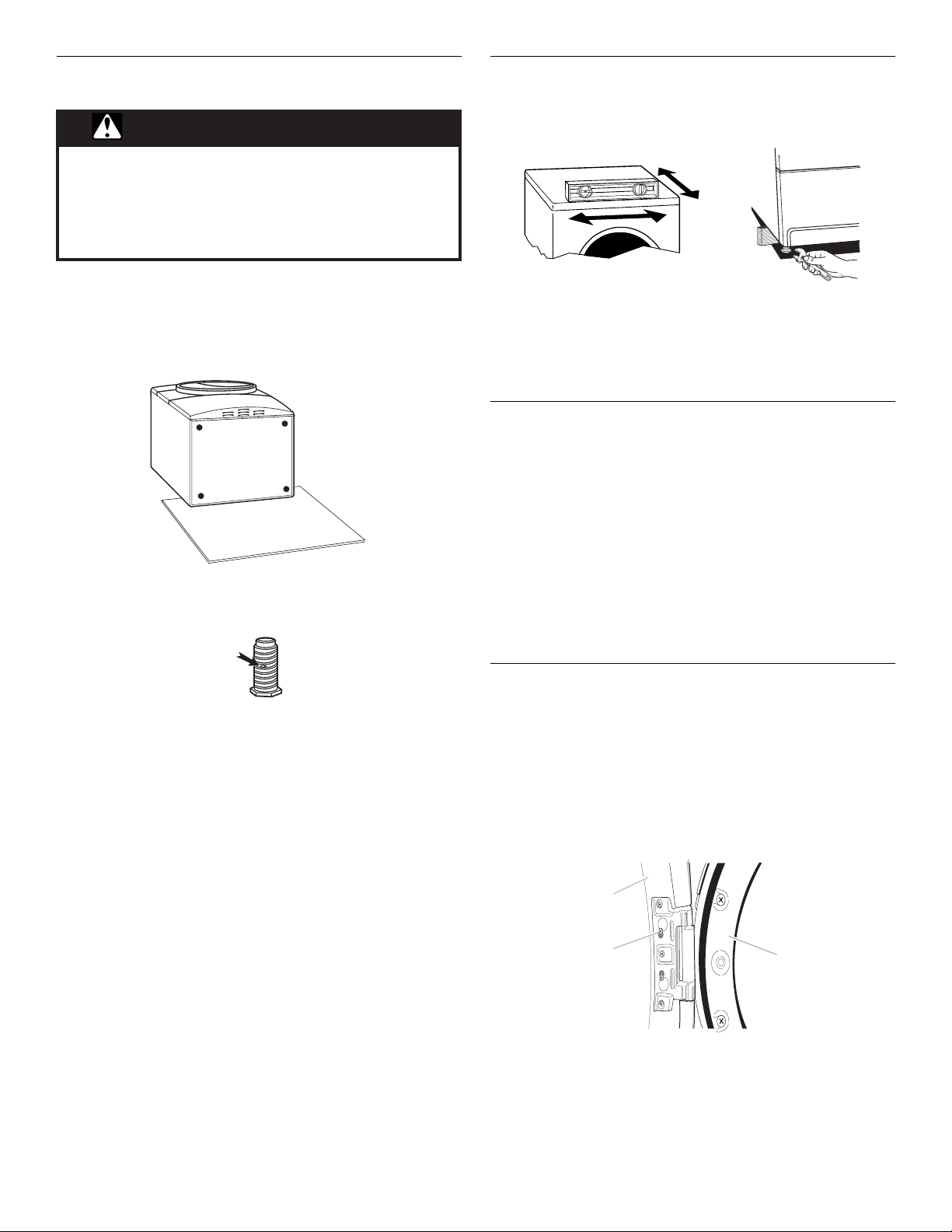

To protect the floor, use a large flat piece of cardboard from
the dryer carton. Place cardboard under the entire back edge
of the dryer. See illustration.
2.
Firmly grasp the body of the dryer (not the console panel).
Gently lay the dryer on the cardboard.
3.
Examine the leveling legs. Find the diamond marking.
Connect Vent
1.
Using a 4-in. (10.2-cm) clamp, connect vent to exhaust outlet
in dryer. If connecting to existing vent, make sure the vent is
clean. The dryer vent must fit over the dryer exhaust outlet
and inside the exhaust hood. Make sure the vent is secured
to exhaust hood with a 4-in. (10.2-cm) clamp.
2.
Move dryer into final position. Do not crush or kink vent.
Make sure dryer is level.
3.
(On gas models) Check to be sure there are no kinks in the
flexible gas line.
Reverse Door Swing
You can change your door swing from a right-side opening to a
left-side opening, if desired.
Remove the door
1.
Open the dryer door. Remove the 4 screws that hold the door
hinge on the front panel of the dryer. Loosen, but do not
remove, the screw with the top keyhole opening last (second
from the top).
1
2
3
4.
Screw the legs into the leg holes by hand. Use a wrench to
finish turning the legs until the diamond marking is no longer
visible.
5.
Place a carton corner post under each of the 2 dryer back
corners. Stand the dryer up. Slide the dryer on the corner
posts until it is close to its final location. Leave enough room
to connect the exhaust vent.
6.
Once connection is made and dryer is in final location,
remove corner posts and cardboard.
1. Dryer
2. Do not remove
3. Dryer door
2.
Lift and pull forward on the door so that the keyhole clears
the screwhead. Remove the door.
15
3.
Lay the dryer door on a flat, protected surface with the inside
door assembly facing up. Remove the last screw from step 1.
Remove the 2 screws holding the handle to the door.
4.
Remove the 6 screws to release the outer door assembly
from the inner door assembly (see illustration). It is important
that you remove only the 6 indicated screws.
Reverse the hinge and hinge bracket
1.
Place the inner door, screwhead side up, on the work surface.
2.
Remove the 4 screws that hold the hinge to the door.
3.
Remove the 2 screws that hold the handle bracket to the
door.
5.
Lift the inner door assembly off of the outer door assembly.
Unsnap the handle from the outer door assembly, move it to
the other side, and snap in. Set the outer door assembly
aside.
4.
Move hinge to the other side and reattach with the 4 screws
removed in step 2.
5.
Move handle bracket to the other side and reattach with the 2
screws removed in step 3.
6.
Set the inner door assembly aside.
Reinstalling the door
1.
Check for fingerprints on the glass. Clean if necessary.
2.
Place the inner door assembly into the outer door assembly.
Align the hinge in the opening on the side. To fit correctly, the
inside door assembly edge is completely inside the outside
door assembly edge.
3.
Reassemble the inner and outer door assemblies with the
6 screws.
16
4.
2
3
Replace the 2 handle screws for the door handle of the door
assembly.
5.

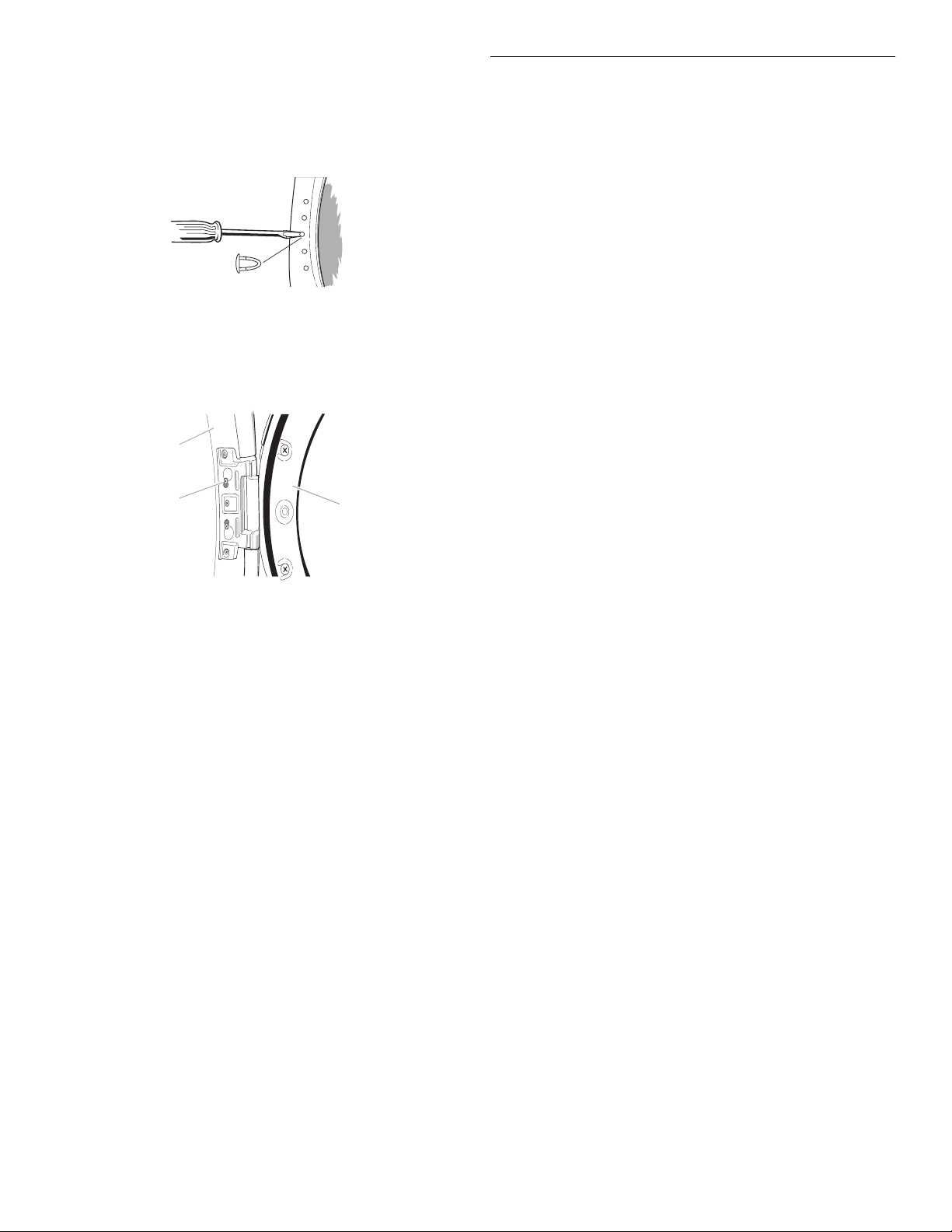

Use a small flat-blade screwdriver to remove hole plugs in the
door opening. Slide the head of the screwdriver under the
cap of each hole plug, being careful not to scratch the dryer
surface. Lift up. Remove the hole plugs in the door opening
and insert in the opposite side.
6.
Insert a screw in the second opening from the top of the
hinge opening and partially tighten. Hang the door by placing
the top hinge keyhole over the second screwhead and tighten
the screw. By putting this screw in first, the door will hang in
place while you insert and tighten the remaining 4 screws.
1
1. Dryer door
2. Dryer
3. Insert this screw first
7.
Close the door and check that it latches securely.
Complete Installation
1.
Check to be sure all parts are now installed. If there is an
extra part, go back through the steps to see which step was
skipped.
2.
Check to be sure you have all of your tools.
3.
Dispose of all packaging materials.
4.
Check the dryer’s final location. Be sure the vent is not
crushed or kinked.
5.
Check to be sure the dryer is level. See “Level Dryer.”
6.
Plug into a grounded outlet. Turn power on.
7.
Remove the blue protective film on the console and any tape
remaining on the dryer.
8.
Read “Dryer Use.”
9.
Wipe the dryer drum interior thoroughly with a damp cloth to
remove any dust.
10.
Set the dryer on a full heat cycle (not an air cycle) for
20 minutes and start the dryer.
If the dryer will not start, check the following:
■
Controls are set in a running or “On” position.
■
Start button has been pushed firmly.
■
Dryer is plugged into a grounded outlet.
■
Electrical supply is connected.
■
House fuse is intact and tight, or circuit breaker has not
tripped.
■
Dryer door is closed.
11.
When the dryer has been running for 5 minutes, open the
dryer door and feel for heat.
If you do not feel heat, turn the dryer off and check the
following:
■
There may be 2 fuses or circuit breakers for the dryer. Check
to make sure both fuses are intact and tight, or that both
circuit breakers have not tripped. If there is still no heat,
contact a qualified technician.
NOTE:
You may notice a burning odor when the dryer is first
heated. This odor is common when the heating element is first
used. The odor will go away.
17
DRYER USE

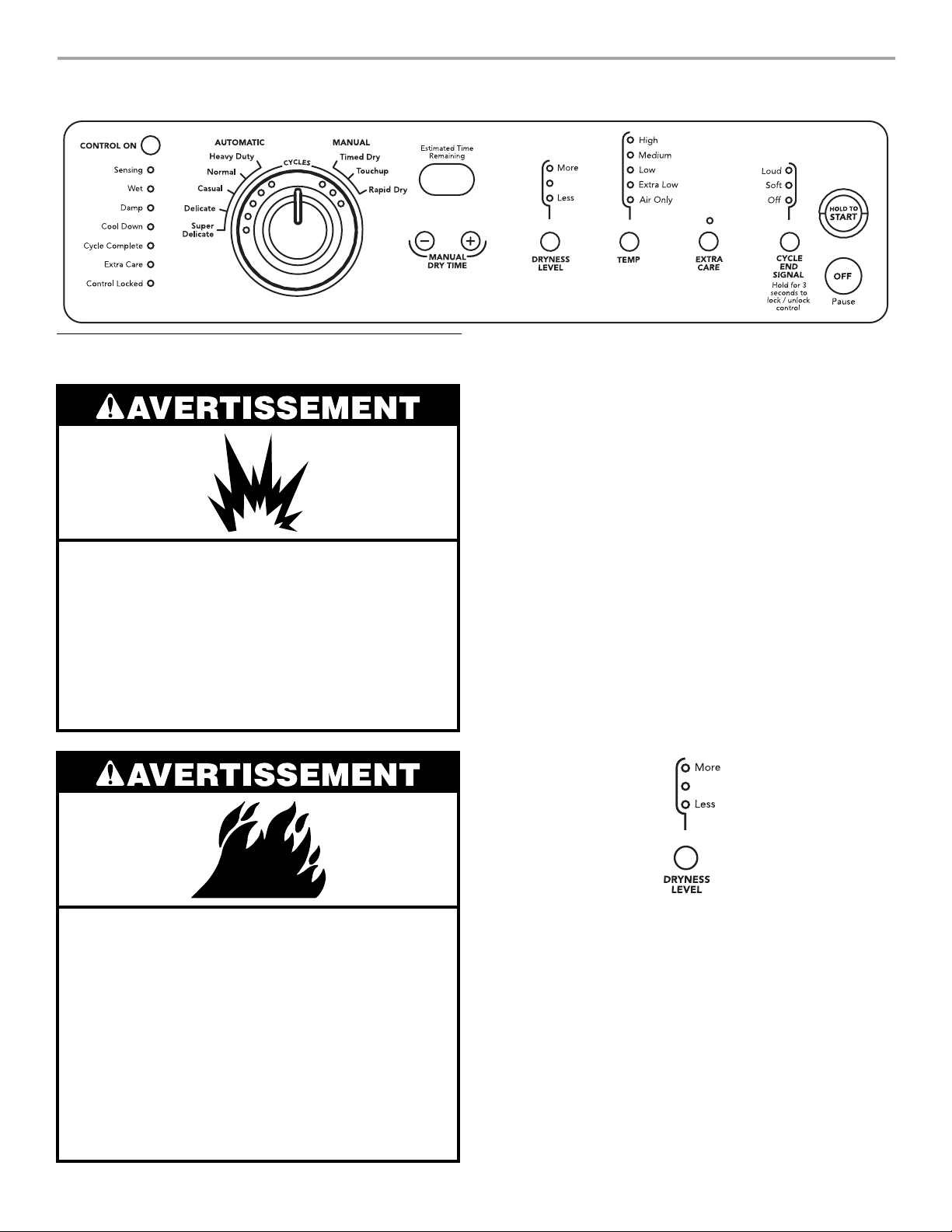

Starting Your Dryer
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Do not dry anything that has ever had anything
flammable on it (even after washing).
Failure to follow these instructions can result in
death, explosion, or fire.
WARNING:
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
The following is a guide to starting your dryer. Please refer to
specific sections of this manual for more detailed information.
1.
Clean lint screen before or after each cycle. See “Cleaning
the Lint Screen.”
2.
Place laundry into dryer and shut door. See “Loading.”
3.
Rotate the dial to select either an Automatic or Manual Cycle
then press the CONTROL ON button. The preset settings and
drying time for the cycle chosen will be displayed.
To use an Automatic Cycle
■
■
To reduce the risk of fire, electric shock, or injury to
Point the dial to an Automatic Cycle.
Select DRYNESS LEVEL to adjust how dry you want the
load to be. The time displayed is an estimated length of
the cycle based on the Dryness Level selected. As the
cycle runs, the control senses the dryness of the load and
adjusts the time automatically for the selected Dryness
Level.
Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of
oil on it (including cooking oils).
Items containing foam, rubber, or plastic must be
dried on a clothesline or by using an Air Cycle.
Failure to follow these instructions can result in
death or fire.
18
NOTE:
Time is not adjustable for Automatic Cycles. Pressing
the Manual Dry Time (- or +) buttons will cause a triple beep,
indicating that the time cannot be changed.
■
Press the EXTRA CARE feature button if this option is
desired.
■
Press the CYCLE END SIGNAL button to set signal
volume to desired level.
■
Press (and hold) HOLD TO START button until dryer starts
(about 1 second).
Once an Automatic cycle has started, the Extra Care feature
and the Cycle End Signal level can be adjusted. Press the
OFF button twice to stop the dryer and clear the settings,
allowing you to select another cycle and Dryness Level.
To use a Manual Cycle
■
Rotate the dial to select a Manual Cycle.
Press MANUAL DRY TIME (- or +) buttons until the desired
drying time is displayed. Tap - or + and the time will change
by 1-minute intervals. Press and hold - or + and the time will
change by 5-minute intervals. The initial time displayed is the
actual drying time.
NOTE:
The Manual Dry Time feature can be used only with
Manual Cycles.
■
Press TEMP until the desired temperature glows.
NOTE:
beep indicating that this option is not selectable. Also, a
Dryness Level is not indicated.
■
■
■
While a Manual Cycle is running, you can change the settings
for Time, Temperature, the Extra Care feature, and the Cycle
End Signal. Press the OFF button twice to stop the dryer and
clear the settings, allowing you to select another cycle.
Pressing the Dryness Level button will cause the triple
Press the EXTRA CARE feature button if this option is
desired.
Press the CYCLE END SIGNAL button to set volume to
desired level.
Press (and hold) HOLD TO START button until dryer starts
(about 1 second).
Stopping Your Dryer
To stop your dryer at any time
Press OFF twice or open the door.
To unlock:
Press and hold the CYCLE END SIGNAL button for 3 seconds to
turn this feature off.
NOTE:
When the dryer is running and Control Locked is on, the
dryer can be stopped by pressing the Off button, but can’t be
restarted until the control is unlocked.
Loading
Properly loading your dryer can lower your utility bill and prolong
the life of your garments.
Loading suggestions
■
Load the dryer by the amount of space items take up, not by
their weight.
■
Do not overload the dryer. This causes wrinkling and uneven
drying.
Super Capacity Plus Dryers
Heavy Work Clothes
4 jeans
4 workpants
4 workshirts
Towels
10 bath towels
10 hand towels
Mixed Load
3 sheets (1 king, 2 twin)
4 pillowcases
3 shirts
3 blouses
2 sweatpants
2 sweatshirts
14 washcloths
9 T-shirts
9 shorts
10 handkerchiefs
Pausing or Restarting
To pause the dryer at any time
Open the door or press OFF once.
To restart the dryer
Close the door and press (and hold) HOLD TO START button until
dryer starts.
NOTE
: Drying will continue from where the cycle was interrupted
if you close the door and press Start within 5 minutes. If the cycle
is interrupted for more than 5 minutes, the dryer will shut off.
Select new cycle settings before restarting the dryer.
Control Locked
This feature allows you to lock your settings to prevent
unintended use of the dryer. You can also use the Control Locked
feature to prevent unintended cycle or option changes during
dryer operation.
To enable the Control Locked feature when dryer is
running:
Press and hold the CYCLE END SIGNAL button for 3 seconds.
The control is locked when a single beep is heard and the Control
Locked status light is on.
■
When the dryer is off, it is not necessary to press the Control
On button before activating the Control Locked feature.
Drying and Cycle Tips
Select the correct cycle and dryness level or temperature for your
load. If an Automatic Cycle is running, the display shows the
estimated cycle time when your dryer is automatically sensing
the dryness level of your load. If a Manual Cycle is running, the
display shows the exact number of minutes remaining in the
cycle.
Cool Down tumbles the load without heat during the last few
minutes of all cycles. Cool Down makes the loads easier to
handle and reduces wrinkling. The length of the Cool Down
depends on the load size and dryness level.
Drying tips
■
Follow care label directions when they are available.
■
If you use fabric softener sheets, use only ones labeled as
dryer safe. Follow package instructions.
■
Remove the load from the dryer as soon as tumbling stops to
reduce wrinkling. This is especially important for permanent
press, knits, and synthetic fabrics.
■
Avoid drying heavy work clothes with lighter fabrics. This
could cause overdrying of lighter fabrics, leading to increased
shrinkage or wrinkling.
19
Cycle tips
■
Dry most loads using the preset cycle settings.
■
Refer to the Automatic or Manual Preset Cycle Settings chart
(in the “Cycles” section) for a guide to drying various loads.
■
Drying temperature and Dryness Level are preset when
you choose an Automatic Cycle. You can choose a
different dryness level, depending on your load by
pressing the DRYNESS LEVEL button to select MORE or
LESS.
■
If you wish to adjust the cycle length of a Manual Cycle,
you must press the MANUAL DRY TIME (- or +) buttons.
Adjust the temperature of a Manual Cycle by pressing
TEMP until the desired temperature is selected.
NOTE:
You cannot choose a Dryness Level with Manual
Cycles.

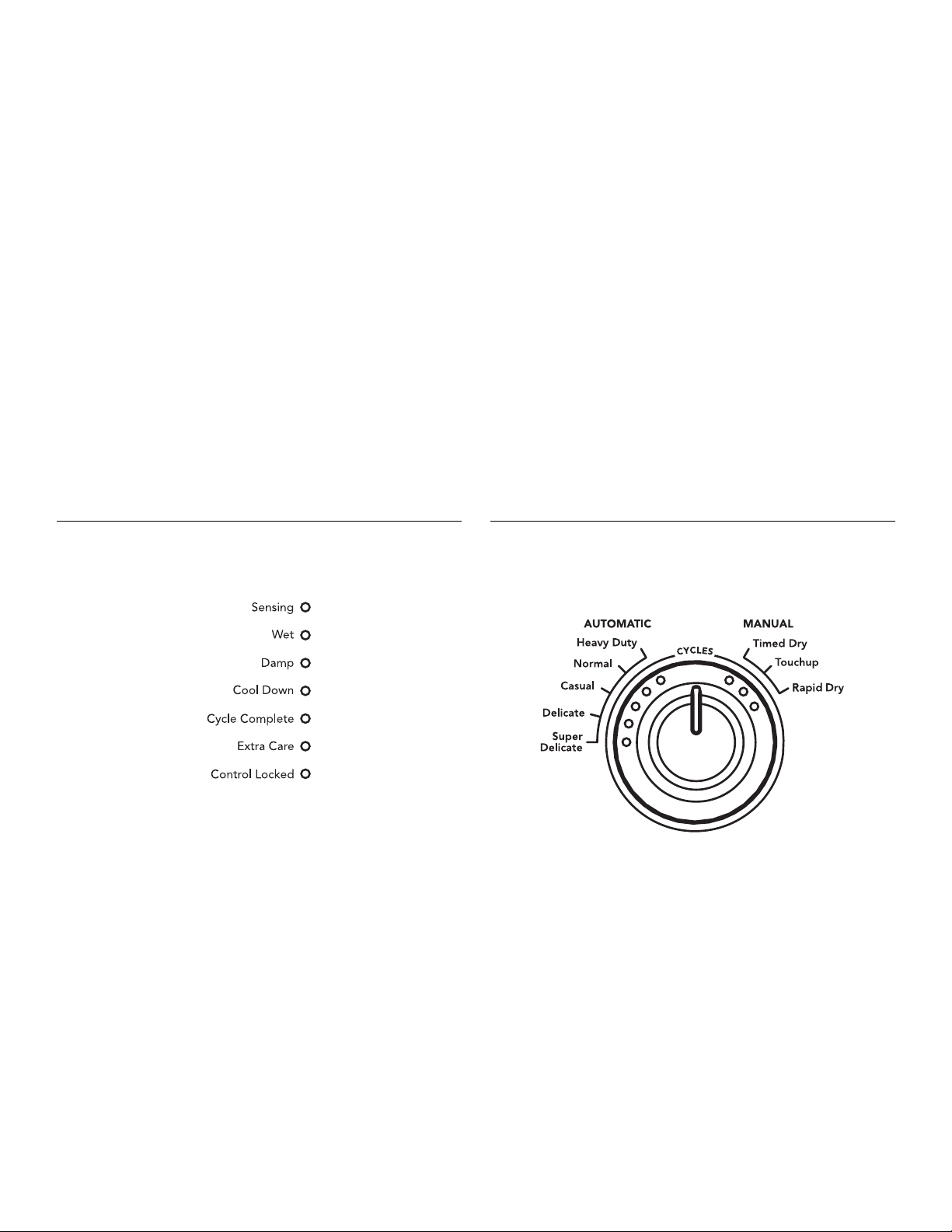

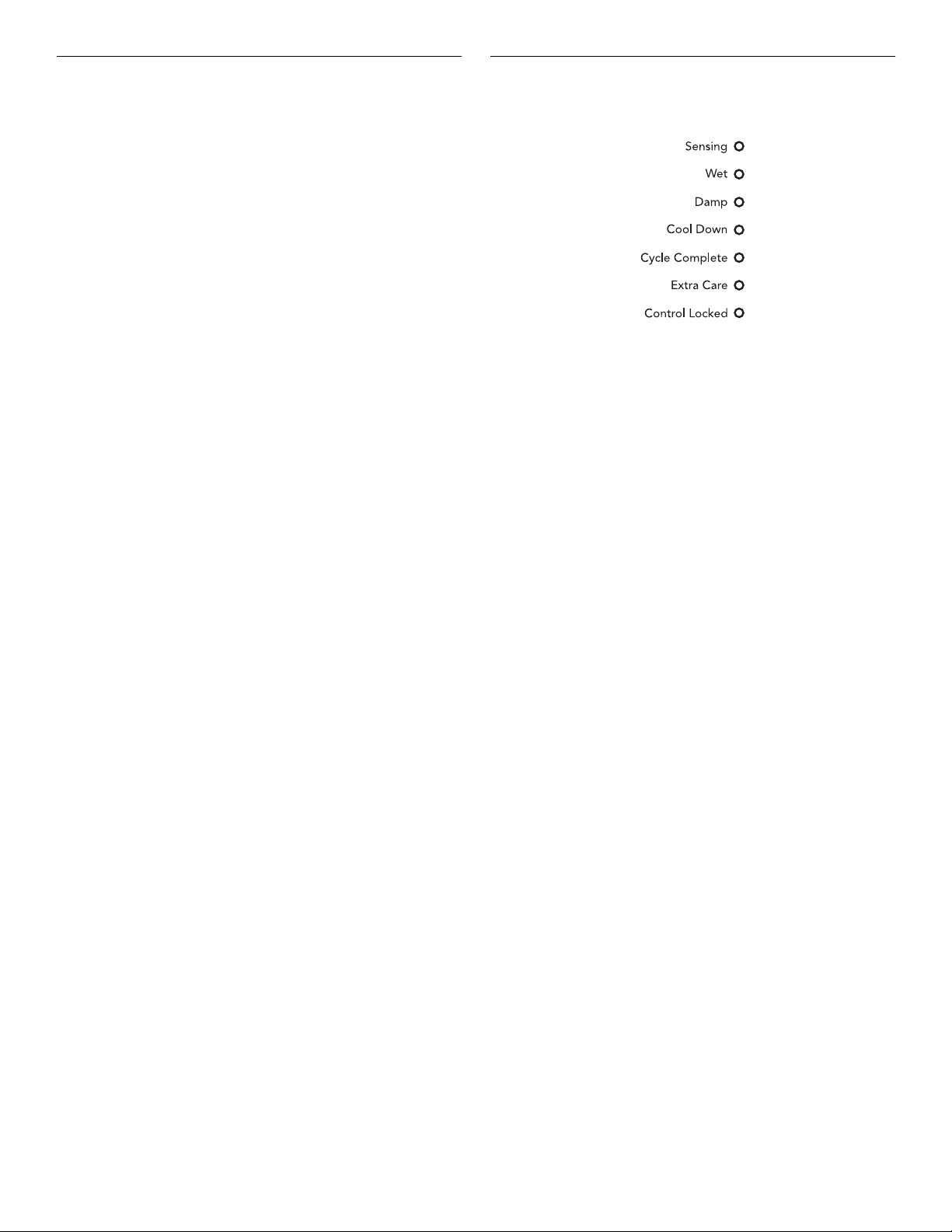

Status Lights
You may follow the progress of your dryer with the drying status
indicator lights.
Extra Care Feature
The EXTRA CARE feature light glows when this option is
selected. This indicator stays on with the Cycle Complete light.
Control Locked
The CONTROL LOCKED light glows when this option is enabled.
Indicator lights
Other indicator lights on the control panel show Cycle,
Temperature, and Cycle End Signal settings selected.
The time display will indicate the estimated or actual time
remaining in a cycle.
Cycles
Select the drying cycle that matches the type of load you are
drying (see Automatic Preset or Manual Preset Cycle Settings
charts).
Sensing
When a cycle is first turned on, the SENSING light glows until a
wet item is detected.
■
In an Automatic cycle, if a wet item has not been detected
within 10 minutes, the Sensing light will turn off and the dryer
will shut down.
■
In a Manual cycle, if a wet item is not detected after
10 minutes the Wet light turns on and the selected cycle
continues.
Wet
The WET light will turn on when a wet item has been detected in
the dryer. The Wet light will remain on until:
■
The damp dry point is reached in an Automatic cycle.
■
The dryer enters the cool down period in a Manual cycle.
Damp
The DAMP light indicates that the load has reached the damp dry
level.
NOTE:
The Damp light is not used with manual cycles.
Cool Down
The COOL DOWN light glows during the cool down part of the
cycle. Laundry is cooling down for ease in handling.
Cycle Complete
The CYCLE COMPLETE light glows when a drying cycle is
finished. If the Extra Care feature has been selected, the Extra
Care feature indicator light will also be on.
The Cycle Complete light turns off one hour after the end of a
drying cycle (including the Extra Care cycle of 2 hours), when Off
is pressed, or when the door is opened.
Cycle control knob
Automatic Cycles
Automatic Cycles allow you to match the cycle to the load you
are drying. See the following “Automatic Preset Cycle Settings”
chart. Each cycle dries certain fabrics at the recommended
temperature. A sensor detects the moisture in the load and
automatically adjusts the drying time for optimal drying.
Heavy Duty
Use this cycle to get High heat for heavy fabrics such as cotton
towels or bedspreads.
Normal
Use this cycle to get Medium heat for drying sturdy fabrics such
as work clothes.
Casual
Use this cycle to get Medium heat for drying no-iron fabrics, such
as sport shirts, casual business clothes and permanent press
blends.
Delicate
Use this cycle to get Low heat for drying synthetic fabrics,
washable knit fabrics and no-iron finishes.
Super Delicate
Use this cycle to get Extra Low heat to gently dry items such as
lingerie, exercise wear, or sheer curtains.
20
Automatic Preset Cycle Settings
Automatic Cycles
Load Type
HEAVY DUTY
Heavyweight, towels
NORMAL
Corduroys, work clothes
CASUAL
Permanent press, synthetics
DELICATE
Lingerie, blouses, washable
woolens
SUPER DELICATE
Exercise wear, sheer curtains, lace
*Estimated Time with Dryness Level (medium) setting.
Te mp . T im e *
(Minutes)
High 40
Medium 34
Medium 36
Low 28
Extra Low 22
Manual Cycles
Use Manual Cycles to select a specific amount of drying time and
a drying temperature. When a Manual Cycle is selected, the
ESTIMATED TIME REMAINING display shows the actual time
remaining in your cycle. You can change the actual time in the
cycle by pressing the Manual Dry Time (- or +) buttons.
Additional Features
Extra Care Feature
When you are unable to remove a load of clothes from the dryer
as soon as it stops, wrinkles can form. The Extra Care feature
periodically tumbles, rearranges and fluffs the load to avoid
wrinkles.
■
Press the Extra Care feature to get up to 120 minutes of heatfree, periodic tumbling at the end of a cycle.
■
Stop at any time by pressing the Extra Care feature or
opening the dryer door.
■
For the Casual Cycle, the Extra Care feature is preset to “On.”
The other Automatic Cycles will retain the Extra Care feature
setting. (For example, if you select the Extra Care feature in
the Normal cycle, the Extra Care feature will be on the next
time you select the Normal cycle.)
NOTE:
If you do not select the Extra Care feature, the dryer stops
after the cool down period.

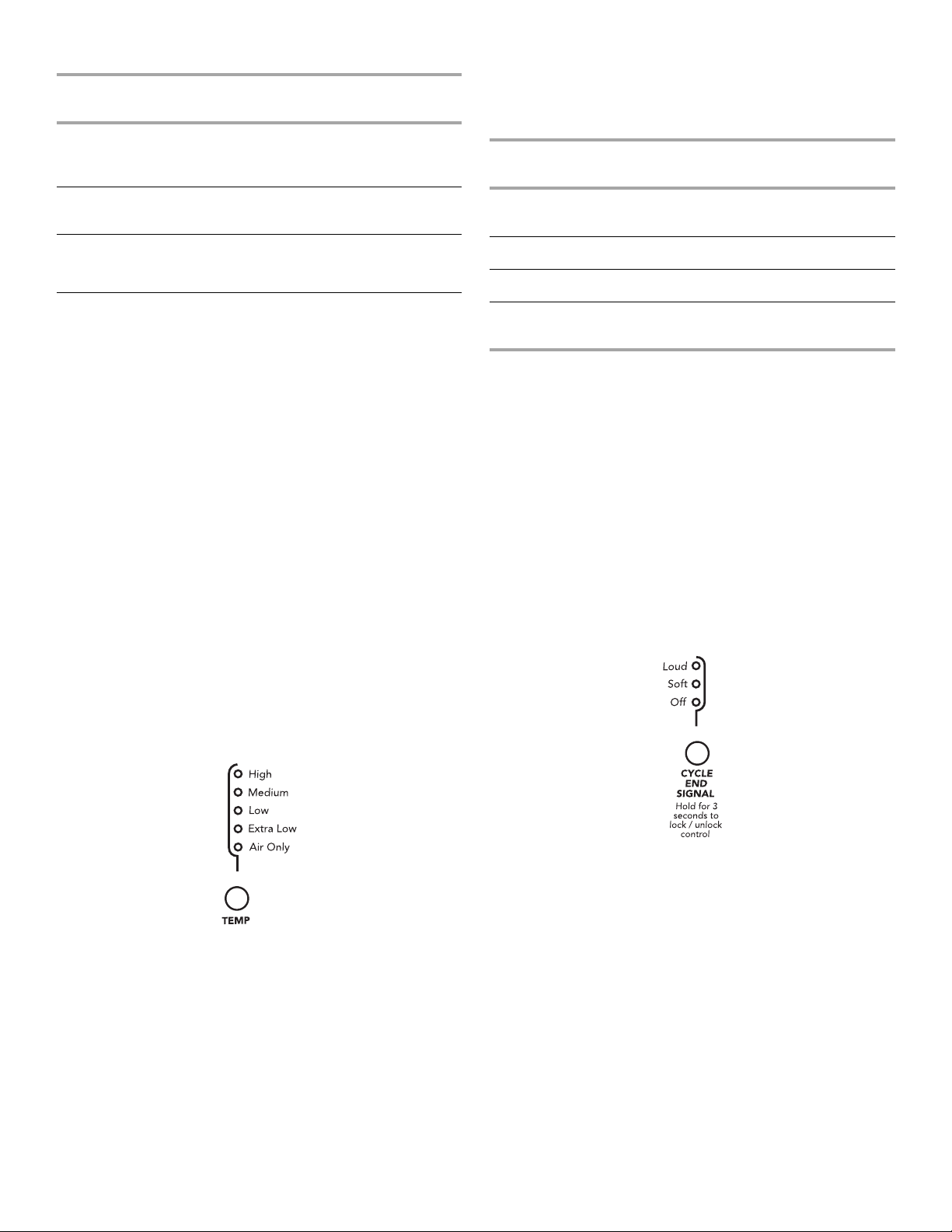

Temperature
Temperature settings are used with the Manual Cycles. Press
TEMP until the desired temperature setting glows. Temperature
settings cannot be used with the Automatic Cycles.
Timed Dry
Use this cycle to complete drying if items are still damp after an
Automatic Cycle. Timed Dry is also useful for drying heavyweight
and bulky items, such as bedspreads and work clothes.
Touchup
Use this setting to remove wrinkles from items, such as clothes
packed in a suitcase or items wrinkled from being left in the dryer
too long.
Rapid Dry
Use this cycle for drying small loads or loads that need a short
drying time.
Manual Preset Cycle Settings
Manual Cycles
Load Type
TIMED DRY
Heavyweight, bulk,
bedspreads, work clothes
TOUCHUP
Remove wrinkles
RAPID DRY
Small loads
Temp. Default Time
(Minutes)
High 40
Medium 20
High 27
Air Only
Use the Air Only setting for items that require drying without heat
such as rubber, plastic and heat-sensitive fabrics. This chart
shows examples of items that can be dried using Air Only.
Type of Load Time*
(Minutes)
Foam rubber - pillows, padded bras,
stuffed toys
Plastic - Shower curtains, tablecloths 20 - 30
Rubber-backed rugs 40 - 50
Olefin, polypropylene, sheer nylon 10 - 20
*Reset time to complete drying, if needed.
20 - 30
When using Air Only
■
Check to see that coverings are securely stitched.
■
Shake and fluff pillows by hand periodically during the cycle.
■
Dry item completely. Foam rubber pillows are slow to dry.
NOTE:
Automatic Cycles are not available when using the Air
Only setting.
21

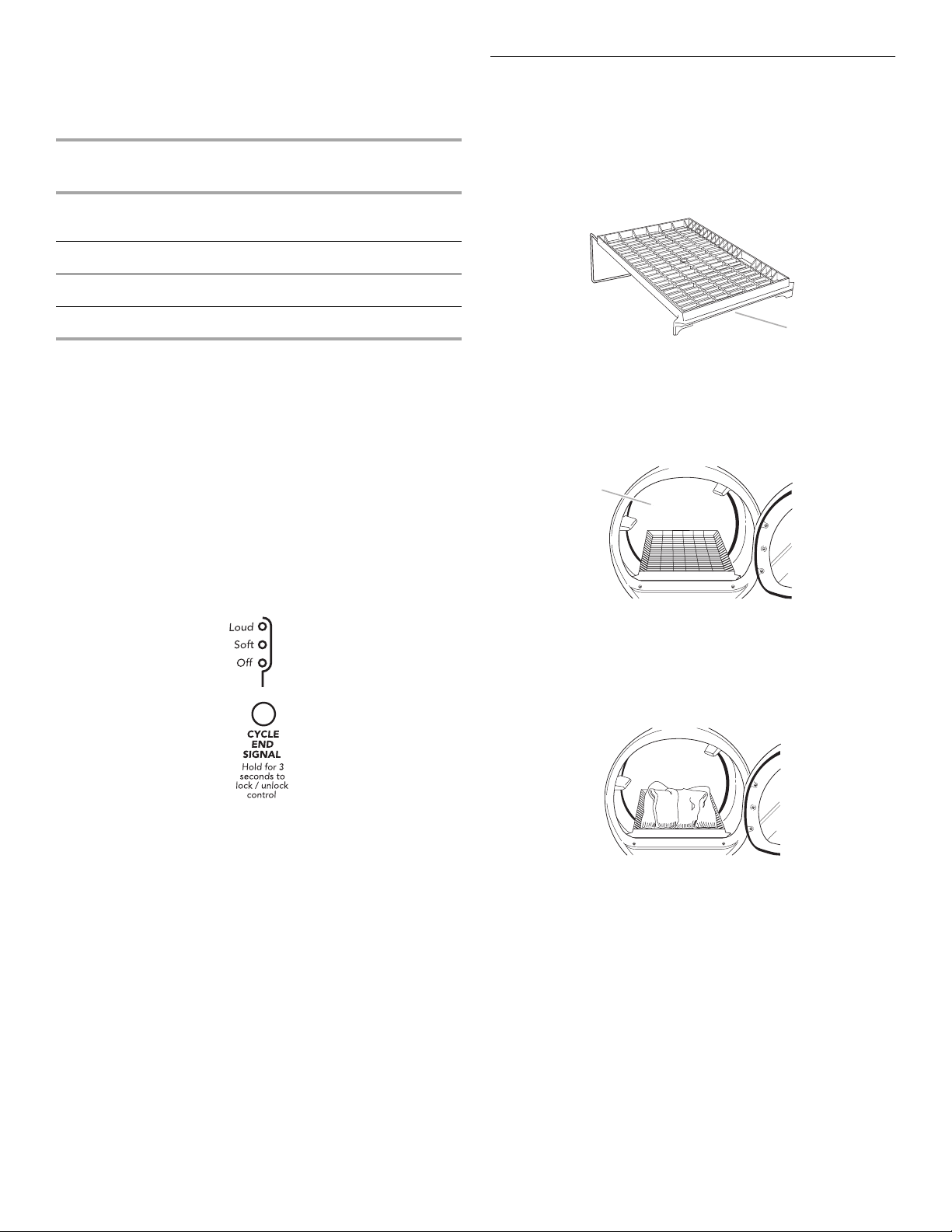

Cycle End Signal
The Cycle End Signal produces an audible sound when the
drying cycle is finished. Promptly removing clothes at the end of
the cycle reduces wrinkling.
4.
Close the door.
5.
Select a timed drying cycle and temperature, or an air cycle
(see following chart). Items containing foam, rubber, or plastic
must be dried on a clothesline or by using the Air Only
temperature setting.
6.
You must select a time by pressing the MANUAL DRY TIME
(- or +) buttons. Reset time as needed to complete drying.
Refer to the following table.
7.
Press (and hold) HOLD TO START button (about 1 second).
NOTE:
You must remove rack for normal tumbling. Do not use
automatic cycles with the drying rack.
This chart shows examples of items that can be rack dried and
the suggested cycle, temperature setting and drying time. Actual
drying time will depend on the amount of moisture items hold.
Press and release the CYCLE END SIGNAL to adjust the sound
level or turn off the signal.
NOTE:
When the Extra Care feature is selected and the Cycle
End Signal is on, an audible sound will emit every 5 minutes until
the clothes are removed, or the Extra Care feature is finished.
Drying Rack
The drying rack is useful for drying items you would not
necessarily want to tumble dry or that you would normally line dry
(for example, sweaters).
To use the drying rack
Do not remove the lint screen.
1.
Open dryer door.
1
1. Front edge
2.
Place drying rack inside dryer drum, positioning the back wire
on the ledge of the inner dryer back panel. Push down on
front edge of drying rack to secure over the lint screen.
Rack Dry Setting Temp. Time*
Wool Sweaters
Block to shape and lay flat on
the rack
Stuffed toys or pillows
Cotton or polyester fiber filled
Stuffed toys or pillows
Foam rubber filled
Sneakers or canvas shoes
*(Minutes) Reset time to complete drying, if needed.
Timed
Dry
Timed
Dry
Timed
Dry
Timed
Dry
Low 60
Low 60
Air Only
(no
heat)
Air Only
(no
heat)
90
90

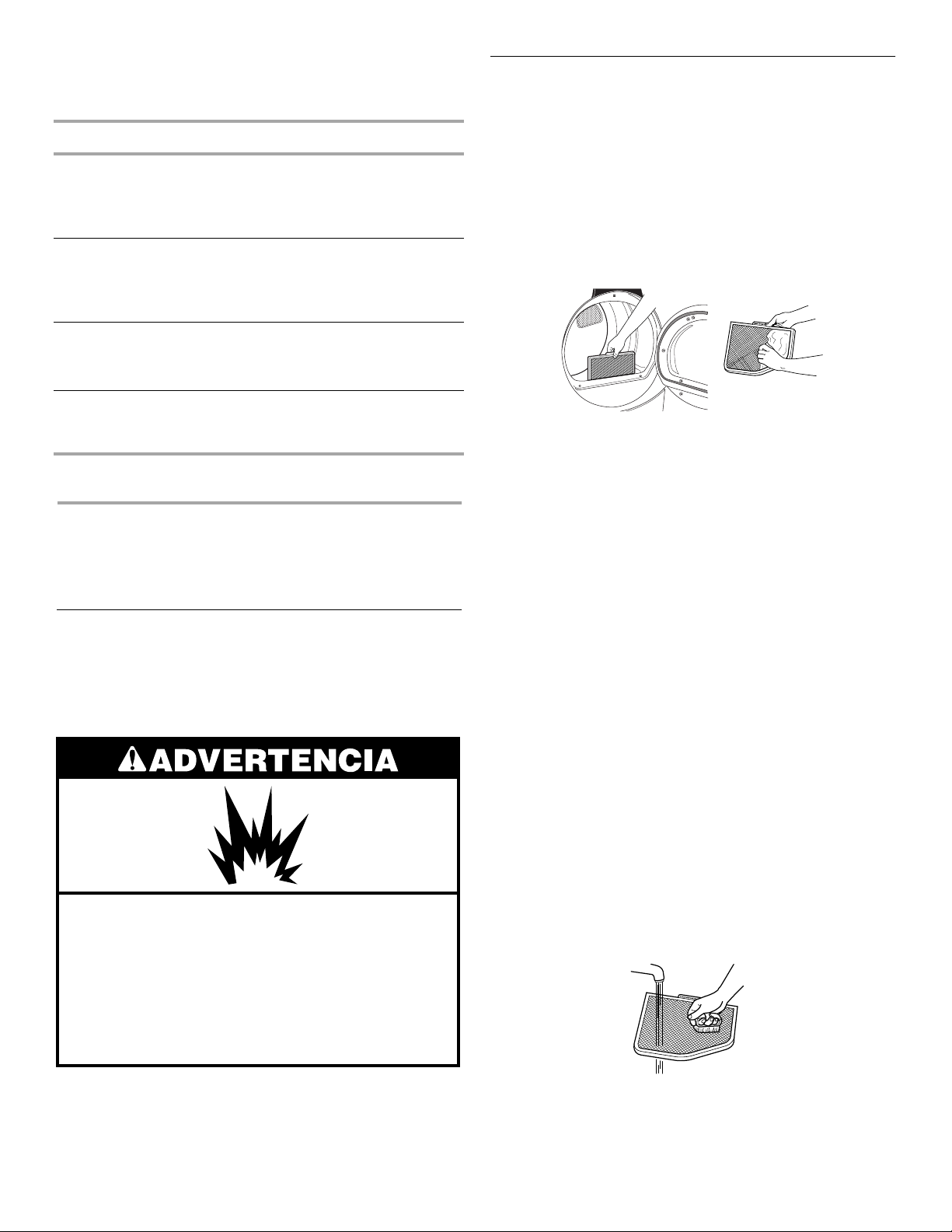

DRYER CARE
Cleaning the Dryer Location
Keep dryer area clear and free from items that would obstruct the
flow of combustion and ventilation air.
1
1. Dryer back panel
3.
Put the wet items on top of the rack. Leave space between
the items so air can reach all the surfaces.
NOTE:
Do not allow items to hang over the edge of the rack.
22
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (46 cm) above the
floor for a garage installation.
Failure to do so can result in death, explosion,
or fire.
Loading...
