Amana Electronic Range User Manual
Electric Range - Coil
Range
Use & Care Guide
Safety.....................................................................1-3

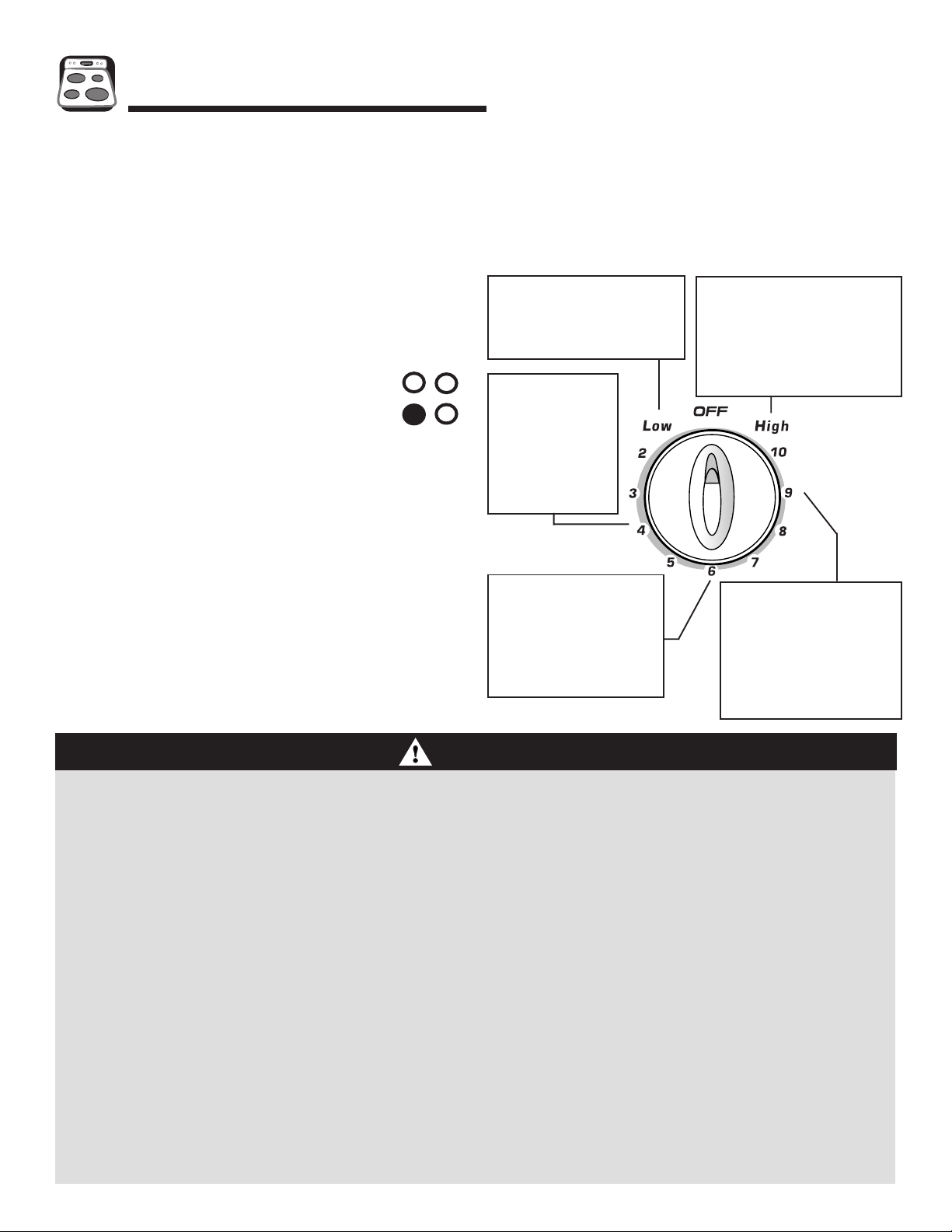

Surface Cooking .................................................4-5
Controls
Coil Elements

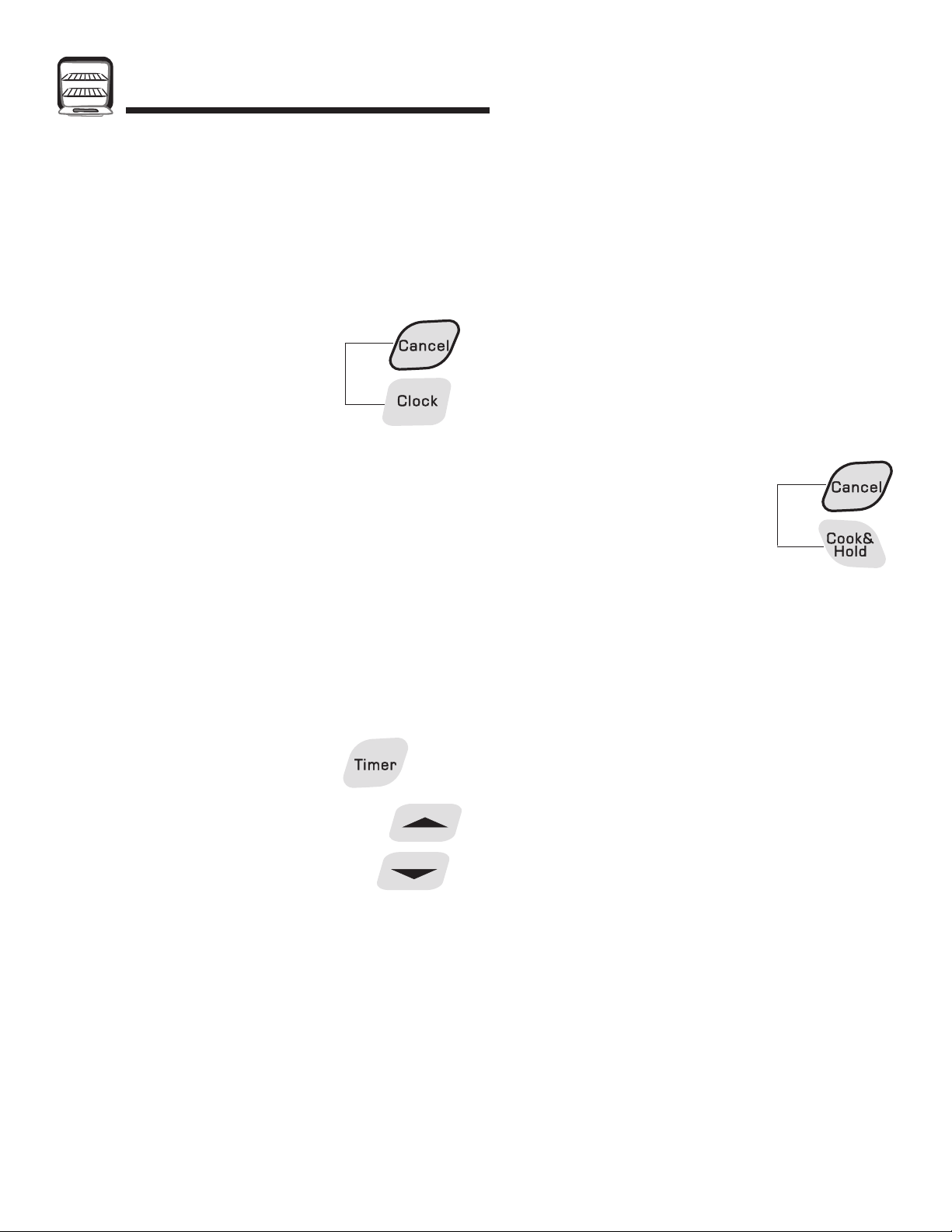

Oven Cooking ................................................... 6-14

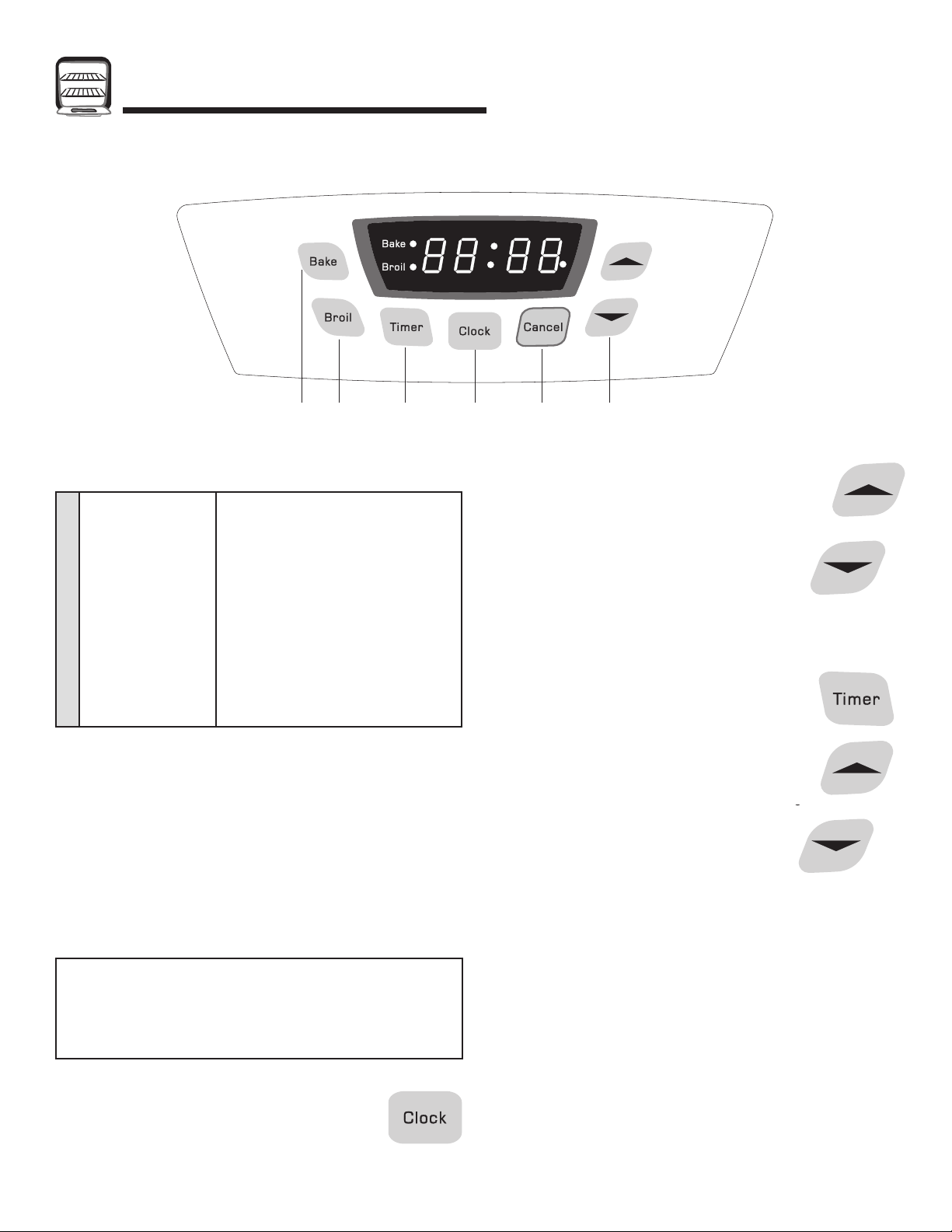

Manual Clean Oven Control
Clock Baking
Timer Broiling
Self-Clean Oven Control
Clock Delay Bake
Timer Keep Warm
Baking Broiling
Cook & Hold Oven Racks
Care & Cleaning .............................................15-18

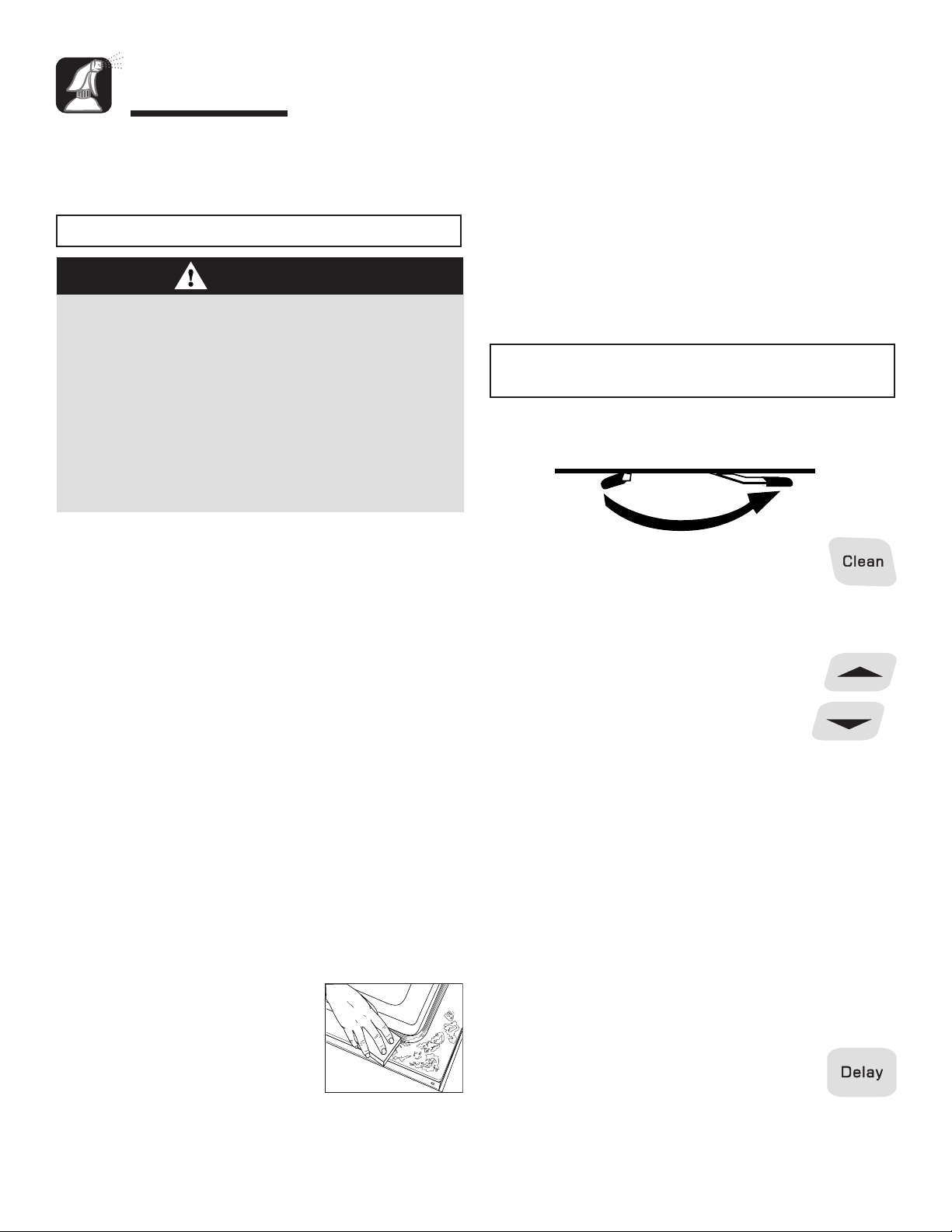

Self-Clean Oven
Cleaning Procedures
Maintenance ................................................... 19-20

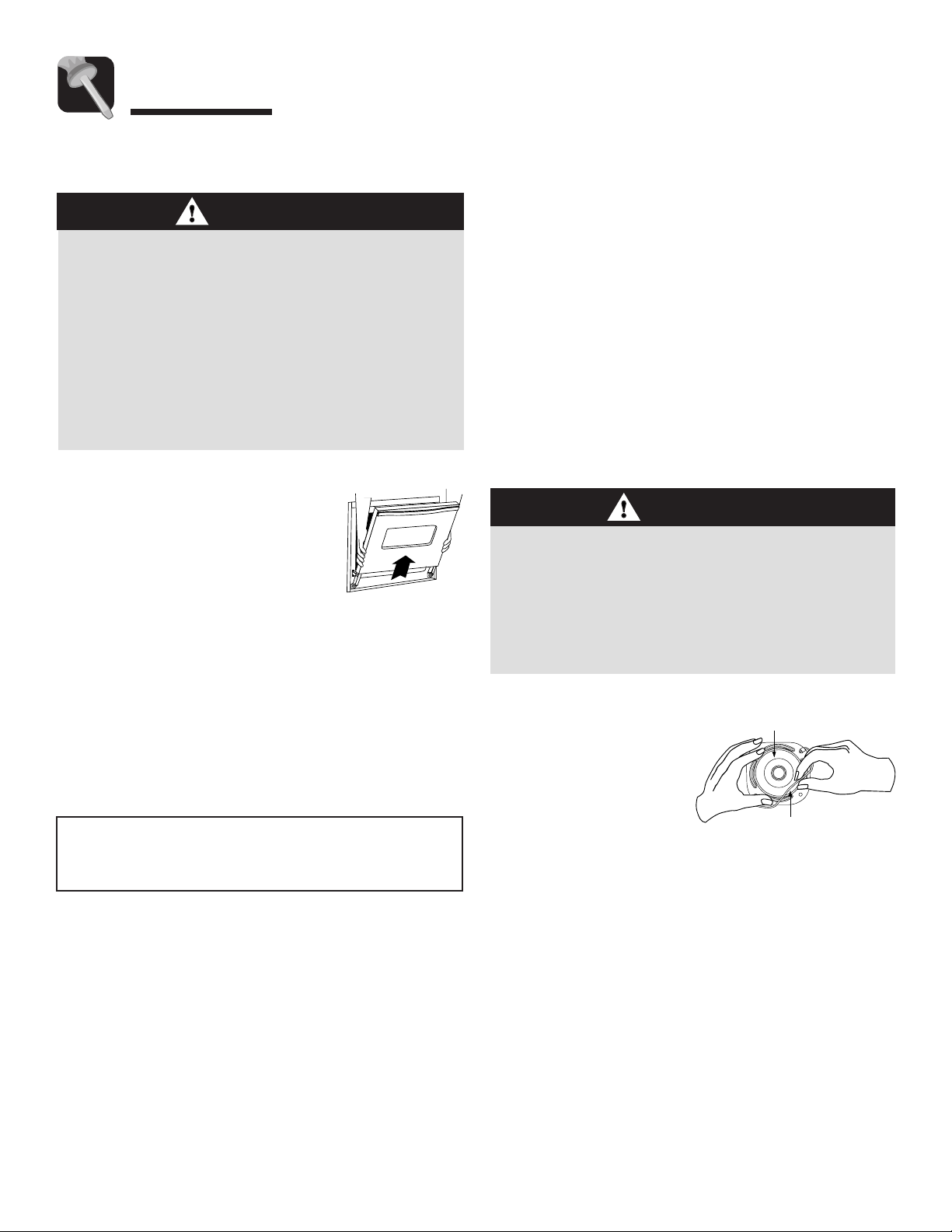

Oven Window & Light
Troubleshooting .............................................21-22
Warranty & Service.............................................. 23
Guide d’utilisation et
d’entretien ............................................................. 24
Guía de Uso y Cuidado ....................................... 50
Form No. A/06/04 Part No. 8113P426-60 ©2004 Maytag Appliances Sales Co. Litho U.S.A .
Installer: Please leave this manual with this appliance.
Consumer: Please read and keep this manual for future
reference. Keep sales receipt and/or canceled check as proof
of purchase.
Model Number __________________________________
Serial Number __________________________________
Date of Purchase ________________________________
If you have questions, call:
Amana Customer Assistance
1-800-843-0304 USA
1-866-587-2002 Canada
1-800-688-2080 ( U.S. TTY for hearing or speech impaired)
(Mon.-Fri., 8 am-8 pm Eastern Time)
Internet: http://www.amana.com
In our continuing effort to improve the quality and performance
of our cooking products, it may be necessary to make changes
to the appliance without revising this guide.
For service information, see page 23.

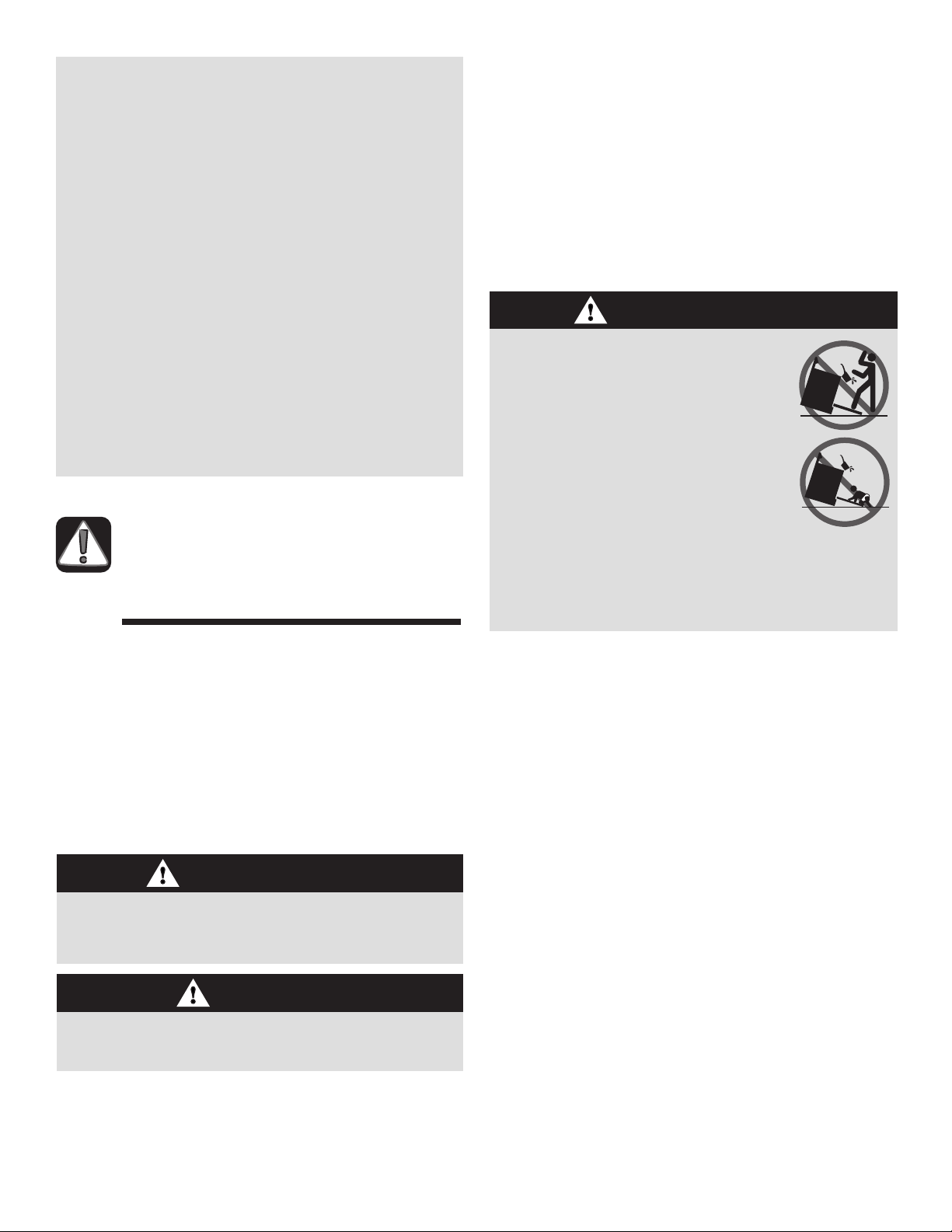

Important Safety
Instructions
Warning and Important Safety Instructions appearing in this
guide are not meant to cover all possible conditions and
situations that may occur. Common sense, caution, and care
must be exercised when installing, maintaining, or operating
the appliance.
Always contact the manufacturer about problems or
conditions you do not understand.
Recognize Safety Symbols, Words, Labels
WARNING
WARNING – Hazards or unsafe practices which COULD
result in severe personal injury or death.
CAUTION
To ensure proper and safe operation: Appliance must be
properly installed and grounded by a qualified technician.
Do not attempt to adjust, repair, service, or replace any part
of your appliance unless it is specifically recommended in
this guide. All other servicing should be referred to a
qualified servicer.
Always disconnect power to appliance before servicing.
WARNING
• ALL RANGES CAN TIP AND
CAUSE INJURIES TO PERSONS
• INSTALL ANTI-TIP DEVICE
PACKED WITH RANGE
• FOLLOW ALL INSTALLATION
INSTRUCTIONS
WARNING: To reduce risk of
tipping of the appliance from
abnormal usage or by excessive
loading of the oven door, the appliance must
be secured by a properly installed anti-tip
device.

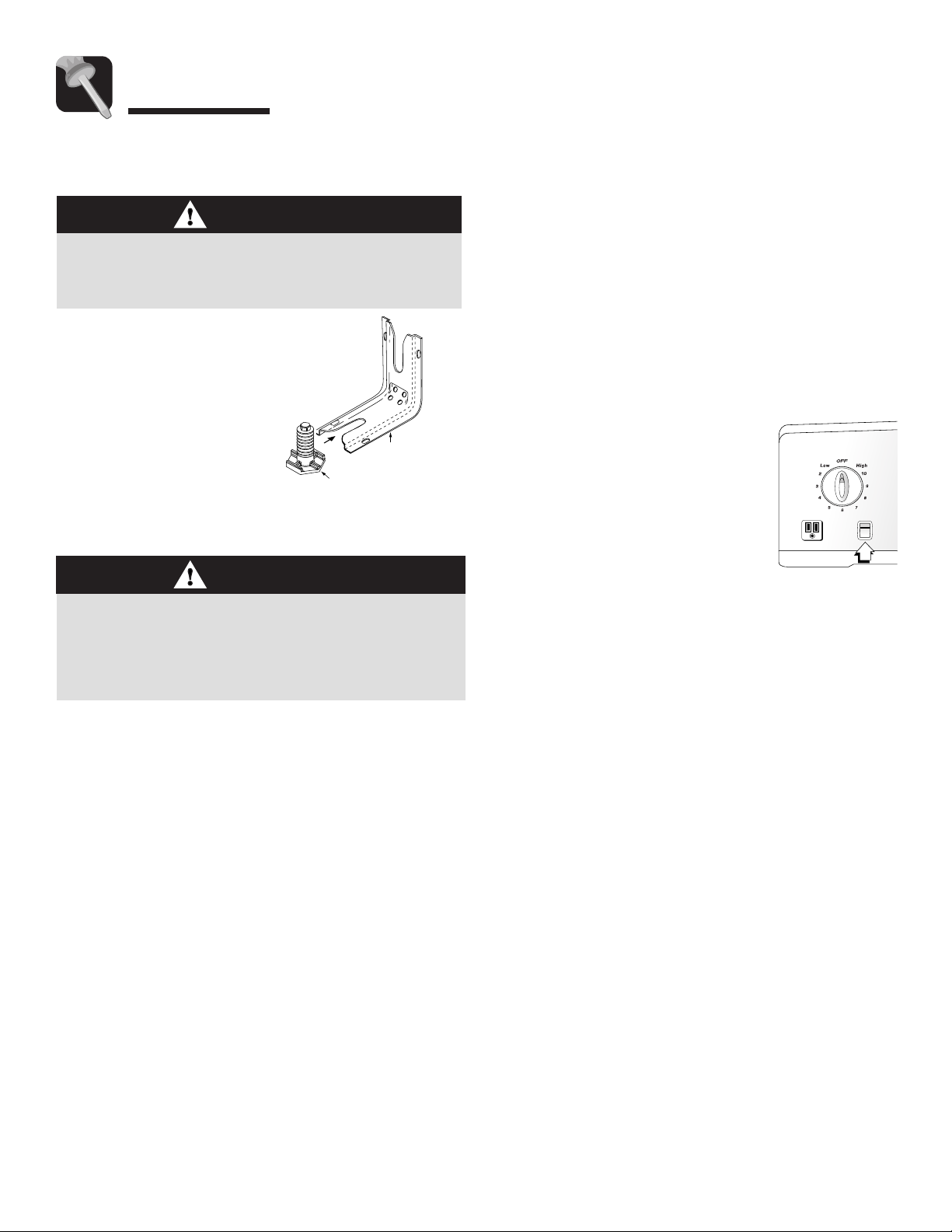

To check if device is properly installed, look underneath
range with a flashlight to make sure one of the rear leveling
legs is properly engaged in the bracket slot. The anti-tip
device secures the rear leveling leg to the floor when
properly engaged. You should check this anytime the
range has been moved.
To Prevent Fire or Smoke
Damage
Be sure all packing materials are removed from the appliance before operating it.
Keep area around appliance clear and free from combustible materials. Flammable materials should not be stored in
an oven.
Many plastics are vulnerable to heat. Keep plastics away
from parts of the appliance that may become warm or hot.
To prevent grease fires, do not let cooking grease or other
flammable materials accumulate in or near the appliance.
CAUTION – Hazards or unsafe practices which COULD
result in minor personal injury.
Read and follow all instructions before using this
appliance to prevent the potential risk of fire, electric
shock, personal injury or damage to the appliance as a
result of improper usage of the appliance. Use appliance
only for its intended purpose as described in this guide.
In Case of Fire
Use dry chemical or foam-type extinguisher or baking soda
to smother fire or flame. Never use water on a grease fire.
1. Turn off appliance to avoid spreading the flame.
2. NEVER pick up or move a flaming pan.
3. Smother oven fire or flame by closing the oven door.
1
Important Safety Instructions
Child Safety
CAUTION
NEVER store items of interest to children in cabinets above
an appliance. Children climbing on the appliance or on the
appliance door to reach items could be seriously injured.
NEVER leave children alone or unsupervised near the appliance when it is in use or is still hot. Children should never be
allowed to sit or stand on any part of the appliance as they
could be injured or burned.
Children must be taught that the appliance and utensils in it
can be hot. Let hot utensils cool in a safe place, out of reach of
small children. Children should be taught that an appliance is
not a toy. Children should not be allowed to play with controls
or other parts of the appliance.
About Your Appliance
CAUTION
NEVER use an appliance as a step to reach cabinets above.
Misuse of appliance doors, such as stepping, leaning or
sitting on the door, may result in possible tipping of the
appliance, breakage of door, and serious injuries.
To prevent potential hazard to the user and damage to the
appliance, do not use appliance as a space heater to heat or
warm a room. Also, do not use the oven as a storage area for
food or cooking utensils.
Do not obstruct the flow of air by blocking the oven vent.
DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SUR-
FACES OF OVEN. Heating elements may be hot even though
they are dark in color. Interior surfaces of any oven become
hot enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials contact
heating elements or interior surfaces of oven until they have
had sufficient time to cool. Other surfaces of the appliance
may become hot enough to cause burns – among these
surfaces are: oven vent openings, surfaces near these openings, oven doors and windows of oven doors.
Do not touch a hot oven light bulb with a damp cloth as the
bulb could break. Should the bulb break, disconnect power to
the appliance before removing bulb to avoid electrical shock.
NEVER use aluminum foil to cover an oven rack or oven
bottom. Misuse could result in risk of electric shock, fire, or
damage to the appliance. Use foil only as directed in this
guide.
Cooking Safety
Never heat an unopened food container in the oven. Pressure
build-up may cause container to burst resulting in serious
personal injury or damage to the appliance.
Use dry, sturdy potholders. Damp potholders may cause burns
from steam. Dish towels or other substitutes should never be
used as potholders because they can trail across hot elements
and ignite or get caught on appliance parts.
Wear proper apparel. Loose fitting or long hanging-sleeved
apparel should not be worn while cooking. Clothing may ignite
and cause burns if garment comes in contact with heating
elements.
Always place oven racks in the desired positions while oven is
cool. Slide oven rack out to add or remove food, using dry,
sturdy potholders. Always avoid reaching into the oven to add or
remove food. If a rack must be moved while hot, use a dry
potholder. Do not let potholder contact hot element in oven.
Use racks only in the oven in which they were shipped/purchased.
Use care when opening the oven door. Let hot air or steam
escape before removing or replacing food.
PREPARED FOOD WARNING: Follow food manufacturer’s
instructions. If a plastic frozen food container and/or its cover
distorts, warps, or is otherwise damaged during cooking,
immediately discard the food and its container. The food could
be contaminated.
Do not allow aluminum foil or meat probe to contact heating
element.
Always turn off all controls when cooking is completed.
Utensil Safety
Follow the manufacturer’s directions when using oven cooking
bags.
This appliance has been tested for safe performance using
conventional cookware. Do not use any devices or accessories
that are not specifically recommended in this guide. Do not use
eyelid covers, stove top grills or add-on oven convection
systems. The use of devices or accessories that are not expressly
recommended in this guide can create serious safety hazards,
result in performance problems, and reduce the life of the
components of the appliance.
If pan is smaller than element, a portion of the element will be
exposed to direct contact and could ignite clothing or potholder.
Only certain types of glass, glass/ceramic, ceramic, earthenware,
or other glazed utensils are suitable for cooktop or oven service
without breaking due to the sudden change in temperature.
Follow utensil manufacturer’s instructions when using glass.
2
Important Safety Instructions
Turn pan handle toward center of cooktop, not out into the
room or over another surface element. This reduces the risk of
burns, ignition of flammable materials, or spillage if pan is
accidently bumped or reached by small children.
Be sure utensil is large enough to properly contain food and
avoid boilovers. Pan size is particularly important in deep fat
frying. Be sure pan will accommodate the volume of food that
is to be added as well as the bubble action of fat.
Never let a pan boil dry as this could damage the utensil and
the appliance.
Cooktop
NEVER leave surface units unattended especially when using
high heat. An unattended boilover could cause smoking and a
greasy spillover can cause a fire.
This appliance is equipped with different size surface elements.
Select pans with flat bottoms large enough to cover element.
Fitting pan size to element will improve cooking efficiency.
Coil Elements
To prevent damage to removable heating elements, do not
immerse, soak or clean in a dishwasher or self-clean oven. A
damaged element could short resulting in a fire or shock
hazard.
Make sure drip bowls are in place as absence of these bowls
during cooking could damage wiring.
Protective Liners: Do not use aluminum foil to line surface
unit drip bowls or oven bottoms, except as suggested in the
manual. Improper installation of these liners may result in a risk
of electric shock or fire.
Deep Fat Fryers
Use extreme caution when moving the grease pan or disposing of hot grease. Allow grease to cool before attempting to
move pan.
Ventilating Hoods
Clean range hood and filters frequently to prevent grease or
other flammable materials from accumulating on hood or filter
and to avoid grease fires.
When flaming foods under the hood, turn the fan on.
Cleaning Safety
Clean cooktop with caution. Turn off all controls and wait for
appliance parts to cool before touching or cleaning. Clean with
caution. Use care to avoid steam burns if a wet sponge or cloth
is used to wipe spills on a hot surface. Some cleaners can
produce noxious fumes if applied to a hot surface.
Clean only parts listed in this guide.
Self-Clean Oven (select models)
CAUTION
Do not leave racks, broiling pan, food or cooking utensils, etc.
in the oven during the self-clean cycle.
Do not clean door gasket. The door gasket is essential for a
good seal. Care should be taken not to rub, damage, or move
the gasket.
Do not use oven cleaners or oven liners of any kind in or around
any part of the self-clean oven.
Before self-cleaning the oven, remove broiler pan, oven racks
and other utensils, and wipe off excessive spillovers to prevent
excessive smoke or flare ups.
It is normal for the cooktop of the range to become hot during a
self-clean cycle. Therefore, touching the cooktop during a clean
cycle should be avoided.
Important Safety Notice and
Warning
The California Safe Drinking Water and Toxic Enforcement Act
of 1986 (Proposition 65) requires the Governor of California to
publish a list of substances known to the State of California to
cause cancer or reproductive harm, and requires businesses to
warn customers of potential exposures to such substances.
Users of this appliance are hereby warned that when the oven is
engaged in the self-clean cycle, there may be some low-level
exposure to some of the listed substances, including carbon
monoxide. Exposure to these substances can be minimized by
properly venting the oven to the outdoors by opening the
windows and/or door in the room where the appliance is
located during the self-clean cycle.
IMPORTANT NOTICE REGARDING PET BIRDS: Never keep
pet birds in the kitchen or in rooms where the fumes from the
kitchen could reach. Birds have a very sensitive respiratory
system. Fumes released during an oven self-cleaning cycle may
be harmful or fatal to birds. Fumes released due to overheated
cooking oil, fat, margarine and overheated non-stick cookware
may be equally harmful.
Save These Instructions for Future Reference
3
Surface Cooking
Surface Controls
Use to turn on the surface elements. An infinite choice of
heat settings is available from Low to High. The knobs can
be set on or between any of the settings.
Setting the Controls
1. Place pan on surface element.
2. Push in and turn the knob in either direction to the desired
heat setting.
• The control panel is marked to identify which
element the knob controls. For example, the
graphic at right indicates left front element.
3. There is an element “ON” indicator light on the control
panel. When any surface control knob is turned on, the
light will turn on. The light will turn off when all the
surface elements are turned off.
4. After cooking, turn knob to OFF. Remove pan.
Suggested Heat Settings
The size, type of cookware and cooking operation will affect the
heat setting. For information on cookware and other factors
affecting heat settings, refer to “Cooking Made Simple” booklet.
Low (2): Use to keep foods
warm and melt chocolate
and butter.
Med. Low (3-4):
Use to continue
cooking covered
foods or steam
foods.
Medium (5-7): Use to
maintain slow boil for
large amounts of liquids
and for most frying
operations.
(Style varies by model)
High (10): Use to bring
liquid to a boil. Always
reduce setting to a lower
heat when liquids begin to
boil or foods begin to cook.
Med. High (8-9): Use
to brown meat, heat oil
for deep fat frying or
sauteing. Maintain fast
boil for large amounts
of liquids.
BEFORE COOKING
• Always place a pan on the surface unit before you turn it
on. To prevent damage to range, never operate surface
unit without a pan in place.
• NEVER use the cooktop as a storage area for food or
cookware.
DURING COOKING
• Be sure you know which knob controls which surface
unit. Make sure you turned on the correct surface unit.
• Begin cooking on a higher heat setting then reduce to a
lower setting to complete the operation. Never use a
high heat setting for extended cooking.
• NEVER allow a pan to boil dry. This could damage the
pan and the appliance.
• NEVER touch cooktop until it has cooled. Expect some
parts of the cooktop, especially around the surface units,
to become warm or hot during cooking. Use potholders
to protect hands.
CAUTION
AFTER COOKING
• Make sure surface unit is turned off.
• Clean up messy spills as soon as possible.
OTHER TIPS
• If cabinet storage is provided directly above cooking
surface, limit it to items that are infrequently used and can
be safely stored in an area subjected to heat. Temperatures may be unsafe for items such as volatile liquids,
cleaners or aerosol sprays.
• NEVER leave any items, especially plastic items, on the
cooktop. The hot air from the vent may ignite flammable
items, melt or soften plastics, or increase pressure in
closed containers causing them to burst.
• NEVER allow aluminum foil, meat probes or any other
metal object, other than a pan on a surface element, to
contact heating elements.
4

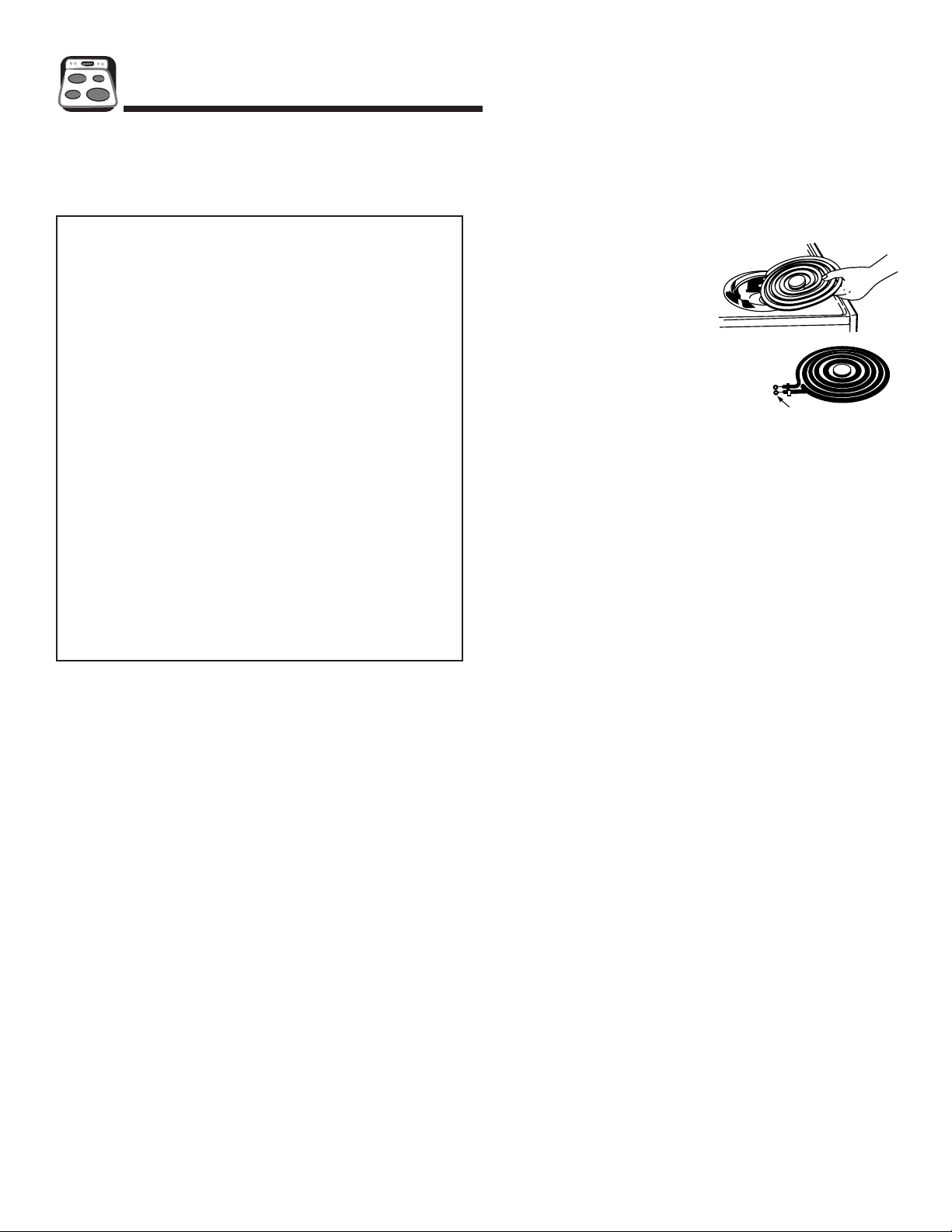

Surface Cooking
Coil Element Surface
Notes:
• Clean cooktop after each use.
• Wipe acidic or sugary spills as soon as the cooktop
has cooled as these spills may discolor or etch the
porcelain.
To protect drip bowl finish:
• To lessen discoloration and crazing, avoid using high
heat for long periods.
• Do not use oversized cookware. Pans should not
extend more than 1-2 inches beyond the element.
• When home canning or cooking with big pots, use
the Canning Element (Model CE1). Contact your
dealer for details or call 1-877-232-6771 USA
or 1-800-688-8408 Canada to order.
• Clean frequently. (See page 17.)
Coil Elements
• When an element is on, it will cycle on and off to maintain the
heat setting.
• Coil elements are self-cleaning. Do not immerse in water.
To remove: When cool, raise ele-
ment. Carefully pull out and away
from receptacle.
To replace: Insert element ter-
minals into receptacle. Guide the
element into place. Press down on
the outer edge of element until it
sits level on drip bowl.
TERMINALS
Drip Bowls
The drip bowls under each surface element catch boilovers and
must always be used. Absence of drip bowls during cooking may
damage wiring.
To prevent the risk of electric shock or fire, never line drip bowls
with aluminum foil.
Drip bowls will discolor (blue/gold stains) or craze over time if
overheated. This discoloration or crazing is permanent. This will
not affect cooking performance.
5
Oven Cooking
Manual Clean Oven Control
(select models)
A B C D E F
NOTE: The display will show 12:00 when the appliance is first connected to power or if power is interrupted. The Bake and Broil
indicators light when function is pressed.
A Bake Use for baking and roasting.
B Broil Use for broiling and top browning.
C Timer Sets timer.
D Clock Use to set time-of-day clock.
E CANCEL Cancels all operations except timer
and clock.
F More (▲) or Enters or changes time, oven
Less (▼) temperature. Sets HI or LO broil.
Using the Touchpads
• Press the desired pad.
• Press the ▲ or ▼ pad to enter time or temperature.
• A beep will sound each time a function pad is pressed. There
is no beep for the ▲ or ▼ pad.
• A double beep will sound if a programming error occurs.
Note: Four seconds after pressing the ▲ or ▼pad, the
time or temperature will automatically be entered. If more
than 30 seconds elapse between touching a function pad
and the ▲ or ▼ pad, the function will be canceled and the
display will return to the previous display.
Setting the Clock
1. Press the Clock pad.
• The clock time cannot be set if the control
is programmed for a bake, broil or timing
operation.
2. Set the correct time of day using the ▲ or ▼
pads. If the ▲ or ▼ pad is not pressed within
30 seconds, the program will cancel. Press
the Clock pad and begin again.
Setting the Timer
The timer can be set from one minute (:01) up to 99 hours
and 59 minutes (99:59). Time will be displayed in minutes and
not in seconds. THE TIMER DOES NOT CONTROL THE
OVEN.
1. Press the Timer pad.
• 0:00 will light and the colon (:) will flash in
the display.
2. Press the ▲ or ▼ pad until the desired time is
displayed.
• The timer will begin as soon as the time is
set.
• The flashing colon indicates that a timing
operation is in progress. (The colon will
not flash if the time of day or oven
temperature is displayed.)
• Two short beeps signal the end of the operation. “0:00”
will appear in the display.
• If desired, press the Clock pad and the time of day will
briefly reappear in the display during a timing operation.
• If desired, press the Bake or Broil pads and the current
temperature setting will briefly reappear in the display
during a timing operation.
To cancel the timer operation:
Press and hold the Timer pad for several seconds.
6
Oven Cooking
Baking, Roasting and Broiling
For additional baking, roasting and broiling times and tips, see
“Cooking Made Simple” booklet.
Setting the Controls For Baking or Roasting:
1. Press Bake pad.
• 000 will light and the Bake indicator light
will flash in the display.
• If you press the Bake pad and do not set an oven
temperature within 30 seconds, the program will
automatically cancel and the time of day will reappear
in the display.
2. Press the ▲ or ▼ pad until the desired oven
temperature is displayed.
• The oven temperature can be set from
170° to 550° F.
• 350° will appear in the display when
either ▲ or ▼ pad is pressed once.
• Press and tap the ▲ or ▼ pad to change the oven
temperature by 5° increments or press and hold the
▲ or ▼ pad to change the oven temperature by 10°
increments.
• 100° or the actual oven temperature, whichever is
higher, will appear in the display when the oven turns
on.
• The temperature in the display will increase in 5°
increments until preset temperature is reached. A single
beep will sound when the oven is preheated.
• Allow 10 to 15 minutes for the oven to preheat.
• To recall preset temperature during preheat, press the
Bake pad. The temperature will be displayed for three
seconds.
• To change oven temperature during cooking, press the
Bake pad, then press the ▲ or ▼ pad until the
desired temperature is displayed.
3. Place food in the oven. Check food for doneness at the
minimum cooking time.
4. At the end of cooking, press the Cancel pad
to turn the oven off and remove the food
from the oven.
• The oven features an automatic shut-off. If the oven is
left on for 12 hours it will automatically turn off and 000
will appear in the display. Press the Cancel pad and the
time of day will reappear in the display.
Setting the Controls For Broiling:
For best results, use pan designed for broiling.
1. Place broiler pan on recommended rack position. (See
chart on page 13.)
2. Press the Broil pad.
• SEt will light and the Broil indicator light
will flash in the display.
3. Press the ▲ pad to select Hi (high) broil or
the ▼ pad to set Lo (low) broil.
• Select Hi broil for normal broiling.
• Select Lo broil for low temperature
broiling to avoid excessive browning of
longer cooking foods like poultry.
• If you do not select Hi or Lo Broil within 30 seconds, the
program will automatically cancel and the time of day
will reappear in the display.
4. Preheat broil element for three minutes. Broil with the oven
door open to the first stop position (about 4 inches).
5. After broiling, press Cancel to turn the oven
off and remove the broiler pan from the
oven. The current time of day will reappear
in the display.
7
Oven Cooking
Self-Clean Oven Control
(select models)
The control panel is designed for ease in programming. The display window on the control shows time of day, timer and oven functions.
Control panel shown includes model specific features. (Styling may vary depending on model.)
A B C D
E F G H I J
A Broil Use for broiling and top browning.
B Bake Use for baking and roasting.
C More (▲) or Enters or changes time, oven
Less (▼) temperature. Sets HI or LO broil.
D Timer Sets timer.
E Cook & Hold Bakes for a preset time, then holds food
warm for 1 hour.
F Clean Use to set self-clean cycle.
G Delay Programs the oven to start baking at
a later time.
H Clock Use to set time-of-day clock.
I Keep Warm Use to keep cooked food warm in oven.
J CANCEL Cancels all operations except timer
and clock.
Using the Touchpads
• Press the desired pad.
• Press the ▲ or ▼ pad to enter time or temperature.
• A beep will sound when any pad is touched.
• A double beep will sound if a programming error occurs.
Note: Four seconds after pressing the ▲ or ▼pad, the
time or temperature will automatically be entered. If more
than 30 seconds elapse between touching a function pad
and the ▲ or ▼ pad, the function will be canceled and the
display will return to the previous display.
Clock
The clock can be set to display time in a 12-hour or 24-hour
format. The clock is set at the factory for the 12-hour format.
To change the clock to 24-hour format:
1. Press and hold the CANCEL and Delay
pads for three seconds.
2. Press the ▲ or ▼ pad to select
12 or 24 hour.
3. Set the time of day following the
directions below.
To set the Clock:
1. Press the Clock pad.
• Time of day and the colon flash in the
display.
2. Press the ▲ or ▼ pad to set the
time of day.
• Colon continues flashing.
3. Press the Clock pad again or wait four
seconds.
When electrical power is supplied or after a power
interruption, the last clock time before power was
interrupted will flash.
To recall the time of day when another time function is
showing, press the Clock pad.
Clock time cannot be changed when the oven has been
programmed for cook or clean Delay or Cook & Hold.
8
Oven Cooking
To cancel the Clock display:
If you do not want the time of day to display:
Press and hold the CANCEL and Clock pads
for three seconds. The time of day will
disappear from the display
When the clock display is canceled, press
the Clock pad to briefly display the time
of day.
To restore the Clock display:
Press and hold the CANCEL and Clock pads for three seconds. The time of day will reappear in the display.
Timer
The timer can be set from one minute (00:01) up to 99 hours
and 59 minutes (99:59).
The timer can be used independently of any other oven
activity. It can also be set while another oven function is
operating.
The Timer does not control the oven. It only controls a
beeper.
To set the Timer:
1. Press the Timer pad.
• 0:00 lights in the display.
• The colon flashes in the display.
2. Press the ▲ or ▼ pad until the
correct time appears in the display.
• The colon will continue to flash.
3. Press Timer pad again or wait four seconds.
• The colon continues flashing and the time begins
counting down.
• The last minute of the timer countdown will be displayed
as seconds.
4. At the end of the set time, one long beep will sound.
To lock:
Press and hold the CANCEL and Cook &
Hold pads for three seconds.
• LOCK flashes in the display.
To unlock:
Press and hold the CANCEL and Cook & Hold pads for three
seconds.
• LOCK disappears from the display.
Fault Codes
BAKE or LOCK may flash rapidly in the display to alert you if
there is an error or a problem. If BAKE or LOCK flash in the
display, press CANCEL pad. If BAKE or LOCK continue to
flash, disconnect power to the appliance. Wait a few minutes,
and then reconnect power. If the flashing still continues,
disconnect power to the appliance and call an authorized
servicer.
Baking
To set Bake:
1. Press the Bake pad.
• BAKE will flash.
• 000 will light in the display.
2. Select the oven temperature. The oven temperature can be set from 170° to 550°. Press or press
and hold the ▲ or ▼ pads.
• 350° will light when either pad is first pressed.
• Press the ▲ pad to increase the temperature.
• Press the ▼ pad to decrease the temperature.
3. Press Bake pad again or wait four seconds.
• BAKE will stop flashing and light in the display.
To cancel the Timer:
1. Press and hold the Timer pad for three seconds.
OR
2. Press the Timer pad and set the time to 00:00.
Locking the Controls
The touchpad controls can be locked for safety, cleaning, or
to prevent unwanted use. They will not function when locked.
If the oven is currently in use, the controls cannot be locked.
The current time of day will remain in the display when the
controls are locked.
• 100° or the actual oven temperature will display. The
temperature will rise in 5° increments until the preset
temperature is reached.
4. Allow the oven to preheat for 8-15 minutes.
• When the set oven temperature is reached, one long
beep will sound.
• To recall the set temperature during preheat, press the
Bake pad.
5. Place food in center of oven, allowing a minimum of two
inches between utensil and oven walls.
9
Oven Cooking
6. Check cooking progress. Cook longer if needed.
7. When cooking is finished, press CANCEL.
8. Remove food from the oven.
Baking Notes:
• To change the oven temperature during cooking, press
the ▲ or ▼ pad until you reach the desired temperature.
• If you forget to turn off the oven, it will automatically turn
off at the end of 12 hours. If you wish to deactivate this
feature, see page 12.
• For additional baking and roasting tips, see “Cooking
Made Simple” booklet.
Baking Differences Between Your Old
and New Oven
It is normal to notice some baking time differences between a
new oven and an old one. See “Adjusting the Oven Temperature”
on page 12.
Cook & Hold
Cook & Hold allows you to bake for a preset amount of time,
followed by a one-hour Keep Warm cycle.
When the cooking time has elapsed:
• Four beeps will sound.
• BAKE will turn off.
• HOLD and WARM will light.
• 170° will display.
After one hour in HOLD WARM:
• END will display.
• The time of day reappears in the display.
To cancel Cook & Hold at any time:
Press the CANCEL pad. Remove food from oven.
Delay Bake
CAUTION
Do not use delayed baking for highly perishable foods such
as dairy products, pork, poultry, or seafood.
To set Cook & Hold:
1. Press the Cook & Hold pad.
• BAKE and HOLD flash.
• 000 lights in the display.
2. Select the oven temperature. The oven temperature can be set from 170° to 550°. Press or press
and hold the ▲ or ▼ pad.
• Press the ▲ pad to increase the temperature.
• Press the ▼ pad to decrease the temperature.
3. Press Cook & Hold again OR wait four seconds.
• HOLD flashes.
• 00:00 flashes in the display.
4. Enter the amount of time you want to bake by pressing the
▲ or ▼ pad. Bake time can be set from ten minutes
(00:10) to 11 hours, 59 minutes (11:59).
• BAKE and HOLD light in the display.
• The baking time will light in the display.
• The baking time will start counting down.
When using Delay, the oven begins to cook later in the day.
Set the amount of time that you want to delay before the oven
turns on and how long you want to cook. The oven begins to
heat at the selected time and cooks for the specified length of
time, then keeps food warm for up to one hour.
Delay time can be set from 10 minutes (00:10) to 11 hours, 59
minutes (11:59).
To set a Delayed Baking cycle:
1. Press the Delay pad.
• DELAY flashes.
• 00:00 flashes in the display.
2. Press the ▲ or ▼ pad to set the delay time.
While DELAY is still flashing:
3. Press the Cook & Hold pad.
• 000 lights in the display.
• BAKE and HOLD flash.
4. Press ▲ pad to set the baking temperature.
• 00:00 and HOLD flash.
• BAKE stays lit.
5. Press ▲ pad to set the baking time.
cont.
10
Oven Cooking
• The Delay time, DELAY, BAKE and HOLD light in
the display.
When the Delay time has expired:
• DELAY will turn off.
• Baking time is displayed.
• BAKE and HOLD are displayed.
To set a Delay when Cook & Hold has already
been programmed:
1. Press the Delay pad.
• DELAY flashes.
• 00:00 appears in the display.
2. Press the ▲ or ▼ pad to set the
delay time.
• After four seconds, DELAY will
stay lit to remind you that a delayed
cooking cycle has been set.
When the Delay time has expired and the oven
starts:
• The baking time will be displayed.
• DELAY will turn off.
• BAKE and HOLD will remain lit.
To cancel:
Press the CANCEL pad.
• All timed and untimed cooking functions will be
canceled.
• The time of day will reappear in the display.
Notes:
• Do not use delayed baking for items that require a
preheated oven, such as cakes, cookies, and breads.
• Do not use delayed baking if oven is already hot.
Keep Warm
For safely keeping foods warm or for warming breads and
plates.
To set Keep Warm:
1. Press the Keep Warm pad.
• WARM flashes.
• 000 appears in the display.
2. Select the Keep Warm temperature. The
Keep Warm temperature can be set from
145° to 190°. Press or press and hold the ▲
or ▼ pad.
• 170° will light when either pad is first pressed.
• Press the ▲ pad to increase the temperature.
• Press the ▼ pad to decrease the temperature.
WARM and the temperature will be displayed while Keep
Warm is active.
To cancel Keep Warm:
1. Press the CANCEL pad.
2. Remove food from the oven.
Keep Warm Notes:
• For optimal food quality, oven cooked foods should be kept
warm for no longer than 1 to 2 hours.
• To keep foods from drying, cover loosely with foil or a lid.
• To warm dinner rolls:
- cover rolls loosely with foil and place in oven.
- press Keep Warm and ▲ pads to set 170° F.
- warm for 12-15 minutes.
• To warm plates:
- place 2 stacks of up to four plates each in the oven.
- press Keep Warm and ▲ pads to set 170° F.
- warm for five minutes, turn off the oven and leave plates
in the oven for 15 minutes more.
- use only oven-safe plates, check with the manufacturer.
- do not set warm dishes on a cold surface as rapid
temperature changes could cause crazing or breakage.
11
Oven Cooking
Automatic Shut-Off/Sabbath
Mode
The oven will automatically turn off after 12 hours if you
accidentally leave it on. This safety feature can be turned off.
To cancel the 12-hour shut-off and run the
oven continuously for 72 hours:
1. Set the oven to bake (see page 9).
2. Press and hold the Clock pad for three seconds.
• SAb will be displayed and flash for five seconds.
• SAb will then be displayed continuously until turned off
or until the 72-hour time limit is reached.
• BAKE will also be displayed if a bake cycle is in use
while the oven is in Sabbath Mode.
All other functions EXCEPT BAKE (Timer, Keep Warm,
Clean, etc.) are locked out during the Sabbath Mode.
To cancel Bake when in Sabbath Mode:
Press CANCEL.
• BAKE will turn off in the display.
• No beeps will sound.
To cancel the Sabbath Mode:
1. Press the Clock pad for three seconds.
OR
2. After 72 hours, the Sabbath Mode will end.
• SAb will flash for 5 seconds.
• The time of day will return to the display.
Adjusting the Oven Temperature
Oven temperatures are carefully tested for accuracy at the
factory. It is normal to notice some baking or browning
differences between a new oven and an old one. As ranges
get older, the oven temperature can shift.
You may adjust the oven temperature if you think the oven is
not baking or browning correctly. To decide how much to
change the temperature, set the temperature 25° higher or
lower than your recipe recommends, then bake. The results
of the “test” should give you an idea of how much to adjust
the temperature.
To adjust the oven temperature:
1. Press Bake.
2. Enter 550° by pressing the ▲ pad.
3. Press and hold the Bake pad for several
seconds or until 0° appears in the display.
If the oven temperature was previously adjusted, the
change will be displayed. For example, if the oven temperature was reduced by 15° the display will show “-15°”.
4. Press the ▲ or ▼ pad to adjust the temperature.
Each time a pad is pressed, the temperature changes by
5°. The oven temperature can be increased or decreased
by 5° to 35°.
5. The time of day will automatically reappear in the display.
You do not need to readjust the oven temperature if there
is a power failure or interruption. Broiling and cleaning
temperatures cannot be adjusted.
Sabbath Mode Notes:
• Sabbath Mode can be turned on at any time with or
without the oven on.
• Sabbath Mode cannot be turned on if the touchpads are
locked out or when the door is locked.
• If the oven is baking when Sabbath Mode is set, “BAKE”
will go out at the end of the baking cycle. There will be
no audible beeps.
• When the Sabbath Mode is started, no preheat beep will
sound.
• All prompts, messages and beeps are deactivated when
Sabbath Mode is active.
• Pressing CANCEL will cancel a Bake cycle, however the
control will stay in the Sabbath Mode.
• If power fails, the oven will power up in Sabbath Mode with
72 hours remaining and no cycle active.
12
Oven Cooking
Broiling
To set Broil:
1. Press the Broil pad.
• BROIL flashes.
• SET is displayed.
2. Press the ▲ pad to set HI broil or press the ▼ pad to set
LO broil.
• HI or LO will be displayed.
• Select HI broil (550° F) for normal broiling. Select
LO broil (450° F) for low-temperature broiling of longer
cooking foods such as poultry.
3. After four seconds, the oven will start.
• BROIL will remain lit.
4. For optimum browning, preheat broil element for 3-4
minutes before adding food.
5. Place food in the oven. Leave oven door open about four
inches (the first stop).
6. Turn meat once about halfway through cooking.
7. When food is cooked, press the CANCEL pad.
Remove food and broiler pan from the oven.
• The time of day will reappear in the
display.
Broil Notes:
• For best results when broiling, use a pan designed for
broiling.
• Expect broil times to increase and browning to be
slightly lighter if appliance is installed on a 208-volt
circuit.
• HI is used for most broiling. Use LO broil when broiling
longer cooking foods. The lower temperature allows
food to cook to the well done stage without excessive
browning.
• Broil times may be longer when the lower broiling
temperature is selected.
• For additional broiling tips and temperatures, refer to the
“Cooking Made Simple” booklet.
Broiling Chart
RACK TOTAL
FOODS POSITION* DONENESS COOK TIME
Beef
Steak, 1” thick 4 Medium 15 - 18 minutes
4 Well Done 19 - 23 minutes
Hamburgers, 3/4” thick 4 Well Done 15 - 18 minutes
Pork
Bacon 4 Well Done 6 - 10 minutes
Chops, 1” 4 Well Done 22 - 26 minutes
Ham - precooked slice, 1/2" thick 4 Warm 8 - 12 minutes
Poultry LO Broil
Chicken Pieces 3 or 4 Well Done 28 - 38 minutes
Seafood
Fish Steaks, buttered, 1” thick 4 Flaky 10 - 15 minutes
Fillets 4 Flaky 8 - 12 minutes
* The top rack position is #5.
Note: This chart is a suggested guide. The times may vary with the food being cooked.
13
Oven Cooking
Oven Vent
When the oven is in use, the area near the vent may become
hot enough to cause burns. Never block the vent opening.
OVEN VENT
• Be sure the drip bowl in the vent location
has a hole in the center. Do not cover
the drip bowl with aluminum foil.
OVEN VENT
OPENING
Oven Light
Press the Oven Light switch on the control panel to
turn the oven light on and off.
Oven Bottom
Protect oven bottom against spillovers, especially acidic or
sugary spills, as they may discolor the porcelain enamel. Use
the correct pan size to avoid spillovers and boilovers. Do not
place utensils or aluminum foil directly on the oven
bottom.
To replace:
1. Place rack on the rack support in the oven
2. Tilt the front end up slightly. Slide rack back until it clears
the lock-stop position.
3. Lower front and slide back into the oven.
Do not cover an entire rack with aluminum foil or place foil
on the oven bottom. Baking results will be affected and
damage may occur to the oven bottom.
Rack Positions
RACK 5 (highest
position): Used for
toasting bread or
broiling thin, non-fatty
foods.
RACK 4: Used for
most broiling.
RACK 3: Used for most
baked goods on a
cookie sheet or jelly roll pan, layer cakes, fruit pies, or frozen
convenience foods.
RACK 2: Used for roasting small cuts of meat, casseroles,
baking loaves of bread, bundt cakes or custard pies.
RACK 1: Used for roasting large cuts of meat and poultry,
frozen pies, dessert souffles or angel food cake.
MULTIPLE RACK COOKING:
Two rack: Use rack positions 2 and 4, or 1 and 4.
Oven Racks
CAUTION
• Do not attempt to change the rack position when the oven
is hot.
• Do not use the oven for storing food or cookware.
The oven has two racks. All racks are designed with a lockstop edge.
To remove:
1. Pull rack straight out until it
stops at the lock-stop position.
2. Lift up on the front of the rack
and pull out.
Half Rack Accessory
A half rack, to increase oven
capacity, is available as an accessory. It fits in the left, upper portion
of the oven and provides space for a
vegetable dish when a large roaster
is on the lower rack. Contact your
dealer for the “HALFRACK” Accessory Kit or call 1-877-232-6771 USA
or 1-800-688-8408 Canada.
14
Care & Cleaning
Self-Clean Oven (select models)
Note: For manual clean oven, see page 18.
CAUTION
• It is normal for parts of the range to become hot during a
self-clean cycle.
• To prevent personal injury and damage to the oven door
do not attempt to open door when “LOCK” is displayed.
• Avoid touching cooktop, door, window or oven vent area
during a clean cycle.
• Do not use commercial oven cleaners on the oven finish
or around any part of the oven. They will damage the
finish or parts.
The self-clean cycle uses above-normal cooking temperatures
to automatically clean the oven interior. Do not force the oven
door or lock lever open. This may result in exposure to high
temperatures and be a burn hazard.
It is normal for flare-ups, smoking, or flaming to occur during
cleaning if the oven is heavily soiled. It is better to clean the
oven regularly rather than to wait until there is a heavy buildup of soil in the oven.
During the cleaning process, the kitchen should be well
ventilated to get rid of normal odors associated with cleaning.
Before Self-Cleaning
1. Turn off the oven light before cleaning. The light may burn
out during the clean cycle.
2. Remove broiler pan, all pans, and oven racks from the
oven. The oven racks will discolor and may not slide easily
after a self-clean cycle if they are not removed.
3. Clean oven frame, door frame, area outside of gasket, and
around the opening in the door gasket with a nonabrasive
cleaner such as Bon Ami* or detergent and water. The
self-cleaning process does not
clean these areas. They should be
cleaned to prevent soil from baking
on during the clean cycle. (The
gasket is the seal around the oven
door and window).
4. To prevent damage, do not clean or
rub the gasket around the oven
door. The gasket is designed to seal in heat during the
clean cycle.
5. Wipe up excess grease or spillovers from the oven bottom.
This prevents excessive smoking, flare-ups or flaming
during the clean cycle.
6. Wipe up sugary and acidic spillovers such as sweet
potatoes, tomato, or milk-based sauces. Porcelain enamel
is acid-resistant, not acid-proof. The porcelain finish may
discolor if acidic spills are not wiped up before a self-clean
cycle.
To set Self-Clean:
Note: Oven temperature must be below 400° F to program
a clean cycle.
1. Close the oven door.
2. Move door lock lever right to the locked position.
3. Press the Clean pad.
• CLEAN flashes in the display.
If the door is not closed, beeps will sound and “DOOR” will
display. If the door is not closed within 45 seconds, the
self-cleaning operation will be canceled and the display
will return to the time of day.
4. Press the ▲ or ▼ pad.
• CL-M (Medium Soil, 3 hours) is displayed.
5. Press the ▲ or ▼ pad to scroll through
the self-cleaning settings.
CL-H (Heavy Soil, 4 hours)
CL-M (Medium soil, 3 hours)
CL-L (Light Soil, 2 hours)
Choosing the soil level of the oven automatically programs
the self-cleaning time.
6. After four seconds, the oven will start cleaning.
• The cleaning time will start counting down in the display.
• LOCK will appear in the display.
• CLEAN will appear in the display.
To Delay a Self-Clean Cycle:
1. Press the Delay pad.
• DELAY flashes.
• 00:00 will appear in the display.
2. Press the ▲ or ▼ pad to set the amount of
time you want to delay the cycle. Delay time
can be set from ten minutes (00:10) to 11
hours, 59 minutes (11:59).
cont.
* Brand names for cleaning products are registered trademarks of the respective manufacturers.
15
Care & Cleaning
3. Press the Clean pad.
• CLEAN will flash.
4. Press the ▲ or ▼ pad.
• CL-M (Medium Soil, 3 hours)
is displayed.
5. Press the ▲ or ▼ pad to scroll through the
self-cleaning settings.
CL-H (Heavy Soil, 4 hours)
CL-M (Medium soil, 3 hours)
CL-L (Light Soil, 2 hours)
Choosing the soil level of the oven automatically programs
the self-cleaning time.
6. After four seconds, CLEAN, DELAY and LOCK will appear
in the display to show that the oven is set for a delayed
clean operation. The delay time is displayed.
If the oven has already been set for a clean
cycle and you wish to set a delay:
1. Press the Delay pad.
• DELAY flashes.
• 00:00 will appear in the display.
2. Press the ▲ or ▼ pad to set the amount of
time you want to delay the cycle.
After four seconds, CLEAN, DELAY and
LOCK will appear in the display to show
that the oven is set for a delayed clean
operation. The delay time is displayed.
When the Self-Clean cycle starts:
• DELAY will turn off.
• The clean time will appear in the display.
To cancel the Self-Clean cycle:
Press the CANCEL pad.
• All words disappear from the display.
• All functions are canceled.
• The time of day appears in the display.
During the Self-Clean Cycle
When LOCK shows in the display, the door cannot be opened.
To prevent damage to the door, do not force the door open
when LOCK is displayed.
Smoke and Smells
You may see some smoke and smell an odor the first few
times the oven is cleaned. This is normal and will lessen in
time.
Smoke may also occur if the oven is heavily soiled or if a
broiler pan was left in the oven.
Sounds
As the oven heats, you may hear sounds of metal parts
expanding and contracting. This is normal and will not
damage the oven.
After Self-Cleaning
About one hour after the end of the self-clean cycle, LOCK
will turn off. The door can then be opened. Move door lock
lever to the left to unlock.
Some soil may leave a light gray, powdery ash. Remove
it with a damp cloth. If soil remains after wiping, that means
the clean cycle was not long enough. The soil will be removed during the next clean cycle.
If oven racks were left in the oven and do not slide
smoothly after a clean cycle, wipe racks and rack supports
with a small amount of vegetable oil to make them easier to
move.
Fine lines may appear in the porcelain because it went
through heating and cooling. This is normal and will not
affect performance.
A white discoloration may appear after cleaning if acidic
or sugary foods were not wiped up before the self-clean
cycle. This discoloration is normal and will not affect perfor-
mance.
Notes:
• If the oven door is left open, DOOR will flash in the
display and a signal will beep until the door is closed
and the Clean pad is pressed again.
• The oven door will be damaged if the oven door is
forced to open when LOCK is still displayed.
16
Care & Cleaning
Cleaning Procedures
CAUTION
• Be sure appliance is off and all parts are cool before handling
or cleaning. This is to avoid damage and possible burns.
• To prevent staining or discoloration, clean appliance after each use.
• If a part is removed, be sure it is correctly replaced.
PART PROCEDURE
Backguard and Porcelain enamel is glass fused on metal and may crack or chip with misuse. It is acid resistant, not acid
Cooktop – proof. All spillovers, especially acidic or sugary spillovers, should be wiped up immediately with a dry cloth.
Porcelain Enamel • When cool, wash with soapy water, rinse and dry.
• Never wipe off a warm or hot surface with a damp cloth. This may cause cracking or chipping.
• Never use oven cleaners, abrasive or caustic cleaning agents on exterior finish of range.
Broiler Pan and Never cover insert with aluminum foil as this prevents the fat from draining to the pan below.
Insert • Place soapy cloth over insert and pan; let soak to loosen soil.
• Wash in warm soapy water. Use scouring pad to remove stubborn soil.
• Broiler pan and insert can be cleaned in dishwasher.
* Brand names are registered trademarks of the
respective manufacturers.
** To order call 1-877-232-6771 USA or
1-800-688-8408 Canada.
Clock and • To activate “Control Lock” for cleaning, see page 9.
Control Pad • Wipe with a damp cloth and dry. Do not use abrasive cleaning agents as they may scratch the finish.
Area • Glass cleaners may be used if sprayed on a cloth first. DO NOT spray directly on control pad and
display area.
Control Knobs • Remove knobs in the OFF position by pulling forward.
• Wash, rinse and dry. Do not use abrasive cleaning agents as they may scratch the finish.
• Turn on each element to be sure the knobs have been correctly replaced.
Drip Bowls – Porcelain may discolor or craze if overheated. This is normal and will not affect cooking performance.
Porcelain • When cool, wash after each use, rinse and dry to prevent staining or discoloration. May be washed in the
(select models) dishwasher.
• To clean heavy soil, soak in hot sudsy water, then use a mild abrasive cleaner such as Soft Scrub* and a
plastic scouring pad.
• For burned on soil, remove from range, place on newspapers and carefully spray with commercial oven
cleaner. (Do not spray surrounding surfaces.) Place in plastic bag and allow to soak several hours. Wearing
rubber gloves, remove from bag, wash, rinse and dry.
Drip Bowls – • When cool, wash after each use, rinse and dry to prevent staining or discoloration.
Chrome • To clean heavy soil, soak in hot sudsy water, then use a mild abrasive cleaner such as Soft Scrub* and
(select models) a plastic scouring pad. Do not use abrasive cleaning agents.
Oven Window • Avoid using excessive amounts of water which may seep under or behind glass causing staining.
and Door – Glass • Wash with soap and water. Rinse with clear water and dry. Glass cleaner can be used if sprayed on a cloth
(select models) first.
• Do not use abrasive materials such as scouring pads, steel wool or powdered cleaners as they will scratch
glass.
17
Care & Cleaning
PART PROCEDURE
Oven Interior Self-Clean:
• Follow instructions on page 15-16 to set a self-clean cycle.
Manual Clean:
• Clean frequently using mild abrasive cleaners and a plastic pad.
• Do not use metallic scouring pads because they will scratch the surface.
• When using commercial oven cleaners follow the manufacturer’s instructions.
• Wipe up acidic spills (tomato or milk based foods) as soon as possible with soap and water. If the spill
is not wiped up, it may discolor the porcelain.
To make cleaning easier, remove the oven door, if desired. (See Maintenance section on
page 19.)
Oven Racks • Clean with soapy water.
• Remove stubborn soil with cleansing powder or soap-filled scouring pad. Rinse and dry.
• Racks will permanently discolor and may not slide smoothly if left in the oven during a self-clean
operation. If this occurs, wipe the rack edge and rack support with a small amount of vegetable oil to
restore ease of movement, then wipe off excess oil.
Stainless Steel • DO NOT USE ANY CLEANING PRODUCT CONTAINING CHLORINE BLEACH.
(select models) • DO NOT USE ABRASIVE OR ORANGE CLEANERS.
• ALWAYS WIPE WITH THE GRAIN WHEN CLEANING.
• Daily Cleaning/Light Soil –– Wipe with one of the following - soapy water, white vinegar/water solution,
Formula 409 Glass and Surface Cleaner* or a similar glass cleaner - using a sponge or soft cloth. Rinse
and dry. To polish and help prevent fingerprints, follow with Stainless Steel Magic Spray (Part No.
20000008)**.
• Moderate/Heavy Soil –– Wipe with one of the following - Bon Ami, Smart Cleanser, or Soft Scrub* -
using a damp sponge or soft cloth. Rinse and dry. Stubborn soils may be removed with a damp multipurpose Scotch-Brite* pad; rub evenly with the grain. Rinse and dry. To restore luster and remove streaks,
follow with Stainless Steel Magic Spray*.
• Discoloration –– Using a damp sponge or soft cloth, wipe with Cameo Stainless Steel Cleaner*. Rinse
immediately and dry. To remove streaks and restore luster, follow with Stainless Steel Magic Spray*.
Storage Drawer, • When cool, wash with warm soapy water, rinse and dry. Never wipe a warm or hot surface with a damp
Door Handle, Side cloth as this may damage the surface and may cause a steam burn.
Panels, Oven • For stubborn soil, use mildly abrasive cleaning agents such as baking soda paste or Bon Ami.* Do not use
Door (select abrasive, caustic or harsh cleaning agents such as steel wool pads or oven cleaners. These products will
models) – Painted scratch or permanently damage the surface.
Enamel NOTE: Use a dry towel or cloth to wipe up spills, especially acidic or sugary spills. Surface may
discolor or dull if soil is not immediately removed. This is especially important for white surfaces.
* Brand names for cleaning products are registered trademarks of the respective manufacturers.
** To order direct, call
1-877-232-6771 USA or 1-800-688-8408 Canada.
18
Maintenance
BULB COVER
WIRE
RETAINER
Oven Door
CAUTION
• Do not place excessive weight on or stand on an open
oven door. This could cause the range to tip over, break
the door, or injure the user.
• Do not attempt to open or close door or operate oven until
door is properly replaced.
• Never place fingers between hinge and front oven frame.
Hinge arms are spring mounted. If accidentally hit, the
hinge will slam shut against oven frame and could injure
your fingers.
To remove:
1. When cool, open the oven door to
the first stop position (opened
about four inches).
2. Grasp door at each side. Do not
use the door handle to lift door.
3. Lift up evenly until door clears
hinge arms.
To replace:
1. Grasp door at each side.
2. Align slots in the door with the hinge arms on the range.
3. Slide the door down onto the hinge arms until the door is
completely seated on the hinges. Push down on the top
corners of the door to completely seat door on hinges.
Door should not appear crooked.
Note: The oven door on a new range may feel “spongy”
when it is closed. This is normal and will decrease with use.
Oven Window
To protect the oven door window:
1. Do not use abrasive cleaning agents such as steel wool
scouring pads or powdered cleansers as they may scratch
the glass.
2. Do not hit the glass with pots, pans, furniture, toys, or other
objects.
3. Do not close the oven door until the oven racks are in
place.
Scratching, hitting, jarring or stressing the glass may weaken
its structure causing an increased risk of breakage at a later
date.
Oven Light
CAUTION
• Disconnect power to range before replacing light bulb.
• Use a dry potholder to prevent possible harm to hands
when replacing bulb.
• Be sure bulb is cool before touching.
• Do not touch hot bulb with a damp cloth as this may cause
the bulb to break.
To Replace Oven Light Bulb:
1. When oven is cool, hold bulb cover in place, then slide wire
retainer off cover. NOTE: Bulb cover will fall if not held in place
while removing wire retainer.
2. Remove bulb cover and light
bulb.
3. Replace with a 40-watt appliance bulb.
4. Replace bulb cover and secure with wire retainer.
5. Reconnect power to range. Reset clock.
19
Maintenance
T
Leveling Legs
CAUTION
Be sure the anti-tip bracket secures one of the rear
leveling legs to the floor. This bracket prevents the range
from accidentally tipping.
The range should be leveled when installed. If
the range is not level, turn the plastic leveling
legs, located at each corner of the range, until
range is level.
ANTI-TIP BRACKE
ANTI-TIP BRACKET
LEVELING LEG
LEVELING LEG
Storage Drawer
CAUTION
Do not store plastic, paper products, food or flammable
materials in this drawer. The drawer may become too warm
for these items when the oven is in use.
To replace:
1. Fit the ends of the drawer glides into the rails in the range.
2. Lift up the front of the drawer and gently push in to the first
stop position.
3. Lift drawer up again and push until drawer is closed.
Convenience Outlet
(Canadian models only)
The convenience outlet is located on the
lower left side of the backguard. Be sure
appliance cords do not rest on or near
the surface element. If the surface
element is turned on, the cord and
outlet will be damaged.
The convenience outlet circuit breaker
may trip if the small appliance plugged
into it exceeds 10 amps. To reset the circuit breaker, press the
switch located on the lower edge of the backguard.
CIRCUIT BREAKER
The storage drawer can be removed to allow you to clean under
the range.
To remove:
1. Empty drawer and pull out to the first stop position.
2. Lift up the front of the drawer.
3. Pull out to the second stop position.
4. Grasp sides and lift drawer top up and out.
20
Troubleshooting
PROBLEM SOLUTION
For most concerns, try these first. • Check if oven controls have been properly set.
• Check to be sure plug is securely inserted into receptacle.
• Check or re-set circuit breaker. Check or replace fuse.
• Check power supply.
Part or all of appliance does not • Check if surface and/or oven controls have been properly set. See pages 4-14.
work. • Check if oven door is unlocked after self-clean cycle. See page 16.
• Check if oven is set for a delayed cook or clean program. See pages 10 & 15.
• Check if Control Lock is activated. See page 9.
• Check if control is in Sabbath Mode. See page 12.
Clock, indicator words, and/or • Oven may be set for a Cook & Hold or delay function.
lights operate but oven does • The Control Lock may have been set. See page 9.
not heat.
Baking results are not as • Make sure the oven vent has not been blocked. See page 14 for location.
expected or differ from • Check to make sure range is level.
previous oven. • Temperatures often vary between a new oven and an old one. As ovens age, the oven
temperature often “drifts” and may become hotter or cooler. See page 12 for
instructions on adjusting the oven temperature (select models). NOTE: It is not
recommended to adjust the temperature if only one or two recipes are in question.
• See “Cooking Made Simple” booklet for more information on bakeware and
baking.
Food is not broiling properly or • Check oven rack positions. Food may be too close to element.
smokes excessively. • Broil element was not preheated.
• Aluminum foil was incorrectly used. Never line the broiler insert with foil.
• Oven door was closed during broiling. Leave the door open to the first stop position
(about 4 inches).
• Trim excess fat from meat before broiling.
• A soiled broiler pan was used.
• Voltage in house may be low.
Oven will not self-clean • Check to make sure the cycle is not set for a delayed start. See page 15.
(select models). • Check if door is closed.
• Check if control is in Sabbath Mode. See page 12.
• Oven may be over 400° F. Oven temperature must be below 400° F to program a
clean cycle.
Oven did not clean properly • Longer cleaning time may be needed.
(select models). • Excessive spillovers, especially sugary and/or acidic foods, were not removed prior
to the self-clean cycle.
Oven door will not unlock after • Oven interior is still hot. Allow about one hour for the oven to cool after the
self-clean cycle (select models). completion of a self-clean cycle. The door can be opened when the LOCK is not
displayed.
• The control and door may be locked. See page 9.
21
cont.
Troubleshooting
PROBLEM SOLUTION
Moisture collects on oven • This is normal when cooking foods high in moisture.
window or steam comes from • Excessive moisture was used when cleaning the window.
oven vent.
There is a strong odor or light • This is normal for a new range and will disappear after a few uses. Initiating a clean
smoke when oven is turned on. cycle will “burn off” the odors more quickly.
• Turning on a ventilation fan will help remove the smoke and/or odor.
• Excessive food soils on the oven bottom. Use a self-clean cycle.
Fault Codes (select models) • BAKE or LOCK may flash rapidly in the display to alert you if there is an error
or a problem. If BAKE or LOCK appear in the display, press Cancel pad.
If BAKE or LOCK continue to flash, disconnect power to the appliance.
Wait a few minutes, and then reconnect power. If the flashing still continues,
disconnect power to the appliance and call an authorized servicer.
• If the oven is heavily soiled, excessive flareups may result in a fault code during
cleaning. Press the Cancel pad and allow the oven to cool completely, wipe out excess
soil, then reset the clean cycle. If the fault code reappears, contact an authorized
servicer.
Noises may be heard. • The oven makes several low level noises. You may hear the oven relays as they go on
and off. This is normal.
• As the oven heats and cools, you may hear sounds of metal parts expanding and
contracting. This is normal and will not damage your appliance.
There are no beeps and • Control may be in Sabbath Mode (select models). See page 12.
no display.
22
