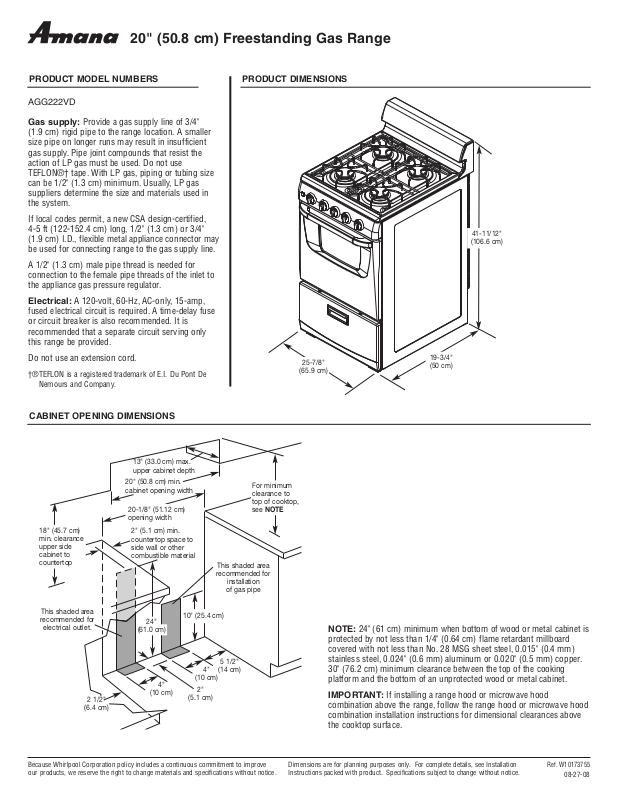

20" (50.8 cm) Freestanding Gas Range
PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS
CABINET OPENING DIMENSIONS
AGG222VD
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Gas supply: Provide a gas supply line of 3/4"
(1.9 cm) rigid pipe to the range location. A smaller
size pipe on longer runs may result in insufficient
gas supply. Pipe joint compounds that resist the
action of LP gas must be used. Do not use
TEFLON®† tape. With LP gas, piping or tubing size
can be 1/2" (1.3 cm) minimum. Usually, LP gas
suppliers determine the size and materials used in
the system.
If local codes permit, a new CSA design-certified,
4-5 ft (122-152.4 cm) long, 1/2" (1.3 cm) or 3/4"
(1.9 cm) I.D., flexible metal appliance connector may
be used for connecting range to the gas supply line.
A 1/2" (1.3 cm) male pipe thread is needed for
connection to the female pipe threads of the inlet to
the appliance gas pressure regulator.
Electrical: A 120-volt, 60-Hz, AC-only, 15-amp,
fused electrical circuit is required. A time-delay fuse
or circuit breaker is also recommended. It is
recommended that a separate circuit serving only
this range be provided.
Do not use an extension cord.
†®TEFLON is a registered trademark of E.I. Du Pont De
Nemours and Company.
Ref. W10173755
08-27-08
25-7/8"
(65.9 cm)
19-3/4"
(50 cm)
41-11/12"
(106.6 cm)
For minimum
clearance to
top of cooktop,
see NOTE
This shaded area
recommended for
installation
of gas pipe
This shaded area
recommended for
electrical outlet.
18" (45.7 cm)
min. clearance
upper side
cabinet to
countertop
13" (33.0 cm) max.
upper cabinet depth
20-1/8" (51.12 cm)
opening width
20" (50.8 cm) min.
cabinet opening width
5 1/2"
(14 cm)
2"
(5.1 cm)
2 1/2"
(6.4 cm)
4"
(10 cm)
4"
(10 cm)
10" (25.4 cm)
2" (5.1 cm) min.
countertop space to
side wall or other
combustible material
24"
(61.0 cm)
NOTE: 24" (61 cm) minimum when bottom of wood or metal cabinet is
protected by not less than 1/4" (0.64 cm) flame retardant millboard
covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the cooking
platform and the bottom of an unprotected wood or metal cabinet.
IMPORTANT: If installing a range hood or microwave hood
combination above the range, follow the range hood or microwave hood
combination installation instructions for dimensional clearances above
the cooktop surface.
