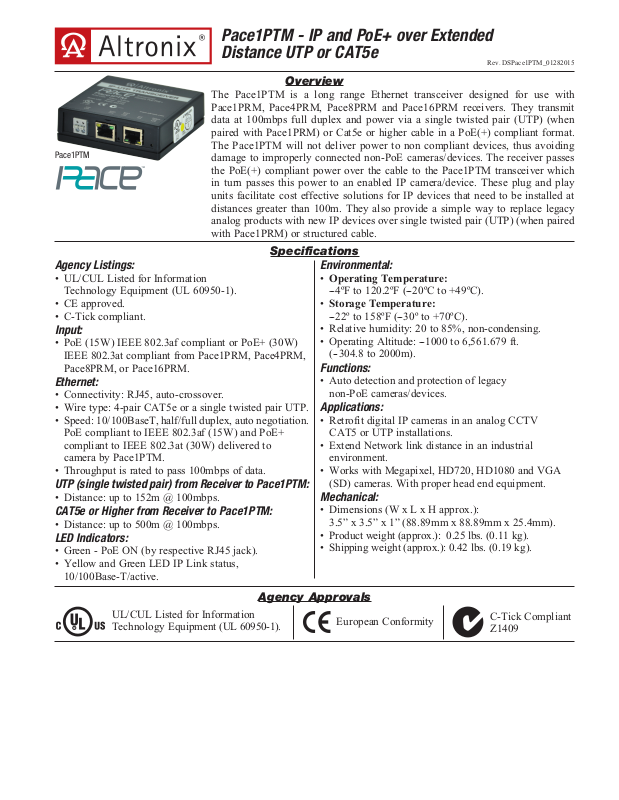

Altronix PACE1PTM Specsheet

Pace1PTM - IP and PoE+ over Extended
Distance UTP or CAT5e

Rev. DSPace1PTM_01282015

Overview

The Pace1PTM is a long range Ethernet transceiver designed for use with
Pace1PRM, Pace4PRM, Pace8PRM and Pace16PRM receivers. They transmit
data at 100mbps full duplex and power via a single twisted pair (UTP) (when
paired with Pace1PRM) or Cat5e or higher cable in a PoE(+) compliant format.

Pace1PTM

Agency Listings:

• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).

• CE approved.

• C-Tick compliant.

Input:

• PoE (15W) IEEE 802.3af compliant or PoE+ (30W)
IEEE 802.3at compliant from Pace1PRM, Pace4PRM,
Pace8PRM, or Pace16PRM.

Ethernet:

• Connectivity: RJ45, auto-crossover.

• Wire type: 4-pair CAT5e or a single twisted pair UTP.

• Speed: 10/100BaseT, half/full duplex, auto negotiation.
PoE compliant to IEEE 802.3af (15W) and PoE+
compliant to IEEE 802.3at (30W) delivered to
camera by Pace1PTM.

• Throughput is rated to pass 100mbps of data.

UTP (single twisted pair) from Receiver to Pace1PTM:

• Distance: up to 152m @ 100mbps.

CAT5e or Higher from Receiver to Pace1PTM:

• Distance: up to 500m @ 100mbps.

LED Indicators:

• Green - PoE ON (by respective RJ45 jack).

• Yellow and Green LED IP Link status,
10/100Base-T/active.

The Pace1PTM will not deliver power to non compliant devices, thus avoiding
damage to improperly connected non-PoE cameras/devices. The receiver passes
the PoE(+) compliant power over the cable to the Pace1PTM transceiver which
in turn passes this power to an enabled IP camera/device. These plug and play
units facilitate cost effective solutions for IP devices that need to be installed at
distances greater than 100m. They also provide a simple way to replace legacy
analog products with new IP devices over single twisted pair (UTP) (when paired
with Pace1PRM) or structured cable.

Specifications

Environmental:

• Operating Temperature:

-- 4ºF to 120.2ºF (-- 20ºC to +49ºC).

• Storage Temperature:

-- 22º to 158ºF (-- 30º to +70ºC).

• Relative humidity: 20 to 85%, non-condensing.

• Operating Altitude: -- 1000 to 6,561.679 ft.
(-- 304.8 to 2000m).

Functions:

• Auto detection and protection of legacy
non-PoE cameras/devices.

Applications:

• Retrofit digital IP cameras in an analog CCTV
CAT5 or UTP installations.

• Extend Network link distance in an industrial
environment.

• Works with Megapixel, HD720, HD1080 and VGA
(SD) cameras. With proper head end equipment.

Mechanical:

• Dimensions (W x L x H approx.):

3.5” x 3.5” x 1” (88.89mm x 88.89mm x 25.4mm).

• Product weight (approx.): 0.25 lbs. (0.11 kg).

• Shipping weight (approx.): 0.42 lbs. (0.19 kg).

Agency Approvals

UL/CUL Listed for Information
Technology Equipment (UL 60950-1).

European Conformity

C-Tick Compliant
Z1409

Transceiver

Pace1PTM

Pace Receiver / Pace Transceiver Compatibility:

Long Range Ethernet Adapters.

4, 8 or 16 Port Receivers:
Pace4PRM,
Pace8PRM,
Pace16PRM.

Single Port
Receiver
Pace1PRM
