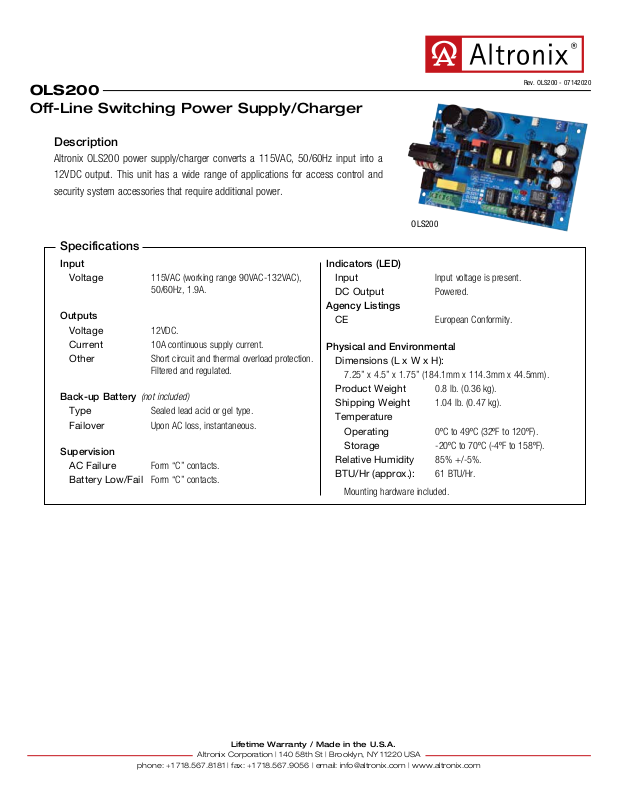

Altronix OLS200 Specsheet

OLS200

Off-Line Switching Power Supply/Charger

Description

Altronix OLS200 power supply/charger converts a 115VAC, 50/60Hz input into a

12VDC output. This unit has a wide range of applications for access control and

security system accessories that require additional power.

Specifications

Input

Voltage 115VAC (working range 90VAC-132VAC),
50/60Hz, 1.9A.

Outputs

Voltage 12VDC.
Current 10A continuous supply current.
Other Short circuit and thermal overload protection.

Filtered and regulated.

Back-up Battery (not included)

Type Sealed lead acid or gel type.
Failover Upon AC loss, instantaneous.

Supervision

AC Failure Form “C” contacts.
Battery Low/Fail Form “C” contacts.

Indicators (LED)

Input Input voltage is present.
DC Output Powered.

Agency Listings

CE European Conformity.

Physical and Environmental

Dimensions (L x W x H):

7.25” x 4.5” x 1.75” (184.1mm x 114.3mm x 44.5mm).

Product Weight 0.8 lb. (0.36 kg).
Shipping Weight 1.04 lb. (0.47 kg).
Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage -20ºC to 70ºC (-4ºF to 158ºF).
Relative Humidity 85% +/-5%.
BTU/Hr (approx.): 61 BTU/Hr.

Mounting hardware included.

Rev. OLS200 - 07142020

OLS200

Lifetime Warranty / Made in the U.S.A.

phone: [phone] | fax: [phone] | email: [e-mail] | www.altronix.com

Altronix Corporation | 140 58th St | Brooklyn, NY 11220 USA

OLS200

Off-Line Switching Power Supply/Charger

Board Dimensions (L x W x H) and Drawing

7.25” x 4.5” x 1.75” (184.1mm x 114.3mm x 44.5mm)

0.38”

(9.6mm)

0.19”

(4.8mm)

3.7”

(94mm)

Ø 0.15”

(3.8mm)

6.73”

(170.9mm)

4.5”

(114.3mm)

7.25”

(184.1mm)
