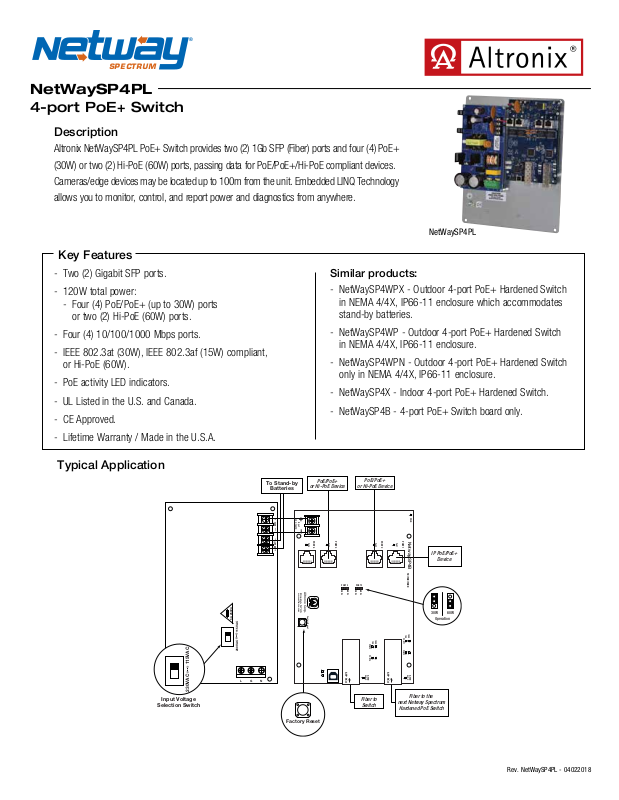

Altronix NETWAYSP4PL Specsheet

NetWaySP4PL

230VAC 115VAC

5A 250VA

--- DC ++ BAT –

To Stand-by

Batteries

230VAC 115VAC

Factory Reset

IP PoE/PoE+

Device

PoE/PoE+

or Hi-PoE Device

PoE/PoE+

or Hi-PoE Device

Fiber to

Switch

Input Voltage

Selection Switch

LGN

30W

60W

Operation

Factory Reset

PoE1

Altronix Corp.

Brooklyn, NY US

www.altronix.com

10/100/1000

PWR

NetwaySP4B

PoE2

PORT1

1000

100

PORT3

1000

100

PORT2

PORT4

SFP2

ALOS

Input:

48V-56VDC

+

--

PORT 1

PORT 2

PoE3

PoE4

PORT 3

PORT 4

PORT 2PORT 3

30W

60W

30W

60W

SFP Port

SFP2

ALOS

SFP Port

Fiber to the

next Netway Spectrum

Hardened PoE Switch

®

SPECTRUM

4-port PoE+ Switch

Description

Altronix NetWaySP4PL PoE+ Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+

(30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices.

Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology

allows you to monitor, control, and report power and diagnostics from anywhere.

Key Features

NetWaySP4PL

- Two (2) Gigabit SFP ports.

- 120W total power:

- Four (4) PoE/PoE+ (up to 30W) ports
or two (2) Hi-PoE (60W) ports.

- Four (4) 10/100/1000 Mbps ports.

- IEEE 802.3at (30W), IEEE 802.3af (15W) compliant,
or Hi-PoE (60W).

- PoE activity LED indicators.

- UL Listed in the U.S. and Canada.

- CE Approved.

- Lifetime Warranty / Made in the U.S.A.

Typical Application

Similar products:

- NetWaySP4WPX - Outdoor 4-port PoE+ Hardened Switch
in NEMA 4/4X, IP66-11 enclosure which accommodates
stand-by batteries.

- NetWaySP4WP - Outdoor 4-port PoE+ Hardened Switch
in NEMA 4/4X, IP66-11 enclosure.

- NetWaySP4WPN - Outdoor 4-port PoE+ Hardened Switch
only in NEMA 4/4X, IP66-11 enclosure.

- NetWaySP4X - Indoor 4-port PoE+ Hardened Switch.

- NetWaySP4B - 4-port PoE+ Switch board only.

Rev. NetWaySP4PL - 04022018

NetWaySP4PL

®

SPECTRUM

4-port PoE+ Switch

Specifications

Input

Voltage 115VAC, 60Hz, 2.5A or
230VAC, 50/60Hz, 1.3A.

Fusing 5A/250V.

Power Output

Maximum Power Four (4) PoE+ (30W) ports
or two (2) Hi-PoE (60W) ports.

IEEE 802.3at (30W) and
IEEE 802.3af (15W) compliant.

120W total power.
Integral surge protection.

Fiber Ports: Two (2) Gigabit SFP ports.

Ethernet Ports: Four (4) 10/100/1000 Mbps ports.

Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5

or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps,

half/full duplex, auto negotiation.

Back-up Battery (not included)
Type Sealed lead acid or gel type.
Failover Upon AC loss, instantaneous.

Indicators (LED)

Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.

LINQ Technology:

Remote network management allows for camera/device reset
and monitoring.

Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report

real-time diagnostics.
Event log tracks history.

Agency Listings

UL/cUL UL60950-1
(Information Technology Equipment).

UL60950-22
(Information Technology Equipment
to be installed Outdoors).

CE European Conformity.

Physical and Environmental

Backplane Dimensions (H x W x D approx.):

10.75” x 8.875” x 2.375” (273.1mm x 225.4mm x 60.3mm).

Product Weight / Shipping (approx.)
Product Weight: 2.8 lbs. (1.27 kg).
Shipping Weight: 4.2 lbs. (1.9 kg).
Temperature
Operating: 60W: -40ºC to 75ºC (-40ºF to 167ºF).

75W: -40ºC to 70ºC (-40ºF to 158ºF).
100W: -40ºC to 55ºC (-40ºF to 131ºF).
120W: -40ºC to 45ºC (-40ºF to 113ºF).

Storage: -40ºC to 85ºC (-40ºF to 185ºF).
Relative Humidity: 85% +/-5%
BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude: -304.8 to 2,000m.

Accessories

NetWaySP1A - Ethernet over Fiber Media Converter/Repeater

For Applications requiring an additional SFP (Fiber) Port

NetWaySP1A PoE powered media converter/repeater converts 10/100/1000 Mbps to Fiber (1000Base-X/SX/LX).

P1MM and P1SM10 - SFP Modules

Altronix P1MM and P1SM10 are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix
Spectrum fiber optic equipment for 1G transmission rates. The P1MM is to be used with Multi-Mode Fiber for distances up
to 550m. The P1SM10 is to be used with Single-Mode Fiber for distances up to 10Km.
