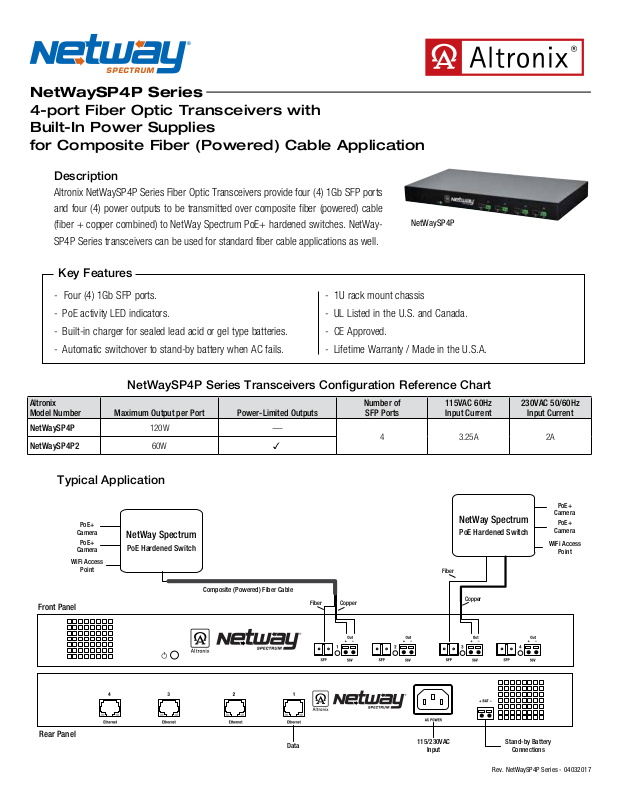

Altronix NETWAYSP4P, NETWAYSP4P2 Specsheet

NetWaySP4P Series

®

SPECTRUM

4-port Fiber Optic Transceivers with
Built-In Power Supplies
for Composite Fiber (Powered) Cable Application

Description

Altronix NetWaySP4P Series Fiber Optic Transceivers provide four (4) 1Gb SFP ports

and four (4) power outputs to be transmitted over composite fiber (powered) cable

(fiber + copper combined) to NetWay Spectrum PoE+ hardened switches. NetWay-

SP4P Series transceivers can be used for standard fiber cable applications as well.

Key Features

NetWaySP4P

- Four (4) 1Gb SFP ports.

- PoE activity LED indicators.

- Built-in charger for sealed lead acid or gel type batteries.

- Automatic switchover to stand-by battery when AC fails.

NetWaySP4P Series Transceivers Configuration Reference Chart

Altronix
Model Number Maximum Output per Port Power-Limited Outputs

NetWaySP4P

NetWaySP4P2

120W -----

60W

3

Typical Application

PoE+

Camera

PoE+

Camera

WiFi Access

Point

NetWay Spectrum

PoE Hardened Switch

- 1U rack mount chassis

- UL Listed in the U.S. and Canada.

- CE Approved.

- Lifetime Warranty / Made in the U.S.A.

Number of

SFP Ports

4 3.25A 2A

115VAC 60Hz
Input Current

NetWay Spectrum

PoE Hardened Switch

Fiber

230VAC 50/60Hz

Input Current

PoE+

Camera

PoE+

Camera

WiFi Access

Point

Front Panel

Rear Panel

Composite (Powered) Fiber Cable

CopperFiber

Data

115/230VAC

Input

Copper

Stand-by Battery

Connections

Rev. NetWaySP4P Series - 04032017

NetWaySP4P Series

®

SPECTRUM

4-port Fiber Optic Transceivers with
Built-In Power Supplies
for Composite Fiber (Powered) Cable Application

Specifications

Input

Voltage 115VAC, 60Hz, 3.25A or
230VAC, 50/60Hz, 2A.

Output Four (4) power outputs.
Total power: 240W.
IEEE 802.3af (15W) and

IEEE 802.3at (30W) compliant.
Integral surge protection.

Fiber Ports: Four (4) 1Gb SFP ports.
Maximum Power 60W or 120W, see Reference Chart.

Per Output

Ports

Fiber: Four (4) 1Gb SFP ports.
Copper: Four (4) 1Gb RJ45.

Ethernet: Four (4) ports to swtich.
Wire type: 4-pair CAT5e and higher.
Connectivity: RJ45, auto-crossover.
Speed: 10/100/1000Mbps.
Distance: up to 100m.

Back-up Battery (not included)
Type Sealed lead acid or gel type.
Failover Upon AC loss, instantaneous.

Agency Listings

UL/cUL UL60950-1
(Information Technology Equipment).

CE European Conformity.

Physical and Environmental

Dimensions (W x L x H)

1.625” x 19.125” x 8.5” (41.3mm x 486mm x 216mm).

Product Weight / Shipping (approx.)
Product Weight: 3.81 lbs. (1.72 kg).
Shipping Weight: 6.0 lbs. (2.72 kg).
Temperature
Operating (120W): -40ºC to 50ºC (-40ºF to 122ºF).
Storage: -40ºC to 85ºC (-40ºF to 185ºF).
Relative Humidity: 85% +/-5%.
Operating Altitude:

-304.8 to 2,000m (-1,000 to 6,561.679 ft.).
BTU/Hr (approx.): 123 BTU/Hr.

Compatible NetWay Spectrum Switches

NetWaySP3WPN 3-port PoE+, 1 (one) SFP port Hardened Switch.
NetWay4EWPN 4-port PoE+, 1 (one) SFP port Hardened Switch.
NetWaySP4WPN 4-port PoE+, 2 (two) SFP ports Hardened Switch.
NetWaySP8WPN 8-port PoE+, 2 (two) SFP ports Hardened Switch.

NetWay4EWPN
