Altronix NETWAYSP3WP Specsheet

NetWaySP3WP

230VAC 115VAC

5A 250VA

--- DC ++ BAT –

To Stand-by

Batteries

230VAC 115VAC

Factory Reset

IP PoE/PoE+

Device or

NetWaySP1A

PoE/PoE+

or Hi-PoE Device

PoE/PoE+

or Hi-PoE Device

Fiber to

Switch

Input Voltage

Selection Switch

LGN

SFP

Spd

Spd

PoE_Data

PoE_SPR

PoE_SPR

Factory Reset

PoE_Data

Spd

Input:

48V-56VDC

PORT3 (Uplink)

Spd: 10/100/1000

PoE: 30W

Altronix Cor

Brooklyn, NY US

www.altronix.com

PORT1

Spd: 10/100/1000

PoE: 30W/60W

PORT2

Spd: 10/100/1000

PoE: 30W/60W

Link

3.3V PWR

Link

Link

+

NetwaySP3B

--

PoE

ALOS

®

SPECTRUM

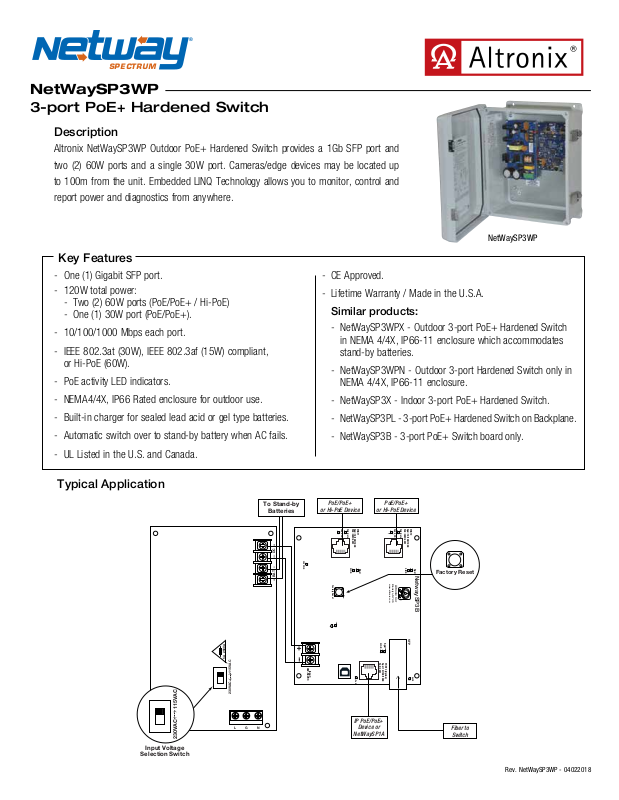

3-port PoE+ Hardened Switch

Description

Altronix NetWaySP3WP Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and

two (2) 60W ports and a single 30W port. Cameras/edge devices may be located up

to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and

report power and diagnostics from anywhere.

Key Features

- One (1) Gigabit SFP port.

- 120W total power:

- Two (2) 60W ports (PoE/PoE+ / Hi-PoE)

- One (1) 30W port (PoE/PoE+).

- 10/100/1000 Mbps each port.

- IEEE 802.3at (30W), IEEE 802.3af (15W) compliant,
or Hi-PoE (60W).

- PoE activity LED indicators.

- CE Approved.

- Lifetime Warranty / Made in the U.S.A.

Similar products:

- NetWaySP3WPX - Outdoor 3-port PoE+ Hardened Switch
in NEMA 4/4X, IP66-11 enclosure which accommodates
stand-by batteries.

- NetWaySP3WPN - Outdoor 3-port Hardened Switch only in
NEMA 4/4X, IP66-11 enclosure.

NetWaySP3WP

- NEMA4/4X, IP66 Rated enclosure for outdoor use.

- Built-in charger for sealed lead acid or gel type batteries.

- Automatic switch over to stand-by battery when AC fails.

- UL Listed in the U.S. and Canada.

Typical Application

- NetWaySP3X - Indoor 3-port PoE+ Hardened Switch.

- NetWaySP3PL - 3-port PoE+ Hardened Switch on Backplane.

- NetWaySP3B - 3-port PoE+ Switch board only.

Rev. NetWaySP3WP - 04022018

NetWaySP3WP

®

SPECTRUM

3-port PoE+ Hardened Switch

Specifications

Input

Voltage 115VAC, 60Hz, 2.5A or
230VAC, 50/60Hz, 1.3A.

Fusing 5A/250V.

Power Output

Maximum Power 120W total power:
Two (2) 60W ports (PoE/PoE+ / Hi-PoE).
One (1) 30W port (PoE/PoE+).
10/100/1000 Mbps each port.
IEEE 802.3at (30W), IEEE 802.3af (15W)

compliant, or Hi-PoE (60W).
Integral surge protection.

Fiber Ports: One (1) Gigabit SFP port.

Ethernet Ports: Three (3) 10/100/1000 Mbps ports.

Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5

or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps,

half/full duplex, auto negotiation.

Back-up Battery (not included)
Type Sealed lead acid or gel type.
Failover Upon AC loss, instantaneous.

Indicators (LED)

Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.

LINQ Technology:

Remote network management allows for camera/device reset
and monitoring.

Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.

Agency Listings

UL/cUL UL60950-1
(Information Technology Equipment).

UL60950-22
(Information Technology Equipment

to be installed Outdoors).
CE European Conformity.

Physical and Environmental

Enclosure Dimensions (H x W x D approx.):

13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm).
NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.

Product Weight / Shipping (approx.)
Product Weight: 10.32 lbs. (4.68 kg).
Shipping Weight: 11.7 lbs. (5.3 kg).
Temperature
Operating: 60W: -40ºC to 75ºC (-40ºF to 167ºF).

75W: -40ºC to 70ºC (-40ºF to 158ºF).
100W: -40ºC to 55ºC (-40ºF to 131ºF).
120W: -40ºC to 45ºC (-40ºF to 113ºF).

Storage: -40ºC to 85ºC (-40ºF to 185ºF).
Relative Humidity: 85% +/-5%
BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude: -304.8 to 2,000m.

Accessories

NetWaySP1A - Ethernet over Fiber Media Converter/Repeater

For Applications requiring an additional SFP (Fiber) Port

NetWaySP1A PoE powered media converter/repeater converts 10/100/1000 Mbps to Fiber (1000Base-X/SX/LX).

P1MM and P1SM10 - SFP Modules

Altronix P1MM and P1SM10 are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix
Spectrum fiber optic equipment for 1G transmission rates. The P1MM is to be used with Multi-Mode Fiber for distances up
to 550m. The P1SM10 is to be used with Single-Mode Fiber for distances up to 10Km.

PMK1 Pole Mount Kit (order separately)

PMK1 pole mount kit is designed to simplify installation of outdoor units. It accommodates 2”- 8”(diameter) poles.
