Altronix NETWAYSP2P Installation Guide

Rev.112817
Installation Guide
2-Port Powered Media Converter/Injector
Overview:
Altronix NetWaySP2P hardened media converter/injector converts a single Fiber (1000Base-X/SX/LX) into two (2) Ethernet ports (10/100/1000 Mbps) and provides PoE/PoE+ power to connected devices. Mounted in compact insulated housing, it features auto detection and protection of legacy non-PoE cameras/devices.
Features:
Agency Listings:
• CE European Conformity.
Input:
• 48-56VDC @ 1.2A (60W).
Fiber Port:
Refer to page 3 for recommended SFP modules.
• One (1) 1Gb SFP port.
Output Power:
• Two (2) PoE / PoE+ ports, rated up to 30W max.
• IEEE 802.3af and IEEE 802.3at compliant.
Ethernet:
• IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
• Wire type: 4-pair CAT5e and higher.
• Connectivity: RJ45, auto-crossover.
• Speed: 10/100/1000 Mbps.
• Distance: up to 100m.
LED Indicators (Refer to Fig. 1, Pg. 2):
Yellow and Green LEDs (RJ45 jacks): IP Link status, 10/100/1000 Base-T/active.
Green PoE LEDs: Indicate PoE present.
Green SFP (Fiber) LED: Indicates SFP connection.
Environmental:
• Refer to Environmental Conditions on page 3.
Dimensions (W x L x H approx.):
3.375” x 3.8” x 1” (85.7mm x 96.5mm x 25.4mm).
Installation Instructions:
Unit is powered via 48VDC-56VDC. NetWaySP2P is not intended to be connected to outside plant leads and should be installed indoors within the protected premises.
1. Mount NetWaySP2P in desired location utilizing the mounting hole (Fig. 1a, pg. 2). Use a proper fastener and/or wall anchor when securing NetWaySP2P with screw through its mounting hole to the wall.
2. Connect 48VDC-56VDC power source to terminals marked [48-56VDC – Input +]. Terminals accommodate up to 12 AWG wires. Caution: Make sure to observe polarity.
3. Connect structured cable from port(s) marked [PoE+ Output] on NetWaySP2P to a PoE device(s) (Fig. 2, pg. 2).
4. Connect fiber optic cable to a fiber SFP module. Connect the module to the port marked [SFP] on the NetWaySP2P. Connect the other end of fiber cable to an SFP module of a remote device. SFP LED will illuminate indicating data connection (Fig. 2, pg. 2).
Fig. 1
A
Fig. 1a
NetWaySP2P
2-Port Media Converter/Injector
Input: 48–56VDC
Output: IEEE 802.3at (30W) and
IEEE 802.3af (15.4W) compliant.
48-56VDC
-- Input +
PoE+
Output
PoE+
Output
Fiber
SignalSFP
Typical Applications:
Fig. 2
48VDC to
56VDC
Input
Structured Cables to
-- +
PoE Devices
PoE LEDs indicate
PoE present
One (1) Gb
SFP port for Fiber
SFP LED Indicates
data connection
115/230VAC
Input
Fig. 3
DC
Power
Supply
115/230VAC
Input
48-56VDC Input
CAT5e/6
PoE+ (30W) PTZ
DC
Power
Supply
48-56VDC
PoE+
-- Input +
Output
NetWaySP2P
2-Port Media Converter/Injector
Input: 48–56VDC
Output: IEEE 802.3at (30W) and
IEEE 802.3af (15.4W) compliant.
PoE+
Fiber
Output
SignalSFP
CAT5e/6
PoE+ (30W) PTZ
48-56VDC
Input
PoE+ (30W) PTZ
CAT5e/6
NetWaySP2P
Converts Ethernet to Fiber & Provides PoE
48-56VDC
-- Input +
NetWaySP2P
2-Port Media Converter/Injector
Input: 48–56VDC
Output: IEEE 802.3at (30W) and
IEEE 802.3af (15.4W) compliant.
PoE+ Output
PoE+ Output
Fiber
NetWaySP2P
Converts Ethernet to Fiber & Provides PoE
Fiber SignalSFP
PoE+ (30W) PTZ
CAT5e/6
or Midspan/Endspan
NetWaySP1A
Media Converter/Repeater
Input: PoE Class 1 or Higher Data: 10/100/1000
PoE /
10/100/1000 InPoE
CAT5e/6
NetWay8E
www.altronix.com
SFP
Made in U.S.A.
NetWaySP1
Media Converter/ Repeater
Fiber Signal
Fiber
- 2 - NetWaySP2P

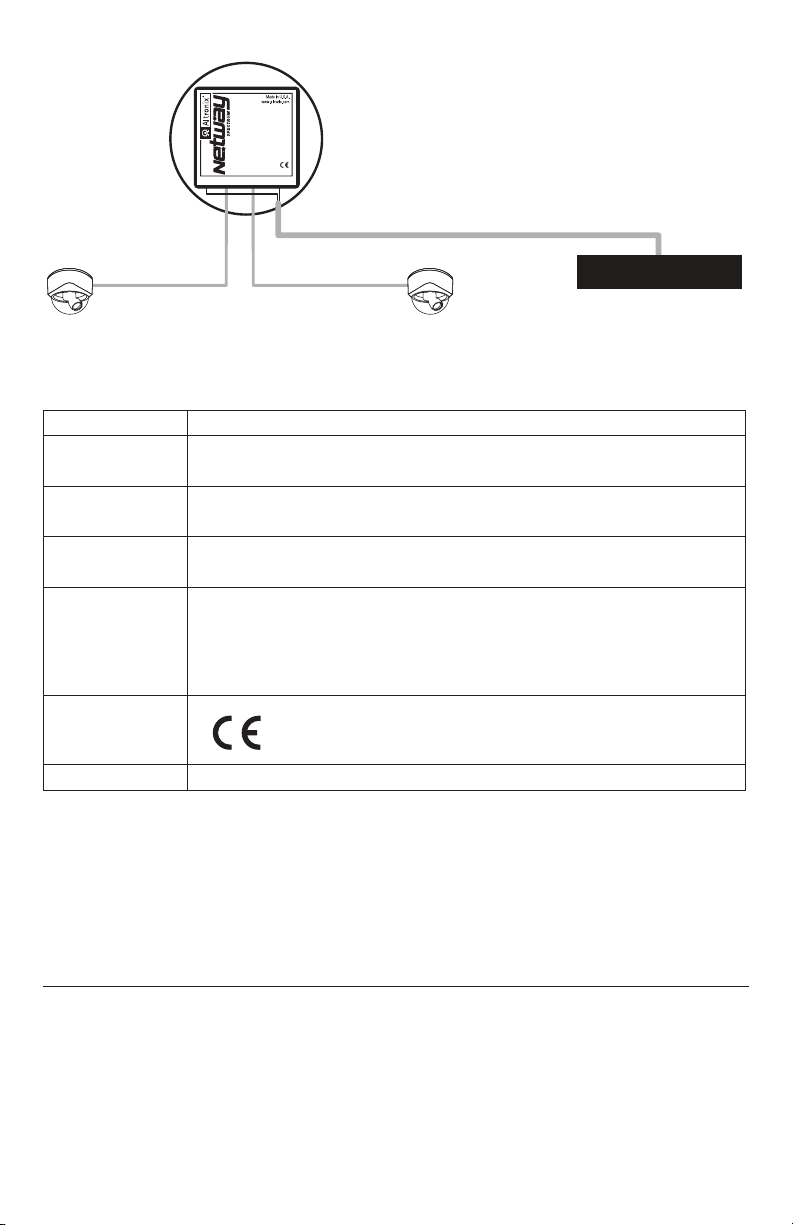

Fig. 4
NetWaySP2P
2-Port Media Converter/Injector
Input: 48–56VDC
Output: IEEE 802.3at (30W) and
IEEE 802.3af (15.4W) compliant.
48-56VDC
PoE+
PoE+
-- Input +
Output
Output
CAT5e/6
PoE+ (30W) PTZ
Parameter Description
Ports
Input Power Requirements
Indicators
One (1) 1Gb SFP port. Two (2) PoE .3af/ .3at Ethernet ports 10/100/1000 Mbps.
48VDC-56VDC @ 1.2A.
PoE Green LED: Indicates PoE present. Fiber Signal Green LED: Indicates SFP connection.
Temperature:
Evironmental Conditions
Operating (30W): – 40ºC to 70ºC (– 40ºF to 158ºF). Storage: – 40ºC to 75ºC (– 40ºF to 167ºF). Relative Humidity: 85% +/–5%. Operating Altitude: – 304.8 to 2,000m.
NetWaySP2P
Converts Ethernet to Fiber & Provides PoE
Fiber
SignalSFP
Composite
Fiber/Copper
CAT5e/6
PoE+ (30W) PTZ
Technical Specifications:
NetWaySP4 Series
Regulatory Compliance
Weights (approx.)
Product: 0.25 lb. (0.11 kg) | Shipping: 0.3 lb. (0.14 kg).
CE European Conformity.
Recommended Altronix SFP Modules:
Altronix P1MM and P1SM10 are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1Gb transmission rates.
P1MM - For use with Multi-Mode Fiber for distances up to 550m. P1SM10 - For use with Single-Mode Fiber for distances up to 10km.
NetWaySP2P - 3 -
Notes:
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. NetWaySP2P K28Q
