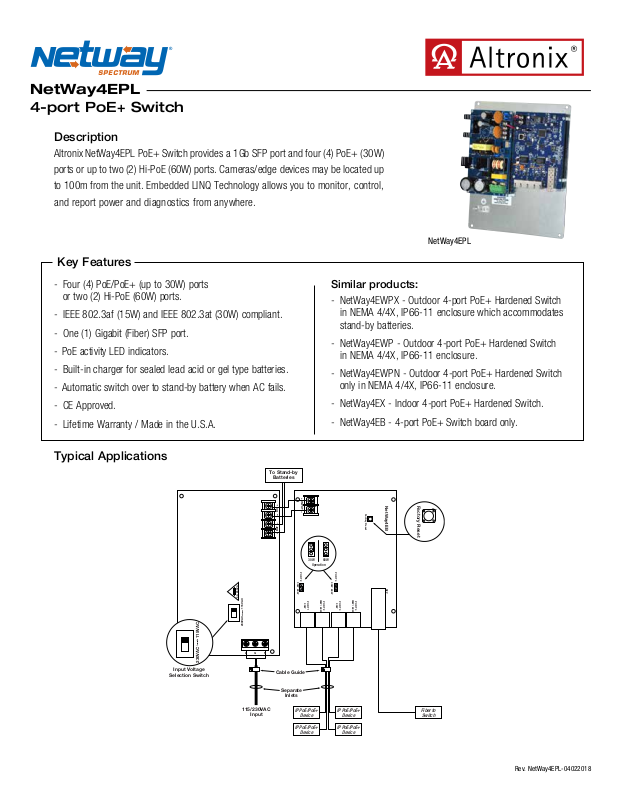

Altronix NETWAY4EPL Specsheet
®
SPECTRUM
NetWay4EPL
4-port PoE+ Switch
Description
Altronix NetWay4EPL PoE+ Switch provides a 1Gb SFP port and four (4) PoE+ (30W)
ports or up to two (2) Hi-PoE (60W) ports. Cameras/edge devices may be located up
to 100m from the unit. Embedded LINQ Technology allows you to monitor, control,
and report power and diagnostics from anywhere.
Key Features
NetWay4EPL
- Four (4) PoE/PoE+ (up to 30W) ports
or two (2) Hi-PoE (60W) ports.
- IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
- One (1) Gigabit (Fiber) SFP port.
- PoE activity LED indicators.
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- CE Approved.
- Lifetime Warranty / Made in the U.S.A.
Typical Applications
To Stand-by
Batteries
--- DC ++ BAT –
5A 250VA
Similar products:
- NetWay4EWPX - Outdoor 4-port PoE+ Hardened Switch
in NEMA 4/4X, IP66-11 enclosure which accommodates
stand-by batteries.
- NetWay4EWP - Outdoor 4-port PoE+ Hardened Switch
in NEMA 4/4X, IP66-11 enclosure.
- NetWay4EWPN - Outdoor 4-port PoE+ Hardened Switch
only in NEMA 4/4X, IP66-11 enclosure.
- NetWay4EX - Indoor 4-port PoE+ Hardened Switch.
- NetWay4EB - 4-port PoE+ Switch board only.
+ INPUT ---
60W
30W
Operation
PORT 2
30W 60W
30W
PORT 4
30W
60W
30W / 60W
PORT 1
30W / 60W
PORT 2
PORT 3
30W
NetWay4EB
Factory Reset
PORT 4
Factory Reset
SFP
230VAC 115VAC
Input Voltage
Selection Switch
230VAC 115VAC
LGN
115/230VAC
Input
Cable Guide
Separate
Inlets
IP PoE/PoE+
IP PoE/PoE+
Device
Device
IP PoE/PoE+
Device
IP PoE/PoE+
Device
Fiber to
Switch
Rev. NetWay4EPL-04022018
®
SPECTRUM
NetWay4EPL
4-port PoE+ Switch
Specifications
Input
Voltage 115VAC, 60Hz, 2.5A or
230VAC, 50/60Hz, 1.3A.
Power Output
Maximum Power Four (4) PoE+ (30W) ports
or two (2) Hi-PoE (60W) ports.
IEEE 802.3at (30W) and
IEEE 802.3af (15W) compliant.
120W total power.
Integral surge protection.
Fiber Port: One (1) Gigabit SFP (Fiber) port.
Back-up Battery (not included)
Type Sealed lead acid or gel type.
Failover Upon AC loss, instantaneous.
Indicators (LED)
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
LINQ Technology:
Remote network management allows for camera/device reset
and monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report
real-time diagnostics.
Event log tracks history.
Agency Listings
CE European Conformity.
Physical and Environmental
Dimensions (H x W x D)
10.75” x 8.875” x 2.375” (273.1mm x 225.4mm x 60.3mm).
Product Weight: 2.6 lbs. (1.18 kg).
Shipping Weight: 4.0 lbs. (1.81 kg).
Temperature
Storage: -40ºC to 85ºC (-40ºF to 185ºF).
Relative Humidity: 85% +/-5%.
BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude: -304.8 to 2,000m.
Accessories
NetWaySP1A - Ethernet over Fiber Media Converter/Repeater
For Applications requiring an additional SFP (Fiber) Port
NetWaySP1A PoE powered media converter/repeater converts 10/100/1000 Mbps to Fiber (1000Base-X/SX/LX).
P1MM and P1SM10 - SFP Modules
Altronix P1MM and P1SM10 are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix
Spectrum fiber optic equipment for 1G transmission rates. The P1MM is to be used with Multi-Mode Fiber for distances up
to 550m. The P1SM10 is to be used with Single-Mode Fiber for distances up to 10Km.
phone: +1 718.567.8181 | fax: +1 718.567.9056 | email: info@altronix.com | www.altronix.com
Altronix Corporation | 140 58th St | Brooklyn, NY 11220 USA
