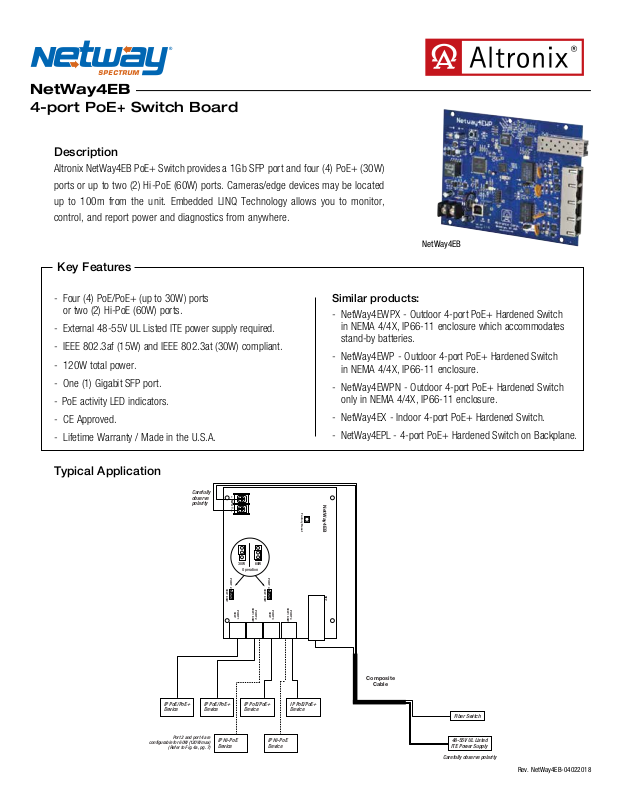

SPECTRUM
NetWay4EB
4-port PoE+ Switch Board
Description
Altronix NetWay4EB PoE+ Switch provides a 1Gb SFP port and four (4) PoE+ (30W)
ports or up to two (2) Hi-PoE (60W) ports. Cameras/edge devices may be located
up to 100m from the unit. Embedded LINQ Technology allows you to monitor,
control, and report power and diagnostics from anywhere.
Key Features
NetWay4EB
- Four (4) PoE/PoE+ (up to 30W) ports
or two (2) Hi-PoE (60W) ports.
- External 48-55V UL Listed ITE power supply required.
- IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
- 120W total power.
- One (1) Gigabit SFP port.
- PoE activity LED indicators.
- CE Approved.
- Lifetime Warranty / Made in the U.S.A.
Typical Application
Carefully
observe
polarity
+ INPUT ---
60W
30W
Operation
30W / 60W
PORT 2
PORT 4
30W 60W
PORT 3
30W
PORT 2
30W 60W
PORT 1
30W
30W / 60W
PORT 4
Similar products:
- NetWay4EWPX - Outdoor 4-port PoE+ Hardened Switch
in NEMA 4/4X, IP66-11 enclosure which accommodates
stand-by batteries.
- NetWay4EWP - Outdoor 4-port PoE+ Hardened Switch
in NEMA 4/4X, IP66-11 enclosure.
- NetWay4EWPN - Outdoor 4-port PoE+ Hardened Switch
only in NEMA 4/4X, IP66-11 enclosure.
- NetWay4EX - Indoor 4-port PoE+ Hardened Switch.
- NetWay4EPL - 4-port PoE+ Hardened Switch on Backplane.
NetWay4EB
Factory Reset
SFP
IP PoE/PoE+
Device
Port 2 and port 4 are
configurable for 60W (120W max)
(Refer to Fig. 4a, pg. 7)
IP PoE/PoE+
Device
IP Hi-PoE
Device
IP PoE/PoE+
Device
IP Hi-PoE
Device
IP PoE/PoE+
Device
Composite
Cable
Fiber Switch
48-55V UL Listed
ITE Power Supply
Carefully observe polarit
Rev. NetWay4EB-04022018
®
SPECTRUM
NetWay4EB
4-port PoE+ Switch Board
Specifications
Input
Voltage 48V-55V (UL Listed ITE power supply)
Power Output
Maximum Power Four (4) PoE+ (30W) ports
or two (2) Hi-PoE (60W) ports.
IEEE 802.3at (30W) and
IEEE 802.3af (15W) compliant.
120W total power.
Integral surge protection.
Fiber Port: One (1) Gigabit SFP port.
Indicators (LED)
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
LINQ Technology:
Remote network management allows for camera/device reset
and monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report
real-time diagnostics.
Event log tracks history.
Agency Listings
CE European Conformity.
Physical and Environmental
Dimensions (H x W x D)
6.25” x 4.5” x 1.0” (158.8mm x 114.3mm x 25.4mm).
Product Weight: 0.25 lbs. (0.11 kg).
Shipping Weight: 0.75 lbs. (0.34 kg).
Temperature
Operating (120W): -40ºC to 75ºC (-40ºF to 167ºF).
Storage: -40ºC to 85ºC (-40ºF to 185ºF).
Relative Humidity: 85% +/-5%.
Operating Altitude: -304.8 to 2,000m.
Accessories
PoE201 - 120W Power Supply/Charger
PoE201 provides 120W for NetWay Spectrum switches with 1Gb SFP ports.
It also features a built-in charger for sealed lead acid or gel type batteries.
NetWaySP1A - Ethernet over Fiber Media Converter/Repeater
For Applications requiring an additional SFP (Fiber) Port
NetWaySP1A PoE powered media converter/repeater converts 10/100/1000 Mbps to Fiber (1000Base-X/SX/LX).
P1MM and P1SM10 - SFP Modules
Altronix P1MM and P1SM10 are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix
Spectrum fiber optic equipment for 1G transmission rates. The P1MM is to be used with Multi-Mode Fiber for distances up
to 550m. The P1SM10 is to be used with Single-Mode Fiber for distances up to 10Km.
