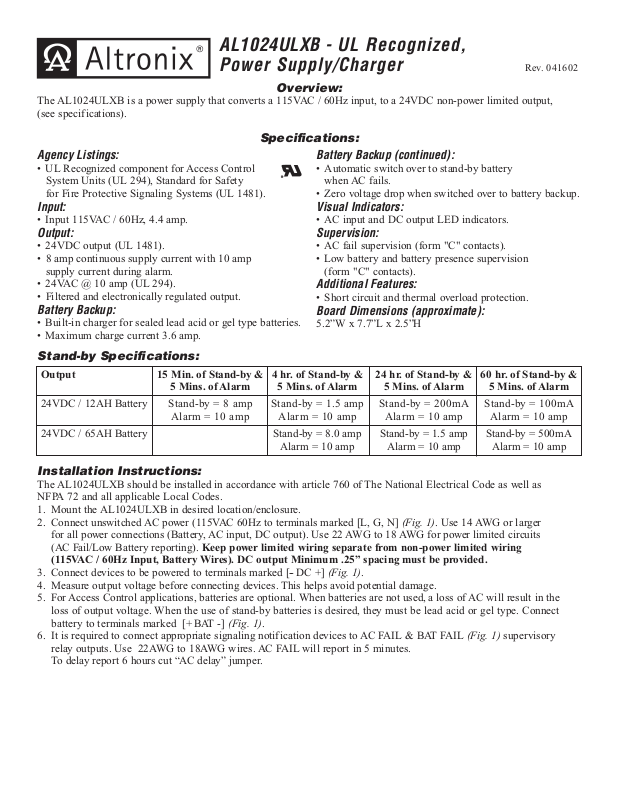

Altronix AL1024ULXB Installation Instructions

AL1024ULXB - UL Recognized,
Power Supply/Charger

Rev. 041602

Overview:

The AL1024ULXB is a power supply that converts a 115VAC / 60Hz input, to a 24VDC non-power limited output,
(see specifications).

Specifications:

Agency Listings:

• UL Recognized component for Access Control
System Units (UL 294), Standard for Safety
for Fire Protective Signaling Systems (UL 1481).

Input:

• Input 115VAC / 60Hz, 4.4 amp.

Output:

• 24VDC output (UL 1481).
8 amp continuous supply current with 10 amp

•
supply current during alarm.

• 24VAC @ 10 amp (UL 294).
Filtered and electronically regulated output.

•

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.

• Maximum charge current 3.6 amp.

Battery Backup (continued):

• Automatic switch over to stand-by battery
when AC fails.

• Zero voltage drop when switched over to battery backup.

Visual Indicators:

• AC input and DC output LED indicators.

Supervision:

• AC fail supervision (form "C" contacts).
Low battery and battery presence supervision

•
(form "C" contacts).

Additional Features:

• Short circuit and thermal overload protection.

Board Dimensions (approximate):

5.2”W x 7.7”L x 2.5”H

Stand-by Specifications:

Output 15 Min. of Stand-by & 4 hr. of Stand-by & 24 hr. of Stand-by & 60 hr. of Stand-by &

5 Mins. of Alarm 5 Mins. of Alarm 5 Mins. of Alarm 5 Mins. of Alarm

24VDC / 12AH Battery Stand-by = 8 amp Stand-by = 1.5 amp Stand-by = 200mA Stand-by = 100mA

Alarm = 10 amp Alarm = 10 amp Alarm = 10 amp Alarm = 10 amp

24VDC / 65AH Battery Stand-by = 8.0 amp Stand-by = 1.5 amp Stand-by = 500mA

Alarm = 10 amp Alarm = 10 amp Alarm = 10 amp

Installation Instructions:

The AL1024ULXB should be installed in accordance with article 760 of The National Electrical Code as well as

A 72 and all applicab

NFP

1. Mount the AL1024ULXB in desired location/enclosure.

2. Connect unswitched AC power (115VAC 60Hz to terminals marked [L, G, N]
for all po
(AC Fail/Low Battery reporting).

(115VAC / 60Hz Input, Battery Wires). DC output Minimum .25” spacing must be provided.

3. Connect devices to be powered to terminals marked [-- DC +] (Fig. 1).

4.

Measure output voltage before connecting devices. This helps avoid potential damage.

or Access Control applications, batteries are optional. When batteries are not used, a loss of AC will result in the

F

5.
loss of output v
battery to terminals marked [+ BAT -]

6. It is required to connect appropriate signaling notification devices to AC FAIL & BAT FAIL
relay outputs. Use 22AWG to 18AWG wires. AC FAIL will report in 5 minutes.

o dela

T

wer connections (Battery, AC input, DC output). Use 22 AWG to 18 AWG for power limited circuits

oltage.

y report 6 hours cut “AC delay” jumper.

le Local Codes.

Keep power limited wiring separate from non-power limited wiring

When the use of stand-b

(Fig. 1).

y batteries is desired

(Fig. 1). Use 14 AWG or larger

, they must be lead acid or gel type. Connect

(Fig. 1) supervisory

Maintenance:

-- DC +

BAT FAIL

NO C NC NO C NC

+ BAT ---

DC

AC FAIL

L G N

AC

Fuse

Cover

15A

250V

5A

250V

Fuse

Cover

Unit should be tested at least once a year for the proper operation as
follows:
Output Voltage Test: Under normal load conditions, the DC output
voltage should be checked for proper voltage level.
Battery Test: Under normal load conditions check that the battery is
fully charged, check specified voltage both at battery terminal and at
the board terminals marked [+ BAT -] to insure there is no break in
the battery connection wires.

Note: Maximum charging current under discharge is 3.6 amp.
Note: Expected battery life is 5 years, however it is recommended

changing batteries in 4 years or less if needed.

LED Diagnostics:

Red (DC) Green (AC) Power Supply Status

ON ON Normal operating condition.
ON OFF Loss of AC, Stand-by battery supplying power.
OFF ON No DC output.
OFF OFF Loss of AC. Discharged or no stand-by battery. No DC output.

Terminal Identification:

Terminal Function/Description
Legend

Fig. 1

L, G, N Connect 115 VAC to these terminals:

L to hot, N to neutral, G to ground.

- DC + 24VDC @ 8 amp continuous, 10 amp in alarm non-power limited output.

AC FAIL Used to notify loss of AC power, e.g.connect to audible device or alarm
N.O., C, N.C. panel. Relay normally energized when AC power is present.

Contact rating 1 amp @ 28VDC.
AC or brownout fail is reported within 1 minute of event. To delay reporting of up to
6 hrs., cut “AC delay” jumper and reset power to unit.

BAT FAIL Used to indicate low battery condition, e.g. connect to alarm panel.
N.O., C, N.C. Relay normally energized when DC power is present.

Contact rating 1 amp @ 28VDC.
A removed battery is reported within 1 minute. Battery reconnection is reported
within 1 minute.
Low battery threshold: @ approximately 21VDC.

+ BAT - Stand-by battery connections. Maximum charge current 3.6 amp.

Altronix Corp.
140 58th Street, Brooklyn, Ne
web site: www.altronix.com, e-mail: [e-mail], Lifetime Warranty, Made in U.S.A.
IIAL1024ULXB Rev. 041602 K29D
