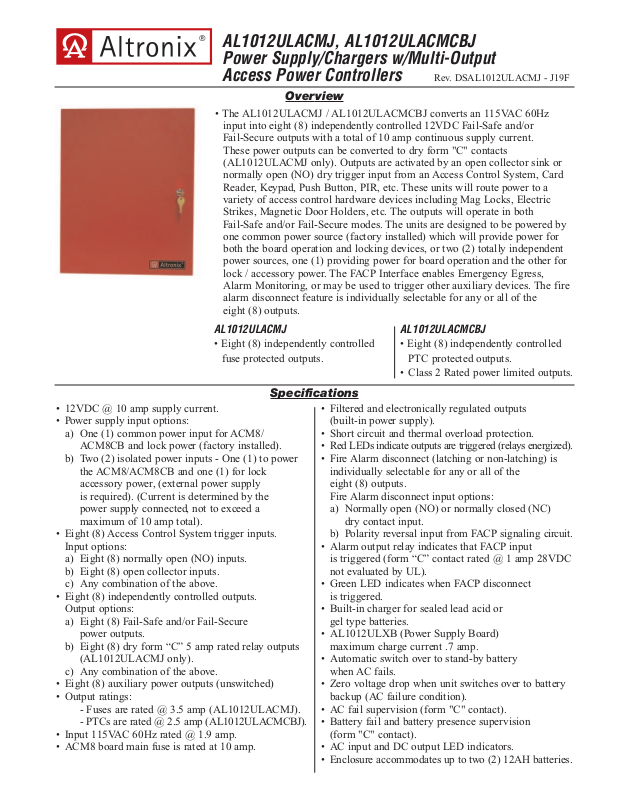

Altronix AL1012ULACMCBJ, AL1012ULACMJ Specsheet

AL1012ULACMJ, AL1012ULACMCBJ
Power Supply/Chargers w/Multi-Output
Access Power Controllers Rev. DSAL1012ULACMJ - J19F

Overview

• The AL1012ULACMJ / AL1012ULACMCBJ converts an 115VAC 60Hz
input into eight (8) independently controlled 12VDC Fail-Safe and/or
Fail-Secure outputs with a total of 10 amp continuous supply current.
These power outputs can be converted to dry form "C" contacts
(AL1012ULACMJ only). Outputs are activated by an open collector sink or
normally open (NO) dry trigger input from an Access Control System, Card
Reader, Keypad, Push Button, PIR, etc. These units will route power to a
variety of access control hardware devices including Mag Locks, Electric
Strikes, Magnetic Door Holders, etc. The outputs will operate in both
Fail-Safe and/or Fail-Secure modes. The units are designed to be powered by
one common power source (factory installed) which will provide power for
both the board operation and locking devices, or two (2) totally independent
power sources, one (1) providing power for board operation and the other for
lock / accessory power. The FACP Interface enables Emergency Egress,

m Monitoring, or may be used to trigger other auxiliary devices. The fire

Alar
alarm disconnect feature is individually selectable for any or all of the
eight (8) outputs.

AL1012ULACMJ

• Eight (8) independently controlled
fuse protected outputs.

Specifications

• 12VDC @ 10 amp supply current.

• Power supply input options:
a) One (1) common power input for ACM8/

ACM8CB and lock power (factory installed).

b) Two (2) isolated power inputs - One (1) to power

the ACM8/ACM8CB and one (1) for lock
accessor
is required). (Current is determined by the
power supply connected, not to exceed a
maximum of 10 amp total).

• Eight (8) Access Control System trigger inputs.
Input options:

Eight (8) nor

a)

Eight (8) open collector inputs.

b)

Any combination of the above.

c)

• Eight (8) independently controlled outputs.
Output options:
a) Eight (8) Fail-Safe and/or Fail-Secure

power outputs.

b) Eight (8) dry form “C” 5 amp rated relay outputs

(AL1012ULACMJ only).

c) Any combination of the above.

• Eight (8) auxiliary power outputs (unswitched)

• Output ratings:

- Fuses are rated @ 3.5 amp (AL1012ULACMJ).

- PTCs are rated @ 2.5 amp

Input 115VAC 60Hz rated @ 1.9 amp.

•

• ACM8 board main fuse is rated at 10 amp.

y power, (external power supply

y open (NO) inputs.

mall

(AL1012ULA

CMCBJ).

AL1012ULACMCBJ

• Eight (8) independently controlled
PTC protected outputs.

• Class 2 Rated power limited outputs.

• Filtered and electronically re
(built-in po

• Short circuit and thermal overload protection.

• Red LEDs indicate outputs are triggered (relays energized).

• Fire Alarm disconnect (latching or non-latching) is
individually selectable for any or all of the
eight (8) outputs.
Fire Alarm disconnect input options:
a) Normally open (NO) or normally closed (NC)

dry contact input.

b) Polarity reversal input from FACP signaling circuit.

• Alarm output relay indicates that FACP input
is triggered (for
not e
Green LED indicates when FACP disconnect

•
is triggered.
Built-in char

•
gel type batteries.

• AL1012ULXB (Power Supply Board)
maximum charge current .7 amp.

• Automatic switch over to stand-by battery
when AC fails.

• Zero voltage drop when unit switches over to battery
backup (AC failure condition).

• AC fail supervision (form "C" contact).
Batter

•

m "C" contact).

(for

• AC input and DC output LED indicators.

• Enclosure accommodates up to two (2) 12AH batteries.

wer supply).

m “C” contact rated @ 1 amp 28VDC

aluated by UL).

v

ger for sealed lead acid or

y fail and battery presence supervision

gulated outputs

•

1.50"

1.25"

2

.50"

6.00"

2.50"

1.50"

2

.50"

1

.50"

1.00"

1.50"

1.00"

1.50"

2.75"

4.50" 4.50"

1.00"

1

.00"

1.25"

1.50"

8.50"

1.00"

1.00"

2.75"

18.00"

14.50"

1

8.00"

18.00"

14.50"

Product weight:

- AL1012ULACMJ: 14.1 lbs.

- AL1012ULACMCBJ: 13.7 lbs.

•

Shipping weight:

- AL1012ULACMJ: 15.3 lbs.

- AL1012ULACMCBJ: 14.9 lbs.

Agency Approvals

UL Listed for Access Control Systems Units
(UL 294).

Enclosure Dimensions

18”H x 14.5”W x 4.625”D

CUL Listed - CSA Standard C22.2
No.205-M1983 Signal Equipment.

Altr

onix Cor
