ACM8 Series
UL Listed Sub-Assembly
Access Power Controllers
Installation Guide
Models Include:
ACM8
- Eight (8) Fuse Protected Outputs
ACM8CB
- Eight (8) PTC Protected Outputs
Rev. 042811
More than just power.
TM
Overview:
These units are UL Listed Sub-Assembly multi-output Access Power Controllers that convert one (1) 12 to 24 volt DC
input into eight (8) independently controlled fused or PTC protected outputs. These power outputs can be converted to dry
form “C” contacts (fused models only). Outputs are activated by an open collector sink or normally open [NO] dry trigger
input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The units will route power to a variety
of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. Units are designed to be powered by one common power source which
will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one
(1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency
Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
ACM8 and ACM8CB Series Configuration Reference Chart:
Altronix
Model
Number
ACM8 8
ACM8CB 8 -
Number
of
Outputs
Fuse
Protected
Outputs
P
PTC
Protected
Outputs
Output
Ratings
- 2.5A *
P
2A
Class 2 Rated
Power-
Limited
P
Agency
Listings
Sub-Assembly
UL Listings and
File Numbers
UL File # BP6714
UL Listed for Access Control
System Units (UL 294).
“Signal Equipment” Evaluated to CSA
Standard C22.2 No.205-M1983
Specifications:
• 12 to 24 volt DC operation (setting not required).
(0.5A @ 12 volt, 0.3A @ 24 volt current consumption with all relays energized).
• Power supply input options:
a) One (1) common power input (board and lock power).
b) Two (2) isolated power inputs (one (1) for board power and one (1) for lock/hardware power).
• Eight (8) Access Control System trigger inputs:
a) Eight (8) normally open (NO) inputs.
b) Eight (8) open collector sink inputs.
c) Any combination of the above.
• Eight (8) independently controlled outputs:
a) Eight (8) Fail-Safe and/or Fail-Secure power outputs.
b) Eight (8) dry form “C” 5A rated relay outputs.
c) Any combination of the above.
• Eight (8) auxiliary power outputs (unswitched).
• Output ratings:
- Fuses are rated 3.5A each.
- PTCs are rated 2A each.
• Main fuse is rated at 10A.
Note: Total output current is determined by the power supply, not to exceed a maximum of 10A total.
• Red LEDs indicate outputs are triggered (relays energized).
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
Fire Alarm disconnect input options:
a) Normally open [NO] or normally closed [NC] dry contact input.
b) Polarity reversal input from FACP signaling circuit.
• FACP output relay (form “C” contact rated @ 1A 28VDC not evaluated by UL).
• Green LED indicates when FACP disconnect is triggered.
• Removable terminal blocks facilitate ease of installation.
Board Dimensions (W x L x H approximate): 4.5” x 8” x 1.25” (114.3mm x 203.2mm x 31.75mm).
- 2 - ACM8/CB Sub-Assembly
Installation Instructions:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local
codes and authorities having jurisdiction. Product is intended for indoor use only and should be installed
by qualified personnel.
1. Refer to Sub-Assembly Installation Instruction for mounting Rev. MS050913.
Carefully review:
Typical Application Diagram (pg. 4) Terminal Identification Table (pg. 5)
LED Diagnostics (pg. 5) Hook-up Diagrams (pg. 6)
2. Power supply input:
The units can be powered with one (1) power supply which will provide power for both board operation and
the locking devices or two (2) separate power supplies, one (1) to provide power for the board operation and
the other to provide power for the locking devices and/or access control hardware.
Note: The input power can be 12 to 24 volts DC (0.5A @ 12 volt, 0.3A @ 24 volt current consumption
with all relays energized).
(a) Single power supply input:
If the unit and the locking devices are to be powered using a single power supply, connect the output
(12 to 24 volts DC) to the terminals marked [- Power +].
(b) Dual power supply inputs (Fig. 1c, pg. 4):
When the use of two power supplies is desired, jumpers J1 and J2 (located to the left of the power/control
terminals) must be cut. Connect power for the unit to the terminals marked [- Power +] and connect power for the
locking devices to the terminals marked [- Control +].
Note: When using DC power supplies polarity must be observed. When using AC power supplies polarity
needs not to be observed (Fig. 1d, pg. 4).
Note: For UL compliance the power supplies must be UL Listed for Access Control Systems and accessories.
3. Output options (Fig. 1, pg. 4):
The ACM8 will provide either eight (8) switched power outputs, eight (8) dry form “C” outputs, or any combination
of of both switched power and form “C” outputs, plus eight (8) unswitched auxiliary power outputs.
The ACM8CB will provide eight (8) switched power outputs or eight (8) unswitched auxiliary power outputs.
(a) Switched Power outputs:
Connect the negative (-) input of the device being powered to the terminal marked [COM]. For Fail-Safe operation
connect the positive (+) input of the device being powered to the terminal marked [NC]. For Fail-Secure operation
connect the positive (+) input of the device being powered to the terminal marked [NO].
(b) Form “C” outputs:
When form “C” outputs are desired the corresponding output fuse (1-8) must be removed (ACM8 only). Connect
negative (-) of the power supply directly to the locking device. Connect the positive (+) of the power supply to the
terminal marked [C]. For Fail-Safe operation connect the positive (+) of the device being powered to the terminal
marked [NC].
For Fail-Secure operation connect the positive (+) of the device being powered to the terminal marked [NO].
(c) Auxiliary Power outputs (unswitched):
Connect positive (+) input of the device being powered to the terminal marked [C] and the negative (-) of the device
being powered to the terminal marked [COM]. Output can be used to provide power for card readers, keypads etc.
4. Input trigger options (Fig. 1, pg. 4):
(a) Normally Open [NO] input trigger:
Inputs 1-8 are activated by normally open or open collector sink inputs.
Connect devices (card readers, keypads, request to exit buttons etc.) to terminals marked [IN] and [GND].
(b) Open Collector Sink inputs:
Connect the access control panel open collector sink positive (+) to the terminal marked [IN] and the
negative (-) to the terminal marked [GND].
5. Fire Alarm Interface options (Figs. 3 through 7, pg. 6):
A normally closed [NC], normally open [NO] input or polarity reversal input from FACP signaling circuit will
trigger selected outputs. To enable FACP Disconnect for an output turn the corresponding switch [SW1-SW8] OFF.
To disable FACP disconnect for an output turn the corresponding switch [SW1-SW8] ON.
(a) Normally Open [NO] input:
For non-latching hook-up (Fig. 4, pg. 6). For latching hook-up (Fig. 5, pg. 6).
(b) Normally Closed [NC] input:
For non-latching hook-up (Fig. 6, pg. 6). For latching hook-up (Fig. 7, pg. 6).
(c) FACP Signaling Circuit input trigger:
Connect the positive (+) and negative (-) from the FACP signaling circuit output to the terminals marked [+ INP -].
Connect the FACP EOL to the terminals marked [+ RET -] (polarity is referenced in an alarm condition).
Jumper located next to TRG LED must be cut (Fig. 1a, pg. 4).
6. FACP Dry form “C” output (Fig. 1b, pg. 4):
Connect desired device to be triggered by the unit’s dry contact output to the terminals marked [NO] and [C]
FACP for normally open output or the terminals marked [NC] and [C] FACP for normally closed output.
Note: This product is a UL Listed Sub-Assembly for use with Altronix UL Listed power supplies as indicated in the
installation manuals for the power supply.

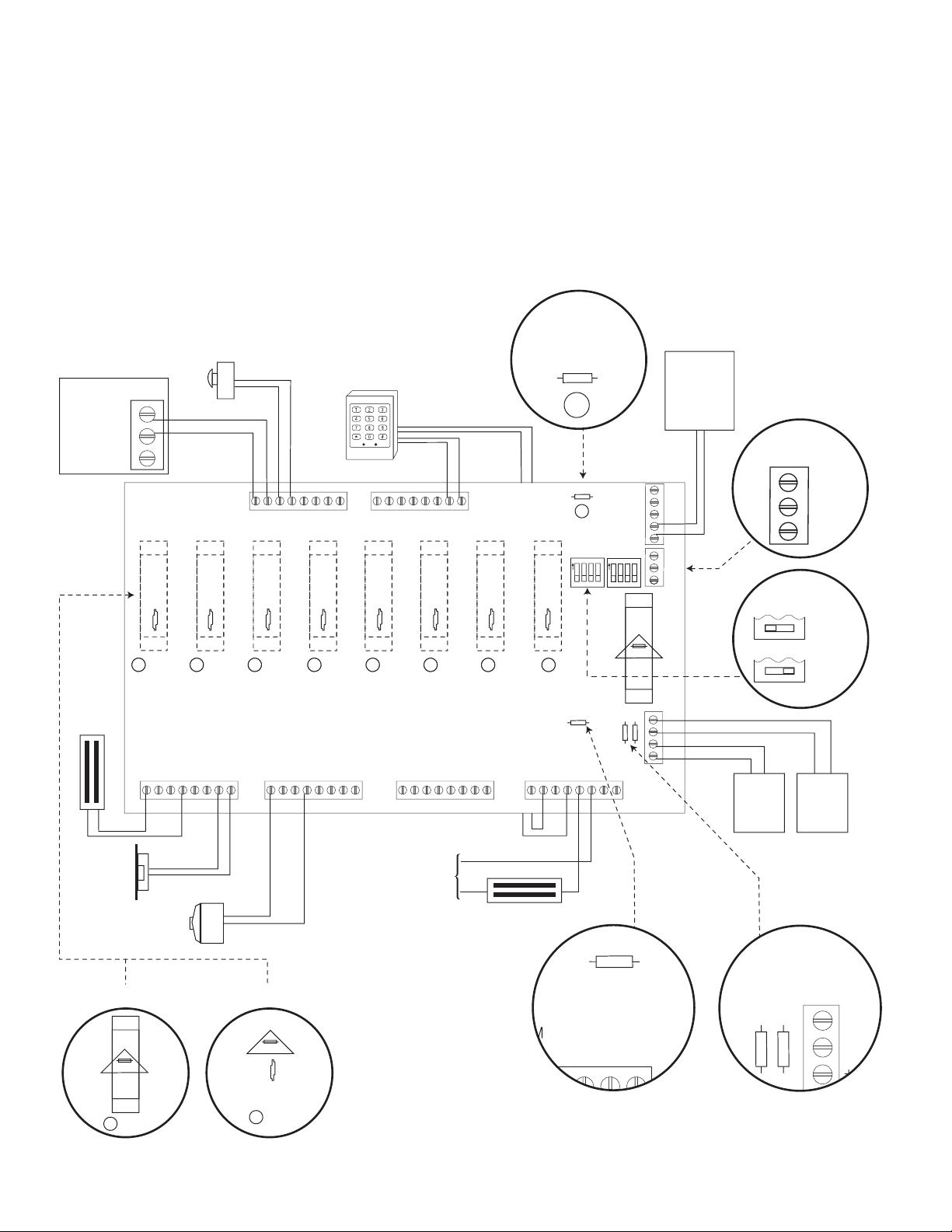

Typical Application Diagram:
Fig. 1
Fig. 1a
Access Control Panel
C
Output
Relay
NO
NC
Mag.
Lock
NC C NO COM
OUTPUT 1
Electric
Strike
Electromagnetic
Door Holders
LED1
LED1
F1
Normally Open (N.O.)
F2
LED2
LED2
NC C NO COM
OUTPUT 2
Door Releasing
Device
Keypad
IN GND1IN GND2IN GND3IN GND4IN GND5IN GND6IN GND
F3
LED3
LED3
NC C NO COM
OUTPUT 3
F4
LED4
LED4
NC C NO COM
OUTPUT 4
F5
LED5
LED5
NC C NO COM
OUTPUT 5
UL Listed
Power Supply
For this application
corresponding
fuse F8 must be
removed.
IN GND
7
8
F6 F7 F8
LED6
LED6
NC C NO COM
OUTPUT 6
LED7
LED7
MAG.
LOCK
Intact = Dry Input
Cut = Wet Input
FACP
TRG
FACP
TRG
ON
ON
1 2 3 4
1 2 3 4
LED8
LED8
NC C NO COM
OUTPUT 7
J3
NC C NO COM
OUTPUT 8
10A 250V
J2
J3
FACP
(Fire Alarm
Control
Panel)
Fig. 1b
FACP Dry
Form "C" Output
FACP
NO C NC
FACP INTERFACE
NO C NC + INP --- T + RET -
SW1-SW8
FACP Interface
1
ON
MAIN
J1
Control
--- +
Power
--- +
AC or DC
Power
Supply
(req'd.)
Disabled
1
ON
Enabled
AC or DC
Power
Supply
(optional)
Fig. 1cFig. 1d
3.5A 250V
LED1
Intact = DC Input
ACM8CBACM8
F1
Cut = AC Input
Intact = One P/S Input
Cut = Dual P/S Input
J2
J1
NC C NO COM
2A 250V
LED1
OUTPUT 8
WARNING: To reduce the risk of fire or electric shock, do not expose the
--- +
Control
unit to rain or moisture. Replace fuses (ACM8 only) with the same type
and rating, 3.5A/250V.
LED Diagnostics:
ACM8 and ACM8CB Access Power Controller
LED ON OFF
LED 1- LED 8 (Red) Output relay(s) energized. Output relay(s) de-energized.
Trg (Green) FACP input triggered (alarm condition). FACP normal (non-alarm condition).
Terminal Identification Tables:
ACM8 and ACM8CB Access Power Controller
Terminal Legend Function/Description
-- Power + 12VDC or 24VDC input from power supply board.
-- Control +
TRIGGER
INPUT 1 - INPUT 8
IN, GND
OUTPUT 1 OUTPUT 8
NC, C, NO, COM
FACP INTERFACE
T, + INPUT -
FACP INTERFACE
NC, C, NO
These terminals can be connected to a separate, UL Listed power supply to provide isolated
operating power for the ACM8/ACM8CB (jumpers J1and J2 must be removed).
From normally open and/or open collector sink trigger inputs
(request to exit buttons, exit pir’s, etc.).
12 to 24 volts AC/DC trigger controlled outputs:
Fail-Safe [NC positive (+) & COM Negative (-)],
Fail-Secure [NO positive (+) & COM Negative (-)],
Auxiliary output [C positive (+) & COM Negative (-)]
(When using AC power supplies polarity need not be observed),
NC, C, NO become form “C” 5A 24VAC/VDC rated dry outputs when fuses are
removed (ACM8). Contacts shown in a non-triggered state.
Fire Alarm Interface trigger input from FACP. Trigger inputs can be normally open,
normally closed from an FACP output circuit (Fig. 3 through 7, pg. 6).
Form “C” relay contact rated @ 1A 28VDC for alarm reporting.
(This output has not been evaluated by UL).

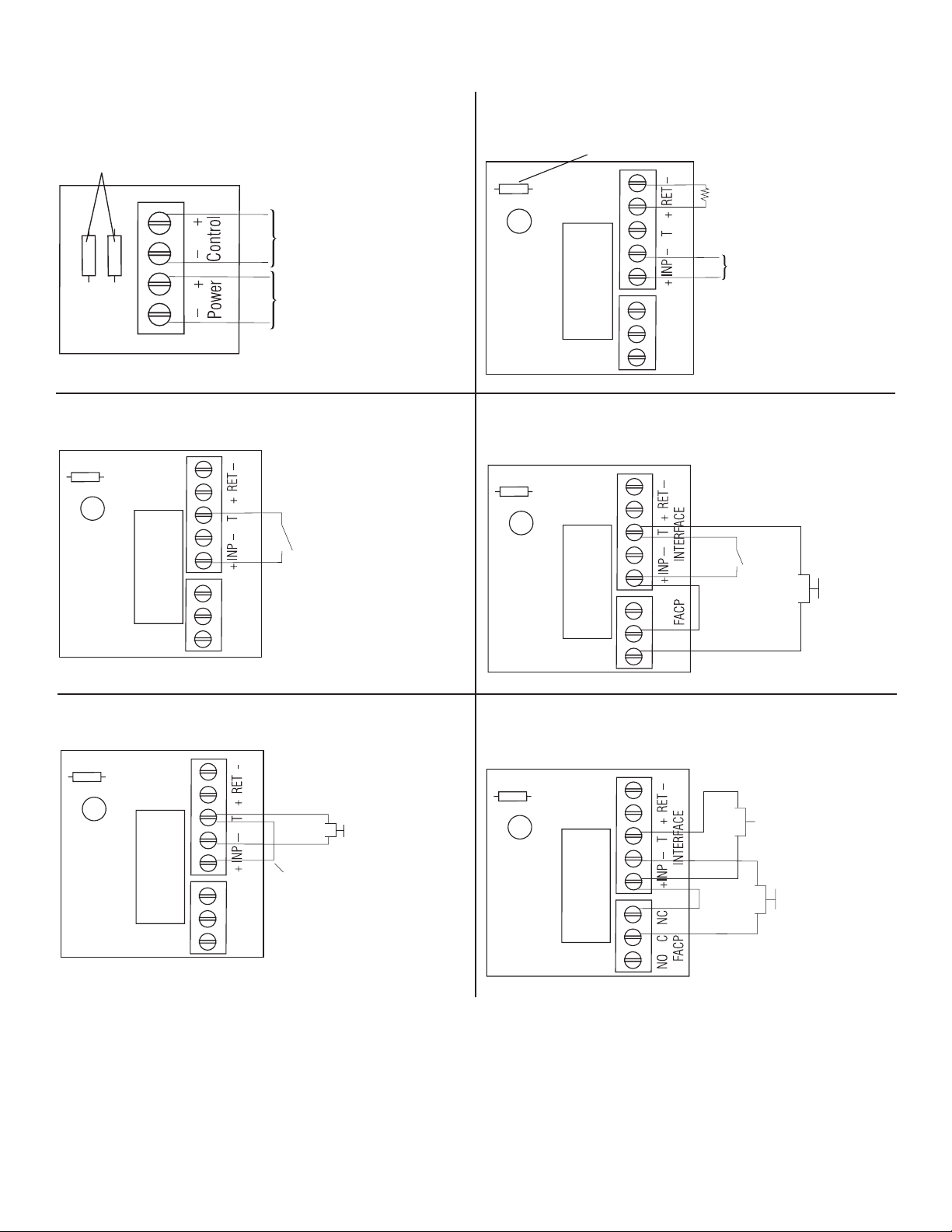

Hook-Up Diagrams:
Y
CUT
Fig. 2 Optional hook-up using two (2) isolated
power supply inputs:
CUT JUMPERS
J1 AND J2
J2 J1
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(ACM8 POWER)
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(LOCK POWER)
Fig. 4 Normally Open - Non-Latching FACP
trigger input:
FACP
TRG
N.O. TRIGGER
INPUT
FACP INTERFACE
NO C NC
Fig. 3 Polarity reversal input from FACP signaling circuit
output (polarity is referenced in alarm condition):
JUMPER
FACP
FACP
TRG
NO C NC
OUTPUT EOL
FROM FACP
-OUTPUT
+
CIRCUIT
FACP INTERFACE
Fig. 5 Normally Open FACP Latching trigger input
with reset:
(This output has not been evaluated by UL)
FACP
TRG
N.O.
TRIGGER
INPUT
JUMPER
NO C NC
N.C. RESET
SWITCH
Fig. 6 Normally Closed - Non-Latching FACP
trigger input:
FACP
TRG
N.C. DR
TRIGGER
INPUT
JUMPER
FACP INTERFACE
NO C NC
Fig. 7 Normally Closed - Latching FACP trigger input
with reset:
(This output has not been evaluated by UL)
FACP
TRG
JUMPER
N.C. RESET
SWITCH
N.C. TRIGGER
INPUT
Notes:
Notes:
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
web site: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A.
IIACM8/ACM8CB D15P
