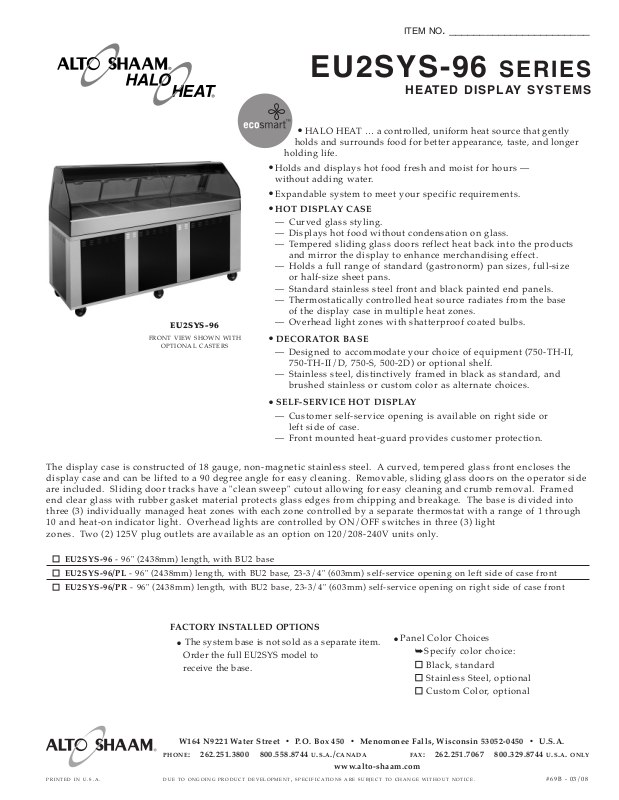

Alto-Shaam EU2SYS-96 User Manual
EU 2S YS -9 6
RO NT V IEW S HOWN W ITH
F
OP TIONA L C ASTERS
ITEM NO. _______________________
EU2SYS-96 SERIES
HEATE D DISPLAY SYSTEMS
●
HALO HEAT … a controlled, uniform heat source that gently
holds and surrounds food for better appearance, taste, and longer
holding life.
●
Holds and displays hot food fresh and moist for hours —
ithout adding water.
w
●
Expandable system to meet your specific requirements.
●
HOT DISPLAY CASE
— Curved glass styling.
— Displays hot food without condensation on glass.
— Tempered sliding glass doors reflect heat back into the products
and mirror the display to enhance merchandising effect.
— Holds a full range of standard (gastronorm) pan sizes, full-size
or half-size sheet pans.
— Standard stainless steel front and black painted end panels.
— Thermostatically controlled heat source radiates from the base
of the display case in multiple heat zones.
— Overhead light zones with shatterproof coated bulbs.
●
DECORATOR BASE
— Designed to accommodate your choice of equipment (750-TH-II,
750-TH-II/D, 750-S, 500-2D) or optional shelf.
— Stainless steel, distinctively framed in black as standard, and
brushed stainless or custom color as alternate choices.
●
SELF-SERVICE HOT DISPLAY
— Customer self-service opening is available on right side or
left side of case.
— Front mounted heat-guard provides customer protection.
The display case is constructed of 18 gauge, non-magnetic stainless steel. A curved, tempered glass front encloses the
display case and can be lifted to a 90 degree angle for easy cleaning. Removable, sliding glass doors on the operator side
are included. Sliding door tracks have a "clean sweep" cutout allowing for easy cleaning and crumb removal. Framed
end clear glass with rubber gasket material protects glass edges from chipping and breakage. The base is divided into
three (3) individually managed heat zones with each zone controlled by a separate thermostat with a range of 1 through
10 and heat-on indicator light. Overhead lights are controlled by ON/OFF switches in three (3) light
zones. Two (2) 125V plug outlets are available as an option on 120/208-240V units only.
EU2SYS-96 - 96" (2438mm) length, with BU2 base
■■
EU2SYS-96/P L - 96" (2438mm) length, with BU2 base, 23-3/4" (603mm) self-service opening on left side of case front
■■
EU2SYS-96/P R - 96" (2438mm) length, with BU2 base, 23-3/4" (603mm) self-service opening on right side of case front
■■
FACTORY INSTALLED OPTIONS
● The system base is not sold as a separate item.
Order the full EU2SYS model to
receive the base.
W164 N9 221 Water Stree t • P.O. B ox 450 • Menomon ee Falls, Wi sconsin 5 3052-0450 • U.S.A.
PH ONE: 262.251 .3800 800.5 58.8744 U.S .A./CA NADA FAX : 262.251 .7067 80 0.329.874 4 U.S.A. ON LY
www.alto-sh aam.com
P RI NT E D IN U. S. A. D UE TO O NG O IN G PR OD U CT D EV E LO P ME NT , SP E CI F IC AT IO N S A RE S U BJ E CT T O C HA NG E W I TH O UT N OT IC E . #69 B - 03 /0 8
● Panel Color Choices
➥Specify color choice:
Black, standard
■■
Stainless Steel, optional
■■
Custom Color, optional
■■
EU2SYS-96 SER I ES
32-1/2" (824mm)
31-5/8" (804mm)
5-1/2"
(140mm)
44-5/16" (1125mm)
28-5/16" (719mm)
OPENING HEIGHT
58-3/16" (1477mm)
48" (1219mm)
ELECTRICAL OUTLET
26-1/2" (673mm)
31-5/8" (804mm)
58-3/16" (1477mm)
ELECTRICAL PANEL
5-1/2"
(140mm)
72" (1829mm)
ELECTRICAL PANEL
26-1/2" (673mm)31-5/8" (804mm)
5-1/2"
(140mm)
Rigid
C
aster
Swivel
C
aster
Swivel
C
aster
96" (2438mm)
ELECTRICAL PANEL
26-1/2" (673mm)
31-5/8" (804mm)
58-3/16" (1477mm)
5-1/2"
(140mm)
32-1/2" (824mm)
31-5/8" (804mm)
5-1/2"
(140mm)
44-5/16" (1125mm)
2
6-1/4" (666mm)
OPENING WIDTH
28-5/16" (719mm)
OPENING HEIGHT
58-3/16" (1477mm)
58-3/16" (1477mm)
Swivel
Caster
26-1/4" (666mm)
OPENING WIDTH
Swivel
C
aster
26-1/4" (666mm)
OPENING WIDTH
Rigid
Caster
S
wivel
Caster
Swivel
Caster
26-1/4" (666mm)
OPENING WIDTH
26-1/4" (666mm)
OPENING WIDTH
26-1/4" (666mm)
OPENING WIDTH
28-5/16" (719mm)
OPENING HEIGHT
(Shown with optional shelf)
(Shown with optional shelf) (Shown with optional shelf)
(Shown with optional shelf)
(Shown with optional shelf) (Shown with optional shelf)
13-5/8"
(346mm)
OPENING
13-5/8"
(346mm)
OPENING
28-5/16" (719mm)
OPENING HEIGHT
13-5/8"
(346mm)
OPENING
13-5/8"
(346mm)
OPENING
ELECTRICAL
OUTLET
ELECTRICAL
OUTLET
28-5/16" (719mm)
OPENING HEIGHT
13-5/8"
(346mm)
OPENING
13-5/8"
(346mm)
OPENING
PA N C O N F I G U R AT I O N *
PAN SIZE D IM EN SI ON S QT Y.
FU LL -S IZ E & O NE-THIRD**: 12" X 20" X 2-1/2" (GN 1/1) 7
12" X 6" X 2-1/2" (GN 1/3) 7
HA LF -S IZ E & O NE-THIRD**: 12" X 10" X 2-1/2" (GN 1/2) 14
12" X 6" X 2-1/2" (GN 1/3) 7
FU LL -S IZ E S HEET PAN S: 18" X 26" X 1" 4
MA X. C APA CI TY /V OL UM E: 112 lbs (51 kg)
70 qts (84 L)
* Pans are not included with display case.
** Will also accept 4" (100mm) deep pans.
E L E C T R I C A L
VO LTAGE PH AS E CY CL E/H Z AM PS kW
120/208-240 (U
L
)1 50/60 24.0 5.2
a
t 208 1 50/60 24. 0 5 .2
at 240 1 50/60 24 .0 5.2
230
(C E) 1 50/60 24.3 5.6
230 1 50/60 24. 7 5 .7
BARE END, NO PLUG
BARE END
,
NO PLUG
HEAT E D DI S P LAY S Y STEM S
D I M E N S I O N S (H
XWXD
)
EX TERIOR, WITH BA SE:
8-3/16" x 96" x 44-5/16" (1477mm x 2438mm x 1125mm)
5
WE LL DIME NSION S (WXLXD):
27-3/16" x 93-5/16" x 4-1/2" (690mm x 2370mm x 114mm)
EU 2S YS P ro fi le
EU 2S YS -9 6
I N S TA L L AT I O N R E Q U I R E M E N T S
Display case must be installed level. The display case must
not be installed in any area where it may be affected by steam,
grease, dripping water, high temperatures, or any other
severely adverse conditions.
Do not install a heated display case near a cold air source such
as a freezer, air conditioning vents, or in any area where
outside air fluctuation can affect performance.
W E I G H T (EST.)
MO DE L NE T SH IP
EU2SYS-96 1366 lb (620 kg) 1425 lb (646 kg)
EU2SYS-96/PL/PR 1374 lb (623 kg) 1434 lb (650 kg)
CR ATED DIMENSIONS : HXWXD
EU2SYS-96: NO T Y ET AVAILABLE
S P E C I F I C AT I O N S
●
Fourteen (14) overhead lights in three (3) light zones.
●
Three (3) base heat zones with three (3) adjustable thermostats
with a range of 1 through 10, and three (3) heat-on indicator lights.
●
Four (4) tinted, reflective, tempered glass sliding doors
on operator side.
●
Two (2) 10" x 36" (254mm x 914mm) operator-side work shelves.
●
Self-serve models EU2SYS-96/PL and EU2SYS-96/PR have a selfserve pan insert 21-5/8" x 26-7/16" x 2" (549mm x 672mm x 51mm)
and includes one (1) Wire Pan Grid.
O P T I O N S & A C C E S S O R I E S
■■
BUTTING KIT 5008523
CARVING STATION 5001874
■■
CASTERS, PLATE
5" (127mm) , RI GI D (2 RE QU IR ED ) CS-2025
■■
■■
5" (127mm) , SW IV EL WI TH BRAKE (4 R EQUIRED) CS-2026
GAUGE, INTERIOR AMBIENT TEMP.
FU LL -SERVICE C ASES 5004185
■■
■■
SELF-SERVICE LE FT-SIDE OF CA SES 5004186
■■
SELF-SERVICE RIGHT-SIDE OF CA SES 5004187
GLASS, TEMPERED END PANE, BRONZE KIT 5001143
■■
■■
INDEPENDENT ELECTRICAL OUTLET 5001781
■■
LOW PROFILE BASE
OVERALL HEIGHT REDUCE D BY 4-3/ 4" (1 21mm) 304352
PANEL KIT, COUNTER TOP
BR US HE D S TAI NL ES S S TE EL 5001283
■■
■■
CU ST OM COLOR P153
#69 B - 03 /0 8 D UE T O O N GO I NG P RO DU C T D EV E LO PM E NT , SP E CI F IC AT IO N S A RE S U BJ E CT T O CH A NG E W I TH O UT N O TI C E. P RI NT E D I N U .S .A.
W164 N9 221 Water Stree t • P.O. B ox 450 • Menomon ee Falls, Wi sconsin 5 3052-0450 • U.S.A.
PH ONE: 262.251 .3800 800.5 58.8744 U.S .A./CA NADA FAX : 262.251 .7067 80 0.329.874 4 U.S.A. ON LY
PANEL KIT, SYSTEM
BR US HE D S TAI NL ES S S TE EL 5001291
■■
■■
CU ST OM COLOR 5005793
PLATFORM SCALE
■■
LE FT-HAND 5001308
RI GH T-HAND 5001307
■■
SHEET PAN DIVIDER BAR PACKAGE
FU LL -SERVICE & SEL F-SERVICE FU LL CA SES 5002805
■■
SELF-SERVICE LE FT-SIDE OR RIGHT-SIDE OF CASES 5002806
■■
■■
SHELF, STAINLESS STEEL 5005786
TEMPERATURE PROBE 5004918
■■
■■
THERMOSTAT GUARD COVER PLATE 5007660
■■
WORK SHELF WITH GRAVY LANE 5005640
www.alto-sh aam.com
