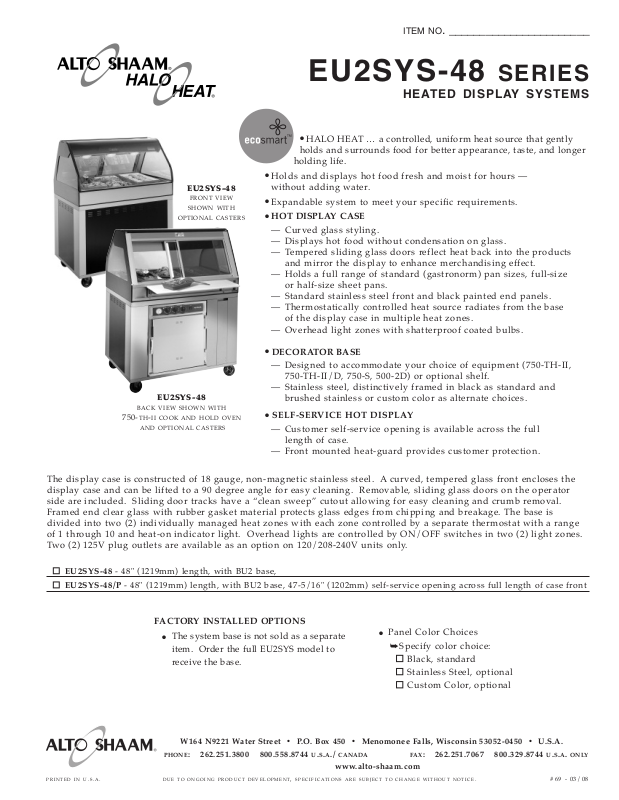

Alto-Shaam EU2SYS-48-P, EU2SYS-48 User Manual
EU 2S YS -4 8
RO NT V IEW
F
SH OWN WI TH
OP TIONA L C ASTERS
ITEM NO. _______________________
EU2SYS-48 SERIES
HEATE D D I S P L AY S Y S T E M S
●
HALO HEAT … a controlled, uniform heat source that gently
holds and surrounds food for better appearance, taste, and longer
holding life.
●
Holds and displays hot food fresh and moist for hours —
without adding water.
●
xpandable system to meet your specific requirements.
E
●
HOT DISPLAY CA SE
— Curved glass styling.
— Displays hot food without condensation on glass.
— Tempered sliding glass doors reflect heat back into the products
and mirror the display to enhance merchandising effect.
— Holds a full range of standard (gastronorm) pan sizes, full-size
or half-size sheet pans.
— Standard stainless steel front and black painted end panels.
— Thermostatically controlled heat source radiates from the base
of the display case in multiple heat zones.
— Overhead light zones with shatterproof coated bulbs.
●
DECORATOR BASE
— Designed to accommodate your choice of equipment (750-TH-II,
750-TH-II/D, 750-S, 500-2D) or optional shelf.
— Stainless steel, distinctively framed in black as standard and
EU 2S YS -4 8
AC K VI EW SH OWN W ITH
B
750-TH-II COO K A ND HO LD OVEN
AN D OP TIONAL CAS TERS
brushed stainless or custom color as alternate choices.
●
SELF-SERVICE HOT DISPLAY
— Customer self-service opening is available across the full
length of case.
— Front mounted heat-guard provides customer protection.
The display case is constructed of 18 gauge, non-magnetic stainless steel. A curved, tempered glass front encloses the
display case and can be lifted to a 90 degree angle for easy cleaning. Removable, sliding glass doors on the operator
side are included. Sliding door tracks have a “clean sweep” cutout allowing for easy cleaning and crumb removal.
Framed end clear glass with rubber gasket material protects glass edges from chipping and breakage. The base is
divided into two (2) individually managed heat zones with each zone controlled by a separate thermostat with a range
of 1 through 10 and heat-on indicator light. Overhead lights are controlled by ON/OFF switches in two (2) light zones.
Two (2) 125V plug outlets are available as an option on 120/208-240V units only.
EU2SYS-48 - 48" (1219mm) length, with BU2 base,
■■
EU2SYS-48/P - 48" (1219mm) length, with BU2 base, 47-5/16" (1202mm) self-service opening across full length of case front
■■
FACTORY INSTALLED OPTIONS
● The system base is not sold as a separate
item. Order the full EU2SYS model to
receive the base.
● Panel Color Choices
➥Specify color choice:
■■
Black, standard
■■
Stainless Steel, optional
■■
Custom Color, optional
W164 N9221 Water Street • P.O. Box 450 • Menomo nee Falls, Wisconsin 53052-04 50 • U.S.A.
PH ONE : 262.251 .3800 800. 558.8744 U .S.A ./ CA NADA FAX : 262.251 .7067 800.329. 8744 U .S.A. O NLY
www.alto-shaam.com
P RI NT E D I N U .S . A. D UE TO ON G OI N G P RO DU C T D EV E LO P ME N T, S P EC I FI C AT IO N S AR E S U BJ E CT TO CH A NG E W I TH OU T N O TI C E. #69 - 03 /0 8
EU 2S YS -4 8 Pr of il e
32-1/2" (824mm)
31-5/8" (804mm)
5-1/2"
(140mm)
44-5/16" (1125mm)
28-5/16" (719mm)
OPENING HEIGHT
58-3/16" (1477mm)
48" (1219mm)
ELECTRICAL OUTLET
26-1/2" (673mm)
31-5/8" (804mm)
58-3/16" (1477mm)
ELECTRICAL PANEL
5-1/2"
(140mm)
32-1/2" (824mm)
31-5/8" (804mm)
5-1/2"
(140mm)
44-5/16" (1125mm)
26-1/4" (666mm)
OPENING WIDTH
28-5/16" (719mm)
OPENING HEIGHT
58-3/16" (1477mm)
Swivel
Caster
Swivel
Caster
(Shown with optional shelf)
28-5/16" (719mm)
OPENING HEIGHT
13-5/8"
(346mm)
OPENING
13-5/8"
(346mm)
OPENING
PA N C O N F I G U R AT I O N *
PAN SIZE DI ME NS IO NS QT Y.
FU LL -S IZ E & O NE -T HI RD **: 12" X 20" X 2-1/2" (GN 1/1) 3
12" X 6" X 2-1/2" (GN 1/3) 3
HA LF -S IZ E & O NE -T HI RD **: 12" X 10" X 2-1/2" (GN 1/2) 6
12" X 6" X 2-1/2" (GN 1/3) 3
FU LL -S IZ E S HE ET PANS: 18" X 26" X 1" 2
MA X. C APA CI TY /V OL UM E: 48 lbs (22 kg)
30 qts (36 L)
* Pans are not included with display case.
** Will also accept 4" (100mm) deep pans.
E L E C T R I C A L
V
OLTAG E PH AS E C YC LE/HZ AMP S
kW
120/208-240 (U
L
)1 50/60 13.8 3.3
at 208 1 50/60 11.6 2.5
at 240 1 50/60 13.0 3.1
230
(CE) 1 50/60 12.6 2.9
230 1 50/60 12.6 2.9
B
ARE END
, N
O PLUG
BARE END
, NO PLUG
EU2SYS-48 SER I ES
EATE D DISP L AY SY S TEMS
H
D I M E N S I O N S (HXWXD)
XTE RIOR
E
EL L DIMENSIONS(WXLXD
W
27-3/16" x 45-5/16" x 4-1/2" (690mm x 1151mm x 114mm)
ITH BASE
, W
:
58-3/16" x 48" x 44-5/16" (1477mm x 1219mm x 1125mm)
):
EU 2S YS -4 8
I N S T A L L A T I O N R E Q U I R E M E N T S
Display case must be installed level. The display case must
not be installed in any area where it may be affected by
steam, grease, dripping water, high temperatures, or any
other severely adverse conditions.
Do not install a heated display case near a cold air source
such as a freezer, air conditioning vents, or in any area where
outside air fluctuation can affect performance.
W E I G H T (EST.)
MODEL N ET SHIP
EU2SYS-48 612 lb (278 kg) 645 lb (293 kg)
EU2SYS-48/P 613 lb (278 kg) 650 lb (295 kg)
CRATE D DIME NSION S: HXWXD
EU2SYS-48: NO T Y ET AVAIL AB LE
S P E C I F I C AT I O N S
●
Six (6) overhead lights with two (2) light zones.
●
Two (2) base heat zones with two (2) adjustable thermostats with
a range of 1 through 10, and two (2) heat-on indicator lights.
●
Two (2) tinted, reflective, tempered glass sliding doors on
operator side.
●
One (1) 10" x 36" (254mm x 914mm) operator-side work shelf.
●
Self-serve model EU2SYS-48/P has a self-serve pan insert
26-7/16" x 45-3/16" x 2" (672mm x 1148mm x 51mm) and
includes two (2) Wire Pan Grids.
O P T I O N S & A C C E S S O R I E S
■■
CARVING STATION 5001874
CASTERS, PLATE
■■
5" (1 27 mm), R IGID (2 REQUIRED) CS-2025
5" (1 27 mm), SWI VEL W IT H BRA KE (2 REQUIRED) CS-2026
■■
GAUGE, INTERIOR AMBIENT TEMP. 5008527
■■
GLASS, TEMPERED END PANE, BRONZE KIT 5001143
■■
■■
INDEPENDENT ELECTRICAL OUTLET 5001781
LOW PROFILE BASE
■■
OVERALL H EIGH T RE DUC ED BY 4-3/ 4" (121 mm) 304332
PANEL KIT, COUNTER TOP
BR US HE D STAI NL ES S STE EL 5001281
■■
■■
CU ST OM CO LOR P148
#69 - 03 /0 8 D UE TO ON G OI N G P RO D UC T D EV E LO P ME N T, SP E CI F IC AT I ON S A RE SU B JE C T T O C HA NG E W I TH O UT NO T IC E . P RI NT E D I N U .S . A.
W164 N9221 Water Street • P.O. Box 450 • Menomo nee Falls, Wisconsin 53052-04 50 • U.S.A.
PH ONE : 262.251 .3800 800. 558.8744 U .S.A ./ CA NADA FAX : 262.251 .7067 800.329. 8744 U .S.A. O NLY
PANEL KIT, SYSTEM
BR US HE D STAI NL ES S STE EL 5001287
■■
■■
CU ST OM CO LOR 5005788
PAN INSERT, SELF-SERVICE 4" (102mm) DEEP 1001990
■■
PLATFORM SCALE
LE FT-HAND 5001308
■■
RI GH T-HAND 5001307
■■
■■
SHEET PAN DIVIDER BAR PACKAGE 5002802
■■
SHELF, STAINLESS STEEL 5005786
TEMPERATURE PROBE 5004916
■■
THERMOSTAT GUA RD COVER PLATE 5007660
■■
■■
WORK SHELF WITH GRAVY LA NE 5005638
