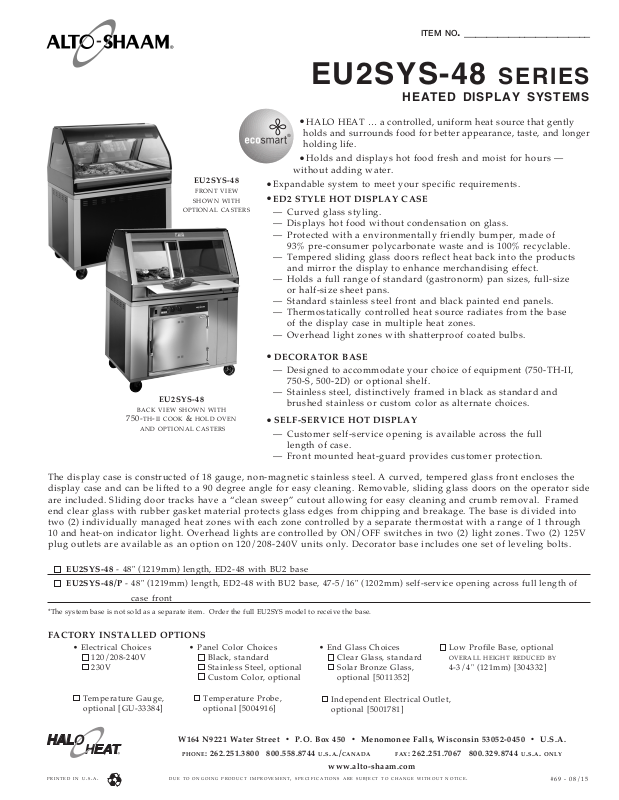

Alto Shaam EU2SYS-48 User Manual

PH ONE
U.S.A./C ANAD A
FA X
D UE TO ON G O IN G P R OD U C T IM P RO V EM E NT , S P EC I FI C AT I ON S A RE SU BJ E CT TO CH AN G E WI T H OU T N O TI C E .P RI N TE D I N U. S .A .
ITEM NO. _______________________
EU2SYS-48
fr on t vi ew
sh ow n wi th
op ti on al c asters
EU2SYS-48
ba ck v iew s hown wi th
750-th -i i co ok & hold ov en
a nd op tion al ca ster s
EU2SYS-48 series
heated d i s p l a y systems
l
HALO HEAT … a controlled, uniform heat source that gently holds and surrounds food for better appearance, taste, and longer holding life.
l
Holds and displays hot food fresh and moist for hours —
without adding water.
l
Expandable system to meet your specific requirements.
l
ED2 STYLE HOT DISPLAY CASE
— Curved glass styling. — Displays hot food without condensation on glass. — Protected with a environmentally friendly bumper, made of
93% pre-consumer polycarbonate waste and is 100% recyclable.
— Tempered sliding glass doors reflect heat back into the products
and mirror the display to enhance merchandising effect.
— Holds a full range of standard (gastronorm) pan sizes, full-size
or half-size sheet pans. — Standard stainless steel front and black painted end panels. — Thermostatically controlled heat source radiates from the base
of the display case in multiple heat zones. — Overhead light zones with shatterproof coated bulbs.
l
DECORATOR BASE
— Designed to accommodate your choice of equipment (750-TH-II,
750-S, 500-2D) or optional shelf. — Stainless steel, distinctively framed in black as standard and
brushed stainless or custom color as alternate choices.
l
SELF-SERVICE HOT DISPLAY
— Customer self-service opening is available across the full
length of case. — Front mounted heat-guard provides customer protection.
The display case is constructed of 18 gauge, non-magnetic stainless steel. A curved, tempered glass front encloses the display case and can be lifted to a 90 degree angle for easy cleaning. Removable, sliding glass doors on the operator side are included. Sliding door tracks have a “clean sweep” cutout allowing for easy cleaning and crumb removal. Framed end clear glass with rubber gasket material protects glass edges from chipping and breakage. The base is divided into two (2) individually managed heat zones with each zone controlled by a separate thermostat with a range of 1 through 10 and heat-on indicator light. Overhead lights are controlled by ON/OFF switches in two (2) light zones. Two (2) 125V plug outlets are available as an option on 120/208-240V units only. Decorator base includes one set of leveling bolts.
EU2SYS-48 - 48" (1219mm) length, ED2-48 with BU2 base
EU2SYS-48/P - 48" (1219mm) length, ED2-48 with BU2 base, 47-5/16" (1202mm) self-service opening across full length of
case front
*The system base is not sold as a separate item. Order the full EU2SYS model to receive the base.
FACTORY INSTALLED OPTIONS
• Electrical Choices 120/208-240V 230V
Temperature Gauge,
optional [GU-33384]
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
www.alto-shaam.com
• Panel Color Choices Black, standard Stainless Steel, optional Custom Color, optional
Temperature Probe,
optional [5004916]
: 262.251.3800 800.558.8744
• End Glass Choices Clear Glass, standard Solar Bronze Glass,
optional [5011352]
Independent Electrical Outlet,
optional [5001781]
: 262.251.7067 800.329.8744
Low Profile Base, optional
ov er al l he ight re duce d b y
4-3/4" ( 12 1mm) [304332]
# 69 - 0 8/ 15
PH ONE
U.S.A./C ANAD A
FA X
D UE TO ON G O IN G P R OD U C T IM P RO V EM E NT , S P EC I FI C AT I ON S A RE SU BJ E CT TO CH AN G E WI T H OU T N O TI C E .
P RI N TE D I N U. S .A .
5-1/2"
32-1/2" (824mm)
31-5/8" (804mm)
5-1/2"
(140mm)
44-5/16" (1125mm)
28-5/16" (719mm)
OPENING HEIGHT
58-3/16" (1477mm)
PAN CONFIGURATION*
PA N SI ZE DI MENS ION S QT Y
.
FU LL-SI ZE
&
ON E-TH IRD
**: 12" X 20" X 2-1/2" (GN 1/1)
12"
X
6" X 2-1/2" (GN 1/3)
3 3
HA LF-SI ZE
&
ON E-TH IRD
**: 12" X 10" X 2-1/2" (GN 1/2)
12"
X
6" X 2-1/2" (GN 1/3)
6 3
FU LL-SI ZE SH EET PA NS
: 18" X 26" X 1" 2
MA X. CA PACI TY/VO LUME
: 48 lbs (22 kg) 30 qts (36 L)
* Pans are not included with display case. ** Will also accept 4" (100mm) deep pans.
48 Series
VO LTAG E PH ASE C YCLE /HZ AM PS K W
BARE EN D, N O PLUG
BARE EN D, N O PLUG
INSTALLATION REQUIREMENTS
Display case must be installed level. The display case must
not be installed in any area where it may be affected by steam, grease, dripping water, high temperatures, or any other severely adverse conditions.
Do not install a heated display case near a cold air source
such as a freezer, air conditioning vents, or in any area where outside air fluctuation can affect performance.
(140mm)
58-3/16" (1477mm)
5-1/2"
(140mm)
58-3/16" (1477mm)
31-5/8" (804mm)
26-1/2" (673mm)
26-1/4" (666mm)
OPENING WIDTH
(Shown with optional shelf)
31-5/8" (804mm)
Swivel Caster
44-5/16" (1125mm)
32-1/2" (824mm)
48" (1219mm)
ELECTRICAL OUTLET
Rigid Caster
OPENING HEIGHT
28-5/16" (719mm)
EU2SYS-48 Profile
OPENING
13-5/8"
(346mm)
OPENING HEIGHT
13-5/8"
(346mm)
28-5/16" (719mm)
OPENING
ELECTRICAL PANEL
EU2SYS-48
EU2SYS-48 seri es
hea t e d d i s play syst e m s
DIMENSIONS (h x w x d )
ex te ri or, w ith b ase:
58-3/16" x 48" x 44-5/16" (1477mm x 1219mm x 1125mm)
we ll di me nsion s (w x l x d ):
27-3/16" x 45-5/16" x 4-1/2" (690mm x 1151mm x 114mm)
ELECTRICAL
120/208-240 1 50/60 13.8
208 1 50/60 12.0 240 1 50/60 13.8 230 1 50/60 12.6 2.9
3.3
2.5
3.3
WEIGHT
mo de l ne t shi p
EU2SYS-48 397 lb (180 kg) 472 lb (214 kg) EU2SYS-48/P 397 lb (180 kg) 472 lb (214 kg)
cr at ed di me nsi on s: l x w x h
45" x 52" x 82" (1143mm x 1321mm x 2083mm)
ACCESSORIES
CARVING STATION 5001874 SHEET PAN DIVIDER BAR PACKAGE 5002802
CASTERS, PLATE 4007
(Includes 2 - 5" (127mm) r igid and 2 - 5" (127mm), swi vel with br ake)
PAN INSERT, SELF-SERVICE 4" (102mm) d ee p 1001990 WORK SHELF WITH GRAVY LANE 5005638
PLATFORM SCALE
le ft -h and 5001308
r ig ht -hand 5001307
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
www.alto-shaam.com
# 69 - 0 8/ 15
( cu stomer si de)
: 262.251.3800 800.558.8744
SPECIFICATIONS
• Six (6) overhead lights with two (2) light zones.
• Two (2) base heat zones with two (2) adjustable thermostats with a range of 1 through 10, and two (2) heat-on indicator lights.
• Two (2) tinted, reflective, tempered glass sliding doors on operator side.
• One (1) 10" x 36" (254mm x 914mm) operator-side work shelf.
• Self-serve model 48/P has a self-serve pan insert 26-7/16" x 45-3/16" x 2" (672mm x 1148mm x 51mm) and includes two (2) Wire Pan Grids.
SHELF, STAINLESS STEEL 5005786
THERMOSTAT GUARD COVER PLATE 5007660
: 262.251.7067 800.329.8744
