MODEL: MOD16H/16P
CONTENT
1. INTRODUCTION……………………………………………………………………………..1
2. TECHNICAL SPECIFICATION……………………………………………………………..2
3. BLOCK DIAGRAM……………………………………………………………....................45
4. SCHEMATIC DIAGRAM…………………………………………………………………….6
5. WIRING DIAGRAM………………………………………………………………………….9
6. PCB LAYOUT………………………………………………………………………………..11
7. TEST PROCEDURE………………………………………………………….....................16

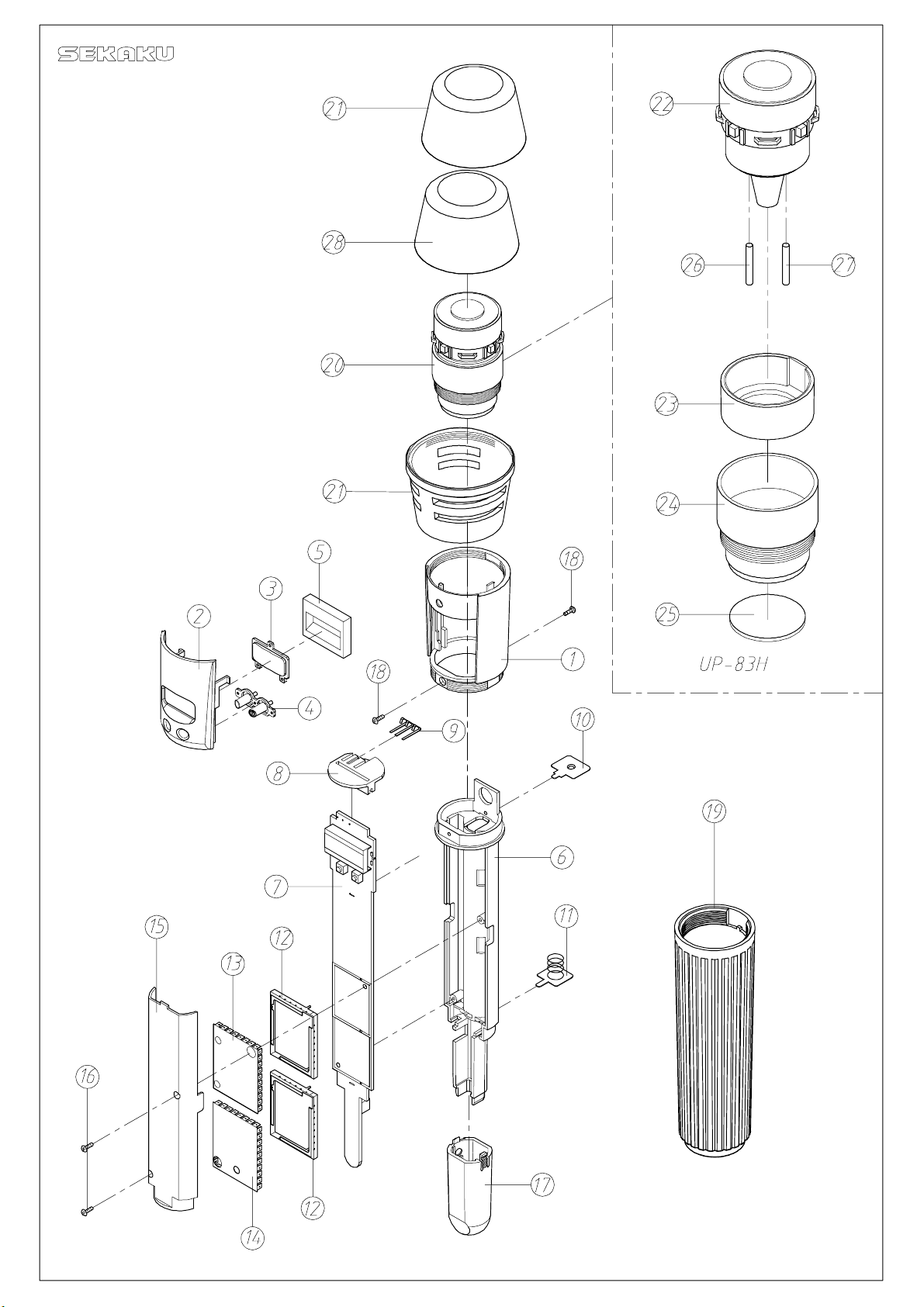

8. EXPLODED VIEW & MECHANICAL PARTS LIST……………………………………..20
9. BOM…………………………………………………………………………………………..24
1. INTRODUCTION
MOD-16H/MOD-16P
Soft touch rubberised painting to avoid handling noise
˙
Rechargeable battery design
˙
Selector for three different output levels depending of kind of receiver used
˙
LCD display
˙
Battery status display
˙
Mute function (this function is very welcomed by Politicians)
˙
Lock function to avoid miss action during a live performance
˙
- 1 -
2. TECHNICAL SPECIFICATION
MODEL
SPECIFICATION
Oscillation mode PLL UHF SYNTHESIZED
Carrier frequency band UHF 470-900 MHz
Dependent on applicable country regulations
MDO-16H MOD-16P
Frequency response
Frequency stability
T.H.D. 1KHz<0.8%
Modulation mode FM (F3E)
RF output power 5-50mW(adjustable 3 bands)
Dynamic
Tone frequency 30-33 KHz
Current drain 100mA
Max. Deviation
Battery "AA" type 2
Optional Nickel hydrogen battery +charger
Mic. Capsule(optional)
Dimensions
Weight 0.246Kg 0.082Kg
50 Hz-15KHz ( 3dB)
0.005%(-10к ~ 50кʼʳ
Ї100dBʳ
35KHzʳ
Condenser or Dynamic Capsule
277 ӽˆˉˁˈ (10.9" ӽ1.44")
Condenser or Dynamic Capsule
97mm ʳ 68mm ʳ 22mm(3.82" ʳ 2.68" ʳ 0.87")
- 2 -
MODEL MOD-16PRO
Channel Multi-channels, up to 144 frequency presets for
each frequency bands
Frequency band UHF 470-900 MHz
Dependent on applicable country regulations
Receiver type PLL UHF SYNTHESIZED
Frequency response 50 Hz-15KHz ( ±3dB)
Frequency stability
±0.005%(-10шC -50шC )
T.H.D. 1KHZ <0.8%
Modulation mode FM (F3E)
S/N Ratio
Dynamic
Ї90dB
Ї100dB
RF sensitivity -100 dBm/30dB SINAD
Audio output Unbalanced 6.3mm phone jack 750mV ;
±35KHz deviation
Balance output 1V , 35KHz deviation
Power supply DC15V/ 500mA
(AC 115V/230V 50/60Hz adaptor)
Dimensions 210(W) 55 (D) 4(H)mm;
(8.2" ʳ 6.1"ʳʳ1.7”)
Weight 0.99Kg
- 3 -
1
MOD-16H
3
OC
G
2
3
4
. BL
- 4 -
D
+3V
Q6 Q7
VCO
MT
Mic IN
GT
IC55 2/1
AF
FLITER
+5
IC3IC552/1
AF
COMP
+5
IC3
AMP
IC1
C
PLL
CONTROL
IC2
+3V
REGULATOR
B
DC9V
IN PUT
Q2 Q15
CHARGE PUMP
IC59
+3.3V
REGULATOR
IC58
+5V
REGULATOR
PLL BLOCK
IC58
Q53
DC
CONVERTER
Micro controler
+3
Q1 Q3
RF
Buffering
PIC16F74
U132
+3
Q8
RF
PA
RF
POWER
LEVEL
LCD
U130
DETE103067BEP
RF
B,P,F
K DIA
D
RAM
C
B
A
+3
A
1
2
34
321
5
4
D
MT
Mic IN
GT
IC55 2/1
AF
FLITER
+5 +5 +3
IC55
AF
COMP
IC55
AF
AMP
Q6 Q7
VCO
IC1
C
PLL
CONTROL
-
-
IC2
+3V
REGULATOR
B
DC9V
IN PU T
Q2 Q15
CHARGE PUMP
IC59
+3.3V
REGULATOR
IC58
+5V
REGULATOR
PLL BLOCK
IC58
Q53
DC
CONVERTER
Micro controler
+3+3V
Q1 Q3
RF
Buffering
PIC16F74
U132
Q8
RF
PA
RF
PO W ER
LEVEL
LCD
U130
DETE103067BEP
RF
B,P,F
D
C
B
+3
A
1 2 34
MOD-16P
A
7654321
8
4. SCHEMATIC DIAGRAM
- 6 -
R48
18R
GND
CPU1
CPU2
3
2
1
3
2
1
RA4
RA5/AN4
RE0/AN5
RE1/AN6
RE2/AN7
VDD
VSS
OSC1
OSC2
RC0
NC
R71
33K
C87
102P
R 144
100K
22
34
C24
47P
100uF/10V(T)
GND
R40
430R
C61
102P
3CN9
GND
2
1
3
GND
2
1
RA2/AN221RA1/AN1
RA3/AN3
RC135NC
GND
C69
C18
47P
C47
3.5P
GND
SW 1 HL 00005
SW 2 HL 00005
20
17
19
18
MCLR
RA0/AN0
U 132
PIC 16F74
36
19
18
GND
GND
GND
C68
NC
R88
2.2K
C58
102P
100nH
L56
18nH
Q8
B FG 425WC14
Q9
2SK 2731
L57
BAT
11
10
9
8
7
6
5
4
3
2
1
112
MLB-80A -N2
C76
10P
GND
R60
2.2K
+3V
GND
VR55
B 20K
+3V
GND
C 132
104P
RC5
RC4
RC3
RC0
RE2
RE1
RE0
RC2
RA0
R77
47K
GNDTONGOUT
VR56
B 20K
R76
22K
GND
T4
2
C56
1P
L58
10nH
C73
2.2P
GND GND
GNDGND
C59
C65
100P
56P
Q10
2SC 2412
R89
47R
C62
GND
GND
102P
R13282K
R13182K
R 13647K
R 10447K
GND
C45
470P
C44
225P
BAT
C793PC80NC
R65
100R
C63
102P
R13382K
R13482K
R 13747K
R 13847K
+3V
R91
NC
U 131
5
1
2
3
24LC 08B
R36
4.7K
C 154
100P
GND
L59
10nH
GND
AF IN
+3V
GND
R35
4.7K
4
R45
10K
C77
4.7P
C74
3.3P
C 133
104P
GND
L69
10nH
L60
10nH
C 120
15P
GND GND
C81
1P
C75
4.7P
RB5
RB4
RB3
RB2
RB1
RB0
RD7
RD6
RD5
RD4
RD3
RD2
RD1
RD0
+3V
SE00063
1
2
3
4
5
6
7
8
9
POW ER LEV EL1
POW ER LEV EL2
TONE CONTROL
L70
10nH
C82
1P
C72
L61
3.3P
10nH
C 138
15P
LED 1
U130
COM 4
COM 3
COM 2
COM 1
SEG 1
SEG 2
SEG 3
SEG 4
SEG 5
D TE 103067BEP
LE
DA
CLK
CHG
BA TTERY
L71
10nH
C67
15P
GND
C83
3.3P
LED 2
SE00063
SEG 6
SEG 7
SEG 8
SEG 9
SEG 10
SEG 11
SEG 12
SEG 13
SEG 14
L63
OR
BLI
10
11
12
13
14
15
16
17
18
GND
GND
LE
DA
CLK
CPU1
CPU2
CHG
CPU-30K Hz-35KH z
BATV
5.6nH (W)
L7
L62
6.8nH (W)
VC2
V6P
D
C
B
ANTENNA
A
MOD-16H
R 139
4.7K
R 140
10K
16
15
13
12
NC
NC
RB414RB5
RB6/PGC
RB7/PGD
RB3/PGM
RB2
RB1
RB0
VDD
VSS
RD7
RD6
RD5
RD4
RC7/RX
RC6/TX44RC543RC4/SDA42RD341RD240RD139RD038RC3/SCL37RC2
IC3D
SA 575
17
C 127
225P
GND
GND
C50
104P
GND
C70
R33
1K
56P
C 139
100P
1 2
C 153
1P
R69
2K
R56
1K
C 57 56P
GND
GND
BLI
C48
104P
IC3B
SA 575
GND
7
2
3
GND
GND
112
S07A TH R U S07M
GND
GND
BAT
C 112
470P
R74
+5
10K
GND
15
IC 55A
R86
33K
C92
10uF/10V(T)
R47
10K
C60
102P
L6
15nH
FS1J3 1A/30V
GND
D6
R44
12K
RF POW ER
R43
10K
GND
TONGOUT
C99
1uF/10V(T)
01/26
14
11
C93
106P
1
ST 33078
delete C94 and add R61
Q5
2SC 2412
GND
GND
C33
56P
C8
1.8P
Q7
B FG 425W
GND
GND
D4
C54
103P
GND
CN5
3
2
1
DCJACK2
GND
R59
12K
R46
4.7K
D1
1SS355
+5
2
C 136
104P
2
T7
GND
MLB-80A -N2
1
1
84
C 137
104P
R92
12K
+5
R61
100K
GND
GND
GND
C34
2P
GND
R96
5.6K
R80
2.2K
L8
20
4.7uH
8
C 158
472P
GND
RF POW ER
C15
103P
GND
C 148
47P
R10
R11
18R
18R
R17
18R
C37
1P
SA 575
6
C13
3.5P
IC 55C
ST 33078
C 152
102P
97
+3
1
2
GND
C 115
104P
C55
225P
IC3A
4
T6
1
MLB-80A -N2
2
R62
2.2K
Q18
D TC 614TU
GND
L1
10nHL910nH
C90
NC
GND
GND
10
5
GND
GND
C 102
225P
Q17
2SA 1036K
C40
2P
C95
22uF/10V
GND
GND
+5
IC 56C
NJR 4580
GNDGND
R50
100K
C84
1P
BAT
BU-1
H G 00176
R55
Q14
4.7K
2SC 2412
GND
D2
R32
1SS355
10K
D3
1SS355
R63
10K
84
1
2
C26
3.5P
C 125
104P
IC3C
SA 575-2/1
GND
GND
C41
56P
GND
R39
1K
R26
3.3K
B
R20
3.3K
+3V
C 131
104P
GND
C 134
22P
R93
3
4.7K
C52
472P
GND
56P
R53
10K
GND
CE1
B FG 425W
E2
GNDGND
GND
X130
16M H z
GND GND
R22
22K
C 101
220P
GND
C43
472P
R9
GND
10RC9
L54
15nH
C42
10P
Q1
R14
100R
+3V
C 146
102P
C 130
105P
GND
C 135
22P
GND GND
C30
R16
4.7K
C32
472P
E2
R13
100R
GND
R 135
15K
GND
R90
15K
C88
225P
472P
R15
4.7K
B
B FG 425W
R52
180R
12
GND
C 121
22uF/10V
R 101
15K
G
C36
472P
VD2
1SV 270
GNDGND GND
GND
C 147
330P
C96
103P
R30
22K
2/16=15Kmodified on 2/16
C28
104P
Q4
2SC 2412
GND
Q16
2SC 2412
R42
8.2K
D S
C 117
104P
Q11
2SC 2412
BATV
IN
R29
22R
R12
10K
B
C20
1.8P
12/29
R8
22K
GND
Q12
R TR 030P02
G
R 130
2.2K
GND GND
R99
220K
R84
22K
L12
1uH
R51
330R
C39
10uF/10V(T)
GND
CE1
B FG 425W
C21
4.7P
12/29
MLB-80A -N2
2
S07A TH R U S07M
2SA 1797Q
C51
5.1V SE00016
104P
GND
C 124
103P
C 106
47P
IC 56B
6
NJR 4580
5
C 104
104P
GND
12
13
16
R85
12K
R49
C 105
102P
1K
R87
33K
+5
DS
Q2
X P151A
C25
472P
Q6
C29
E2
1P
R21
470R
12/29
VC O 790-826M H z
T5
D7
Q15
D8
132
BAT54
BA TTERY
C 111
225P
G
R23
47R
R28
2K
R24
1K
R25
10K
D9
1SS355
D
C 123
22uF/10V
MLB-160808-0080A -N2
T10
C 142
MLB-80A -N2
2
T11
MLB-80A -N2
112
CPU-30KHz-35KHz
GND
C89
104P
R34
2.2K
m odified on 2/16
L11
4.7uH
L66
4.7uH
C12
104P
13
4
C7
104P
+3VT
+3
C2
10P
+3VDO
12
5
112
GND
C 151
100P
GND
104P
C 143
GND
47uF/7V(T)
C
1K H z 65m v in put
AF
TP 500m v
3
2
Mic +
1
2.5-4PIN
UP-887C
L11=100nH
L66=100nH
B
A
C 78= 330P
R 30= 20K
GND
LD LD
14
15
16
1
2
3
2/20 1K
改
R7
X1
1K
R27
12M H Z
MLB-160808-0080A -N2
VC1
C1
V 20P
47P
GND
+3V
OUT
12
C 118
22uF/10V
2
C 141
104P
GND
GND
R83
47K
C85
10uF/10V(T)
GND
C 150
105P
2/3104
改
GND
C4
C3
47P
47P
10
11
LE DA CLK
6
7
C6
102P
GND
IC59
3.0V XC 62FP3002M R
G
GND
100uF/10V(T)
GND
+5
C 144
47uF/7V(T)
2/16=470P
C 107
470P
2/16=470P
GND
GND
C 149
104P
R79
1K
R70
10K
GND
R37
1K
R72
22K
GND
C5
47P
IC1
M B15E03SLPFV
8 9
GND
C 119
C 109
472P
IN
C98
22uF/10V
GND
C11
224P
VIN
12
L65
22uH
AUDIO +
2/3 473P
C78
470P
+5
R3 4.7K
R4 4.7K
R5 4.7K
R1
430R
C17
22uF/10V
T8
MLB-80A -N2
2
112
C53
104P
C 110
470P
R97
10K
C 126
GND
GND
R6
1K
C10
103P
R 102
100K
C 140
100P
R98
470K
R 100
10K
R68
5.6K
C 128
100P
R58
22K
R67
220K
R66
10K
C64
104P
+3VT
MLB-160808-0080A -N2
+3VDO
1
2 3
GND
GND
C 116
C 122
102P
104P
GND
R95
47K
C 108
470P
2/16=470P
GND
+5
4.7uF/10V(T)
GND
改
C86
105P
VR1
B 50K
R54
12K
C 129
22uF/10V
LE
DA
CLK
R2
1K
GND
CHG
D11
1SS355
D10
1SS355
D5
FS1J3 1A/30V
1
2
3
IC58
R78
X C 9103D
GND
C19
472P
20K
M ODUL
C 145
GND
104P
C 113
47P
2
3
C 103
104P
GND
GND
C71 220P
12K
R81
6
IC 55B
5
ST 33078
SG 00040
L5
22uH
C 157
47P
GND
2/8C156
L4
C38
10uF/10V(T)
4M ODUL1
L10
180nH
12/29
VD1
B B142
5.6nH (W)
GND
2
GND
IC 56A
NJR 4580
C91
10uF/10V(T)
7
GNDGND
GND
C23
3.3P
L2
GND
R41
22K
C49
10uF/10V
+5
L68
SCDH-4D 28-101N
DS
Q13
5
G
X P151A
4
T1
GND
112
GND
MLB-80A -N2
GND
C 114
1
102P
BAS
R75
12K
GND
AUDIO -
R82
2.2K
C97
225P
OUTPUT3.3V
+3
10uF/10V(T)
VC3
V6P
IC2
X C 62FP3002
OUT
C27
104P
GND
C46
GND
104P
C22
GND GND
C16
8P
C 100
0.5P
AF IN
R31
C31
10K
1.8P
R19
4.7K
C 155
47P
GND GND
Q3
GND
R57
10K
R18
10R
C35
56P
L3
15nH
CE1
100K
R 143
GND
3PIN
CN8
3PIN
23
24
25
26
27
28
29
30
31
32
33
R64
10K
C66
390P
12/27 12/27
GND
GND
4.7P
R38
430R
3-PO W ER
2-PO W ER
1 2 3 4 5 6 78
GND
54321
6
- 7 -
+3V
D
C
B
OUT
Z1
BU ZZER
IC59
3.0V X C 62FP3002M R
BAT
GND
R32
22K
R63
22K
G
GND
Q54
2SC 2412
C 123
22uF/10V
IN
C98
22uF/10V
D2
1SS355
D3
1SS355
+3V
C 131
104P
GND X 130
VIN
R55
4.7K
C 134
22P
GND GND
T8
112
MLB-160808-0080A -N2
C53
104P
GND
C 146
102P
C 130
105P
16M H Z
+3V
GND
C 135
22P
R 135
15K
2
BAT
+3V
GND
+3V
C 132
104P
RC5
RC4
RC3
RC0
RE2
RE1
RE0
RC2
RA0
R 13182K
R 10447K
GND
GND
R 13282K
R 13647K
1
2
3
R36
4.7K
R 13382K
R 13482K
R 13747K
R 13847K
U 131
24LC 08B
NC
+3V
R35
4.7K
R91
5
4
+3V
C 133
104P
R45
10K
R33
47K
GND
RB5
RB4
RB3
RB2
RB1
+3V
RB0
RD7
RD6
RD5
RD4
RD3
RD2
RD1
RD0
LED 1
SG 00067
2SC 2412
Q62
LED 2
SG 00067
U 130
1
COM 4
2
COM 3
3
COM 2
4
COM 1
5
SEG 1
6
SEG 2
7
SEG 3
8
SEG 4
9
SEG 5
RF_SM A LL_LCD
LE
DA
PO W ER LEV EL1
PO W ER LEV EL2
TONE CO NTROL
PO W ER ON/OFF
CLK
CHG
BA TTER Y
SEG 10
SEG 11
SEG 12
SEG 13
SEG 14
CHG
SEG 6
SEG 7
SEG 8
SEG 9
GND
GND
GND
BAT
GND
R41
10K
10
11
12
13
14
15
16
17
18
+5
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
CHG
CN1
H C 00824
CN2
H C 00824
D
C
B
GND
GND
20
RA2/AN221RA1/AN1
RC1
36
35NC34
SW 1
SW 2
SW -PB
SW -PB
17
19
18
MCLR
RA0/AN0
U 132
PIC 16F74
GND
+5
100K
R 143
23
24
25
26
27
28
29
30
31
32
33
GND
3PIN
CN10
3PIN
R 144
100K
3
2
1
3
2
1
RA4
RA5/AN4
RE0/AN5
RE1/AN6
RE2/AN7
VDD
VSS
OSC1
OSC2
RC0
NC
3CN9
2
1
3
2
1
22
RA3/AN3
R 139
4.7K
R 140
22K
13
12
14
15
16
NC
NC
RB4
RB5
RB6/PG C
RB7/PG D
RB3/PG M
RC7/RX
RC6/TX44RC543RC4/SD A42RD341RD240RD139RD038RC3/SC L37RC2
RB2
RB1
RB0
VDD
VSS
RD7
RD6
RD5
RD4
11
10
9
8
7
6
5
4
3
2
1
A
1 2 3 4 56
A
MOD-16P
7654321
8
GND
GND
D7
1SS355
pow er on
C 115
104P
GND
GND
FS1J3 1A/30V
D6
S07A TH R U S07M
RF OFF
GND
C 126
47P
GND
D4
RF POW ER
D2
5.1V
C 123
104P
+5
84
GND
R59
12K
GND
IC 56C
NJR 4580
GND
C98
47uF/7V(T)
C54
103P
3
2
1
BATE
C 125
104P
CN5
PHONEJACK2
GND
C 136
104P
+5
2
2
T7
MLB-160808-0080A -N2
1
1
84
IC 55C
ST 33078
GND
GND
1
BATV
BATE
GND
RF OFF
CPU1
CPU2
GND
CHG
GND
2
3
4
5
6
7
8
CN3
H C 00819
LE
1
DA
2
CLK
3
4
5
6
7
8
CN4
H C 00819
POW ER ON
CPU-30KHz-35KHz
D8
1SS355
+5
D9
1SS355
C 137
104P
GND
C48
GND
S07A TH R U S07M
R42
CHG
D
R78
20K
GND
IC 56A
NJR 4580
C91
10uF/10V(T)
D5
FS1J3 1A/30V
5
1
G
2
4
3
IC58
2
X C 9103D
MLB-160808-0080A -N2
C 145
104P
GND
GND
C 114
1
102P
R75
12K
GND
T10
C 142
MLB-160808-0080A -N2
2
GND
104P
C 143
GND
47uF/7V(T)
CPU-30KHz-35KHz
C
112
T11
MLB-160808-0080A -N2
112
R83
47K
GND
C 116
C 119
C 118
100uF/7V(T)
10uF/10V
+5
C 144
47uF/7V(T)
R95
47K
GND
GND
C 108
470P
GND
2
C 141
104P
GND
GND
C 109
472P
C 107
472P
C 122
102P
C 110
R98
470K
470P
R 100
R97
10K
10K
R 102
100K
104P
C 140
100P
C 113
47P
2
3
C 103
104P
GND
GND
22K
C 129
10uF/10V
L68
100uH
DS
C 121
22uF/10V
Q53
GND
X P151A
T1
GND
112
GND
R99
C 147
330P
220K
R 101
15K
R84
22K
BAS
Q2
2SC 2412
R43
8.2K
R60
200R
6
5
GND
2SA 1797Q
Q60
RTR030P02
C 117
104P
GND
R 130
2.2K
Q61
2SC 2412
BATV
GND GND
C 106
47P
IC 56B
NJR 4580
7
R74
10K
C 104
104P
D1
GND
2
132
MLB-160808-0080A -N2
BAT54
GND
C 124
103P
C 112
TONGOUT
470P
+5
104P
R30
12K
R44
R27
4.7K
10K
Q15
GND
T5
112
無料
8
D
C
GND
C99
1uF/10V(T)
15
IC4B
SA 575
12
13
16
R85
12K
C 111
225P
2
R66
C 105
3
680P
1K
R87
33K
10uF/10V(T)
GND
R47
Q4
10K
G
C60
102P
Q5
GND
GND
GND
C33
GND
56P
L6
15nH
C34
2P
C8
1.8P
Q7
B FG 425W
GND
1
GND
IC 55A
ST 33078
SG 00040
R86
33K
C92
2SC 2412
R10
18R
10uF/10V
R17
18R
C37
3P
COM -TP
R11
18R
14
11
R92
12K
C93
1
+5
R61
100K
GND
RF POW ER
C15
103P
GND
R62
1K
3.5P
4M ODUL
GND
GND
R96
C 152
5.6K
6
SA 575
Q14
2SA 1036K
GND
GND
97
R73
10K
Q13
DTC614TU
GND
102P
C 146
105P
IC4A
10
GND
5
GND
C 102
225P
4
C90
103P
R45
47R
GND
GND
C52
472P
C9
R39
56P
1K
GND
GND
C41
56P
R26
3.3K
R20
4.7K
R36
4.7K
R49
47R
GND
4M ODUL-1
GND
GND
R41
22R
R50
100K
22uF/10V
2SC 4226
Q11
2SC 4226
IC4C
1
2
C95
GND
C43
472P
R9
10R
GND
L54
15nH
C42
4.7P
Q1
C40
102P
SA 575-2/1
C32
472P
R14
300R
R16
4.7K
E2
GND
R93
3
4.7K
C30
B
Q 3 B FG425W
R90
R22
15K
22K
C 101
C88
220P
225P
GND GND
BATE
2
T2
2
2.2uH
1
1
GND
C 100
10uF/10V(T)
R18
472P
10R
R15
C35
4.7K
GND
56P
L3
15nH
CE1
R38
22K
C14
1PC13
R40
5.6K
GND
CPU1
3-PO W ER
2-PO W ER
CPU2
R64
R57
10K
GND
GND
GND
R46
47R
GND
C 131
C61
33P
47P
GND
C 132
33P
GND
10K
C55
390P
10uF/10V(T)
C18
47P
C26
47P
R13
0R
Q12
B FG 425W
C53
102P
GND
R71
33K
C 128
102P
GND
C87
R33
330R
R48
2.2uH
L9
15nH
C47
3.5P
GND
R88
2.2K
R80
2.2K
20
8
+3
LD
C49
47P
1
GND
AUDIO +
SA 575-2/1
IC4D
19
18
C24
47P
GND
GND
GND
C58
C50
102P
104P
12
1 2
C57
56P
GND
112
MLB-160808-0080A -N2
L57
100nH
C70
56P
L56
18nH
Q8
B FG 425W
Q9
2SK 2731
GND
GNDGND
C 139
100P
C89
1P
R69
2K
R56
1K
17
T4
2
GND
C76
L58
10P
10nH
C73
1.5P
GND GND
GNDGND
C65
56P
R89
47R
C62
GND
47P
C 127
225P
M OD-TP
input
250m v-350m v
BATE
C56
1P
C79
2.7P
C59
100P
R65
100R
Q10
D TC 614TU
C63
102P
GND
L10
1uH
C96
103P
R67
330R
R55
22K
+5
DS
X P151A
C39
10uF/10V(T)
R23
100R
R28
1.8K
C29
1P
R24
1K
R21
GND
430R
VC O 794-805M H z
TP2
+5E
GND
C 135
GND
C4
47P
10
7
C6
102P
104P
C85
10uF/10V(T)
GND
GND
3
4
IC1
M B15E 03SL PF V
8 9
R79
1K
R70
10K
GND
C86
105P
C78
100P
R52
120K
GND
2
A D 8541
IC3
1
5
C5
47P
R3 4.7K
R4 4.7K
R5 4.7K
C11
224P
GND
AUDIO +
R37
C 150
1K
105P
R72
22K
GND
C69
104P
GND
R1
270R
C51
225P
+5
TP4
C17
22uF/10V
C 151
330P
GND
VR1
B 50K
LE
DA
CLK
R6
R2
1K
1K
C10
103P
GND
C 133
L1
B B142
VD1
4.7uF/10V(T)
R58
56K
22uH
GND
C64
104P
47uF/7V(T)
GND
C 148
100P
L5
2.2uH
L2
5.6nH (W)
R63
5.6K
6
5
R54
120K
L4
C22
GND GND
C23
3.3P
GND
VC3
V6P
GND
B 50K
VR2
R25
220K
+3VT
180nH
C19
472P
GND
AM P-TP
C 71 100P
12K
R81
7
IC 55B
ST 33078
GND
C94
47P
C 134
10uF/10V
GND
GND
OUTPUT3.3V
+3
C38
10uF/10V(T)
C46
GND
104P
C36
472P
C 130
47P
C16
10P
C68 0.5P
R31
10K
C31
1.8P
R19
VD2
10K
1SV 270
GND GND
AUDIO -
R82
C97
2.2K
225P
+5E
R53
+5
10K
R68
C 149
10K
104P
GND
IC2
X C 62FP3002
OUT
C27
104P
R29
22R
GND
R12
8.2K
AF IN
R8
22K
GND
B
+4
IN
G
C28
104P
GND
C25
56P
CE1
B FG 425W
Q6
C20
E2
1.8P
C21
4.7P
1K H z 65m v
Input
-
-
B
16
1
X1
12M H Z SC 00398
A
C1
47P
GND
15
2
R7
1K
VC1
V 20P
Mic +
GND
GND
LD
R32
10R
CN54
1
2
3
4
R35
10K
C66
220P
14
3
C7
104P
+3
C2
10P
104P
13
4
GND
C12
+3
+3VT
L65
1uH
L67
180nH
L66
180nH
L7
1uH
C84
225P
C3
47P
11
12
LE DA CLK
5
6
R34
2.2K
R51
1K
C 154
220P
GND
VR56
B 50K
VR55
B 50K
1K H z 100m v
L59
10nH
C80NC
GND
GND
R77
47K
GNDTONGOUT
R76
22K
GND
L69
C77
3.5P
C74
3.3P
GND GND
R91
C45
470P
C44
225P
L60
10nH
C 120
15P
+5
22K
AF IN
C 153
100P
GND
B
GND
L8
10nH
10nH
L70
C81
C82
1P
1P
C75
C72
L61
L71
4.7P
10nH
3.3P
10nH
C 138
C67
15P
15P
GND
5.6nH (W)
GND GND
GND
L62
6.8nH (W)
C83
3.3P
1
GND GND
GND GND
ANTENNA
GND
A
VC2
V6P
GND
2 3
GND
隔離罩
1 2 3 4 5 6 78
2 3
GND
GND
隔離罩
GND
black
f
aerial
5
. WIRING DIAGRAM
321
4
MOD-16P
D
D
LCD
C
CN1
CN2
C
UP-8P-A(MOD-800P)
butt insert
butt insert
CN4
B
UP-8P-B
CN3
B
red
negative spring leaf
positive spring lea
A
A
1 2 34
- 9 -
321
connect white line
0
4
- 1
-
D
D
connect two lines to condenser 3 & 4 in parallel
C
connect red line
B
Mic-Vcc
GID
3
connect three lines to condenser3 & 4 in separate
1
4
Mic
2
GND
connect guitar line
connect ground line
C
B
A
A
1 2 34
6. PCB LAYOUT
MOD-16H
PCB:UP-MIC Bottom Layer Botto m Solder
PCB:UP-MIC Top Layer Top Overlay Top Solder
- 11 -
PCB:UP-8H-V2
Bottom Layer
Bottom Overlay
Bottom Solder
2
2
2
- 12 -
PCB:UP-8H-V
Ground Plane
PCB:UP-8H-V
Power Plane
PCB:UP-8H-V
Top Layer
Top Overlay
Top Solder
O
6
- 1
3
-
PCB:UP-8P-A Bottom Layer Bottom Overlay Bottom Solder PCB:UP-8P-A Top Layer Top Overlay Top Solder
M
D-1
P
PCB:UP-8P-B
Power Plane
- 14 -
PCB:UP-8P-B
Ground Plane
PCB:UP-8P-B
Bottom Layer
Bottom Overlay
Bottom Solder
PCB:UP-8P-B
Top Layer
Top Overlay
Top Solder
PCB:UP-8P -MIC Top Layer Top Solder
- 1
5
-
PCB:UP-8P -MIC Bottom Layer Bottom Solder
7. TEST PROCEDURE
MOD-16H
Instruments:
1. signal generator: 8903b
2. oscillograph: LS8106
3. modulator: JMM-2200
4: frequency recorder: EFC-3203A
5. DC power supplier: 3303A.
6. multi-meter
7. frequency spectrum: E4403B
Instruments Setting:
1. signal generator: 1kHz/65mV.
2. modulator:
2.1. Tone set: H: Pass: 3K L: Pass: 50K RANGE: 10
2.2. AF set: H: Pass: 25 L: Pass: 15K RANGE: 50
Test procedure and specification:
1. Turn on the power supply (press the ON/OFF key for 2 seconds), the LED indicator
will light up, after the LCD show the battery and frequency status, the bright of LED
indicator will be decreased.
2. Test the sense power of PL2 on CH1, CH6, CH12 are above 5dBm, the sense
power of PL1 is above 1dBm, the sense power of PL0 is above -5dBm, and the
harmonics is below -45dBm. (note: the power of PL1/PL2/PL0 must have obvious
variation)
3. Input signal from MIC input terminal (shout), the modulator will have output.
4. Tone test: Tone signal is in the range of 3KHZ±0.5KHZ, the frequency is in
31~34KHZ.
5. In standard range test the radio frequency, and permit the error in ±2KHZ.
- 1
-
6. Functions test:
6.1. Switch the CH/ON key to corresponding channel, and the SELECT has
corresponding variation.
6.2. Switch the CH/ON key to Lock, the SELECT functional key will be useless; it
need switch to UN Lock1, the SELECT key can work normally.
6.3. In standby condition, press SELECT key for 2 seconds, it is in MUTE mode, the
entire functional keys will be out of control, the TONE has no output, press the
SELECH key for 2 seconds to activate the unit or press the CH/ON to close it.
7. Displaying test: when switch the functional key, the display will appear the
corresponding variation, and check the display is normal or abnormal.
8. Low voltage test: when it is 2.0V±0.1V, the display will appear the low voltage; when
the voltage is below 2V, the unit will be closed automatically.
9. Total consumption current: when the power is in PL2, the consumption is below
125mA.
10. Turn off the power supply (press the ON/OFF for 2 seconds), the LED lights up,
after the LCD display CH, the LED light will be decreased.
11. Charge test:
11.1 When the unit is charging, the current is 125mA±15mA.
11.2 When the unit is charging, the LCD will appear the battery symbol and rotate up
and down.
11.3 During charging, the voltage of battery have rise trend. (increase)
Note:
1. When the unit is charging, it must be added the load (battery).
2. Please use the professional battery charger.
- 17 -
MOD-16P
Instruments:
1. signal generator: 8903b
2. oscillograph: LS8106
3. modulator: JMM-2200
4: frequency recorder: EFC-3203A
5. DC power supplier: 3303A.
6. multi-meter
7. frequency spectrum: E4403B
Instruments Setting:
1. signal generator: 1kHz/65mV.
2. modulator:
2.1. Tone set: H: Pass: 3K L: Pass: 50K RANGE: 10
2.2. AF set: H: Pass: 25 L: Pass: 15K RANGE: 50
Test procedure and specification:
1. Turn on the power supply (press the ON/OFF key for 2 seconds), the LED indicator
will light up, after the LCD show the battery and frequency status, the bright of LED
indicator will be decreased.
2. Test the sense power of PL2 on CH0, CH50, CH99 are above 5dBm, the sense
power of PL1 is above 2dBm, the sense power of PL0 is above -4.5dBm, and the
harmonics is below -45dBm. (Note: the power of PL1/PL2/PL0 must have obvious
variation)
3. Input signal from MIC input terminal (shout), the modulator will have output.
4. Tone test: Tone signal is in the range of 3KHZ±0.5KHZ, the frequency is in
31~34KHZ.
5. In standard range test the radio frequency, and permit the error in ±2KHZ.
- 1
-
6. Functions test:
6.1. Switch the CH/ON key to corresponding channel, and the SELECT has
corresponding variation.
6.2. Switch the CH/ON key to Lock, the SELECT functional key will be useless; it
need switch to UN Lock1, the SELECT key can work normally.
6.3. In standby condition, press SELECT key for 2 seconds, it is in MUTE mode, the
entire functional keys will be out of control, the TONE has no output, press the
SELECH key for 2 seconds to disactivate the unit or press the CH/ON to close it.
7. Displaying test: when switch the functional key, the display will appear the
corresponding variation, and check the display is normal or abnormal.
8. Low voltage test: when it is 2.0V±0.2V, the display will appear the low voltage; when
the voltage is below 1.8V, the unit will be closed automatically.
9. Total consumption current: when the power is in PL2, the consumption is below
125mA.
10. Turn off the power supply (press the ON/OFF for 2 seconds), the LED lights up,
after the LCD display CH, the LED light will be decreased.
11. Charge test:
11.1 When the unit is charging, the current is 135mA±15mA.
11.2 When the unit is charging, the LCD will appear the battery symbol and rotate up
and down.
11.3 During charging, the voltage of battery have rise trend. (increase)
Note:
1. When the unit is charging, it must be added the load (battery).
2. Please use the professional battery charger.
- 19 -
8. EXPLODED VIEW & MECHANICAL PARTS
MOD-16H
- 20 -
- 21 -
MDO-16P
y
ij
ij
_
MECHANICAL PARTS LIST
MOD-16H
No. Part No. Description Specification Pcs
1 NI03458 LCD arylic 2.5*12*23_V1.0 1
2 NI03467 ke
25*12.8 black_V1.1 1
3 NI03764 cushion 5*21*27 black_V1.0 1
4 NI03452 battery bracket
5 NI03465 fixed sheet
6 MK00093
7 MK00084
8 NI03451
9 NI03466
10 MD00777
11 ND00593
12 NI03851
13 MK00099
14 MG00626
15 MI02866
16 MI02865
17 NI04078
18 MH01978
19 NI03450
20 NI03470
leaf spring
leaf spring- battery
battery bracke
aerial tube-RS
up-down steel net combination
wind-proof sponge-RS
rubber coil-RS
leaf spring -battery
screw-RS
separating shade top cover
separating shade top cover
tail tube
MIC- socket
plastic panel
plastic middle socket
21 HB01739 PC board-RS-FR4/2L 29.2*29.2*1.2 UP-MIC
32*170.5 black_V1.2 1
26*6 black_V1.0 1
0.3t*1*4.09*12.99 UP-8H_V1.1
0.3*15*20 positive_V1.3 1
13.4*113.5 black_V1.0 1
ij20.6*48.8_V1.4 1
ij50*62_V1.0 1
ij38*ij43.1*33 UP-83H black_V1.1 1
ij50.5*7 black_V1.0 1
10*15*12 negative_V1.0
M2*10_V1.0 1
0.2t*23.5*29.5*2.4_V1.2 1
0.2t*23.5*29.5*2.4_V1.3 1
ij37*120 black_V1.0 1
UP-8H ij38*36(DM-38)_V1.0 1
34.68*50*21 black_V1.1 1
38-ij40*56.5 black_V1.0 1
VER050502 1
22 HB02047 PC board RS-FR4/4L 194.1*28*1.6 UP-8H-V2_VER060121 1
- 22 -
r
f
p
f
p
f
ij
r
y
p
r
ij
p
ij
r
p
r
MDO-16P
No. Part No. Description Specification Pcs
1 NI04125 LCD 7*43*67.82_V1.0 1
2 NI04124 top cove
13*69*96.5 black_V1.0 1
3 NI03590 bottom cover 12*69*93 black_V1.0 1
4 MK00114 spring lea
5 MK00113 s
6 MK00112 s
ring lea
ring lea
7 MH01488 bolt
8 NI03588 battery holde
0.3t*17*12*1.6positive_V1.0 1
17*12*10 negative_V1.0 1
25.5*10.5*10*1.6 ±_V1.0 1
1.0*10mm SAMSON-T- 1
20.7*32.5*68.5 black_V1.0 1
9 NI03586 battery-switch 4.5*10.7*14.5 black_V1.0 1
10 NI03587 battery-switch 2*12*19 black_V1.0 1
11 NI04126 ke
5.4*9*24 black_V1.0 1
12 NI03584 fixed board 1*16.9*19.5 black_V1.0 1
13 MG00626 screw M2*10_V1.0
14 MG00695
illar coppe
3.7*ij4.7*4.8_V1.0 1
15 NI04232 cushion 14.6*27.8*0.3t_V1.0 1
16 MK00098 spring clam
17 MI03457 seperating shade top cove
18 MI03096 se
erating shade top cove
1.5*11*48.2*68.5mm_V1.0 1
0.2t*2*30*31.8_V1.0 1
0.2t*2.4*14.6*14.7_V1.4 1
- 2
-
9. BOM
MOD-16H
No. Item No. Description Specification Remark
1 NI04260 panel MOD-16H ALTO_V1.0
2 NI03473 panel UP-8H_V1.0
3 NI03450 paneL-RS UP-8H 34.68*50*21 black_V1.1
4 AE00385 paint-RS PU2001
5 AE00384 paint-RS PU2001
6 AE00383 paint-RS PU2001
7 AE00382 paint-RS PU1900
8 AE00381 paint-RS PU1900
9 AE00380 paint-RS PU1900
10 NI03471 middle socket UP-8H V1.0
11 NI03470 middle socket-RS UP-8H 38-ij40*56.5 black_V1.2
12 AE00385 paint-RS PU2001
13 AE00384 paint-RS PU2001
14 AE00383 paint-RS PU2001
15 AE00382 paint-RS PU1900
16 AE00381 paint-RS PU1900
17 AE00380 paint-RS PU1900
18 MG00022 screw M2.3*6
19 NI03458 acrylic panel-RS UP-8H 2.5*12*23_V1.1
20 NI03467 knob-RS UP-8H 25*12.8 black_V1.2
21 NI03764 caushion-RS UP-8H 4*21*27 black_V1.1
22 NI03452 battery bracket-RS UP-8H ij32*170.5 black_V1.2
23 NI03465 fixed board-RS UP-8H ij26*6 black_V1.1
24 MK00093 battery spring piece-RS 0.3t*1*4.09*12.99 UP-8H_V1.2
25 MK00084 spring piece UP-8H 0.3*15*20 _V1.3
26 NI03451 battery bracket-RS UP-8H 13.4*113.5 black_V1.1
27 NI03466 tube-RS UP-8H ij20.6*48.8_V2.0
28 MD00777 up-down steel net combination AU-800H ij50*62_V1.0
29 HG00176 buzzer PB-09N23P-03
30 HA01837 wire-RS 43mm black L3R3
31 HA01847 wire-RS 37mm red L3R3
32 HK05722 magnetic head DM-38
33 MH01978 MIC- socket UP-8H ij38*36(DM-38)_V1.0
34 HA01781 wire-RS 70mm L2R2
35 HA01782 wire-RS 70mm L2R2
36 NI03595 caushion UP-8H ij35.1*15(DM-38) black_V1.1
37 HG00163 megnatic head DM-38 300ȍ±20%
38 HB01739 PCB UP-MIC_VER050502
39 ND00593 wind-proof sponge-RS ij40.7*ij43.1*33 UP-83H black_V1.2
40 NI03851 rubber coil-RS ij50.5*7 black_V1.1
41 MK00099 spring piece-RS UP-8H 10*15*12_V1.1
42 MG00626 screw-RS M2*10_V1.1
43 NE15902 lable MOD-16H ALTO_V1.0
44 NI00014 membrane 0.035*1M
45 NH00012 bond paper 0.04*1M
46 NE15903 lable MOD-16H(F7 798-827)ALTO_V1.0
47 NI00019 membrane 0.065*1M
48 NH00245 label 0.07*1M
49 NI03833 tube-RS-C UP-8H ij20.6*48.8_V2.0
50 NI03832 tube-RS-C UP-8H ij20.6*48.8_V2.0
51 NI03829 tube-RS-C UP-8H ij20.6*48.8_V2.0
52 NI03828 tube-RS-C UP-8H ij20.6*48.8_V2.0
53 NI03827 tube-RS-C UP-8H ij20.6*48.8_V2.0
54 NI03826 tube-RS-C UP-8H ij20.6*48.8_V2.0
55 NE12052 label-RS-ACT PE
- 24 -
No. Item No. Description Specification Remark
56 NH00334 cone paper 0.040*1m
57 MI02866 separating shade top cover-RS- UP-8H 0.2t*23.5*29.5*2.4_V1.2
58 MJ01314 tinplate 0.2t*40*1M(1M/0.5KG)_V 1.0
59 MI02865 separating shade top cover-RS- UP-8H 0.2t*23.5*29.5*2.4_V1.3
60 MJ01314 tinplate 0.2t*40*1M(1M/0.5KG)_V 1.0
61 HK06960 PC board P-UP-8H(V2)_F7-DIP(AU-800H)
62 SC00398 crystal oscillator 12.000MHZ X1
63 SC00004 crystal oscillator 16.00MHZ X130
64 HC00148 connector 2.0 180° 3P(gold-plated) 3.8/8.5mm CN8,CN9
65 HC00714 DC jack LD-0211-1.3 CN5
66 HE00070 LCD module DTE103067BEP U130
67 HH00055 back light 50*25.5*3.0mm DB5025503CY
68 NI01906 cushion QW-3(HC-49U)
69 AC00179 tin without lead-RS M705E Sn 3Ag-0.5Cu
70 HK06961 PC board P-UP-8H(V2)_F7-SMD(AU-800H)
71 HB02047 PCB-RS UP-8H-V2_VER061018
72 CI00031 SMD ceramic capacitor 0805 2.2uF/16V Y5V-0805(2012) C44,C55,C88,C97,C102,C111,C127
73 CI00047 SMD ceramic capacitor 0603 10PF/50V C0G±0.25PF(C1608C0G1H100CT)TDK C2,C42,C76
74 CI00049 SMD ceramic capacitor 0603 15PF/50V C0G±5%(C1608C0G1H150JT)/TDK C67,C120,C138
75 CI00051 SMD ceramic capacitor 0603 22PF/50V C0G±5%(C1608C0G1H220JT)/TDK C134,C135
76 CI00055 SMD ceramic capacitor 0603 47PF/50V C0G±5%(C1608C0G1H470JT)/TDK
77 CI00062 SMD ceramic capacitor 0603
78 CI00063 SMD ceramic capacitor 0603
79 CI00065 SMD ceramic capacitor 0603 0.001uF/50V X7R ±10%
80 CI00071 SMD ceramic capacitor 0603 0.01uF/50V X7R ±10% C10,C15,C54,C96,C124
81 CI00075 SMD ceramic capacitor 0603 0.1uF/50V Y5V +80,-20%
82 CI00076 SMD ceramic capacitor 0603 1PF/50V C0G±0.25PF(C1608C0G1H010CT)/TDK C29,C37,C56,C81,C82,C84,C153
83 CI00079 SMD ceramic capacitor 0603 1.8PF/50VC0G±0.25PF(C1608C0G1H1R8CT)TDK C8,C20
84 CI00080 SMD ceramic capacitor 0603 2.2PF/50VC0G±0.25PF(C1608C0G1H2R2CT)TDK C73
85 CI00082 SMD ceramic capacitor 0603 3.3PF/50VC0G±0.25PF(C1608C0G1H3R3CT)TDK C23,C72,C74,C83
86 CI00084 SMD ceramic capacitor 0603 4.7PF/50VC0G±0.25PF(C1608C0G1H4R7CT)TDK C16,C14,C21,C75,C77
87 CI00089 SMD ceramic capacitor 0603 0.5PF/50VC0G±0.25PF(C1608C0G1H0R5CT)TDK C100
88 CI00090 SMD ceramic capacitor 0603 0.0047uF/50V X7R ±10% C19,C25,C30,C32,C36,C43,C52,C158,C109
89 CI00131 SMD ceramic capacitor 0603 3.5PF/50VC0G±0.25PF(C1608C0G1H3R5CT)TDK C13,C26,C47
90 CI00132 SMD ceramic capacitor 0603 2PF/50V C0G±0.25PF(C1608C0G1H020CT)/TDK C34,C40
91 CI00175 SMD ceramic capacitor 0603 1.0uF/16V X7R±10%(C1608X7R1C105KT)/TDK C86,C130,C150
92 CI00176 SMD ceramic capacitor 1206 10uF/10V Y5V +80;-20% C22,C38,C39,C85,C91
93 CI00177 SMD ceramic capacitor 1206 22uF/10V Y5V +80;-20% C17,C95,C98,C118,C121,C123,C129
94 CI00179 SMD ceramic capacitor 0603 0.22uF/25V X7R±10%(C1608X7R1E224KT)/TDK C11
95 CI00180 SMD ceramic capacitor-RS-ACT 10uF/10V Y5V +80;-20% C49,C93
96 CI00188 SMD ceramic capacitor 0603 3PF/50V C0G±0.25PF(C1608C0G1H030CT)/TDK C79
97 CI00214 SMD ceramic capacitor 0603 56PF/50V C0G ±5%(C1608C0G1H560JT)/TDK C9,C33,C35,C41,C57,C65,C70
98 CI00217 SMD ceramic capacitor 0603 100PF/50V C0G ±5%(C1608C0G1H101JT)/TDK C59,C128,C139,C140,C151,C154
99 CI00220 SMD ceramic capacitor 0603 220PF/50V C0G ±5%(C1608C0G1H221JT)/TDK C71,C101
100 CI00223 SMD ceramic capacitor 0603 390PF/50V C0G ±5%(C1608C0G1H391JT)/TDK C66
101 CI00226 SMD ceramic capacitor 0603 680PF/50V C0G ±5%(C1608C0G1H681JT)/TDK C105
102 CK00005 SMD adjustment capacitor V6P TZVY2Z060A110 VC2,VC3
103 CK00010 SMD half-adjustment capacitor 4.5-20PF N750 TZY2R200A001R00 VC1
104 CL00002 SMD tantalum capacitor-RS-ACT 1.0uF/16V case A C99
105 CL00004 SMD tantalum capacitor-RS-ACT 4.7uF/20V case A(ELNA) C126
106 CL00007 SMD tantalum capacitor-RS-ACT 10uF/10V case A C92
330PF/50V NPO ±5н
470PF/50V NPO ±5н
C1,C3,C4,C5,C18,C24,C106,C113,C148,
C155,C157
C147
C45,C78,C110,C112,C107,C108
C6,C58,C60,C61,C62,C63,C87,C114,C116,C146,C
152
C7,C12,C27,C28,C46,C48,C50,C51,C53,C64,C89,
C103,C104,C115,C117,C122,C125,C131,C132,C1
33,C136,C137,C141,C142,C145,C149
- 25 -
No. Item No. Description Specification Remark
107 CL00008 SMD tantalum capacitor 47uF/7V case B2 C143,C144
108 CL00011 SMD tantalum capacitor-RS-ACT 100uF/10V case C C69,C119
109 CO00007 SMD chip inductance-RS-ACT 22uH(NLV32-220J-PF)/(TDK) L65
110 CO00067 SMD chip inductance-RS 10nH±5%(MLG1608B10NJT)/(TDK) L1,L9,L58,L59,L60,L61,L69,L70,L71
111 CO00069 SMD chip inductance-RS 15nH±5%(MLG1608B15NJT)/(TDK) L3,L6,L54
112 CO00076 SMD chip inductance-RS 18nH±5%(MLG1608B18NJT)/(TDK) L56
113 CO00088 SMD chip inductance-RS 1.0uH±10%(MLF1608A1R0K)/(TDK) L12
114 CO00093 SMD inductance 5.6nH±0.2nH(LQW18AN5N6C00D)/(MURATA) L2
115 CO00094 SMD inductance 6.8nH±0.2nH(LQW18AN6N8C00D)/(MURATA) L62
116 CO00095 SMD inductance 100nH±5%(SWI0603CTR10J)/(AOBA) L57
117 CO00097 SMD inductance-RS 80ȍ±25%(MLB-160808-0080A-N2)/(MALA) L4,R27,T1,T4,T5,T6,T7,T8,T10,T11
118 CO00110 SMD chip inductance 4.7uH±5%(MLF1608A4R7J)/(TDK) L8,L11,L66
119 CO00111 SMD inductance 100uH±20%(VLCF4020T-101MR26)/(TDK) L68
120 CO00124 SMD chip inductance-RS 0603 180nH±5%(MLG1608SR18JT)/(TDK) L10
121 HL00005 push button switch-RS 4.5*4.5*3.8mm TRAVEL=0.2 SW1,SW2
122 RD00059 SMD fixed resistor 1/10W 0.0ȍ ±5% 0603 L63,R33
123 RD00061 SMD fixed resistor 1/10W 10ȍ ±5% 0603 R9,R18
124 RD00062 SMD fixed resistor 1/10W 18ȍ ±5% 0603 R10,R11,R17,R48
125 RD00063 SMD fixed resistor 1/10W 22ȍ ±5% 0603 R29
126 RD00065 SMD fixed resistor 1/10W 47ȍ ±5% 0603 R23,R89
127 RD00068 SMD fixed resistor 1/10W 100ȍ ±5% 0603 R13,R14,R65
128 RD00075 SMD fixed resistor 1/10W 300ȍ ±5% 0603 R51
129 RD00078 SMD fixed resistor 1/10W 470ȍ ±5% 0603 R21
130 RD00083 SMD fixed resistor 1/10W 1.0Kȍ ±5% 0603 R139,R2,R6,R7,R24,R37,R39,R49,R56,R79
131 RD00087 SMD fixed resistor 1/10W 2.0Kȍ ±5% 0603 R28,R69
132 RD00088 SMD fixed resistor 1/10W 2.2Kȍ ±5% 0603 R34,R60,R62,R80,R82,R88,R130
133 RD00091 SMD fixed resistor 1/10W 3.3Kȍ ±5% 0603 R20,R26
134 RD00093 SMD fixed resistor 1/10W 4.7Kȍ ±5% 0603 R3,R4,R5,R15,R16,R35,R36,R46,R55,R93
135 RD00095 SMD fixed resistor 1/10W 5.6Kȍ ±5% 0603 R68,R96,R19
136 RD00099 SMD fixed resistor 1/10W 8.2Kȍ ±5% 0603 R42
137 RD00101 SMD fixed resistor 1/10W 10Kȍ ±5% 0603
138 RD00102 SMD fixed resistor 1/10W 12Kȍ ±5% 0603 R44,R54,R59,R75,R81,R85,R92
139 RD00103 SMD fixed resistor 1/10W 15Kȍ ±5% 0603 R90,R101,R135
140 RD00105 SMD fixed resistor 1/10W 22Kȍ ±5% 0603 R8,R22,R30,R41,R58,R72,R76,R84
141 RD00108 SMD fixed resistor 1/10W 33Kȍ ±5% 0603 R71,R86,R87
142 RD00111 SMD fixed resistor 1/10W 47Kȍ ±5% 0603 R77,R83,R95,R104,R136,R137,R138
143 RD00115 SMD fixed resistor 1/10W 82Kȍ ±5% 0603 R131,R132,R133,R134
144 RD00116 SMD fixed resistor 1/10W 100Kȍ ±5% 0603 R50,R61,R102,R143,R144
145 RD00119 SMD fixed resistor 1/10W 220Kȍ ±5% 0603 R67,R99
146 RD00123 SMD fixed resistor 1/10W 470Kȍ ±5% 0603 R98
147 RD00508 SMD fixed resistor 1/10W 430ȍ ±5% 0603 R1,R38,R40
148 RF00001 SMD semi-fixed resistor EVN5ES X50B54-50K VR1
149 RF00002 SMD semi-fixed resistor EVN5ES X50B24-20K VR55,VR56
150 SE00006 SMD varactor 1SV270 VD2
151 SE00016 SMD zener diode 1/2W 5.1V(RLZ5.1B) LL-34 D8
152 SE00045 SMD Schottky barrier diode-RS- 1A/30V FS1J3 D4,D5
153 SE00059 SMD varactor BB142/(PHI) VD1
154 SE00061 SMD rectifier diode 1SS355-TE17/(ROHM) D1,D2,D3,D9,D10,D11
155 SE00070 SMD Schottky barrier diode-RS- 0.7A/400V S07G D6,D7
156 SF00004 SMD transistor-RS-ACT 2SA1036K(SC59)/(ROHM) Q17
157 SF00005 SMD transistor-RS-ACT 2SA1797Q(SC62)/(ROHM) Q15
158 SF00010 SMD transistor-RS-ACT 2SC2412K(SC59)/(ROHM) Q4,Q5,Q10,Q11,Q14,Q16
159 SF00020 voltage stabilized transistor- 3.0V XC62FP3002MR(SOT23)/(TOREX) IC2,IC59
160 SF00042 transistor XP151A13A0MR(SOT23)/(TOREX) Q2,Q13
R12,R25,R31,R32,R43,R45,R47,R53,R57,R63,R64
,R66,R70,R74,R97,R100,R140
- 26 -
No. Item No. Description Specification Remark
161 SF00050 transistor XC9103D093MR(SOT25)/(TOREX) IC58
162 SF00067 transistor BFG425W/(PHI) Q1,Q3,Q6,Q7,Q8
163 SF00068 transistor 2SK2731-T146/(ROHM) Q9
164 SF00069 transistor RTR030P02-TL(TSMT3)/(ROHM) Q12
165 SF00078 transistor DTC614TU(UMT3)/(ROHM) Q18
166 SG00007 SMD integrated circuit MB15E03SLPFV-ER(SOP16)/(FUJTTSU) IC1
167 SG00040 SMD integrated circuit MC33078DT/MC33078D(SO8)/(ST/MOTOROLA) IC55
168 SG00122 SMD integrated circuit-RS-ACT NJM4580M-TE3(SOP8)/(JRC) IC56
169 SG00207 SMD integrated circuit 24LC00T/OT(SOT23)/(MICROCHIP) U131
170 SG00315 integrated circuit PIC16F74-I/PT(TQFP44)/(MICROCHIP) U132
171 SG00373 SMD integrated circuit SA575DTBR2(TSSOP20)/(ON) IC3
172 CI00077 SMD ceramic capacitor 0603 1.2PF/50VC0G±0.25PF(C1608C0G1H1R2CT)TDK C31
173 RD00306 SMD fixed resistor 1/10W 20Kȍ ±5% 0603 R78
174 MI02867 separating shade-RS-ACT UP-8H 0.2t*4.8*23.1*29.1_V1.4
175 MJ01314 tinplate 0.2t*40*1M(1M/0.5KG)_V 1.0
176 MI03098 separating shade-RS-ACT UP-8P 0.2t*2.8*14.2*14.3_V1.5
177 MJ01314 tinplate 0.2t*40*1M(1M/0.5KG)_V 1.0
178 AE00449 solder material without lead 9308/Sn Ag Cu
179 SE00067 SMD L.E.D blue 12-215/BHC-AN1P2/3C LED1,LED2
180 CO00005 SMD chip inductance 1uH(1R0K) L5
181 RD00376 SMD precise resistor 1/8W 150ȍ ±1% 0805 R52
182 NI04272 tail tube AU-800H ij37*120_V1.0
183 AE00385 paint-RS PU2001
184 AE00382 paint-RS PU1900
185 AE00383 paint-RS PU2001
186 AE00380 paint-RS PU1900
187 AE00384 paint-RS PU2001
188 AE00381 paint-RS PU1900
189 NI04078 tail tube AU-800H ij37*120 black_V1.0
- 27 -
MOD-16P
No. Item No. Description Specification Remark
1 NI04125 acrylic panel-RS MOD-16P 7*43*67.82_V1.0
2 NI04388 top cover-RS MOD-16P ALTO_V1.0
3 NI04315 top cover MOD-16P 13*69*96.5
4 AE00016 solvent 6S
5 AE00001 paint-RS 1392
6 NI04124 top cover MOD-16P 13*69*96.5 black_V1.0
7 NI04191 bottom cover UP-8P 12*69*91.1_V1.0
8 NI03590 down cover-RS-C UP-8P 12*69*91.1 black_V1.2
9 AE00016 solvent 6S
10 AE00001 paint-RS 1392
11 MK00112 spring piece-RS UP-8P 25.5*10.5*10*1.6 ±_V1.0
12 MK00113 spring piece-RS UP-8P 17*12*10 negative_V1.0
13 MK00114 spring piece-RS UP-8P 0.3t*17*12*1.6 positive_V1.0
14 MH01488 bolt ij1.0*10mm SAMSON-T_V1.1
15 NI04193 battery cover UP-8P 20.7*32.5*68.5_V1.1
16 NI03588 battery holder inner short-RS- UP-8P 20.7*32.5*68.5 black_V1.2
17 AE00016 solvent 6S
18 AE00001 paint-RS 1392
19 NI03587 battery cover switch UP-8P 2*12*19 black_V1.0
20 NI04198 battery cover UP-8P 4.5*10.7*14.5_V1.0
21 AE00055 solvent solvent
22 AE00056 paint-RS 2745
23 NI03586 battery cover switch-RS-C UP-8P 5.2*10.7*14.5 black_V1.3
24 NI04126 key-RS MOD-16P 5.4*9*24 black_V1.0
25 NI04194 fixed piece UP-8P 1*16.9*19.5_V1.0
26 AE00055 solvent solvent
27 AE00056 paint-RS 2745
28 NI03584 fixed board-RS-ABS UP-8P 0.9*16.9*19.5 black_V1.2
29 MG00417 screw M2*6 B type
30 MG00626 screw-RS M2*10_V1.1
31 MG00695 copper pillar ij3.7*ij4.7*4.8_V1.0
32 NI04232 caushion-RS UP-8P 14.6*27.8*0.3t_V1.1
33 HF00052 antenna-RS YH940805 ij4*82.4mm
34 NE15891 lable MOD-16P(F7 798-827)ALTO_V1.0
35 NI00034 membrane 0.045*1M
36 NH00014 bond paper 0.05*1M white
37 NE15890 lable MOD-16P ALTO_V1.0
38 NI00014 membrane 0.035*1M
39 NH00012 bond paper 0.04*1M
40 MK00105 spring UP-8P ij1.5*11*48.2*68.5mm_V1.0
41 MK00098 spring clip-RS UP-8P ij1.5*11*48.2*68.5mm_V1.0
42 MI03457 separating shade top cover UP-8P 0.2t*2*30*31.8_V1.0
43 MJ01314 tinplate 0.2t*40*1M(1M/0.5KG)_V 1.0
44 MI03096 separating shade top cover UP-8P 0.2t*2.4*14.6*14.7_V1.4
45 MJ01314 tinplate 0.2t*40*1M(1M/0.5KG)_V 1.0
46 NE12052 label-RS-ACT PE
47 NH00334 cone paper 0.040*1m
48 HK07070 PC board P-UP-8P-A-DIP(AU-800P)
49 SC00004 crystal oscillator 16.00MHZ X130
50 HG00176 buzzer PB-09N23P-03 Z1
51 HE00070 LCD module DTE103067BEP U130
52 HC00148 connector 2.0 180° 3P(gold-plated) 3.8/8.5mm CN9,CN10
53 HH00055 back light 50*25.5*3.0mm DB5025503CY
54 AC00179 tin without lead-RS M705E Sn 3Ag-0.5Cu
55 HK07071 PC board P-UP-8P-A-SMD(AU-800P)
56 HB01803 PCB-RS UP-8P-A_VER050928
- 2
-
No. Item No. Description Specification Remark
57 RD00116 SMD fixed resistor 1/10W 100Kȍ ±5% 0603 R143,R144
58 CI00228 SMD ceramic capacitor 0603 0.001uF/50V C0G±5%(C1608C0G1H102JT)/TDK C146
59 CI00185 SMD ceramic capacitor 0603 0.1uF/50V X7R±10%(C1608X7R1H104KT)/TDK C53,C131,C132,C133
60 CI00175 SMD ceramic capacitor 0603 1.0uF/16V X7R±10%(C1608X7R1C105KT)/TDK C130
61 RD00101 SMD fixed resistor 1/10W 10Kȍ ±5% 0603 R41,R45,R91
62 RD00103 SMD fixed resistor 1/10W 15Kȍ ±5% 0603 R135
63 SE00061 SMD rectifier diode 1SS355-TE17/(ROHM) D2,D3
64 RD00105 SMD fixed resistor 1/10W 22Kȍ ±5% 0603 R32,R63,R140
65 CI00177 SMD ceramic capacitor 1206 22uF/10V Y5V +80;-20% C98,C123
66 SF00010 SMD transistor-RS-ACT 2SC2412K(SC59)/(ROHM) Q54,Q62
67 SF00020 voltage stabilized transistor- 3.0V XC62FP3002MR(SOT23)/(TOREX) IC59
68 RD00093 SMD fixed resistor 1/10W 4.7Kȍ ±5% 0603 R35,R36,R55,R139
69 RD00111 SMD fixed resistor 1/10W 47Kȍ ±5% 0603 R33,R104,R136,R137,R138
70 RD00115 SMD fixed resistor 1/10W 82Kȍ ±5% 0603 R131,R132,R133,R134
71 CO00097 SMD inductance-RS 80ȍ±25%(MLB-160808-0080A-N2)/(MALA) T8
72 SG00315 integrated circuit PIC16F74-I/PT(TQFP44)/(MICROCHIP) U132
73 HL00005 push button switch-RS 4.5*4.5*3.8mm TRAVEL=0.2 SW1,SW2
74 SG00207 SMD integrated circuit 24LC00T/OT(SOT23)/(MICROCHIP) U131
75 CI00051 SMD ceramic capacitor 0603 22PF/50V C0G±5%(C1608C0G1H220JT)/TDK C134,C135
76 AE00449 solder material without lead 9308/Sn Ag Cu
77 SE00067 SMD L.E.D blue 12-215/BHC-AN1P2/3C LED1,LED2
78 HC00819 connector-RS 2.0 90° 8P 1.5/9.7mm CN1,CN2
79 HK05770 PC board P-UP-8P-B_F7-DIP
80 SC00398 crystal oscillator 12.000MHZ X1
81 HC00714 DC jack LD-0211-1.3 CN5
82 HK05771 PC board P-UP-8P-B_F7-SMD
83 HB01804 PCB-RS UP-8P-B_VER060121
84 SF00005 SMD transistor-RS-ACT 2SA1797Q(SC62)/(ROHM) Q15
85 SF00042 transistor XP151A13A0MR(SOT23)/(TOREX) Q4,Q53
86 SF00010 SMD transistor-RS-ACT 2SC2412K(SC59)/(ROHM) Q2,Q5,Q61
87 SF00004 SMD transistor-RS-ACT 2SA1036K(SC59)/(ROHM) Q14
88 SF00050 transistor XC9103D093MR(SOT25)/(TOREX) IC58
89 SF00020 voltage stabilized transistor- 3.0V XC62FP3002MR(SOT23)/(TOREX) IC2
90 SG00373 SMD integrated circuit SA575DTBR2(TSSOP20)/(ON) IC4
91 RD00068 SMD fixed resistor 1/10W 100ȍ ±5% 0603 R23,R65
92 RD00062 SMD fixed resistor 1/10W 18ȍ ±5% 0603 R10,R11,R17
93 RD00076 SMD fixed resistor 1/10W 330ȍ ±5% 0603 R33,R67
94 SF00078 transistor DTC614TU(UMT3)/(ROHM) Q10,Q13
95 SF00067 transistor BFG425W/(PHI) Q3,Q6,Q7,Q8,Q12
96 SF00068 transistor 2SK2731-T146/(ROHM) Q9
97 SF00062 transistor 2SC4226-T1B(R25)(SC70)/(NEC) Q1,Q11
98 SF00069 transistor RTR030P02-TL(TSMT3)/(ROHM) Q60
99 SF00073 transistor AD8541ART(SOT23)/(ADI) IC3
100 SE00006 SMD varactor 1SV270 VD2
101 SG00007 SMD integrated circuit MB15E03SLPFV-ER(SOP16)/(FUJTTSU) IC1
102 SE00016 SMD zener diode 1/2W 5.1V(RLZ5.1B) LL-34 D2
103 SG00122 SMD integrated circuit-RS-ACT NJM4580M-TE3(SOP8)/(JRC) IC56
104 SE00045 SMD Schottky barrier diode-RS- 1A/30V FS1J3 D4,D5
105 SE00070 SMD Schottky barrier diode-RS- 0.7A/400V S07G D1,D6
106 SE00059 SMD varactor BB142/(PHI) VD1
107 SE00061 SMD rectifier diode 1SS355-TE17/(ROHM) D7,D8,D9
108 SG00040 SMD integrated circuit MC33078DT/MC33078D(SO8)/(ST/MOTOROLA) IC55
109 RF00001 SMD semi-fixed resistor EVN5ES X50B54-50K VR1,VR2,VR55,VR56
110 RD00306 SMD fixed resistor 1/10W 20Kȍ ±5% 0603 R78
111 RD00061 SMD fixed resistor 1/10W 10ȍ ±5% 0603 R9,R18,R32
112 RD00063 SMD fixed resistor 1/10W 22ȍ ±5% 0603 R29,R41
- 29 -
No. Item No. Description Specification Remark
113 RD00075 SMD fixed resistor 1/10W 300ȍ ±5% 0603 R14
114 RD00065 SMD fixed resistor 1/10W 47ȍ ±5% 0603 R45,R46,R49,R89
115 RD00508 SMD fixed resistor 1/10W 430ȍ ±5% 0603 R21
116 RD00227 SMD precise resistor 1/8W 200ȍ ±1% 0805 R60
117 RD00083 SMD fixed resistor 1/10W 1.0Kȍ ±5% 0603 R2,R6,R7,R24,R37,R39,R51,R56,R62,R63,R66,R79
118 RD00103 SMD fixed resistor 1/10W 15Kȍ ±5% 0603 R90,R101
119 RD00095 SMD fixed resistor 1/10W 5.6Kȍ ±5% 0603 R40,R96
120 RD00099 SMD fixed resistor 1/10W 8.2Kȍ ±5% 0603 R12,R43
121 RD00101 SMD fixed resistor 1/10W 10Kȍ ±5% 0603
122 RD00087 SMD fixed resistor 1/10W 2.0Kȍ ±5% 0603 R69
123 RD00091 SMD fixed resistor 1/10W 3.3Kȍ ±5% 0603 R26
124 RD00093 SMD fixed resistor 1/10W 4.7Kȍ ±5% 0603 R3,R4,R5,R15,R16,R20,R36,R38,R44,R93
125 RD00119 SMD fixed resistor 1/10W 220Kȍ ±5% 0603 R99,R25
126 RD00111 SMD fixed resistor 1/10W 47Kȍ ±5% 0603 R77,R83,R95
127 RD00117 SMD fixed resistor 1/10W 120Kȍ ±5% 0603 R52,R54
128 RD00105 SMD fixed resistor 1/10W 22Kȍ ±5% 0603 R8,R22,R42,R55,R72,R76,R84
129 RD00086 SMD fixed resistor 1/10W 1.8Kȍ ±5% 0603 R28
130 RD00088 SMD fixed resistor 1/10W 2.2Kȍ ±5% 0603 R34,R80,R82,R88,R130
131 RD00108 SMD fixed resistor 1/10W 33Kȍ ±5% 0603 R71,R86,R87
132 RD00123 SMD fixed resistor 1/10W 470Kȍ ±5% 0603 R98
133 RD00102 SMD fixed resistor 1/10W 12Kȍ ±5% 0603 R30,R59,R75,R81,R85,R92
134 RD00074 SMD fixed resistor 1/10W 270ȍ ±5% 0603 R1
135 RD00116 SMD fixed resistor 1/10W 100Kȍ ±5% 0603 R50,R102
136 CI00082 SMD ceramic capacitor 0603 3.3PF/50VC0G±0.25PF(C1608C0G1H3R3CT)TDK C23,C72,C74,C83
137 CI00089 SMD ceramic capacitor 0603 0.5PF/50VC0G±0.25PF(C1608C0G1H0R5CT)TDK C68
138 CI00031 SMD ceramic capacitor 0805 2.2uF/16V Y5V-0805(2012) C44,C51,C84,C88,C97,C102,C111,C127
139 CO00007 SMD chip inductance-RS-ACT 22uH(NLV32-220J-PF)/(TDK) L5
140 CO00076 SMD chip inductance-RS 18nH±5%(MLG1608B18NJT)/(TDK) L56
141 CO00067 SMD chip inductance-RS 10nH±5%(MLG1608B10NJT)/(TDK) L58,L59,L60,L61,L69,L70,L71
142 CO00069 SMD chip inductance-RS 15nH±5%(MLG1608B15NJT)/(TDK) L3,L6,L9,L54
143 CO00051 SMD chip inductance 1uH (NLV25T-1R0J)/(TDK) L7,L65
144 CO00088 SMD chip inductance-RS 1.0uH±10%(MLF1608A1R0K)/(TDK) L10
145 CI00132 SMD ceramic capacitor 0603 2PF/50V C0G±0.25PF(C1608C0G1H020CT)/TDK C34
146 CI00131 SMD ceramic capacitor 0603 3.5PF/50VC0G±0.25PF(C1608C0G1H3R5CT)TDK C13,C47,C77
147 CI00177 SMD ceramic capacitor 1206 22uF/10V Y5V +80;-20% C17,C95,C121
148 CI00175 SMD ceramic capacitor 0603 1.0uF/16V X7R±10%(C1608X7R1C105KT)/TDK C86,C146,C150
149 CI00176 SMD ceramic capacitor 1206 10uF/10V Y5V +80;-20% C118
150 CI00185 SMD ceramic capacitor 0603 0.1uF/50V X7R±10%(C1608X7R1H104KT)/TDK
151 CI00179 SMD ceramic capacitor 0603 0.22uF/25V X7R±10%(C1608X7R1E224KT)/TDK C11
152 CI00180 SMD ceramic capacitor-RS-ACT 10uF/10V Y5V +80;-20% C93,C129,C134
153 CI00047 SMD ceramic capacitor 0603 10PF/50V C0G±0.25PF(C1608C0G1H100CT)TDK C2,C76
154 CL00007 SMD tantalum capacitor-RS-ACT 10uF/10V case A C98,C38,C39,C85,C87,C91,C92,C100
155 CK00010 SMD half-adjustment capacitor 4.5-20PF N750 TZY2R200A001R00 VC1
156 CO00094 SMD inductance 6.8nH±0.2nH(LQW18AN6N8C00D)/(MURATA) L62
157 CI00188 SMD ceramic capacitor 0603 3PF/50V C0G±0.25PF(C1608C0G1H030CT)/TDK C37
158 CK00005 SMD adjustment capacitor V6P TZVY2Z060A110 VC2,VC3
159 CL00004 SMD tantalum capacitor-RS-ACT 4.7uF/20V case A(ELNA) C133
160 CL00008 SMD tantalum capacitor 47uF/7V case B2 C143,C144,C22
161 CI00049 SMD ceramic capacitor 0603 15PF/50V C0G±5%(C1608C0G1H150JT)/TDK C67,C120,C138
162 CO00093 SMD inductance 5.6nH±0.2nH(LQW18AN5N6C00D)/(MURATA) L2,L8
163 CO00095 SMD inductance 100nH±5%(SWI0603CTR10J)/(AOBA) L57
164 CL00011 SMD tantalum capacitor-RS-ACT 100uF/10V case C C119
165 CO00097 SMD inductance-RS 80ȍ±25%(MLB-160808-0080A-N2)/(MALA) T1,T4,T5,T7,T10,T11
R19,R27,R31,R35,R47,R53,R57,R64,R68,R70,R73,R74,R
97,R100
C7,C12,C27,C28,C46,C48,C50,C64,C69,C103,C104,C115
,C117,C122,C123,C125,C135,C136,C137,C141,C142,C14
5,C149,C131,C132
- 30 -
No. Item No. Description Specification Remark
166 CI00055 SMD ceramic capacitor 0603 47PF/50V C0G±5%(C1608C0G1H470JT)/TDK
167 CI00081 SMD ceramic capacitor 0603 2.7PF/50VC0G±0.25PF(C1608C0G1H2R7CT)TDK C79
168 CI00084 SMD ceramic capacitor 0603 4.7PF/50VC0G±0.25PF(C1608C0G1H4R7CT)TDK C21,C42,C75,C16
169 CI00076 SMD ceramic capacitor 0603 1PF/50V C0G±0.25PF(C1608C0G1H010CT)/TDK C29,C56,C81,C82,C89,C14
170 CI00078 SMD ceramic capacitor 0603 1.5PF/50VC0G±0.25PF(C1608C0G1H1R5CT)TDK C73
171 CO00111 SMD inductance 100uH±20%(VLCF4020T-101MR26)/(TDK) L68
172 CI00079 SMD ceramic capacitor 0603 1.8PF/50VC0G±0.25PF(C1608C0G1H1R8CT)TDK C8,C20,C31
173 CI00201 SMD ceramic capacitor 0603 0.01uF/50V ±10%(C1608X7R1H103KT)/TDK C10,C15,C54,C90,C96,C124
174 CI00198 SMD ceramic capacitor 0603 0.0047uF/50V ±10%(C1608X7R1H472KT)/TDK C19,C30,C32,C36,C43,C52,C109
175 CI00217 SMD ceramic capacitor 0603 100PF/50V C0G ±5%(C1608C0G1H101JT)/TDK C59,C71,C78,C139,C140,C148,C153
176 CI00223 SMD ceramic capacitor 0603 390PF/50V C0G ±5%(C1608C0G1H391JT)/TDK C55
177 CI00226 SMD ceramic capacitor 0603 680PF/50V C0G ±5%(C1608C0G1H681JT)/TDK C105
178 CI00224 SMD ceramic capacitor 0603 470PF/50V C0G ±5%(C1608C0G1H471JT)/TDK C45,C108,C107,C110,C112
179 CI00214 SMD ceramic capacitor 0603 56PF/50V C0G ±5%(C1608C0G1H560JT)/TDK C9,C25,C33,C35,C41,C57,C65,C70
180 CI00228 SMD ceramic capacitor 0603 0.001uF/50V C0G±5%(C1608C0G1H102JT)/TDK C6,C40,C53,C58,C60,C63,C114,C116,C128,C152
181 CI00222 SMD ceramic capacitor 0603 330PF/50V C0G ±5%(C1608C0G1H331JT)/TDK C147,C151
182 CO00124 SMD chip inductance-RS 0603 180nH±5%(MLG1608SR18JT)/(TDK) L1,L66,L67
183 RD00112 SMD fixed resistor 1/10W 56Kȍ ±5% 0603 R58
184 CO00105 SMD chip inductance-RS 2.2uH±5%(MLF1608A2R2J)/(TDK) L4,T2,R48
185 RD00059 SMD fixed resistor 1/10W 0.0ȍ ±5% 0603 R13
186 CL00002 SMD tantalum capacitor-RS-ACT 1.0uF/16V case A C99
187 MI03098 separating shade-RS-ACT UP-8P 0.2t*2.8*14.2*14.3_V1.5
188 MJ01314 tinplate 0.2t*40*1M(1M/0.5KG)_V 1.0
189 MI03458 separating shade UP-8P 0.2t*5*30*31.8_V1.0
190 MJ01314 tinplate 0.2t*40*1M(1M/0.5KG)_V 1.0
191 AE00449 solder material without lead 9308/Sn Ag Cu
192 CI00220 SMD ceramic capacitor 0603 220PF/50V C0G ±5%(C1608C0G1H221JT)/TDK C66,C101,C154
193 AC00179 tin without lead-RS M705E Sn 3Ag-0.5Cu
194 HC00824 row-pin header(single) 2.0 180° 8P(gold-plated) 4.2mm CN3,CN4
195 PH00126 MICROPHONE LS-16(4B)
196 HA01899 signal wiring-RS-T ij6.3*ij2.5*1C*3FT
197 HC00041 XLR MIC plug (mini) 92M-502-4P
198 AC00179 tin without lead-RS M705E Sn 3Ag-0.5Cu
199 HK07947 PC board P-UP-8P-MIC
200 HB01944 PCB-RS UP-8P-MIC_VER060224
201 HC00801 balance MIC jack TQ-4MC
202 AC00179 tin without lead-RS M705E Sn 3Ag-0.5Cu
203 HA01847 wire-RS 37mm red L3R3
204 HA01837 wire-RS 43mm black L3R3
205 ND00872 EV foam-RS UP-88P 3.5t*10*18 black_V1.0
C1,C3,C4,C5,C18,C24,C26,C49,C61,C62,C106,C113,
C126,C130
- 31 -
Loading...
