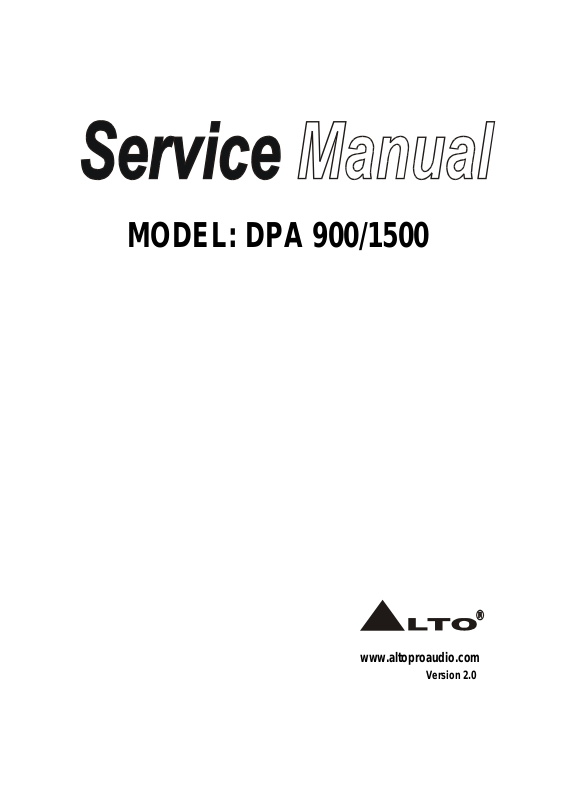

Alto DPA900 1500 Schematic

MODEL: PS 4LA

MODEL: DPA 900/1500

www.altoproaudio.com

Version 2.0

CONTENT

1. Introduction………………………………………………....................2

2. Specification……………………………………………………………3

3. Schematic Diagram……………………………………………………4

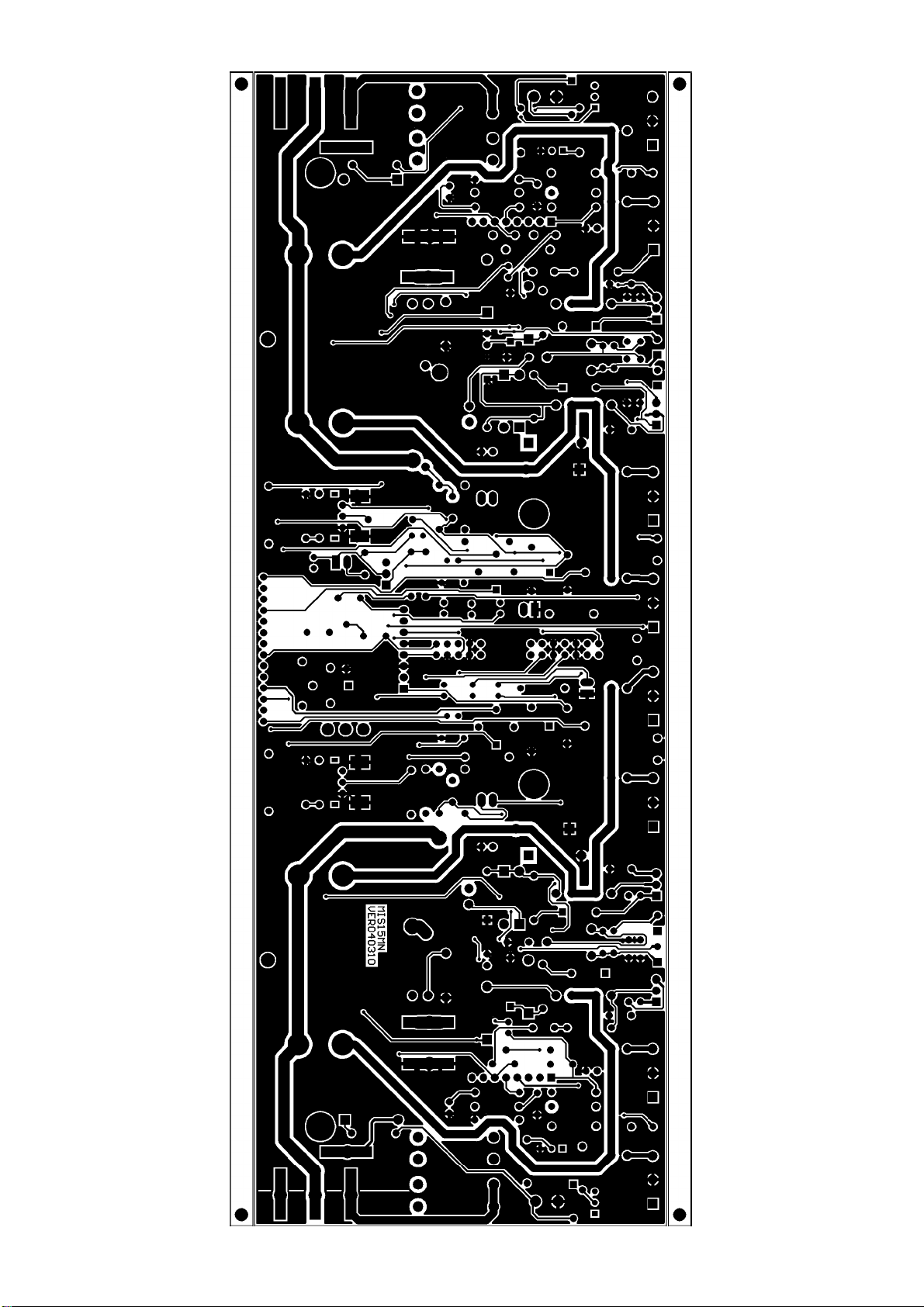

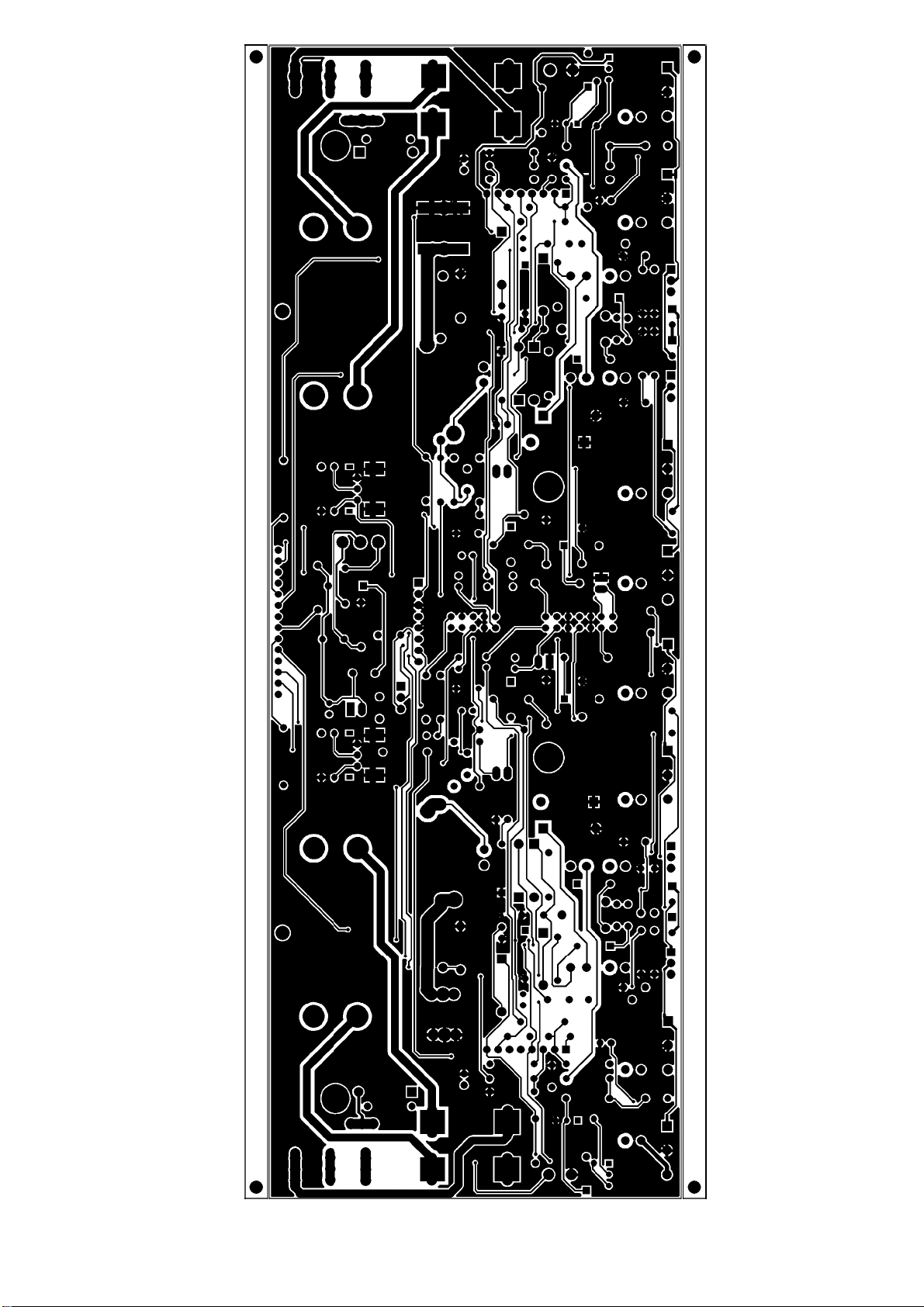

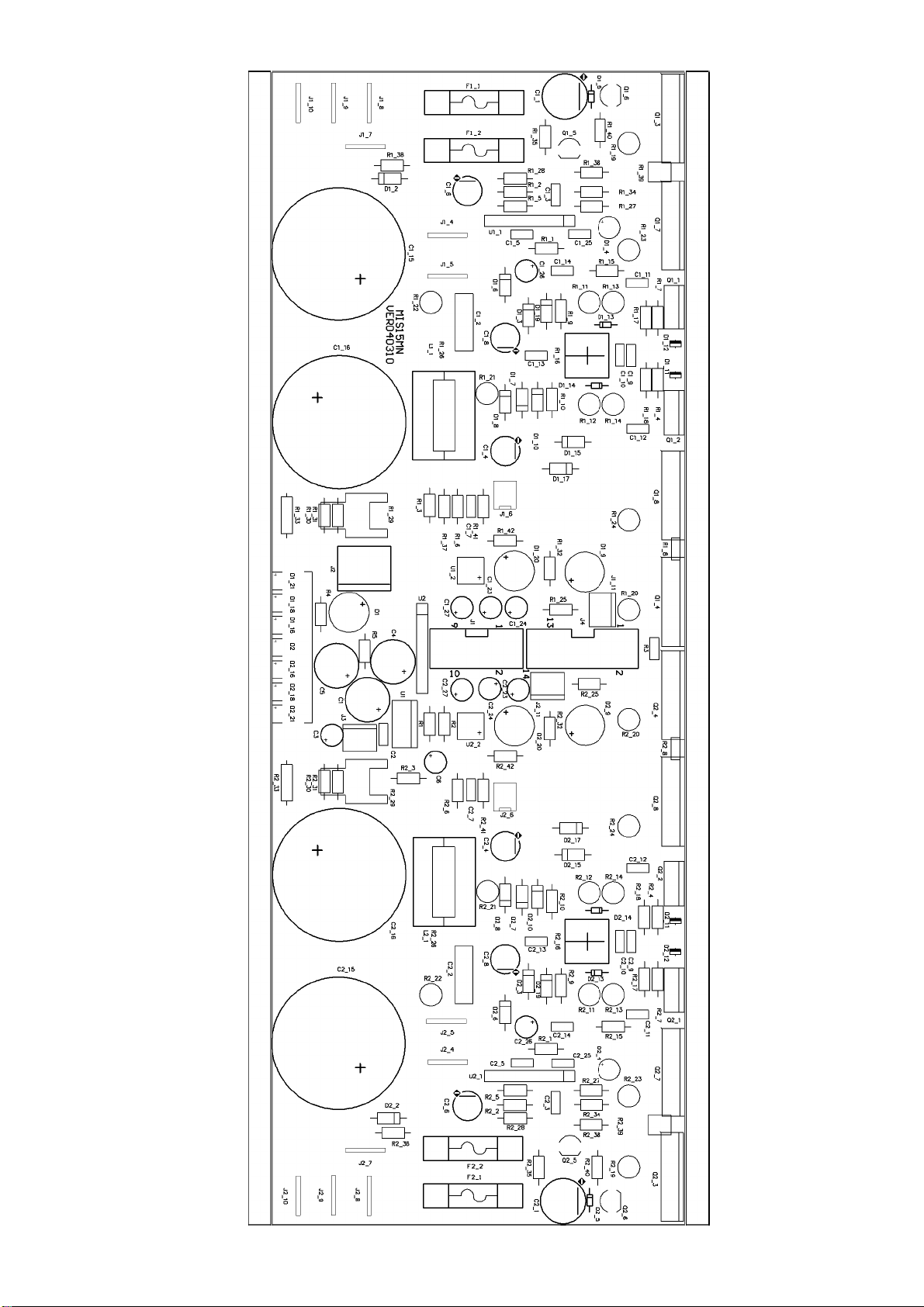

4. PCB Layout…………………………………………………………….13

5. Test Procedure & Test Result……………………………………....18

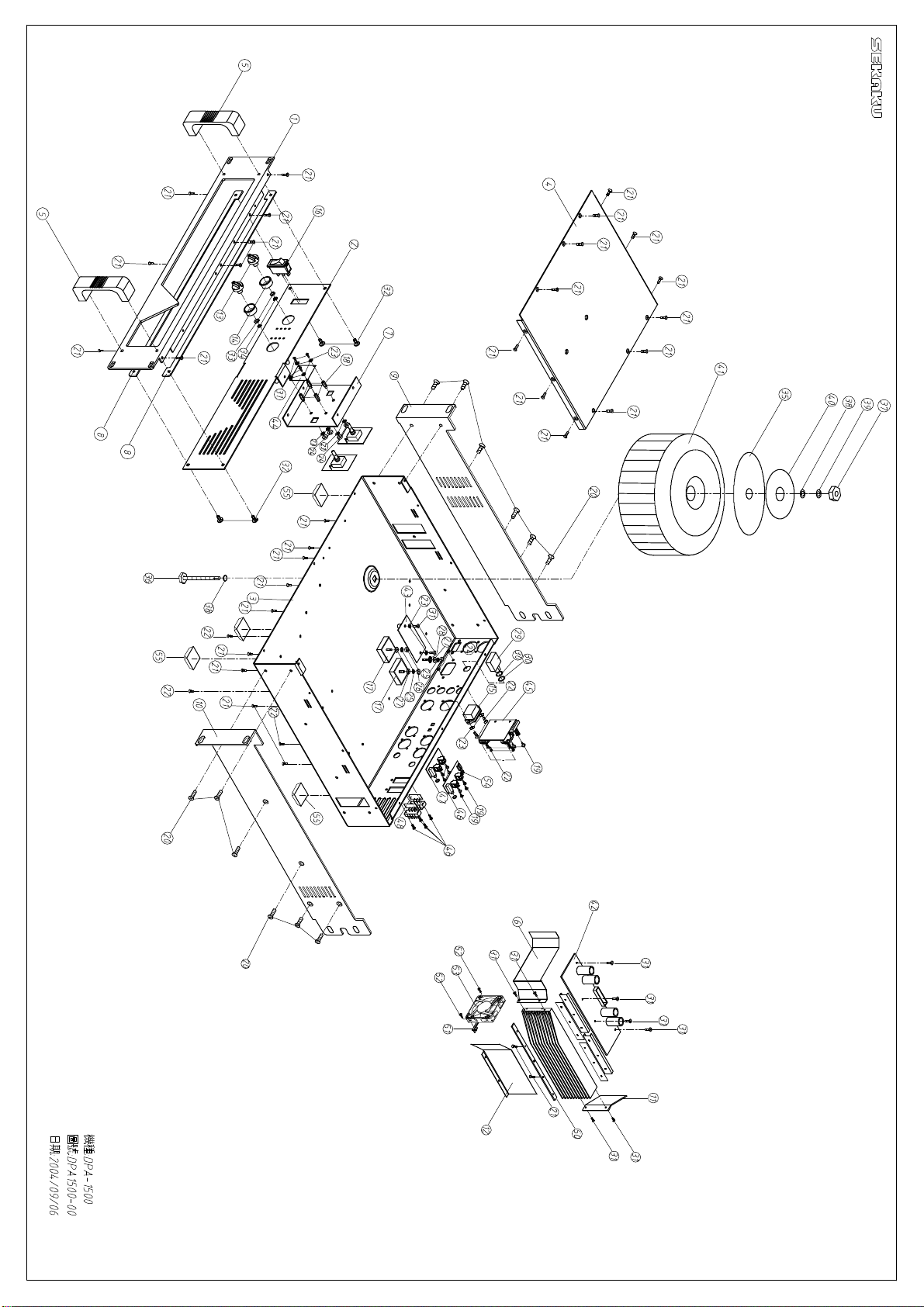

6. Exploded Views & Mechanical Parts List………………………...23

7. BOM………………………………………………………………...…...26

1

1. Introduction

ALTO MISTRAL amplifiers are series of innovative design power amplifiers. This series work

under high stability with great power supply in just 2-rack spaces. Air flow is from back to front

panel to keep in a nice air circulation inside the Rack. The automatic fan, which affects machines’

temperature includes various kinds of speed, therefore, this low-noise fan makes a good result in

cooling the heat from machines.

MISTRAL amplifiers include 2 independent channels with separate protection system and

power supply. The independent protection system avoids opening circuit, short, wrong loading or

over-heating. The special-designed protective system applies automatically restarting functions

upon the default status and then goes back to normal.

All electronic inputs equip standard power connectors. And all inputs are electronic balanced,

with hi-quality transformer, MISTRAL amplifiers provide an outstanding performance in any

condit ions.

z Innovative design and high stability power amplifiers.

z Fan-cooled AB class high power amplifier in 19”rack, 2Usize

z Rugged amplifiers in a strong, compact chassis.

z 2 independent channels with separate protection system and power supply

z smart-designed protection system for auto re-operation after fault.

z Auto-adjusting speed fan.

z 4LEDs for operation/protection, limit, power on and clip

z HIGH-CURRENT TOROIDAL TRANSFORMER DESIGNED FOR HIGH POWER AT 2

Ohms with low noise.

z Independent DC and thermal overload protection on each channel.

z IEC standard power connectors.

z Binding post and NEUTRIK® SPEAKON outputs power connectors.

z Balanced XLR inputs/ parallel outputs.

2

2. Specification

Output Power DPA 900 DPA 1500

20Hz-20KHz @0.1% THD, SCD MODE

8Ohms per channel(EIAJ) 190W 300W

4Ohms per channel (EIAJ) 300W 500W

Bridge MONO mode

8Ohms ,1KHz, 0.1% THD 600W 1000W

Distortion (SMPTE-IM) <0.05%

Frequency response 20Hz-20KHz=/-0.1dB, -3dB points:10Hz-60Hz

Damping factor ,1 kHz and below >300 at 8 Ohms

Signal to noise ,20Hz`20KHz 102dB

Voltage Gain 40 Χ(32dB)

Input sensitivity @4Ohms 1Vrms

Input clipping 10Vrms(+22dB)

Input impedance 10kOhms unbalanced, 20k Ohms balanced 56(36dB)

Controls

Front :AC switch ,CH1&CH2 Gain knobs
Rear :Limiter bridge selector

Power-on : Blue LED

Indicators (1per channel)

Operation/Protection: Dual Color(green/red LED)
Limit: Red LED
Clip: Red LED

Input: Active balanced XLR

Connectors, each channel

Parallel output: XLR
Output: NEUTRIK speaker and binding posts

Cooling Continuously variable-speed fan, rear-to front air flow

Load protection

On/off muting, DC-fault load grounding relay, internal
fault fuses.

Power requirements 200-240(100-120)VAC 50-60Hz

Dimensions

19”(48.3cm) rack mounting, 3.5”(8.9cm) tall (2rackspaces)

15.9”(40cm)deep (rack mounting to rear support ears

weight 12.9kg (Net) 14.8kg (Net)

3

)

7654321

4
