NVD-A131

SMART MAP PRO

Prog. Ver. 1.30

SUPPLEMENTARY OWNER'S MANUAL

Please read before using this DVD-ROM.

USER AGREEMENT

Important information.
Please read carefully before using this product.

In using this DVD-ROM "SMART MAP PRO" (hereinafter referred to as "Disk"), as part
of the Alpine Electronics, Inc. ("Alpine"), Aisin AW Co., Ltd. ("Aisin AW") and Naviga­tion Technologies Corporation ("NavTech") Database (hereinafter referred to as "Data­base"), you are bound by the terms and conditions set forth below. By breaking the
seal on this package, and using your copy of the Database and Disk, you have dem­onstrated your agreement to the terms and conditions of this Agreement. You should
therefore, make sure that you read and understand the following provisions.

• The Disk and Database may not be copied, duplicated, processed, or otherwise
modified, in whole or in part, without the express written permission of Aisin AW,
NavTech and Alpine.

• Neither the Disk nor the Database may be transferred or sublicenced to any third
party for profit, rent or loan, or licensed for reuse in any manners.

• The Disk and/or Database may not be decompiled, reverse engineered or otherwise
disassembled, in whole or in part.

• The Disk and Database may not be used in a network or by any other manner of
simultaneous use in multiple systems.

• The Disk and Database are intended solely for personal use (or internal use where
the end-user business), or the consumer. The Disk and Database are not to be used
for commercial purposes.

• Neither Aisin AW, Alpine nor NavTech guarantees to the customer that the functions
included in the Disk and Database meet a specific objective of user.

• Neither Aisin AW, Alpine nor NavTech shall be responsible for any damages caused
by the use of the Disk and/or Database to the actual user and to any third party.

• The Warranty on the Disk and Database shall not extend to an exchange or refund
due to misspelling, omission of letters, or any other cosmetic discrepancy in layout
found in Disk and/or Database.

• The right to use the Disk and Database shall expire either when the user destroys
this software, or when any of the terms for use is violated and Aisin AW, Alpine and/
or NavTech exercises the option to revoke the license to use this software.

• The terms and conditions hereof apply to all subsequent users and owners as well
as to the actual purchaser.

The NavTech Database may include or reflect data of licensors, including Her Majesty
The Queen in right of CANADA. Such data is licensed on an "AS IS" basis. The licen­sors, including Her Majesty The Queen, make no guarantees, representations or war­ranties respecting such data, either express or implied, arising by law or otherwise, ac­curacy or fitness for a particular purpose.
The licensors, including Her Majesty The Queen, shall not be liable in respect of any
claim, demand or action, irrespective of the nature of the cause of the claim, demand or
action alleging any loss, injury or damages, direct or indirect, which may result from the
use or possession of the data or the NavTech database. The licensors, including Her
Majesty The Queen, shall not be liable in any way for loss of revenues or contracts, or
any other consequential loss of any kind resulting from any defect in the data or the
NavTech database.
End User shall indemnify and save harmless the licensors, including Her Majesty The
Queen and the minister, and their officers, employees and agents from and against any
claim, demand or action, irrespective of the nature of the cause of the claim, demand or
action, alleging loss, costs, expenses, damages or injuries (including injuries resulting in
death) arising out of the use or possession of the data or the NavTech database.

What’s New for this Software

• A Split Screen Display allows the Basic Guidance or Zoomed Intersection Map Displays

and the Detailed Map Display to appear simultaneously. Turn on this option from the
Setup menu.

• Point of interest search by latitude and longitude was added to the Dest.(Destination)

menu.

• IA items (facilities) search around the highway exit was added. You have to set the P.O.I.

Icons in the Setup menu.

• Setting point of interest icon options has been simplified. See Step 4 of the NVD-A121

Owner’s Manual, (Page 59).

Table of Contents

Operating-System Program Rewriting --------------------------------------------------2

Switching between Split Screen Display and Detailed Map Display-------------2

Entering a point of Interest by Latitude and Longitude------------------------------3

Searching for Exit Information places --------------------------------------------------- 4

Setting Exit Information options-----------------------------------------------------------5

Setting Split Screen --------------------------------------------------------------------------6

Setting Point of Interest icon options ---------------------------------------------------- 7

WARNING

• Operation of the system while driving is dangerous. Users should stop vehicle
before operating the software.

• Road conditions and regulations take precedence over information contained
on the map display: observe actual traffic restrictions and circumstances while
driving.

• This software is designed for use exclusively in the NVE-N851A/NVE-N852A
series. It cannot and may not be used in conjunction with other hardware.

1

This Supplementary Owner’s Manual describes the changes made to this updated-version of the
map disc. Please thoroughly read this Manual before starting operation.

Operating-System Program Rewriting

1) Remove the old map disc from your navigation system.

2) Insert the upgrade disc into your navigation system.

3) The new operating system loaded automatically.

4) The operating screen appears in the display.
Please confirm that the program version is changed.

NOTE

• For details, see NVD-A121 Owner’s Manual page 6.

• While rewriting the program, please do not turn off the POWER switch of the navigation

system.

• After this program has been updated to version 1.30, do not use earlier version disk as mal-

function will occur.

Switching between Split Screen Display and Detailed Map Display

Once the route has been calculated and driving begins, the navigation system will guide the driver,
turn-by-turn, to the destination. Real time voice directions and map displays aid the driver
throughout the entire route.

The type of display that appears during your trip can be selected according to your preference.
The Basic Guidance Display automatically appears when the destination is selected while the
vehicle is in motion. When the Split Screen is set to ON in the Setup menu (See page 6 of this
Manual), pressing the MP/RG button on the remote control toggles the display between the Split
Screen Display and the Detailed Map Display.

Split Screen Display

Freeway number

Distance to next maneuver

Basic Guidance Display or Zoomed
Intersection Map Display

Distance to destination

Estimated Remaining/
Arrival Time

Current Time

Freeway number

Current Road and City Name

MP

/RG

Detailed Map Display

GPS Signal Strength Icon*

Distance to next maneuver

Current Time

*GPS Signal Strength Color Key

Dark Gray: No satellite information being received.
Blue: Information from 1 to 3 satellites being received. Latitude and longitude information can be determined.
Yellow: Signals from 4 or more satellites being received. Indicates full signal strength. Latitude and longitude can be

2

accurately determined.

Street/highway name of
next maneuver

Detailed Map Display

Direction to Distance
Map Scale

Street/highway name of
next maneuver

Compass Icon

Indicates North and heading mode on
the current map.

N : North

Distance and Direction to
Distance

Estimated Remaining/
Arrival Time
Current Road and City Name

: North Up icon
: Heading Up icon

(The arrowhead shows the
direction of north)

Entering a point of Interest by Latitude and Longitude

If you know the latitude and longitude of the desired location, you can display that location by just inputting those
numbers.

1 Press the MENU button to display the main menu

bar. Select Dest and press ENTER.
The Find Destination by menu appears. Select
Latitude & Longitude and press ENTER.

2 The Latitude & Longitude screen is displayed. Use

the joystick to select the digits for North Latitude and
West Longitude and press ENTER after each.
Enter the North Latitude and West Longitude
Including.

The latitude and longitude can be input using the
numeric keypad on the remote control.
After pressing the MODE button, the numerals will be
input while the status indicator is blinking.

For operation, see NVD-A121 Owner’s Manual page
5 Remote Control Reference Guide.

3 After entering the entire North Latitude and West

Longitude, select OK and press ENTER.

4 The Confirm Destination screen appears showing

the address of the selected destination. If it is
correct, select OK to Proceed and press ENTER.
The system starts calculating a route to the destina­tion.

If you wish to add this entry to Today’s Plan, select Add
to Today’s Plan (see NVD-A121 Owner’s Manual page

35). To store this destination in your personal address
book, select Save in Address Book (see NVD-A121
Owner’s Manual page 34).

3

Searching for Exit Information places

You can search IA items (facilities) around the highway exit with IA data only by selecting an EXIT icon on the map.
To use this function, you have to set the Exit Information to make it effective.

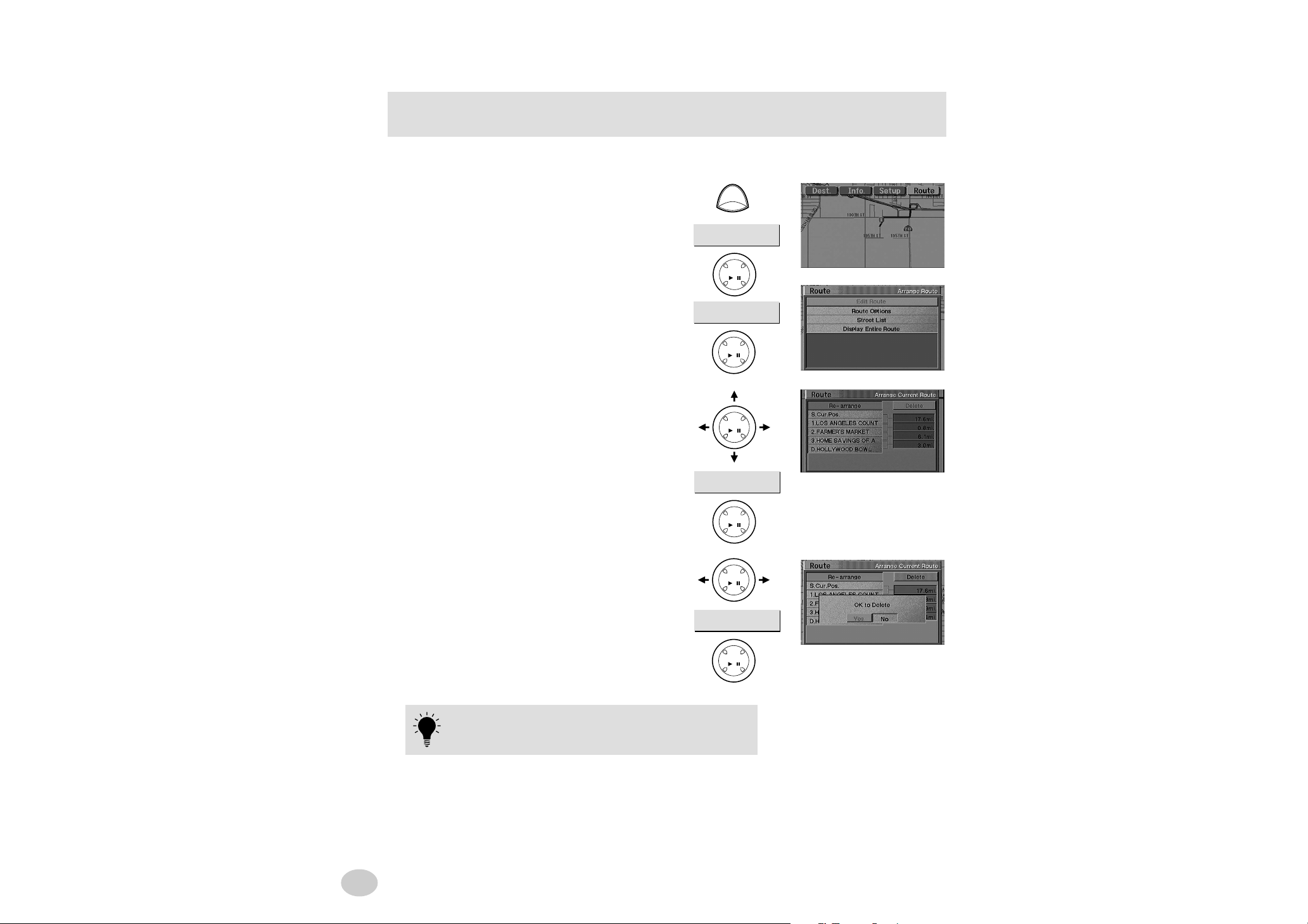

1 During normal navigation with the Detailed Map

Display in view, move the cursor to the EXIT icon.

As you move the cursor it will change from the
Present Vehicle Position icon to the Map
Crosshair icon. Press ENTER.

2 The Select Point of Interest screen is displayed.

To select a place, scroll through the list, highlight the
correct place name and press ENTER.

Facilities that are not IA items may be mixed in the IA
items list of the Select Point of Interest screen.

3 The Confirm Destination screen appears. If the

destination is correct, select OK to Proceed and
press ENTER.
The system starts calculating a route to the
destination.

If you wish to add this entry to Today’s Plan, select Add
to Today’s Plan (see NVD-A121 Owner’s Manual page

35). To store this destination in your personal address
book, select Save in Address Book (see NVD-A121
Owner’s Manual page 34).

If an IA item is set for the Destination or the Way Point,
the route guidance will be until the highway exit.

IA is displayed before the
category of IA items (facilities).

4

Setting Exit Information options

The system can display an EXIT icon at the highway exit with IA data of the Detail Map.
By selecting the displayed EXIT icon, you can search for the IA items (facilities) around the highway exit. They will
appear only in the 2, 1/2, 1/4, 1/8, 1/16 and 1/32 mile magnification.

1 Press the MENU button to display the main menu

bar. Select Setup and press ENTER. The Setup
menu appears.
Select Map Display and press ENTER.

2 Highlight P.O.I. Icons and press ENTER.

3 Three modes are displayed: ON, OFF, and SET

CATEGORY. Select SET CATEGORY and press
ENTER. A list of 8 icons will appear.
Select Exit Information and press ENTER.

4 Press the MP/RG button.

The system returns to the Detailed Map display.

When an EXIT icon is not displayed on the map in spite
of setting of Exit Information, set the P.O.I Icon to ON.
See NVD-A121 Owner’s Manual page 58.

EXIT icon

5

Setting Split Screen

The Split Screen Display of the Basic Guidance Display or Zoomed Intersection Map Display and Detailed Map
Display can be made.

1 Press the MENU button to display the main menu

bar. Select Setup and press ENTER. The Setup
menu appears.
Select Guidance and press ENTER.

2 Highlight the Split Screen selection and press

ENTER.

3 Two choices are displayed. Select one and press

ENTER.
A) When ON, the system displays a Split Screen.
B) When OFF, the system does not display a Split

Screen.

4 Press the MP/RG button.

The system returns to the Detailed Map display.

6

Setting Point of Interest icon options

Step 4 of NVD-A121 Owner’s Manual, Setting point of Interest icon options (See page 59.) is changed.

4 When the category settings have been completed,

press the CANC. Button.

7

Note

Note

R

R

ALPINE ELECTRONICS, INC.

Tokyo office: 1-1-8 Nishi Gotanda,

Shinagawa-ku, Tokyo 141-8501, Japan

Tel.: [phone]

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Tel.: 1-800-ALPINE-1 (1-800-257-4631)

1-888-NAV-HELP (1-888-628-4357)

ALPINE ELECTRONICS OF CANADA, INC.

7300 Warden Ave., Suite 203, Markham,

Ontario L3R 9Z6, Canada

Tel.: 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

6-8 Fiveways Boulevarde Keysborough,

Victoria 3173, Australia

Tel.: [phone]

ALPINE ELECTRONICS GmbH

Kreuzerkamp 7, 40878 Ratingen,

Germany

Tel.: [phone]

Yamagata Printing Co.,
Ltd.
2-6-34, Takashima,
Nishi-ku, Yokohama,
Kanagawa, Japan

ALPINE ITALIA S.p.A.

Viale C. Colombo 8, 20090 Trezzano Sul

Naviglio (MI), Italy

Tel.: [phone]

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris Nord Il,

B.P. 50016, 95945 Roissy

Charles de Gaulle Cedex, France

Tel.: [phone]

ALPINE ELECTRONICS OF U.K., LTD.

13 Tanners Drive, Blakelands,

Milton Keynes MK14 5BU, U.K.

Tel.: [phone]

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Portal de Gamarra 36, Pabellón, 32

01013 Vitoria (Alava)-APDO 133, Spain

Tel.: [phone]

© 2000 Navigation Technologies. All Rights Reserved.

USA Inc, Omaha, NE

info

Designed by ALPINE Japan

Printed in Japan (Y)

68P50520Y57-O

R

R

ALPINE ELECTRONICS, INC.

Tokyo office: 1-1-8 Nishi Gotanda,

Shinagawa-ku, Tokyo 141-8501, Japan

Tel.: [phone]

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Tel.: 1-800-ALPINE-1 (1-800-257-4631)

1-888-NAV-HELP (1-888-628-4357)

ALPINE ELECTRONICS OF CANADA, INC.

Suite 203, 7300 Warden Ave. Markham,

Ontario L3R 9Z6, Canada

Tel.: 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

6-8 Fiveways Boulevarde Keysborough,

Victoria 3173, Australia

Tel.: [phone]

ALPINE ELECTRONICS GmbH

Kreuzerkamp 7-11 40878 Ratingen,

Germany

Tel.: [phone]

R

NVD-A121

Yamagata Printing Co.,
Ltd.
2-6-34, Takashima,
Nishi-ku, Yokohama,
Kanagawa, Japan

ALPINE ITALIA S.p.A.

Via C. Colombo 8, 20090 Trezzano Sul

Naviglio MI, Italy

Tel.: [phone]

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue De La Belle Etoile, Z.I. Paris Nord Il

B.P. 50016 F-95945, Roissy,

Charles De Gaulle Cedex, France

Tel.: [phone]

ALPINE ELECTRONICS OF U.K., LTD.

13 Tanners Drive, Blakelands,

Milton Keynes MK14 5BU, U.K.

Tel.: [phone]

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Portal De Gamarra 36, Pabellón 32

01013 Vitoria (Alava)-Apdo. 133, Spain

Tel.: [phone]

© 2000 Navigation Technologies. All Rights Reserved.

USA Inc, Omaha, NE

info

Designed by ALPINE Japan

Printed in Japan (Y)

68P41262Y07-O

SMART MAP PRO

Prog. Ver. 1.20

OWNER'S MANUAL

Please read before using this DVD-ROM.

iiiii

USER AGREEMENT

Important information.
Please read carefully before using this product.

In using this DVD-ROM "SMART MAP PRO" (hereinafter referred to as "Disk"), as part
of the Alpine Electronics, Inc. ("Alpine"), Aisin AW Co., Ltd. ("Aisin AW") and Naviga­tion Technologies Corporation ("NavTech") Database (hereinafter referred to as "Data­base"), you are bound by the terms and conditions set forth below. By breaking the
seal on this package, and using your copy of the Database and Disk, you have dem­onstrated your agreement to the terms and conditions of this Agreement. You should
therefore, make sure that you read and understand the following provisions.

• The Disk and Database may not be copied, duplicated, processed, or otherwise
modified, in whole or in part, without the express written permission of Aisin AW,
NavTech and Alpine.

• Neither the Disk nor the Database may be transferred or sublicenced to any third
party for profit, rent or loan, or licensed for reuse in any manners.

• The Disk and/or Database may not be decompiled, reverse engineered or otherwise
disassembled, in whole or in part.

• The Disk and Database may not be used in a network or by any other manner of
simultaneous use in multiple systems.

• The Disk and Database are intended solely for personal use (or internal use where
the end-user business), or the consumer. The Disk and Database are not to be used
for commercial purposes.

• Neither Aisin AW, Alpine nor NavTech guarantees to the customer that the functions
included in the Disk and Database meet a specific objective of user.

• Neither Aisin AW, Alpine nor NavTech shall be responsible for any damages caused
by the use of the Disk and/or Database to the actual user and to any third party.

• The Warranty on the Disk and Database shall not extend to an exchange or refund
due to misspelling, omission of letters, or any other cosmetic discrepancy in layout
found in Disk and/or Database.

• The right to use the Disk and Database shall expire either when the user destroys
this software, or when any of the terms for use is violated and Aisin AW, Alpine and/
or NavTech exercises the option to revoke the license to use this software.

• The terms and conditions hereof apply to all subsequent users and owners as well
as to the actual purchaser.

The NavTech Database may include or reflect data of licensors, including Her Majesty
The Queen in right of CANADA. Such data is licensed on an "AS IS" basis. The licen­sors, including Her Majesty The Queen, make no guarantees, representations or war­ranties respecting such data, either express or implied, arising by law or otherwise, ac­curacy or fitness for a particular purpose.
The licensors, including Her Majesty The Queen, shall not be liable in respect of any
claim, demand or action, irrespective of the nature of the cause of the claim, demand or
action alleging any loss, injury or damages, direct or indirect, which may result from the
use or possession of the data or the NavTech database. The licensors, including Her
Majesty The Queen, shall not be liable in any way for loss of revenues or contracts, or
any other consequential loss of any kind resulting from any defect in the data or the
NavTech database.
End User shall indemnify and save harmless the licensors, including Her Majesty The
Queen and the minister, and their officers, employees and agents from and against any
claim, demand or action, irrespective of the nature of the cause of the claim, demand or
action, alleging loss, costs, expenses, damages or injuries (including injuries resulting in
death) arising out of the use or possession of the data or the NavTech database.

PRECAUTIONS

Important information.
Please read carefully before using this product.

This product is intended to safely provide turn by turn instructions to get you to a desired destination. Please
make certain that all persons using this navigation system carefully read these precautions and the following
instructions fully.

1) This product is not a substitute for your personal judgment. Any route suggestions
made by this navigation system may never supersede any local traffic regulations or your
personal judgment and/or knowledge of safe driving practices.

suggestions if the navigation system instructs you to perform an unsafe or illegal
maneuver, places you in an unsafe situation, or routes you into an area which you
consider unsafe.

2) Glance at the screen only when necessary and safe to do so. If prolonged viewing of
the screen is necessary, pull over in a safe and legal manner and location.

3) Do not input destinations, change settings, or access any functions requiring a
prolonged view of the monitor and/or remote control while you are driving. Pull over in a
safe and legal manner and location before attempting to access the system.

4) Do not use the navigation system to route you to emergency services. Not all locations
of emergency services such as police and fire stations, hospitals and clinics are contained
in the database. Please use your own judgment and ask for directions in these situations.

Do not follow route

5) The map database used in the DVD-ROM is the most recent map data available at the
time of production. Because of changes in streets and neighbourhoods, there may be
situations where the navigation system is not able to route you to your desired destination.
In these cases, use your own judgment.

6) The map database is designed to provide you with route suggestions and does not take
into account the relative safety of a suggested route or of factors which may affect the time
required to reach your destination. The system does not reflect road closures or
construction, road characteristics (i.e. type of road surface, slope or grade, weight or
height restrictions, etc.), traffic congestion, weather conditions, or any other factors which
may affect the safety or timing of your driving experience. Use your personal own
judgment if the navigation system is unable to provide you with an alternate route.

7) There may be situations where the navigation system displays the vehicle's location
erroneously. Use your own driving judgment in this situation, taking into account current
driving conditions. Please be aware that in this situation the navigation system should
correct the vehicle's position automatically. However, there may be times where you may
have to correct the position yourself. If this is the case, pull over in a safe and legal manner
and location before attempting operation.

8) Make certain that the volume level of the monitor, CVA-1003/CVA-1005/CVA-1006/IVA­C800/IVA-C801 or other audio type unit is set to a level which still allows you to hear
outside traffic and emergency vehicles.

If there is anything in the manual about the operation of the navigation system
which you are uncertain about, please contact your local Alpine authorized
navigation dealer or Alpine at 1-888-NAV-HELP (1-888-628-4357) before using the
navigation system.

iii

Points to Observe for Safe Usage

• Read this manual carefully before using this DVD-ROM. It contains instructions on how

to use this product in a safe and effective manner. Alpine cannot be responsible for
problems resulting from failure to observe the instructions in this manual.

• This manual uses various pictorial displays to show you how to use this product safely

and to alert you to potential dangers resulting from improper connections and operation.
Following are explanations of these pictorial displays. It is important to fully understand the
meanings of these pictorial displays in order to use this manual and the system properly.

MEANING OF DISPLAYS:

This symbol will precede important instructions.

Warning

Caution

Failure to heed them can result in serious injury
or death.

This symbol precedes important instructions.
Failure to heed them can result in injury or
property damages.

iv

This indicates supplementary
explanation or helpful suggestions for
a specific feature in this system.

WARNING

• Operation of the system while driving is dangerous. Users should stop vehicle
before operating the software.

• Road conditions and regulations take precedence over information contained
on the map display: observe actual traffic restrictions and circumstances while
driving.

• This software is designed for use exclusively in the NVE-N851A/NVE-N852A
series. It cannot and may not be used in conjunction with other hardware.

Warning

DO NOT OPERATE THE PRODUCT WHILE DRIVING

Operating the product may distract the driver from looking ahead of the vehicle and
cause an accident. Always stop the vehicle in a safe location before operating the
product.

MINIMIZE MONITOR VIEWING WHILE DRIVING

Viewing the monitor may distract the driver from looking ahead of the vehicle and
cause an accident.

DO NOT FOLLOW ROUTE SUGGESTIONS IF THE NAVIGATION
SYSTEM INSTRUCTS YOU TO PERFORM AN UNSAFE OR
ILLEGAL MANEUVER, OR PLACES YOU IN AN UNSAVE
SITUATION OR AREA

This product is not a substitute for your personal judgement. Any route suggestions
by this system should never supersede any local traffic regulations or your
personal judgement or knowledge of safe driving practice.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE
REACH OF CHILDREN

Swallowing them may result in serious injury. If swallowed, consult a physician
immediately.

Caution

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS

Other uses may result in electric shock or injury.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS

Failure to do so may cause injury or damages to the product. Return it to your
authorized Alpine dealer or the nearest Alpine Service Station for repairing.

DO NOT PLACE FINGERS OR FOREIGN OBJECTS IN CD/DVD­ROM INSERTION SLOTS OR GAPS

Doing so may result in injury or damage to the product.

v

TABLE OF CONTENTS

Precautions .................................................................................................... ii - V

Preface

System Features, System Enhancements, Navigation Terminology

and Remote Control Reference ................................................................................

Before Using the System

Installing New Navigation System Software................................................................6

Operation

Basic Operation................................................................................................... 7 - 11

Switching the display on/off.......................................................................................12

Switching between map and guidance displays................................................ 13 - 14

Manual backup .................................................................................................. 15 - 16

Destination Menu

Entering a destination by Address .................................................................... 17 - 19

Entering a destination using an Intersection ..................................................... 20 - 22

Entering a Point of Interest by Place Name ...................................................... 23 - 24

Entering a Point of Interest by Category ........................................................... 25 - 27

Entering a Point of Interest by Phone Number.................................................. 28 - 29

Entering a destination by Recent Destination ...........................................................30

Entering a destination using the Address Book ........................................................31

Entering a destination directly from the Map Display ................................................32

Entering a destination by Origin of the Route ...........................................................33

Saving a destination into the Address Book..............................................................34

Adding a destination into Today's Plan ......................................................................35

Using the Today's Plan Function ....................................................................... 36 - 37

Setting Waypoints ......................................................................................................38

Searching for local places ................................................................................. 39 - 40

Setup/Editing Menu

Address Book editing ................................................................................................41

Address Book editing (Name Editing) .......................................................................42

Address Book editing (Phone Number Editing).........................................................43

Address Book editing (Special Settings) ........................................................... 44 - 45

Recent Route editing.................................................................................................46

Today's Plan editing...................................................................................................47

Route editing ..................................................................................................... 48 - 49

Changing order of waypoints.....................................................................................50

Setting as Current Position........................................................................................51

Displaying the entire route.........................................................................................52

Changing the off-route recalculation option ..............................................................53

Changing the route calculation method.....................................................................54

Setting the Today's Plan Calculation Method ............................................................55

Recalling the Street List during guidance .................................................................56

Setting the map color ................................................................................................57

Setting Point of Interest icon options................................................................. 58 - 60

Setting the map screen orientation ...........................................................................61

Setting the voice guide type/frequency .....................................................................62

Setting Est. (Estimated) Time display........................................................................63

Setting assumed speed.............................................................................................64

Setting audio interrupt ...............................................................................................65

Setting the GPS clock ....................................................................................... 66 - 67

Recalibration for new vehicle or tires......................................................................... 68

Direction adjustment .................................................................................................69

vi

Screen position adjustment .......................................................................................70

2 - 5

Information/Guidance Menu

Connection check for peripherals ..............................................................................71

Navigation simulation ................................................................................................72

Viewing GPS Information ..........................................................................................73

Viewing Trip Information ............................................................................................74

Viewing Software information ....................................................................................75

Using the Detour function..........................................................................................76

Using the Plan function .............................................................................................77

Reference

In case of difficulty/Error Messages .................................................................. 78 - 79

Buttons and functions of remote controls .......................................................... 80 - 81

Remote Control Reference Guide for Head Unit.......................................................82

Remote Control Reference Guide for AV Head Unit .................................................83

vii

PREFACE

System Features

Automatic Route Calculation

The navigation system displays and tracks your vehicle's position and movement
via a moving map display. When you input a destination, the navigation system
quickly calculates a route and guides you with pictorial displays and voice prompts.
When determining the route, the system can be programmed to minimize the use
of toll roads and freeways.

This system combines GPS signals received with map information stored on DVD­ROM to display the position and direction of the vehicle. This navigation system
also includes an electronic gyro-sensor and a speed sensor that enable it to
display the present vehicle position even in locations where GPS signals may be
blocked.

Multiple Mode Destination Selection

Desired destinations can be selected among these 9 categories:

• an address

• an intersection

• a point of interest (POI)

• a recent destination

• your personal address book

• a special feature called Today's Plan

• a location selected directly from the map display

• a phone number

• an origin of the current route

Street Name Input

Allows you to input your destination's street name (via Address or Intersection
search) if you don't know your destination's city name.

Next Turn Guide

When an upcoming turn is approaching, the system will give maneuver instructions
via arrow guides and simple voice prompts.

Real Time Voice Guidance

Using voice prompts, the system will notify you of upcoming turns and highways to
enter. The VOICE button on the remote control allows you to access this voice
guidance feature at any time with a single press.

Map Zoom

You can change the map display in nine magnification scales to get more detail or
more general views (1/32, 1/16, 1/8, 1/4, 1/2, 2, 8, 32, 128 mile zoom scales). A
special 256 mile zoom scale is available when you view a very long route.

2

System Enhancements

Overall Improved System Response Time

Faster screen transitions and route calculations.

Faster Input Using Smart Key Filtering

By displaying only the characters necessary to complete your destination input,
jumping over unnecessary letters is kept to a minimum.

Input Destination by Phone Number

By entering a POI by phone number, routing or calling and routing.

Expanded Points of Interest Database

The POI database contains hundreds of thousands of business locations. The
database is constantly expanding and changing. Regular updates are made to
keep up with this constant change.

GPS Clock

This time will automatically adjust according to GPS time.
This time can also be displayed directly on the map along with your estimated time
of arrival (ETA) or estimated drive time remaining (TO GO).

3

Navigation Terminology

Present Vehicle Position Indicator

The present vehicle position is indicated by an
arrowhead within a circle.

Map Matching

Since GPS has an error window of about 100 - 650 feet
(30 m - 200 m), the position of the vehicle may be
calculated in such a way that it is displayed incorrectly off
the road. Map matching automatically corrects this error
so that the vehicle is displayed on the road.

Destination

The destination point is represented by a checkered flag.

Present vehicle

position

➡

Uncorrected

Corrected

Destination icon

Address Book

Up to 99 personal locations and phone numbers can be
stored in the system's memory.

Popular Points of Interest

Seven different POI icons can be programmed to appear
on the map. These icons indicate the locations and
names of the nearest ATMs, banks, gas station,
restaurants, hotels, supermarkets and parking garages.
All seven icons can be displayed on the screen at one
time.

Note: The brand icons (eight petrol companies) of the

gas stations appear on the map. For details, see
page 59 of this Manual.

4

Route

Remote Control Reference Guide

Remote Control transmitter

Transmits the remote control signals.
Aim toward the display monitor for
operation.

Joystick/ENTER button

Selects highlighted items within menus
and moves map displays and vehicle
position icon. Press the ENTER button
to select any highlighted function,
screen icon or street segment.

Zoom/Quick Scroll buttons

Changes map magnification ratio
upward or downward in 9 steps.
Scroll through street, city or
category listings a page at a
time.

AUDIO/NAV.button

Switches between Audio and
Navigation operations.
Pressing this button illuminates
the highlighted portion of the
display.

VOICE button

Initiates vocal instruction for next
route maneuver or repeats last
instruction.

LIST button

Displays list of the streets
currently set for the route. To
return to the guidance mode,
press the MP/RG button.

PLAN button

Allows you to advance to the next
destination in Today's Plan list.

DEL button

Deletes the character previously
input.

ON/OFF button

Turns the pictorial display on or
off.

DEL DEST. button

Deletes current destination.

.

L

O

V

ENTER

/

E

T

U

M

LIST N/H

PLAN

DEL.

ON/OFF

A PROC.

MENU

DTR

23

1

5

4

F

U

N

7809

O

P

/

DEL. DEST

C

.

C

L

V SEL.

S

O

U

R

S

E

MP

/RG

B

A

N

D

CANC.VOICE

6

OK

Status indicator

Illuminates when remote is
transmitting. Blinks for 5 seconds
when the MODE button is
pressed.

MP/RG button

Toggles between Detailed Map
Display and Basic Guide Display
during guidance. Switches
directly to Map when not in
guidance.

MODE button

Press this button to input
numerals using the numeric
keypad, DEL. and OK buttons.
After pressing the MODE button,
the following buttons will be
pressed while the status
indicator is blinking: numerals
(0-9), DEL.,and OK.

MENU button

Displays the main menu bar.

CANC. button

Cancels current display screen
and switches back to previous
screen with menus.

N/H button

Toggles between North Up and
Heading Up orientation.

DTR (DETOUR) button

Automatically recalculates route
if a road block or traffic
congestion is encountered.

Numeric Keypad

Use these buttons to enter Phone
numbers, address numbers or
street names containing numbers
(i.e., 42nd St.).

OK button

Executes numeral inputtings and
starts searching.

a If an operation is not accepted, the

navigation system beeps.

a After pressing the MODE button, the

following buttons will be pressed
while the status indicator is blinking:
numerals (0-9), DEL.,and OK.

a Hold down CANC. button for 3

seconds to toggle between Heading
Up and North Up orientation. (See
page 61.)

a The Alpine Head Unit can be

operated with the remote control.
For details, refer to pages 82 and 83.

Note: Due to continuous product improvement, specifications are subject to change.

5

BEFORE USING THE SYSTEM

Installing New Navigation System Software

If a different version of the map disc has been used with your navigation system, the operating
system program installed will be rewritten automatically to read this SMART MAP PRO disc.

Remove the different version of the map disc from

1

your navigation system. Insert this SMART MAP
PRO disc.

The display shows "Please insert DVD-ROM/ map data
disk." Insert the DVD-ROM disc into the NVE-N851A/
NVE-N852A Series Navigation System. (For instructions
on inserting and removing the DVD-ROM disc, refer to
the NVE-N851A/NVE-N852A Series Hardware Manual.)

Installation Progress

The opening screen appears on the monitor display.

2

If a CVA-1003/CVA-1005/CVA-1006/IVA-C800/IVA-C801
type system control monitor is used, you may not see this
screen.

A disclaimer screen appears. Please read this

3

important information. Press the ENTER button on the
remote control if you accept this statement.

Once the ENTER button on the remote control is

4

pressed, the map screen will appear on the display.
The vehicle's present location is indicated. If the
vehicle's present location is incorrect, drive the vehicle
several miles in an area with an open view to sky. This
will correctly synchronize the navigation system.

When powering on the unit for the first time, it takes the
GPS receiver approximately 10 minutes to calculate the
vehicle's current position. During this period, the vehicle
position icon may not move even if the vehicle is being

6

driven.

OPERATION

Basic Operation

The following example briefly describes how to use the Alpine Advanced Route Guidance
Navigation System.

The opening screen will appear once the

1

navigation system is turned on.

(If a CVA-1003/CVA-1005/CVA-1006/IVA­C800/IVA-C801 type system control monitor
is used, you may not see this screen.)

A disclaimer screen appears. Please

2

read this important information. Press
the ENTER button on the remote control
if you accept this statement.

Once the ENTER button on the remote

3

control is pressed, the map screen will
appear on the display. The vehicle's
current location is indicated. If the
vehicle's current location is incorrect,
drive the car several miles in an area
with an open view to the sky. This will
correctly synchronize the navigation
system.

Press the MENU button on the remote

4

control. The main menu bar will appear
at the top of the screen. Tilt the joystick
to highlight the desired menu item then
press the ENTER button.

(In this example, "Dest" is selected.)

ENTER

/

MENU

ENTER

Dest

/

The Find Destination by menu

5

appears.
Tilt the joystick to select the desired
method, then press the ENTER button.

(This example shows when "Point of
Interest" is selected.)

ENTER

/

ENTER

/

Point of Interest

Continued next page

7

Basic Operation (continued)

The Find Point of Interest by menu

6

appears. Use the joystick to select a
method to find the point of interest.

(In this example, "Category" is being
selected.

ENTER

/

The category list appears.
Move the joystick up or down to select the
desired category, then press ENTER.
(This example shows when "Airport" is
selected.)

The Find Point of Interest by menu

7

appears. Use the joystick to select a
method to find the point of interest and
press ENTER.

(In this example, "City Name Input" is being
selected.

Note: If you select "Sorted by distance," a list of
destinations will appear, sorted by the distance
from your current location.

The Find Point of Interest by menu

8

appears again. Use the joystick to select
a method to find the point of interest and
press ENTER.

(In this example, "City Name Input" is being
selected.)

Category

ENTER

/

Airport

ENTER

/

City Name Input

ENTER

/

City Name Input

The Input City Name screen appears.

9

Use the joystick to select the first letter
of the city name and press ENTER. The
entered character appears in the text

ENTER

/

window.

8

The characters selected are displayed in the text window.

bcde

a

f

a When 1 character is input, the candidates for the next character are narrowed down (and the

others disappear from the character pallet).

a You can also search for a location by inputting just the start of its name and selecting "LIST."
a If you want to display the list of candidate city names, select "LIST" and press ENTER. If the

number of candidates narrows down to less than 7, the display automatically shows the
Select City screen. Skip to Step 10.

a. Text window

Displays the selected characters.

b. AREA

Selects areas other than the current-vehicle-position area.

c. LIST

Displays a list of the candidate names for the selected characters.

d. DEL

Returns to the previous character and erases it.

e. CLR (Clear)

Clears the text window.

f. Character pallet

Select the desired characters.

To search in other areas:

The current area being searched is shown as "WEST."

The selected area map is displayed.

Current area map (West area shown).

Select the area to be searched by tilting
the joystick and pressing ENTER. For
example, if you wish to go to Texas, select
SW or the "South West" area.

The Input City Name screen will appear
and will show "South West" as the area
selected.
Proceed to step 10.

Continued next page

9

Basic Operation (continued)

The Select City screen appears.

10

Use the joystick to enter a city name and
scroll down to select that city. Press
ENTER when finished.

The Input Point of Interest Name

11

screen appears.
Once you have entered a few
characters, select LIST at the top of the
character pallet and press ENTER.

The Select Point of Interest Name

12

screen appears.
Scroll through the names to select the
desired destination, then press ENTER.

(This example shows when "LOS ANGELES
INT’L AIRPORT" is selected.)

ENTER

/

LOS ANGELES, CA

ENTER

/

LOS ANGELES

INT’L AIRPORT

Once the destination is selected, the

13

Confirm Destination screen appears.
If the destination is correct, select OK to
Proceed then press ENTER.

If you want to verify or modify the location of your
destination, directly on the map, highlight "Map" and press
ENTER. The Detailed Map Display will appear showing the
crosshair icon at the destination point. Press ENTER to
return to the Confirmation screen.

OK to Proceed

ENTER

/

10

The navigation system quickly calculates

14

the route to the desired destination.

The map screen shows your current

15

vehicle position and a highlighted route.
Once you begin to drive on the
highlighted route, the system will guide
you to the destination using on-screen
maneuver directions and voice prompts.

(If the system determines that you are
currently on the route to the destination, it will
automatically announce the next maneuver
once you approach the next turn.)

Once you arrive at your destination you should cancel the
route guidance by pressing the DEL DEST button on the
remote control (see page 46 for further information).
Otherwise, the navigation system will continue to guide you
to this destination as you drive away from this location.

11

Switching the display on/off

When the ignition key is turned to the ACC or ON positions, the opening screen will automatically
appear.

After the opening screen is displayed,

1

important information will be displayed.
Make sure that it is read carefully.

(If you have the CVA-1003/CVA-1005/CVA­1006/IVA-C800/IVA-C801 system control
monitor, the opening screen may not be
displayed.)

After you have read this important

2

information, press the ENTER button.
The map screen is displayed.

From any screen or menu, you may

3

switch the external monitor or CVA­1003/CVA-1005/CVA-1006/IVA-C800/
IVA-C801 type unit's NAV source off by
pressing the DISP ON/OFF button on
the remote.
When you press the DISP ON/OFF
button again, the display turns back on.

a If the DVD-ROM is not inserted in the navigation system, "Please insert DVD-ROM." is

displayed. For details on how to load the DVD-ROM, see "Inserting the DVD-ROM" and
"Removing the DVD-ROM" in the navigation system's Hardware Manual.

a If the DVD-ROM cannot be read or is inserted incorrectly, "Error reading DVD-ROM." will be

displayed on the screen. Try reloading the DVD-ROM correctly. If the message does not
disappear, contact your local Alpine navigation dealer.

a If the navigation system display is kept on with the engine off for an extended period of time,

the vehicle's battery may discharge. Make sure the system automatically turns off when
remove your key from the ignition switch.

ENTER

/

ON/OFF

12

Switching between map and guidance displays

Once the route has been calculated and driving begins, the navigation system will guide the driver,
turn-by-turn, to the destination. Real time voice directions and map displays aid the driver
throughout the entire route.

The type of display that appears during your trip can be selected according to your preference.
The Basic Guidance Display automatically appears when the destination is selected while the
vehicle is in motion. Pressing the MP/RG button on the remote control toggles the display between
the Basic Guidance Display and the Detailed Map Display.

Basic Guidance Display

Freeway number

Distance to next
maneuver

Street/highway name of
next maneuver

Distance and direction to
destination

Current Time

GPS Signal
Strength Icon*

Distance to Next
Maneuver

Vehicle's current
position

Current Time

MP

/RG

Detailed Map Display

Current Road and City Name

Estimated Remaining/Arrival
Time

Current Road and
City Name

Street/highway name of
next maneuver

Compass Icon

Indicates North and heading
mode on the current map.

N : North

: North Up icon
: Heading Up icon

(The arrowhead
shows the direction of
north)

Direction and distance to
destination

Estimated Time Remaining
or Arrival Time

*GPS Signal Strength Color Key

Dark Gray: No satellite information being received.
Blue: Information from 1 to 3 satellites being received. Latitude and longitude information can be determined.
Yellow: Signals from 4 or more satellites being received. Indicates full signal strength. Latitude and longitude can be

accurately determined.

Continued next page

13

Switching between map and guidance displays (continued)

During navigation, when your vehicle approaches an intersection, the Zoomed Intersection Map of that
intersection is displayed. This enlarged Intersection Map gives you additional information to complement the

voice guidance. (This enlarged intersection map may be displayed even when no turns are necessary.)

Zoomed Intersection Map Display

This shows the remaining distance to
the next junction/intersection 3000
feet ahead on a freeway or 1000 feet
ahead on an ordinary road.

14

Manual backup

MENU

The navigation system will automatically back up (save) your new settings (for example, address
book settings etc.) when the ignition switch is turned off and turned on again. If the battery leads
should be disconnected from the vehicle's battery, be sure to manually back up your new settings
before disconnecting the battery leads as described below.

Press the MENU button to display the

1

main menu bar. Select Setup and press
ENTER. The Setup Menu appears.
Select System Calibration and press
ENTER.

Highlight System Back Up and press

2

ENTER.

ENTER

/

Set up

ENTER

/

System Calibration

ENTER

/

The User Memory Backup screen

3

appears. If you would like to save your
settings to Flash ROM, select "Yes" and
press ENTER.

The navigation system begins the

4

backup process and the display darkens.
Once the backup process is complete,
the opening screen will appear.

System Backup

ENTER

/

Yes

Continued next page

15

Manual backup (continued)

The disclaimer screen appears. After you

5

have read this important information,
press the ENTER button.
The map screen will appear and all of
your information will be successfully
stored in backup memory.

ENTER

/

16

DESTINATION MENU

MENU

Entering a destination by Address

This section describes how to input your destination in the form of an address. The destination can be
input in one of eight different ways: by an address, an intersection, a point of interest, a location's phone
number, a recent destination, the personal address book, "Today's Plan" or by selecting directly from the
map. If you know the address of the destination, the system can calculate a route to that address.

Press the MENU button to display the

1

main menu bar. Select (highlight) Dest
from the main menu and press ENTER.
A list of input methods appears. Select
Address and press ENTER.

The Find Address by screen is

2

displayed. Use the joystick to select one
of the following methods used to find an
address and press ENTER.

• Select City Unknown if you want to
search for the street name and don't know
the city name.

• Select City Name Input if you want to
search for the city name first. For this
example, the City Name Input method is
selected.

• Select Nearest Cities if you want to
search for an address in the 7 nearest
bordering cities.

Dest

ENTER

/

Address

ENTER

/

The city name of
the last-5 search
stored in memory.

ENTER

/

City Name Input

The characters selected are displayed in the text window.

bcde

a

f

a. Text window displays the selected characters.
b. AREA

Select areas other than the current-vehicle -position area.

c. LIST

Displays a list of the candidate names for the selected characters.

d. DEL

Returns to the previous character and erases it.

e. CLR (Clear)

Clears the text window.

f. Character pallet

Select the desired characters.

Continued next page

17

Entering a destination by Address (continued)

The Input City Name screen is

3

displayed. Use the joystick to select the
first character of the city name and press
ENTER. The selected character appears
in the text window.

a When 1 character is input, the candidates

for the next character are narrowed down
(and the others disappear from the
character pallet).

a You can also search for a location by

inputting just the start of its name and
selecting "LIST."

a If you want to display the list of candidate

city names, select "LIST" and press
ENTER. If the number of candidates
narrows down to less than 7, the display
automatically shows the Select City screen.
Skip to Step 4.

ENTER

ENTER

ENTER

/

LOS

ENTER

/

L

/

/

The Select City screen appears.

4

Use the joystick to enter a city name and
scroll down to select that city. Press
ENTER when finished.

The Input Street Name screen appears.

5

Enter the street name.

When finished inputting the street name,
select LIST at the top of the character
pallet and press ENTER.

If the number of candidates narrows down
to less than 7, the display automatically
shows the Select Street Name screen.
Skip to Step 6.

ENTER

/

LOS ANGELES, CA

ENTER

/

ENTER

/

GRAND

ENTER

/

18

The Select Street Name screen

6

appears.
Use the joystick to enter a street name
and scroll down to select that street.
Press ENTER when finished.

The Input Address Number screen
appears. Enter the house or building

7

number for the destination by using the
joystick and pressing ENTER after each
entry.

ENTER

/

GRAND

ENTER

/

ENTER

/

A range of valid street numbers will be
shown just below the input window.

The address number can be input using the
numeric keypad on the remote control. For
operation, see page 5 "Remote Control
Reference Guide."

When you have entered the entire street

8

address, use the joystick to select
DONE and press ENTER.

The Select Street screen appears.

9

Use the joystick to enter a street name
and scroll down to select that street.
Press ENTER when finished.

The Confirm Destination screen

10

appears. Select OK to Proceed and
press ENTER. The system will begin
calculating the route.

2

ENTER

/

DONE

ENTER

/

OK to Proceed

ENTER

/

Note: If you wish to add this entry to Today's Plan,
select Add to Today's Plan (see page 35). To
store this destination in your personal address
book, select Option Menu (see page 34).

19

Entering a destination using an Intersection

If you know an intersection near where you want to go, you can input two cross streets as your
destination. This section describes how to input a destination by entering two cross street names.

Press the MENU button to display the

1

main menu bar. Select Dest from the
main menu and press ENTER. The Find
Destination by menu is displayed.
Select Intersection and press ENTER.

The Find Intersection by screen is

2

displayed. Use the joystick to select one
of the following methods used to find an
address and press ENTER.

• Select City Unknown if you want to search
for the street name and don't know the city
name.

• Select City Name Input if you want to
search for the city name first. For this
example, the City Name Input method is
selected.

• Select Nearest Cities if you want to search
for an address in the 7 nearest bordering
cities.

MENU

Dest

ENTER

/

Intersection

ENTER

/

ENTER

/

City Name Input

ENTER

/

20

The Input City Name screen is

3

displayed. Use the joystick to select the
first character of the city name and
press ENTER. The selected character
appears in the text window.

The Select City screen is displayed.

4

Use the joystick to enter a city name and
scroll down to select that city. Press
ENTER when finished.

ENTER

/

ENTER

/

COSTA MESA, CA

The Input Street Name screen is

5

displayed.
Enter the street name in the same
manner as Step 3.

Upon completing character input, select
LIST at the top of the character pallet
and press ENTER.

ENTER

/

LIST

If the number of candidates narrows down
to less than 7, the display automatically
shows the Select Street Name screen.
Skip to Step 6.

The Select Street Name screen is

6

displayed.
Use the joystick to enter a street name
and scroll down to select that street.
Press ENTER when finished.

The Input Cross Street Name screen is

7

displayed.
Enter the street name in the same
manner as Step 3.

When the character inputtings have been
completed, select LIST at the top of the
character pallet and press ENTER.

Note: If "Street Name Input" is selected first, and
the intersection exists in multiple cities, you will
need to select the city name in which the desired
intersection exists.

ENTER

/

ENTER

/

HARBOR

ENTER

/

ENTER

/

LIST

ENTER

/

If the number of candidates narrows down
to less than 7, the display automatically
shows the Select Cross Street Name
screen. Skip to Step 8.

The Select Cross Street Name screen

8

is displayed.
Use the joystick to enter a cross street
name and scroll down to select that
cross street. Press ENTER when
finished.

ENTER

/

NEWPORT

Continued next page

21

Entering a destination using an Intersection (continued)

The Confirm Destination screen is

9

displayed. If the specified cross streets
are correct, select OK to Proceed and
press ENTER. The system will start to
calculate the route.

Note: If you wish to add this entry to Today's Plan,
select Add to Today's Plan (see page 35). To store
this destination in your personal address book,
select Option Menu (see page 34).

OK to Proceed

ENTER

/

22

Entering a Point of Interest by Place Name

MENU

The navigation system allows you to enter a Point of Interest in one of three ways. This can either
be by place name, place type or phone number.

Press the MENU button to display the

1

main menu bar. Select Dest from the main
menu, then press ENTER. The Find

Destination by menu appears. Select
Point of Interest and press ENTER.

Dest

ENTER

/

Point of Interest

ENTER

/

Select Name from the Find Point of

2

Interest by menu and press ENTER.

The Input Point of Interest Name screen

3

is displayed.
Use the joystick to select the first
character of the place name and press
ENTER.
The selected character appears in the text
window.

The Select Point Interest Name screen is

4

displayed. To select a place, scroll through
the list, highlight the correct place name
and press ENTER.

Name

ENTER

ENTER

/

ENTER

ENTER

ENTER

/

/

/

/

If there are multiple locations to a certain place name, the
system will display the number of locations available. In this
example, MAY GARDEN shows 3 locations listed. To view
the available locations, select MAY GARDEN from the list
and press ENTER. The 3 locations will be listed from which
you may make a selection.

Continued next page

23

Entering a Point of Interest by Place Name (continued)

The Confirm Destination screen

5

appears. If the destination is correct,
select OK to Proceed and press ENTER.
The system starts calculating a route to
the destination.

Note: If you wish to add this entry to Today's Plan,
select Add to Today's Plan (see page 35). To store
this destination in your personal address book,
select Option Menu (see page 34.)

OK to Proceed

ENTER

/

24

Entering a Point of Interest by Category

MENU

If you know the type of place you are headed to, you can search for a destination by place type by
selecting from a list of categories. The following example shows how to select the shopping center,
"Triangle Square" in Costa Mesa, California.

From any screen, press the MENU

11

button to show the main menu bar on
the top of the screen. Select Dest from
the menu bar, then press ENTER to
display the Find Destination by menu.

Dest

ENTER

/

Select Point of Interest and press

2

ENTER. This will display the Find Point
of Interest by menu. Select Category

from the Find Point of Interest by
menu and press ENTER.

A list of categories is displayed. Select

3

the desired category (in this example,
Shopping Center) and press ENTER.

Point of Interest

ENTER

/

Category

ENTER

/

ENTER

/

Shopping Center

ENTER

/

Continued next page

25

Entering a Point of Interest by Category (continued)

This will display the Find Point of

4

Interest by menu. Select "City Name
Input" from the "Find Point of Interest

by" menu and press ENTER.
(In this example, "City Name Input" is
being selected.)

When "Sorted by distance" is selected,
the list showing the place names for the
selected category is shown in order of
distance from the current vehicle
position.

Select the desired city name and press
ENTER, then proceed to Step 8.

The Find Point of Interest by menu

5

appears. Use the joystick to select a
method to find the point of interest.
(In this example, "City Name Input" is
being selected.)

ENTER

/

City Name Input

ENTER

/

ENTER

/

• Select Nearest Cities if you want to

search for an address in the 7 nearest
bordering cities.

The Input City Name screen is

6

displayed. Use the joystick to select the
first character of the city name and
press ENTER. The selected character
appears in the text window.

The Select City screen appears.

7

Use the joystick to enter a city name and
scroll down to select that city. Press
ENTER when finished.

City Name Input

ENTER

/

ENTER

/

ENTER

/

ENTER

/

COSTA MESA, CA

ENTER

/

26

The Input Point of Interest Name

8

screen is displayed.
Use the joystick to select the first
character of the place name and press
ENTER. The selected character appears
in the text window.

The Select Point of Interest Name

9

screen appears.
To select a place, scroll through the list,
highlight the correct place name (in this
example, Triangle Square is selected)
and press ENTER.

ENTER

/

ENTER

/

ENTER

/

TRIANGLE SQUARE

ENTER

/

The name and address of the selected

10

destination appear in the Confirm
Destination screen.
If the destination is correct, select OK
to Proceed and press ENTER.

Note: If you wish to add this entry to Today's
Plan, select Add to Today's Plan (see page 35).
To store this destination in your personal
address book, select Save in Address Book
(see page 34).

The navigation system starts

11

calculating a route to the destination.

OK to Proceed

ENTER

/

27

Entering a Point of Interest by Phone Number

If you know the phone number of the Point of Interest you are headed to, use this function to find the address
for the destination.

Press the MENU button to display the

1

main menu bar. Select Dest and press
ENTER.

The Find Destination by menu
appears. Select Phone Number and
press ENTER.

The Input Phone Number screen is

2

displayed.
Use the joystick to select the first digit of
the phone number and press ENTER.
Enter the phone number including the
area code.

The phone number can be input using the numeric keypad
on the remote control. After pressing the MODE button, the
numerals will be input while the status indicator is blinking.
For operation, see page 5 Remote Control Reference Guide.

MENU

Dest

ENTER

/

Phone Number

ENTER

/

ENTER

/

ENTER

/

28

After entering the entire phone number

3

including the area code, select OK and
press ENTER.

If the input phone number is
used at more than 2 places,
the display shows Select
Entry screen.
To select a desired place,
scroll through the list, highlight
the correct place name and
press ENTER.

ENTER

/

OK

ENTER

/

The Confirm Destination screen

4

appears showing the address of the
selected destination. If it is correct,
select OK to Proceed and press
ENTER. The system starts calculating a
route to the destination.

Note: If you wish to add this entry to Today's Plan,
select Add to Today's Plan (see page 35). To store
this destination in your personal address book,
select Save in Address Book (see page 34).

OK to Proceed

ENTER

/

29

Entering a destination by Recent Destination

If your destination is one of the twenty most recent route calculations, you can recall that destination using the
procedure described in this section.

Press the MENU button to display the

1

main menu bar. Select Dest and press
ENTER.

The Find Destination by menu
appears. Select Recent Destination and
press ENTER.

A list of up to 20 most recent

2

destinations is displayed. Select the
desired destination and press ENTER.

The address of the selected destination

3

appears in the Confirm Destination
screen. If it is correct, select OK to
Proceed and press ENTER. The system
starts calculating a route to the
destination.

MENU

Dest

ENTER

/

Recent Destination

ENTER

/

ENTER

/

OK to Proceed

ENTER

/

30

Note: If you wish to add this entry to Today's Plan,
select Add to Today's Plan (see page 35). To store
this destination in your personal address book,
select Option Menu (see page 34).

Entering a destination using the Address Book

MENU

If a location has already been placed into your personal address book, you can recall this location for use as a
destination. The Address Book holds up to 99 different addresses and phone numbers. For more information
on how to store locations in the address book, see page 34.

Press the MENU button to display the

1

main menu bar. Select Dest from the
menu and press ENTER. The Find

Destination by menu appears. Select
Address Book and press ENTER.

Your personal entries are listed in

2

alphabetical order. Scroll through the
list to select the destination and press
ENTER.

Dest

ENTER

/

Address Book

ENTER

/

ENTER

/

The name and address of the selected

3

destination appear in the Confirm
Destination screen. If they are correct,
select OK to Proceed and press
ENTER. The system starts calculating

a route to the destination.

Note: If you wish to add this entry to Today's
Plan, select Add to Today's Plan (see page 35).

ENTER

/

OK to Proceed

ENTER

/

31

Entering a destination directly from the Map
Display

This feature allows quick and easy selection of a new destination directly from a street segment or Point of
Interest icon on the Detailed Map Display. By selecting a street segment or icon, you can quickly enter a
destination without the need to input the city name, street, etc. It operates even while in Guidance Mode.

During normal navigation with the

1

Detailed Map Display in view, move the
cursor from the Present Vehicle
Position icon to the new desired street

or POI icon destination. As you move the
cursor it will change from the Present
Vehicle Position icon to the Map
Crosshair icon. You do not need know the
names of either the streets or POI. Press
ENTER.

To move greater distances on the Detailed Map Display quickly, use
the Zoom keys on the remote control to zoom out. Then use the
joystick to move in any of 8 different directions. When the approximate
location has been reached, zoom back in for more detail.

ENTER

/

ENTER

/

A call-out appears indicating the street

2

and city name. If you chose a POI icon,
its name will appear in a Place Name list.
To confirm this as your destination, press
ENTER.

The Confirm Destination screen

3

appears. Select OK to Proceed and
press ENTER. The system starts
calculating the route.

Note: If you wish to add this entry to Today's Plan,
select Add to Today's Plan (see page 35). To store
this destination in your personal address book,
select Save in Address Book (see page 34).

ENTER

/

OK to Proceed

ENTER

/

32

Entering a destination by Origin of the Route

MENU

The navigation system can guide you to the starting point of your last calculated route. This is very convenient
when setting a return route.

Press the MENU button to display the

1

main menu bar. Select Dest from the
menu and press ENTER. The Find

Destination by menu appears. Select
Origin of the Route and press ENTER.

Dest

ENTER

/

Origin of the Route

ENTER

/

The Confirm Destination screen

2

appears. Select OK to Proceed and
press ENTER. The system starts
calculating the route.

Note: If you wish to add this entry to Today's
Plan, select Add to Today's Plan (see page 35).
To store this destination in your personal
address book, select Option Menu (see page

34).

OK to Proceed

ENTER

/

33

Saving a destination into the Address Book

Up to 99 addresses can be stored alphabetically in the Address Book.

Whenever a destination is selected and

1

entered, the system allows you to save
the address. Select Option Menu and
press ENTER.

The "Option Menu" screen is displayed.

2

Select Save in Address Book and
press ENTER.

The system automatically registers the

3

point into the Address Book.
During the registering procedure, the
display shows, for example, "No. 1
Registered" message when a point is
registered in the Address Book for the
first time.

Option Menu

ENTER

/

ENTER

/

Save in Address Book

ENTER

/

34

The name, address and phone number

4

are now stored in the address book. The
confirmation screen will reappear
showing the saved information.
Press the MP/RG button on the remote
control to return to the current vehicle
position screen.

MP

/RG

Adding a destination into Today's Plan

Today's Plan will calculate the most efficient travel order for multiple destinations. Up to 8 destinations can be
stored in "Today's Plan." This section describes how to add a destination into "Today's Plan."

Whenever a destination is selected and

1

entered by any method, the Confirm
Destination screen is displayed. Select
Add to Today's Plan and press
ENTER.

The Today's plan list is displayed with

2

the added destination highlighted.

Press the ENTER button. The system
returns to the Confirm Destination
screen. To add more entries to Today's
Plan, repeat step 1.

Add to Today's Plan

ENTER

/

ENTER

/

35

Using the Today's Plan Function

Today's Plan will calculate the most efficient travel order for multiple destinations. Up to 8 destinations can be
stored in "Today's Plan." This function has two settings, Auto and Manual. Manual will route you to each
destination in the order which they were entered. Auto will route you to each destination in the most efficient
travel order. The following example shows Today's Plan function used in the Auto setting.

Press the MENU button to display the

1

main menu bar. Select Dest from the
menu and press ENTER. The Find
Destination by menu appears.
Select Today's Plan and press ENTER.

The Confirm Destination screen

2

appears. If you would like to visit this
destination first, select OK to Proceed
and press ENTER. If you would like to
select a different destination to route to
first, select Today's Plan List and press
ENTER.

MENU

Dest

ENTER

/

Today's Plan

ENTER

/

OK to Proceed

ENTER

/

Today's Plan List

ENTER

/

36

Today's plan list will appear.

3

Use the joystick to select the destination
you would like to visit first and press
ENTER.

ENTER

/

WORLD TRADE CENTER

ENTER

/

The system calculates the new

4

destination order and displays the
confirmation screen. If the new
destination is acceptable, select OK to
Proceed and press ENTER. If you want
to change the destination again, repeat
Steps 2 to 3 above.

If you would prefer to determine the order of the destinations
yourself, you may select Manual from the Today's Plan screen in
the Route Options for Today's Plan calculation. After selecting the
first destination, use the PLAN button on the remote to delete the
destination, then select your next destination (see page 77). See
the Setup section on page 55 for setting this option.

OK to Proceed

ENTER

/

37

Setting Waypoints

You can set up to 5 waypoints from your current location to the current destination.
Set these points before selecting OK from the Confirm Destination screen.

Whenever a destination is selected and

1

entered, the system allows you to save
the address as a waypoint. Select
Option Menu and press ENTER.

The Option Menu screen is displayed.

2

Select Set as Waypoint and press
ENTER.

Waypoint Number setting menu is

3

displayed.
These points should be set as Waypoint
1, Waypoint 2, Waypoint 3 and so on in
order in which they will be passed
through.
Up to 5 points (max.) can be set.

When the route search is complete, the

4

current location is displayed. When you
start driving this route, the guidance
begins to the first waypoint.

Option Menu

ENTER

/

Set as Waypoint

ENTER

/

ENTER

/

38

Searching for local places

The navigation system can display up to seven types of Points of Interest in an area six miles around the cursor
position when you scroll the map. These include ATMs, Banks, Gas Stations, Grocery Stores, Hotels, Parking
Lots, and Restaurants. You can search for such a desired destination using the Find Local Places function

Whenever a destination is selected and

1

entered by moving the cursor or
searching from its address, etc. the

ENTER

/

system displays the Confirm

Destination screen. Select Option
Menu and press ENTER.

The "Option Menu" screen is displayed.

2

Select Find Local Places and press
ENTER.

Option Menu

ENTER

/

ENTER

/

Find Local Places

.

The Select Category screen is

3

displayed.
Select a desired category and press
ENTER (in this example, Bank).

The Select Point of Interest Name

4

menu appears.
Select the desired point of interest name
(in this example, Premier America
Federal CU is selected) and press
ENTER.

ENTER

/

ENTER

/

Bank

ENTER

/

ENTER

/

ENTER

/

Continued next page

39

Searching for local places (continued)

The address of the selected destination

5

appears in the Confirm Destination
screen. If it is correct, select OK to
Proceed and press ENTER. The system
starts calculating a route to the
destination.

Note: If you wish to add this entry to Today's Plan,
select Add to Today's Plan (see page 35). To store
this destination in your personal address book,
select Save in Address Book (see page 34).

OK to Proceed

ENTER

/

40

SETUP/EDITING MENU

MENU

Address Book editing

Locations that are saved in the Address Book can be named for easy recall. Destinations saved in the
Address Book can be modified to include its phone number and perform special functions called "Beep Points"
and "Avoid Points." See the diagram below and the following pages for descriptions of these functions.

Press the MENU button to display the

1

main menu bar.
Select Setup and press ENTER. The
Setup Menu appears. Select Edit
Address Book and press ENTER.

Setup

ENTER

/

ENTER

/

Edit Address Book

The entries in your Address Book are

2

listed in alphabetical order. Select an
entry you would like to modify or delete
and press ENTER.
(In this example, Los Angeles County
Museum of Art is chosen.)

a
c

e

a Map Display

The selected point is displayed on the
map.

b Deletion

The confirmation message for deletion is
displayed. (See below.)
Select "yes" to execute the deletion.

ENTER

/

ENTER

/

b

d

c Name

You can give a name to a registered point.
AGo to Page 42 Name Editing.

d Telephone number

Telephone number information can be
added to an Address Book entry.
AGo to Page 43 Telephone Number

Editing.

e Special setting

Such information as avoid points and
beep points can be added to registered
points.
AGo to Page 44 Special Settings.

41

Address Book editing (Name Editing)

See page 41 for steps 1 and 2.

Select an entry you would like to modify

3

or delete and press ENTER.
(In this example, E Monlaco RD is
chosen.)

Select the name and press ENTER.

4

The Input Name for Address Book

5

screen appears.
Select CLR (Clear) and press ENTER.
The current entry will be erased.

ENTER

ENTER

ENTER

ENTER

ENTER

/

/

/

/

/

42

Use joystick to change the address book

6

entry.
In this example, E MONLACO RD is
changed to HOME.

When finished entering the new name,
select DONE and press ENTER.

CLR

ENTER

/

ENTER

/

DONE

ENTER

/

Address Book editing (Phone Number Editing)

See page 41 for steps 1 and 2.

Select an entry you would like to

3

modify or delete and press ENTER.
(In this example, ALPINE
ELECTRONICS... is chosen.)

Select Tel. and press ENTER.

4

ENTER

/

ENTER

/

ENTER

/

Tel.

ENTER

/

The Input Phone Number screen

5

appears.
Use joystick to add or edit the phone
number (valid for only 0 or 10 digits).
Select OK and press ENTER.

The address number can be input using the
numeric keypad on the remote control.
After pressing the MODE button, the
numerals will be input while the status
indicator is blinking. For operation, see
page 5 "Remote Control Reference Guide."

ENTER

/

ENTER

/

OK

43

Address Book editing (Special Settings)

See page 41 for steps 1 and 2.

Select an entry you would like to

3

modify or delete and press ENTER.
(In this example, May Garden Restaurant
is chosen.)

Select Sp. and press ENTER.

4

ENTER

ENTER

ENTER

ENTER

/

/

/

Sp.

/

44

The Special Setting screen appears.

5

Select the desired item and press
ENTER.

ENTER

ENTER

/

/

L Setting the point to avoid (Point to Avoid)

• This setting allows the system to permanently avoid a specific point. Routes are set to avoid
roads between crossroads surrounding that point.

• Five locations can be set as Points to Avoid. These are assigned X0, X1, X2, X3, or X4 when
they are displayed in the Address Book.

L Setting the point to beep (Point to Beep)

• You can set the system to beep when you are driving and approaching a point requiring par­ticular care (such as a point where accidents occur frequently).

• Up to ten locations can be set including the beep direction points (from B0 to B9).

L Setting the travel direction to beep (Point to Beep (Directional))

• For details on how to set the direction, see Page 69 Direction adjustment.

• You can set the system to beep, not only upon approach to a point but also from a specific

direction of travel. For example, you can set the system to beep as you near Las Vegas when
travelling from New York to Los Angeles.

• Up to ten locations can be set as directional beep points and beep points (from B0 to B9).

L Not used (No Special Setting)

• Use to cancel selected avoid points/beep points/directional beep points.

The special use setting list is displayed.

6

Press ENTER.

The memory editing list is displayed.

7

ENTER

/

45

Recent Route editing

Whenever a route is calculated, the address of the destination is stored into the Recent Route list.
The list holds the twenty most recently calculated destinations. Any or all of the twenty previous
destinations can be deleted from this list.

From any mode, press the MENU button

1

to display the main menu bar. Select

Setup from the main menu, then press
ENTER. The Setup menu appears.

Select Delete Recent Destination from
the Setup menu and press ENTER. The
Delete Recent Destination screen
appears with a list of up to 20 most
recent routes.

Select the address to be deleted and

2

press ENTER. In this example,
KNOTT'S BERRY FARM is selected.

The Confirm Deletion screen appears.
Select OK to Delete and press
ENTER. A confirmation window will
appear. Select Ye s and press ENTER.

Press CANC button on the remote
control or select Do Not Delete from
the Menu if you do not want to delete
the address.
Select All Delete to delete all entries
from Recent Destinations.

MENU

Setup

ENTER

/

Delete Recent Destination

ENTER

/

KNOTT'S BERRY FARM

ENTER

/

OK to delete

ENTER

/

ENTER

/

YES

46

ENTER

/

Today's Plan editing

MENU

If you wish to delete a destination from Today's Plan, you may use this feature in the Option menu.

Press the MENU button to display the

1

main menu bar. Select Setup from the
main menu, then press ENTER. The

Setup menu appears. Select Delete
Today's Plan from the Setup menu and

press ENTER. The Today's Plan List
appears.

Setup

ENTER

/

Delete Today's Plan

ENTER

/

Select the address to be deleted and

2

press ENTER. In this example, WORLD
TRADE CENTER is selected. The
Confirm Deletion screen appears.

Select OK to Delete and press ENTER.
A confirmation window will appear.
Select Yes and press ENTER.

Press the CANC button on the Remote
or select Do Not Delete from the Menu if
you do not want to delete the address.
Select All Delete to delete all entries
from Today's Plan.

WORLD TRADE CENTER

ENTER

/

OK to Delete

ENTER

/

ENTER

/

Yes

ENTER

/

47

Route editing

The Edit Route function allows the driver to remove or rearrange specific points along the way.
This allows the driver to customize a route to the destination.

Press the MENU button to display the

1

main menu bar. Select Route and press
ENTER. The Arrange Route menu
appears. Select Edit Route and press
ENTER.

The Arrange Current Route screen is

2

displayed.

MENU

Route

ENTER

/

Edit Route

ENTER

/

ENTER

/

Delete

ENTER

/

48

When you select Delete and press

3

ENTER, the entire current route will be
deleted.
Confirmation screen asking you whether
you wish to execute the clearance
procedure or not. Select "Yes" and press
ENTER if you wish to clear.

When the DEL.DEST button on the remote control is
pressed, the entire current route will be deleted.

ENTER

/

Yes

ENTER

/

Select a point to be edited (the

4a

destination, a waypoint, or the
departure point) and press ENTER.
The sub-menu appears as follows.

When destination is selected:

The map for the area
around the destination is
displayed.

When waypoint is selected:

The map for the area
around the waypoint is
displayed.

The specified waypoint is
deleted if you select
"Delete" here then "YES"
in the confirmation

Skip

When point of departure is specified:

screen.
Drop by

The map for the area
around the point of
departure is displayed.

Select the route between the points

4b

to be edited (XX.X mi) and press

ENTER.

If the route is
changed,
rerouting is
carried out
automatically.

Shows the priority
mode between points.

The display returns to the Arrange

5b

Current Route screen.

Select the desired item from the sub-

5a

menu. The selected item is displayed.

49

Changing order of waypoints

Press the MENU button to display the

1

main menu bar. Select Route and
press ENTER. The Arrange Route
Menu appears.
Select Edit Route and press ENTER.

The Arrange Current Route screen is

2

displayed.

Select Re-Arrange and press ENTER.

3

MENU

Route

ENTER

/

Edit Route

ENTER

/

ENTER

/

Re-arrange

50

The waypoint arrangement screen is

4

displayed.

Select the waypoint you want to go first

5

among the waypoints currently set and
press ENTER. The selected waypoint
moves to the right side.
(In this example, Waypoint 3 is
changed to Waypoint 1.)
Change other waypoints in the same
manner.

The waypoint list with the new

6

sequence is displayed. If the sequence
displayed is acceptable, select "Done"
and press ENTER.

To reinstate the original sequence,
select Reset and press ENTER.

The System calculates the new route

7

and displays the confirmation screen.

ENTER

/

ENTER

/

ENTER

ENTER

/

Done

ENTER

/

/

Setting as Current Position

Use this function to correct the location of the present vehicle position icon on the map screen if it
is deviated from the real present location of your vehicle.

Move the cursor to the real present

1

vehicle location on the map and press
ENTER twice. The Confirm Destination
screen is displayed. Select Option Menu
and press ENTER.

The Option Menu screen is displayed.

2

Select Set as Current Position and
press ENTER.

ENTER

/

Option Menu

ENTER

/

ENTER

/

Set as Current

Position

ENTER

/

The selected point is set as the current

3

point and the current vehicle position is
displayed.

51

Displaying the entire route

The navigation system allows you to view the entire route so that you can verify the navigation
system's route calculation. If you select a cross-country route, for example Los Angeles to New
York, the navigation system will display the route at a special 256-mile magnification scale setting.

Press the MENU button to display the

1

main menu bar. Select Route and press
ENTER. The Arrange Route menu

appears. Select Display Entire Route
and press ENTER.

The entire route is displayed on a map

2

with a large enough view that you can
see the entire route.

Your current position, waypoints, and the destination icon
are displayed.

When you press the MP/RG button, the

3

system returns to the map screen.

MENU

Route

ENTER

/

Display Entire Route

ENTER

/

MP

/RG

52

With the route displayed, press and hold the ^ button on
the remote control to zoom out until your desired wider
range route is obtained. When the button is kept pressed
and the widest range is reached, the system automatically
stops and displays the entire route.

Press the
increasing the magnification ratio one step.

button. Each pressing zooms in the map by

^

Caution

COMPLY WITH THE CURRENT
TRAFFIC REGULATIONS WHILE
DRIVING

When using the navigation system,
always comply with the local traffic
regulations on the road while driving.

Changing the off-route recalculation option

MENU

If you deviate from the suggested route, the system can recalculate a route to get you back on the
way to your destination. You can choose to have the system automatically recalculate the route or
await confirmation before recalculating the route.

Press the MENU button to display the

1

main menu bar. Select Route and press
ENTER. The Arrange Route menu

appears. Select Route Options and
press ENTER.

Route

ENTER

/

Route Options

ENTER

/

Highlight Re-route and press ENTER.

2

You may select from either Manual or

3

Automatic. Use the joystick to toggle
between the two selections.

A) When set to Manual the system will

recalculate a new route when the
DETOUR button is pressed.
(See page 76.)

B) When set to Automatic the system

will automatically recalculate a new
route if you deviate from the original
route.

Press the MP/RG button. The system

4

returns to the Detailed Map display.

Re-route

ENTER

/

ENTER

/

ENTER

/

MP

/RG

53

Changing the route calculation method

Depending upon the time of the day and road conditions, you may want to alter the way the system
calculates a route.

Press the MENU button to display the

1

main menu bar. Select Route from the
menu and press ENTER. The Arrange

Route menu appears. Select Route
Options and press ENTER.

Highlight Route Options and press

2

ENTER.

Tilt the joystick up or down to select

3

from the four choices. Press ENTER to
select the setting. The method set here
will remain in memory as a default
setting until you change the setting.

MENU

Route

ENTER

/

Route Options

ENTER

/

Route Options

ENTER

/

ENTER

/

54

A) When set to Quickest, the system

will calculate the most efficient way
to arrive at your destination.

B) The Max Fwy (Maximize

Freeways) option calculates a route
that makes most efficient use of
freeways.

C) When set to Min Fwy (Minimize

Freeways), the system will
calculate a route that uses mostly
surface streets.

D) The Min Toll (Minimize Toll

Roads) option calculates a route
that uses the least number of pay
roads enroute to the destination.

Press the MP/RG button. The system

4

returns to the Detailed Map display.

ENTER

/

MP

/RG

Setting the Today's Plan Calculation Method

MENU

When using Today's Plan, there are two methods by which the system will calculate a route. In the
Auto mode, the system will calculate the most efficient route for travelling to all the destinations in
Today's Plan. In the Manual mode, routing will be calculated in the order in which the destinations
are listed in Today's Plan List. The user will be prompted for the next destination and may select
them in any order from Today's Plan List.

Press the MENU button to display the

1

main menu bar. Select Route from the
main menu and press ENTER. The
Arrange Route menu appears.

Select Route Options and press
ENTER.

Rout

ENTER

/

Route Options

ENTER

/

Highlight Today's Plan and press

2

ENTER.

Choose Automatic or Manual and press
ENTER to store your selection (in this
case, Automatic).

Press the MP/RG button. The system

3

returns to the Detailed Map display.

Today's Plan

ENTER

/

Automatic

ENTER

/

MP

/RG

55

Recalling the Street List during guidance

During route guidance, you may display a list of street names to preview upcoming turns and street
names.

Press the MENU button to display the

1

main menu bar. Select Route and press
ENTER. The Route menu appears.

Select Street List and press ENTER.

The Street List is displayed. To preview

2

a specific point, select a street name/
maneuver and press ENTER.

MENU

Route

ENTER

/

Street List

ENTER

/

ENTER

/

56

When the LIST button on the remote control
is pressed, the street list can be directly
displayed.

The system previews the screen for that

3

particular point (preview screens are
denoted by the map in which the specific
point is indicated by the crosshair icon).
To return to the Guidance mode, press
the MP/RG button.

You may scroll Up using the remote control to view the street
name following the one you are currently viewing. Scroll Down
to view the street name preceding the one you are viewing.
You may view the entire street list in this way. If you are
already on the first street, scrolling Down will do nothing.

ENTER

/

MP

/RG

Setting the map color

MENU

The system allows you to set the display's map color. For most drivers, a dark tone screen is
preferred when driving at night. The system can be set to automatically switch to dark tone screen
when headlights are turned on.

Press the MENU button to display the

1

main menu bar. Select Setup and press
ENTER. The Setup menu screen
appears. Select Map Display and press
ENTER.

Setup

ENTER

/

Map Display

ENTER

/

Highlight Map Color and press ENTER.

2

You have 3 choices of display modes:

3

A) DAY mode maintains a bright tone

screen even while your headlights are
on.

B) NIGHT mode maintains a dark tone

screen even when your headlights are
off.

C) AUTO mode switches automatically

between Day and Night screen color
when your parking lights are turned
on and off.

Highlight the mode of your choice (Auto
is shown here) and press ENTER.

Press the MP/RG button.

4

The system returns to the map screen.

Map Color

ENTER

/

AUTO

ENTER

/

MP

/RG

57

Setting Point of Interest icon options

The system allows you to display some or all of the seven Point of Interest icons on the Detail Map
Display at one time. They will appear only in the 1/2, 1/4, 1/8, 1/16 and 1/32 mile magnification
scale settings.

Press the MENU button to display the

1

main menu bar. Select Setup and press
ENTER. The Setup menu appears.

Select Map Display and press ENTER.

Highlight P.O.I. Icons and press ENTER.

2

Three modes are displayed: ON, OFF,

3

and SET CATEGORY. Select SET
CATEGORY and press ENTER. A list of

7 icons will appear. Highlight any of the
following icon types and press ENTER:

AT M
Bank
Gas Station*
Grocery Store
Hotel
Parking
Restaurant

MENU

Setup

ENTER

/

Map Display

ENTER

/

P.O.I. Icons

ENTER

/

SET CATEGORY

ENTER

/

ENTER

/

ENTER

/

58

Select Gas Station from the category selection menu to display the list below showing the brand
icons (eight petrol companies) on the map.

<Gas station list>

Icon

Company's name

Shell

Tosco (Union76)

BP

Chevron

Icon

Company's name

Texaco

Exxon

Amoco

Mobil

When the category settings have been

4

completed, select RETURN and press
ENTER.

ENTER

/

RETURN

ENTER

/

Select ON from the P.O.I. Icons menu

5

and press ENTER.

ENTER

/

ON

ENTER

/

Continued next page

59

Setting Point of Interest icon options

Press the MP/RG button.

6

The system returns to the Detailed Map
display.

Move the Map Cursor icon to any of the

7

visible P.O.I. icons, press ENTER, and
the name and address will appear on the
display for that icon.

To remove the point of interest icons from the map screen,
there are 2 choices:

a Deselect the highlighted icon that you wish to remove as

described in step 3.

a Select "OFF" in step 5.

MP

/RG

ENTER

/

ENTER

/

60

Setting the map screen orientation

MENU

The map display can be positioned so that north is always at the top of the display (North Up). This
makes it easy to read your current heading from the map. In addition, the vehicle's icon can be
positioned so that its current direction is always pointing to the top of the display (Heading Up). In
this case, the vehicle's icon will remain frozen in the center of the display while the map rotates with
each turn. This makes it easy to see the direction of the next turn on the map.

Press the MENU button to display the

1

main menu bar. Select Setup and press
ENTER. The Setup menu appears.
Select Map Display and press ENTER.

Setup

ENTER

/

Map Display

ENTER

/

Highlight Map Display and press

2

ENTER.

Either North Up or Heading Up can be
selected. Use the joystick to toggle

3

between the two and press ENTER.

A) When set to North Up, the map

display will always show the map with
north facing toward the top of the
screen. The Present Vehicle Position
icon will rotate on the map.

B) When set to Heading Up, the map

display will rotate such that the
Present Vehicle Position icon is
always pointing toward the top of the
screen.

Pressing the N/H button while in detailed map mode will allow
you to toggle between "Heading Up" and "North Up"
orientation.

Map Display

ENTER

/

ENTER

/

ENTER

/

Press the MP/RG button. The system

4

returns to the map screen.

MP

/RG

61

Setting voice guide type/frequency

The system allows you to choose the type or frequency of audible prompts you receive as you are
guided along your route.

Press the MENU button to display the

1

main menu bar. Select Setup and
press ENTER. The Setup menu
appears. Select Guidance and press
ENTER.

Highlight the Voice Guide selection

2

and press ENTER.

Two choices are displayed. Highlight

3

one and press ENTER.

A) When set to the Minimum mode,

the system will emit tones only when
approaching upcoming maneuvers.

B) When set to the Normal mode, the

system will emit tones and voice
instructions when approaching
upcoming maneuvers. Voice
instructions are announced 1/2 mile
before each maneuver on surface
streets and one mile before each
maneuver on freeways and
expressways.

MENU

Setup

ENTER

/

Guidance

ENTER

/

Voice Guide

ENTER

/

Normal

ENTER

/

62

Press the MP/RG button. The system

4

returns to the Detailed Map display.

Pressing the "VOICE" button on the remote control will give
the distance to the next maneuver or repeat the maneuver
regardless of the "Voice Guide" setting.

MP

/RG

Setting Est. (Estimated) Time display

MENU

When the system calculates a route, it also estimates the time it will take to arrive at the
destination. It will display this estimate as either "AT" or Arrival Time, or "TO GO," the time
remaining to reach the destination. These estimates are displayed under the Direction/Distance
display at the right of the Guidance or Map displays.

Press the MENU button to display the

1

main menu bar. Select Setup from the
main menu and press ENTER. The
Setup menu appears.

Setup

Select Guidance from the Setup menu
and press ENTER.

Highlight Est. Time to Dest. and press

2

ENTER.

Choose Arrival or Remaining and press
ENTER to store your selection (in this
case, Arrival).

Note: The time estimates are based on the
average speed of the vehicle. The Est. Time will
vary accordingly, as the vehicles speed varies.

Press the MP/RG button.

3

The system returns to the Detailed Map
display.

ENTER

/

Guidance

ENTER

/

Est. Time to Dest.

ENTER

/

Arrival

ENTER

/

MP

/RG

63

Setting assumed speed

The navigation system allows you to fine-tune the parameters which influence the calculation of travel
time. If you are a slower or faster driver, the assumed speed settings can be adjusted accordingly.

Press the MENU button to display the

1

main menu bar. Select Setup and press
ENTER. The Setup menu appears.

Select Guidance and press ENTER.

Highlight Assumed Speed and press

2

ENTER.

Two choices are displayed. Select one

3

and press ENTER.
A) When set to FWY (Freeway), the

system will display the Set Assumed
Freeway Speed screen.
Tilt the joystick to the right or left to
increase or decrease the assumed
speed respectively. When setting has
been finished, press ENTER to end
the setting procedure.

B) When set to SFC (Surface Road), the

system will display the Set Assumed
Surface Road Speed screen.
Tilt the joystick to the right or left to
increase or decrease the assumed
speed respectively. When setting has
been finished, press ENTER to end
the setting procedure.

Note: Do not select the speed exceeding
the speed limit.

MENU

ENTER

/

Guidance

ENTER

/

Assumed Speed

ENTER

/

ENTER

/

ENTER

/

ENTER

/

ENTER

/

ENTER

/

ENTER

/

64

Press the MP/RG button.

4

The system returns to the Detailed Map
display.

MP

/RG

Setting audio interrupt

MENU

The Audio Interrupt function allows the navigation system to mute your radio while voice prompts
are being played. This option may require additional parts or labor.
Please consult your Alpine dealer for details.

Press the MENU button to display the

1

main menu bar. Select Setup and press
ENTER. The Setup menu appears.
Select Guidance and press ENTER.

Setup

ENTER

/

Guidance

ENTER

/

Highlight Audio Interrupt and press

2

ENTER.

Two choices are displayed. Select one

3

and press ENTER.
A) When turned ON, the system will

mute the radio (if connected) while
announcing voice instructions.

B) When turned OFF, the system doesn't

mute the radio at all.

This function may not work with some radios.
Consult your Alpine dealer for further
information.

Press the MP/RG button.

4

The system returns to the Detailed Map
display.

Audio Interrupt

ENTER

/

ENTER

/

ENTER

/

MP

/RG

65

Setting the GPS clock

The GPS receiver used in this system is synchronized to the time data being transmitted by the
GPS satellites. The satellite's clock is Greenwich Mean Time (GMT). This is the world-wide
standard for time. This makes the system's clock very accurate, once the appropriate time zone
has been set.

Press the MENU button to display the

1

main menu bar. Select Setup from the
main menu and press ENTER. The
Setup menu appears.

Select Clock from the Setup menu and
press ENTER.

From the Clock Set Up screen, select

2

Time Zone and press ENTER. Choose
the appropriate Time Zone for your
location and press ENTER to store your
selection (in this case, Pacific).

Note: If crossing Time Zones while driving, the
clock must be reset manually for the new zone.

MENU

Setup

ENTER

/

Clock

ENTER

/

ENTER

/

Time Zone

ENTER

/

66

ENTER

/

Pacific

ENTER

/

To change whether Daylight Savings is

3

currently being observed or not, select

Daylight Savings Time and press
ENTER.

Select ON or OFF depending upon which
is currently being observed. Press
ENTER to save.

ENTER

/

Daylight Savings Time

ENTER

/

ENTER

/

ON

Press the MP/RG button.

4

The system returns to the Detailed Map
display.

MP

/RG

67

Recalibration for new vehicle or tires

The navigation system measures distance using the vehicle’s speed pulses. The vehicle’s speed pulses vary
depending on the manufacturer and tire size. Therefore, whenever you install this system into a different
vehicle or replace your tires, the distance coefficient is automatically recalibrated. This done by comparing the
speed pulse data to the GPS calculated distance. To make the recalibration speed faster, clear the current
coefficient. You can check on the screen whether or not vehicle’s speed pulses are being counted.

Press the MENU button to display the

1

main menu bar. Select Setup and press
ENTER. The Setup menu appears.
Select System Calibration and press
ENTER.

Highlight Change Vehicle or Tires and

2

press ENTER.

MENU

Setup

ENTER

/

System Calibration

ENTER

/

ENTER

/

Change Vehicle or Tires

ENTER

/

68

Confirmation screen asking you

3

whether you wish to execute the
clearance procedure or not. Select
"Yes" and press ENTER if you wish to
clear.
The system returns to the System
Calibration display.

Press the MP/RG button.

4

The system returns to the Detailed Map
display.

Yes

ENTER

/

MP

/RG

Direction adjustment

If the direction of the present vehicle position icon on the map is different from the actual direction
of your vehicle, you can correct the direction of the icon with the following method.

Press the MENU button to display the

1

main menu bar. Select Setup and press
ENTER. The Setup menu appears.
Select System Calibration and press
ENTER.

Highlight Adjust Direction and press

2

ENTER.

MENU

Setup

ENTER

/

System Calibration

ENTER

/

ENTER

/

Adjust Direction

ENTER

/

The direction correction screen is

3

displayed. Tilt the joystick toward the left
and right to correct the direction.

When the direction is corrected, press

4

ENTER.
The present vehicle position icon is
displayed in the corrected direction.

ENTER

/

ENTER

/

69

Screen position adjustment

Some display will appear out of position when connected to the navigation system. The image
position can be optimized for a particular monitor being used with the system.

Press the MENU button to display the

1

main menu bar. Select Setup and
press ENTER. The Setup Menu
appears.
Select System Calibration and press
ENTER.

Highlight Adjust Screen and press

2

ENTER.

MENU

Setup

ENTER

/

System Calibration

ENTER

/

ENTER

/

Adjust Screen

ENTER

/

70

The screen position adjustment screen

3

is displayed.

Adjust the display position by tilting the

4

joystick.
The display screen moves the way you
tilt the joystick.

After adjusting, press ENTER.

5

The screen is displayed at the adjusted
position.

ENTER

/

ENTER

/

INFORMATION/GUIDANCE MENU

Connection check for peripherals

Press the MENU button to display the

1

main menu bar. Select Setup and
press ENTER. The Setup menu
appears. Select Peripherals and press
ENTER.

The peripheral screen appears in the

2

display and it shows the connection
state of the Navigation Interface.
If connections for each item are
correctly and securely made, the
display indicates "Yes " and if not
correct or unconnected it indicates "No"
at the right side of the item. (This
example shows when no item is
connected.)

MENU

Setup

ENTER

/

Peripherals

ENTER

/

Note: “Mobile Mayday” and “Cellular Phone”
cannot be used by this unit.

When you have checked the

3

connections, press ENTER. The
system returns to the Setup Menu.

Press the MP/RG button.

4

The system returns to the Detailed Map
display.

ENTER

/

MP

/RG

71

Navigation Simulation

You can watch a demonstration of the navigation system's voice and screen guidance by using this
function. The vehicle position icon will automatically move along the desired route showing a
simulation of how the navigation system functions. If waypoints have been set, the simulation only
shows a route to the first waypoint.
Use this function only while the car is parked.

Press the MENU button to display the

1

main menu bar. Select Info. and press
ENTER.

The Info. menu screen appears. Select
Navigation Simulation and press
ENTER.

a The confirmation message only appears if a destination

has already been set.

a During the drive simulation, the system accepts operation

of the MP/RG, VOICE, ZOOM upward/downward and
N/H buttons in addition to the CANC button.

The drive simulation for the current

2

route begins.

MENU

Info

ENTER

/

Navigation Simulation

ENTER

/

72

To end the drive simulation, press the

3

CANC button.
After the "Simulation ended." message,
the navigation system automatically
returns to the map screen.

CANC.

Viewing GPS Information

The navigation system allows you to view dynamic location information received from GPS
satellites. This feature is very useful for off-road users in establishing a starting point before trekking.

Press the Menu button to display the

1

main menu bar. Select Info. and press
ENTER. The Info. menu appears.

Highlight the GPS Status setting.

The GPS information screen is

2

displayed.

a Satellites from which you are receiving are displayed

green and those from which you are not receiving are
displayed red. Yellow indicates that your position is being
calculated.

a The direction gives the heading of your vehicle.
a The speedometer display shows how fast your vehicle is

travelling.

a SPEED PULSE blinks when the speedometer signal is

coming in.

MENU

Info.

ENTER

/

GPS Status

ENTER

/

Press the MP/RG button.

3

The system returns to the map screen.

Altitude display accuracy can vary widely since the system
uses only GPS signals for determining altitude approximations.
Unlike altitude measurement, map matching accuracy is
much more precise due to calculation methods that
utilize, three inputs: 1) GPS signals, 2) vehicle speed
signals, and 3) the system's built-in electronic gyro signals.

MP

/RG

73

Viewing Trip Information

The odometer displays the route distance and time travelled since the power to the navigation
system was switched on.

Press the Menu button to display the

1

main menu bar. Select Info. and press
ENTER. The Info. menu appears.
Higlight the Trip Information and press
ENTER.

The trip information is displayed. To reset

2

the trip Meter (Distance Driven/Time
Elapsed), press ENTER.

A) Distance Drive refers to the total

distance traveled after the trip meter is
reset.

B) Time Elapsed refers to the total time

traveled after the trip meter is reset.

C) Odometer is the distance travelled

since this system was installed.

D) Total Time is the time elapsed since

this system was installed.

MENU

Info.

ENTER

/

Trip Information

ENTER

/

ENTER

/

74

The Trip information will be cleared when the car battery
cable is disconnected.

Press the MP/RG button.

3

The system returns to the map screen.

MP

/RG

Viewing Software Information

You can view information about the DVD-ROM's version. Make note of this information and refer to
it whenever you communicate with Alpine Tech Support or your Alpine authorized dealer.

Press the MENU button to display the

1

main menu bar. Select Info. and press
ENTER. The Info. menu screen appears.
Highlight Version Information and press
ENTER.

The DVD-ROM's information is displayed.

2

Press ENTER on the remote control to
return to the Info. menu.

Press the MP/RG button.

3

The system returns to the map screen.

MENU

Info.

ENTER

/

Version Information

ENTER

/

ENTER

/

MP

/RG

75

Using the Detour function

If during a route you require the system to detour around an obstacle, you may use the DETOUR
button to automatically recalculate a new route.

Press the DETOUR button in the

1

Guidance mode. A window appears
confirming the detour request.

The system recalculates the route around

2

the upcoming maneuver.

Note: The system will detour around the next
maneuver for about 3 miles ahead on free­ways/expressways and the next 1 mile ahead
on surface streets.

DTR

2

76

Using the Plan function

While enroute to your first destination in Today's Plan, you may select to change the first
destination.

Press the PLAN button while in the route

1

guidance mode. The confirmation screen
asking if you want to execute the
clearance procedure or not. If you want to
change the destination, select Yes and
press ENTER.

The system will start recalculating the

2

travel order for Today's Plan. Once the
system is finished recalculating, the
Confirm Destination screen appears.
Select OK to Proceed and press ENTER
to proceed to the new destination. If you
would like to route to a different 'first'
destination, select Today's Plan List
again, and select a new destination from
the list.

PLAN

4

ENTER

/

OK to Proceed

ENTER

/

77

REFERENCE

In case of difficulty

If you encounter a problem, please review the items in the following checklist. This guide will help
you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is
properly connected or consult your authorized Alpine dealer.

Symptom

The vehicle's
position is
erroneous.

The
measurement
error is too
large.

Screen not
displayed

An error
message
regarding the
DVD-ROM is
displayed

Cause

The vehicle's position changed
after the ignition was switched
off.

• Movement on a ferry boat

• Rotation of a parking lot

turntable

• Movement by tow truck

Poor satellite reception

Not enough satellites to give
three dimensional positioning.

The navigation monitor is turned
off.

The DVD-ROM is not inserted
properly.
Disc dirty or damaged

Solution

Drive the vehicle in an area of good GPS
reception to allow the unit to recalibrate
itself.

Move to a location where strong GPS
reception is possible.

Press the DISP ON/OFF button on the
remote control.
Set Power switch of monitor to Standby.

Eject the DVD-ROM and reinsert properly.

Clean or replace disc

78

Inconsistent
operation/
response of
remote control

No operation

The remote control batteries
are wearing out.

Moisture condensation

Ambient temperature over
122°F (50°C)

Blown fuse

Replace the remote control batteries.

Allow enough time for the condensation to
evaporate (about 1 hour).

Lower the temperature in the vehicle
below 122°F (50°C), by driving with the
windows open or air conditioner on.

Replace with a fuse of the prescribed
rating.

Error messages

Various messages are displayed on the screen during operation. In addition to the messages
telling you the current status or providing guidance for the next maneuver, the following error
messages may appear. If one of these error messages is displayed, carefully follow the instructions
in the solution column.

Message

Please insert
DVD-ROM/map
data disk.

DVD ROM
unreadable.
Please check
DVD ROM.

DVD ROM being
checked.

Menu
inoperable while
driving.
Cautiously bring
vehicle to a stop
at a safe place
and set panking
brake before
using this
function.

Cause

• The disc has been removed.

• There was no disc in the system

when the power was switched on.

• A disc that the system cannot read
has been loaded.

• The disc is dirty or upside down.

• The disc cannot be read because of

condensation.

• A disc was just inserted.

• Vibration or the like made it

impossible to read the disc.

• The MENU button was pressed
while the vehicle was running.

• A menu selection operation was
carried out while the vehicle was
running.

Solution

Insert the disc.

Insert the map disc.

Take out the disc, check if it was
upside down, clean it if necessary,
then re-insert it.
Take out the disc, allow enough time
for condensation to evaporate (about
1 hour), then re-insert the disc.

When the disc check is complete, the
following screen is displayed
automatically.

Move the vehicle to a safe location,
stop, and engage the parking brake,
then carry out this operation.

If you are
driving, pull over
to use this
function. OK/NO

Roads can't be
found in area.
Please near the
main road.

• The MENU button was pressed
while the vehicle was running.

• A menu selection operation was
carried out while the vehicle was
running.

• When the destination or waypoint
was specified, there was no road in
the area, so no route could be
found.

• An attempt was made to erase a
waypoint even though no waypoint
is set.

Move the vehicle to a safe location,
stop, and engage the parking brake,
then carry out this operation.

Focus on a nearby major road, then
specify the destination or waypoint
again.

This message simply announces that
no waypoint is set. The message
goes out soon.

79

Buttons and functions of remote controls

RUE-4119

(For NVE-N851A)

ENTER

.

C

N

M

A

E

C

N

U

N/H

DETOUR

MP/RG

PLAN

DEL DEST.

VOICE

LIST

DISP

ON/OFF

RUE-4136

(For NVE-N852A)

S

O

/

A PROC.

23

5

F

U

N

C

.

O

P

/

C

L

V SEL.

U

/RG

CANC.VOICE

6

K

O

2

)

3

5
8

9
!

%

"

.

L

O

V

ENTER

E

T

U

M

MENU

LIST N/H

DTR

1

PLAN

4

7809

DEL.

ON/OFF

DEL. DEST

R

S

E

MP

1

~

6

B

A

N

D

4
7

$

&

#

80

12

45

78

DEL

0

3

6

9

OK
