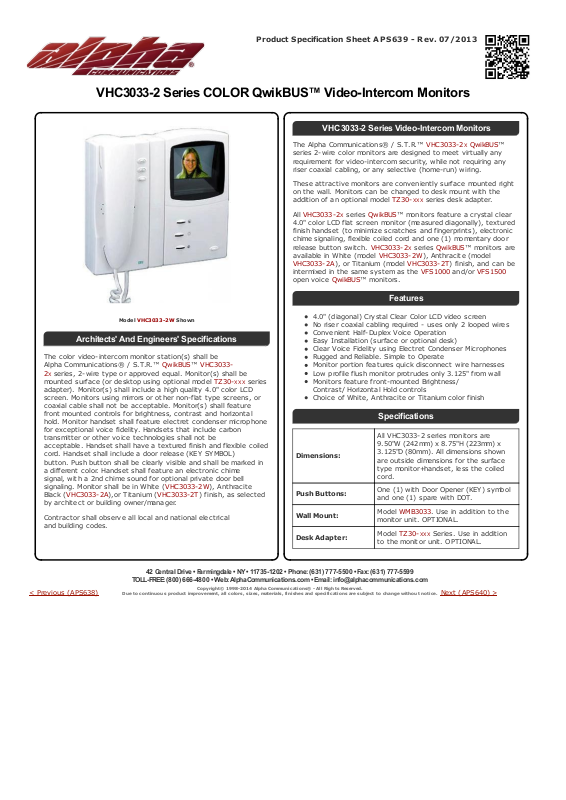

Alpha VHC3033-2A, VHC3033-2T, VHC3033-2W Specsheet

Product Specification Sheet A PS639 - Rev. 07/2013

VHC3033-2 Series COLOR QwikBUS™ Video-Intercom Monitors

42 Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone]

TOLL-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]

Copyright© 1998-201 4 Alpha Communications® - All Rights Reserved.

Due to co ntinuous pro duct improvement, all colo rs, sizes, materials, finishes and specification s are subject to ch ange without n otice.

< Previous (APS638) Next (APS640) >

Model VHC3033-2W Shown

Architects' And Engineers' Specifications

The c olor video-interc om monitor st ation(s) shall be
Alpha Communications® / S.T.R.™ QwikBUS™ VHC3033-

2X series, 2-wire type or approved equal. Monitor(s) shall be

mounted surfac e (or desktop using optional model T Z30-XX X series
adapter). Monitor(s) shall include a high quality 4.0" c olor LCD
screen. Monitors using mirrors or other non-flat type screens, or
coaxial cable shall not be ac ceptable. Monitor(s) shall feature
front mounted controls for brightness, contrast and horizontal
hold. Monitor handset shall feat ure elect ret c ondenser microphone
for except ional voice fidelity. Handsets that include carbon
transmitter or other voice technologies shall not be
accept able. Handset shall have a textured finish and flexible coiled
cord. Handset shall include a door release (KEY SY MBOL)
button. Push button shall be clearly visible and shall be marked in
a different color. Handset shall feat ure an electronic c hime
signal, with a 2nd chime sound for optional privat e door bell
signaling. Monitor shall be in White (VHC3033-2W), Anthracite
Black (VHC3033-2A),or Titanium (VHC3033-2T) finish, as select ed
by architect or building owner/manager.

Contract or shall observe all local and national electrical
and building codes.

VHC3033-2 Series Video-Intercom Monitors

The Alpha Communicat ions® / S.T.R.™ VHC3033-2X QwikBUS™
series 2-wire c olor monitors are designed to meet virtually any
requirement for video-intercom security, while not requiring any
riser c oaxial cabling, or any selective (home-run) wiring.

These att ractive monitors are c onveniently surfac e mounted right
on the wall. Monitors can be changed to desk mount with the
addition of an opt ional model T Z30-XXX series desk adapter.

All VHC3033-2X series QwikBUS™ monitors feature a c rystal clear

4.0" c olor LCD flat screen monitor (measured diagonally), textured
finish handset (to minimize sc ratc hes and fingerprints), elec tronic
chime signaling, flexible coiled c ord and one (1) moment ary door
release button switc h. VHC3033-2X series QwikBUS™ monitors are
available in White (model VHC3033-2W), Anthracite (model

VHC3033-2A), or T itanium (model VHC3033-2T) finish, and can be

intermixed in the same system as the VFS1000 and/or VFS1500
open voice QwikBUS™ monitors.

Features

4.0" (diagonal) Crystal Clear Color LCD video sc reen
No riser coaxial c abling required - uses only 2 looped wires
Convenient Half-Duplex Voice Operation
Easy Installation (surfac e or optional desk)
Clear Voice Fidelity using Elect ret Condenser Microphones
Rugged and Reliable. Simple to Operate
Monitor portion features quick disc onnect wire harnesses
Low profile flush monitor protrudes only 3.125" from wall
Monitors feature front-mounted Brightness/
Contrast/ Horizontal Hold controls
Choice of White, Anthracite or Titanium color finish

Specifications

Dimensions:

All VHC3033-2 series monitors are

9.50"W (242mm) x 8.75"H (223mm) x

3.125"D (80mm). All dimensions shown
are outside dimensions for the surface
type monitor+handset , less the c oiled
cord.

Push Buttons:

One (1) with Door Opener (KEY) symbol
and one (1) spare with DOT.

Wall Mount:

Model WMB3033. Use in addition to t he
monitor unit. OPTIONAL.

Desk Adapter:

Model TZ30-XXX Series. Use in addition
to the monitor unit. OPTIONAL.
