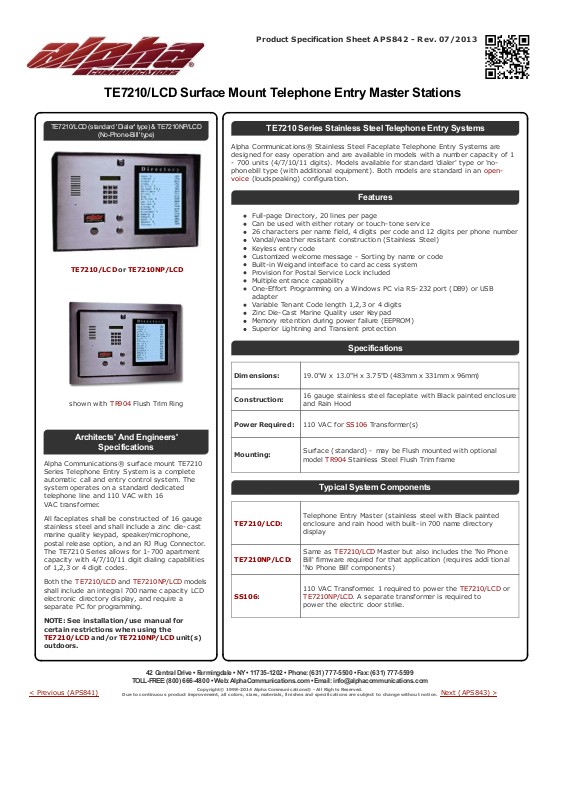

Alpha TE7210-LCD, TE7210NP-LCD Specsheet

Product Specification Sheet A PS842 - Rev. 07/2013

TE7210/LCD Surface Mount Telephone Entry Master Stations

42 Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone]

TOLL-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]

Copyright© 1998-201 4 Alpha Communications® - All Rights Reserved.

Due to co ntinuous pro duct improvement, all colo rs, sizes, materials, finishes and specification s are subject to ch ange without n otice.

< Previous (APS841) Next (APS843) >

TE7210/LCD (standard 'Dialer' type) & TE7210NP/LCD

(No-Phone-Bill' type)

TE7210/LCD or TE7210NP/LCD

shown with TR904 Flush Trim Ring

Architects' And Engineers'

Specifications

Alpha Communications® surface mount TE7210
Series Telephone Entry System is a c omplete
automatic c all and entry c ontrol system. The
system operates on a standard dedicated
telephone line and 110 VAC with 16
VAC transformer.

All faceplates shall be c onstruct ed of 16 gauge
stainless st eel and shall include a zinc die-cast
marine quality keypad, speaker/mic rophone,
postal release option, and an RJ Plug Connector.
The TE7210 Series allows for 1-700 apartment
capacity with 4/7/10/11 digit dialing capabilities
of 1,2,3 or 4 digit c odes.

Both the TE7210/LCD and TE7210NP/LCD models
shall include an integral 700 name capac ity LCD
elect ronic directory display, and require a
separate PC for programming.

NOTE: See installation/use manual for
certain restrictions when using the

TE7210/LCD and/or TE7210NP/LCD unit(s)

outdoors.

TE7210 Series Stainless Steel Telephone Entry Systems

Alpha Communications® Stainless Steel Fac eplate Telephone Entry Syst ems are
designed for easy operation and are available in models with a number capacity of 1

- 700 units (4/7/10/11 digits). Models available for st andard 'dialer' type or 'no­phonebill type (with additional equipment). Both models are standard in an open-

voice (loudspeaking) configuration.

Features

Full-page Directory, 20 lines per page
Can be used with either rotary or touch- tone service
26 charac ters per name field, 4 digits per code and 12 digits per phone number
Vandal/weather resistant construct ion (Stainless Steel)
Keyless entry c ode
Customized welcome message - Sorting by name or code
Built-in Weigand interfac e t o c ard acc ess system
Provision for Postal Service Lock included
Multiple ent rance capability
One-Effort Programming on a Windows PC via RS-232 port (DB9) or USB
adapter
Variable Tenant Code length 1,2,3 or 4 digits
Zinc Die-Cast Marine Quality user Keypad
Memory retention during power failure (EEPROM)
Superior Lightning and Transient protection

Specifications

Dimensions: 19.0"W x 13.0"H x 3.75"D (483mm x 331mm x 96mm)

Construction:

16 gauge stainless st eel fac eplate with Black painted enc losure
and Rain Hood

Power Required: 110 VAC for SS106 Transformer(s)

Mounting:

Surface (standard) - may be Flush mounted with optional
model TR904 Stainless Steel Flush Trim frame

Typical System Components

TE7210/LCD:

Telephone Entry Master (stainless steel with Black painted
enclosure and rain hood with built-in 700 name direct ory
display

TE7210NP/LCD:

Same as TE7210/LCD Master but also includes the 'No Phone
Bill' firmware required for that application (requires addi tional
'No Phone Bill' c omponents)

SS106:

110 VAC Transformer. 1 required to power the T E7210/LCD or

TE7210NP/LCD. A separate transformer is required t o

power the elect ric door strike.
