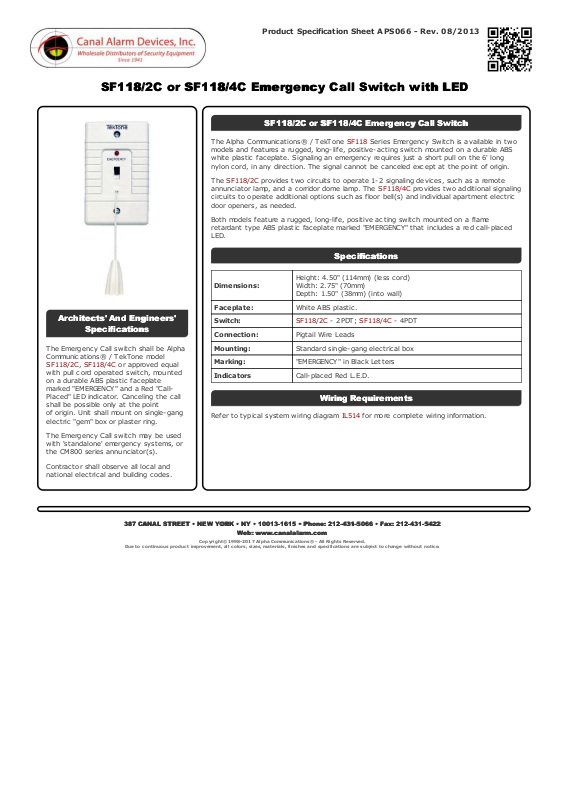

SF118/2C or SF118/4C Emergency Call Switch with LEDSF118/2C or SF118/4C Emergency Call Switch with LED

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers'Architects' And Engineers'

SpecificationsSpecifications

The Emergency Call switc h shall be Alpha
Communications® / T ekTone model

SF118/2C, SF118/4C or approved equal

with pull cord operated switc h, mounted
on a durable ABS plastic faceplate
marked "EMERGENCY" and a Red "Call­Placed" LED indicator. Canceling the call
shall be possible only at the point
of origin. Unit shall mount on single-gang
elect ric "gem" box or plaster ring.

The Emergency Call switc h may be used
with 'standalone' emergency syst ems, or
the CM800 series annunciator(s).

Contractor shall observe all local and
national elect rical and building codes.

SF118/2C or SF118/4C Emergency Call SwitchSF118/2C or SF118/4C Emergency Call Switch

The Alpha Communicat ions® / TekTone SF118 Series Emergency Switc h is available in two
models and feat ures a rugged, long-life, positive- ac ting switch mounted on a durable ABS
white plastic faceplate. Signaling an emergency requires just a short pull on the 6' long
nylon cord, in any direct ion. The signal cannot be c anceled except at the point of origin.

The SF118/2C provides two c ircuits to operate 1-2 signaling devices, such as a remote
annunciator lamp, and a corridor dome lamp. The SF118/4C provides two additional signaling
circuits to operate additional options such as floor bell(s) and individual apartment elec tric
door openers, as needed.

Both models feat ure a rugged, long-life, positive act ing switc h mounted on a flame
retardant t ype ABS plastic faceplate marked "EMERGENCY" that includes a red call-placed
LED.

SpecificationsSpecifications

Dimensions:

Height: 4.50" (114mm) (less cord)
Width: 2.75" (70mm)
Depth: 1.50" (38mm) (into wall)

Faceplate: White ABS plastic.

Switch: SF118/2C - 2PDT; SF118/4C - 4PDT

Connection: Pigtail Wire Leads

Mounting: Standard single-gang electrical box

Marking: "EMERGENCY" in Black Letters

Indicators Call-placed Red L.E.D.

Wiring RequirementsWiring Requirements

Refer to t ypical system wiring diagram IL514 for more complete wiring information.
