Alpha SF113 Specsheet

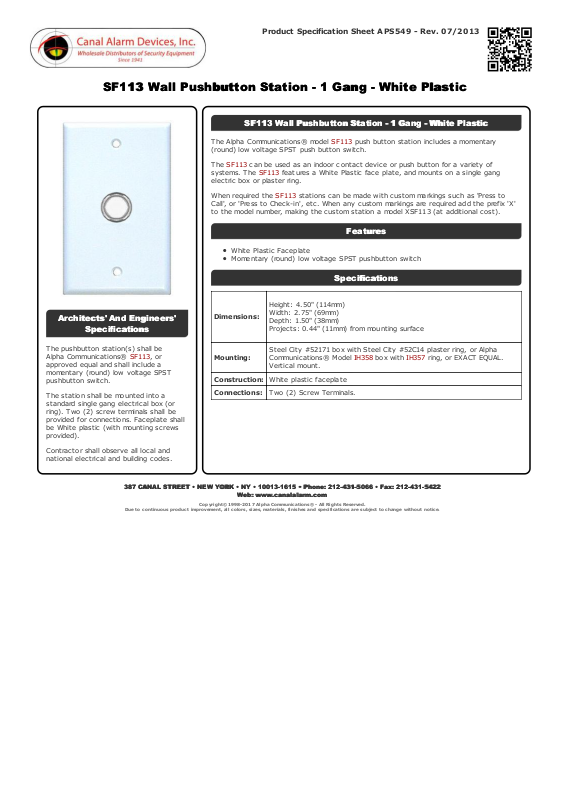

Product Specification Sheet APS549 - Rev. 07/2013

SF113 Wall Pushbutton Station - 1 Gang - White PlasticSF113 Wall Pushbutton Station - 1 Gang - White Plastic

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers'Architects' And Engineers'

SpecificationsSpecifications

The pushbutton st ation(s) shall be
Alpha Communicat ions® SF113, or
approved equal and shall include a
momentary (round) low voltage SPST
pushbutton switch.

The stat ion shall be mounted into a
standard single gang elect rical box (or
ring). Two (2) screw terminals shall be
provided for connec tions. Faceplate shall
be White plast ic (with mounting screws
provided).

Contractor shall observe all local and
national elect rical and building codes.

SF113 Wall Pushbutton Station - 1 Gang - White PlasticSF113 Wall Pushbutton Station - 1 Gang - White Plastic

The Alpha Communicat ions® model SF113 push button stat ion includes a momentary
(round) low voltage SPST push button switch.

The SF113 can be used as an indoor contact devic e or push button for a variety of
systems. T he SF113 features a White Plastic face plate, and mounts on a single gang
elect ric box or plaster ring.

When required the SF113 stations c an be made with c ustom markings such as 'Press to
Call', or 'Press to Check-in', etc . When any custom markings are required add the prefix 'X'
to the model number, making the custom station a model XSF113 (at additional cost).

FeaturesFeatures

White Plastic Faceplate
Momentary (round) low voltage SPST pushbutton switc h

SpecificationsSpecifications

Dimensions:

Height: 4.50" (114mm)
Width: 2.75" (69mm)
Depth: 1.50" (38mm)
Projects: 0.44" (11mm) from mounting surface

Mounting:

Steel City #52171 box with Steel City #52C14 plaster ring, or Alpha
Communic at ions® Model IH358 box with IH357 ring, or EXACT EQUAL.
Vertical mount.

Construction: White plastic faceplate

Connections: Two (2) Sc rew Terminals.
