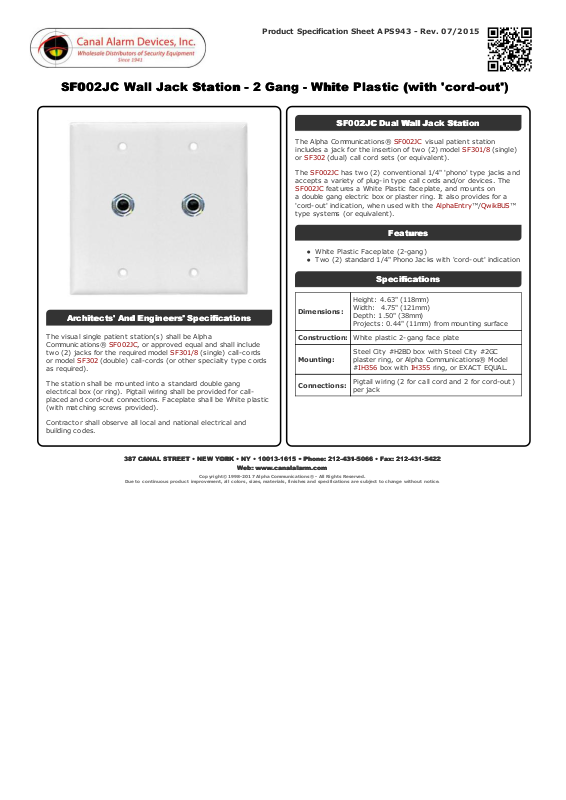

Alpha SF002JC Specsheet

Product Specification Sheet APS943 - Rev. 07/2015

SF002JC Wall Jack Station - 2 Gang - White Plastic (with 'cord-out')SF002JC Wall Jack Station - 2 Gang - White Plastic (with 'cord-out')

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The visual single patient station(s) shall be Alpha
Communications® SF002JC, or approved equal and shall include
two (2) jacks for the required model SF301/8 (single) call-cords
or model SF302 (double) call-c ords (or other specialty type cords
as required).

The stat ion shall be mounted into a standard double gang
elect rical box (or ring). Pigtail wiring shall be provided for call­placed and cord-out c onnections. Faceplate shall be White plastic
(with matching sc rews provided).

Contractor shall observe all local and national electrical and
building codes.

SF002JC Dual Wall Jack StationSF002JC Dual Wall Jack Station

The Alpha Communicat ions® SF002JC visual patient stat ion
includes a jack for the insertion of two (2) model SF301/8 (single)
or SF302 (dual) call cord sets (or equivalent).

The SF002JC has two (2) c onventional 1/4" 'phono' type jacks and
accepts a variety of plug-in type call cords and/or devices. T he

SF002JC features a White Plastic fac eplate, and mounts on

a double gang elect ric box or plaster ring. It also provides for a
'cord-out ' indication, when used with the AlphaEntry™/QwikBUS™
type systems (or equivalent).

FeaturesFeatures

White Plastic Faceplate (2- gang)
Two (2) standard 1/4" Phono Jacks with 'cord-out' indication

SpecificationsSpecifications

Dimensions:

Height: 4.63" (118mm)
Width: 4.75" (121mm)
Depth: 1.50" (38mm)
Projects: 0.44" (11mm) from mounting surface

Construction: White plastic 2-gang fac e plate

Mounting:

Steel City #H2BD box with Steel City #2GC
plaster ring, or Alpha Communications® Model
#IH356 box with IH355 ring, or EXACT EQUAL.

Connections:

Pigtail wiring (2 for call cord and 2 for c ord-out)
per jack
