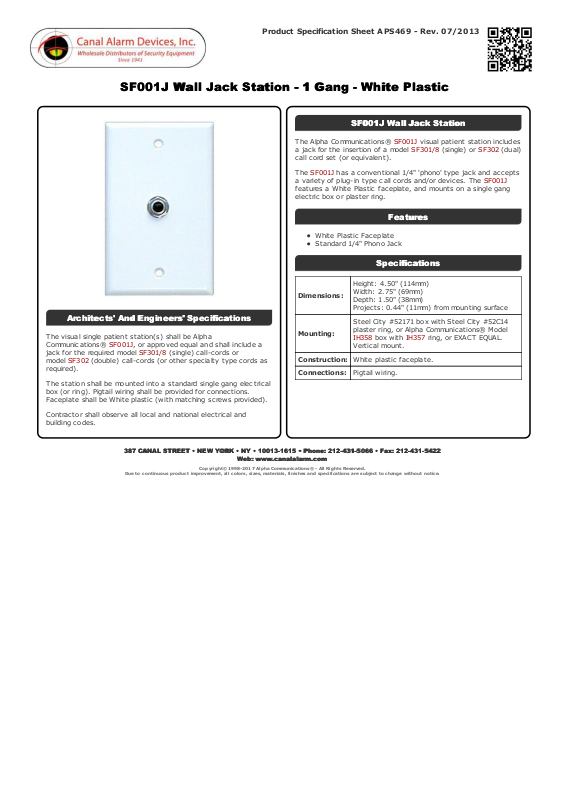

Alpha SF001J Specsheet

Product Specification Sheet APS469 - Rev. 07/2013

SF001J Wall Jack Station - 1 Gang - White PlasticSF001J Wall Jack Station - 1 Gang - White Plastic

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The visual single patient station(s) shall be Alpha
Communications® SF001J, or approved equal and shall include a
jack for t he required model SF301/8 (single) call-c ords or
model SF302 (double) call-c ords (or other specialty type cords as
required).

The stat ion shall be mounted into a standard single gang elect rical
box (or ring). Pigtail wiring shall be provided for connec tions.
Fac eplate shall be White plastic (with matc hing screws provided).

Contractor shall observe all local and national electrical and
building codes.

SF001J Wall Jack StationSF001J Wall Jack Station

The Alpha Communicat ions® SF001J visual patient stat ion includes
a jack for the insertion of a model SF301/8 (single) or SF302 (dual)
call c ord set (or equivalent).

The SF001J has a c onventional 1/4" 'phono' type jack and ac c epts
a variety of plug-in type c all cords and/or devices. T he SF001J
features a White Plastic fac eplate, and mounts on a single gang
elect ric box or plaster ring.

FeaturesFeatures

White Plastic Faceplate
Standard 1/4" Phono Jack

SpecificationsSpecifications

Dimensions:

Height: 4.50" (114mm)
Width: 2.75" (69mm)
Depth: 1.50" (38mm)
Projects: 0.44" (11mm) from mounting surface

Mounting:

Steel City #52171 box with Steel City #52C14
plaster ring, or Alpha Communications® Model

IH358 box with IH357 ring, or EXACT EQUAL.

Vertical mount.

Construction: White plastic faceplate.

Connections: Pigtail wiring.
