Alpha Plug-in Breaker Panel, Front Access User Manual

Plug-in Breaker Panel, Front Access 16 Position, 19" and 23" Mounting

020-588-B2

This page intentionally left blank.

Argus Technologies Ltd. Visit www.argus.ca Burnaby, British Columbia. Telephone: 604 436 5900 Fax: 604 436 1233

Plug-in Breaker Panel, Front Access 16 Position, 19” and 23” Mounting

020-588-B2

The following documents and drawings are included in this manual to provide the necessa ry information required for installation, operation and fault diagnosis of the unit:

• Specifications: 020-588-B1 Rev C

• Warranty Policy: 048-507-10

• Important Safety Instructions: 020-588-C0 Rev A

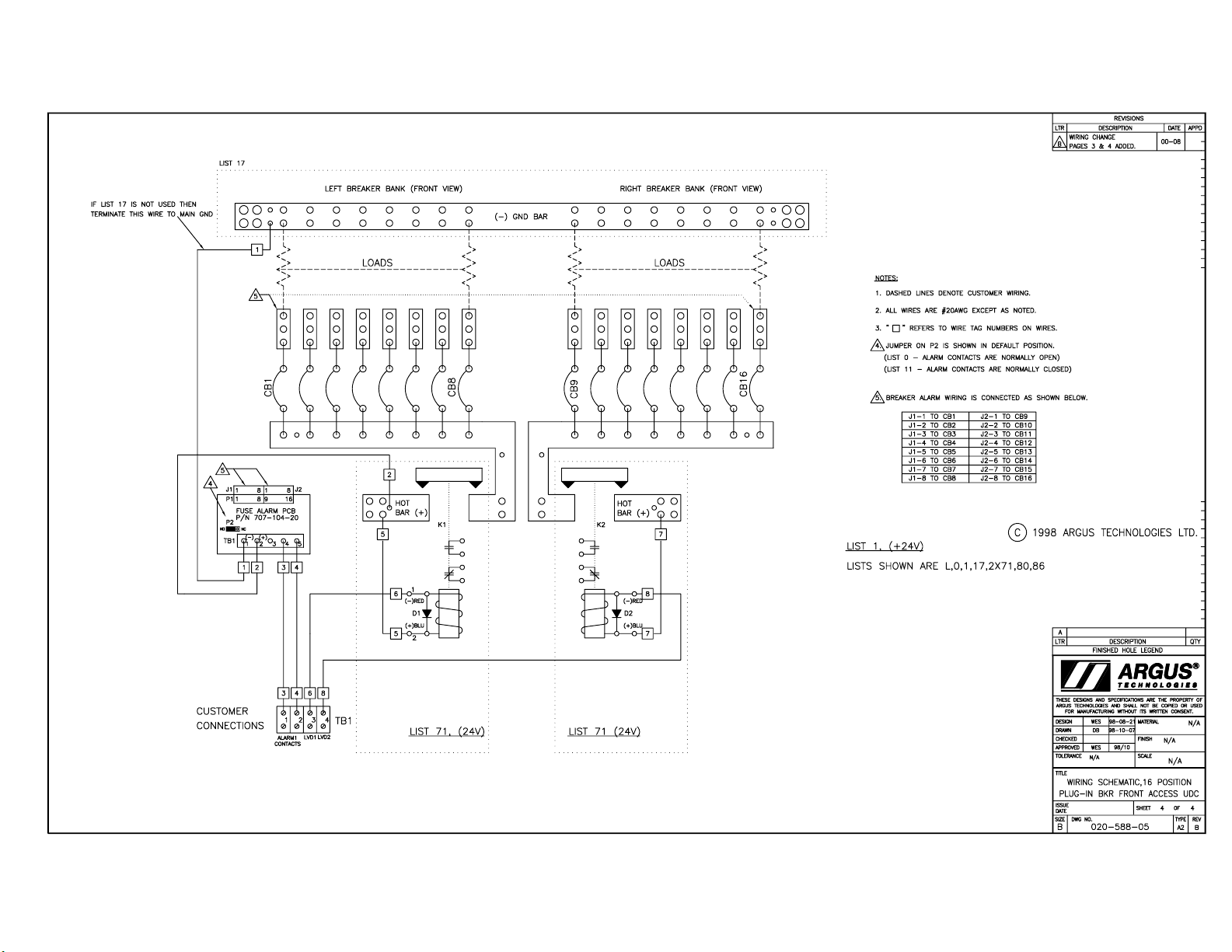

• Schematic: 020-588-05

• Outline Drawing: 020-588-06

• Customer Connections: 020-588-08

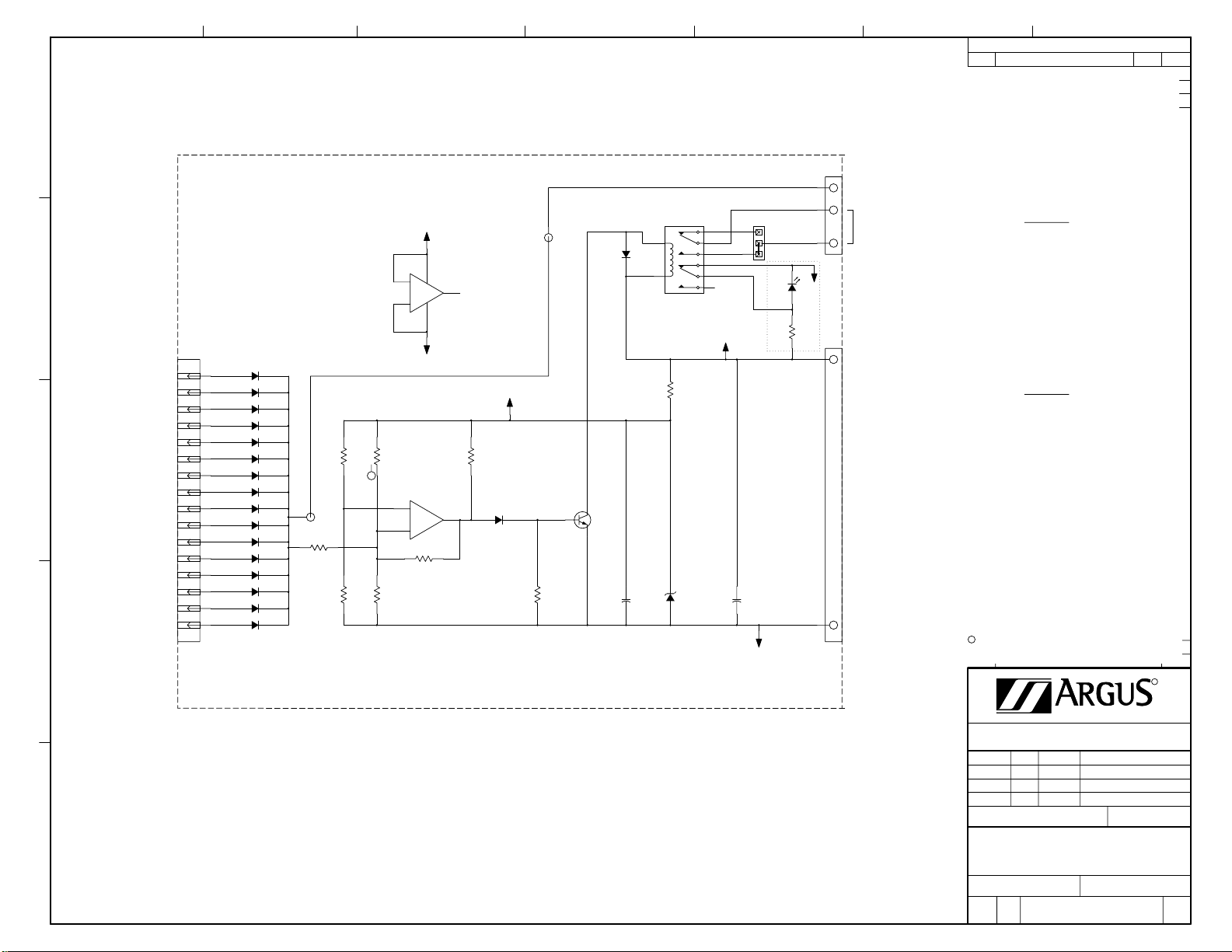

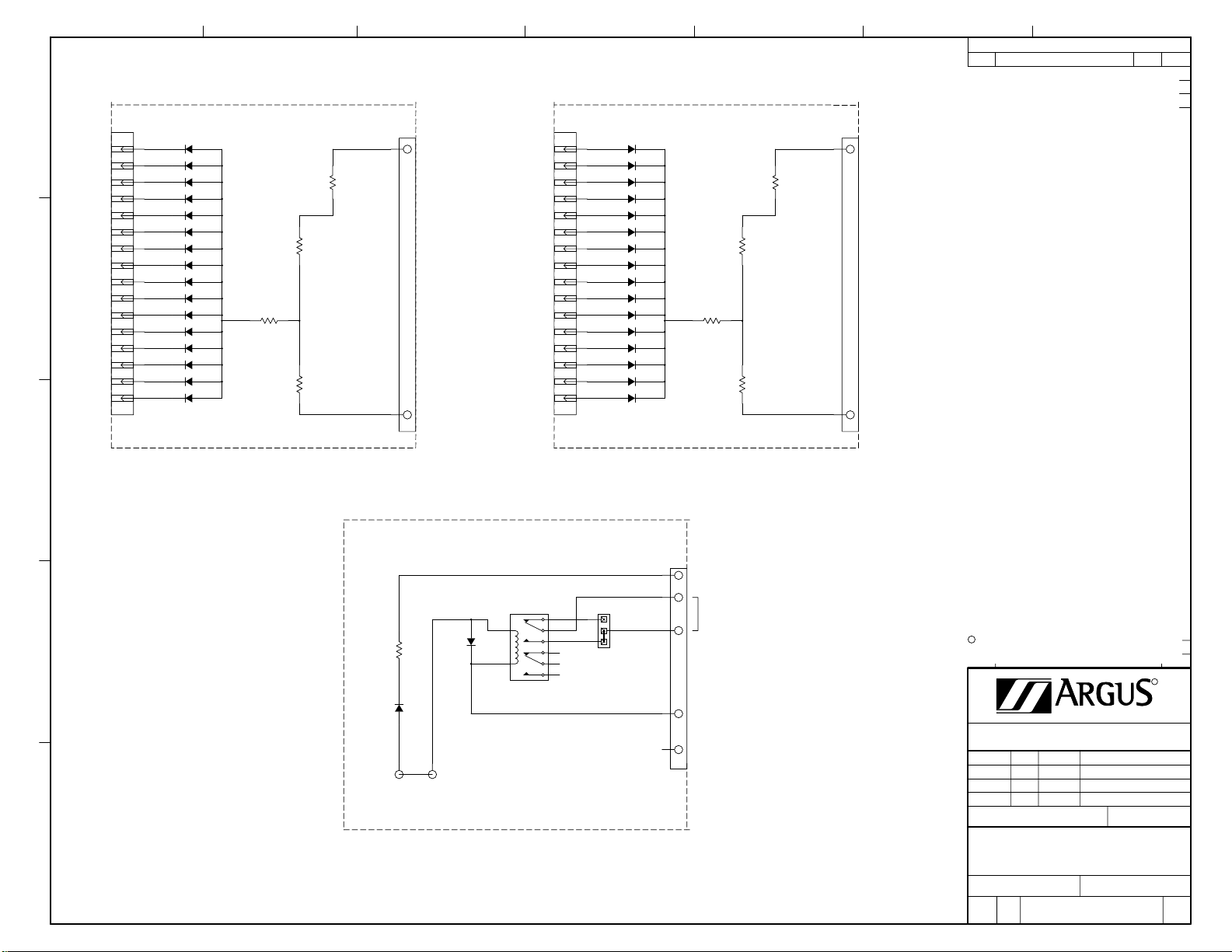

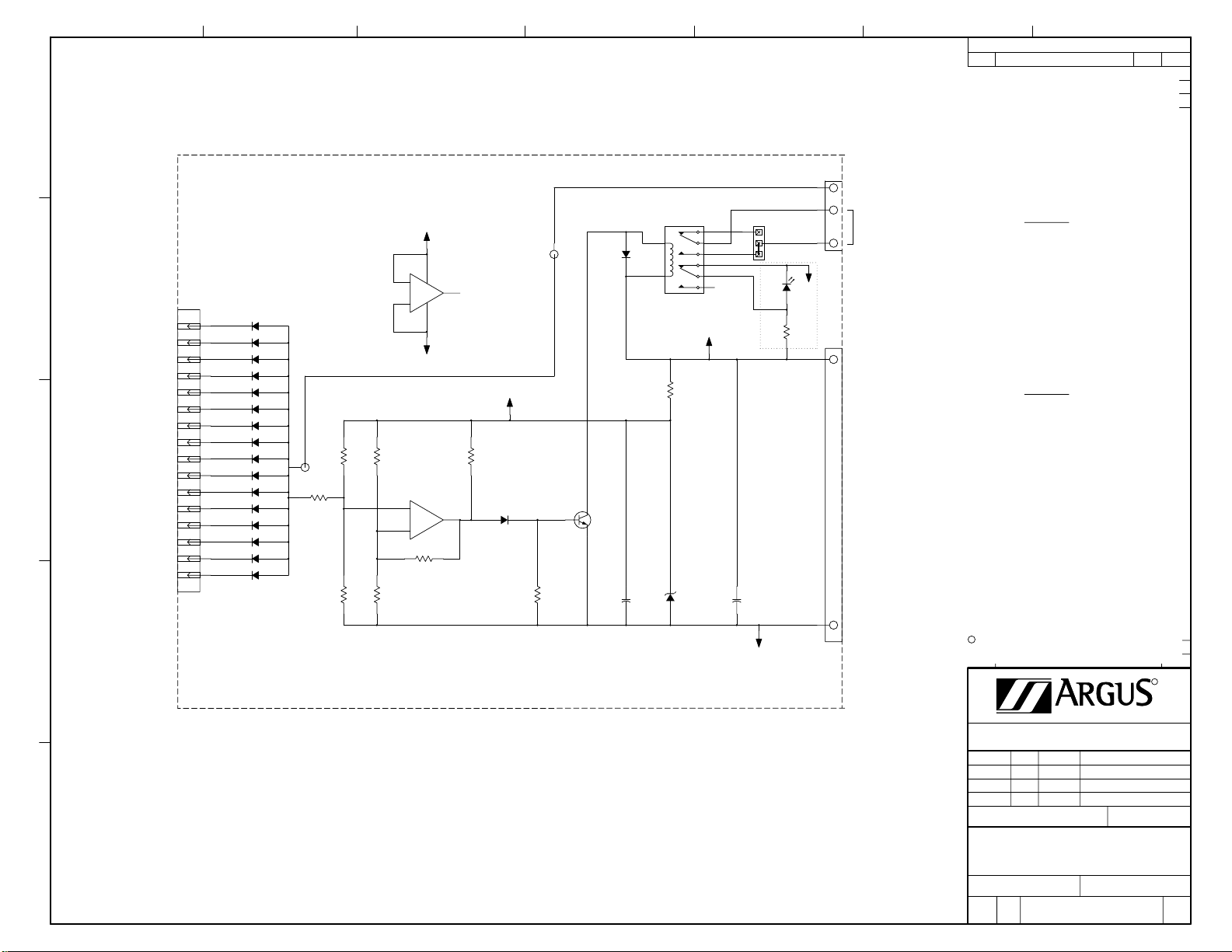

• Schematic, Breaker Alarm PCB: 707-104-05

• Factory Service Information: 048-527-10

Argus Technologies Ltd. 020-588-B2 Rev D WC

SPECIFICATIONS FOR ARGUS’ FRONT ACCESS PLUG-IN BREAKER PANELS

General

Alarm: Jumper selectable Form A (normally open) or Form B (normally closed) contacts

Default is Form A Input Termination: 2 sets of 2x3/8”-16 tapped holes on 1” centers Load Termination: 1 set of 2x1/4”-20 tapped holes on 5/8” centers ( 1 per breaker) Ground Bar Option: Input term. 4 sets 2x3/8”-16 tapped holes on 1” centers

Load term. 1set 2x1/4”-20 tapped holes on 5/8” centers ( 1 per breaker) Breaker Option: AM-type mid-trip plug-in breaker, 5/16” bullet-style terminals;

No alarm jumper wires are required Load Disconnect Option: 24Vdc or 48Vdc; two required if using an A/B feed

020-588-20

Shelf Size: 221mm H x 483mm W x 188mm D

(8.7” H x 19” W x 7.4” D)

[all dimensions do not include mounting brackets] Mounting: 19” and 23” rack

020-589-20

Shelf Size: 221mm H x 584mm W x 188mm D

Mounting: 23” rack

Installation Notes

1. CAUTION: When no load is connected and the breaker is turned off, there will be –48 Volts on the

output due to the alarm circuitry. This circuitry can only source 2.2mA.

2. Input cables 4/0 maximum recommended.

3. It is recommended to leave 2 rack units (RU) above for cabling; 3 RU if ground bar option is used.

4. See drawings included with this manual for more information. Cross-reference list options on panel to

drawings to verify exact configuration.

(8.7” H x 23” W x 7.4” D)

[all dimensions do not include mounting brackets]

Argus Technologies Ltd. 020-588-B1 Rev C WC

SPECIFICATIONS FOR ARGUS’ FRONT ACCESS PLUG-IN BREAKER PANELS CONTINUED

Part Numbers and List Options

This product is available to order under the following part numbers and list options: Description Part Number/List Option

Breaker Panel, 16-Position, 19” and 23” Mounting, Front Access.............................................................020-588-20

Breaker Panel, 20-Position, 23” Mounting, Front Access..........................................................................020-589-20

Basic unit..............................................................................................................................................................List 0

24Vdc...................................................................................................................................................................List 1

48Vdc...................................................................................................................................................................List 2

Form B contacts.................................................................................................................................................List 11

Front access ground bar....................................................................................................................................List 17

19”/23” Rack mount, 1.75” racks, blue/gray, English.............................................................................List 19/23,50*

23” Rack mount, blue/gray, English...........................................................................................................List 23,50**

23” Flush mount, blue/gray, English ...........................................................................................................List 25,50*

23” Wall mount...........................................................................................................................................List 26,50**

24Vdc Load disconnect......................................................................................................................................List 71

48Vdc Load disconnect......................................................................................................................................List 72

Split (A/B) rear input (hot), requires List 86........................................................................................................List 80

Blank plate .........................................................................................................................................................List 81

Single shunt mounting (B-series), rear input......................................................................................................List 83

Dual shunt mounting (B-series) .........................................................................................................................List 84

Rear input (hot)..................................................................................................................................................List 86

Front input (hot)..................................................................................................................................................List 87

Hanger bracket, mounting...............................................................................................................................List 95**

Breakers:

5A....................................................................................................................................................... List 100

10A..................................................................................................................................................... List 101

20A..................................................................................................................................................... List 102

30A..................................................................................................................................................... List 103

40A..................................................................................................................................................... List 104

50A..................................................................................................................................................... List 105

60A..................................................................................................................................................... List 106

70A..................................................................................................................................................... List 107

80A..................................................................................................................................................... List 108

90A..................................................................................................................................................... List 109

100A................................................................................................................................................... List 110

15A..................................................................................................................................................... List 111

25A..................................................................................................................................................... List 112

* 020-588-20 only ** 020-589-20 only

The above information is valid at the time of publication. Consult factory for up-to-date ordering information. Specifications are subject to change without notice.

Argus Technologies Ltd. 020-588-B1 Rev C WC

WARRANTY AND REPAIR INFORMATION

Warranty Policy

Argus Technologies Ltd. warrants all equipment manufactured by it to be free from defects in parts and labor, excluding third party OEM materials (example: air conditioners, batteries), for a period of two years from the date of shipment from the factory. For third party products the OEM’s warranty shall apply. The liability of Argus applies solely to repairing, replacing or issuing credit (at Argus’ sole discretion) for any equipment manufactured by it and returned by the customer during the warranty period. The terms of the warranty are Ex Works (EXW) from Argus’ factory service location.

Argus reserves the right to void the warranty if: (1) identiﬁcation marks or serial numbers are removed or altered in any way, (2) invoice is unpaid, or (3) defect is the result of misuse, neglect, improper installation, environmental conditions, non-authorized repair, alteration or accident.

Argus shall not be liable to the customer or other parties for any loss of proﬁts, loss of use, costs for removal or installation of defective equipment, damages or consequential damages based upon equipment failure during or after the warranty period. There shall be no other obligations either expressed or implied. Argus will not honor warranties for batteries and other third party products without prior written Argus authorization.

Freight Policy

Customer is responsible for all shipping and handling charges (COD and freight collect will not be accepted without prior approval from Argus Technologies).

Terms of Payment (North America)

Payment terms are net 30 days subject to prior credit approval. All other orders require payment before shipping.

Terms of Payment (International)

Payment terms are subject to prior approval and are typically through Tele-Transfer.

Return Material Policy

Our RMA policy is designed to ensure prompt, efﬁcient and high quality factory service. A Return Material Authorization (RMA) number must be obtained before products can be accepted for servicing by the Argus factory. For returns to an authorized service center (refer to “Authorized Service Centers” for locations), please consult the individual service center for speciﬁc return policies and instructions.

To obtain a RMA number for a factory return, customers must call the appropriate location with the product serial and model number, as well as a brief description of the problem, shipment instructions and billing details.

The original packing container should be used whenever possible. Both the shipping documents and the outside of the box must have the RMA # clearly marked and the product shipped prepaid to the Argus factory service center. Argus will endeavor to repair products within ﬁve working days of receipt. Repairs to the returned product are warranted for a period of six months. A service charge may be applied if no fault is found in the returned product. Argus will not accept products without an RMA number.

Business Hours

Argus North American ofﬁce hours are 7:30 am to 5:00 pm (Paciﬁc Standard Time) Monday to Friday.

Factory Service Centers

Canada and International

Argus Technologies Ltd. ATTN: RMA Returns 7033 Antrim Avenue Burnaby, BC, V5J 4M5 Canada Tel: +1 604 436 5900

+1 604 436 1233

Fax: Email: returns@argusdcpower.com

USA Argus Technologies Inc. ATTN: RMA Returns 3116 Mercer Avenue Bellingham, WA, 98225 USA Tel: +1-360 756 4904

+1-360 647 0498

Fax: Email: returns-usa@argusdcpower.com

Asia-Paciﬁc

PCM Electronics (Dong Guan) Co., Ltd. Hongli Industrial Area, Miaobian, Liaobu Town, Dongguan City, Guangdong Province, 523400 China Tel: +86 755 8895 3310

+86 755 8895 3307

Fax:

Authorized Service Center

Argentina

Argus Technologies de Argentina Belen 315, Capital Federal, Buenos Aires, 1407l Argentina Tel: +54 (11) 4672 4821

+54 (11) 4504 4698

Fax: Cell: +54 9 (11) 4993 9996 Email: lkleiman@argus.ca

Asia

Argus Technologies Asia Pte Ltd Blk 6 Tagore Lane #160 Singapore 787570 Tel: +65 6458 8900

+65 6458 2122

Fax:

Australia

CPS National 8/376 Newbridge Rd Moorebank, NSW, 2170 Australia Tel: +61 02 9822 8977

+61 02 9822 8077

Fax:

Australia/New Zealand

Alpha Power Systems Pty Ltd Unit 3, 30 Heathcote Road Moorebank, NSW, 2170 Australia Tel: +61 02 9602 8331

+61 02 9602 9180

Fax:

Century Yuasa 37 - 65 Colbalt Street Carole Park QLD 4300 Australian Sales & Service Tel: +61 07 3361 6587

+61 07 3361 6705

Fax: New Zealand Sales & Service Tel: +64 9 978 6689

+64 9 978 6677

Fax:

Canada

Compower Systems Inc. 118 Tifﬁeld Road Toronto, ON, M1V 5N2 Canada Tel: +1 416 293 3088

+1 416 293 0671

Fax:

Europe

Alpha Technologies Europe Ltd. Cartel Business Estate Edinburgh Way Harlow, Essex, CM20 2DU UK Tel: +44 1279 422110

+44 1279 423355

Fax:

Mexico & Central America

Technologies Argus First De Mexico SA de CV Anatole France No. 17 Col. Polanco Mexico City, 11560 Mexico Tel: +52 55 5280 6990

+52 55 5280 6585

Fax:

South America

Argus Technologies Argentina Santo Tome 2573, Capital Federal Buenos Aires, 1416 Argentina Tel: +54 11 4504 4698

+54 9 11 4993 9996

Cell: E-pager: 541149939996@nextel.net.ar

Turkey

IPC Enerji Elk San ve TIC AS Inonu cad. Kanarya sok. No:20 Yenisahra - Kadikoy Istanbul, Turkey Tel: +90 216 317 41 42

+90 216 472 90 66

Fax:

Canada and USA toll free 24 hour emergency technical support:

048-507-10-I1 Rev S (09/2007)

1 888 GO ARGUS (462 7487) Outside North America: +1 604 436 5547
