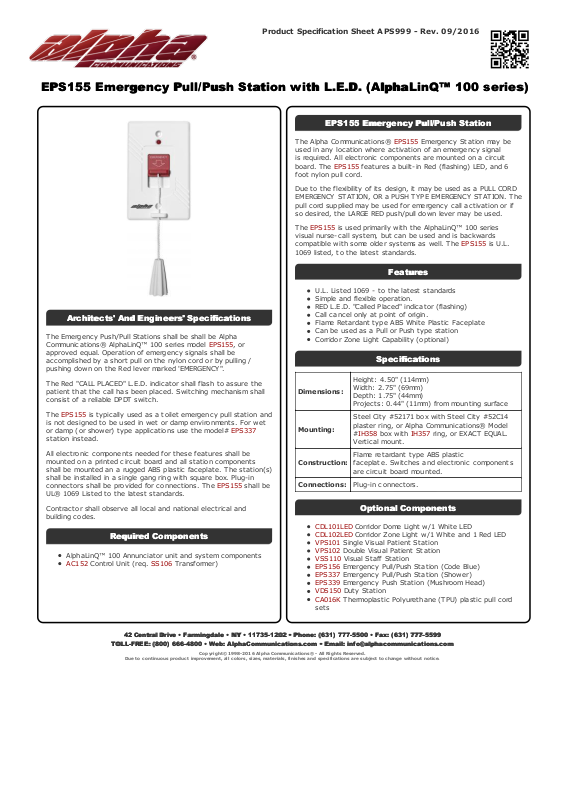

Product Specification Sheet APS999 - Rev. 09/2016

EPS155 Emergency Pull/Push Station with L.E.D. (AlphaLinQ™ 100 series)EPS155 Emergency Pull/Push Station with L.E.D. (AlphaLinQ™ 100 series)

42 Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone] Central Drive • Farmingdale • NY • 11735-1202 • Phone: [phone] • Fax: [phone]

TOLL-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]-FREE: [phone] • Web: AlphaCommunications.com • Email: [e-mail]

Copyright © 1998-2 016 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The Emergency Push/Pull Stat ions shall be shall be Alpha
Communications® AlphaLinQ™ 100 series model EPS155, or
approved equal. Operation of emergency signals shall be
accomplished by a short pull on the nylon cord or by pulling /
pushing down on t he Red lever marked 'EMERGENCY".

The Red "CALL PLACED" L.E.D. indicator shall flash to assure the
patient that the call has been placed. Switc hing mechanism shall
consist of a reliable DPDT switc h.

The EPS155 is typically used as a t oilet emergency pull station and
is not designed to be used in wet or damp environments. For wet
or damp (or shower) type applications use the model# EPS337
stat ion instead.

All electronic components needed for these features shall be
mounted on a printed c ircuit board and all st ation c omponents
shall be mounted an a rugged ABS plastic fac eplate. The station(s)
shall be installed in a single gang ring with square box. Plug-in
connectors shall be provided for connec tions. The EPS155 shall be
UL® 1069 Listed t o the latest standards.

Contractor shall observe all local and national electrical and
building codes.

Required ComponentsRequired Components

AlphaLinQ™ 100 Annunciator unit and syst em components

AC152 Control Unit (req. SS106 Transformer)

EPS155 Emergency Pull/Push StationEPS155 Emergency Pull/Push Station

The Alpha Communications® EPS155 Emergency Stat ion may be
used in any location where ac tivation of an emergency signal
is required. All electronic components are mounted on a c ircuit
board. The EPS155 features a built- in Red (flashing) LED, and 6
foot nylon pull cord.

Due t o the flexibility of its design, it may be used as a PULL CORD
EMERGENCY STATION, OR a PUSH TYPE EMERGENCY STAT ION. The
pull cord supplied may be used for emergency call activation or if
so desired, the LARGE RED push/pull down lever may be used.

The EPS155 is used primarily with t he AlphaLinQ™ 100 series
visual nurse-call system, but c an be used and is backwards
compat ible with some older syst ems as well. The EPS155 is U.L.
1069 listed, to t he latest standards.

FeaturesFeatures

U.L. Listed 1069 - to the latest standards
Simple and flexible operation.
RED L.E.D. "Called Placed" indicator (flashing)
Call cancel only at point of origin.
Flame Retardant t ype ABS White Plastic Fac eplate
Can be used as a Pull or Push type station
Corridor Zone Light Capability (opt ional)

SpecificationsSpecifications

Dimensions:

Height: 4.50" (114mm)
Width: 2.75" (69mm)
Depth: 1.75" (44mm)
Projects: 0.44" (11mm) from mounting surface

Mounting:

Steel City #52171 box with Steel City #52C14
plaster ring, or Alpha Communications® Model
#IH358 box with IH357 ring, or EXACT EQUAL.
Vertical mount.

Construction:

Flame retardant type ABS plastic
fac eplate. Switc hes and electronic components
are circuit board mounted.

Connections: Plug-in connec tors.

Optional ComponentsOptional Components

CDL101LED Corridor Dome Light w/1 White LED
CDL102LED Corridor Zone Light w/1 White and 1 Red LED
VPS101 Single Visual Patient Stat ion
VPS102 Double Visual Patient St ation
VSS110 Visual Staff Stat ion
EPS156 Emergency Pull/Push Station (Code Blue)
EPS337 Emergency Pull/Push Station (Shower)
EPS339 Emergency Push Station (Mushroom Head)
VDS150 Duty Station
CA016K T hermoplastic Polyurethane (TPU) plastic pull cord

sets
