Alpha CFR 1500, CFR 2000, CFR 2500, CFR 3000 User Manual
Operator’s Manual
Alpha CFR 1500, CFR 2000,
CFR 2500, and CFR 3000
U N I N T E R R U P T I B L E P O W E R S U P P L I E S
F R O M A L P H A T E C H N O L O G I E S
Operator’s Manual
Alpha
CFR 1500, CFR 2000,
CFR 2500, and CFR 3000
U N I N T E R R U P T I B L E P O W E R S U P P L I E S
IMPORTANT SAFETY INSTRUCTIONS
CONTAINED IN THIS MANUAL
CAUTION
RISK OF ELECTRICAL SHOCK
CAUTION: To reduce the risk of electrical shock, and to
ensure the safe operation of this unit, the following
symbols have been placed throughout the manual.
Where these symbols appear, servicing should be
performed only by qualified personnel.
Dangerous Voltage
A dangerous voltage exists in this area.
Use extreme caution.
Attention
Important operating instructions.
Follow these instructions closely.
WARNING:
To reduce the risk of fire and shock hazards, do not
expose this unit to rain or moisture.
SAVE THESE INSTRUCTIONS
This manual contains important installation and
operating instructions. Keep this manual in a safe
place.
THE ALPHA CFR
IMPORTANT SAFETY PRECAUTIONS
Carefully unpack the unit. Report any shipping damage immediately.
Please read the operators manual. If you have any questions regarding the safe
installation of the unit, contact Alpha Technologies.
The unit should be serviced only by qualified personnel.
The unit contains more than one live circuit. Even though AC is not present at the
input, it may be present at the output.
Always switch the battery circuit breaker to off before connecting or disconnecting an
external battery pack. This greatly reduces the chance of spark.
For units with a detachable AC line cord, connect a dedicated grounding wire (14 AWG/
2.0 MM2) from the ground lug on the back of the unit to an electrical ground point. This
will provide a safety ground connection to the unit and all of its attached equipment,
even when the AC line cord is unplugged.
The connections on the back of this unit are not for use with telephone network
connections.
The standard unit, with line cord and receptacles, may be installed by a non-technical
user.
Units equipped with terminal block input or output connectors, or external battery
packs, must be installed by qualified service personnel in accordance with the following
table:
MODEL TERMINAL BLOCKS TIGHTENING TORQUE
AWG mm
1500-2500 (60Hz) 14 2.0 35 4.0
3000 (60Hz) 12 3.0 35 4.0
2000-3000 (50Hz) 16 1.5 35 4.0
When not in service, the batteries should be charged at least once every three months
to ensure optimum performance and battery life. For standard units, simply plug the
units’ power cord into a wall receptacle and leave it running for one to three days.
The unit should be installed upright in a well ventilated area that is free of dust and
moisture.
Alert Fire or Emergency personnel than an uninterruptible power supply is installed in
the building by placing a notification or warning label on the electrical panel.
When connecting a load to the unit’s rear panel, do not exceed the output rating of the
unit.
2
Inch Newton
Pounds Meters
THE ALPHA CFR
IMPORTANT SAFETY PRECAUTIONS
The CFR 1500-3000 Series units contain sealed, Lead-Acid batteries consisting of:
Four batteries, six cells each, 48 VDC total.
WARNING: Batteries contain high energy and chemical hazards. Carefully read this
manual regarding safe battery handling, maintenance and disposal instructions.
Inspection and replacement should be performed only by qualified personnel.
Wear insulated gloves and eye protection whenever working inside the battery
compartment.
Do not allow live battery wires to contact the unit’s chassis. Shorting battery wires
could result in a fire or possible explosion.
Batteries should be inspected every year for signs of cracking, leaking, or signs of
swelling.
Always replace batteries with those of an identical type and rating. Never install old
or untested batteries.
Avoid using uninsulated tools or other conductive materials when handling batteries
or working inside the unit.
Remove all rings, watches and other jewelry before servicing batteries.
Spent batteries are considered environmentally unsafe. Always recycle batteries..
Verify the voltage requirements of the equipment to be protected (load), the AC input
to the UPS (Line), and the output voltage of the UPS prior to installation.
The utility service panel should be equipped with a circuit breaker that is rated
(Amperage) for use with the UPS
Use proper lifting techniques whenever handling the UPS or an external battery pack.
The Alpha CFR
Table of Contents
The Alpha CFR 1500, CFR 2000, CFR 2500, and CFR 3000
Uninterruptible Power Supplies
1. INTRODUCTION .................................................................1
2. FEATURES .........................................................................5
3. INSTALLATION ..................................................................17
1.1 The Alpha CFR ............................................................1
1.2 The CFR Advantage.....................................................2
1.3 Unpacking and Inspection ............................................4
2.1 A Tour of the CFR .......................................................5
2.2 CFR Front Panel ..........................................................5
2.3 CFR Rear Panel ...........................................................6
2.4 Information Management Options .................................8
Standard Interface Device
Intelligent Interface Device
External Modem
2.5 Communication / Interface Options ......................... 10
RS-232 Monitoring / Control Applications
Rear Panel Connectors
RS-232 Connector
Standard CFR-UPS
Desktop IID
LAN Interface Connector
External IID Connector
External Alarms Connector
EPO Emergency Power OFF Switch
3.1 Pre-Installation ............................................................. 17
Site Preparation
Utility Circuit Breaker
Grounding
Standby Generators
3.2 Connecting the CFR ....................................................18
3.2.1Terminal Block Input and Output ...................................19
3.3 External Battery Pack ...................................................21
3.4 208VAC/240VAC Configurations ..................................22
4. OPERATION .......................................................................25
4.1 Start-up and Test..........................................................25
Manual Self-test
Audible Alarm OFF
Manual Start (No AC Line Power)
Switching OFF the UPS
i
The Alpha CFR
Table of Contents,
4. OPERATION,
4.2 Using the Standard Interface Device.............................28
continued
continued
UPS Powering Up
Output Shutdown Pending
Output Shutdown in Progress
Line Present Operation
Line Failure (AC Input Out of Tolerance)
Line Failure Operation
Line Synchronization
Low Battery Warning
Low Battery Shutdown
Test
Service
Alarm Off Switch
Manual Start / (Hold to Test) Switch
Output Load Display
5. RS-232 TERMINAL COMMUNICATION.............................33
5.1 Remote RS-232 Operation ...........................................33
5.2 RS-232 Menu Selection Icons ...................................... 34
5.3 Remote Terminal Quick Reference ............................... 35
5.4 Menu Commands Overview .........................................36
5.5 System Parameters......................................................37
5.6 Input Parameters .......................................................... 38
5.7 Output Parameters .......................................................38
5.8 Battery Parameters ...................................................... 40
5.9 User Parameters ..........................................................40
5.10 Maintenance Parameters ..............................................45
5.11 Parameter DUMP Command ........................................47
5.12 Event Descriptions ....................................................... 48
5.13 RS-232 Terminal Setup ................................................52
6. MAINTENANCE ..................................................................53
7. SPECIFICATIONS ..............................................................64
8. WARRANTY........................................................................ 66
6.1 CFR Maintenance ........................................................ 53
6.2 Battery Maintenance.....................................................53
6.3 Battery Testing .............................................................54
6.4 Removing the CFR Front Panel and Cover ...................55
6.5 Internal Battery Replacement........................................56
6.6 Troubleshooting Guide ................................................. 59
6.7 Troubleshooting Using The SID ....................................61
6.8 Repair Instructions ....................................................... 63
6.9 Parts and Ordering Instructions .................................... 63
7.1 Specifications ...............................................................64
IMPORTANT:
EMERGENCY SHUTDOWN PROCEDURE ON INSIDE BACK COVER
ii
1. INTRODUCTION
1.1 The Alpha CFR
Congratulations on your purchase of one of the most advanced and intelligent
Controlled Ferroresonant-Uninterruptible Power Supplies (CFR-UPS) in the world! The
Alpha CFR is designed to keep your equipment operating, regardless of the condition
of your utility power. This means that your vital equipment will no longer be affected by
spikes, surges, sags, noise, brownouts, blackouts or other forms of electrical disturbances. Operation is as simple as plugging your equipment into the back of the UPS
and switching on the power.
The CFR provides you with a wide range of power management options using
your choice of interface devices. The Standard Interface Device displays vital UPS
operating parameters, including Alarms, and allows you to manually self-test the UPS.
The Intelligent Interface Device provides you with precise Voltage, Current and
Frequency information, plus maintains an on-going record of all Alarm and Line Failure
Events. As an active center of communication, your CFR can also be interfaced
directly to your computer system to inform you, and your users, of changes in status as
they occur.
With distribution networks and service centers located throughout the world,
Alpha Technologies is here to back you up. From your date of purchase, Alpha
provides complete technical support and prompt, reliable service to ensure that your
CFR-UPS provides you with a lifetime of reliable operation.
The Alpha CFR-UPS provides regulated, current-limited,
output with excellent isolation and noise attenuation.
1
1. INTRODUCTION
1.2 The CFR Advantage
Power protection devices can be judged by the type and quality of power they
provide. Alpha CFR Uninterruptible Power Supplies provide continuous, conditioned
“computer-grade” AC power to electronic equipment such as Computer Systems,
Point of Sale Terminals, Process Controls, Telecommunications, Cable TV Headend,
Broadband LAN, Manufacturing Control Systems, Critical Care and Hospital Lab
Equipment.
Alpha's proven design virtually eliminates surges and spikes. The Alpha CFR
UPS provides spike attenuation of 2000 to 1 and meets the requirements of IEEE 587
/ ANSI 62.41.
Unlike many standby power systems which regulate output voltage
only when operating from their battery backup, the Alpha CFR UPS
constantly maintains +1% output regulation without using precious battery power.
Even with input voltage fluctuations as great as +10% or -25%, the output remains
constant, regardless of load.
Electromagnetic and Radio Frequency Interference (EMI and RFI) can damage
semiconductors and have devastating effects on critical data. The CFR UPS input is
totally isolated
ference. Measured in decibels (dB) of attenuation, Alpha's CFR achieves up to 120
dB common mode, and 60 dB normal mode.
Alpha's EBP Series External Battery Packs allow you to greatly extend your
backup capabilities and power through long utility outages. Completely self-contained
and pre-wired, simply plug the EBP cabinet into your CFR and forget about it. EBP
Series External Battery Packs can also be ordered with an optional, external charger
to greatly reduce battery recharge times.
ADVANCED POWER PROTECTION TECHNOLOGY
SURGE AND SPIKE REJECTION
REGULATION
ISOLATION
from the output to provide maximum protection from this type of inter-
EXTENDED BACKUP CAPABILITY
2
1. INTRODUCTION
1.2 The CFR Advantage,
COMMUNICATIONS AND INTELLIGENCE
Alpha's interchangeable Standard Interface Device and Intelligent Interface
Device allow your CFR to become an active part of your communications network
providing you with a variety of interface options.
SELF-TEST CAPABILITIES
The CFR has a built-in, self-test function that checks all critical areas of the
UPS, including the batteries, to ensure optimum performance. Whenever a problem
is detected, the UPS lights a “Service” indicator. Self-test is extremely useful during
troubleshooting and maintenance.
PRECISE LOAD & OVERLOAD INFORMATION
The Alpha CFR provides vital load information to eliminate guess work associated with matching the appropriate load to your unit. The Alpha CFR displays the
existing load and, whenever the load exceeds the rated output, an "Overload"
indicator is illuminated.
The CFR UPS is equipped with a frequency sense circuit, along with a constant
slew frequency synchronization circuit, to provide trouble-free operation with most
standby generators.
Designed to meet or exceed the safety standards established by UL, CSA and
VDE, the Alpha CFR UPS is one of the safest, most reliable and versatile
uninterruptible power supplies available. Our commitment to safety and quality
engineering has not only established industry-wide safety standards, but has earned
Alpha Technologies international recognition as a leader in power protection
equipment.
continued
GENERATOR READY
SAFETY
3
1. INTRODUCTION
1.3 Unpacking and Inspection
Carefully remove the UPS from its shipping container. Inspect the contents. If
items appear to be damaged or missing, contact Alpha Technologies and the shipping
company immediately. Most shipping companies have only a short claim period. Make
sure the following items have been included:
1. CFR Series UPS with AC Line Cord
2. Operator's Manual
3. Any other ordered options
SAVE THE ORIGINAL SHIPPING CONTAINER.
In the event the UPS needs to be returned for service, it should be packaged in
its original shipping container. If the original container is not available, make sure that
the unit is packed with at least three inches of shock-absorbing material to prevent
shipping damage. NOTE: Do not use popcorn-type material. Alpha Technologies is
not responsible for damage caused by the improper packaging of returned units.
PLEASE READ THE OPERATOR'S MANUAL.
Become familiar with the UPS front and rear panels. Review the drawings and
illustrations before proceeding with the UPS installation. If you have questions
regarding the safe installation or operation of the UPS, contact Alpha Technologies.
COMPLETE THE FOLLOWING FOR YOUR RECORDS:
Model #
Serial #
Options
Purchase date
THIS UNIT WAS PURCHASED FROM:
Dealer name
City
State/Province
Zip/Postal Code
Country
Telephone #
4
2. FEATURES
2.1 A Tour of the CFR
The Alpha CFR is designed to be easy to use and extremely flexible. The CFR’s
interchangeable front panel interface devices provide you with a wide range of
information management options. The rear panel accepts a variety of connectors and
receptacle plates to facilitate your most demanding communication and powering
needs.
2.2 The CFR Front Panel
The CFR front panel comes equipped with a Standard Interface Device (SID), or
an optional Intelligent Interface Device (IID), to display vital UPS operating parameters.
The front panel can be easily removed for service or battery access by loosening the
two screws located in the lower grill.

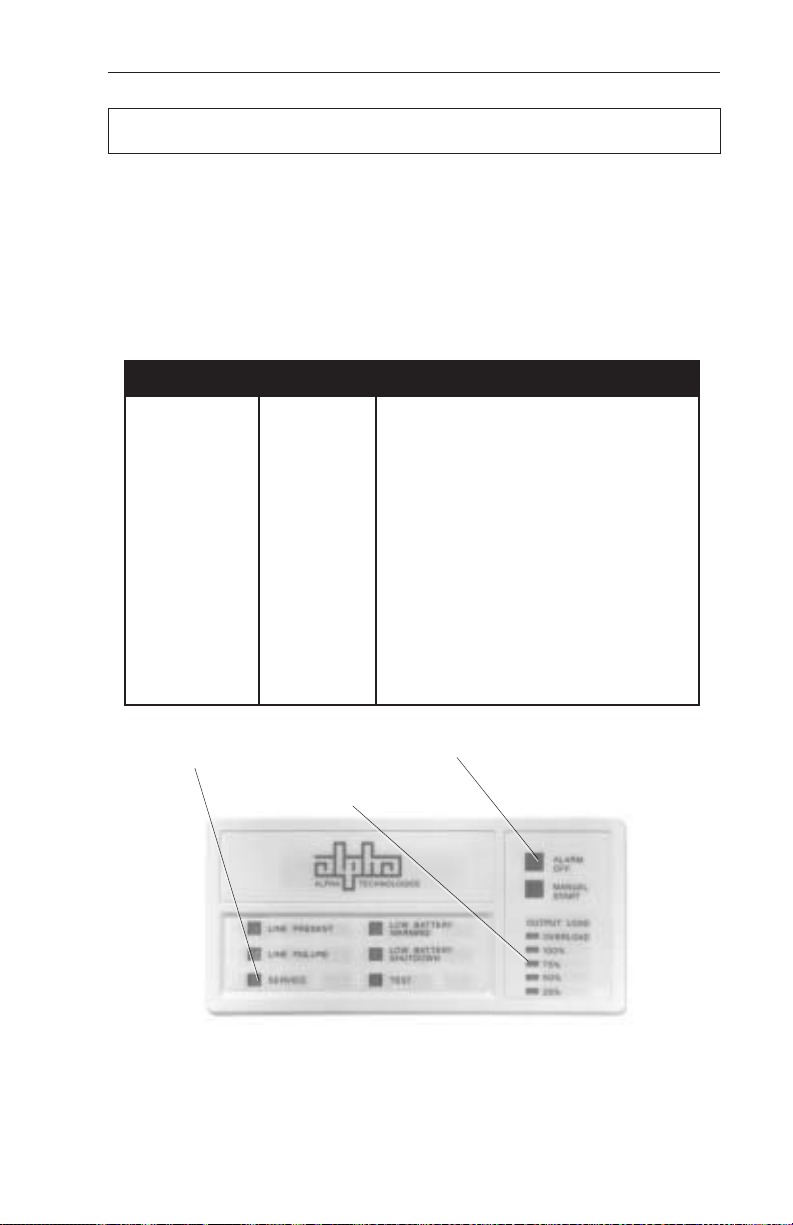

Standard Interface Device
Fig.1
CFR Front Panel
5
Panel Screws
2. FEATURES
2.3 CFR Rear Panel
1. AC LINE Cord
The UPS is equipped with a standard, grounded AC line cord.
2. EXTERNAL BATTERY Connector
The connector accepts a standard plug from the EBP Series Battery Pack.
Extending backup time is as simple as plugging in the battery pack.
3. BATTERY Circuit Breaker
The battery breaker protects the DC circuit. When the UPS is not in service, the
breaker should be switched OFF to preserve the batteries in the UPS and in the EBP
Series Battery Pack, if installed (see section 4.1 “UPS Shutdown”).
4. External Ground Lug (Single Point Ground)
The external ground lug provides a single point connection for optimum grounding
protection. Always refer to your local electrical codes for prescribed grounding
practices.
5. UPS Nameplate Label
The nameplate label contains valuable information relating to the UPS. Always
verify input voltage and frequency (i.e., 120 VAC / 60 Hz) before use.
6. RS-232 Serial Connector (DE-9 Female Connector)*
The standard RS-232 serial interface allows for connection to a host computer/
dumb terminal for remote monitoring, control and calibration of the UPS. Use a straight
through serial cable to connect the UPS to the computer.
7. LAN Interface Connector (DE-9 Female Connector)
The LAN Interface connector provides dry contact status monitoring and output
shutdown capability on a DE-9 female connector and is used by basic UPS monitoring
software for orderly shutdown of computer networks.
8. Modem Connection
Available as an option on 60Hz Models only.
9. External IID Connector (MMJ Connector)*
This connector is used for the optional desktop Intelligent Interface Device (IID) for
remote monitoring and control of the UPS (up to 2000 ft.).
NOTE: This port is disabled by the factory unless an internal IID is installed.
10. External Alarms Connector (RJ-45 Connector)
This provides dry contact closure alarm status on a RJ-45 (center keyed)
connector, indicating LINE FAIL and LOW BATTERY WARNING.
*NOTE: With the SID installed in the UPS, either the External IID port
the RS-232 port can be activated. The factory default is set for RS-232
operation. With the internal IID option installed in the UPS
active.
6
both
ports are
or
2. FEATURES
2.3 CFR Rear Panel
11. Exhaust Fan
The UPS contains a rear panel exhaust fan to ensure maximum cooling protection
during all modes of operation.
12. OUTPUT Receptacle Plate
The load (equipment to be protected) connects to the rear panel output
receptacles. Styles vary depending upon country, frequency and voltage.
13. AC OUTPUT Circuit Breaker
The resettable breaker provides addional output protection to the load.
8
7
9
6
10
11
12
13
5
3
2
4
1

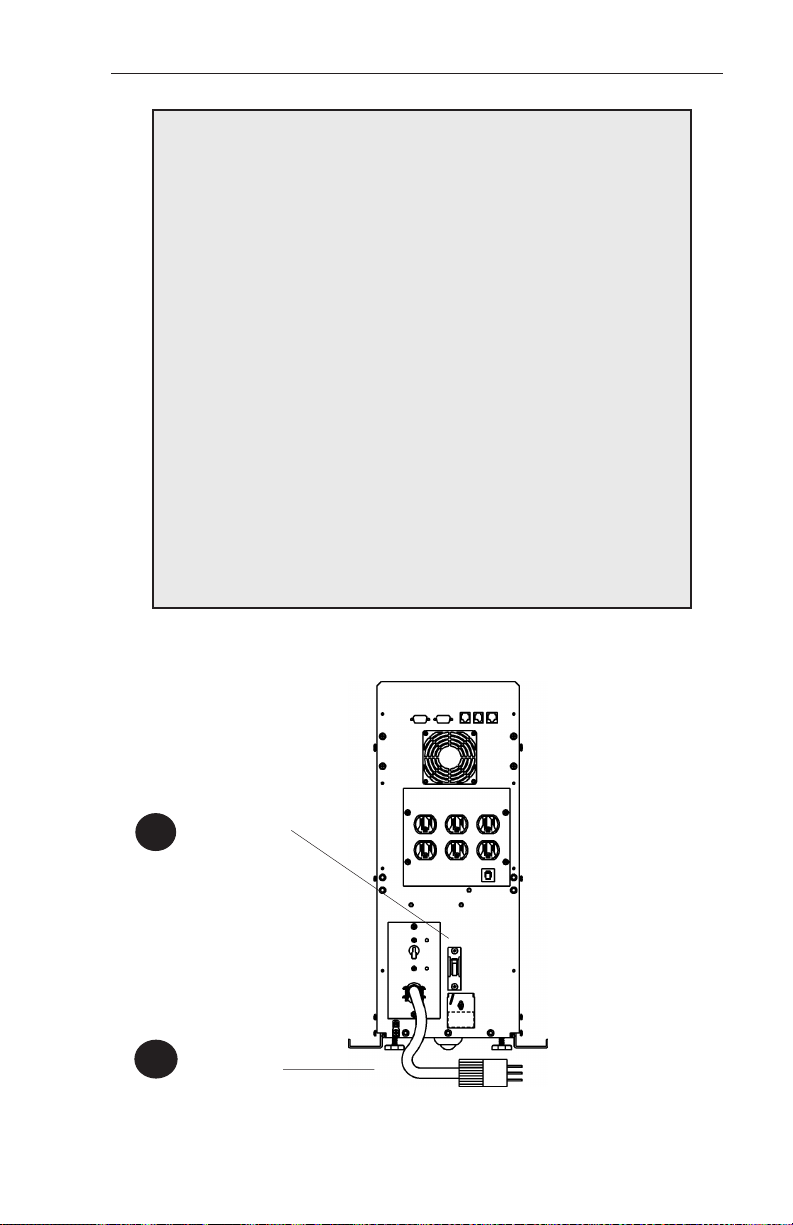

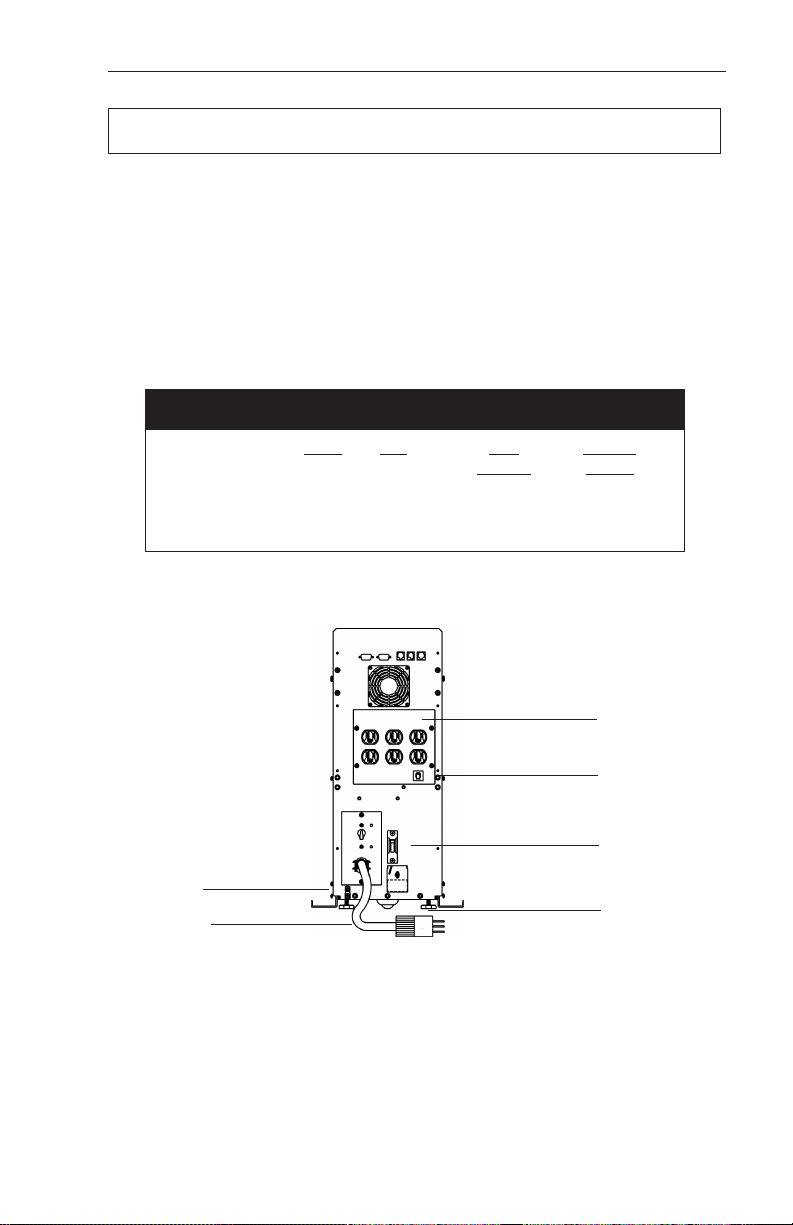

CFR 1500, CFR 2000, CFR 2500, and CFR 3000 Rear Panel
Fig. 2
7
2. FEATURES
2.4 Information Management Options

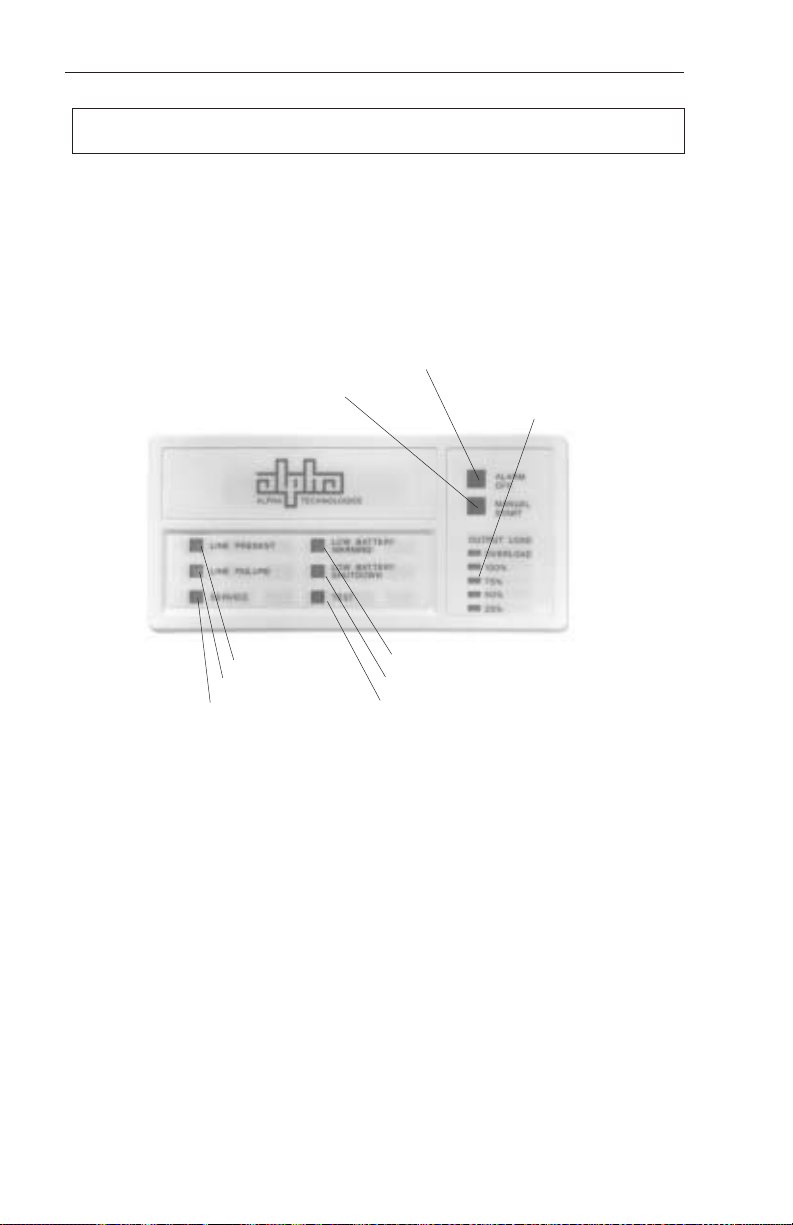

Standard Interface Device
The Standard Interface Device provides you with vital UPS operating parameters
from front panel LEDs (see section 4.2). The Standard Interface also has a load
indicator to help you determine precise loading on your UPS, plus Manual Start and
Alarm Off switches. To ensure optimum backup performance, the Standard Interface
comes with a self-test feature which lights the “Service” LED whenever a problem is
detected.

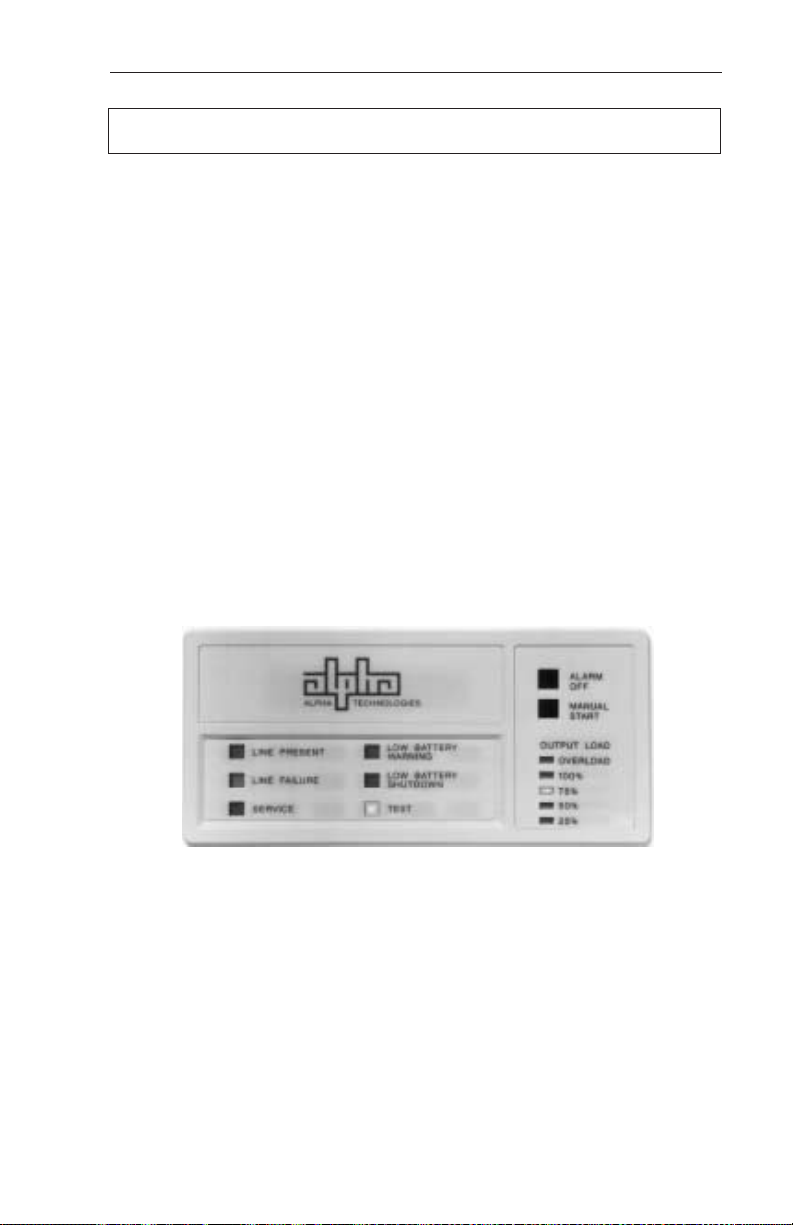

CFR Front Panel with Standard Interface Device
Fig. 3
8
2. FEATURES
2.4 Information Management Options,
Intelligent Interface Device (optional)
The Intelligent Interface Device (IID) option is available either as a replacement
of the Standard Interface Device (SID) or as a desktop unit for remotely accessing
the unit (up to 2000 ft.). The desktop unit comes with an optional modem for
accessing the UPS information via a telephone line. The IID front panel provides
precise UPS information and guides you through the various menu options which
include Ambient Battery Temperature, Input Voltage and Current, Line Frequency,
Output Voltage and Current, Power in Watts, Power Factor, Battery Voltage, Charger
Status, and more. The History Log maintains an on-going record of UPS alarms and
power anomalies by time, date and type of occurrence. Whenever a UPS alarm
condition occurs, such as Line Failure, Low Battery Warning, Low Battery Shutdown
or Service, it is displayed by the front panel indicators and recorded in the History
Log.
External Modem (option available on 60Hz models only)
The optional modem that comes with the desktop IID provides access to the unit
via a phone line. Service personal can dial up the unit to remotely monitor, control,
and calibrate the unit. On specified alarm conditions, the unit can dial an emergency
number to notify the system manager via modem of the alarm. The modem option
may also be used to page service personnel on critical alarm conditions.
For further information on operation and installation of the IID, please
refer to its operator’s manual “Information Management Using the
Intelligent Interface Device.”
continued
Intelligent Interface Device
Fig. 4
9
2. FEATURES
2.5 Communication / Interface Options
The CFR is equipped with four rear panel jacks for communication and remote
interfaces: RS-232 Serial data; LAN Interface; External IID and External Alarms.
Units with the external modem option have a fifth connector for modem connection.
NOTE: With the SID installed in the UPS, either the External IID port
the RS-232 port can be activated. The factory default is set for RS-232
operation. With the internal IID option installed in the UPS
active.
RS-232 Monitoring / Control Applications
The Alpha CFR-UPS provides a standard RS-232 serial port on a DE-9 female
connector. This port may be used to monitor and control the CFR using 1) ASCII
terminals, 2) UPS monitoring software and 3) SNMP agent devices.
You may use the serial port to interface with a dumb terminal or a personal
computer (running a terminal emulation software) to monitor, control, and calibrate
the CFR. All you need is a standard off-the-shelf RS-232 cable (straight through)
and a terminal. Refer to section 5 “RS-232 TERMINAL COMMUNICATION” for
more information.
You may also use the RS-232 serial port to communicate with the intelligent
UPS monitoring software running on a host computer or a SNMP agent device
connected to your LAN network. Alpha Technologies provides the “AlphaNet C”
family of UPS monitoring software and SNMP agents to manage your network
requirements. You can use the “AlphaNet C shutdown software” to monitor the
CFR in a network environment and to perform an orderly system shutdown when
the battery becomes low (during extended line fail situations). AlphaNet C
shutdown software informs all workstations of pending power failures and
shutdowns and in multi-server networks, AlphaNet can shutdown other servers in
the network as well as the workstations. For a full description of the features and
capabilities of AlphaNet C shutdown software, refer to its user’s manual or contact
Alpha Technologies. AlphaNet C is available for all major network platforms and
operating systems — Novell Netware, SCO Unix, IBM OS/2, IBM AIX, Sun Solaris,
Hewlett-Packard HP-UX (DAT), and Digital Equipment (OS/F, VMS, and DECNET).
both
or
ports are
Alpha Technologies also provides the “AlphaNet CS SNMP Agent Device” to
monitor and control the CFR using the SNMP protocol. This provides an interface
between the CFR and your network environment and allows you to use your
Network Management Station (NMS) to monitor and control the CFR. To obtain
detailed information on SNMP management solutions for your CFR refer to
AlphaNet CS SNMP Agent User’s Manual
or contact Alpha Technologies.
10
2. FEATURES
2.5 Communication / Interface Options,
continued
Rear Panel Connectors:
Below are the various communication connectors as they appear on the back of
the CFR-UPS. The photographs show the pin numbering for the different connector
types.
NOTE: Use only fully shielded cables to make connections to any of the
DE-9 connectors (RS-232 port or LAN interface).
RS-232 Serial Connector
LAN Interface Connector
External IID Connector
External Alarms Connector
Pin 1Pin 5
Pin 6 Pin 9
DE-9 Connector (RS-232 and LAN)
Pin 1 Pin 1
RJ-45
(External Alarms)
MMJ
(External IID)
Fig. 5
CFR-UPS Connector Identification and Pin-out
11
2. FEATURES
2.5 Communication / Interface Options,
RS-232 Connector:
The connection/specifications for the RS-232 serial port vary depending on the
installed interface device (i.e., SID or IID option).
RS-232 connection for the standard CFR-UPS (with SID or internal IID display)
The standard CFR-UPS configuration with SID or internal IID connects to a
computer or terminal using a standard straight-through RS-232 cable.
CFR-UPS RS-232 Connector
1
2 Tx
3 Rx
4
5 Gnd
6
7 RTS*
8CTS*
9
Fig. 6
1
2
3
4
5
6
7
8
9
continued
1
2
3
4
5
6
7
8
9
Internal CFR connections
*IID Only (Not used with SID)
Communication Settings with IID:
Baud Rate: 300 to 9600
Parity: None, Even, or Odd
Stop Bits: 1 or 2
Data Bits: 7 or 8
Handshaking: RTS/CTS
RS-232 cable to computer or terminal
Use standard straight through type
Communication Settings with SID:
Baud Rate: 1200
Parity: None
Stop Bits: One
Data Bits: 8
Handshaking: XON / OFF
12
2. FEATURES
2.5 Communication / Interface Options,
RS-232 Connections with desktop IID:
With the desktop IID the cable connecting the computer or terminal to the UPS
is a nonstandard type.
Fig. 7
CFR-UPS RS-232 Connector
1
2 Tx
3 Rx
4
5 Gnd
6
7 RTS
8 CTS
9
Internal CFR connections
continued
1
2
3
4
5
6
7
8
9
RS-232 cable to
computer or terminal
1
2
3
4
5
6
7
8
9
For the desktop IID use a
nonstandard cable type
Communication Settings with IID:
Baud Rate: 300 to 9600
Parity: None, Even, or Odd
Stop Bits: 1 or 2
Data Bits: 7 or 8
Handshaking: RTS/CTS
13
2. FEATURES
2.5 Communication / Interface Options,
continued
LAN Interface Connector
The Alpha CFR-UPS provides a LAN interface port on a DE-9 female connector.
This port may be used to monitor the status of the UPS and shutdown the output
using basic UPS monitoring and shutdown software.
Two dry contacts are provided to indicate LINE FAIL and LOW BATTERY status
information. The port also accepts a dry contact input or an RS-232 level input to
shutdown the UPS output. The shutdown delay, duration, and recovery modes can
be configured using the RS-232 ASCII terminal commands (see section 5 “RS-232
Terminal Communication”). This port has the following pin out:
1
2 LINE FAIL
3
4 COMMON
5 LOW BATTERY
6 OUTPUT SHUTDOWN
7 GND
8 +12VDC, 5mA max.
9
Pin out: (DE-9 connector), Female
Fig. 8
Using basic UPS monitoring software you can monitor and shutdown the CFR
through this port. In network applications, your UPS monitoring software can perform
an orderly shutdown on the network. Basic UPS monitoring software is provided as
part of many operating systems and can also be purchased from third party vendors.
Alpha Technologies “AlphaNet C shutdown software” can also operate in the basic
mode to shutdown the CFR before its battery reserve is exhausted. Refer to
AlphaNet C Shutdown Software User’s Manual
or contact Alpha Technologies for
more information.
14
2. FEATURES
2.5 Communication / Interface Options,
External IID Connector
The external IID connector provides an interface for the optional desktop
Intelligent Interface Device (IID). This allows the CFR to be remotely monitored and
controlled from up to 2,000 feet away. The port uses a proprietary RS-485 protocol
and has the following pin out:
Pin 1
1: +12V DC (unreg) 4: RS-485 Negative
2: +12V DC (unreg) 5: GND
3: RS-485 Positive 6: GND
Fig. 9
Pin out: (MMJ connector, offset key)
Modem (optional configuration with Intelligent Interface Device; available on
60 Hz models only)
When the CFR UPS is equipped with an Intelligent Interface Device (IID), an
internal modem can be installed to provide long-range communications. A standard
modular telephone cable is used to connect the CFR modem jack to the wall jack.
For further information, refer to the Intelligent Interface Device manual.
External Alarms Connector
The external alarms connector provides two contact closures to indicate LINE
FAIL and LOW BATTERY alarms.
continued
EPO (Emergency Power OFF) Switch
Pins 7 and 8 of the ALARM INTERFACE connector provide EMERGENCY
POWER OFF contacts. A switch contact can be hard-wired to the UPS to
completely shut down the system in the event of an emergency, such as a
fire.
In an emergency, the switch must be depressed (shorted) for at least 1.5
seconds. The UPS will shut down approximately 2 seconds after the signal is
recognized. The switch, connected to pins 7 and 8, must be electrically isolated (up
to 1500 VAC isolation is recommended). A system shut down in this manner will
open the BATTERY circuit breaker.
CAUTION: When the EPO switch is activated, the AC line connected to the
UPS input may still be energized. To completely remove the power from the
building, the MAIN AC line breaker in the building must be switched OFF.
Consult your national and local electrical codes for further information.
(Factory Installed Option)
15
2. FEATURES
2.5 Communication / Interface Options,
External Alarms Connector,
Pin out: (RJ-45 connector, centered key)
Low Battery
Warning
Line Failure
N.C. = Normally Closed
N.O. = Normally Open
Line Present
N.C.
N.C.
Battery OK
Pin 1
continued
EPO
Emergency
Power OFF
Option
continued
Pin out: (RJ-45 connector, Female)
1. LINE FAIL, COM contact
2. LINE FAIL, N. C. contact
3. LINE FAIL, N. O. contact
4. LOW BATTERY, N. O. contacts
5. LOW BATTERY, COM contacts
6. LOW BATTERY, N. C. contacts
7.
8.
N.O.
Emergency UPS Shutdown
Switch (Wall Mounted).
NOTE: Cable length must not
exceed 100 feet. Use twisted
or shielded wire.
External Alarms Connector Pin-out
(with factory installed EPO Switch Option)
16
Loading...
